◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#95405) — 18 parça

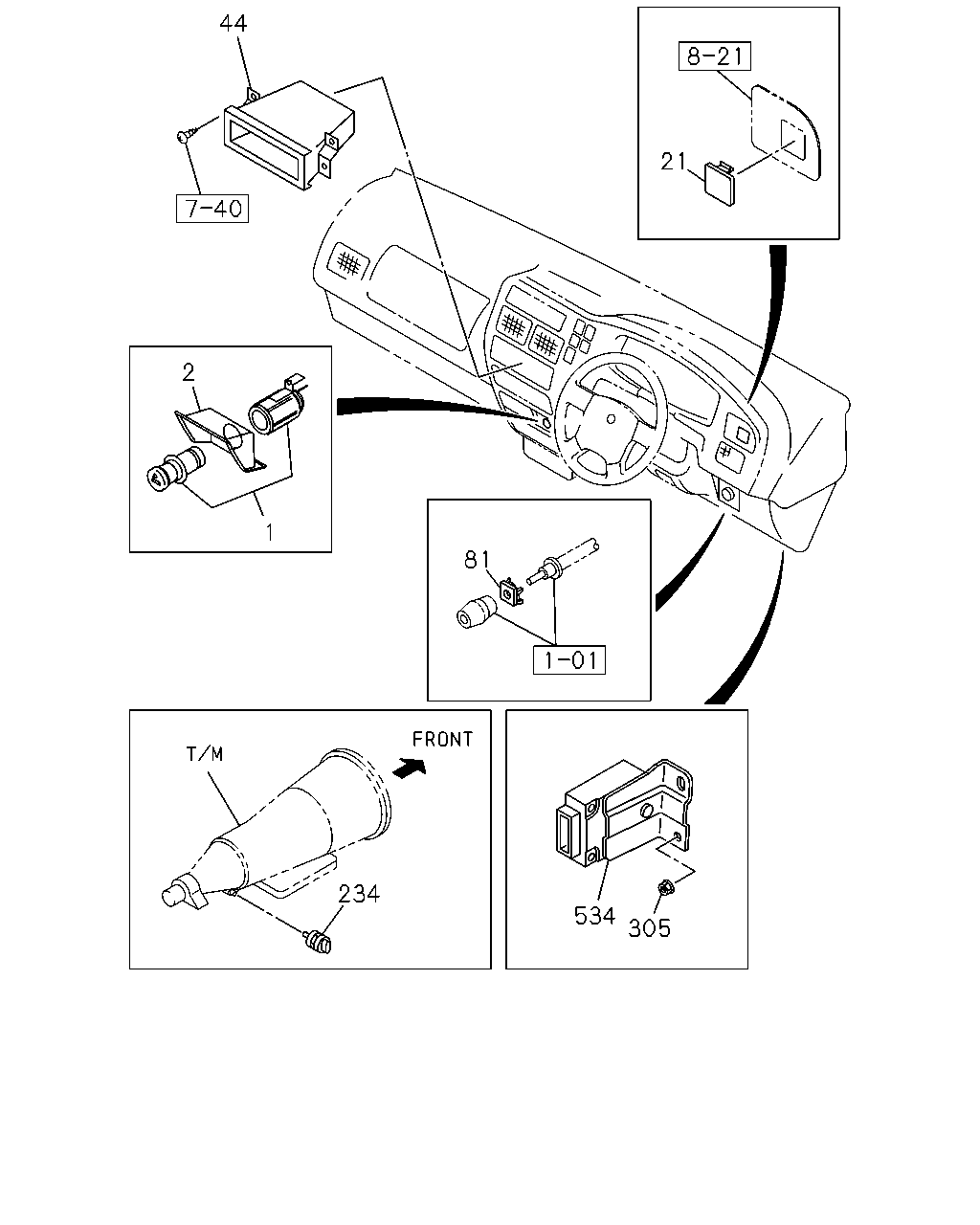

çizim 289291
44 21 81 234 534 305 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-97100-029-0 01 1 0008-0106 ● ● ●
1 LIGHTER; CIGAR 8-97100-029-0 01 1 0107-0206 ● ●
1 LIGHTER; CIGAR 8-97314-003-0 01 1 0207- ● ●
2 BEZEL; CIGAR LIGHTER
BLACK 		8-94333-793-0 01 1 0008-0106 ● ● ●
2 BEZEL; CIGAR LIGHTER
BLACK 		8-94333-793-0 01 1 0107-0206 ● ●
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 0207- ● ●
21 COVER; HOLE
FOG LAMP<T96> EXC. DOOR MIRROR ELEC CONT<DG2> BLACK 		8-97154-764-0 01 1 0008- ● ●
44 BOX; RADIO COVER
EXC. AM/FM RADIO CASSETTE STEREO(UM2) 		8-97114-757-0 01 1 0008-0106 ●
44 BOX; RADIO COVER
EXC. AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) 		8-97114-757-0 01 1 0008-0106 ● ●
44 BOX; RADIO COVER
EXC. AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) 		8-97114-757-0 01 1 0107- ● ●
81 BEZEL; IDLE CONT
IDN 		8-97065-377-3 01 1 0008-0008 ● ● ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0008-0106 ● ● ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0107-0405 ● ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0406- ● ●
305 NUT; CONT UNIT
A/T AISIN(RMD) M8 FLANGE 		0-91150-108-0 02 1 0008-0602 ● ●
305 NUT; CONT UNIT
A/T AISIN(RMD) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
534 CONTROL UNIT; AUTO MISSION
A/T AISIN(RMD) 		8-97261-859-0 01 1 0008-0203 ● ●
534 CONTROL UNIT; AUTO MISSION
A/T AISIN(RMD) 		8-97315-278-0 01 1 0204- ● ●
