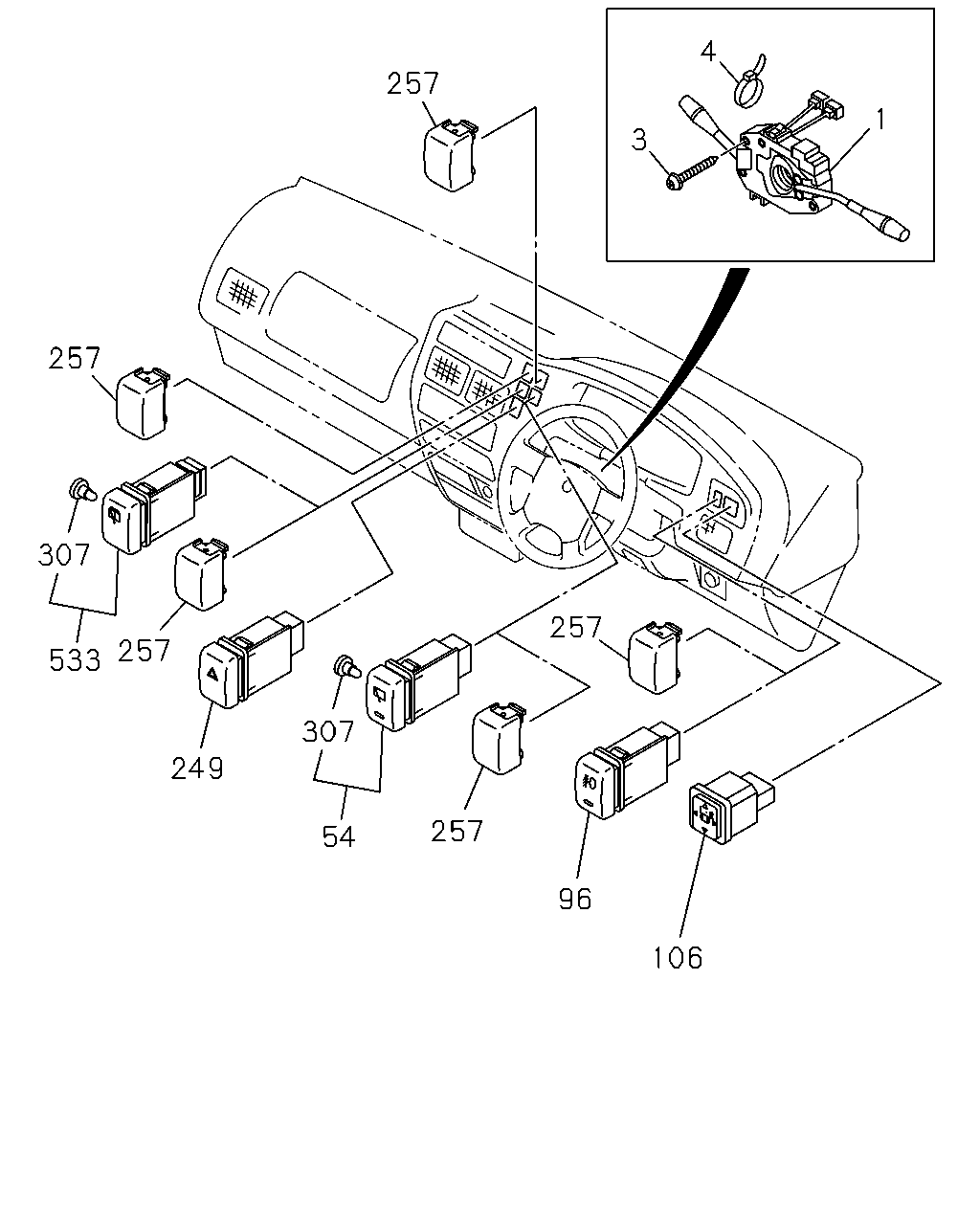

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#95404) — 78 parça

257 257 307 533 257 249 307 54 257 96 106 257 3 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SWITCH; COMB IDN	8-97192-272-1	01	1	0008-0106	●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13> IDN	8-97192-272-1	01	1	0008-0106		●	●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13> IDN	8-97192-272-1	01	1	0107-		●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> IDN	8-97192-271-1	01	1	0008-		●	●
3	SCREW; COMB SW M5X14 W/LK WASHER	9-03910-514-0	02	1	0008-0106	●	●	●
3	SCREW; COMB SW M5X14 W/LK WASHER	9-03910-514-0	02	1	0107-0604		●	●
3	SCREW; COMB SW M5X14 W/LK WASHER	0-36220-514-0	02	1	0605-		●	●
4	CLIP; COMB SW L=250 IDN	5-09707-030-1	02	1	0008-0106	●	●	●
4	CLIP; COMB SW L=250 IDN	5-09707-030-1	02	1	0107-		●	●
54	SWITCH; RR WIPER RR WIPER<C25>	8-97094-078-1	01	1	0008-		●	●
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97104-355-2	01	1	0008-		●	●
106	SWITCH; REMOTE CONT MIRROR DOOR MIRROR ELEC CONT<DG2>	8-97131-293-1	01	1	0008-0106			●
106	SWITCH; REMOTE CONT MIRROR DOOR MIRROR ELEC CONT<DG2>	8-97131-293-1	01	1	0107-		●	●
249	SWITCH; HAZARD THA	8-97916-882-0	01	1	0008-0106	●	●	●
249	SWITCH; HAZARD THA	8-97916-882-0	01	1	0107-		●	●
257	COVER; HOLE,SW	8-97081-617-1	02	1	0008-0106	●
257	COVER; HOLE,SW	8-97081-617-1	02	1	0008-0106	●
257	COVER; HOLE,SW EXC. DIGITAL CLOCK<UE8>	8-97081-617-1	02	1	0008-0106		●	●
257	COVER; HOLE,SW EXC. RR WIPER<C25>	8-97081-617-1	02	1	0008-0106		●	●
257	COVER; HOLE,SW EXC. DIGITAL CLOCK<UE8>	8-97081-617-1	02	1	0107-		●	●
257	COVER; HOLE,SW EXC. RR WIPER<C25>	8-97081-617-1	02	1	0107-		●	●
257	COVER; HOLE,SW DOOR MIRROR ELEC CONT<DG2> EXC. FOG LAMP<T96>	8-97081-617-1	01	1	0008-0106			●
257	COVER; HOLE,SW DOOR MIRROR ELEC CONT<DG2> EXC. FOG LAMP<T96>	8-97081-617-1	01	1	0107-		●	●
307	BULB ASM; SW RR WIPER<C25> 14V 0.84W	8-97117-108-0	02	1	0008-		●	●
533	SWITCH; WASHER RR WIPER<C25>	8-97094-080-1	01	1	0008-		●	●

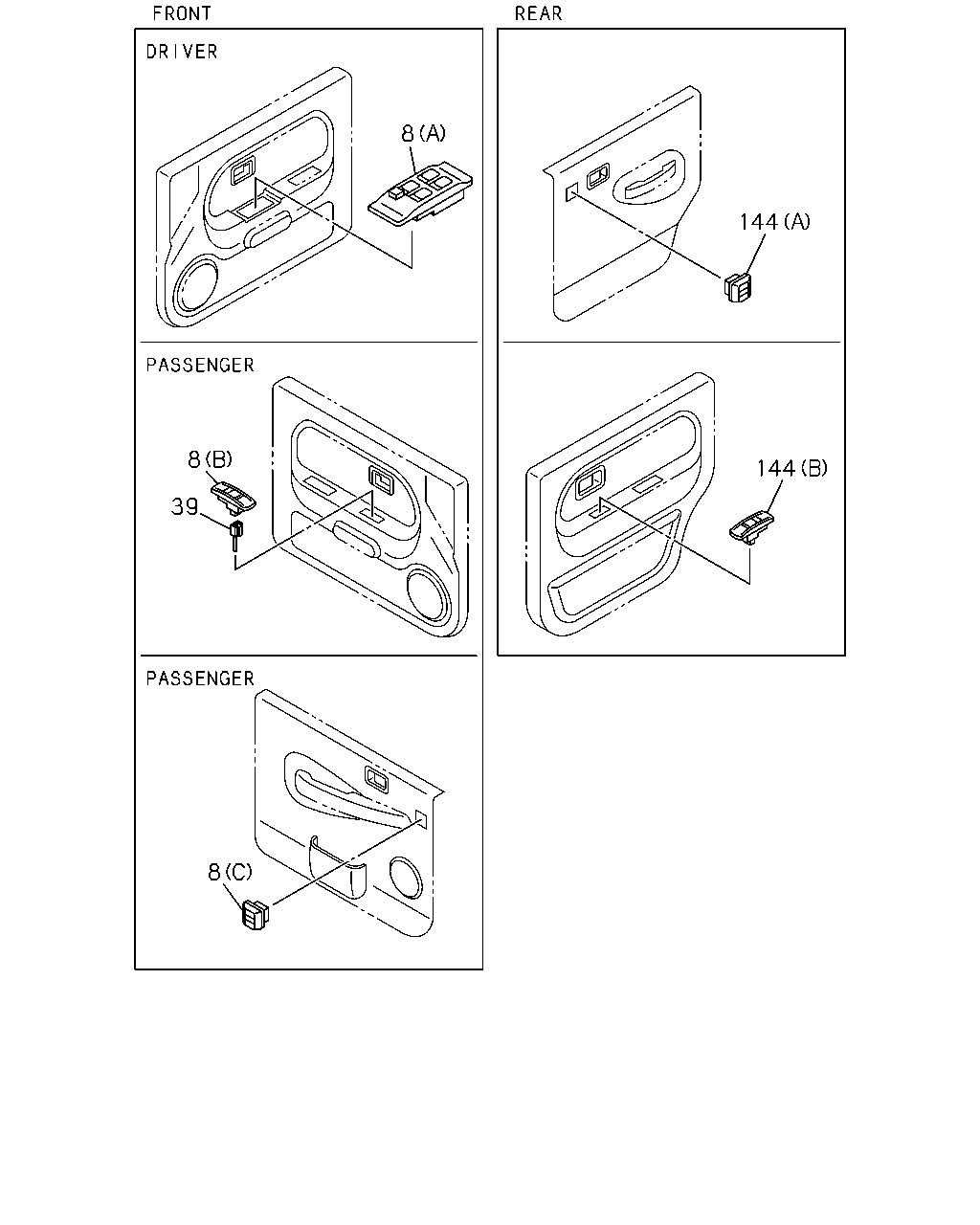

12 99 85 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	RELAY; POWER WINDOW POWER WINDOW<A30> 12V 20A IDN	8-97173-037-1	01	1	0008-		●	●
85	RELAY; HEADLAMP 12V 20A IDN	8-97173-037-1	01	1	0008-0106	●	●	●
85	RELAY; HEADLAMP 12V 20A IDN	8-97173-037-1	01	1	0107-		●	●
99	RELAY; FOG LAMP FOG LAMP<T96> 12V 20A IDN	8-97173-037-1	01	1	0008-		●	●
609	RELAY; CHARGE 12V	8-97063-441-1	01	1	0008-0106	●	●	●
609	RELAY; CHARGE 12V	8-97063-441-2	01	1	0107-		●	●

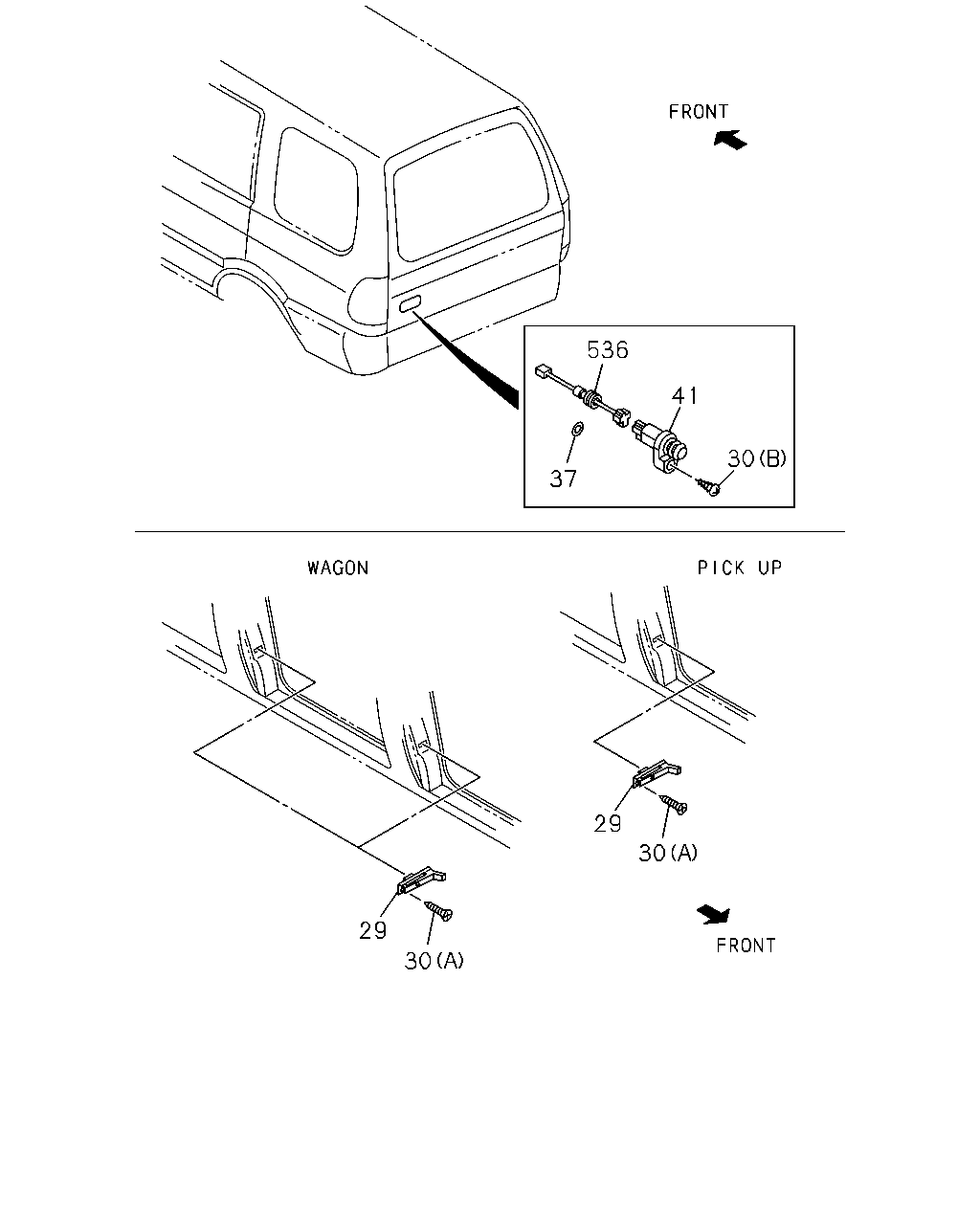

536 41 37 30 29 30 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	SWITCH; DOOR	8-97286-900-0	02	1	0008-0106	●
29	SWITCH; DOOR	8-97286-900-0	04	1	0008-		●	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	0008-0106	●
30	SCREW; DOOR SW GRADE ROYAL(RBB) (B) M5X14	8-94313-116-1	01	1	0008-0106		●
30	SCREW; DOOR SW GRADE ROYAL(RBB),GRADE LS(RBD) (B) M5X14	8-94313-116-1	01	1	0008-0106			●
30	SCREW; DOOR SW GRADE ROYAL(RBB),GRADE TOURING(RBG) (B) M5X14	8-94313-116-1	01	1	0107-0209		●	●
30	SCREW; DOOR SW GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) M5X14	8-94313-116-1	01	1	0210-		●	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	04	1	0008-		●	●
37	SEAL; DOOR SW HOLE GRADE NEW SUPER(RBA) IDN	8-97957-855-0	01	1	0008-		●	●
41	SWITCH; BACK DOOR LOCK GRADE ROYAL(RBB)	8-97192-273-0	01	1	0008-0106		●
41	SWITCH; BACK DOOR LOCK GRADE ROYAL(RBB),GRADE LS(RBD)	8-97192-273-0	01	1	0008-0106			●
41	SWITCH; BACK DOOR LOCK GRADE ROYAL(RBB),GRADE TOURING(RBG)	8-97192-273-0	01	1	0107-0209		●	●
41	SWITCH; BACK DOOR LOCK GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG)	8-97192-273-0	01	1	0210-		●	●
536	HARNESS; SW GRADE ROYAL(RBB) IDN	8-97957-586-1	01	1	0008-0106		●
536	HARNESS; SW GRADE ROYAL(RBB),GRADE LS(RBD) IDN	8-97957-586-1	01	1	0008-0106			●
536	HARNESS; SW GRADE ROYAL(RBB),GRADE TOURING(RBG) IDN	8-97957-586-1	01	1	0107-0209		●	●
536	HARNESS; SW GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) IDN	8-97957-586-1	01	1	0210-		●	●

8 144 144 8 39 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
8	SWITCH; POWER WINDOW GRADE ROYAL(RBB) HI GRADE(6PQ) (B) PASSENGER GRAY	8-97196-871-0	01	1	0008-0209	●	●
8	SWITCH; POWER WINDOW GRADE LS(RBD) (B) PASSENGER BLACK IDN	8-97394-015-0	01	1	0210-0405	●	●
8	SWITCH; POWER WINDOW GRADE LS(RBD) (B) PASSENGER BLACK IDN	8-97394-015-0	01	1	0406-0508	●
8	SWITCH; POWER WINDOW GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (B) PASSENGER BLACK IDN	8-97394-015-0	01	1	0406-0508		●
8	SWITCH; POWER WINDOW GRADE LS(RBD) (B) PASSENGER	8-97404-850-0	01	1	0509-	●
8	SWITCH; POWER WINDOW GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (B) PASSENGER	8-97404-850-0	01	1	0509-		●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> (A) DRIVER GRAY IDN	8-97196-870-1	01	1	0008-0209	●	●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> (A) DRIVER DARK GRAY IDN	8-97562-107-0	01	1	0210-0508	●	●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> (A) DRIVER IDN	8-97562-696-0	01	1	0509-	●	●
8	SWITCH; POWER WINDOW GRADE LS(RBD) (C) PASSENGER GRAY IDN	8-97196-872-1	01	1	0008-0106		●
8	SWITCH; POWER WINDOW GRADE TOURING(RBG) (C) PASSENGER GRAY IDN	8-97196-872-1	01	1	0107-0209	●	●
8	SWITCH; POWER WINDOW GRADE TOURING(RBG) (C) PASSENGER DARK GRAY IDN	8-97562-108-0	01	1	0210-0405	●	●
8	SWITCH; POWER WINDOW GRADE TOURING(RBG) (C) PASSENGER DARK GRAY IDN	8-97562-108-0	01	1	0406-0508	●	●
8	SWITCH; POWER WINDOW GRADE LS(RBD) UP GRADE PACKAGE<7MA> (C) PASSENGER DARK GRAY IDN	8-97562-108-0	01	1	0406-0508		●
8	SWITCH; POWER WINDOW GRADE TOURING(RBG) (C) PASSENGER IDN	8-97562-699-0	01	1	0509-	●	●
8	SWITCH; POWER WINDOW GRADE LS(RBD) UP GRADE PACKAGE<7MA> (C) PASSENGER IDN	8-97562-699-0	01	1	0509-		●
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97956-755-0	01	1	0008-	●	●
144	SWITCH; POWER WINDOW,RR GRADE ROYAL(RBB) HI GRADE(6PQ) (A) GRAY	8-97196-871-0	02	1	0008-0209	●	●
144	SWITCH; POWER WINDOW,RR GRADE LS(RBD) (A) BLACK IDN	8-97394-015-0	02	1	0210-0405	●	●
144	SWITCH; POWER WINDOW,RR GRADE LS(RBD) (A) BLACK IDN	8-97394-015-0	02	1	0406-0508	●
144	SWITCH; POWER WINDOW,RR GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (A) BLACK IDN	8-97394-015-0	02	1	0406-0508		●
144	SWITCH; POWER WINDOW,RR GRADE LS(RBD) (A)	8-97404-850-0	02	1	0509-	●
144	SWITCH; POWER WINDOW,RR GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (A)	8-97404-850-0	02	1	0509-		●
144	SWITCH; POWER WINDOW,RR GRADE LS(RBD) (B) GRAY IDN	8-97196-872-1	02	1	0008-0106		●
144	SWITCH; POWER WINDOW,RR GRADE TOURING(RBG) (B) GRAY IDN	8-97196-872-1	02	1	0107-0209	●	●
144	SWITCH; POWER WINDOW,RR GRADE TOURING(RBG) (B) DARK GRAY IDN	8-97562-108-0	02	1	0210-0405	●	●
144	SWITCH; POWER WINDOW,RR GRADE TOURING(RBG) (B) DARK GRAY IDN	8-97562-108-0	02	1	0406-0508	●	●
144	SWITCH; POWER WINDOW,RR GRADE LS(RBD) UP GRADE PACKAGE<7MA> (B) DARK GRAY IDN	8-97562-108-0	02	1	0406-0508		●
144	SWITCH; POWER WINDOW,RR GRADE TOURING(RBG) (B) IDN	8-97562-699-0	02	1	0509-	●	●
144	SWITCH; POWER WINDOW,RR GRADE LS(RBD) UP GRADE PACKAGE<7MA> (B) IDN	8-97562-699-0	02	1	0509-		●
