◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#95403) — 233 parça
çizim 289118
1 118 118 199 131 110 2 199 183 199 31 82 115 269 118 115 87
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97562-757-0 01 1 0512- ● ●
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97562-756-0 01 1 0512- ● ●
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) TACHOMETER<U16> THA 		8-97562-225-0 01 1 0306-0511 ● ●
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) TACHOMETER<U16> THA 		8-97562-225-0 01 1 0512- ● ●
1 METER COMPL; CLUSTER
THA 		8-97956-681-2 01 1 0008-0106 ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> THA 		8-97956-681-2 01 1 0008-0106 ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> THA 		8-97956-681-4 01 1 0107-0305 ● ●
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> THA 		8-97956-681-5 01 1 0306- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<U16> IDN 		8-97956-682-4 01 1 0008-0305 ● ●
1 METER COMPL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97956-682-5 01 1 0306-0511 ● ●
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE ROYAL(RBB) TACHOMETER<U16> IDN 		8-97956-682-5 01 1 0512- ● ●
2 PANEL; CLUSTER
IDN 		8-97958-515-0 01 1 0008-0106 ● ● ●
2 PANEL; CLUSTER
IDN 		8-97958-515-0 01 1 0107-0305 ● ●
2 PANEL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97958-515-0 01 1 0306-0511 ● ●
2 PANEL; CLUSTER
M/T MSG 5 SPEED(M75) IDN 		8-97958-515-0 01 1 0306-0511 ● ●
2 PANEL; CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97958-515-0 01 1 0512- ● ●
2 PANEL; CLUSTER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97958-515-0 01 1 0512- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 0008-0106 ● ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 0107-0604 ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER IDN 		0-74360-516-0 04 1 0605- ● ●
82 CASE ASM; CLUSTER METER
IDN 		8-97958-516-0 01 1 0008-0106 ● ● ●
82 CASE ASM; CLUSTER METER
IDN 		8-97958-516-0 01 1 0107-0107 ● ●
82 CASE ASM; CLUSTER METER
IDN 		8-97560-493-0 01 1 0107-0305 ● ●
82 CASE ASM; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97560-493-0 01 1 0306-0511 ● ●
82 CASE ASM; CLUSTER METER
M/T MSG 5 SPEED(M75) IDN 		8-97560-493-0 01 1 0306-0511 ● ●
82 CASE ASM; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97560-493-0 01 1 0512- ● ●
82 CASE ASM; CLUSTER METER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97560-493-0 01 1 0512- ● ●
87 SPEEDOMETER
GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97562-758-0 01 1 0512- ● ●
87 SPEEDOMETER
IDN 		8-97958-518-0 01 1 0008-0106 ●
87 SPEEDOMETER
EXC. TACHOMETER<U16> IDN 		8-97958-518-0 01 1 0008-0106 ● ●
87 SPEEDOMETER
EXC. TACHOMETER<U16> IDN 		8-97958-518-0 01 1 0107-0210 ● ●
87 SPEEDOMETER
EXC. TACHOMETER<U16> IDN 		8-97358-641-0 01 1 0211-0305 ● ●
87 SPEEDOMETER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97358-641-0 01 1 0306- ● ●
87 SPEEDOMETER
TACHOMETER<U16> IDN 		8-97958-517-0 01 1 0008-0210 ● ●
87 SPEEDOMETER
TACHOMETER<U16> IDN 		8-97358-640-0 01 1 0211-0511 ● ●
87 SPEEDOMETER
GRADE ROYAL(RBB) TACHOMETER<U16> IDN 		8-97358-640-0 01 1 0512- ● ●
110 GLASS; CLUSTER METER
IDN 		8-97958-514-0 01 1 0008-0106 ● ● ●
110 GLASS; CLUSTER METER
IDN 		8-97958-514-0 01 1 0107-0210 ● ●
110 GLASS; CLUSTER METER
IDN 		8-97359-566-0 01 1 0211-0305 ● ●
110 GLASS; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97359-566-0 01 1 0306-0511 ● ●
110 GLASS; CLUSTER METER
M/T MSG 5 SPEED(M75) IDN 		8-97359-566-0 01 1 0306-0511 ● ●
110 GLASS; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97359-566-0 01 1 0512- ● ●
110 GLASS; CLUSTER METER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97359-566-0 01 1 0512- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
IDN 		8-97958-535-0 01 1 0008-0106 ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97958-535-0 01 1 0008-0106 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97958-535-0 01 1 0107-0107 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97560-497-0 01 1 0107-0305 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97560-497-0 01 1 0306- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> IDN 		8-97958-534-0 01 1 0008-0106 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0107-0511 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0512- ● ●
118 BULB; CLUSTER METER
(C) 14V 1.4W BROWN IDN 		8-97958-543-0 07 1 0008-0106 ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 07 1 0008-0106 ● ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 07 1 0107-0305 ● ●
118 BULB; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 09 1 0306-0511 ● ●
118 BULB; CLUSTER METER
A/T AISIN(RMD) GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 09 1 0512- ● ●
118 BULB; CLUSTER METER
(A) 14V 3.4W BROWN IDN 		8-97958-542-0 04 1 0008-0106 ● ● ●
118 BULB; CLUSTER METER
(A) 14V 3.4W BROWN IDN 		8-97958-542-0 04 1 0107-0305 ● ●
118 BULB; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> (A) 14V 3.4W BROWN IDN 		8-97958-542-0 04 1 0306-0511 ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) (A) 14V 3.4W BROWN IDN 		8-97958-542-0 04 1 0306-0511 ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) 14V 3.4W BROWN IDN 		8-97958-542-0 04 1 0512- ● ●
118 BULB; CLUSTER METER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (A) 14V 3.4W BROWN IDN 		8-97958-542-0 04 1 0512- ● ●
118 BULB; CLUSTER METER
(B) 14V 2W BLUE IDN 		8-97958-545-0 01 1 0008-0106 ● ● ●
118 BULB; CLUSTER METER
(B) 14V 2W BLUE IDN 		8-97958-545-0 01 1 0107-0305 ● ●
118 BULB; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> (B) 14V 2W BLUE IDN 		8-97958-545-0 01 1 0306-0511 ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) (B) 14V 2W BLUE IDN 		8-97958-545-0 01 1 0306-0511 ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (B) 14V 2W BLUE IDN 		8-97958-545-0 01 1 0512- ● ●
118 BULB; CLUSTER METER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (B) 14V 2W BLUE IDN 		8-97958-545-0 01 1 0512- ● ●
118 BULB; CLUSTER METER
TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 09 1 0008-0305 ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) (C) 14V 1.4W BROWN IDN 		8-97958-543-0 07 1 0306-0511 ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 07 1 0512- ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 07 1 0512- ● ●
131 GAUGE; TEMP,CLUSTER METER
IDN 		8-97958-523-0 01 1 0008-0106 ●
131 GAUGE; TEMP,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97958-523-0 01 1 0008-0106 ● ●
131 GAUGE; TEMP,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97958-523-0 01 1 0107-0305 ● ●
131 GAUGE; TEMP,CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97958-523-0 01 1 0306- ● ●
183 GAUGE; FUEL
IDN 		8-97958-524-0 01 1 0008-0106 ●
183 GAUGE; FUEL
EXC. TACHOMETER<U16> IDN 		8-97958-524-0 01 1 0008-0106 ● ●
183 GAUGE; FUEL
EXC. TACHOMETER<U16> IDN 		8-97958-524-0 01 1 0107-0305 ● ●
183 GAUGE; FUEL
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97958-524-0 01 1 0306- ● ●
199 LENS; WARNING LAMP
(A) IDN 		8-97958-525-0 01 1 0008-0106 ● ● ●
199 LENS; WARNING LAMP
(A) IDN 		8-97958-525-0 01 1 0107-0305 ● ●
199 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (A) IDN 		8-97958-525-0 01 1 0306-0511 ● ●
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) (A) IDN 		8-97958-525-0 01 1 0306-0511 ● ●
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN 		8-97958-525-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (A) IDN 		8-97958-525-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
(B) IDN 		8-97958-526-0 01 1 0008-0106 ● ● ●
199 LENS; WARNING LAMP
(B) IDN 		8-97958-526-0 01 1 0107-0305 ● ●
199 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (B) IDN 		8-97958-526-0 01 1 0306-0511 ● ●
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) (B) IDN 		8-97958-526-0 01 1 0306-0511 ● ●
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (B) IDN 		8-97958-526-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (B) IDN 		8-97958-526-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
(C) IDN 		8-97958-527-0 01 1 0008-0106 ● ● ●
199 LENS; WARNING LAMP
(C) IDN 		8-97958-527-0 01 1 0107-0305 ● ●
199 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0306-0511 ● ●
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) (C) IDN 		8-97958-527-0 01 1 0306-0511 ● ●
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0512- ● ●
269 SCREW; METER CLUSTER
(A) IDN 		8-97958-546-0 10 1 0008-0106 ●
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0008-0106 ● ●
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0107-0305 ● ●
269 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0306- ● ●
269 SCREW; METER CLUSTER
(B) M5X16 		8-94279-312-0 03 1 0008-0106 ● ● ●
269 SCREW; METER CLUSTER
(B) M5X16 		8-94279-312-0 03 1 0107- ● ●
269 SCREW; METER CLUSTER
TACHOMETER<U16> (A) IDN 		8-97958-546-0 14 1 0008-0511 ● ●
269 SCREW; METER CLUSTER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (A) IDN 		8-97958-546-0 14 1 0512- ● ●

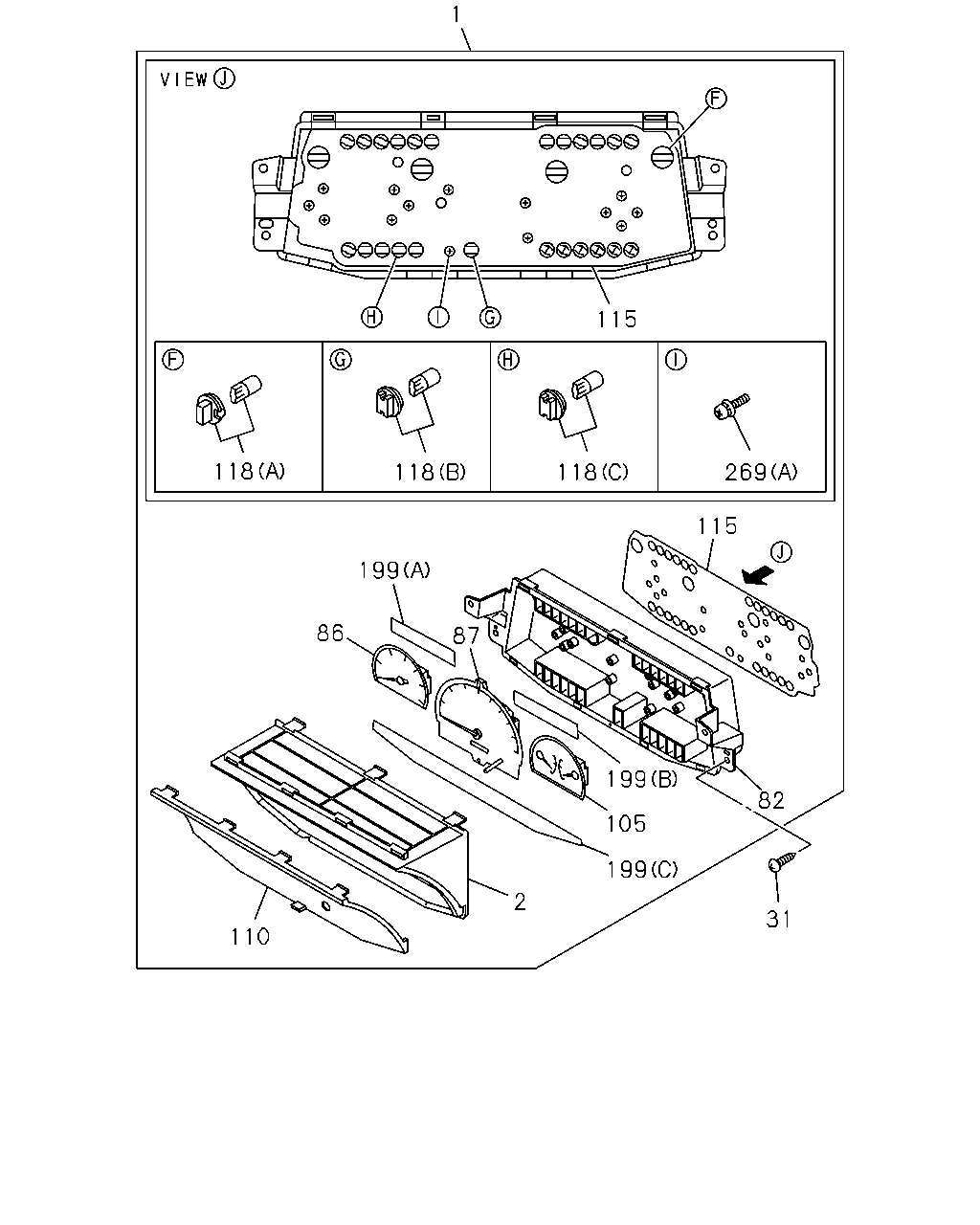

çizim 289188
1 118 118 199 86 110 2 199 105 199 31 82 115 269 118 115 87
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97562-757-0 01 1 0512- ● ●
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97562-756-0 01 1 0512- ● ●
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) TACHOMETER<U16> THA 		8-97562-225-0 01 1 0306-0511 ● ●
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) TACHOMETER<U16> THA 		8-97562-225-0 01 1 0512- ● ●
1 METER COMPL; CLUSTER
THA 		8-97956-681-2 01 1 0008-0106 ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> THA 		8-97956-681-2 01 1 0008-0106 ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> THA 		8-97956-681-4 01 1 0107-0305 ● ●
1 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> THA 		8-97956-681-5 01 1 0306- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<U16> IDN 		8-97956-682-4 01 1 0008-0305 ● ●
1 METER COMPL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97956-682-5 01 1 0306-0511 ● ●
1 METER COMPL; CLUSTER
A/T AISIN(RMD) GRADE ROYAL(RBB) TACHOMETER<U16> IDN 		8-97956-682-5 01 1 0512- ● ●
2 PANEL; CLUSTER
IDN 		8-97958-515-0 01 1 0008-0106 ● ● ●
2 PANEL; CLUSTER
IDN 		8-97958-515-0 01 1 0107-0305 ● ●
2 PANEL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97958-515-0 01 1 0306-0511 ● ●
2 PANEL; CLUSTER
M/T MSG 5 SPEED(M75) IDN 		8-97958-515-0 01 1 0306-0511 ● ●
2 PANEL; CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97958-515-0 01 1 0512- ● ●
2 PANEL; CLUSTER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97958-515-0 01 1 0512- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 0008-0106 ● ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 0107-0604 ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING W/PL WASHER IDN 		0-74360-516-0 04 1 0605- ● ●
82 CASE ASM; CLUSTER METER
IDN 		8-97958-516-0 01 1 0008-0106 ● ● ●
82 CASE ASM; CLUSTER METER
IDN 		8-97958-516-0 01 1 0107-0107 ● ●
82 CASE ASM; CLUSTER METER
IDN 		8-97560-493-0 01 1 0107-0305 ● ●
82 CASE ASM; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97560-493-0 01 1 0306-0511 ● ●
82 CASE ASM; CLUSTER METER
M/T MSG 5 SPEED(M75) IDN 		8-97560-493-0 01 1 0306-0511 ● ●
82 CASE ASM; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97560-493-0 01 1 0512- ● ●
82 CASE ASM; CLUSTER METER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97560-493-0 01 1 0512- ● ●
86 TACHOMETER; CLUSTER METER
GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97562-759-0 01 1 0512- ● ●
86 TACHOMETER; CLUSTER METER
TACHOMETER<U16> IDN 		8-97958-519-0 01 1 0008-0511 ● ●
86 TACHOMETER; CLUSTER METER
GRADE ROYAL(RBB) TACHOMETER<U16> IDN 		8-97958-519-0 01 1 0512- ● ●
87 SPEEDOMETER
GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97562-758-0 01 1 0512- ● ●
87 SPEEDOMETER
IDN 		8-97958-518-0 01 1 0008-0106 ●
87 SPEEDOMETER
EXC. TACHOMETER<U16> IDN 		8-97958-518-0 01 1 0008-0106 ● ●
87 SPEEDOMETER
EXC. TACHOMETER<U16> IDN 		8-97958-518-0 01 1 0107-0210 ● ●
87 SPEEDOMETER
EXC. TACHOMETER<U16> IDN 		8-97358-641-0 01 1 0211-0305 ● ●
87 SPEEDOMETER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97358-641-0 01 1 0306- ● ●
87 SPEEDOMETER
TACHOMETER<U16> IDN 		8-97958-517-0 01 1 0008-0210 ● ●
87 SPEEDOMETER
TACHOMETER<U16> IDN 		8-97358-640-0 01 1 0211-0511 ● ●
87 SPEEDOMETER
GRADE ROYAL(RBB) TACHOMETER<U16> IDN 		8-97358-640-0 01 1 0512- ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97562-760-0 01 1 0512- ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
TACHOMETER<U16> IDN 		8-97958-522-0 01 1 0008-0511 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
GRADE ROYAL(RBB) TACHOMETER<U16> IDN 		8-97958-522-0 01 1 0512- ● ●
110 GLASS; CLUSTER METER
IDN 		8-97958-514-0 01 1 0008-0106 ● ● ●
110 GLASS; CLUSTER METER
IDN 		8-97958-514-0 01 1 0107-0210 ● ●
110 GLASS; CLUSTER METER
IDN 		8-97359-566-0 01 1 0211-0305 ● ●
110 GLASS; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> IDN 		8-97359-566-0 01 1 0306-0511 ● ●
110 GLASS; CLUSTER METER
M/T MSG 5 SPEED(M75) IDN 		8-97359-566-0 01 1 0306-0511 ● ●
110 GLASS; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97359-566-0 01 1 0512- ● ●
110 GLASS; CLUSTER METER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97359-566-0 01 1 0512- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
IDN 		8-97958-535-0 01 1 0008-0106 ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97958-535-0 01 1 0008-0106 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97958-535-0 01 1 0107-0107 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> IDN 		8-97560-497-0 01 1 0107-0305 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN 		8-97560-497-0 01 1 0306- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> IDN 		8-97958-534-0 01 1 0008-0106 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0107-0511 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> IDN 		8-97560-496-0 01 1 0512- ● ●
118 BULB; CLUSTER METER
(C) 14V 1.4W BROWN IDN 		8-97958-543-0 07 1 0008-0106 ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 07 1 0008-0106 ● ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 07 1 0107-0305 ● ●
118 BULB; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 09 1 0306-0511 ● ●
118 BULB; CLUSTER METER
A/T AISIN(RMD) GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 09 1 0512- ● ●
118 BULB; CLUSTER METER
(A) 14V 3.4W BROWN IDN 		8-97958-542-0 04 1 0008-0106 ● ● ●
118 BULB; CLUSTER METER
(A) 14V 3.4W BROWN IDN 		8-97958-542-0 04 1 0107-0305 ● ●
118 BULB; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> (A) 14V 3.4W BROWN IDN 		8-97958-542-0 04 1 0306-0511 ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) (A) 14V 3.4W BROWN IDN 		8-97958-542-0 04 1 0306-0511 ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) 14V 3.4W BROWN IDN 		8-97958-542-0 04 1 0512- ● ●
118 BULB; CLUSTER METER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (A) 14V 3.4W BROWN IDN 		8-97958-542-0 04 1 0512- ● ●
118 BULB; CLUSTER METER
(B) 14V 2W BLUE IDN 		8-97958-545-0 01 1 0008-0106 ● ● ●
118 BULB; CLUSTER METER
(B) 14V 2W BLUE IDN 		8-97958-545-0 01 1 0107-0305 ● ●
118 BULB; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> (B) 14V 2W BLUE IDN 		8-97958-545-0 01 1 0306-0511 ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) (B) 14V 2W BLUE IDN 		8-97958-545-0 01 1 0306-0511 ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (B) 14V 2W BLUE IDN 		8-97958-545-0 01 1 0512- ● ●
118 BULB; CLUSTER METER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (B) 14V 2W BLUE IDN 		8-97958-545-0 01 1 0512- ● ●
118 BULB; CLUSTER METER
TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 09 1 0008-0305 ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) (C) 14V 1.4W BROWN IDN 		8-97958-543-0 07 1 0306-0511 ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 07 1 0512- ● ●
118 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (C) 14V 1.4W BROWN IDN 		8-97958-543-0 07 1 0512- ● ●
199 LENS; WARNING LAMP
(A) IDN 		8-97958-525-0 01 1 0008-0106 ● ● ●
199 LENS; WARNING LAMP
(A) IDN 		8-97958-525-0 01 1 0107-0305 ● ●
199 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (A) IDN 		8-97958-525-0 01 1 0306-0511 ● ●
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) (A) IDN 		8-97958-525-0 01 1 0306-0511 ● ●
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN 		8-97958-525-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (A) IDN 		8-97958-525-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
(B) IDN 		8-97958-526-0 01 1 0008-0106 ● ● ●
199 LENS; WARNING LAMP
(B) IDN 		8-97958-526-0 01 1 0107-0305 ● ●
199 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (B) IDN 		8-97958-526-0 01 1 0306-0511 ● ●
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) (B) IDN 		8-97958-526-0 01 1 0306-0511 ● ●
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (B) IDN 		8-97958-526-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (B) IDN 		8-97958-526-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
(C) IDN 		8-97958-527-0 01 1 0008-0106 ● ● ●
199 LENS; WARNING LAMP
(C) IDN 		8-97958-527-0 01 1 0107-0305 ● ●
199 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0306-0511 ● ●
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) (C) IDN 		8-97958-527-0 01 1 0306-0511 ● ●
199 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (C) IDN 		8-97958-527-0 01 1 0512- ● ●
269 SCREW; METER CLUSTER
(A) IDN 		8-97958-546-0 10 1 0008-0106 ●
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0008-0106 ● ●
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0107-0305 ● ●
269 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0306- ● ●
269 SCREW; METER CLUSTER
(B) M5X16 		8-94279-312-0 03 1 0008-0106 ● ● ●
269 SCREW; METER CLUSTER
(B) M5X16 		8-94279-312-0 03 1 0107- ● ●
269 SCREW; METER CLUSTER
TACHOMETER<U16> (A) IDN 		8-97958-546-0 14 1 0008-0511 ● ●
269 SCREW; METER CLUSTER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (A) IDN 		8-97958-546-0 14 1 0512- ● ●

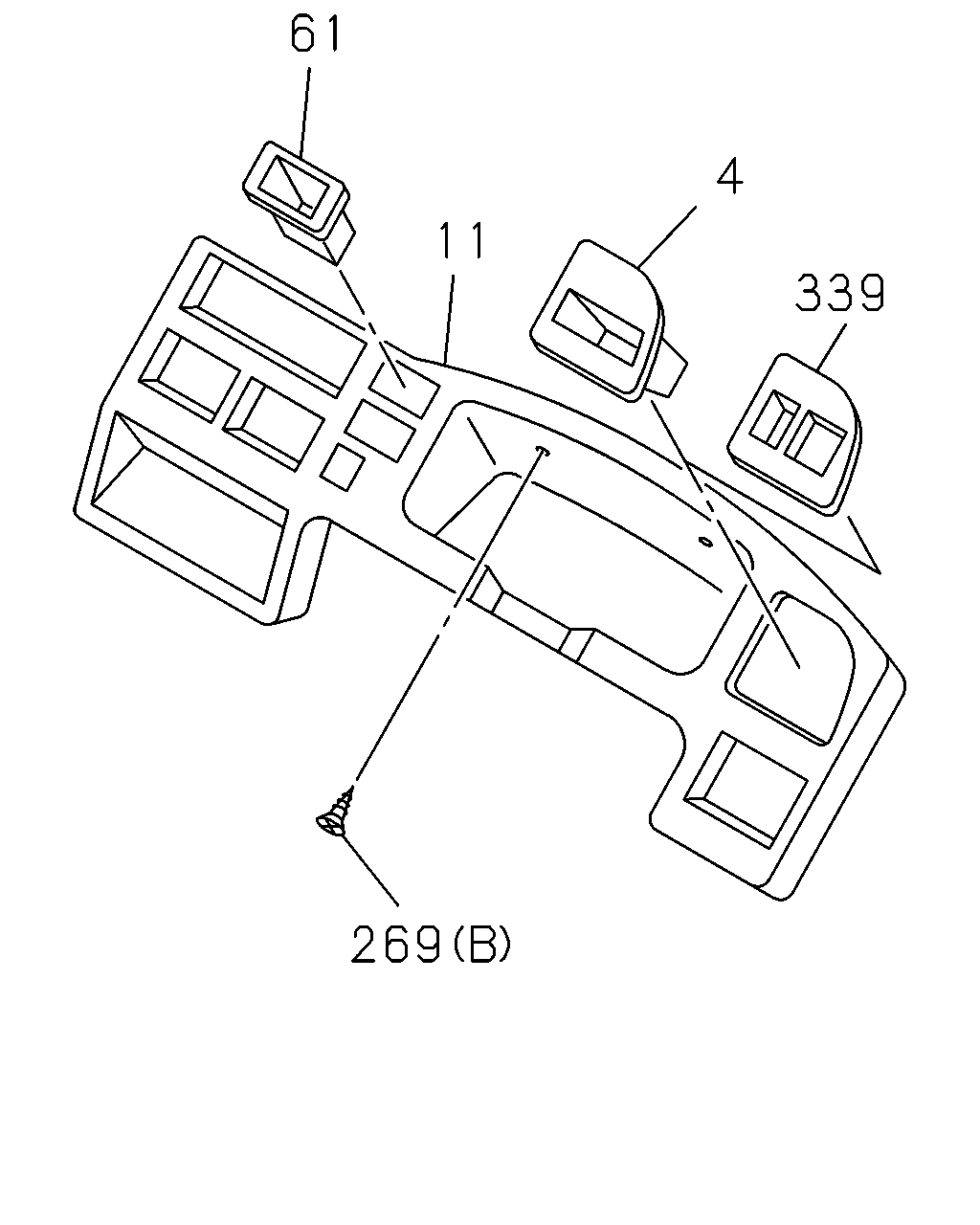

çizim 289878
269 61 11 4 339
BalonParca AdiParca NoAdetTipApplied Date A B C
4 CLUSTER
THA 		8-97915-414-0 01 1 0008-0106 ●
4 CLUSTER
EXC. FOG LAMP<T96> THA 		8-97915-414-0 01 1 0008-0106 ●
4 CLUSTER
EXC. DOOR MIRROR ELEC CONT<DG2>,FOG LAMP<T96> THA 		8-97915-414-0 01 1 0008-0106 ●
4 CLUSTER
EXC. DOOR MIRROR ELEC CONT<DG2>,FOG LAMP<T96> THA 		8-97915-414-0 01 1 0107- ● ●
11 CLUSTER ASM; METER
THA 		8-97915-415-0 01 1 0008-0106 ● ● ●
11 CLUSTER ASM; METER
THA 		8-97915-415-0 01 1 0107-0209 ● ●
11 CLUSTER ASM; METER
EXC. SILVER PACKGE<8HQ> THA 		8-97915-415-0 01 1 0210-0508 ● ●
11 CLUSTER ASM; METER
THA 		8-97915-415-0 01 1 0509- ● ●
11 CLUSTER ASM; METER
SILVER PACKGE<8HQ> IDN 		8-97561-959-0 01 1 0210-0508 ● ●
61 CLOCK; DIGITAL
DIGITAL CLOCK<UE8> IDN 		8-97956-847-1 01 1 0008- ● ●
269 SCREW; METER CLUSTER
(A) IDN 		8-97958-546-0 10 1 0008-0106 ●
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0008-0106 ● ●
269 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0107-0305 ● ●
269 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN 		8-97958-546-0 10 1 0306- ● ●
269 SCREW; METER CLUSTER
(B) M5X16 		8-94279-312-0 03 1 0008-0106 ● ● ●
269 SCREW; METER CLUSTER
(B) M5X16 		8-94279-312-0 03 1 0107- ● ●
269 SCREW; METER CLUSTER
TACHOMETER<U16> (A) IDN 		8-97958-546-0 14 1 0008-0511 ● ●
269 SCREW; METER CLUSTER
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) TACHOMETER<U16> (A) IDN 		8-97958-546-0 14 1 0512- ● ●
339 BEZEL; SW,CLUSTER METER
FOG LAMP<T96> 		8-97115-518-0 01 1 0008-0209 ● ●
339 BEZEL; SW,CLUSTER METER
FOG LAMP<T96> EXC. SILVER PACKGE<8HQ> 		8-97115-518-0 01 1 0210-0508 ● ●
339 BEZEL; SW,CLUSTER METER
DOOR MIRROR ELEC CONT<DG2> EXC. FOG LAMP<T96> 		8-97115-518-0 01 1 0509- ● ●
339 BEZEL; SW,CLUSTER METER
FOG LAMP<T96> 		8-97115-518-0 01 1 0509- ● ●
339 BEZEL; SW,CLUSTER METER
FOG LAMP<T96> SILVER PACKGE<8HQ> IDN 		8-97561-960-0 01 1 0210-0508 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
