◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#95402) — 109 parça
çizim 289011
398 398 139 334 513 513 74
BalonParca AdiParca NoAdetTipApplied Date A B C
74 CLIP; ROOM LAMP HARNESS
GRADE ROYAL(RBB) 		8-94138-987-0 06 1 0008-0106 ●
74 CLIP; ROOM LAMP HARNESS
GRADE ROYAL(RBB),GRADE LS(RBD) 		8-94138-987-0 06 1 0008-0106 ●
74 CLIP; ROOM LAMP HARNESS
GRADE ROYAL(RBB),GRADE TOURING(RBG) 		8-94138-987-0 06 1 0107-0209 ● ●
74 CLIP; ROOM LAMP HARNESS
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) 		8-94138-987-0 06 1 0210- ● ●
74 CLIP; ROOM LAMP HARNESS
GRADE NEW SUPER(RBA) 		8-94138-987-0 03 1 0008- ● ●
139 BOLT; BRKT
M6X12 W/WASHER ET SCREW 		8-94430-946-0 02 1 0008-0106 ● ● ●
139 BOLT; BRKT
M6X12 W/WASHER ET SCREW 		8-94430-946-0 02 1 0107- ● ●
334 BRACKET
IDN 		8-97957-646-1 01 1 0008-0106 ● ● ●
334 BRACKET
IDN 		8-97957-646-1 01 1 0107- ● ●
334 BRACKET
IDN 		8-97957-645-1 01 1 0008-0106 ● ● ●
334 BRACKET
IDN 		8-97957-645-1 01 1 0107- ● ●
398 SEAL; RR DOOR,BODY SIDE
GRADE NEW SUPER(RBA) OD=50 T=0.08 BLACK 		8-94111-754-0 04 1 0008-0209 ● ●
398 SEAL; RR DOOR,BODY SIDE
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) OD=50 T=0.08 BLACK 		8-94111-754-0 04 1 0008-0209 ● ●
398 SEAL; RR DOOR,BODY SIDE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) OD=50 T=0.08 BLACK 		8-94111-754-0 04 1 0210- ● ●
513 TAPE; SOFT,HARNESS 8-94137-544-0 07 1 0008-0110 ● ●
513 TAPE; SOFT,HARNESS 8-97304-371-0 07 1 0111-0210 ● ●

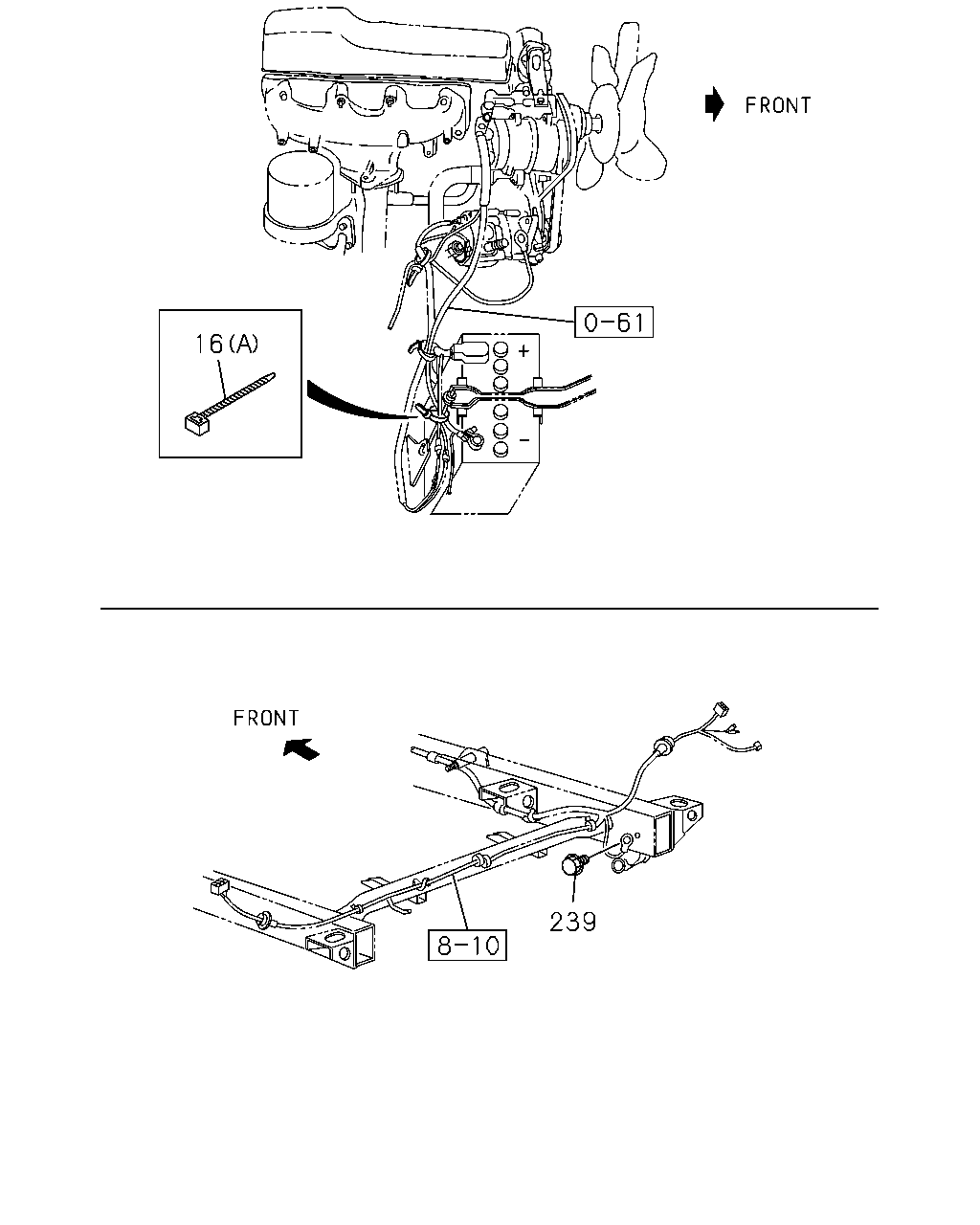

çizim 289042
239 16
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
GRADE LS(RBD),GRADE TOURING(RBG) DUAL TONE HORN<U05> (B) ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 01 1 0405-0801 ● ●
16 CLIP; HARNESS
GRADE LS(RBD),GRADE TOURING(RBG) DUAL TONE HORN<U05> (B) ID=12 IDN 		8-97367-984-1 01 1 0802- ● ●
16 CLIP; HARNESS
(A) L=250 IDN 		5-09707-030-1 01 1 0008-0106 ● ● ●
16 CLIP; HARNESS
(A) L=250 IDN 		5-09707-030-1 01 1 0107- ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 02 1 0008-0106 ● ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 02 1 0107-0108 ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 03 1 0109- ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0009-0106 ● ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0107-0108 ● ●
239 BOLT; GRAND
M6X16 		5-09009-032-0 01 1 0008-0106 ●

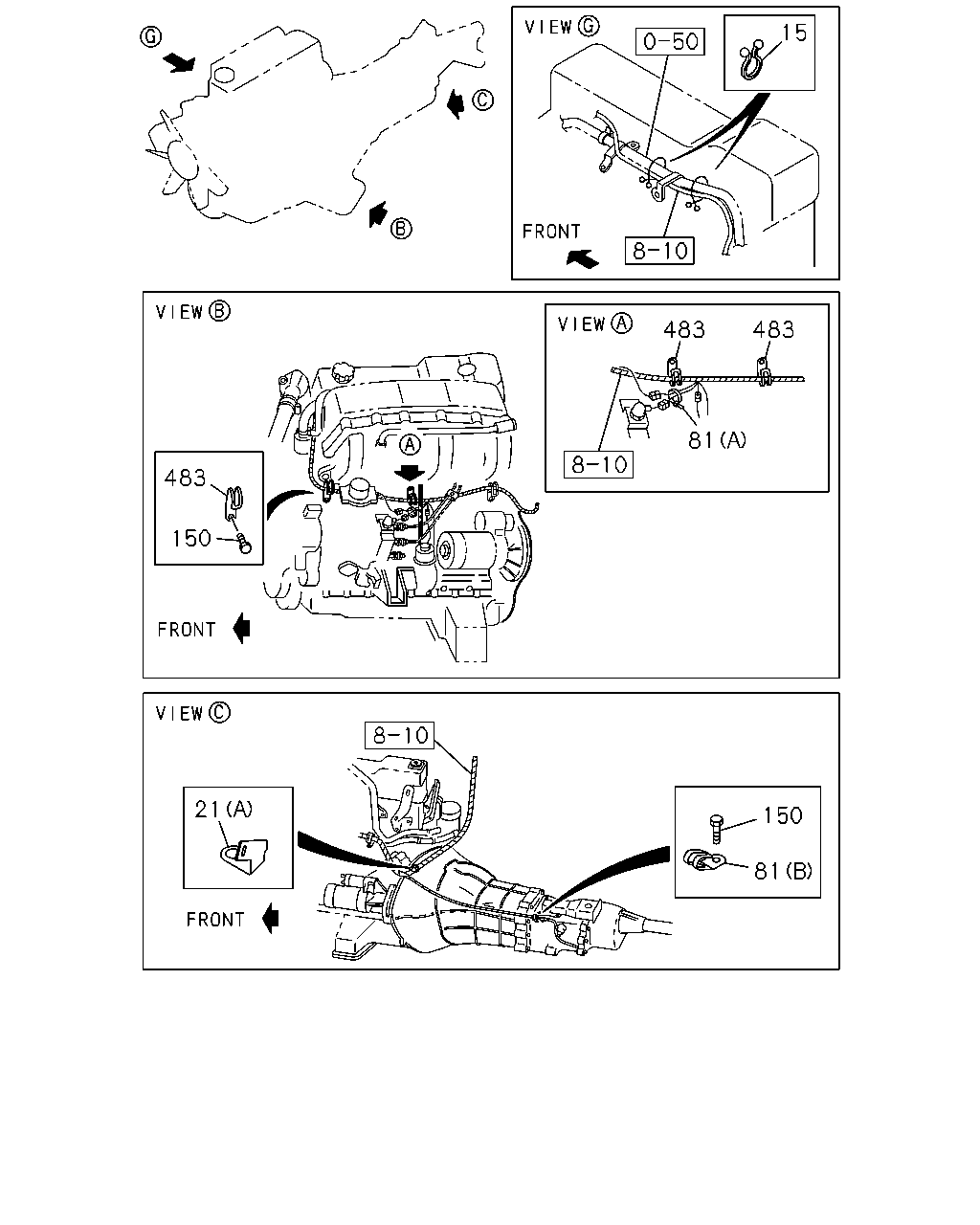

çizim 289045
81 150 21 150 483 81 483 483 15
BalonParca AdiParca NoAdetTipApplied Date A B C
15 CLIP; PURSE LOCK
GRADE LS(RBD) ID=25 		8-94120-831-0 02 1 0008-0009 ●
21 BRACKET; ENG HARNESS
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN 		8-97957-937-0 01 1 0008-0106 ● ● ●
21 BRACKET; ENG HARNESS
A/T AISIN(RMD) GRADE LS(RBD) (A) IDN 		8-97957-937-0 01 1 0008-0106 ●
21 BRACKET; ENG HARNESS
A/T AISIN(RMD) GRADE TOURING(RBG) (A) IDN 		8-97957-937-0 01 1 0107-0209 ● ●
21 BRACKET; ENG HARNESS
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN 		8-97957-937-0 01 1 0107-0209 ● ●
21 BRACKET; ENG HARNESS
A/T AISIN(RMD) GRADE TOURING(RBG) (A) IDN 		8-97957-937-0 01 1 0210-0405 ● ●
21 BRACKET; ENG HARNESS
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN 		8-97957-937-0 01 1 0210-0405 ● ●
21 BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) EXC. CAB UP<W60> (A) IDN 		8-97957-937-0 01 1 0406- ● ●
21 BRACKET; ENG HARNESS
A/T AISIN(RMD) (A) IDN 		8-97957-937-0 01 1 0406- ● ●
21 BRACKET; ENG HARNESS
A/T AISIN(RMD) (B) IDN 		8-97957-936-0 01 1 0008- ● ●
21 BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) (B) IDN 		8-97957-935-0 01 1 0008- ● ●
21 BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) GRADE LS(RBD) (A) IDN 		8-97958-919-0 01 1 0008-0106 ●
21 BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) GRADE TOURING(RBG) (A) IDN 		8-97958-919-0 01 1 0107-0405 ● ●
21 BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) CAB UP<W60> (A) IDN 		8-97958-919-0 01 1 0406- ● ●
81 CLIP; HARNESS
(B) ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 02 1 0008-0106 ●
81 CLIP; HARNESS
M/T MSG 5 SPEED(M75) (B) ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 02 1 0008-0106 ● ●
81 CLIP; HARNESS
M/T MSG 5 SPEED(M75) (B) ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 02 1 0107-0801 ● ●
81 CLIP; HARNESS
M/T MSG 5 SPEED(M75) (B) ID=12 IDN 		8-97367-984-1 02 1 0802- ● ●
81 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0008-0106 ●
81 CLIP; HARNESS
M/T MSG 5 SPEED(M75) (A) L=140 IDN 		5-09707-031-1 01 1 0008-0106 ● ●
81 CLIP; HARNESS
M/T MSG 5 SPEED(M75) (A) L=140 IDN 		5-09707-031-1 01 1 0107- ● ●
150 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 02 1 0008-0106 ●
150 BOLT; CLIP
M/T MSG 5 SPEED(M75) M8X12 FLANGE 		0-28080-812-0 02 1 0008-0106 ● ●
150 BOLT; CLIP
M/T MSG 5 SPEED(M75) M8X12 FLANGE 		0-28080-812-0 02 1 0107-0512 ● ●
150 BOLT; CLIP
M/T MSG 5 SPEED(M75) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
150 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 01 1 0008-0106 ● ● ●
150 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 01 1 0107-0512 ● ●
150 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
483 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 04 1 0008-0106 ● ● ●
483 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 04 1 0107-0801 ● ●
483 CLIP; ENG HARNESS
ID=12 IDN 		8-97367-984-1 04 1 0802- ● ●

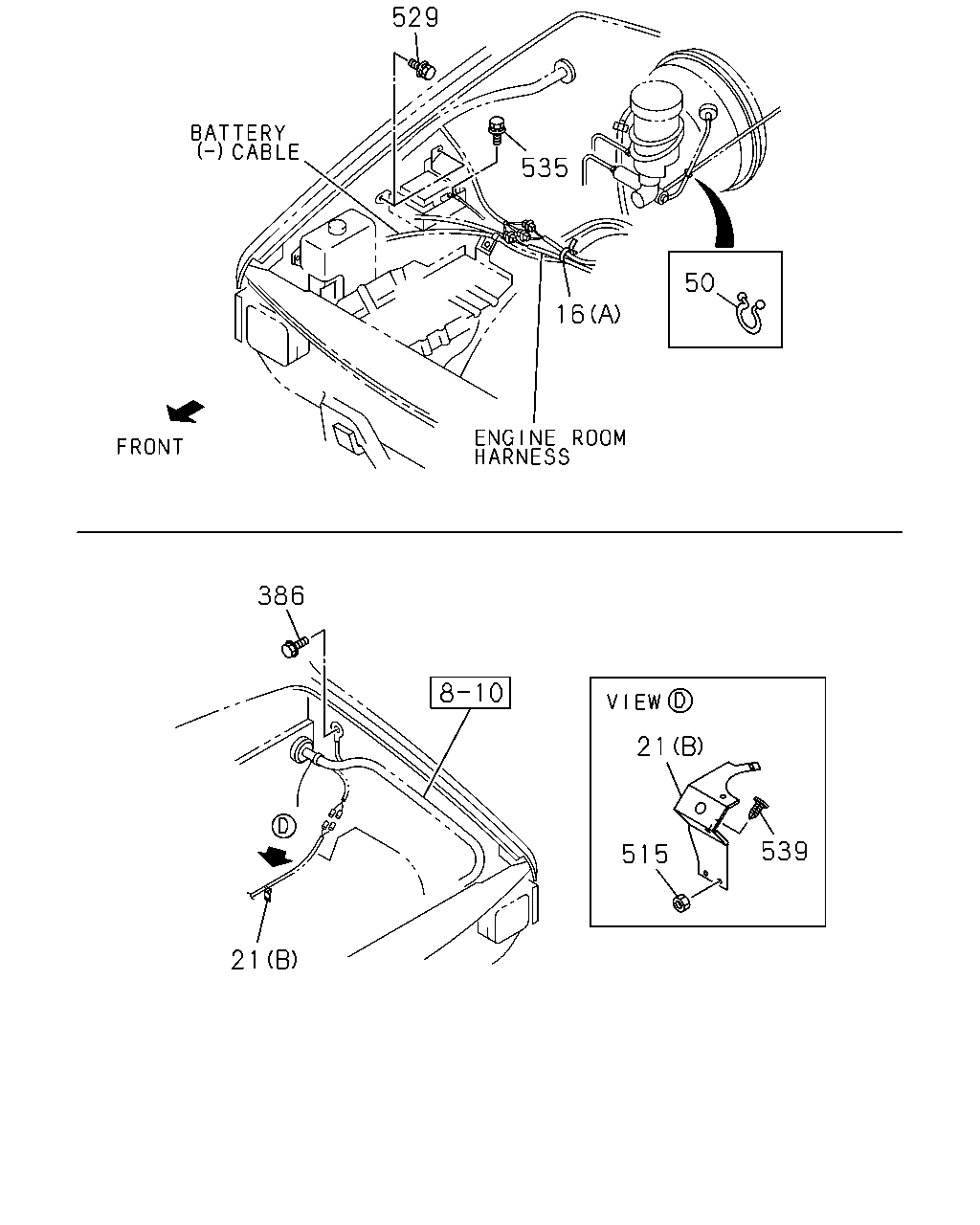

çizim 289075
21 515 539 21 386 50 16 535 529
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
GRADE LS(RBD),GRADE TOURING(RBG) DUAL TONE HORN<U05> (B) ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 01 1 0405-0801 ● ●
16 CLIP; HARNESS
GRADE LS(RBD),GRADE TOURING(RBG) DUAL TONE HORN<U05> (B) ID=12 IDN 		8-97367-984-1 01 1 0802- ● ●
16 CLIP; HARNESS
(A) L=250 IDN 		5-09707-030-1 01 1 0008-0106 ● ● ●
16 CLIP; HARNESS
(A) L=250 IDN 		5-09707-030-1 01 1 0107- ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 02 1 0008-0106 ● ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 02 1 0107-0108 ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 03 1 0109- ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0009-0106 ● ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0107-0108 ● ●
21 BRACKET; ENG HARNESS
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN 		8-97957-937-0 01 1 0008-0106 ● ● ●
21 BRACKET; ENG HARNESS
A/T AISIN(RMD) GRADE LS(RBD) (A) IDN 		8-97957-937-0 01 1 0008-0106 ●
21 BRACKET; ENG HARNESS
A/T AISIN(RMD) GRADE TOURING(RBG) (A) IDN 		8-97957-937-0 01 1 0107-0209 ● ●
21 BRACKET; ENG HARNESS
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN 		8-97957-937-0 01 1 0107-0209 ● ●
21 BRACKET; ENG HARNESS
A/T AISIN(RMD) GRADE TOURING(RBG) (A) IDN 		8-97957-937-0 01 1 0210-0405 ● ●
21 BRACKET; ENG HARNESS
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN 		8-97957-937-0 01 1 0210-0405 ● ●
21 BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) EXC. CAB UP<W60> (A) IDN 		8-97957-937-0 01 1 0406- ● ●
21 BRACKET; ENG HARNESS
A/T AISIN(RMD) (A) IDN 		8-97957-937-0 01 1 0406- ● ●
21 BRACKET; ENG HARNESS
A/T AISIN(RMD) (B) IDN 		8-97957-936-0 01 1 0008- ● ●
21 BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) (B) IDN 		8-97957-935-0 01 1 0008- ● ●
21 BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) GRADE LS(RBD) (A) IDN 		8-97958-919-0 01 1 0008-0106 ●
21 BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) GRADE TOURING(RBG) (A) IDN 		8-97958-919-0 01 1 0107-0405 ● ●
21 BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) CAB UP<W60> (A) IDN 		8-97958-919-0 01 1 0406- ● ●
50 CLIP; PURSE LOCK,HARNESS
COOLER WO/HEATER(YL1) ID=8.3 		1-09709-082-0 01 1 0008-0106 ● ● ●
50 CLIP; PURSE LOCK,HARNESS
COOLER WO/HEATER(YL1) ID=8.3 		1-09709-082-0 01 1 0107- ● ●
386 BOLT; GRAND HARNESS
M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 0008-0106 ● ● ●
386 BOLT; GRAND HARNESS
M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 0107- ● ●
515 NUT; BRKT
A/T AISIN(RMD) M6 FLANGE 		0-91150-106-0 02 1 0008-0602 ● ●
515 NUT; BRKT
A/T AISIN(RMD) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
529 BOLT; RELAY BOX
M6X20 		8-94412-422-0 02 1 0008-0106 ● ● ●
529 BOLT; RELAY BOX
M6X20 		8-94412-422-0 02 1 0107- ● ●
535 BOLT; FUSE BOX
M6X12 FLANGE 		0-28080-612-0 01 1 0008-0106 ● ● ●
535 BOLT; FUSE BOX
M6X12 FLANGE 		0-28080-612-0 01 1 0107-0512 ● ●
535 BOLT; FUSE BOX
M6X12 FLANGE 		0-28050-612-0 01 1 0601- ● ●
539 CLIP; SEAL
BLACK L=12.5 		8-94345-178-0 01 1 0008-0209 ● ●
539 CLIP; SEAL
BLACK L=12.5 		8-94345-178-0 01 1 0210- ● ●
çizim 289906
16 578 574 582 513
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
GRADE LS(RBD),GRADE TOURING(RBG) DUAL TONE HORN<U05> (B) ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 01 1 0405-0801 ● ●
16 CLIP; HARNESS
GRADE LS(RBD),GRADE TOURING(RBG) DUAL TONE HORN<U05> (B) ID=12 IDN 		8-97367-984-1 01 1 0802- ● ●
16 CLIP; HARNESS
(A) L=250 IDN 		5-09707-030-1 01 1 0008-0106 ● ● ●
16 CLIP; HARNESS
(A) L=250 IDN 		5-09707-030-1 01 1 0107- ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 02 1 0008-0106 ● ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 02 1 0107-0108 ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 03 1 0109- ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0009-0106 ● ● ●
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0107-0108 ● ●
513 TAPE; SOFT,HARNESS 8-94137-544-0 07 1 0008-0110 ● ●
513 TAPE; SOFT,HARNESS 8-97304-371-0 07 1 0111-0210 ● ●
574 SCREW; FUSE BOX
M5X12 		8-94120-094-0 01 1 0008-0106 ● ● ●
574 SCREW; FUSE BOX
M5X12 		8-94120-094-0 01 1 0107- ● ●
578 BRACKET; FUSE BOX
IDN 		8-97956-799-0 01 1 0008-0106 ● ● ●
578 BRACKET; FUSE BOX
IDN 		8-97956-799-0 01 1 0107- ● ●
582 CLIP; FUSE BOX
BLACK L=12.5 		8-94345-178-0 01 1 0008-0106 ● ● ●
582 CLIP; FUSE BOX
BLACK L=12.5 		8-94345-178-0 01 1 0107- ● ●
