◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#95401) — 245 parça

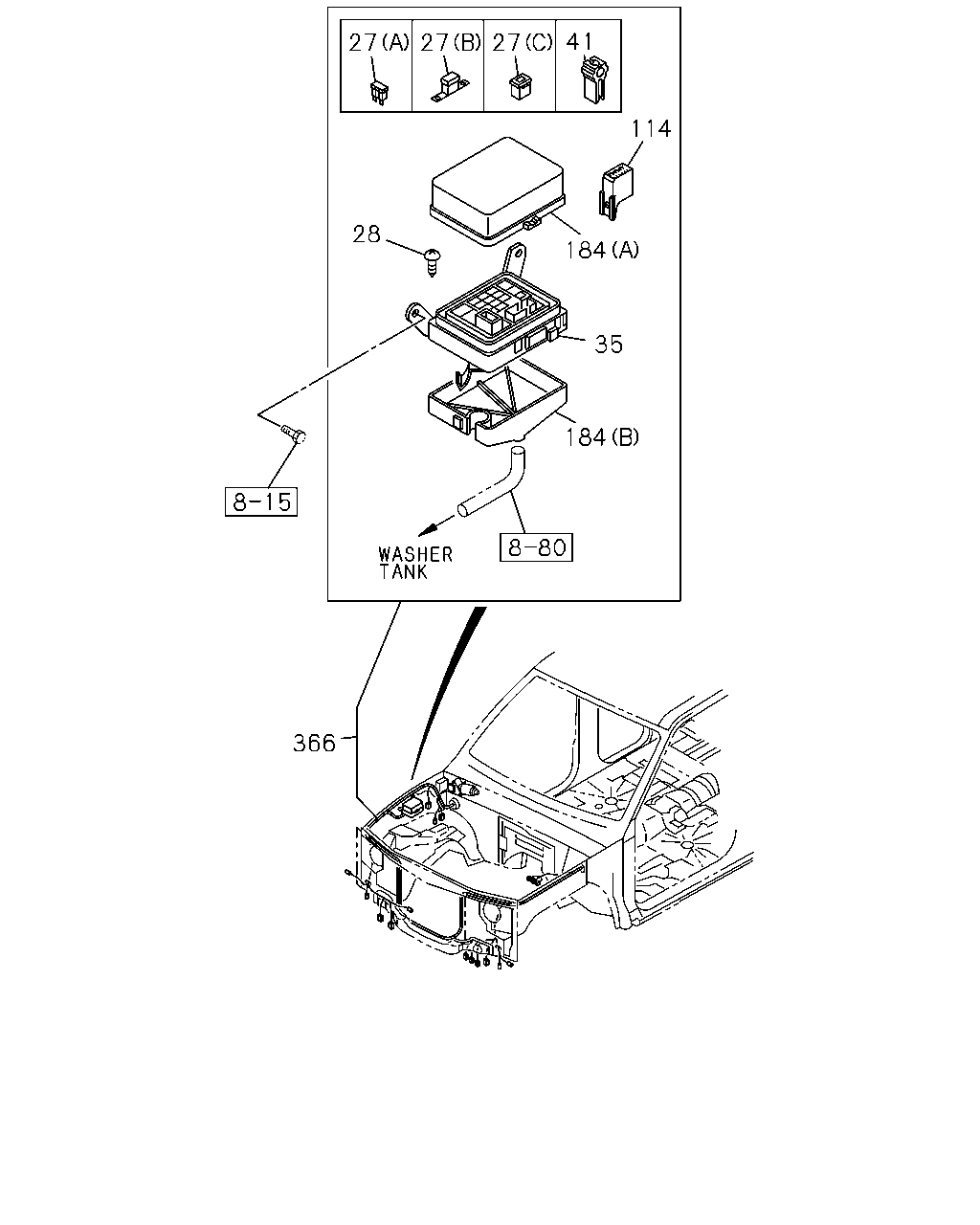

çizim 288972
366 184 35 184 28 114 27 27 27 41
BalonParca AdiParca NoAdetTipApplied Date A B C
27 FUSE UNIT
(B) 40A GREEN IDN 		8-94388-301-0 AR 1 0008- ● ● ●
27 FUSE UNIT
(B) 60A YELLOW IDN 		8-94388-303-0 AR 1 0008- ● ● ●
27 FUSE UNIT
(A) 10A MINI RED IDN 		8-97062-022-0 AR 1 0008- ● ● ●
27 FUSE UNIT
(A) 15A MINI BLUE IDN 		8-97062-023-0 AR 1 0008- ● ● ●
27 FUSE UNIT
(A) 20A MINI YELLOW IDN 		8-97062-024-0 AR 1 0008- ● ● ●
27 FUSE UNIT
(C) 30A PINK IDN 		8-97183-643-0 AR 1 0008- ● ● ●
28 SCREW; FUSE BOX
IDN 		8-97249-192-0 04 1 0211- ● ●
35 BOX; RELAY & FUSE
IDN 		8-97940-316-0 01 1 0008-0106 ● ● ●
35 BOX; RELAY & FUSE
IDN 		8-97940-316-1 01 1 0107- ● ●
41 PULLER; FUSE 8-97103-388-0 01 1 0008-0106 ● ● ●
41 PULLER; FUSE 8-97103-388-0 01 1 0107- ● ●
114 BOX ASM; FUSE
IDN 		8-97189-222-0 02 1 0008-0106 ● ● ●
114 BOX ASM; FUSE
IDN 		8-97189-222-0 02 1 0107- ● ●
184 COVER; RELAY & FUSE BOX
(B) IDN 		8-97104-115-1 01 1 0008-0106 ● ● ●
184 COVER; RELAY & FUSE BOX
(B) IDN 		8-97104-115-1 01 1 0107- ● ●
184 COVER; RELAY & FUSE BOX
(A) IDN 		8-97203-784-0 01 1 0008-0106 ● ● ●
184 COVER; RELAY & FUSE BOX
(A) IDN 		8-97203-784-0 01 1 0107- ● ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE LS(RBD),GRADE TOURING(RBG) FACE LIFT MODEL<TX7> DUAL TONE HORN<U05> IDN 		8-97562-429-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE LS(RBD),GRADE TOURING(RBG) FACE LIFT MODEL<TX7> DUAL TONE HORN<U05> IDN 		8-97562-430-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> IDN 		8-97562-258-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE LS(RBD),GRADE TOURING(RBG) FACE LIFT MODEL<TX7> EXC. DUAL TONE HORN<U05> IDN 		8-97562-259-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> IDN 		8-97562-260-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE LS(RBD),GRADE TOURING(RBG) FACE LIFT MODEL<TX7> EXC. DUAL TONE HORN<U05> IDN 		8-97562-261-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
IDN 		8-97956-763-6 01 1 0008-0106 ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97956-994-5 01 1 0008-0106 ● ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE LS(RBD) IDN 		8-97956-994-5 01 1 0008-0106 ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97956-994-5 01 1 0107-0209 ● ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE TOURING(RBG) IDN 		8-97956-994-5 01 1 0107-0209 ● ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97956-994-5 01 1 0210-0210 ● ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97562-188-0 01 1 0211-0406 ● ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97562-188-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE LS(RBD),GRADE TOURING(RBG) EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-188-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) IDN 		8-97956-993-5 01 1 0008-0209 ● ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE ROYAL(RBB) IDN 		8-97956-993-5 01 1 0210-0210 ● ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE ROYAL(RBB) IDN 		8-97562-187-0 01 1 0211-0406 ● ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE ROYAL(RBB) IDN 		8-97562-187-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) GRADE ROYAL(RBB) EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-187-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE NEW SUPER(RBA) IDN 		8-97956-764-7 01 1 0008-0209 ● ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) IDN 		8-97956-764-7 01 1 0008-0209 ● ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-764-7 01 1 0210-0210 ● ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97562-185-0 01 1 0211-0406 ● ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97562-185-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-185-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97956-765-6 01 1 0008-0106 ● ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE LS(RBD) IDN 		8-97956-765-6 01 1 0008-0106 ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97956-765-6 01 1 0107-0209 ● ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE TOURING(RBG) IDN 		8-97956-765-6 01 1 0107-0209 ● ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97956-765-6 01 1 0210-0210 ● ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97562-186-0 01 1 0211-0406 ● ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97562-186-0 01 1 0407- ●
366 HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) GRADE LS(RBD),GRADE TOURING(RBG) EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-186-0 01 1 0407- ●

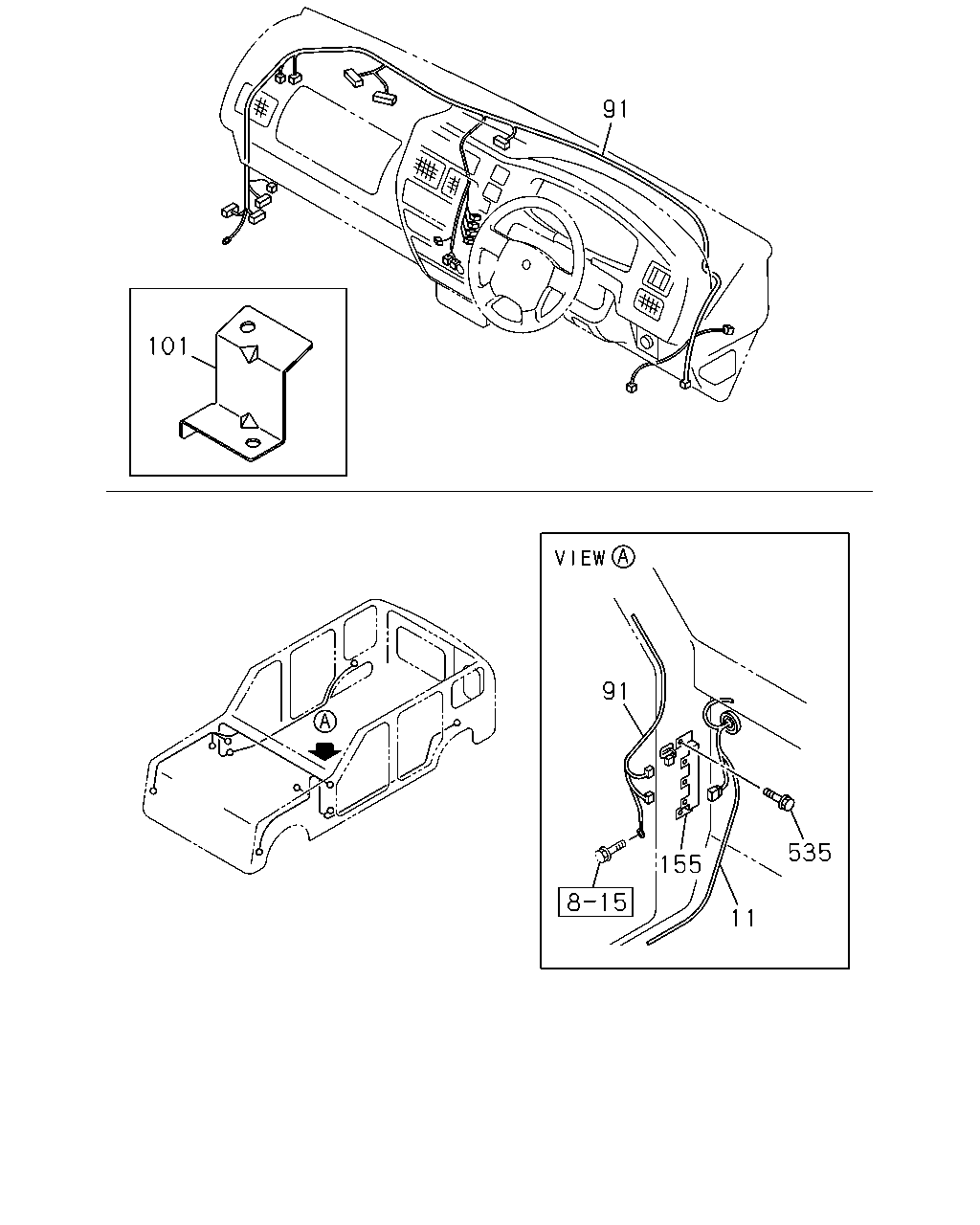

çizim 288974
11 535 155 91 101 91
BalonParca AdiParca NoAdetTipApplied Date A B C
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) POWER WINDOW<A30> FACE LIFT MODEL<TX7> IDN 		8-97562-267-0 01 1 0407- ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> EXC. POWER WINDOW<A30> IDN 		8-97562-266-0 01 1 0407- ●
11 HARNESS; BODY
A/T AISIN(RMD) POWER WINDOW<A30> FACE LIFT MODEL<TX7> IDN 		8-97562-269-0 01 1 0407- ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> EXC. POWER WINDOW<A30> IDN 		8-97562-268-0 01 1 0407- ●
11 HARNESS; BODY
IDN 		8-97956-766-5 01 1 0008-0106 ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) POWER WINDOW<A30> IDN 		8-97956-774-5 01 1 0008-0009 ●
11 HARNESS; BODY
A/T AISIN(RMD) POWER WINDOW<A30> IDN 		8-97956-774-6 01 1 0010-0211 ●
11 HARNESS; BODY
A/T AISIN(RMD) POWER WINDOW<A30> IDN 		8-97562-197-0 01 1 0212- ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97956-773-6 01 1 0008-0211 ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97562-196-0 01 1 0212- ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) POWER WINDOW<A30> IDN 		8-97956-772-5 01 1 0008-0009 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) POWER WINDOW<A30> IDN 		8-97956-772-6 01 1 0010-0211 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) POWER WINDOW<A30> IDN 		8-97562-195-0 01 1 0212- ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97956-771-7 01 1 0008-0211 ●
11 HARNESS; BODY
GRADE NEW SUPER(RBA) IDN 		8-97956-771-7 01 1 0008-0211 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97562-194-0 01 1 0212- ●
11 HARNESS; BODY
GRADE NEW SUPER(RBA) IDN 		8-97562-194-0 01 1 0212- ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE LS(RBD) IDN 		8-97958-624-0 01 1 0008-0009 ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) POWER WINDOW<A30> IDN 		8-97956-770-5 01 1 0008-0009 ●
11 HARNESS; BODY
A/T AISIN(RMD) POWER WINDOW<A30> IDN 		8-97956-770-6 01 1 0010-0211 ●
11 HARNESS; BODY
A/T AISIN(RMD) POWER WINDOW<A30> IDN 		8-97562-193-0 01 1 0212-0406 ●
11 HARNESS; BODY
A/T AISIN(RMD) POWER WINDOW<A30> EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-193-0 01 1 0407- ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97956-769-6 01 1 0008-0211 ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97562-192-0 01 1 0212-0406 ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30>,FACE LIFT MODEL<TX7> IDN 		8-97562-192-0 01 1 0407- ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE LS(RBD) IDN 		8-97958-623-0 01 1 0008-0009 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) POWER WINDOW<A30> IDN 		8-97956-768-5 01 1 0008-0009 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) POWER WINDOW<A30> IDN 		8-97956-768-6 01 1 0010-0211 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) POWER WINDOW<A30> IDN 		8-97562-191-0 01 1 0212-0406 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) POWER WINDOW<A30> EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-191-0 01 1 0407- ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97956-767-7 01 1 0008-0211 ●
11 HARNESS; BODY
GRADE NEW SUPER(RBA) IDN 		8-97956-767-7 01 1 0008-0211 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97562-190-0 01 1 0212-0406 ●
11 HARNESS; BODY
GRADE NEW SUPER(RBA) IDN 		8-97562-190-0 01 1 0212-0406 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30>,FACE LIFT MODEL<TX7> IDN 		8-97562-190-0 01 1 0407- ●
11 HARNESS; BODY
GRADE NEW SUPER(RBA) EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-190-0 01 1 0407- ●
91 HARNESS; INST
IDN 		8-97956-760-6 01 1 0008-0106 ●
91 HARNESS; INST
GRADE NEW SUPER(RBA) IDN 		8-97956-760-6 01 1 0008-0106 ● ●
91 HARNESS; INST
GRADE NEW SUPER(RBA) IDN 		8-97956-760-6 01 1 0107-0209 ● ●
91 HARNESS; INST
GRADE NEW SUPER(RBA) IDN 		8-97561-357-0 01 1 0210-0211 ● ●
91 HARNESS; INST
GRADE NEW SUPER(RBA) IDN 		8-97562-200-1 01 1 0212- ● ●
91 HARNESS; INST
GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97956-762-7 01 1 0008-0106 ● ●
91 HARNESS; INST
GRADE LS(RBD) IDN 		8-97956-762-7 01 1 0008-0106 ●
91 HARNESS; INST
GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97956-762-7 01 1 0107-0209 ● ●
91 HARNESS; INST
GRADE TOURING(RBG) IDN 		8-97956-762-7 01 1 0107-0209 ● ●
91 HARNESS; INST
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97561-359-0 01 1 0210-0211 ● ●
91 HARNESS; INST
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97562-202-1 01 1 0212- ● ●
91 HARNESS; INST
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) IDN 		8-97956-761-7 01 1 0008-0209 ● ●
91 HARNESS; INST
GRADE ROYAL(RBB) IDN 		8-97561-358-0 01 1 0210-0211 ● ●
91 HARNESS; INST
GRADE ROYAL(RBB) IDN 		8-97562-201-1 01 1 0212- ● ●
101 BRACKET; HARNESS CONNECTOR
IDN 		8-97561-369-0 01 1 0210- ● ●
155 BRACKET; CONNECTOR
IDN 		8-97957-589-1 01 1 0008-0106 ● ● ●
155 BRACKET; CONNECTOR
IDN 		8-97957-589-1 01 1 0107- ● ●
155 BRACKET; CONNECTOR
IDN 		8-97957-588-1 01 1 0008-0106 ● ● ●
155 BRACKET; CONNECTOR
IDN 		8-97957-588-1 01 1 0107- ● ●
535 BOLT; BRKT FIX
M6X16 FLANGE 		0-28480-616-0 04 1 0008-0106 ● ● ●
535 BOLT; BRKT FIX
M6X16 FLANGE 		0-28480-616-0 04 1 0107-0512 ● ●
535 BOLT; BRKT FIX
M6X16 FLANGE 		0-28450-616-0 04 1 0601- ● ●

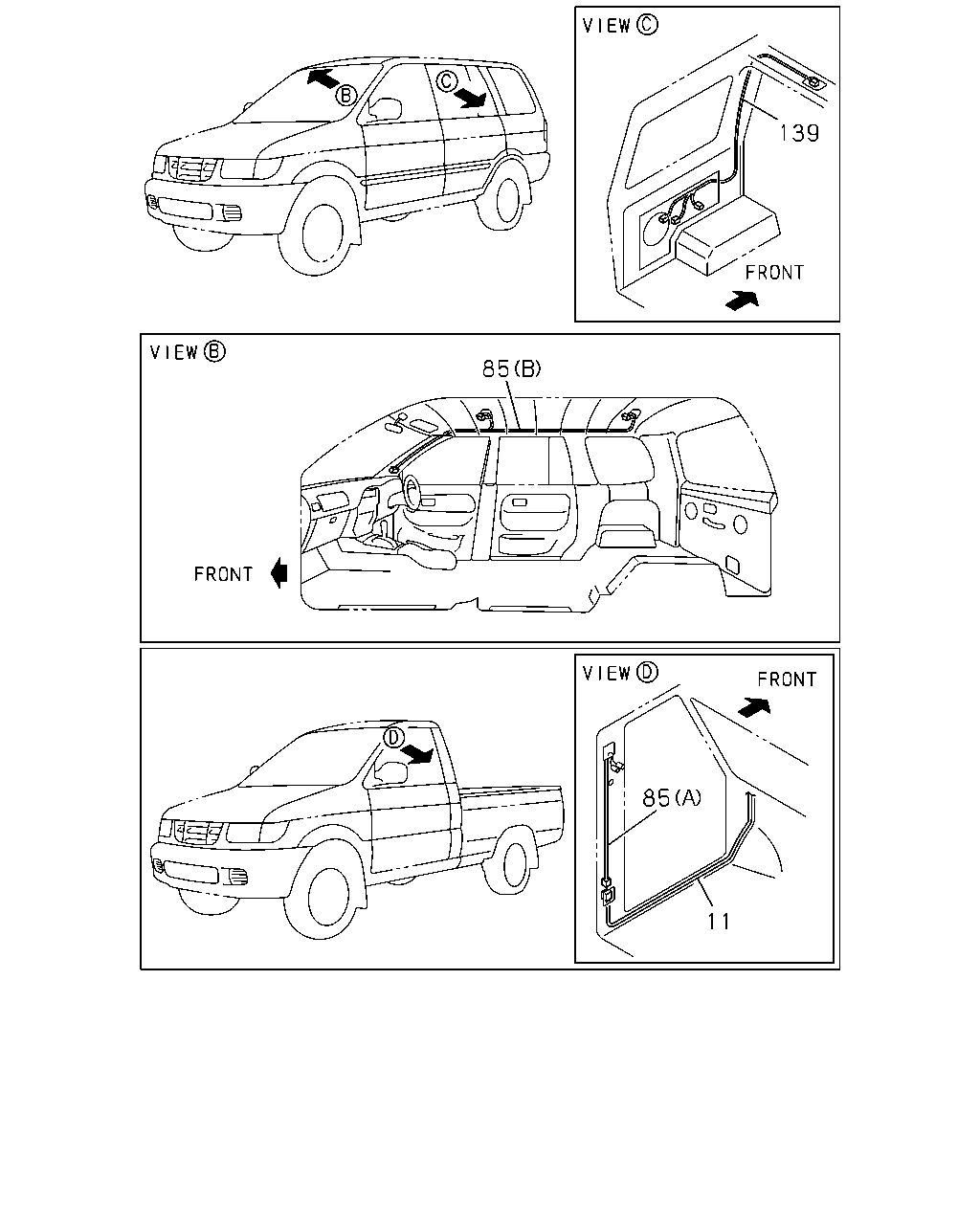

çizim 289009
11 85 85 139
BalonParca AdiParca NoAdetTipApplied Date A B C
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) POWER WINDOW<A30> FACE LIFT MODEL<TX7> IDN 		8-97562-267-0 01 1 0407- ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> EXC. POWER WINDOW<A30> IDN 		8-97562-266-0 01 1 0407- ●
11 HARNESS; BODY
A/T AISIN(RMD) POWER WINDOW<A30> FACE LIFT MODEL<TX7> IDN 		8-97562-269-0 01 1 0407- ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> EXC. POWER WINDOW<A30> IDN 		8-97562-268-0 01 1 0407- ●
11 HARNESS; BODY
IDN 		8-97956-766-5 01 1 0008-0106 ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) POWER WINDOW<A30> IDN 		8-97956-774-5 01 1 0008-0009 ●
11 HARNESS; BODY
A/T AISIN(RMD) POWER WINDOW<A30> IDN 		8-97956-774-6 01 1 0010-0211 ●
11 HARNESS; BODY
A/T AISIN(RMD) POWER WINDOW<A30> IDN 		8-97562-197-0 01 1 0212- ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97956-773-6 01 1 0008-0211 ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97562-196-0 01 1 0212- ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) POWER WINDOW<A30> IDN 		8-97956-772-5 01 1 0008-0009 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) POWER WINDOW<A30> IDN 		8-97956-772-6 01 1 0010-0211 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) POWER WINDOW<A30> IDN 		8-97562-195-0 01 1 0212- ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97956-771-7 01 1 0008-0211 ●
11 HARNESS; BODY
GRADE NEW SUPER(RBA) IDN 		8-97956-771-7 01 1 0008-0211 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97562-194-0 01 1 0212- ●
11 HARNESS; BODY
GRADE NEW SUPER(RBA) IDN 		8-97562-194-0 01 1 0212- ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE LS(RBD) IDN 		8-97958-624-0 01 1 0008-0009 ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) POWER WINDOW<A30> IDN 		8-97956-770-5 01 1 0008-0009 ●
11 HARNESS; BODY
A/T AISIN(RMD) POWER WINDOW<A30> IDN 		8-97956-770-6 01 1 0010-0211 ●
11 HARNESS; BODY
A/T AISIN(RMD) POWER WINDOW<A30> IDN 		8-97562-193-0 01 1 0212-0406 ●
11 HARNESS; BODY
A/T AISIN(RMD) POWER WINDOW<A30> EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-193-0 01 1 0407- ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97956-769-6 01 1 0008-0211 ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97562-192-0 01 1 0212-0406 ●
11 HARNESS; BODY
A/T AISIN(RMD) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30>,FACE LIFT MODEL<TX7> IDN 		8-97562-192-0 01 1 0407- ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE LS(RBD) IDN 		8-97958-623-0 01 1 0008-0009 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) POWER WINDOW<A30> IDN 		8-97956-768-5 01 1 0008-0009 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) POWER WINDOW<A30> IDN 		8-97956-768-6 01 1 0010-0211 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) POWER WINDOW<A30> IDN 		8-97562-191-0 01 1 0212-0406 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) POWER WINDOW<A30> EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-191-0 01 1 0407- ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97956-767-7 01 1 0008-0211 ●
11 HARNESS; BODY
GRADE NEW SUPER(RBA) IDN 		8-97956-767-7 01 1 0008-0211 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30> IDN 		8-97562-190-0 01 1 0212-0406 ●
11 HARNESS; BODY
GRADE NEW SUPER(RBA) IDN 		8-97562-190-0 01 1 0212-0406 ●
11 HARNESS; BODY
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) EXC. POWER WINDOW<A30>,FACE LIFT MODEL<TX7> IDN 		8-97562-190-0 01 1 0407- ●
11 HARNESS; BODY
GRADE NEW SUPER(RBA) EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-190-0 01 1 0407- ●
85 HARNESS; ROOM LAMP
(A) IDN 		8-97956-793-0 01 1 0008-0106 ●
85 HARNESS; ROOM LAMP
GRADE NEW SUPER(RBA) (B) IDN 		8-97956-794-5 01 1 0008- ●
85 HARNESS; ROOM LAMP
GRADE ROYAL(RBB) (B) IDN 		8-97956-795-4 01 1 0008-0106 ●
85 HARNESS; ROOM LAMP
GRADE ROYAL(RBB),GRADE TOURING(RBG) (B) IDN 		8-97956-795-5 01 1 0107-0209 ●
85 HARNESS; ROOM LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97956-795-6 01 1 0210- ●
85 HARNESS; ROOM LAMP
GRADE NEW SUPER(RBA) (B) IDN 		8-97956-796-5 01 1 0008- ●
85 HARNESS; ROOM LAMP
GRADE ROYAL(RBB),GRADE LS(RBD) (B) IDN 		8-97956-797-4 01 1 0008-0106 ●
85 HARNESS; ROOM LAMP
GRADE ROYAL(RBB),GRADE TOURING(RBG) (B) IDN 		8-97956-797-5 01 1 0107-0209 ●
85 HARNESS; ROOM LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97956-797-6 01 1 0210- ●
139 HARNESS; CAB COOLER
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97956-798-6 01 1 0008- ● ●

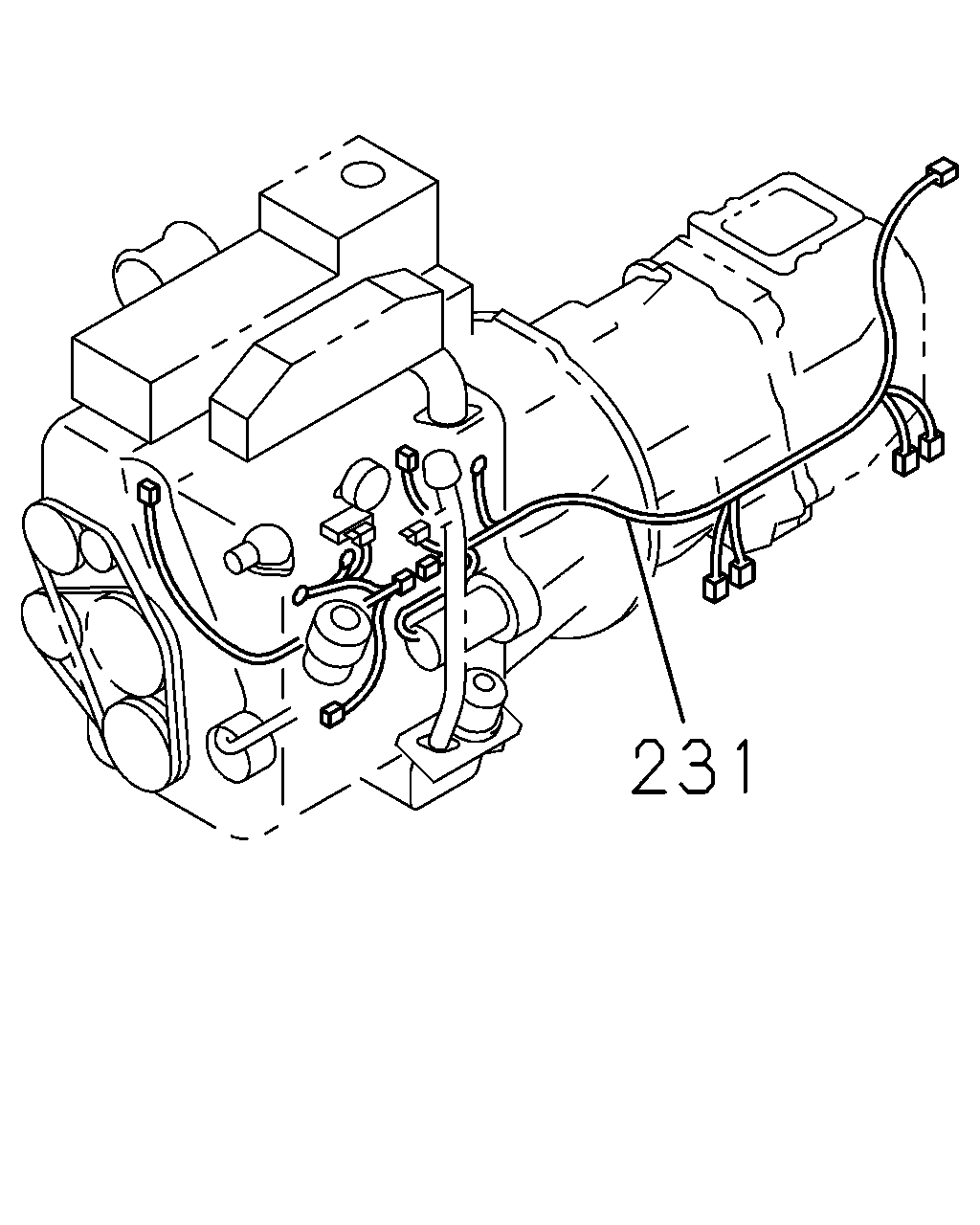

çizim 289874
231
BalonParca AdiParca NoAdetTipApplied Date A B C
231 HARNESS; TRANS
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-775-5 01 1 0008-0009 ●
231 HARNESS; TRANS
M/T MSG 5 SPEED(M75) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-775-5 01 1 0008-0009 ● ●
231 HARNESS; TRANS
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-775-5 01 1 0010-0106 ●
231 HARNESS; TRANS
M/T MSG 5 SPEED(M75) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-775-5 01 1 0010-0106 ●
231 HARNESS; TRANS
M/T MSG 5 SPEED(M75) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97956-775-5 01 1 0010-0106 ●
231 HARNESS; TRANS
M/T MSG 5 SPEED(M75) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-775-5 01 1 0107-0209 ● ●
231 HARNESS; TRANS
M/T MSG 5 SPEED(M75) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97956-775-5 01 1 0210-0405 ● ●
231 HARNESS; TRANS
M/T MSG 5 SPEED(M75) EXC. CAB UP<W60> IDN 		8-97956-775-5 01 1 0406- ● ●
231 HARNESS; TRANS
A/T AISIN(RMD) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-776-4 01 1 0008-0009 ● ●
231 HARNESS; TRANS
A/T AISIN(RMD) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-776-4 01 1 0010-0106 ●
231 HARNESS; TRANS
A/T AISIN(RMD) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97956-776-4 01 1 0010-0106 ●
231 HARNESS; TRANS
A/T AISIN(RMD) GRADE ROYAL(RBB) IDN 		8-97956-776-4 01 1 0107-0209 ● ●
231 HARNESS; TRANS
A/T AISIN(RMD) GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97956-776-4 01 1 0210-0405 ● ●
231 HARNESS; TRANS
A/T AISIN(RMD) EXC. CAB UP<W60> IDN 		8-97956-776-4 01 1 0406- ● ●
231 HARNESS; TRANS
A/T AISIN(RMD) GRADE TOURING(RBG) IDN 		8-97958-628-2 01 1 0107-0405 ● ●
231 HARNESS; TRANS
A/T AISIN(RMD) CAB UP<W60> IDN 		8-97958-628-2 01 1 0406- ● ●
231 HARNESS; TRANS
M/T MSG 5 SPEED(M75) GRADE TOURING(RBG) IDN 		8-97958-627-2 01 1 0107-0405 ● ●
231 HARNESS; TRANS
M/T MSG 5 SPEED(M75) CAB UP<W60> IDN 		8-97958-627-2 01 1 0406- ● ●
231 HARNESS; TRANS
A/T AISIN(RMD) GRADE LS(RBD) IDN 		8-97958-628-0 01 1 0008-0009 ●
231 HARNESS; TRANS
M/T MSG 5 SPEED(M75) GRADE LS(RBD) IDN 		8-97958-627-0 01 1 0008-0009 ●

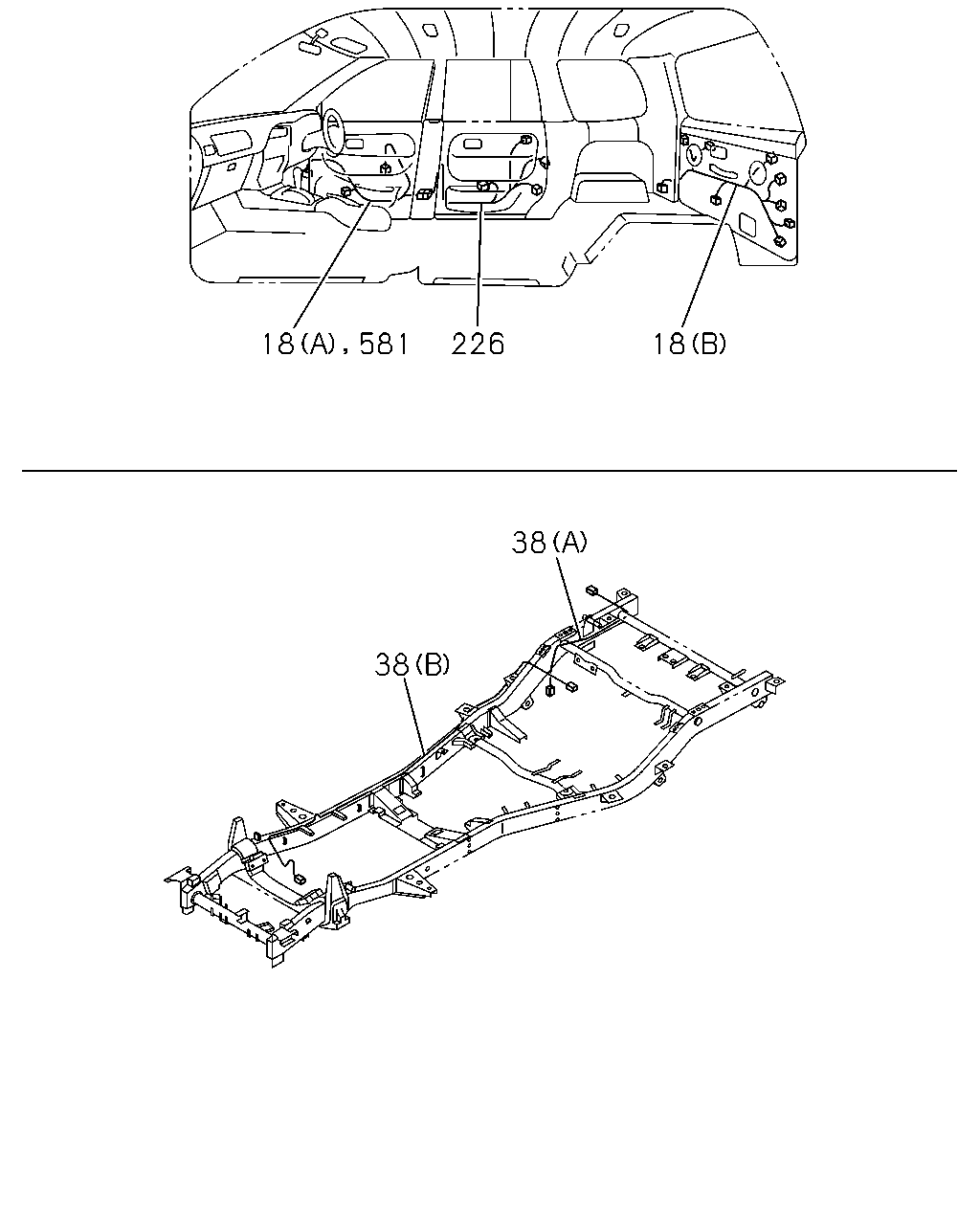

çizim 289905
18 581 226 18 38 38
BalonParca AdiParca NoAdetTipApplied Date A B C
18 HARNESS; DOOR
GRADE NEW SUPER(RBA) (B) IDN 		8-97956-790-4 01 1 0008-0209 ● ●
18 HARNESS; DOOR
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) (B) IDN 		8-97956-790-4 01 1 0008-0209 ● ●
18 HARNESS; DOOR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-97562-209-0 01 1 0210- ● ●
18 HARNESS; DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) (B) IDN 		8-97956-791-5 01 1 0008-0106 ● ●
18 HARNESS; DOOR
GRADE LS(RBD) (B) IDN 		8-97956-791-5 01 1 0008-0106 ●
18 HARNESS; DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) (B) IDN 		8-97956-791-5 01 1 0107-0209 ● ●
18 HARNESS; DOOR
GRADE LS(RBD) (B) IDN 		8-97562-210-0 01 1 0210- ● ●
18 HARNESS; DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) (A) IDN 		8-97956-780-6 01 1 0008-0106 ● ●
18 HARNESS; DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) (A) IDN 		8-97959-356-4 01 1 0107-0209 ● ●
18 HARNESS; DOOR
GRADE LS(RBD) (A) IDN 		8-97959-356-5 01 1 0210-0405 ● ●
18 HARNESS; DOOR
GRADE LS(RBD) (A) IDN 		8-97959-356-6 01 1 0406- ●
18 HARNESS; DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (A) IDN 		8-97959-356-6 01 1 0406- ●
18 HARNESS; DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) (A) IDN 		8-97956-779-6 01 1 0008-0106 ● ●
18 HARNESS; DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) (A) IDN 		8-97959-355-4 01 1 0107-0209 ● ●
18 HARNESS; DOOR
GRADE LS(RBD) (A) IDN 		8-97959-355-5 01 1 0210-0405 ● ●
18 HARNESS; DOOR
GRADE LS(RBD) (A) IDN 		8-97959-355-6 01 1 0406- ●
18 HARNESS; DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (A) IDN 		8-97959-355-6 01 1 0406- ●
18 HARNESS; DOOR
GRADE TOURING(RBG) (A) IDN 		8-97959-354-5 01 1 0107-0405 ● ●
18 HARNESS; DOOR
GRADE TOURING(RBG) (A) IDN 		8-97959-354-6 01 1 0406- ● ●
18 HARNESS; DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> (A) IDN 		8-97959-354-6 01 1 0406- ●
18 HARNESS; DOOR
GRADE LS(RBD) (A) IDN 		8-97956-778-6 01 1 0008-0106 ●
18 HARNESS; DOOR
GRADE TOURING(RBG) (A) IDN 		8-97959-353-5 01 1 0107-0405 ● ●
18 HARNESS; DOOR
GRADE TOURING(RBG) (A) IDN 		8-97959-353-6 01 1 0406- ● ●
18 HARNESS; DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> (A) IDN 		8-97959-353-6 01 1 0406- ●
18 HARNESS; DOOR
GRADE LS(RBD) (A) IDN 		8-97956-777-6 01 1 0008-0106 ●
18 HARNESS; DOOR
GRADE TOURING(RBG) (B) IDN 		8-97958-918-1 01 1 0107-0209 ● ●
18 HARNESS; DOOR
GRADE TOURING(RBG) (B) IDN 		8-97562-211-0 01 1 0210- ● ●
38 HARNESS; CHAS
(A) IDN 		8-97956-758-1 01 1 0008-0106 ●
38 HARNESS; CHAS
GRADE TOURING(RBG) (B) IDN 		8-97959-162-1 01 1 0107-0405 ● ●
38 HARNESS; CHAS
CAB UP<W60> (B) IDN 		8-97959-162-1 01 1 0406- ● ●
38 HARNESS; CHAS
(B) IDN 		8-97956-759-4 01 1 0008-0106 ● ●
38 HARNESS; CHAS
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-97956-759-4 01 1 0107-0209 ● ●
38 HARNESS; CHAS
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) IDN 		8-97956-759-5 01 1 0210-0405 ● ●
38 HARNESS; CHAS
EXC. CAB UP<W60> (B) IDN 		8-97956-759-5 01 1 0406- ● ●
226 HARNESS; RR DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97956-789-5 01 1 0008-0106 ●
226 HARNESS; RR DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97959-661-0 01 1 0107-0209 ●
226 HARNESS; RR DOOR
GRADE LS(RBD) IDN 		8-97959-661-0 01 1 0210- ●
226 HARNESS; RR DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97956-788-4 01 1 0008-0106 ●
226 HARNESS; RR DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97959-660-0 01 1 0107-0209 ●
226 HARNESS; RR DOOR
GRADE LS(RBD) IDN 		8-97959-660-0 01 1 0210- ●
226 HARNESS; RR DOOR
GRADE TOURING(RBG) IDN 		8-97959-663-0 01 1 0107- ●
226 HARNESS; RR DOOR
GRADE TOURING(RBG) IDN 		8-97959-662-0 01 1 0107- ●
226 HARNESS; RR DOOR
GRADE LS(RBD) IDN 		8-97956-783-5 01 1 0008-0011 ●
226 HARNESS; RR DOOR
GRADE LS(RBD) IDN 		8-97959-441-0 01 1 0012-0106 ●
226 HARNESS; RR DOOR
GRADE TOURING(RBG) IDN 		8-97959-441-0 01 1 0107-0405 ●
226 HARNESS; RR DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN 		8-97959-441-0 01 1 0406- ●
226 HARNESS; RR DOOR
GRADE TOURING(RBG) IDN 		8-97959-441-0 01 1 0406- ●
226 HARNESS; RR DOOR
GRADE LS(RBD) IDN 		8-97956-782-4 01 1 0008-0011 ●
226 HARNESS; RR DOOR
GRADE LS(RBD) IDN 		8-97959-440-0 01 1 0012-0106 ●
226 HARNESS; RR DOOR
GRADE TOURING(RBG) IDN 		8-97959-440-0 01 1 0107-0405 ●
226 HARNESS; RR DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN 		8-97959-440-0 01 1 0406- ●
226 HARNESS; RR DOOR
GRADE TOURING(RBG) IDN 		8-97959-440-0 01 1 0406- ●
226 HARNESS; RR DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97956-785-5 01 1 0008-0209 ●
226 HARNESS; RR DOOR
GRADE LS(RBD) IDN 		8-97956-785-5 01 1 0210-0405 ●
226 HARNESS; RR DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> IDN 		8-97956-785-5 01 1 0406- ●
226 HARNESS; RR DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97956-784-4 01 1 0008-0209 ●
226 HARNESS; RR DOOR
GRADE LS(RBD) IDN 		8-97956-784-4 01 1 0210-0405 ●
226 HARNESS; RR DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> IDN 		8-97956-784-4 01 1 0406- ●
581 HARNESS; DOOR SPEAKER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97957-518-3 01 1 0008-0106 ●
581 HARNESS; DOOR SPEAKER
GRADE NEW SUPER(RBA) IDN 		8-97957-518-3 01 1 0008-0106 ● ●
581 HARNESS; DOOR SPEAKER
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) IDN 		8-97957-518-3 01 1 0008-0106 ● ●
581 HARNESS; DOOR SPEAKER
GRADE NEW SUPER(RBA) IDN 		8-97957-518-4 01 1 0107-0209 ● ●
581 HARNESS; DOOR SPEAKER
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) IDN 		8-97957-518-4 01 1 0107-0209 ● ●
581 HARNESS; DOOR SPEAKER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97957-518-5 01 1 0210- ● ●
581 HARNESS; DOOR SPEAKER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-781-6 01 1 0008-0106 ●
581 HARNESS; DOOR SPEAKER
GRADE NEW SUPER(RBA) IDN 		8-97956-781-6 01 1 0008-0106 ● ●
581 HARNESS; DOOR SPEAKER
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) IDN 		8-97956-781-6 01 1 0008-0106 ● ●
581 HARNESS; DOOR SPEAKER
GRADE NEW SUPER(RBA) IDN 		8-97956-781-7 01 1 0107-0209 ● ●
581 HARNESS; DOOR SPEAKER
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) IDN 		8-97956-781-7 01 1 0107-0209 ● ●
581 HARNESS; DOOR SPEAKER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-781-8 01 1 0210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
