8-05 — INTERIOR LAMP (#95400) — 32 parça

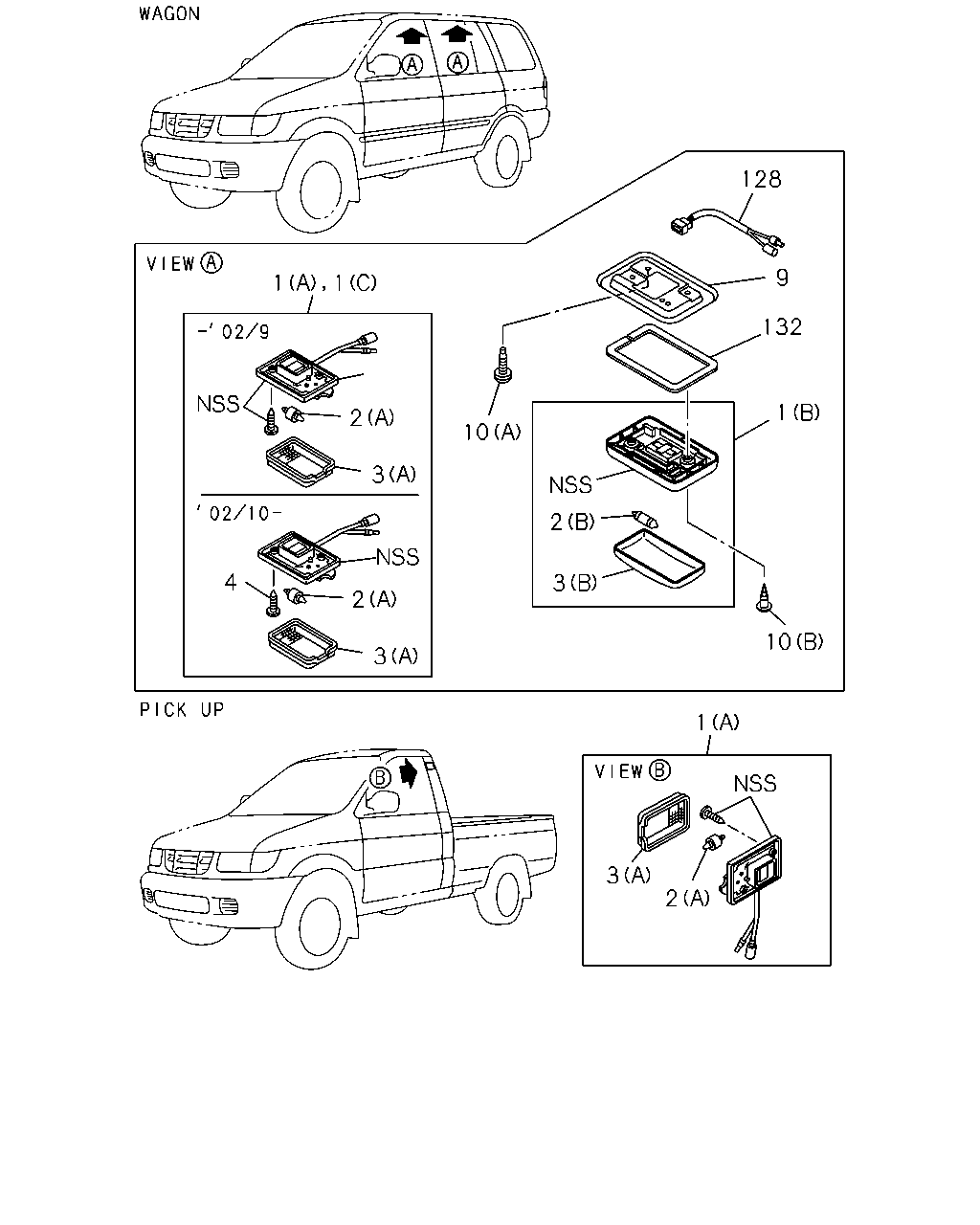

çizim 288936
2 3 4 2 3 2 3 1 10 3 2 1 132 9 128 1 1 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; ROOM
(A) LIGHT GRAY IDN 		8-97196-928-0 01 1 0008-0106 ● ● ●
1 LAMP ASM; ROOM
GRADE ROYAL(RBB) (A) LIGHT GRAY IDN 		8-97196-928-0 01 1 0008-0106 ●
1 LAMP ASM; ROOM
GRADE ROYAL(RBB),GRADE LS(RBD) (A) LIGHT GRAY IDN 		8-97196-928-0 01 1 0008-0106 ●
1 LAMP ASM; ROOM
GRADE NEW SUPER(RBA) (C) LIGHT GRAY IDN 		8-97196-928-0 01 1 0107-0209 ● ●
1 LAMP ASM; ROOM
GRADE NEW SUPER(RBA) (C) LIGHT GRAY IDN 		8-97394-021-0 01 1 0210- ● ●
1 LAMP ASM; ROOM
GRADE ROYAL(RBB),GRADE TOURING(RBG) (B) LIGHT GRAY 		8-97295-035-2 02 1 0107-0209 ● ●
1 LAMP ASM; ROOM
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) LIGHT GRAY 		8-97394-403-3 02 1 0210- ● ●
2 BULB; ROOM LAMP
(A) 12V 8W IDN 		8-94153-335-0 01 1 0008-0106 ● ● ●
2 BULB; ROOM LAMP
GRADE ROYAL(RBB) (A) 12V 8W IDN 		8-94153-335-0 01 1 0008-0106 ●
2 BULB; ROOM LAMP
GRADE ROYAL(RBB),GRADE LS(RBD) (A) 12V 8W IDN 		8-94153-335-0 01 1 0008-0106 ●
2 BULB; ROOM LAMP
GRADE NEW SUPER(RBA) (A) 12V 8W IDN 		8-94153-335-0 01 1 0107- ● ●
2 BULB; ROOM LAMP
GRADE ROYAL(RBB),GRADE TOURING(RBG) (B) 12V 10W 		8-97128-771-0 02 1 0107-0209 ● ●
2 BULB; ROOM LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) 12V 10W 		8-97128-771-0 02 1 0210- ● ●
3 LENS; ROOM LAMP
(A) IDN 		8-94377-660-0 01 1 0008-0106 ● ● ●
3 LENS; ROOM LAMP
GRADE ROYAL(RBB) (A) IDN 		8-94377-660-0 01 1 0008-0106 ●
3 LENS; ROOM LAMP
GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN 		8-94377-660-0 01 1 0008-0106 ●
3 LENS; ROOM LAMP
GRADE NEW SUPER(RBA) (A) IDN 		8-94377-660-0 01 1 0107- ● ●
3 LENS; ROOM LAMP
GRADE ROYAL(RBB),GRADE TOURING(RBG) (B) 		8-97252-106-0 02 1 0107-0209 ● ●
3 LENS; ROOM LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) 		8-97252-106-0 02 1 0210- ● ●
4 SCREW; ROOM LAMP
GRADE NEW SUPER(RBA) IDN 		8-97030-990-0 02 1 0210- ● ●
9 BRACKET; ROOM LAMP,ROOF
GRADE ROYAL(RBB),GRADE TOURING(RBG) IDN 		8-97959-348-0 02 1 0107-0209 ● ●
9 BRACKET; ROOM LAMP,ROOF
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97959-348-0 02 1 0210- ● ●
10 SCREW; BRKT,ROOM LAMP
GRADE ROYAL(RBB),GRADE TOURING(RBG) (A) M5X12 		8-94120-094-0 04 1 0107-0209 ● ●
10 SCREW; BRKT,ROOM LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (A) M5X12 		8-94120-094-0 04 1 0210- ● ●
10 SCREW; BRKT,ROOM LAMP
GRADE ROYAL(RBB),GRADE TOURING(RBG) (B) M5X16 		8-94295-854-0 04 1 0107-0209 ● ●
10 SCREW; BRKT,ROOM LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) M5X16 		8-94295-854-0 04 1 0210- ● ●
128 HARNESS; EXT,ROOM LAMP
GRADE ROYAL(RBB),GRADE TOURING(RBG) IDN 		8-97959-478-0 02 1 0107-0209 ● ●
128 HARNESS; EXT,ROOM LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97959-478-0 02 1 0210- ● ●
132 TAPE; SOFT ROOM LAMP
GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97560-437-0 02 1 0107-0107 ● ●
132 TAPE; SOFT ROOM LAMP
GRADE TOURING(RBG) IDN 		8-97560-437-0 02 1 0107-0107 ● ●
132 TAPE; SOFT ROOM LAMP
GRADE ROYAL(RBB),GRADE TOURING(RBG) IDN 		8-97560-437-0 02 1 0107-0209 ● ●
132 TAPE; SOFT ROOM LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97560-437-0 02 1 0210- ● ●
