Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#9540) — 336 parça

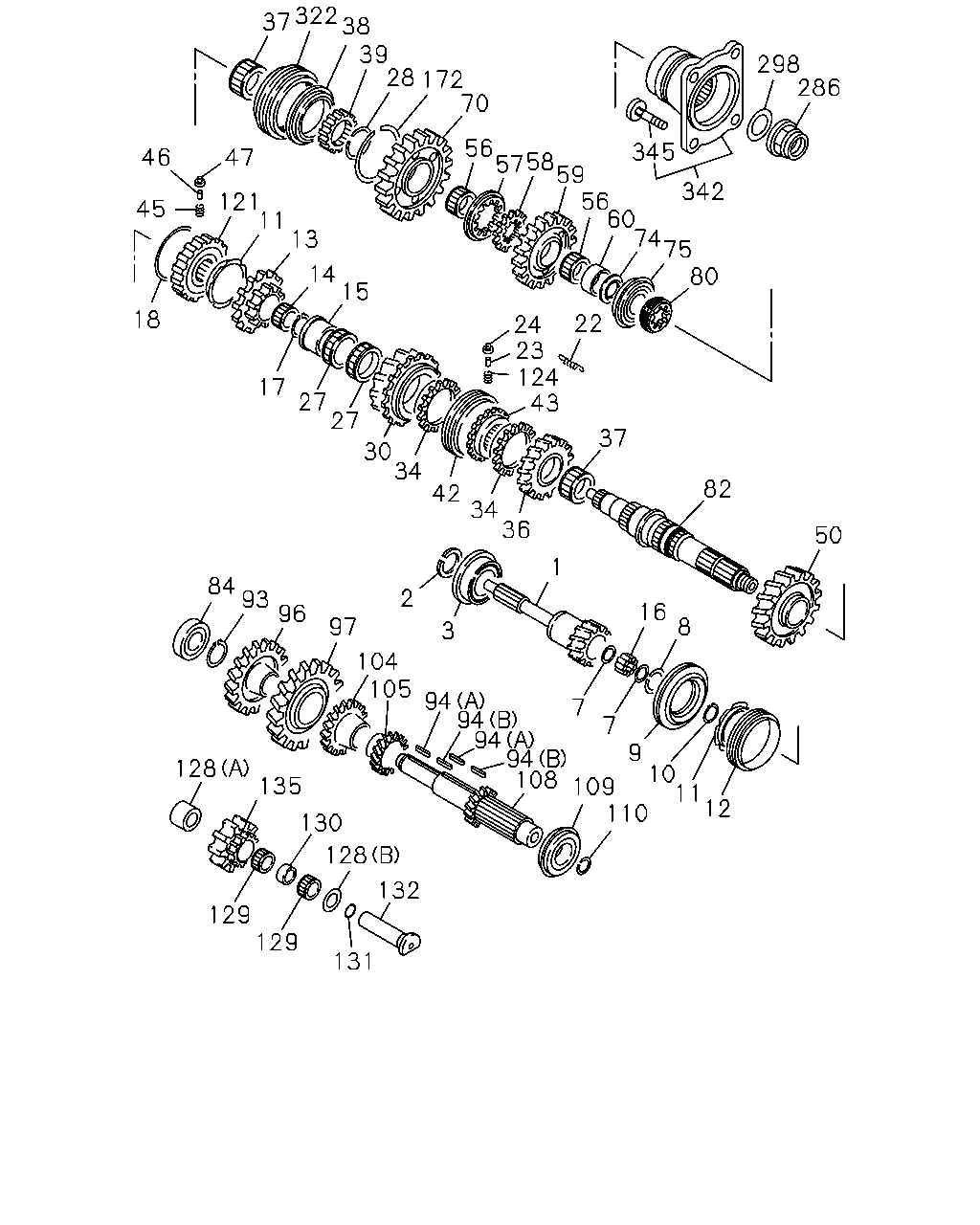

322 37 38 39 28 172 70 298 286 56 57 58 59 56 60 74 75 80 345 46 47 342 121 11 45 13 14 15 18 22 24 23 124 43 17 27 27 37 30 34 42 34 36 82 50 1 84 93 96 2 16 8 97 3 104 105 94 94 94 94 108 109 110 7 7 9 10 11 12 128 135 130 128 132 129 129 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	0005-0006	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-0210	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	0005-0006		●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-0210		●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-788-0	01	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0005-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0005-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0005-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0005-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0211-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0005-0210	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0211-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0005-0210	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0211-		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0005-0210	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0211-		●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0005-0210	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0211-		●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0005-0210	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0211-		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0005-0210	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0211-		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0005-0210	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0211-		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	0005-0210	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	0211-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0005-0210	●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0211-		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0005-0210	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0211-		●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0005-0210	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0211-		●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0005-0210	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0211-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0005-0210	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0211-		●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0005-0210	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0211-		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-0210	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0211-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-0210	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0211-		●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0005-0210	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0211-		●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0005-0210	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0211-		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	0005-0210	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	0211-		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0005-0210	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0211-0312		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	0005-0210	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	0211-		●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	0005-0210	●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	0211-		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0005-0210	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0211-		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0005-0210	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0211-0312		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0005-0210	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0211-		●
42	SLEEVE Z=54	1-33262-154-0	01	1	0005-0210	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0211-		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0005-0210	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0211-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0005-0210	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0211-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0005-0210	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0211-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0005-0210	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0211-		●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0005-0210	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0211-		●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0005-0210	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0211-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0005-0210	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0211-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0005-0210	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0211-		●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0005-0210	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0211-		●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	0005-0009	●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-0210	●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0211-		●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0005-0210	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0211-		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0005-0210	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0211-		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0005-0210	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0211-		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0005-0210	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0211-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0005-0210	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0211-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0005-0210	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	0005-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0005-0210	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0211-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0005-0210	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0211-		●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0005-0210	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0211-		●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0005-0210	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0211-		●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	0005-0210	●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	0005-		●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	0005-0210	●	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	0211-		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	0005-0210	●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	0211-1302		●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-		●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	0005-0210	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	0211-1311		●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	0005-0210	●
108	SHAFT; COUNTER Z=19-13	1-33311-274-1	01	1	0005-		●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0005-0210	●	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0211-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0005-0210	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0211-		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0005-0210	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0211-		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	0005-0210	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	0211-0212		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-		●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0005-0210	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0211-		●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0005-0210	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0211-		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0005-0210	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0211-		●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0005-0210	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0211-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0005-0210	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0211-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0005-0210	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0211-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0005-0210	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0211-		●
132	SHAFT; REV	1-33351-017-0	01	1	0005-0210	●	●
132	SHAFT; REV	1-33351-017-0	01	1	0211-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0005-0210	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0211-		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0005-0210	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0211-		●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0005-0210	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0211-0805		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0005-0210	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0211-		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0005-0210	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0211-		●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	0005-0210	●	●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	0211-		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0005-0210	●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0211-0707		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	0708-		●

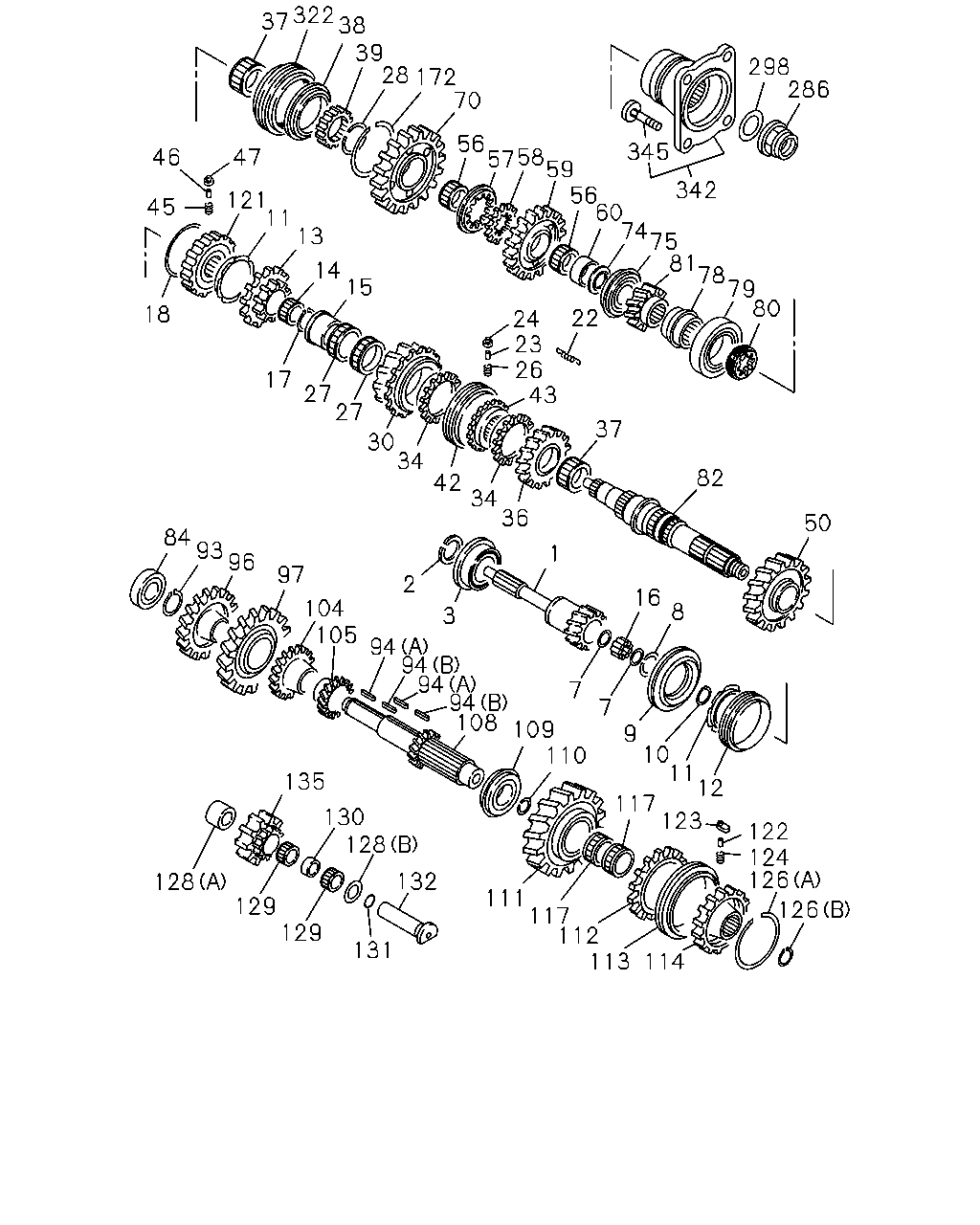

322 37 38 39 28 172 70 298 286 56 57 58 59 56 60 74 75 81 78 79 80 345 46 47 342 121 11 45 13 14 15 18 22 24 23 26 43 17 27 27 37 30 34 42 34 36 82 50 84 93 96 1 97 2 16 104 105 8 3 94 94 94 94 108 109 110 7 7 9 10 11 12 135 117 123 130 128 122 124 126 132 128 111 117 112 113 129 129 126 131 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	0005-0006	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-0210	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	0005-0006		●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-0210		●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-788-0	01	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0005-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0005-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0005-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0211-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0005-0210	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0211-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0005-0210	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0211-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0005-0210	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0211-		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0005-0210	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0211-		●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0005-0210	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0211-		●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0005-0210	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0211-		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0005-0210	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0211-		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0005-0210	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0211-		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	0005-0210	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	0211-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0005-0210	●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0211-		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0005-0210	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0211-		●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0005-0210	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0211-		●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0005-0210	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0211-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0005-0210	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0211-		●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0005-0210	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0211-		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-0210	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0211-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-0210	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0211-		●
26	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	0005-		●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0005-0210	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0211-		●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0005-0210	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0211-		●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	0005-0210	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	0211-		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0005-0210	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0211-0312		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	0005-0210	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	0211-		●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	0005-0210	●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	0211-		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0005-0210	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0211-		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0005-0210	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0211-0312		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0005-0210	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0211-		●
42	SLEEVE Z=54	1-33262-154-0	01	1	0005-0210	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0211-		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0005-0210	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0211-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0005-0210	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0211-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0005-0210	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0211-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0005-0210	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0211-		●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0005-0210	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0211-		●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0005-0210	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0211-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0005-0210	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0211-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0005-0210	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0211-		●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0005-0210	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0211-		●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	0005-0009	●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-0210	●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0211-		●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0005-0210	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0211-		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0005-0210	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0211-		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0005-0210	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0211-		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0005-0210	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0211-		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	0005-		●
79	BEARING; BALL,MAINSHAFT KOYO	1-09800-150-0	01	1	0005-		●
79	BEARING; BALL,MAINSHAFT NTN	1-09800-151-0	01	1	0005-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0005-0210	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0211-		●
81	GEAR; 7TH,MAIN Z=19	1-33254-013-0	01	1	0005-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0005-0210	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	0005-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0005-0210	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0211-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0005-0210	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0211-		●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0005-0210	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0211-		●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0005-0210	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0211-		●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	0005-0210	●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	0005-		●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	0005-0210	●	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	0211-		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	0005-0210	●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	0211-1302		●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-		●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	0005-0210	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	0211-1311		●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	0005-0210	●
108	SHAFT; COUNTER Z=19-13	1-33311-274-1	01	1	0005-		●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0005-0210	●	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0211-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0005-0210	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0211-		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0005-0210	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0211-		●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-311-1	01	1	0005-		●
112	RING; BLOCK,7TH SYN Z=36	1-33265-281-1	01	1	0005-		●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-111-3	01	1	0005-		●
114	HUB; CLU,7TH	1-33261-159-1	01	1	0005-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-105-0	02	1	0005-		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	0005-0210	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	0211-0212		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-		●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0005-		●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0005-		●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0005-0210	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0211-		●
126	RING; SNAP,CLU HUB (A) OD=121.2	1-09587-031-0	01	1	0005-		●
126	RING; SNAP,CLU HUB (B) OD=55.8	1-09588-043-0	01	1	0005-		●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0005-0210	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0211-		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0005-0210	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0211-		●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0005-0210	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0211-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0005-0210	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0211-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0005-0210	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0211-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0005-0210	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0211-		●
132	SHAFT; REV	1-33351-017-0	01	1	0005-0210	●	●
132	SHAFT; REV	1-33351-017-0	01	1	0211-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0005-0210	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0211-		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0005-0210	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0211-		●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0005-0210	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0211-0805		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0005-0210	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0211-		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0005-0210	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0211-		●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	0005-0210	●	●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	0211-		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0005-0210	●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	0211-0707		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	0708-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
