◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#95399) — 152 parça

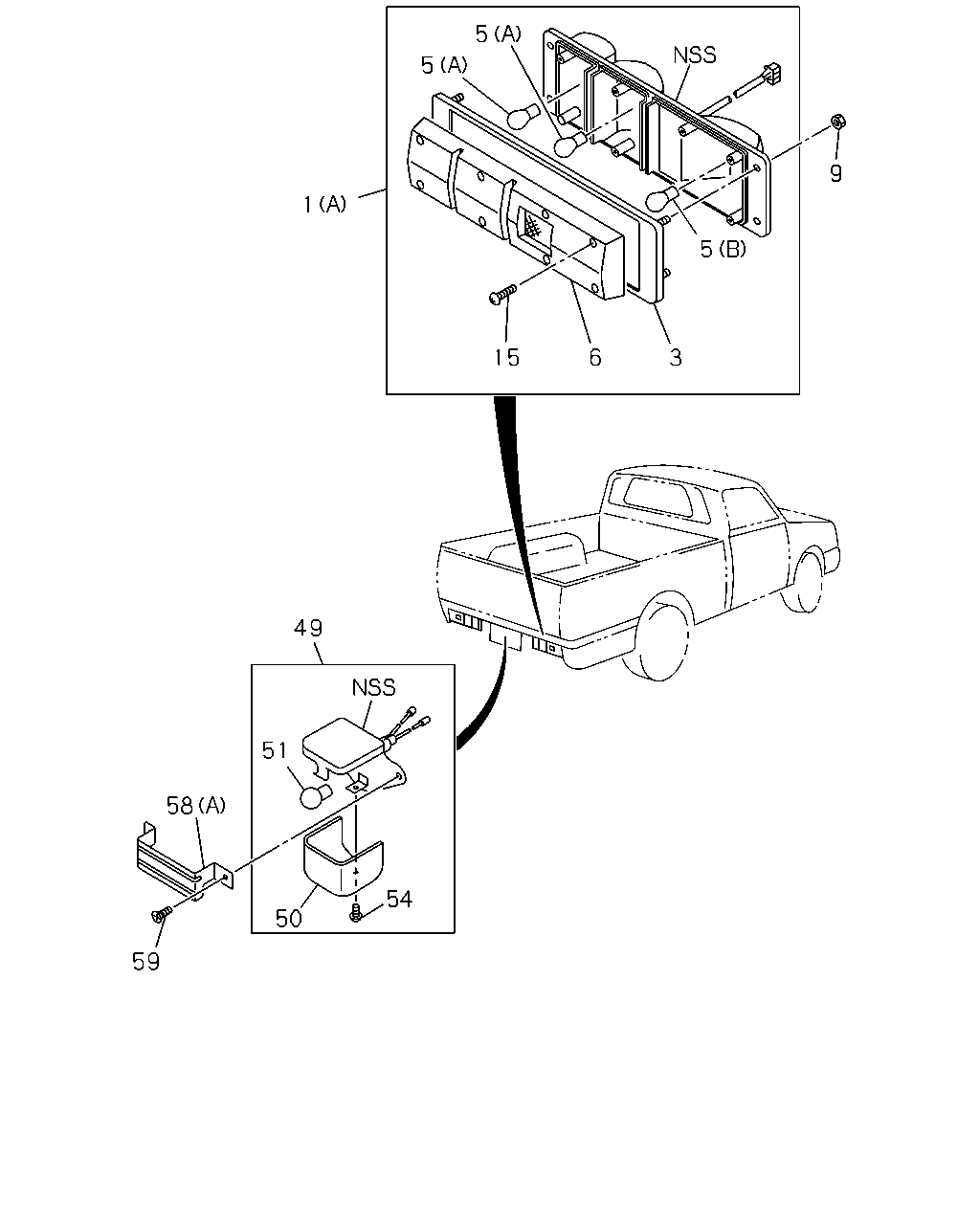

çizim 289325
58 59 54 50 51 49 15 6 3 5 9 5 5 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; RR COMB
(A) IDN 		5-82230-037-1 01 1 0008-0106 ●
1 LAMP ASM; RR COMB
(A) IDN 		5-82230-036-1 01 1 0008-0106 ●
1 LAMP ASM; RR COMB
(B) IDN 		8-97956-684-4 01 1 0008-0106 ● ●
1 LAMP ASM; RR COMB
(B) IDN 		8-97959-343-1 01 1 0107-0202 ● ●
1 LAMP ASM; RR COMB
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-97959-343-1 01 1 0203-0310 ● ●
1 LAMP ASM; RR COMB
GRADE NEW SUPER(RBA) (B) IDN 		8-97959-343-1 01 1 0311- ● ●
1 LAMP ASM; RR COMB
(B) IDN 		8-97956-683-4 01 1 0008-0106 ● ●
1 LAMP ASM; RR COMB
(B) IDN 		8-97959-342-1 01 1 0107-0202 ● ●
1 LAMP ASM; RR COMB
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-97959-342-1 01 1 0203-0310 ● ●
1 LAMP ASM; RR COMB
GRADE NEW SUPER(RBA) (B) IDN 		8-97959-342-1 01 1 0311- ● ●
1 LAMP ASM; RR COMB
GRADE TOURING(RBG) (B) IDN 		8-97561-440-0 01 1 0203-0209 ● ●
1 LAMP ASM; RR COMB
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97561-440-0 01 1 0210-0310 ● ●
1 LAMP ASM; RR COMB
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97561-440-0 01 1 0311- ● ●
1 LAMP ASM; RR COMB
GRADE TOURING(RBG) (B) IDN 		8-97561-439-0 01 1 0203-0209 ● ●
1 LAMP ASM; RR COMB
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97561-439-0 01 1 0210-0310 ● ●
1 LAMP ASM; RR COMB
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97561-439-0 01 1 0311- ● ●
3 GASKET; RR COMB LAMP
IDN 		5-82236-002-0 01 1 0008-0106 ●
3 GASKET; RR COMB LAMP
IDN 		5-82236-001-0 01 1 0008-0106 ●
5 BULB; RR COMB LAMP
(A) 12V 23W IDN 		9-82692-131-0 04 1 0008-0106 ●
5 BULB; RR COMB LAMP
(C) 12V 21W IDN 		8-97179-967-0 02 1 0107- ● ●
5 BULB; RR COMB LAMP
(B) 12V 23/8W IDN 		9-82692-132-0 02 1 0008-0106 ●
5 BULB; RR COMB LAMP
(D) 12V 21W 		8-94124-074-0 04 1 0008-0106 ● ●
5 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 02 1 0107- ● ●
5 BULB; RR COMB LAMP
(B) 12V 21/5W IDN 		8-94125-959-0 02 1 0008- ● ●
6 LENS; RR COMB LAMP
IDN 		5-82235-002-0 01 1 0008-0106 ●
6 LENS; RR COMB LAMP
IDN 		5-82235-001-0 01 1 0008-0106 ●
9 NUT; LAMP,RR COMB
M5 FLANGE IDN 		5-09440-003-0 08 1 0008-0106 ●
15 SCREW; RR COMB LAMP
IDN 		5-82239-005-0 16 1 0008-0106 ●
49 LAMP; LICENSE PLATE
12V 10W IDN 		5-82120-020-0 01 1 0008-0106 ●
49 LAMP; LICENSE PLATE
GRADE TOURING(RBG) 		8-97263-635-1 01 1 0107- ● ●
49 LAMP; LICENSE PLATE 8-97175-322-0 01 1 0008-0106 ● ●
49 LAMP; LICENSE PLATE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) 		8-97175-322-0 01 1 0107-0209 ● ●
49 LAMP; LICENSE PLATE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) 		8-97175-322-0 01 1 0210- ● ●
50 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 0008-0106 ●
50 LENS; LICENSE PLATE LAMP 8-97260-721-0 01 1 0008- ● ●
51 BULB; LICENSE PLATE LAMP
12V 10W IDN 		8-94126-494-0 01 1 0008-0106 ●
51 BULB; LICENSE PLATE LAMP
12V 5W 		5-82194-006-0 01 1 0008- ● ●
54 SCREW; LICENSE PLATE LAMP
M4X8 IDN 		8-94419-312-0 01 1 0008-0106 ●
54 SCREW; LICENSE PLATE LAMP 0-71190-414-0 02 1 0008- ● ●
58 COVER; LICENSE PLATE LAMP
(A) 		8-97045-767-1 01 1 0008-0106 ●
58 COVER; LICENSE PLATE LAMP
(B) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97955-559-2 01 1 0008-0106 ● ●
58 COVER; LICENSE PLATE LAMP
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97955-559-2 01 1 0107-0112 ● ●
58 COVER; LICENSE PLATE LAMP
GRADE NEW SUPER(RBA) (B) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97955-559-2 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) (B) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97955-559-2 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97955-559-2 01 1 0210- ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR BLUE MET(606) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) IDN 		8-97392-974-0 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR BRILLIANT RED MICA(605) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) RED IDN 		8-97392-971-0 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR BRILLIANT RED MICA(605) GRADE LS(RBD) (B) RED IDN 		8-97392-971-0 01 1 0210- ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR HONEY SILVER MET(603) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) IDN 		8-97392-972-0 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR ARCTIC SILVER MET(672) GRADE LS(RBD) (B) DARK GRAY IDN 		8-97395-364-0 01 1 0210- ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR KEYSER SILVER MET(604) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) IDN 		8-97392-975-0 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR MINERAL BLUE MET(674) GRADE LS(RBD) (B) BLUE IDN 		8-97394-032-0 01 1 0210- ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR NORTH WHITE(601) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) IDN 		8-97392-973-0 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR MISTY QUARTZ MET(673) GRADE LS(RBD) (B) LIGHT BLUE IDN 		8-97395-755-0 01 1 0210- ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR PLATINUM SILVER MET(602) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) SILVER IDN 		8-97392-976-0 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR PLATINUM SILVER MET(602) GRADE LS(RBD) (B) SILVER IDN 		8-97392-976-0 01 1 0210- ● ●
58 COVER; LICENSE PLATE LAMP
GRADE TOURING(RBG) (C) PRIMER IDN 		8-97959-925-0 01 1 0107- ● ●
59 SCREW; TAP,LICENSE LAMP BODY
M5X12 TAPPING 		9-07066-512-0 02 1 0008-0106 ●
59 SCREW; TAP,LICENSE LAMP BODY
GRADE TOURING(RBG) M6X12 		9-03900-612-0 02 1 0107-0604 ● ●
59 SCREW; TAP,LICENSE LAMP BODY
GRADE TOURING(RBG) M6X12 W/PL WASHER 		0-36210-612-0 02 1 0605- ● ●

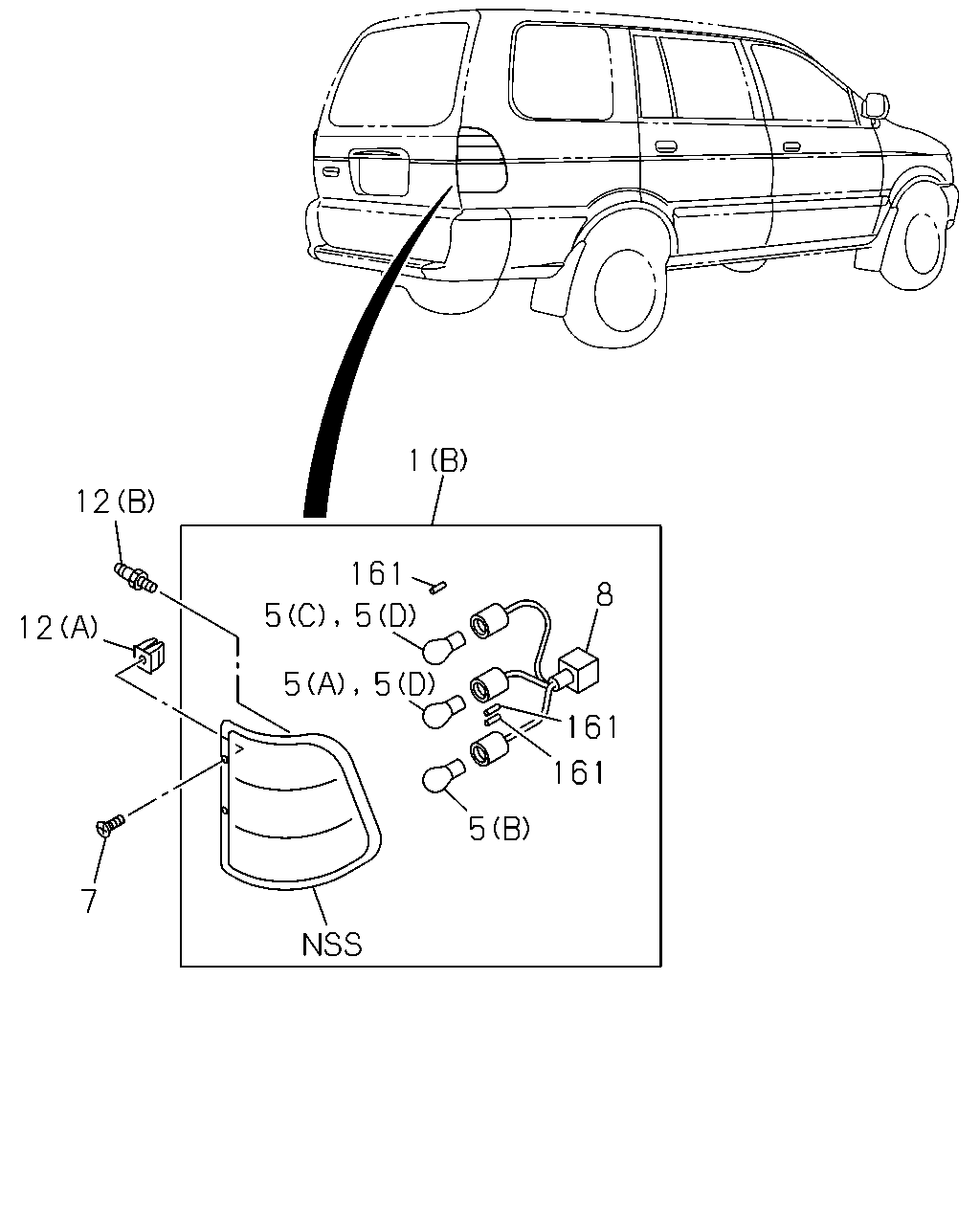

çizim 289362
1 8 161 161 5 5 5 5 5 12 12 161 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; RR COMB
(A) IDN 		5-82230-037-1 01 1 0008-0106 ●
1 LAMP ASM; RR COMB
(A) IDN 		5-82230-036-1 01 1 0008-0106 ●
1 LAMP ASM; RR COMB
(B) IDN 		8-97956-684-4 01 1 0008-0106 ● ●
1 LAMP ASM; RR COMB
(B) IDN 		8-97959-343-1 01 1 0107-0202 ● ●
1 LAMP ASM; RR COMB
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-97959-343-1 01 1 0203-0310 ● ●
1 LAMP ASM; RR COMB
GRADE NEW SUPER(RBA) (B) IDN 		8-97959-343-1 01 1 0311- ● ●
1 LAMP ASM; RR COMB
(B) IDN 		8-97956-683-4 01 1 0008-0106 ● ●
1 LAMP ASM; RR COMB
(B) IDN 		8-97959-342-1 01 1 0107-0202 ● ●
1 LAMP ASM; RR COMB
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-97959-342-1 01 1 0203-0310 ● ●
1 LAMP ASM; RR COMB
GRADE NEW SUPER(RBA) (B) IDN 		8-97959-342-1 01 1 0311- ● ●
1 LAMP ASM; RR COMB
GRADE TOURING(RBG) (B) IDN 		8-97561-440-0 01 1 0203-0209 ● ●
1 LAMP ASM; RR COMB
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97561-440-0 01 1 0210-0310 ● ●
1 LAMP ASM; RR COMB
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97561-440-0 01 1 0311- ● ●
1 LAMP ASM; RR COMB
GRADE TOURING(RBG) (B) IDN 		8-97561-439-0 01 1 0203-0209 ● ●
1 LAMP ASM; RR COMB
GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97561-439-0 01 1 0210-0310 ● ●
1 LAMP ASM; RR COMB
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) (B) IDN 		8-97561-439-0 01 1 0311- ● ●
5 BULB; RR COMB LAMP
(A) 12V 23W IDN 		9-82692-131-0 04 1 0008-0106 ●
5 BULB; RR COMB LAMP
(C) 12V 21W IDN 		8-97179-967-0 02 1 0107- ● ●
5 BULB; RR COMB LAMP
(B) 12V 23/8W IDN 		9-82692-132-0 02 1 0008-0106 ●
5 BULB; RR COMB LAMP
(D) 12V 21W 		8-94124-074-0 04 1 0008-0106 ● ●
5 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 02 1 0107- ● ●
5 BULB; RR COMB LAMP
(B) 12V 21/5W IDN 		8-94125-959-0 02 1 0008- ● ●
7 SCREW; RR COMB LAMP
M5X16 		8-94243-069-0 04 1 0008- ● ●
8 HARNESS; RR COMB LAMP
IDN 		8-97253-965-0 02 1 0008-0106 ● ●
8 HARNESS; RR COMB LAMP
IDN 		8-97305-669-0 02 1 0107-0202 ● ●
8 HARNESS; RR COMB LAMP
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97305-669-0 02 1 0203-0310 ● ●
8 HARNESS; RR COMB LAMP
GRADE NEW SUPER(RBA) IDN 		8-97305-669-0 02 1 0311- ● ●
8 HARNESS; RR COMB LAMP
GRADE TOURING(RBG) IDN 		8-97352-005-0 02 1 0203-0209 ● ●
8 HARNESS; RR COMB LAMP
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97352-005-0 02 1 0210-0310 ● ●
8 HARNESS; RR COMB LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97352-005-0 02 1 0311- ● ●
12 GROMMET; RR COMB LAMP
(A) D=7X7 L=7.5 		5-09983-007-0 04 1 0008- ● ●
12 GROMMET; RR COMB LAMP
(B) 		8-97175-217-0 04 1 0008- ● ●
161 TUBE; RR COMB LAMP
IDN 		8-97255-319-0 06 1 0008-0202 ● ●
161 TUBE; RR COMB LAMP
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97255-319-0 06 1 0203-0310 ● ●
161 TUBE; RR COMB LAMP
GRADE NEW SUPER(RBA) IDN 		8-97255-319-0 06 1 0311- ● ●
161 TUBE; RR COMB LAMP
GRADE TOURING(RBG) IDN 		8-97352-006-0 06 1 0203-0209 ● ●
161 TUBE; RR COMB LAMP
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97352-006-0 06 1 0210-0310 ● ●
161 TUBE; RR COMB LAMP
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97352-006-0 06 1 0311- ● ●

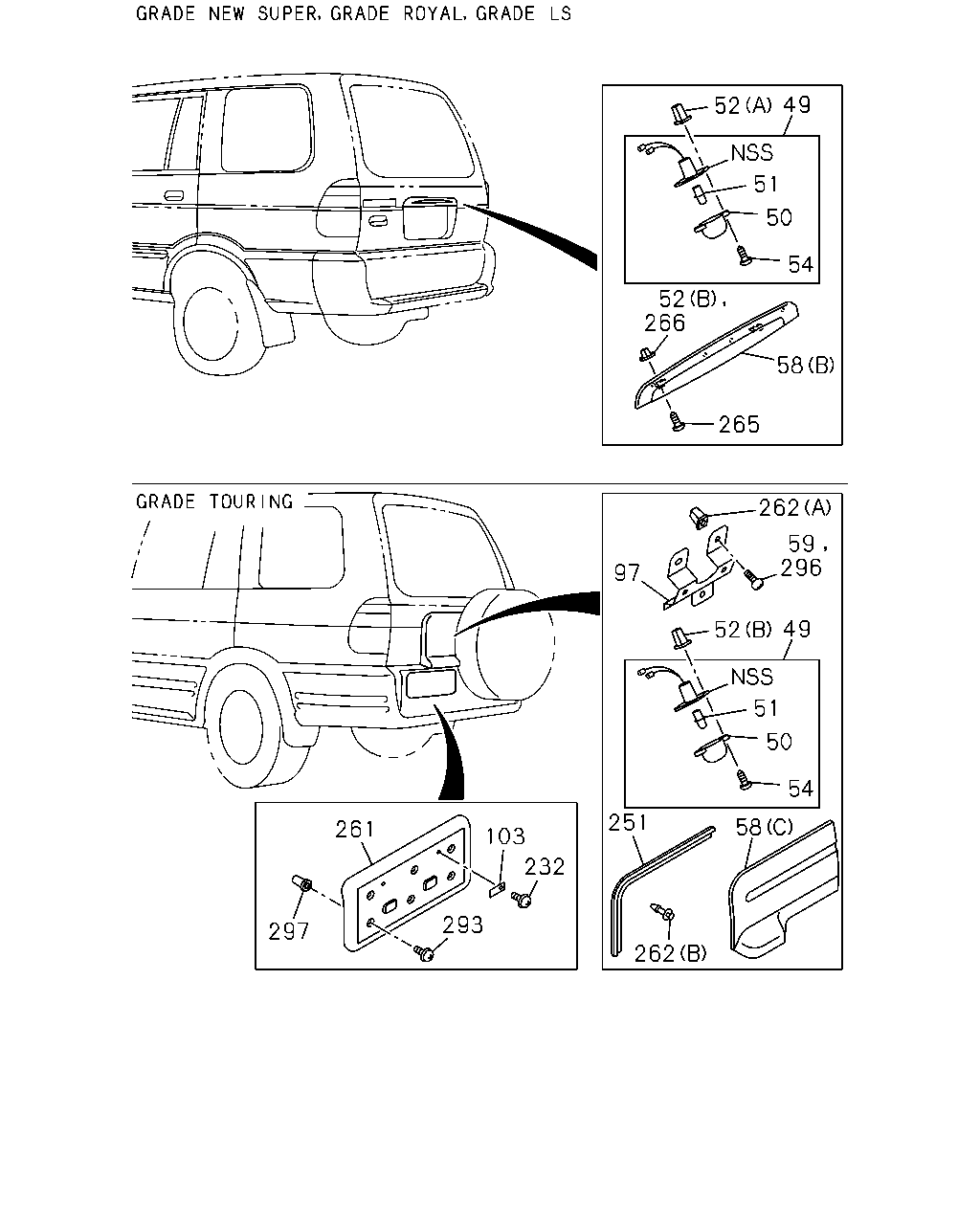

çizim 289396
52 49 51 50 54 52 266 58 265 262 59 296 49 52 97 51 50 54 58 262 251 232 103 261 293 297
BalonParca AdiParca NoAdetTipApplied Date A B C
49 LAMP; LICENSE PLATE
12V 10W IDN 		5-82120-020-0 01 1 0008-0106 ●
49 LAMP; LICENSE PLATE
GRADE TOURING(RBG) 		8-97263-635-1 01 1 0107- ● ●
49 LAMP; LICENSE PLATE 8-97175-322-0 01 1 0008-0106 ● ●
49 LAMP; LICENSE PLATE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) 		8-97175-322-0 01 1 0107-0209 ● ●
49 LAMP; LICENSE PLATE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) 		8-97175-322-0 01 1 0210- ● ●
50 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 0008-0106 ●
50 LENS; LICENSE PLATE LAMP 8-97260-721-0 01 1 0008- ● ●
51 BULB; LICENSE PLATE LAMP
12V 10W IDN 		8-94126-494-0 01 1 0008-0106 ●
51 BULB; LICENSE PLATE LAMP
12V 5W 		5-82194-006-0 01 1 0008- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
(A) M4 IDN 		5-09470-002-0 02 1 0008-0106 ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) M4 IDN 		5-09470-002-0 02 1 0107-0209 ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) M4 IDN 		5-09470-002-0 02 1 0210- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-94152-494-0 02 1 0205-0209 ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) IDN 		8-94152-494-0 02 1 0210- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
GRADE TOURING(RBG) (B) IDN 		8-94152-494-0 03 1 0107- ● ●
54 SCREW; LICENSE PLATE LAMP
M4X8 IDN 		8-94419-312-0 01 1 0008-0106 ●
54 SCREW; LICENSE PLATE LAMP 0-71190-414-0 02 1 0008- ● ●
58 COVER; LICENSE PLATE LAMP
(A) 		8-97045-767-1 01 1 0008-0106 ●
58 COVER; LICENSE PLATE LAMP
(B) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97955-559-2 01 1 0008-0106 ● ●
58 COVER; LICENSE PLATE LAMP
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97955-559-2 01 1 0107-0112 ● ●
58 COVER; LICENSE PLATE LAMP
GRADE NEW SUPER(RBA) (B) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97955-559-2 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) (B) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97955-559-2 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97955-559-2 01 1 0210- ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR BLUE MET(606) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) IDN 		8-97392-974-0 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR BRILLIANT RED MICA(605) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) RED IDN 		8-97392-971-0 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR BRILLIANT RED MICA(605) GRADE LS(RBD) (B) RED IDN 		8-97392-971-0 01 1 0210- ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR HONEY SILVER MET(603) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) IDN 		8-97392-972-0 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR ARCTIC SILVER MET(672) GRADE LS(RBD) (B) DARK GRAY IDN 		8-97395-364-0 01 1 0210- ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR KEYSER SILVER MET(604) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) IDN 		8-97392-975-0 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR MINERAL BLUE MET(674) GRADE LS(RBD) (B) BLUE IDN 		8-97394-032-0 01 1 0210- ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR NORTH WHITE(601) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) IDN 		8-97392-973-0 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR MISTY QUARTZ MET(673) GRADE LS(RBD) (B) LIGHT BLUE IDN 		8-97395-755-0 01 1 0210- ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR PLATINUM SILVER MET(602) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) SILVER IDN 		8-97392-976-0 01 1 0201-0209 ● ●
58 COVER; LICENSE PLATE LAMP
BODY COLOR PLATINUM SILVER MET(602) GRADE LS(RBD) (B) SILVER IDN 		8-97392-976-0 01 1 0210- ● ●
58 COVER; LICENSE PLATE LAMP
GRADE TOURING(RBG) (C) PRIMER IDN 		8-97959-925-0 01 1 0107- ● ●
59 SCREW; TAP,LICENSE LAMP BODY
M5X12 TAPPING 		9-07066-512-0 02 1 0008-0106 ●
59 SCREW; TAP,LICENSE LAMP BODY
GRADE TOURING(RBG) M6X12 		9-03900-612-0 02 1 0107-0604 ● ●
59 SCREW; TAP,LICENSE LAMP BODY
GRADE TOURING(RBG) M6X12 W/PL WASHER 		0-36210-612-0 02 1 0605- ● ●
97 BRACKET; LICENSE PLATE LAMP
GRADE TOURING(RBG) IDN 		8-97957-853-1 01 1 0107- ● ●
103 NUT
GRADE TOURING(RBG) 		8-94279-501-0 02 1 0107- ● ●
232 BOLT; PLATE
GRADE TOURING(RBG) M6X14 FLANGE 		8-94327-380-0 02 1 0107- ● ●
251 FINISHER; RR LICENSE FRAME
GRADE TOURING(RBG) 		8-97306-501-0 01 1 0107- ● ●
261 BEZEL; LICENSE PLATE
GRADE TOURING(RBG) IDN 		8-97957-625-1 01 1 0107- ● ●
262 CLIP; LICENSE PLATE
GRADE TOURING(RBG) (A) H=16.7 PHI 		8-97022-017-0 03 1 0107- ● ●
262 CLIP; LICENSE PLATE
GRADE TOURING(RBG) (B) IDN 		8-97117-942-0 04 1 0107- ● ●
265 SCREW; COVER
M5X14 IDN 		8-94152-495-0 02 1 0008-0106 ● ●
265 SCREW; COVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) M5X14 IDN 		8-94152-495-0 02 1 0107-0209 ● ●
265 SCREW; COVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) M5X14 IDN 		8-94152-495-0 02 1 0210- ● ●
266 NUT; COVER
IDN 		8-94152-494-0 02 1 0008-0106 ● ●
266 NUT; COVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-94152-494-0 02 1 0107-0204 ● ●
293 SCREW; BEZEL,LICENCE PLATE
GRADE TOURING(RBG) M5X19 		8-97142-720-1 06 1 0107- ● ●
296 SCREW; BRKT,LICENSE PLATE LAMP
GRADE TOURING(RBG) M5X14 IDN 		8-94152-495-0 03 1 0107- ● ●
297 GROMMET; LICENSE PLATE
GRADE TOURING(RBG) D=7.9X7.9 L=20 M5 IDN 		8-94441-539-0 06 1 0107- ● ●

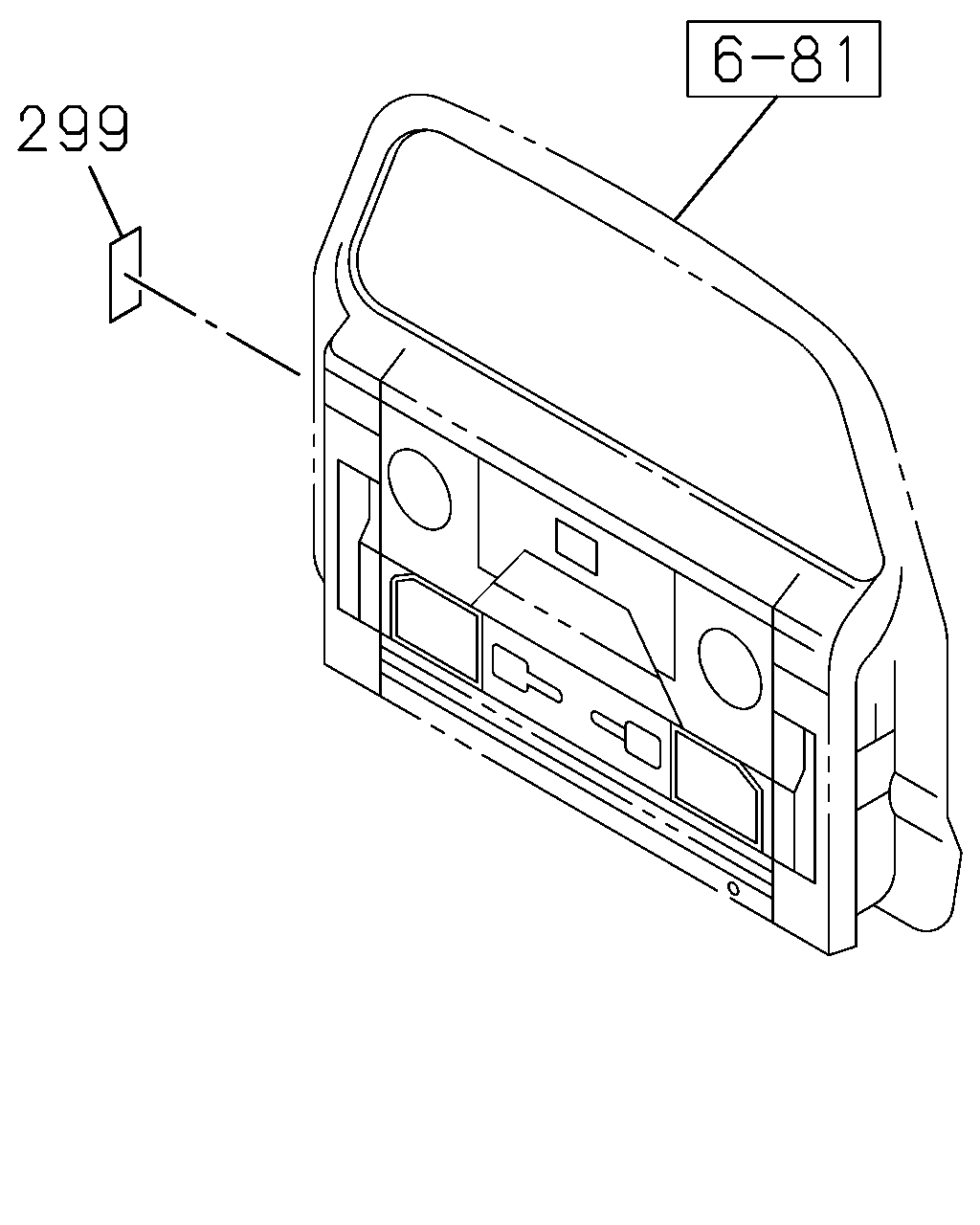

çizim 289904
299
BalonParca AdiParca NoAdetTipApplied Date A B C
299 SEAL
GRADE TOURING(RBG) 		8-97314-494-0 02 1 0107- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
