◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#95398) — 170 parça

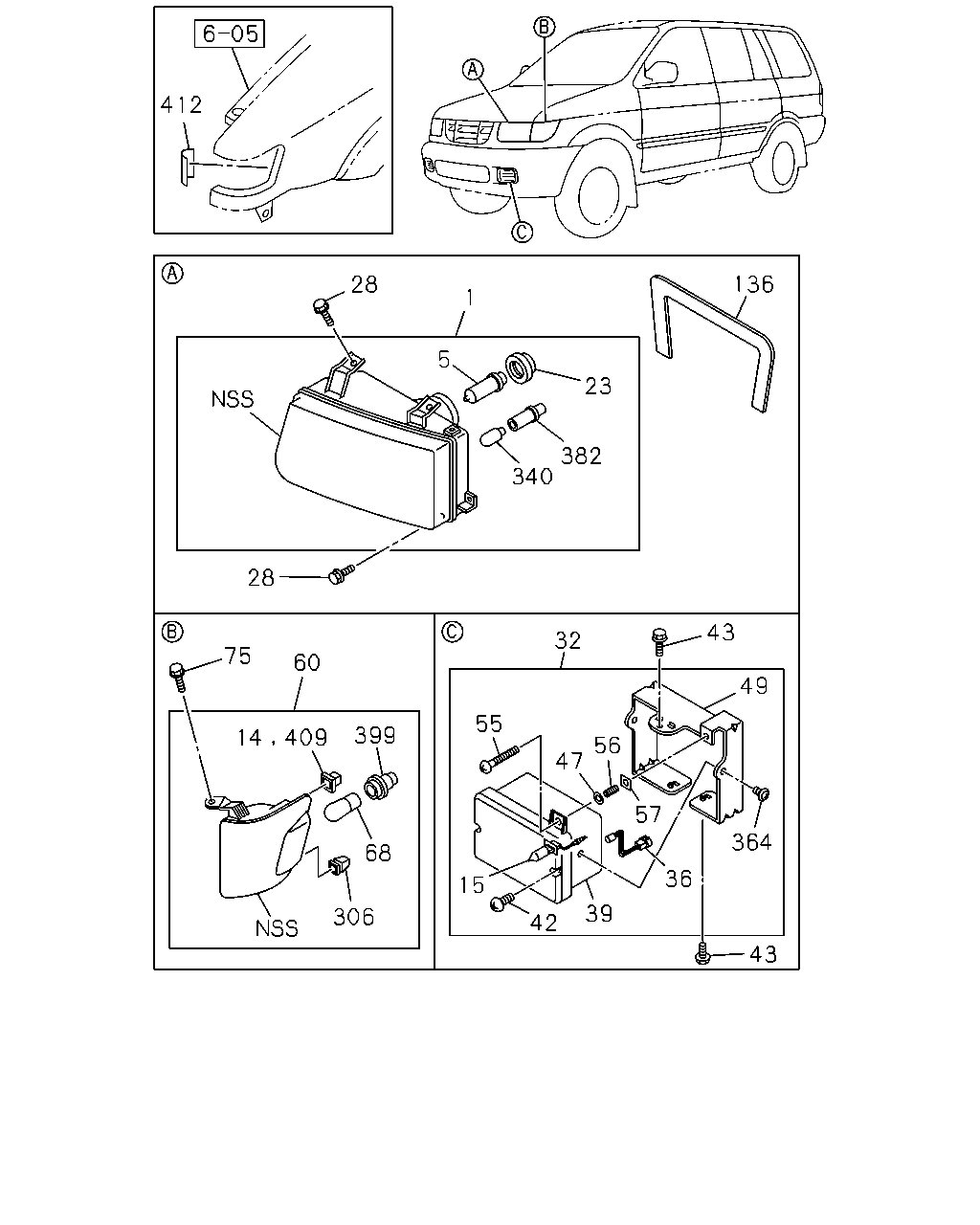

çizim 289252
412 28 1 5 23 382 340 136 32 43 49 364 43 36 57 56 47 39 42 15 55 399 409 14 60 75 28 68 306
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; HEAD
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97943-982-2 01 1 0407- ● ● ●
1 LAMP ASM; HEAD
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97943-983-2 01 1 0407- ● ● ●
1 LAMP ASM; HEAD
IDN 		8-97957-313-1 01 1 0008-0106 ● ● ●
1 LAMP ASM; HEAD
IDN 		8-97957-313-1 01 1 0107-0209 ● ● ●
1 LAMP ASM; HEAD
IDN 		8-97562-138-0 01 1 0210-0406 ● ● ● ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-138-0 01 1 0407- ● ● ● ●
1 LAMP ASM; HEAD
IDN 		8-97957-312-1 01 1 0008-0106 ● ● ●
1 LAMP ASM; HEAD
IDN 		8-97957-312-1 01 1 0107-0209 ● ● ●
1 LAMP ASM; HEAD
IDN 		8-97562-137-0 01 1 0210-0406 ● ● ● ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-137-0 01 1 0407- ● ● ● ●
5 BULB; HEADLAMP
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> 12V 60/55W THA 		8-97914-323-0 02 1 0407- ● ● ●
5 BULB; HEADLAMP
12V 60/55W 		8-94217-817-0 02 1 0008-0106 ● ● ●
5 BULB; HEADLAMP
12V 60/55W 		8-94217-817-0 02 1 0107-0209 ● ● ●
5 BULB; HEADLAMP
12V 60/55W 		8-94217-817-0 02 1 0210-0406 ● ● ● ●
5 BULB; HEADLAMP
EXC. FACE LIFT MODEL<TX7> 12V 60/55W 		8-94217-817-0 02 1 0407- ● ● ● ●
14 CAP; BULB,LAMP
IDN 		8-97258-871-0 02 1 0008-0106 ● ● ●
14 CAP; BULB,LAMP
IDN 		8-97258-871-0 02 1 0107-0209 ● ● ●
15 BULB; FOG LAMP
FACE LIFT MODEL<TX7> FOG LAMP<T96> 12V 55W THA 		8-97944-024-0 02 1 0407- ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W IDN 		8-94458-282-0 02 1 0008-0106 ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W IDN 		8-94458-282-0 02 1 0107-0406 ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> 12V 55W IDN 		8-94458-282-0 02 1 0407- ● ●
23 COVER; BULB,HEADLAMP
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97332-448-0 02 1 0407- ● ● ●
23 COVER; BULB,HEADLAMP
IDN 		8-97562-252-0 02 1 0210-0406 ● ● ● ●
23 COVER; BULB,HEADLAMP
EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-252-0 02 1 0407- ● ● ● ●
23 COVER; BULB,HEADLAMP
IDN 		8-97258-867-0 02 1 0008-0106 ● ● ●
23 COVER; BULB,HEADLAMP
IDN 		8-97258-867-0 02 1 0107-0209 ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0008-0106 ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0107- ● ● ●
32 LAMP ASM; FOG
FACE LIFT MODEL<TX7> FOG LAMP<T96> THA 		8-97944-042-0 02 1 0407-1109 ● ●
32 LAMP ASM; FOG
FACE LIFT MODEL<TX7> FOG LAMP<T96> 		8-98175-971-0 02 1 1110- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> IDN 		8-97956-832-0 01 1 0008-0106 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> IDN 		8-97956-832-0 01 1 0107-0406 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-832-0 01 1 0407- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> IDN 		8-97956-831-0 01 1 0008-0106 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> IDN 		8-97956-831-0 01 1 0107-0406 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-831-0 01 1 0407- ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> IDN 		8-97967-207-0 02 1 0008-0106 ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> IDN 		8-97967-207-0 02 1 0107-0406 ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97967-207-0 02 1 0407- ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> IDN 		8-97161-028-0 02 1 0008-0106 ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> IDN 		8-97161-028-0 02 1 0107-0406 ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97161-028-0 02 1 0407- ● ●
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> IDN 		8-97161-024-0 04 1 0008-0106 ● ●
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> IDN 		8-97161-024-0 04 1 0107-0406 ● ●
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97161-024-0 04 1 0407- ● ●
43 BOLT; FOG LAMP
FACE LIFT MODEL<TX7> FOG LAMP<T96> M6X12 FLANGE 		0-28480-612-0 04 1 0407-0512 ● ●
43 BOLT; FOG LAMP
FACE LIFT MODEL<TX7> FOG LAMP<T96> M6X12 FLANGE IDN 		0-28450-612-0 04 1 0601- ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X10 FLANGE IDN 		0-28080-610-0 06 1 0008-0106 ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X10 FLANGE IDN 		0-28080-610-0 06 1 0107-0406 ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> M6X10 FLANGE IDN 		0-28080-610-0 06 1 0407-0512 ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> M6X10 FLANGE IDN 		0-28050-610-0 06 1 0601- ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> IDN 		8-97967-208-0 02 1 0008-0106 ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> IDN 		8-97967-208-0 02 1 0107-0406 ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97967-208-0 02 1 0407- ● ●
49 BRACKET; LAMP
FOG LAMP<T96> IDN 		8-97967-206-0 01 1 0008-0106 ● ●
49 BRACKET; LAMP
FOG LAMP<T96> IDN 		8-97967-206-0 01 1 0107-0406 ● ●
49 BRACKET; LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97967-206-0 01 1 0407- ● ●
49 BRACKET; LAMP
FOG LAMP<T96> IDN 		8-97967-205-0 01 1 0008-0106 ● ●
49 BRACKET; LAMP
FOG LAMP<T96> IDN 		8-97967-205-0 01 1 0107-0406 ● ●
49 BRACKET; LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97967-205-0 01 1 0407- ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> IDN 		8-97161-034-0 02 1 0008-0106 ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> IDN 		8-97161-034-0 02 1 0107-0406 ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97161-034-0 02 1 0407- ● ●
56 SPRING; COIL,FOG LAMP
FOG LAMP<T96> IDN 		8-97161-035-0 02 1 0008-0106 ● ●
56 SPRING; COIL,FOG LAMP
FOG LAMP<T96> IDN 		8-97161-035-0 02 1 0107-0406 ● ●
56 SPRING; COIL,FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97161-035-0 02 1 0407- ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> IDN 		8-97161-036-0 02 1 0008-0106 ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> IDN 		8-97161-036-0 02 1 0107-0406 ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97161-036-0 02 1 0407- ● ●
60 LAMP ASM; FRT COMB
IDN 		8-97957-315-1 01 1 0008-0106 ● ● ●
60 LAMP ASM; FRT COMB
IDN 		8-97957-315-2 01 1 0107-0406 ● ● ●
60 LAMP ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> IDN 		8-97957-315-2 01 1 0407- ● ● ● ●
60 LAMP ASM; FRT COMB
IDN 		8-97957-314-1 01 1 0008-0106 ● ● ●
60 LAMP ASM; FRT COMB
IDN 		8-97957-314-1 01 1 0107-0406 ● ● ●
60 LAMP ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> IDN 		8-97957-314-1 01 1 0407- ● ● ● ●
68 BULB; FRT COMB LAMP
12V 21W IDN 		8-97179-967-0 02 1 0008-0106 ● ● ●
68 BULB; FRT COMB LAMP
12V 21W IDN 		8-97179-967-0 02 1 0107-0406 ● ● ●
68 BULB; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 12V 21W IDN 		8-97179-967-0 02 1 0407- ● ● ● ●
75 SCREW; FRT COMB LAMP
M4X16 W/WASHER 		8-97809-122-0 02 1 0008-0106 ● ● ●
75 SCREW; FRT COMB LAMP
M4X16 W/WASHER 		8-97809-122-0 02 1 0107-0406 ● ● ●
75 SCREW; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> M4X16 W/WASHER 		8-97809-122-0 02 1 0407- ● ● ● ●
136 SEAL; HEADLAMP
A/T AISIN(RMD) COOLER WO/HEATER(YL1) IDN 		8-97957-067-2 02 1 0008-0106 ● ●
136 SEAL; HEADLAMP
A/T AISIN(RMD) COOLER WO/HEATER(YL1) IDN 		8-97957-067-2 02 1 0107-0406 ● ●
136 SEAL; HEADLAMP
M/T MSG 5 SPEED(M75) IDN 		8-97957-067-2 02 1 0107-0406 ●
136 SEAL; HEADLAMP
A/T AISIN(RMD) COOLER WO/HEATER(YL1) EXC. FACE LIFT MODEL<TX7> IDN 		8-97957-067-2 02 1 0407- ● ● ●
136 SEAL; HEADLAMP
M/T MSG 5 SPEED(M75) EXC. FACE LIFT MODEL<TX7> IDN 		8-97957-067-2 02 1 0407- ●
306 PIVOT; FRT COMB LAMP
IDN 		8-97258-869-0 02 1 0008-0106 ● ● ●
306 PIVOT; FRT COMB LAMP
IDN 		8-97258-869-0 02 1 0107-0406 ● ● ●
306 PIVOT; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> IDN 		8-97258-869-0 02 1 0407- ● ● ● ●
340 BULB; POSITION
12V 5W IDN 		8-94124-595-0 02 1 0008-0106 ● ● ●
340 BULB; POSITION
12V 5W IDN 		8-94124-595-0 02 1 0107-0209 ● ● ●
340 BULB; POSITION
12V 5W IDN 		8-94124-595-0 02 1 0210- ● ● ● ●
364 FASTENER; FOG LAMP
FOG LAMP<T96> IDN 		8-97161-027-0 04 1 0008-0106 ● ●
364 FASTENER; FOG LAMP
FOG LAMP<T96> IDN 		8-97161-027-0 04 1 0107-0406 ● ●
364 FASTENER; FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97161-027-0 04 1 0407- ● ●
382 PLUG; SOCKET,HEADLAMP
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97332-447-0 02 1 0407- ● ● ●
382 PLUG; SOCKET,HEADLAMP
IDN 		8-97258-868-0 02 1 0008-0106 ● ● ●
382 PLUG; SOCKET,HEADLAMP
IDN 		8-97258-868-0 02 1 0107-0209 ● ● ●
382 PLUG; SOCKET,HEADLAMP
IDN 		8-97258-868-0 02 1 0210-0406 ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. FACE LIFT MODEL<TX7> IDN 		8-97258-868-0 02 1 0407- ● ● ● ●
399 SOCKET; TURN SIGNAL
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97944-175-0 02 1 0407- ● ● ●
399 SOCKET; TURN SIGNAL
IDN 		8-97258-870-0 02 1 0008-0106 ● ● ●
399 SOCKET; TURN SIGNAL
IDN 		8-97258-870-0 02 1 0107-0406 ● ● ●
399 SOCKET; TURN SIGNAL
EXC. FACE LIFT MODEL<TX7> IDN 		8-97258-870-0 02 1 0407- ● ● ● ●
409 CAP; BREATHER,SIDE COMB LAMP
IDN 		8-97258-871-0 02 1 0210-0406 ● ● ●
409 CAP; BREATHER,SIDE COMB LAMP
EXC. FACE LIFT MODEL<TX7> IDN 		8-97258-871-0 02 1 0407- ● ● ● ●
412 TAPE; FRT COMB LAMP
IDN 		8-97959-635-0 02 1 0101-0106 ● ● ●
412 TAPE; FRT COMB LAMP
IDN 		8-97959-635-0 02 1 0107-0209 ● ● ●
412 TAPE; FRT COMB LAMP
IDN 		8-97959-635-0 02 1 0210-0406 ● ● ● ●
412 TAPE; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> IDN 		8-97959-635-0 02 1 0407- ● ● ● ●

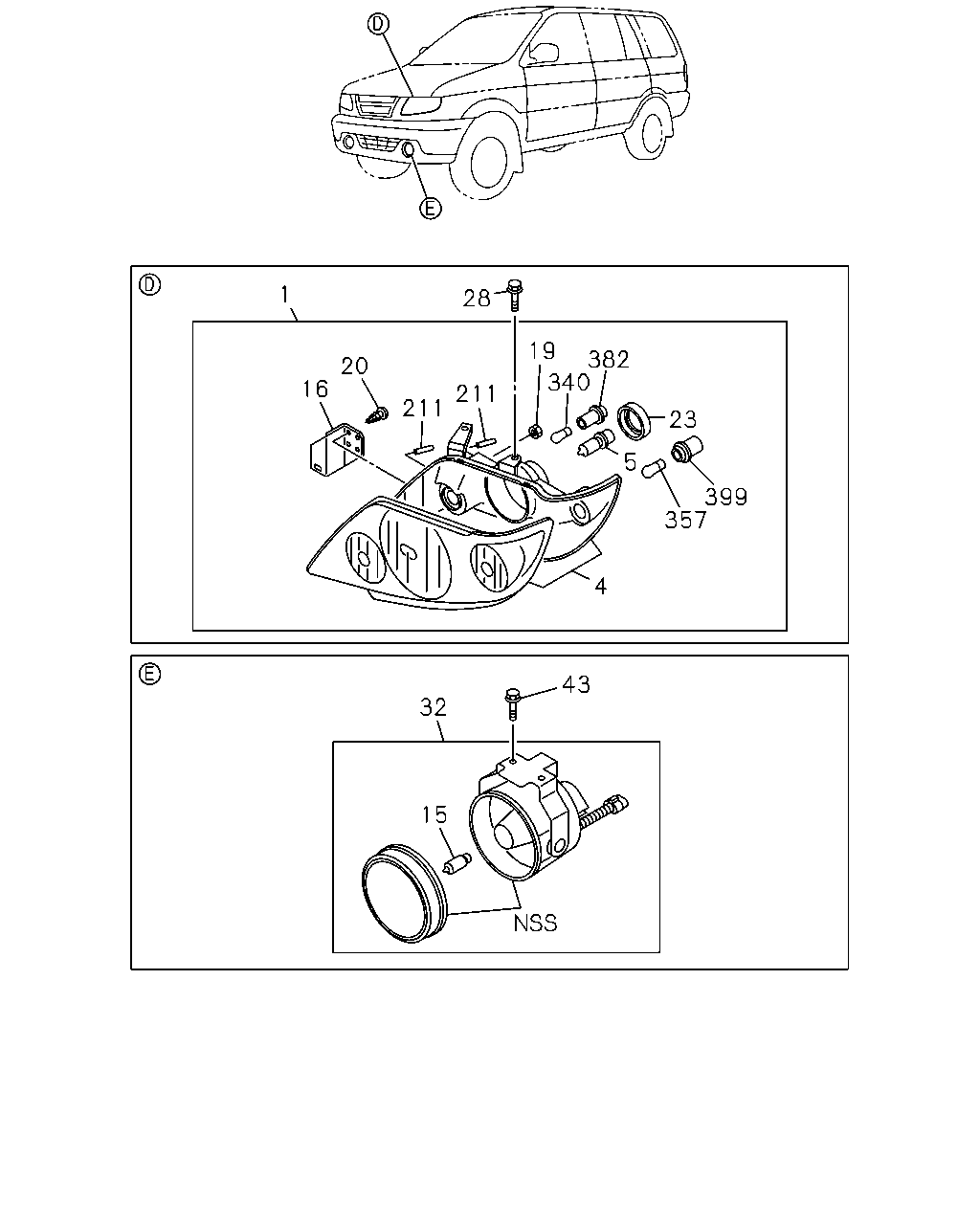

çizim 289288
15 32 43 4 357 399 23 5 382 340 19 28 211 211 20 16 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; HEAD
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97943-982-2 01 1 0407- ● ● ●
1 LAMP ASM; HEAD
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97943-983-2 01 1 0407- ● ● ●
1 LAMP ASM; HEAD
IDN 		8-97957-313-1 01 1 0008-0106 ● ● ●
1 LAMP ASM; HEAD
IDN 		8-97957-313-1 01 1 0107-0209 ● ● ●
1 LAMP ASM; HEAD
IDN 		8-97562-138-0 01 1 0210-0406 ● ● ● ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-138-0 01 1 0407- ● ● ● ●
1 LAMP ASM; HEAD
IDN 		8-97957-312-1 01 1 0008-0106 ● ● ●
1 LAMP ASM; HEAD
IDN 		8-97957-312-1 01 1 0107-0209 ● ● ●
1 LAMP ASM; HEAD
IDN 		8-97562-137-0 01 1 0210-0406 ● ● ● ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-137-0 01 1 0407- ● ● ● ●
4 HEADLAMP UNIT
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97944-171-0 01 1 0407- ● ● ●
4 HEADLAMP UNIT
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97944-172-0 01 1 0407- ● ● ●
5 BULB; HEADLAMP
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> 12V 60/55W THA 		8-97914-323-0 02 1 0407- ● ● ●
5 BULB; HEADLAMP
12V 60/55W 		8-94217-817-0 02 1 0008-0106 ● ● ●
5 BULB; HEADLAMP
12V 60/55W 		8-94217-817-0 02 1 0107-0209 ● ● ●
5 BULB; HEADLAMP
12V 60/55W 		8-94217-817-0 02 1 0210-0406 ● ● ● ●
5 BULB; HEADLAMP
EXC. FACE LIFT MODEL<TX7> 12V 60/55W 		8-94217-817-0 02 1 0407- ● ● ● ●
15 BULB; FOG LAMP
FACE LIFT MODEL<TX7> FOG LAMP<T96> 12V 55W THA 		8-97944-024-0 02 1 0407- ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W IDN 		8-94458-282-0 02 1 0008-0106 ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W IDN 		8-94458-282-0 02 1 0107-0406 ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> 12V 55W IDN 		8-94458-282-0 02 1 0407- ● ●
16 BRACKET; HEADLAMP
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97944-173-0 01 1 0407- ● ● ●
16 BRACKET; HEADLAMP
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97944-174-0 01 1 0407- ● ● ●
19 NUT; HEADLAMP
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97944-177-0 04 1 0407- ● ● ●
20 SCREW; HEADLAMP
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97944-176-0 04 1 0407- ● ● ●
23 COVER; BULB,HEADLAMP
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97332-448-0 02 1 0407- ● ● ●
23 COVER; BULB,HEADLAMP
IDN 		8-97562-252-0 02 1 0210-0406 ● ● ● ●
23 COVER; BULB,HEADLAMP
EXC. FACE LIFT MODEL<TX7> IDN 		8-97562-252-0 02 1 0407- ● ● ● ●
23 COVER; BULB,HEADLAMP
IDN 		8-97258-867-0 02 1 0008-0106 ● ● ●
23 COVER; BULB,HEADLAMP
IDN 		8-97258-867-0 02 1 0107-0209 ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0008-0106 ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0107- ● ● ●
32 LAMP ASM; FOG
FACE LIFT MODEL<TX7> FOG LAMP<T96> THA 		8-97944-042-0 02 1 0407-1109 ● ●
32 LAMP ASM; FOG
FACE LIFT MODEL<TX7> FOG LAMP<T96> 		8-98175-971-0 02 1 1110- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> IDN 		8-97956-832-0 01 1 0008-0106 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> IDN 		8-97956-832-0 01 1 0107-0406 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-832-0 01 1 0407- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> IDN 		8-97956-831-0 01 1 0008-0106 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> IDN 		8-97956-831-0 01 1 0107-0406 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-831-0 01 1 0407- ● ●
43 BOLT; FOG LAMP
FACE LIFT MODEL<TX7> FOG LAMP<T96> M6X12 FLANGE 		0-28480-612-0 04 1 0407-0512 ● ●
43 BOLT; FOG LAMP
FACE LIFT MODEL<TX7> FOG LAMP<T96> M6X12 FLANGE IDN 		0-28450-612-0 04 1 0601- ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X10 FLANGE IDN 		0-28080-610-0 06 1 0008-0106 ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X10 FLANGE IDN 		0-28080-610-0 06 1 0107-0406 ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> M6X10 FLANGE IDN 		0-28080-610-0 06 1 0407-0512 ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> EXC. FACE LIFT MODEL<TX7> M6X10 FLANGE IDN 		0-28050-610-0 06 1 0601- ● ●
211 TUBE; HEADLAMP
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97333-983-0 04 1 0407- ● ● ●
340 BULB; POSITION
12V 5W IDN 		8-94124-595-0 02 1 0008-0106 ● ● ●
340 BULB; POSITION
12V 5W IDN 		8-94124-595-0 02 1 0107-0209 ● ● ●
340 BULB; POSITION
12V 5W IDN 		8-94124-595-0 02 1 0210- ● ● ● ●
357 BULB; TURN SIGNAL
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> 12V 21W IDN 		8-97179-967-0 02 1 0407- ● ● ●
382 PLUG; SOCKET,HEADLAMP
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97332-447-0 02 1 0407- ● ● ●
382 PLUG; SOCKET,HEADLAMP
IDN 		8-97258-868-0 02 1 0008-0106 ● ● ●
382 PLUG; SOCKET,HEADLAMP
IDN 		8-97258-868-0 02 1 0107-0209 ● ● ●
382 PLUG; SOCKET,HEADLAMP
IDN 		8-97258-868-0 02 1 0210-0406 ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. FACE LIFT MODEL<TX7> IDN 		8-97258-868-0 02 1 0407- ● ● ● ●
399 SOCKET; TURN SIGNAL
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> THA 		8-97944-175-0 02 1 0407- ● ● ●
399 SOCKET; TURN SIGNAL
IDN 		8-97258-870-0 02 1 0008-0106 ● ● ●
399 SOCKET; TURN SIGNAL
IDN 		8-97258-870-0 02 1 0107-0406 ● ● ●
399 SOCKET; TURN SIGNAL
EXC. FACE LIFT MODEL<TX7> IDN 		8-97258-870-0 02 1 0407- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
