7-60 — SEAT BELT (#95397) — 12 parça

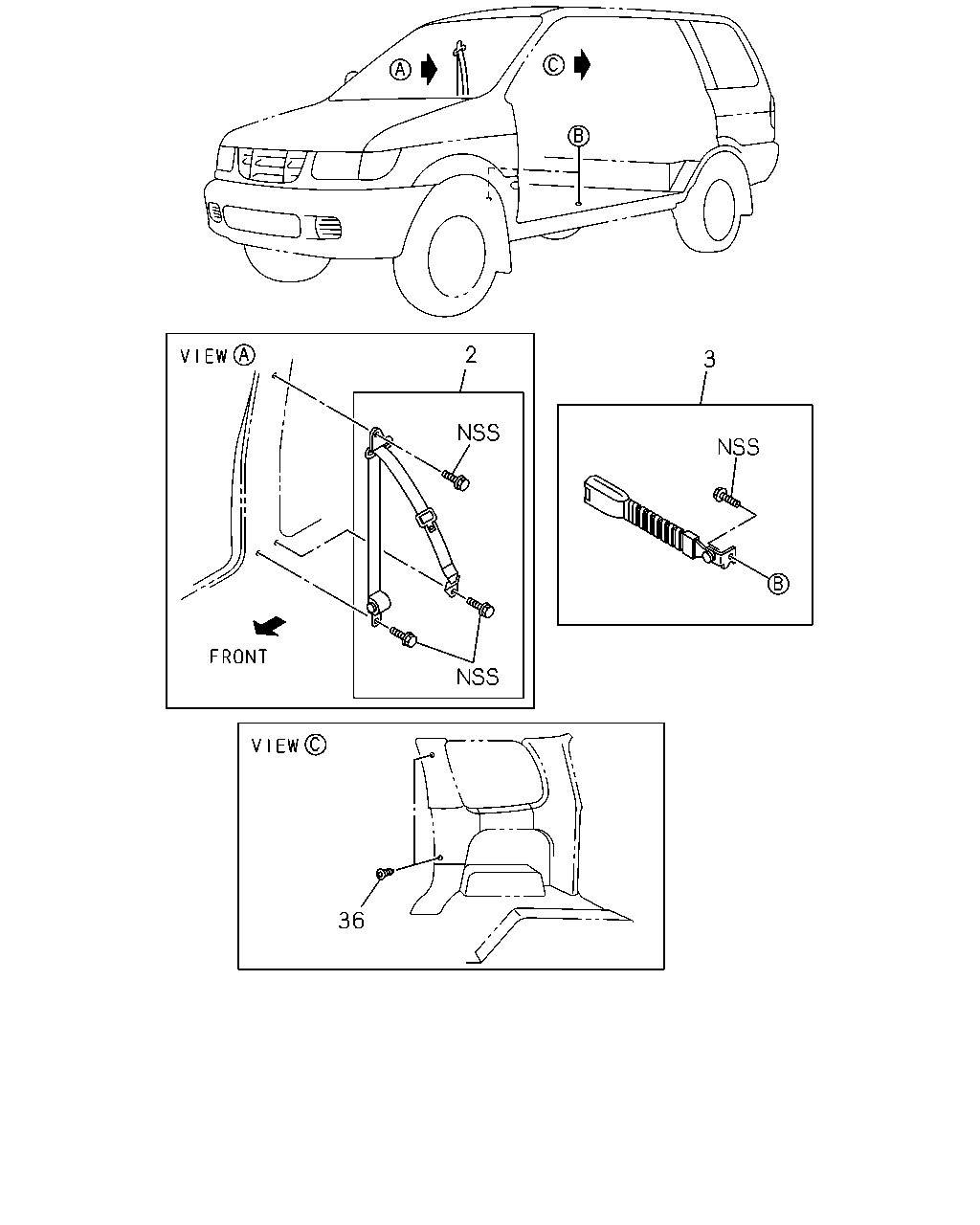

çizim 289900

2 3 36

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	2	BELT; SEAT,TONGUE SIDE IDN	8-97955-706-3	02	1	0008-0106	●
	2	BELT; SEAT,TONGUE SIDE EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> IDN	8-97955-706-3	02	1	0008-0106		●	●
	2	BELT; SEAT,TONGUE SIDE EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> IDN	8-97955-706-3	02	1	0107-		●	●
	2	BELT; SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> IDN	8-97955-711-4	02	1	0008-		●	●
	3	BELT; SEAT,BUCKLE SIDE IDN	8-97955-708-3	01	1	0008-0106	●	●	●
	3	BELT; SEAT,BUCKLE SIDE IDN	8-97955-708-3	01	1	0107-		●	●
	3	BELT; SEAT,BUCKLE SIDE IDN	8-97955-707-3	01	1	0008-0106	●	●	●
	3	BELT; SEAT,BUCKLE SIDE IDN	8-97955-707-3	01	1	0107-		●	●
	36	PLUG; DUMMY HOLE,SEAT BELT GRADE NEW SUPER(RBA) IDN	8-94107-673-0	04	1	0008-0104		●	●

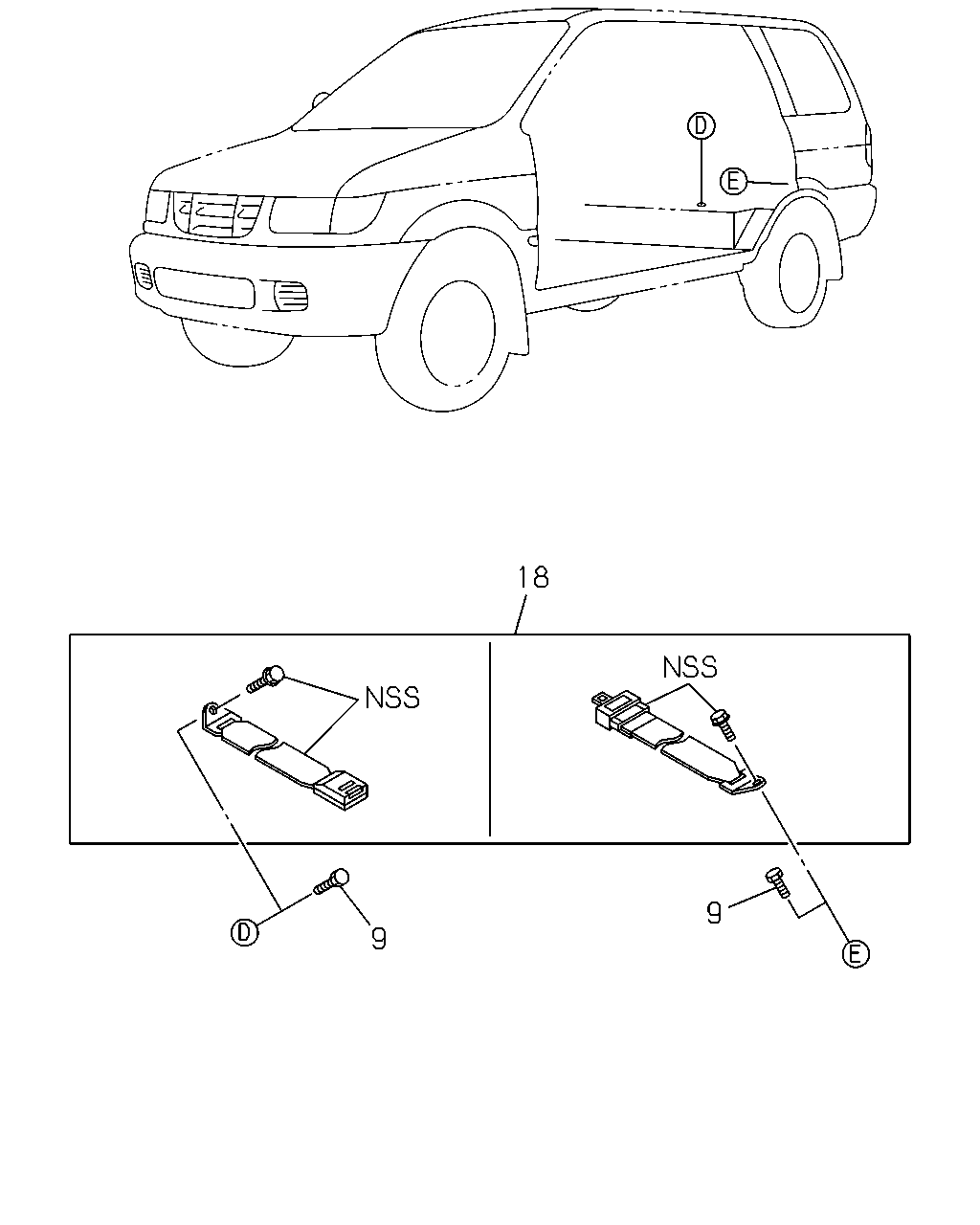

çizim 289907

18 9 9

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	9	BOLT; SEAT BELT ANCHOR GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) 7/16"X14 UNF IDN	8-94445-803-0	04	1	0008-0104		●	●
	9	BOLT; SEAT BELT ANCHOR 7/16"X14 UNF IDN	8-94445-803-0	06	1	0105-		●	●
	18	BELT; SEAT,RR GRADE LS(RBD) IDN	8-97956-888-2	02	1	0008-0104			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
