7-45 — CONSOLE BOX (#95394) — 164 parça

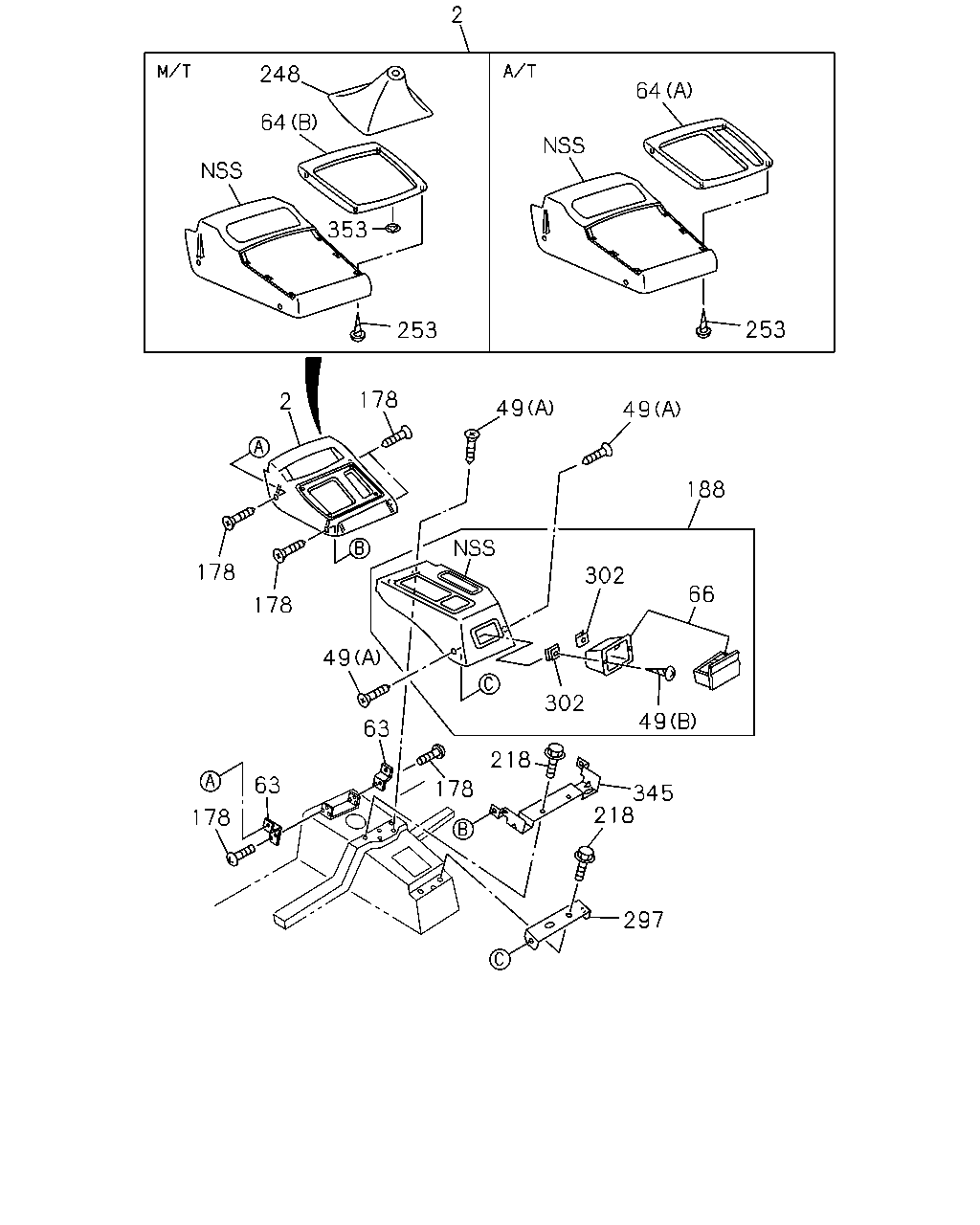

çizim 289041
253 64 2 248 64 353 253 49 178 2 49 188 66 302 178 178 49 302 49 345 218 218 63 178 63 178 297
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) GRAY IDN 		8-97957-247-1 01 1 0008-0106 ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRAY IDN 		8-97957-247-1 01 1 0008-0106 ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) GRAY IDN 		8-97957-247-1 01 1 0107-0209 ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRAY IDN 		8-97957-247-1 01 1 0107-0209 ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) DARK GRAY IDN 		8-97561-518-1 01 1 0210-0405 ● ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) CAB UP<W60> DARK GRAY IDN 		8-97561-518-1 01 1 0406-0508 ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) DARK GRAY IDN 		8-97561-518-1 01 1 0406-0508 ● ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) CAB UP<W60> BLACK IDN 		8-97562-672-1 01 1 0509- ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) BLACK IDN 		8-97562-672-1 01 1 0509- ● ●
2 CONSOLE; CENTER
A/T AISIN(RMD) GRAY IDN 		8-97957-227-1 01 1 0008-0106 ● ●
2 CONSOLE; CENTER
A/T AISIN(RMD) GRAY IDN 		8-97957-227-1 01 1 0107-0209 ● ●
2 CONSOLE; CENTER
A/T AISIN(RMD) DARK GRAY IDN 		8-97561-519-1 01 1 0210-0508 ● ●
2 CONSOLE; CENTER
A/T AISIN(RMD) BLACK IDN 		8-97562-673-1 01 1 0509- ● ● ●
49 SCREW; CONSOLE
HI GRADE(6PQ) (A) M5X16 		8-94279-312-0 04 1 0008-0106 ●
49 SCREW; CONSOLE
(A) M5X16 		8-94279-312-0 04 1 0008-0106 ●
49 SCREW; CONSOLE
HI GRADE(6PQ) (A) M5X16 		8-94279-312-0 04 1 0107-0209 ●
49 SCREW; CONSOLE
(A) M5X16 		8-94279-312-0 04 1 0107-0209 ●
49 SCREW; CONSOLE
(A) M5X16 		8-94279-312-0 04 1 0210-0405 ● ●
49 SCREW; CONSOLE
CAB UP<W60> (A) M5X16 		8-94279-312-0 04 1 0406- ●
49 SCREW; CONSOLE
(A) M5X16 		8-94279-312-0 04 1 0406- ● ●
49 SCREW; CONSOLE
HI GRADE(6PQ) (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0008-0106 ●
49 SCREW; CONSOLE
(B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0008-0106 ●
49 SCREW; CONSOLE
HI GRADE(6PQ) (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0107-0209 ●
49 SCREW; CONSOLE
(B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0107-0209 ●
49 SCREW; CONSOLE
(B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0210-0405 ● ●
49 SCREW; CONSOLE
CAB UP<W60> (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0406- ●
49 SCREW; CONSOLE
(B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0406- ● ●
63 BRACKET; FRT CONSOLE
A/T AISIN(RMD) IDN 		8-97956-301-1 02 1 0008-0106 ●
63 BRACKET; FRT CONSOLE
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) IDN 		8-97956-301-1 02 1 0008-0106 ●
63 BRACKET; FRT CONSOLE
IDN 		8-97956-301-1 02 1 0008-0106 ●
63 BRACKET; FRT CONSOLE
A/T AISIN(RMD) IDN 		8-97956-301-1 02 1 0107-0209 ●
63 BRACKET; FRT CONSOLE
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) IDN 		8-97956-301-1 02 1 0107-0209 ●
63 BRACKET; FRT CONSOLE
IDN 		8-97956-301-1 02 1 0107-0209 ●
63 BRACKET; FRT CONSOLE
A/T AISIN(RMD) IDN 		8-97956-301-1 02 1 0210-0405 ●
63 BRACKET; FRT CONSOLE
IDN 		8-97956-301-1 02 1 0210-0405 ● ●
63 BRACKET; FRT CONSOLE
A/T AISIN(RMD) IDN 		8-97956-301-1 02 1 0406- ●
63 BRACKET; FRT CONSOLE
M/T MSG 5 SPEED(M75) CAB UP<W60> IDN 		8-97956-301-1 02 1 0406- ●
63 BRACKET; FRT CONSOLE
IDN 		8-97956-301-1 02 1 0406- ● ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) (B) BLACK IDN 		8-97957-309-3 01 1 0008-0106 ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) (B) BLACK IDN 		8-97957-309-3 01 1 0008-0106 ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) (B) BLACK IDN 		8-97957-309-3 01 1 0107-0209 ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) (B) BLACK IDN 		8-97957-309-3 01 1 0107-0209 ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) (B) BLACK IDN 		8-97957-309-3 01 1 0210-0405 ● ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) CAB UP<W60> (B) BLACK IDN 		8-97957-309-3 01 1 0406-0508 ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) (B) BLACK IDN 		8-97957-309-3 01 1 0406-0508 ● ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) CAB UP<W60> (B) BLACK IDN 		8-97562-707-3 01 1 0509- ●
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) (B) BLACK IDN 		8-97562-707-3 01 1 0509- ● ●
64 BEZEL; CENTER CONSOLE
A/T AISIN(RMD) (A) BLACK IDN 		8-97957-230-2 01 1 0008-0106 ● ●
64 BEZEL; CENTER CONSOLE
A/T AISIN(RMD) (A) BLACK IDN 		8-97957-230-2 01 1 0107-0209 ● ●
64 BEZEL; CENTER CONSOLE
A/T AISIN(RMD) (A) BLACK IDN 		8-97957-230-2 01 1 0210-0508 ● ●
64 BEZEL; CENTER CONSOLE
A/T AISIN(RMD) (A) BLACK IDN 		8-97562-708-2 01 1 0509- ● ● ●
66 TRAY ASM; ASH
HI GRADE(6PQ) GRAY 		8-97150-683-1 01 1 0008-0106 ●
66 TRAY ASM; ASH
GRAY 		8-97150-683-1 01 1 0008-0106 ●
66 TRAY ASM; ASH
HI GRADE(6PQ) GRAY 		8-97150-683-1 01 1 0107-0209 ●
66 TRAY ASM; ASH
GRAY 		8-97150-683-1 01 1 0107-0209 ●
66 TRAY ASM; ASH
DARK GRAY IDN 		8-97394-025-1 01 1 0210-0405 ● ●
66 TRAY ASM; ASH
CAB UP<W60> DARK GRAY IDN 		8-97394-025-1 01 1 0406-0508 ●
66 TRAY ASM; ASH
DARK GRAY IDN 		8-97394-025-1 01 1 0406-0508 ● ●
66 TRAY ASM; ASH
CAB UP<W60> BLACK 		8-94154-193-1 01 1 0509- ●
66 TRAY ASM; ASH
BLACK 		8-94154-193-1 01 1 0509- ● ●
178 SCREW; CTR,CONSOLE
A/T AISIN(RMD) M5X16 		8-94279-312-0 08 1 0008-0106 ●
178 SCREW; CTR,CONSOLE
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) M5X16 		8-94279-312-0 08 1 0008-0106 ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94279-312-0 08 1 0008-0106 ●
178 SCREW; CTR,CONSOLE
A/T AISIN(RMD) M5X16 		8-94279-312-0 08 1 0107-0209 ●
178 SCREW; CTR,CONSOLE
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) M5X16 		8-94279-312-0 08 1 0107-0209 ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94279-312-0 08 1 0107-0209 ●
178 SCREW; CTR,CONSOLE
A/T AISIN(RMD) M5X16 		8-94279-312-0 08 1 0210-0405 ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94279-312-0 08 1 0210-0405 ● ●
178 SCREW; CTR,CONSOLE
A/T AISIN(RMD) M5X16 		8-94279-312-0 08 1 0406- ●
178 SCREW; CTR,CONSOLE
M/T MSG 5 SPEED(M75) CAB UP<W60> M5X16 		8-94279-312-0 08 1 0406- ●
178 SCREW; CTR,CONSOLE
M5X16 		8-94279-312-0 08 1 0406- ● ●
188 CONSOLE; RR
HI GRADE(6PQ) GRAY IDN 		8-97957-228-1 01 1 0008-0106 ●
188 CONSOLE; RR
GRAY IDN 		8-97957-228-1 01 1 0008-0106 ●
188 CONSOLE; RR
HI GRADE(6PQ) GRAY IDN 		8-97957-228-1 01 1 0107-0209 ●
188 CONSOLE; RR
GRAY IDN 		8-97957-228-1 01 1 0107-0209 ●
188 CONSOLE; RR
DARK GRAY IDN 		8-97561-520-1 01 1 0210-0405 ● ●
188 CONSOLE; RR
CAB UP<W60> DARK GRAY IDN 		8-97561-520-1 01 1 0406-0508 ●
188 CONSOLE; RR
DARK GRAY IDN 		8-97561-520-1 01 1 0406-0508 ● ●
188 CONSOLE; RR
CAB UP<W60> BLACK IDN 		8-97562-674-1 01 1 0509- ●
188 CONSOLE; RR
BLACK IDN 		8-97562-674-1 01 1 0509- ● ●
218 BOLT; BRKT
A/T AISIN(RMD) M6X12 FLANGE 		0-28080-612-0 02 1 0008-0106 ●
218 BOLT; BRKT
HI GRADE(6PQ) M6X12 FLANGE 		0-28080-612-0 02 1 0008-0106 ●
218 BOLT; BRKT
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) M6X12 FLANGE 		0-28080-612-0 02 1 0008-0106 ●
218 BOLT; BRKT
M6X12 FLANGE 		0-28080-612-0 02 1 0008-0106 ●
218 BOLT; BRKT
M6X12 FLANGE 		0-28080-612-0 02 1 0008-0106 ●
218 BOLT; BRKT
A/T AISIN(RMD) M6X12 FLANGE 		0-28080-612-0 02 1 0107-0209 ●
218 BOLT; BRKT
HI GRADE(6PQ) M6X12 FLANGE 		0-28080-612-0 02 1 0107-0209 ●
218 BOLT; BRKT
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) M6X12 FLANGE 		0-28080-612-0 02 1 0107-0209 ●
218 BOLT; BRKT
M6X12 FLANGE 		0-28080-612-0 02 1 0107-0209 ●
218 BOLT; BRKT
M6X12 FLANGE 		0-28080-612-0 02 1 0107-0209 ●
218 BOLT; BRKT
A/T AISIN(RMD) M6X12 FLANGE 		0-28080-612-0 02 1 0210-0405 ●
218 BOLT; BRKT
M6X12 FLANGE 		0-28080-612-0 02 1 0210-0405 ● ●
218 BOLT; BRKT
M6X12 FLANGE 		0-28080-612-0 02 1 0210-0405 ● ●
218 BOLT; BRKT
A/T AISIN(RMD) M6X12 FLANGE 		0-28080-612-0 02 1 0406-0512 ●
218 BOLT; BRKT
CAB UP<W60> M6X12 FLANGE 		0-28080-612-0 02 1 0406-0512 ●
218 BOLT; BRKT
M/T MSG 5 SPEED(M75) CAB UP<W60> M6X12 FLANGE 		0-28080-612-0 02 1 0406-0512 ●
218 BOLT; BRKT
M6X12 FLANGE 		0-28080-612-0 02 1 0406-0512 ● ●
218 BOLT; BRKT
M6X12 FLANGE 		0-28080-612-0 02 1 0406-0512 ● ●
218 BOLT; BRKT
A/T AISIN(RMD) M6X12 FLANGE 		0-28050-612-0 02 1 0601- ●
218 BOLT; BRKT
CAB UP<W60> M6X12 FLANGE 		0-28050-612-0 02 1 0601- ●
218 BOLT; BRKT
M/T MSG 5 SPEED(M75) CAB UP<W60> M6X12 FLANGE 		0-28050-612-0 02 1 0601- ●
218 BOLT; BRKT
M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ●
218 BOLT; BRKT
M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) BLACK IDN 		8-97957-308-0 01 1 0008-0106 ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) BLACK IDN 		8-97957-308-0 01 1 0008-0106 ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) BLACK IDN 		8-97957-308-0 01 1 0107-0209 ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) BLACK IDN 		8-97957-308-0 01 1 0107-0209 ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) BLACK IDN 		8-97561-635-0 01 1 0210-0405 ● ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) CAB UP<W60> BLACK IDN 		8-97561-635-0 01 1 0406- ●
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) BLACK IDN 		8-97561-635-0 01 1 0406- ● ●
253 SCREW; BEZEL
A/T AISIN(RMD) M5X12 TAPPING 		9-09829-321-1 04 1 0008-0106 ●
253 SCREW; BEZEL
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) M5X12 TAPPING 		9-09829-321-1 04 1 0008-0106 ●
253 SCREW; BEZEL
M5X12 TAPPING 		9-09829-321-1 04 1 0008-0106 ●
253 SCREW; BEZEL
A/T AISIN(RMD) M5X12 TAPPING 		9-09829-321-1 04 1 0107-0209 ●
253 SCREW; BEZEL
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) M5X12 TAPPING 		9-09829-321-1 04 1 0107-0209 ●
253 SCREW; BEZEL
M5X12 TAPPING 		9-09829-321-1 04 1 0107-0209 ●
253 SCREW; BEZEL
M5X12 TAPPING 		9-09829-321-1 04 1 0210-0405 ● ●
253 SCREW; BEZEL
A/T AISIN(RMD) SILVER PACKGE<8HQ> M5X12 TAPPING 		9-09829-321-1 04 1 0406-0508 ● ● ●
253 SCREW; BEZEL
M/T MSG 5 SPEED(M75) CAB UP<W60> M5X12 TAPPING 		9-09829-321-1 04 1 0406-0508 ●
253 SCREW; BEZEL
M5X12 TAPPING 		9-09829-321-1 04 1 0406-0508 ● ●
253 SCREW; BEZEL
A/T AISIN(RMD) M5X12 TAPPING 		9-09829-321-1 04 1 0509- ●
253 SCREW; BEZEL
M/T MSG 5 SPEED(M75) CAB UP<W60> M5X12 TAPPING 		9-09829-321-1 04 1 0509- ●
253 SCREW; BEZEL
M5X12 TAPPING 		9-09829-321-1 04 1 0509- ● ●
297 BRACKET; RR CONSOLE
HI GRADE(6PQ) IDN 		8-97956-302-1 01 1 0008-0106 ●
297 BRACKET; RR CONSOLE
IDN 		8-97956-302-1 01 1 0008-0106 ●
297 BRACKET; RR CONSOLE
HI GRADE(6PQ) IDN 		8-97956-302-1 01 1 0107-0209 ●
297 BRACKET; RR CONSOLE
IDN 		8-97956-302-1 01 1 0107-0209 ●
297 BRACKET; RR CONSOLE
IDN 		8-97956-302-1 01 1 0210-0405 ● ●
297 BRACKET; RR CONSOLE
CAB UP<W60> IDN 		8-97956-302-1 01 1 0406- ●
297 BRACKET; RR CONSOLE
IDN 		8-97956-302-1 01 1 0406- ● ●
302 RETAINER; ASH TRAY
HI GRADE(6PQ) IDN 		8-94123-300-5 02 1 0008-0106 ●
302 RETAINER; ASH TRAY
IDN 		8-94123-300-5 02 1 0008-0106 ●
302 RETAINER; ASH TRAY
HI GRADE(6PQ) IDN 		8-94123-300-5 02 1 0107-0209 ●
302 RETAINER; ASH TRAY
IDN 		8-94123-300-5 02 1 0107-0209 ●
302 RETAINER; ASH TRAY
IDN 		8-94123-300-5 02 1 0210-0405 ● ●
302 RETAINER; ASH TRAY
CAB UP<W60> IDN 		8-94123-300-5 02 1 0406- ●
302 RETAINER; ASH TRAY
IDN 		8-94123-300-5 02 1 0406- ● ●
345 BRACKET; CTR CONSOLE
A/T AISIN(RMD) IDN 		8-97956-305-0 01 1 0008-0106 ●
345 BRACKET; CTR CONSOLE
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) IDN 		8-97956-305-0 01 1 0008-0106 ●
345 BRACKET; CTR CONSOLE
IDN 		8-97956-305-0 01 1 0008-0106 ●
345 BRACKET; CTR CONSOLE
A/T AISIN(RMD) IDN 		8-97956-305-0 01 1 0107-0209 ●
345 BRACKET; CTR CONSOLE
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) IDN 		8-97956-305-0 01 1 0107-0209 ●
345 BRACKET; CTR CONSOLE
IDN 		8-97956-305-0 01 1 0107-0209 ●
345 BRACKET; CTR CONSOLE
A/T AISIN(RMD) IDN 		8-97956-305-0 01 1 0210-0405 ●
345 BRACKET; CTR CONSOLE
IDN 		8-97956-305-0 01 1 0210-0405 ● ●
345 BRACKET; CTR CONSOLE
A/T AISIN(RMD) IDN 		8-97956-305-0 01 1 0406- ●
345 BRACKET; CTR CONSOLE
M/T MSG 5 SPEED(M75) CAB UP<W60> IDN 		8-97956-305-0 01 1 0406- ●
345 BRACKET; CTR CONSOLE
IDN 		8-97956-305-0 01 1 0406- ● ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) 		8-94324-737-0 08 1 0008-0106 ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) 		8-94324-737-0 08 1 0008-0106 ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) HI GRADE(6PQ) 		8-94324-737-0 08 1 0107-0209 ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) 		8-94324-737-0 08 1 0107-0209 ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) 		8-94324-737-0 08 1 0210-0405 ● ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) CAB UP<W60> 		8-94324-737-0 08 1 0406- ●
353 NUT; PUSH
M/T MSG 5 SPEED(M75) 		8-94324-737-0 08 1 0406- ● ●

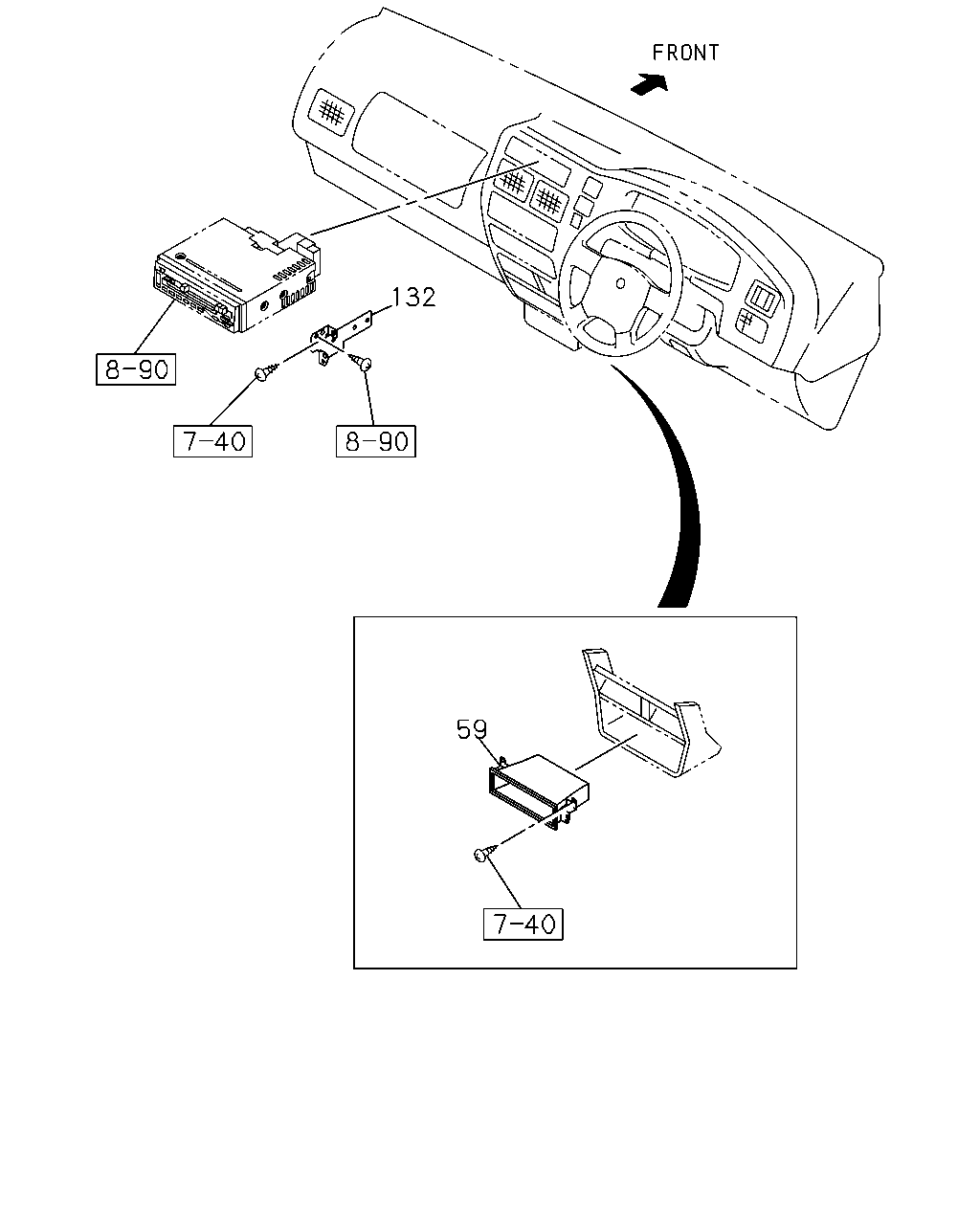

çizim 289073
132 59
BalonParca AdiParca NoAdetTipApplied Date A B C D
59 BOX; FRT CONSOLE 8-97114-757-0 01 1 0008-0106 ● ● ●
59 BOX; FRT CONSOLE 8-97114-757-0 01 1 0107-0209 ● ● ●
59 BOX; FRT CONSOLE 8-97114-757-0 01 1 0210- ● ● ● ●
132 BRACKET; AUDIO BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97107-583-2 01 1 0008-0106 ● ● ●
132 BRACKET; AUDIO BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97107-583-2 01 1 0107-0209 ● ● ●
132 BRACKET; AUDIO BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97107-583-2 01 1 0210- ● ● ● ●
132 BRACKET; AUDIO BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97107-582-2 01 1 0008-0106 ● ● ●
132 BRACKET; AUDIO BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97107-582-2 01 1 0107-0209 ● ● ●
132 BRACKET; AUDIO BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97107-582-2 01 1 0210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
