◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#95391) — 212 parça

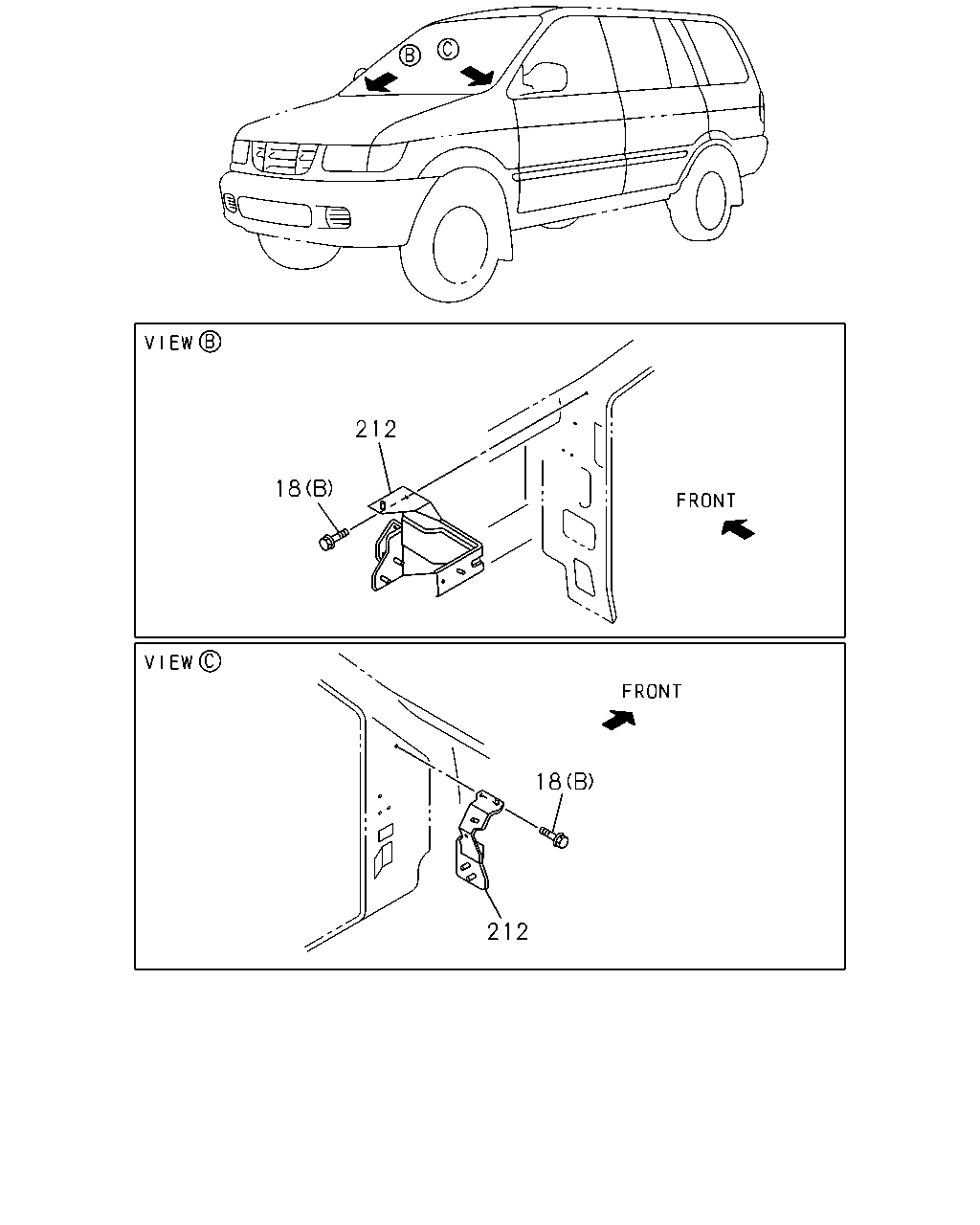

çizim 289898
212 18 18 212
BalonParca AdiParca NoAdetTipApplied Date A B C
18 BOLT; BRKT
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0008-0106 ● ● ●
18 BOLT; BRKT
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0107-0512 ● ●
18 BOLT; BRKT
(A) M6X16 FLANGE IDN 		0-28050-616-0 02 1 0601- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 08 1 0008-0106 ● ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 08 1 0107-0512 ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 08 1 0601- ● ●
212 BRACKET; INST PNL SIDE
IDN 		8-97955-084-1 01 1 0008-0106 ● ● ●
212 BRACKET; INST PNL SIDE
IDN 		8-97955-084-2 01 1 0107- ● ●
212 BRACKET; INST PNL SIDE
IDN 		8-97955-083-1 01 1 0008-0106 ● ● ●
212 BRACKET; INST PNL SIDE
IDN 		8-97955-083-2 01 1 0107- ● ●

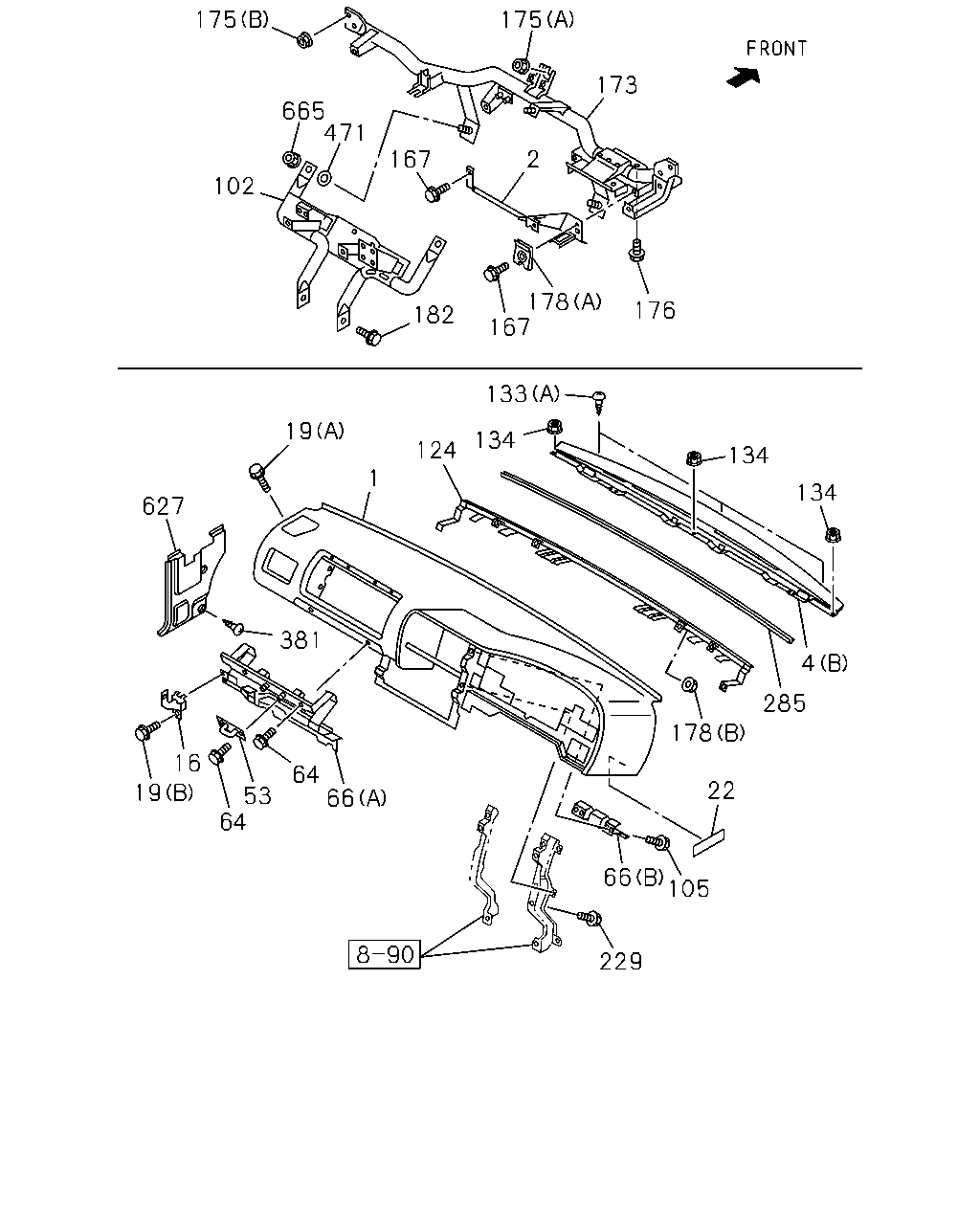

çizim 289899
173 175 175 2 167 471 665 102 176 178 167 182 133 134 124 1 19 627 134 4 134 285 178 22 105 66 229 381 66 64 53 64 16 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; INST
THA 		8-97945-686-0 01 1 0605-0605 ● ●
1 PANEL; INST
BLACK IDN 		8-97945-687-0 01 1 0606- ● ●
1 PANEL; INST
THA 		8-97910-989-0 01 1 0008-0106 ● ● ●
1 PANEL; INST
THA 		8-97910-989-0 01 1 0107-0209 ● ●
2 REINFORCEMENT; INST PNL,LWR
IDN 		8-97101-851-6 01 1 0008-0106 ● ● ●
2 REINFORCEMENT; INST PNL,LWR
IDN 		8-97101-851-6 01 1 0107- ● ●
4 COVER; INST PNL
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) GRAY IDN 		8-97957-323-0 01 1 0008-0106 ●
4 COVER; INST PNL
GRADE NEW SUPER(RBA) (B) GRAY IDN 		8-97957-323-0 01 1 0008-0106 ● ●
4 COVER; INST PNL
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) (B) GRAY IDN 		8-97957-323-0 01 1 0008-0106 ● ●
4 COVER; INST PNL
(B) GRAY IDN 		8-97957-323-0 01 1 0107-0209 ● ●
4 COVER; INST PNL
(B) DARK GRAY IDN 		8-97561-521-0 01 1 0210-0508 ● ●
4 COVER; INST PNL
(B) BLACK IDN 		8-97562-675-0 01 1 0509- ● ●
4 COVER; INST PNL
(A) GRAY 		8-97154-484-2 01 1 0008-0106 ● ● ●
4 COVER; INST PNL
(A) GRAY 		8-97154-484-2 01 1 0107-0209 ● ●
4 COVER; INST PNL
(A) DARK GRAY IDN 		8-97393-999-2 01 1 0210-0508 ● ●
4 COVER; INST PNL
(A) BLACK 		8-97154-863-2 01 1 0509- ● ●
4 COVER; INST PNL
GRADE ROYAL(RBB) HI GRADE(6PQ) (B) GRAY IDN 		8-97957-248-0 01 1 0008-0106 ● ●
4 COVER; INST PNL
GRADE LS(RBD) (B) GRAY IDN 		8-97957-248-0 01 1 0008-0106 ●
16 BRACKET; INST PNL
THA 		8-97120-886-0 01 1 0008-0106 ● ● ●
16 BRACKET; INST PNL
THA 		8-97120-886-0 01 1 0107- ● ●
19 SCREW; BRKT
(A) M4X12 TAPPING THA 		8-97919-592-0 02 1 0008-0106 ● ● ●
19 SCREW; BRKT
(A) M4X12 TAPPING THA 		8-97919-592-0 02 1 0107- ● ●
19 SCREW; BRKT
(B) M5X14 TAPPING 		9-07076-514-0 01 1 0008-0106 ● ● ●
19 SCREW; BRKT
(B) M5X14 TAPPING 		9-07076-514-0 01 1 0107-0603 ● ●
19 SCREW; BRKT
(B) M5X14 TAPPING 		0-71240-514-0 01 1 0604- ● ●
22 PAD; INST
IDN 		8-97959-615-0 01 1 0101-0106 ● ● ●
22 PAD; INST
IDN 		8-97959-615-0 01 1 0107-0305 ● ●
53 STRIKER; GLOVE BOX
THA 		8-97910-986-0 01 1 0008-0106 ● ● ●
53 STRIKER; GLOVE BOX
THA 		8-97910-986-0 01 1 0107- ● ●
64 SCREW; STRIKER
M5X14 THA 		8-97912-797-2 11 1 0008-0106 ● ● ●
64 SCREW; STRIKER
M5X14 THA 		8-97912-797-2 11 1 0107- ● ●
66 REINFORCEMENT; INST PANEL
(A) THA 		8-97217-989-0 01 1 0008-0106 ● ● ●
66 REINFORCEMENT; INST PANEL
(A) IDN 		8-97217-989-1 01 1 0107- ● ●
66 REINFORCEMENT; INST PANEL
(B) THA 		8-97910-991-0 01 1 0008-0106 ● ● ●
66 REINFORCEMENT; INST PANEL
(B) THA 		8-97910-991-0 01 1 0107- ● ●
102 BRACKET; INST PANEL TO FLOOR
IDN 		8-97955-640-1 01 1 0008-0106 ● ● ●
102 BRACKET; INST PANEL TO FLOOR
IDN 		8-97955-640-1 01 1 0107- ● ●
105 SCREW; REINF
M4X12 TAPPING THA 		8-97919-592-0 16 1 0008-0106 ● ● ●
105 SCREW; REINF
M4X12 TAPPING THA 		8-97919-592-0 16 1 0107- ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-97218-068-0 01 1 0008-0012 ● ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-97942-277-0 01 1 0101-0106 ● ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-97942-277-0 01 1 0107- ● ●
133 SCREW; COVER,INST PNL
(A) M6X20 W/PL WASHER 		5-09981-023-0 05 1 0008-0106 ● ● ●
133 SCREW; COVER,INST PNL
(A) M6X20 W/PL WASHER 		5-09981-023-0 05 1 0107- ● ●
133 SCREW; COVER,INST PNL
(B) M5X16 		8-94279-312-0 13 1 0008-0106 ● ● ●
133 SCREW; COVER,INST PNL
(B) M5X16 		8-94279-312-0 13 1 0107- ● ●
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-97063-399-0 03 1 0008-0106 ● ● ●
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-97063-399-0 03 1 0107- ● ●
167 BOLT; REINF TO INST
M6X20 W/WASHER 		8-94112-987-1 02 1 0008-0106 ● ● ●
167 BOLT; REINF TO INST
M6X20 W/WASHER 		8-94112-987-1 02 1 0107- ● ●
173 BEAM ASM; CROSS,INST PANEL 8-97252-975-1 01 1 0008-0106 ● ● ●
173 BEAM ASM; CROSS,INST PANEL 8-97252-975-1 01 1 0107- ● ●
175 NUT; CROSS BEAM
(A) M6 FLANGE 		8-97063-399-0 01 1 0008-0106 ● ● ●
175 NUT; CROSS BEAM
(A) M6 FLANGE 		8-97063-399-0 01 1 0107- ● ●
175 NUT; CROSS BEAM
(B) M8 W/LK WASHER 		8-97065-435-0 04 1 0008-0106 ● ● ●
175 NUT; CROSS BEAM
(B) M8 W/LK WASHER 		8-97065-435-0 04 1 0107- ● ●
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28080-816-0 01 1 0008-0106 ● ● ●
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512 ● ●
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
178 NUT; INST PANEL
(A) 		1-09984-167-0 01 1 0008-0106 ● ● ●
178 NUT; INST PANEL
(A) 		1-09984-167-0 01 1 0107- ● ●
178 NUT; INST PANEL
(C) M6 W/DISHED WASHER IDN 		8-94170-192-0 03 1 0008-0106 ● ● ●
178 NUT; INST PANEL
(C) M6 W/DISHED WASHER IDN 		8-94170-192-0 03 1 0107- ● ●
178 NUT; INST PANEL
(D) M5 SPIRE NUT 		8-94217-271-0 02 1 0008-0106 ● ● ●
178 NUT; INST PANEL
(D) M5 SPIRE NUT 		8-94217-271-0 02 1 0107- ● ●
178 NUT; INST PANEL
(B) THA 		8-97916-241-0 12 1 0008-0106 ● ● ●
178 NUT; INST PANEL
(B) THA 		8-97916-241-0 12 1 0107- ● ●
182 BOLT; BRKT,INST PANEL
M6X16 FLANGE 		0-28480-616-0 02 1 0008-0106 ● ● ●
182 BOLT; BRKT,INST PANEL
M6X16 FLANGE 		0-28480-616-0 02 1 0107-0512 ● ●
182 BOLT; BRKT,INST PANEL
M6X16 FLANGE 		0-28450-616-0 02 1 0601- ● ●
229 SCREW; BOX,INST
M5X14 THA 		8-97912-797-2 04 1 0008-0106 ● ● ●
229 SCREW; BOX,INST
M5X14 THA 		8-97912-797-2 04 1 0107- ● ●
285 FINISHER; INST PANEL
THA 		8-97910-987-3 01 1 0008-0106 ● ● ●
285 FINISHER; INST PANEL
THA 		8-97910-987-3 01 1 0107- ● ●
381 CLIP; HARNESS
GRADE ROYAL(RBB) BLACK 		8-94145-515-0 04 1 0008-0106 ●
381 CLIP; HARNESS
GRADE ROYAL(RBB),GRADE LS(RBD) BLACK 		8-94145-515-0 04 1 0008-0106 ●
381 CLIP; HARNESS
GRADE ROYAL(RBB),GRADE TOURING(RBG) BLACK 		8-94145-515-0 04 1 0107-0209 ● ●
381 CLIP; HARNESS
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) BLACK 		8-94145-515-0 04 1 0210- ● ●
471 WASHER; PL
EXC. COOLER WO/HEATER(YL1) ID=6.4 OD=18 		9-09164-706-0 02 1 0008-0106 ●
471 WASHER; PL
GRADE NEW SUPER(RBA) EXC. COOLER WO/HEATER(YL1) ID=6.4 OD=18 		9-09164-706-0 02 1 0008-0106 ● ●
471 WASHER; PL
GRADE NEW SUPER(RBA) EXC. COOLER WO/HEATER(YL1) ID=6.4 OD=18 		9-09164-706-0 02 1 0107- ● ●
627 TRIM
GRADE ROYAL(RBB) GRAY IDN 		8-97957-250-3 01 1 0008-0106 ●
627 TRIM
GRADE ROYAL(RBB),GRADE LS(RBD) GRAY IDN 		8-97957-250-3 01 1 0008-0106 ●
627 TRIM
GRADE ROYAL(RBB),GRADE TOURING(RBG) GRAY IDN 		8-97957-250-3 01 1 0107-0109 ● ●
627 TRIM
GRADE ROYAL(RBB),GRADE TOURING(RBG) GRAY IDN 		8-97560-637-3 01 1 0110-0209 ● ●
627 TRIM
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) DARK GRAY IDN 		8-97561-523-4 01 1 0210-0508 ● ●
627 TRIM
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN 		8-97562-677-4 01 1 0509- ● ●
627 TRIM
GRADE ROYAL(RBB) GRAY IDN 		8-97957-249-3 01 1 0008-0106 ●
627 TRIM
GRADE ROYAL(RBB),GRADE LS(RBD) GRAY IDN 		8-97957-249-3 01 1 0008-0106 ●
627 TRIM
GRADE ROYAL(RBB),GRADE TOURING(RBG) GRAY IDN 		8-97957-249-3 01 1 0107-0109 ● ●
627 TRIM
GRADE ROYAL(RBB),GRADE TOURING(RBG) GRAY IDN 		8-97560-636-3 01 1 0110-0209 ● ●
627 TRIM
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) DARK GRAY IDN 		8-97561-522-4 01 1 0210-0508 ● ●
627 TRIM
GRADE ROYAL(RBB),GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN 		8-97562-676-4 01 1 0509- ● ●
665 NUT; BRKT,FLOOR TO INST PANEL
M6 FLANGE 		8-97063-399-0 02 1 0008-0106 ● ● ●
665 NUT; BRKT,FLOOR TO INST PANEL
M6 FLANGE 		8-97063-399-0 02 1 0107- ● ●

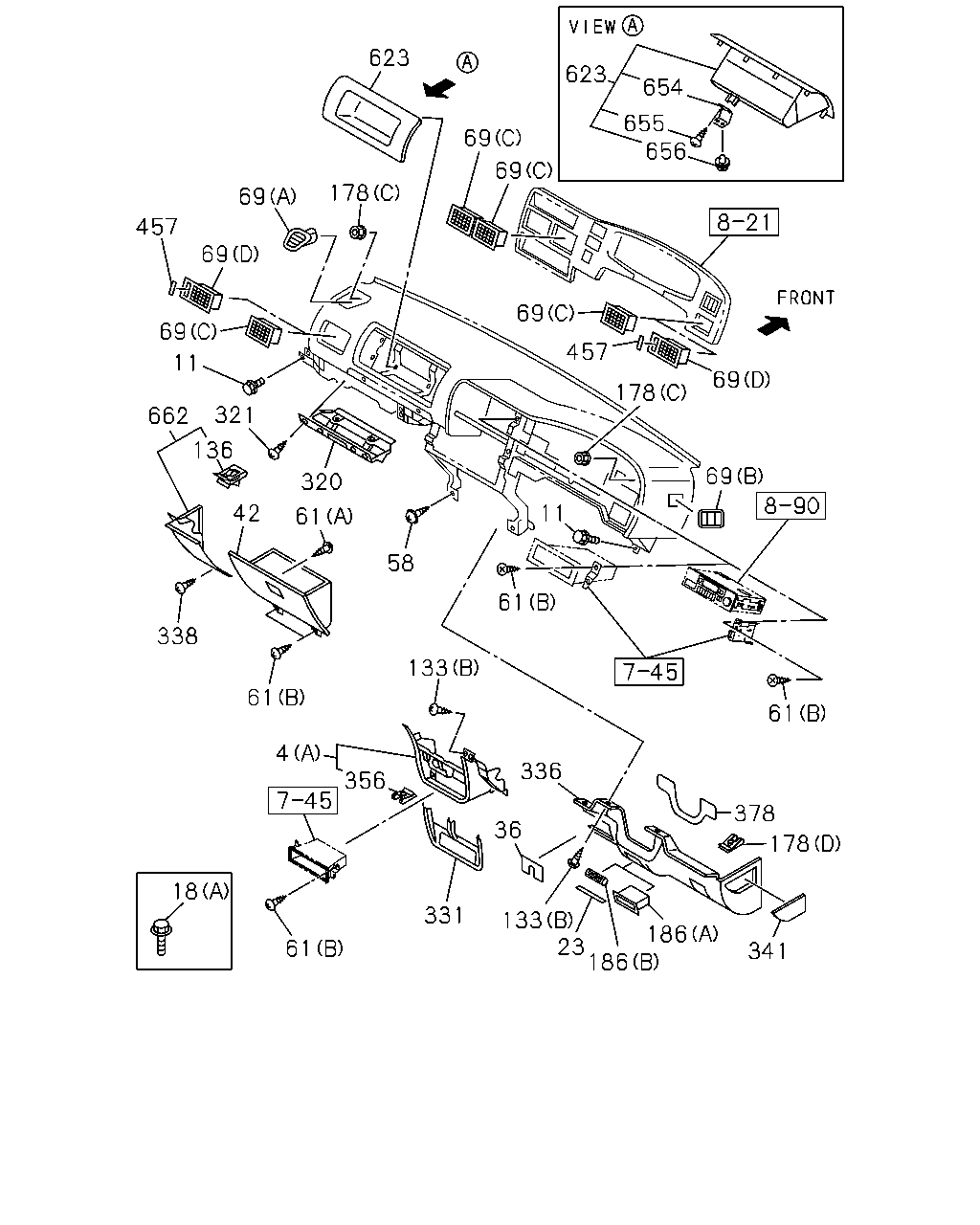

çizim 289902
654 623 656 655 69 69 623 178 69 69 457 178 69 457 69 69 321 11 662 136 42 320 58 61 61 133 61 338 4 336 36 356 331 61 18 69 11 61 378 178 341 186 186 23 133
BalonParca AdiParca NoAdetTipApplied Date A B C
4 COVER; INST PNL
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) GRAY IDN 		8-97957-323-0 01 1 0008-0106 ●
4 COVER; INST PNL
GRADE NEW SUPER(RBA) (B) GRAY IDN 		8-97957-323-0 01 1 0008-0106 ● ●
4 COVER; INST PNL
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) (B) GRAY IDN 		8-97957-323-0 01 1 0008-0106 ● ●
4 COVER; INST PNL
(B) GRAY IDN 		8-97957-323-0 01 1 0107-0209 ● ●
4 COVER; INST PNL
(B) DARK GRAY IDN 		8-97561-521-0 01 1 0210-0508 ● ●
4 COVER; INST PNL
(B) BLACK IDN 		8-97562-675-0 01 1 0509- ● ●
4 COVER; INST PNL
(A) GRAY 		8-97154-484-2 01 1 0008-0106 ● ● ●
4 COVER; INST PNL
(A) GRAY 		8-97154-484-2 01 1 0107-0209 ● ●
4 COVER; INST PNL
(A) DARK GRAY IDN 		8-97393-999-2 01 1 0210-0508 ● ●
4 COVER; INST PNL
(A) BLACK 		8-97154-863-2 01 1 0509- ● ●
4 COVER; INST PNL
GRADE ROYAL(RBB) HI GRADE(6PQ) (B) GRAY IDN 		8-97957-248-0 01 1 0008-0106 ● ●
4 COVER; INST PNL
GRADE LS(RBD) (B) GRAY IDN 		8-97957-248-0 01 1 0008-0106 ●
11 BOLT; INST PNL
M6X20 W/WASHER 		8-94112-987-1 08 1 0008-0106 ● ● ●
11 BOLT; INST PNL
M6X20 W/WASHER 		8-94112-987-1 08 1 0107-0603 ● ●
11 BOLT; INST PNL
M6X20 W/WASHER 		8-94112-987-1 07 1 0604- ● ●
18 BOLT; BRKT
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0008-0106 ● ● ●
18 BOLT; BRKT
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0107-0512 ● ●
18 BOLT; BRKT
(A) M6X16 FLANGE IDN 		0-28050-616-0 02 1 0601- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 08 1 0008-0106 ● ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 08 1 0107-0512 ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 08 1 0601- ● ●
23 CUSHION; INST,PANEL 8-97185-832-0 02 1 0008-0106 ● ● ●
23 CUSHION; INST,PANEL 8-97185-832-0 02 1 0107- ● ●
36 BEZEL; INST SIDE CLUSTER
GRAY 		8-97156-098-0 01 1 0008-0106 ●
42 BOX; GLOVE,INST PNL
GRAY 		8-97152-826-2 01 1 0008-0106 ● ● ●
42 BOX; GLOVE,INST PNL
GRAY 		8-97152-826-2 01 1 0107-0209 ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY IDN 		8-97394-013-2 01 1 0210-0508 ● ●
42 BOX; GLOVE,INST PNL
BLACK 		8-97154-875-2 01 1 0509- ● ●
58 SCREW; INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 0008-0106 ● ● ●
58 SCREW; INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 0107-0604 ● ●
58 SCREW; INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 02 1 0605- ● ●
61 SCREW; GLOVE BOX
EXC. AM/FM RADIO CASSETTE STEREO(UM2) (B) M5X16 		8-94279-312-0 02 1 0008-0106 ●
61 SCREW; GLOVE BOX
EXC. AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) M5X16 		8-94279-312-0 02 1 0008-0106 ● ●
61 SCREW; GLOVE BOX
EXC. AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) M5X16 		8-94279-312-0 02 1 0107- ● ●
61 SCREW; GLOVE BOX
(B) M5X16 		8-94279-312-0 04 1 0008-0106 ● ● ●
61 SCREW; GLOVE BOX
AM/FM RADIO CASSETTE STEREO(UM2) (B) M5X16 		8-94279-312-0 04 1 0008-0106 ●
61 SCREW; GLOVE BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) (B) M5X16 		8-94279-312-0 04 1 0008-0106 ● ●
61 SCREW; GLOVE BOX
(B) M5X16 		8-94279-312-0 04 1 0107- ● ●
61 SCREW; GLOVE BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE4 SPEAKERS(UM6) (B) M5X16 		8-94279-312-0 04 1 0107- ● ●
61 SCREW; GLOVE BOX
(A) M4X14 TAPPING 		8-97111-555-0 02 1 0008-0106 ● ● ●
61 SCREW; GLOVE BOX
(A) M4X14 TAPPING 		8-97111-555-0 02 1 0107- ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) BLACK 		8-97152-701-1 04 1 0008-0106 ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) BLACK 		8-97152-701-1 04 1 0107-0209 ● ●
69 GRILLE; SIDE,AIR OUTLET
COOLER WO/HEATER(YL1) (C) BLACK 		8-97152-701-1 02 1 0210- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-97152-702-3 01 1 0008-0106 ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-97152-702-3 01 1 0107-0209 ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY IDN 		8-97394-004-3 01 1 0210-0508 ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) BLACK 		8-97154-868-3 01 1 0509- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-97152-703-0 01 1 0008-0106 ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-97152-703-0 01 1 0107-0209 ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY IDN 		8-97394-003-0 01 1 0210-0508 ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) BLACK 		8-97154-870-0 01 1 0509- ● ●
69 GRILLE; SIDE,AIR OUTLET
COOLER WO/HEATER(YL1) (D) BLACK 		8-94388-773-3 02 1 0210- ● ●
69 GRILLE; SIDE,AIR OUTLET
EXC. COOLER WO/HEATER(YL1) (C) BLACK 		8-97152-701-1 04 1 0210- ● ●
133 SCREW; COVER,INST PNL
(A) M6X20 W/PL WASHER 		5-09981-023-0 05 1 0008-0106 ● ● ●
133 SCREW; COVER,INST PNL
(A) M6X20 W/PL WASHER 		5-09981-023-0 05 1 0107- ● ●
133 SCREW; COVER,INST PNL
(B) M5X16 		8-94279-312-0 13 1 0008-0106 ● ● ●
133 SCREW; COVER,INST PNL
(B) M5X16 		8-94279-312-0 13 1 0107- ● ●
136 CLIP; INST COVER 8-97148-012-0 01 1 0008-0106 ● ● ●
136 CLIP; INST COVER 8-97148-012-0 01 1 0107- ● ●
178 NUT; INST PANEL
(A) 		1-09984-167-0 01 1 0008-0106 ● ● ●
178 NUT; INST PANEL
(A) 		1-09984-167-0 01 1 0107- ● ●
178 NUT; INST PANEL
(C) M6 W/DISHED WASHER IDN 		8-94170-192-0 03 1 0008-0106 ● ● ●
178 NUT; INST PANEL
(C) M6 W/DISHED WASHER IDN 		8-94170-192-0 03 1 0107- ● ●
178 NUT; INST PANEL
(D) M5 SPIRE NUT 		8-94217-271-0 02 1 0008-0106 ● ● ●
178 NUT; INST PANEL
(D) M5 SPIRE NUT 		8-94217-271-0 02 1 0107- ● ●
178 NUT; INST PANEL
(B) THA 		8-97916-241-0 12 1 0008-0106 ● ● ●
178 NUT; INST PANEL
(B) THA 		8-97916-241-0 12 1 0107- ● ●
186 GRILLE; LAP VENTILATOR
(A) BLACK 		8-97806-851-2 01 1 0008-0106 ●
186 GRILLE; LAP VENTILATOR
(B) BLACK 		8-97123-442-0 01 1 0008-0106 ● ●
186 GRILLE; LAP VENTILATOR
(B) BLACK 		8-97394-945-0 01 1 0107- ● ●
320 COVER; GLOVE BOX
GRAY 		8-97150-599-4 01 1 0008-0106 ● ● ●
320 COVER; GLOVE BOX
GRAY 		8-97150-599-4 01 1 0107-0209 ● ●
320 COVER; GLOVE BOX
DARK GRAY IDN 		8-97394-005-4 01 1 0210-0508 ● ●
320 COVER; GLOVE BOX
BLACK 		8-97154-872-4 01 1 0509- ● ●
321 SCREW; COVER,GLOVE BOX
M5X16 		8-94279-312-0 04 1 0008-0106 ● ● ●
321 SCREW; COVER,GLOVE BOX
M5X16 		8-94279-312-0 04 1 0107- ● ●
331 CLUSTER; INST SIDE 8-97133-025-2 01 1 0008-0106 ● ● ●
331 CLUSTER; INST SIDE 8-97133-025-2 01 1 0107- ● ●
336 COVER; INST PANEL SIDE
GRAY 		8-97156-096-2 01 1 0008-0106 ●
336 COVER; INST PANEL SIDE
GRAY 		8-97153-941-2 01 1 0008-0209 ● ●
336 COVER; INST PANEL SIDE
DARK GRAY IDN 		8-97394-151-2 01 1 0210-0508 ● ●
336 COVER; INST PANEL SIDE
BLACK 		8-97154-884-2 01 1 0509- ● ●
338 SCREW; COVER
M5X16 		8-94279-312-0 03 1 0008-0106 ● ● ●
338 SCREW; COVER
M5X16 		8-94279-312-0 03 1 0107- ● ●
341 LID; FUSE BOX
GRAY 		8-97153-942-2 01 1 0008-0106 ● ● ●
341 LID; FUSE BOX
GRAY 		8-97153-942-2 01 1 0107-0209 ● ●
341 LID; FUSE BOX
DARK GRAY 		8-97394-152-2 01 1 0210-0508 ● ●
341 LID; FUSE BOX
BLACK 		8-97154-885-2 01 1 0509- ● ●
356 NUT; COVER
M5 SPIRE NUT 		8-94217-271-0 01 1 0008-0106 ● ● ●
356 NUT; COVER
M5 SPIRE NUT 		8-94217-271-0 01 1 0107- ● ●
378 SEAL; INST PANEL 8-97120-129-0 01 1 0008-0010 ● ●
457 PLATE; INST PANEL
COOLER WO/HEATER(YL1) 		8-97331-860-0 02 1 0210- ● ●
623 BOX; UTILITY
GRAY 		8-97199-868-1 01 1 0008-0106 ● ● ●
623 BOX; UTILITY
GRAY 		8-97199-868-1 01 1 0107-0209 ● ●
623 BOX; UTILITY
DARK GRAY IDN 		8-97394-161-1 01 1 0210-0508 ● ●
623 BOX; UTILITY
BLACK IDN 		8-97404-876-1 01 1 0509- ● ●
654 BRACKET; UTILITY BOX
THA 		8-97218-109-0 01 1 0008-0106 ● ● ●
654 BRACKET; UTILITY BOX
THA 		8-97218-109-0 01 1 0107- ● ●
655 SCREW; BRKT,UTILITY BOX
M5X14 THA 		8-97912-797-2 02 1 0008-0106 ● ● ●
655 SCREW; BRKT,UTILITY BOX
M5X14 THA 		8-97912-797-2 02 1 0107- ● ●
656 CLIP; TRIM
H=16.7 PHI 		8-97022-017-0 01 1 0008-0106 ● ● ●
656 CLIP; TRIM
H=16.7 PHI 		8-97022-017-0 01 1 0107- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97152-705-1 01 1 0008-0106 ● ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97152-705-1 01 1 0107-0209 ● ●
662 COVER; LWR,INST PANEL
DARK GRAY IDN 		8-97394-002-1 01 1 0210-0508 ● ●
662 COVER; LWR,INST PANEL
BLACK 		8-97154-866-1 01 1 0509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
