◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#95390) — 32 parça

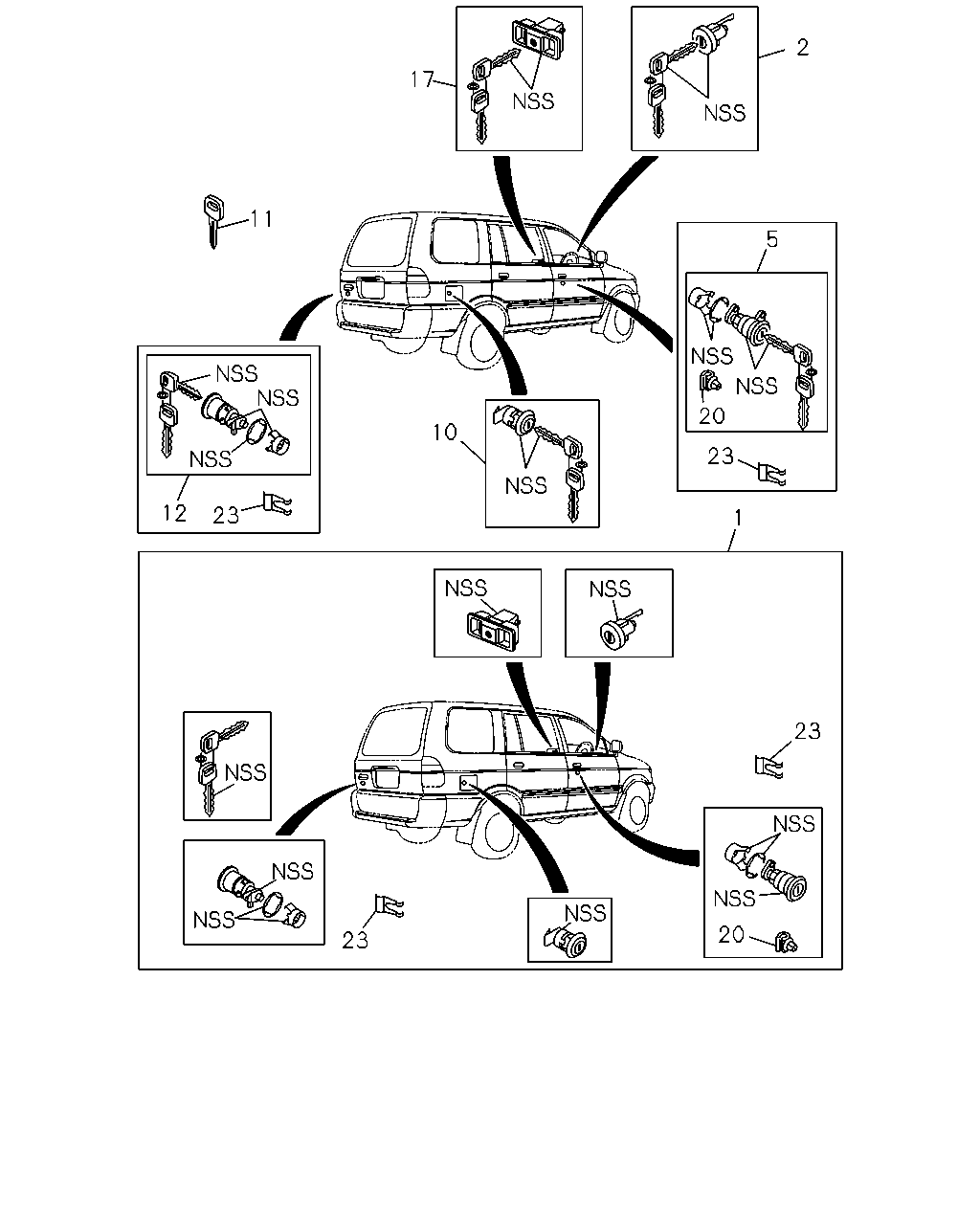

çizim 288934
23 20 23 1 23 20 5 10 23 12 11 17 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER SET; CAR LOCK
KD PREPARATORY PACK<6HF> BLACK 		8-97404-891-0 01 1 0510- ●
1 CYLINDER SET; CAR LOCK
GRAY 		8-97196-916-2 01 1 0008-0106 ●
1 CYLINDER SET; CAR LOCK
GRAY 		8-97196-917-2 01 1 0008-0209 ● ●
1 CYLINDER SET; CAR LOCK
DARK GRAY IDN 		8-97394-034-2 01 1 0210-0508 ● ●
1 CYLINDER SET; CAR LOCK
BLACK 		8-97404-853-2 01 1 0509-0509 ● ●
1 CYLINDER SET; CAR LOCK
BLACK 		8-97404-853-2 01 1 0510- ●
1 CYLINDER SET; CAR LOCK
EXC. KD PREPARATORY PACK<6HF> BLACK 		8-97404-853-2 01 1 0510- ●
2 BARREL ASM; W/KEY,STRG LOCK 8-97264-616-0 01 1 0008-0106 ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-97806-931-0 01 1 0107- ● ●
5 CYLINDER ASM; DOOR LOCK 8-97264-618-0 01 1 0008-0106 ● ● ●
5 CYLINDER ASM; DOOR LOCK 8-97264-618-0 01 1 0107- ● ●
5 CYLINDER ASM; DOOR LOCK 8-97264-617-0 01 1 0008-0106 ● ● ●
5 CYLINDER ASM; DOOR LOCK 8-97264-617-0 01 1 0107- ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER 8-97264-620-0 01 1 0008-0106 ● ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER 8-94320-981-3 01 1 0107-0509 ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER 8-94320-981-3 01 1 0510- ●
10 CYLINDER ASM; W/KEY,FUEL FILLER
EXC. KD PREPARATORY PACK<6HF> 		8-94320-981-3 01 1 0510- ●
11 KEY; BLANK
WO/NOTCH 		8-94320-972-0 AR 1 0008-0106 ● ● ●
11 KEY; BLANK
WO/NOTCH 		8-94320-972-0 AR 1 0107- ● ●
11 KEY; BLANK
W/NOTCH 		8-94320-973-0 AR 1 0008-0106 ● ● ●
11 KEY; BLANK
W/NOTCH 		8-94320-973-0 AR 1 0107- ● ●
12 CYLINDER ASM; W/KEY,BACK DOOR 8-97264-618-0 01 1 0008- ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK 5-87410-704-0 01 1 0008-0106 ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK 5-87410-704-0 01 1 0107-0209 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK 5-87410-900-0 01 1 0210-0508 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK 5-87412-019-0 01 1 0509- ● ●
20 SNAP; DOOR LOCK CYL
BROWN 		8-97040-453-0 01 1 0008-0106 ●
20 SNAP; DOOR LOCK CYL
YELLOW 		8-97040-452-0 01 1 0008-0106 ● ● ●
20 SNAP; DOOR LOCK CYL
YELLOW 		8-97040-452-0 01 1 0107- ● ●
20 SNAP; DOOR LOCK CYL
BROWN 		8-97040-453-0 02 1 0008- ● ●
23 RETAINER; BACK DOOR LOCK CYL 8-97019-016-0 02 1 0008-0106 ●
23 RETAINER; BACK DOOR LOCK CYL 8-97019-016-0 03 1 0008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
