◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#95388) — 22 parça

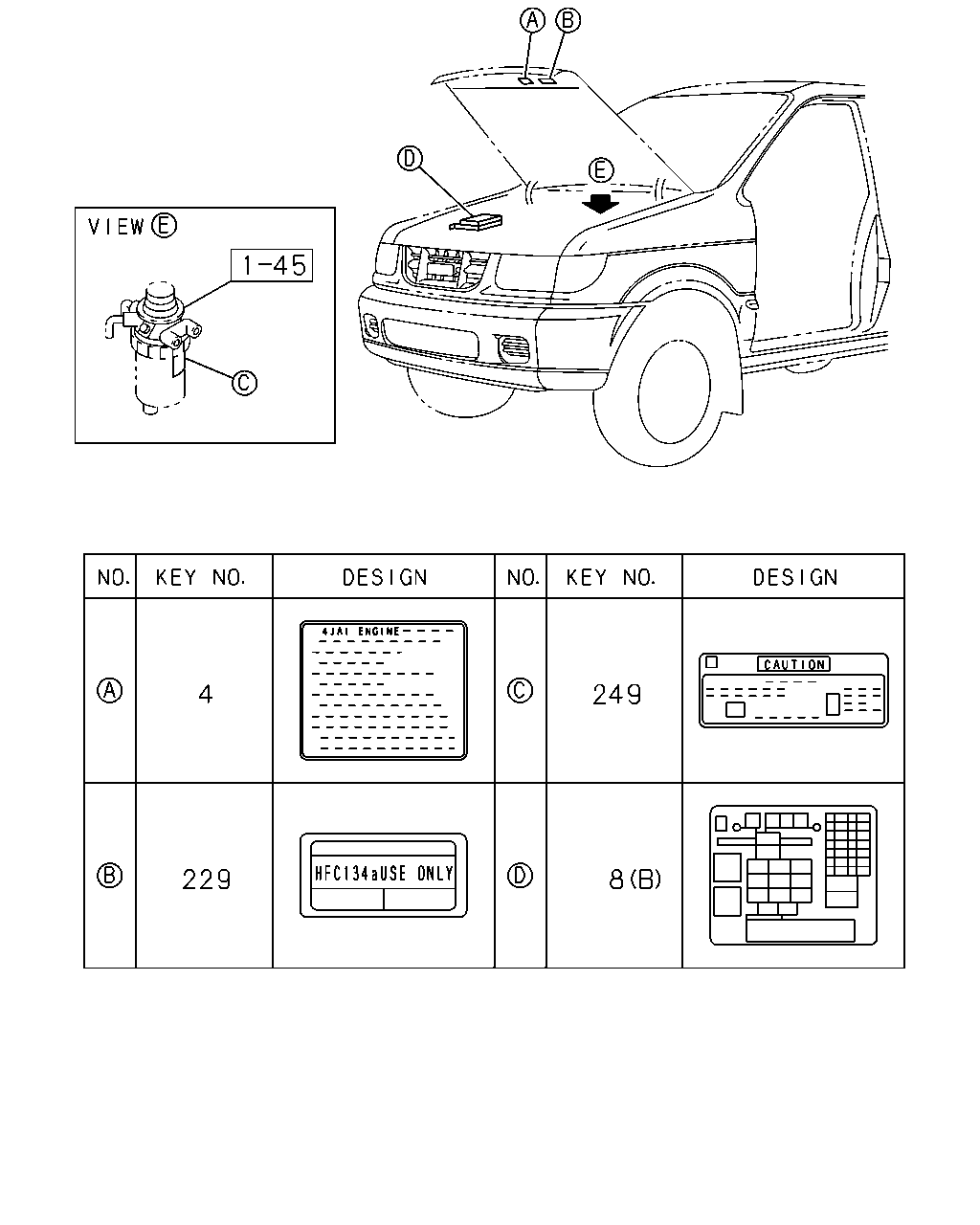

çizim 289359
4 229 249 8
BalonParca AdiParca NoAdetTipApplied Date A B C
4 LABEL; ENG MAINTENANCE
IDN 		8-97957-975-0 01 1 0008-0104 ●
4 LABEL; ENG MAINTENANCE
EXC. TURBOCHARGER<K51> IDN 		8-97957-975-0 01 1 0008-0104 ● ●
4 LABEL; ENG MAINTENANCE
IDN 		8-97959-674-0 01 1 0105-0106 ● ● ●
4 LABEL; ENG MAINTENANCE
IDN 		8-97959-674-0 01 1 0107- ● ●
4 LABEL; ENG MAINTENANCE
TURBOCHARGER<K51> IDN 		8-97957-976-0 01 1 0008-0104 ● ●
8 LABEL; FUSE
(A) IDN 		8-97956-233-1 01 1 0008-0106 ● ● ●
8 LABEL; FUSE
(A) IDN 		8-97956-233-1 01 1 0107- ● ●
8 LABEL; FUSE
(B) IDN 		8-97956-966-1 01 1 0008- ● ●
229 PLATE; CAUTION
COOLER WO/HEATER(YL1) IDN 		8-97957-526-0 01 1 0008-0106 ●
229 PLATE; CAUTION
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-526-0 01 1 0008-0106 ● ●
229 PLATE; CAUTION
COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-526-0 01 1 0008-0106 ● ●
229 PLATE; CAUTION
COOLER WO/HEATER(YL1) IDN 		8-97957-526-0 01 1 0107- ● ●
249 PLATE; CAUTION SEDIMENTER
IDN 		8-97957-693-0 01 1 0008-0106 ● ● ●
249 PLATE; CAUTION SEDIMENTER
IDN 		8-97957-693-0 01 1 0107- ● ●

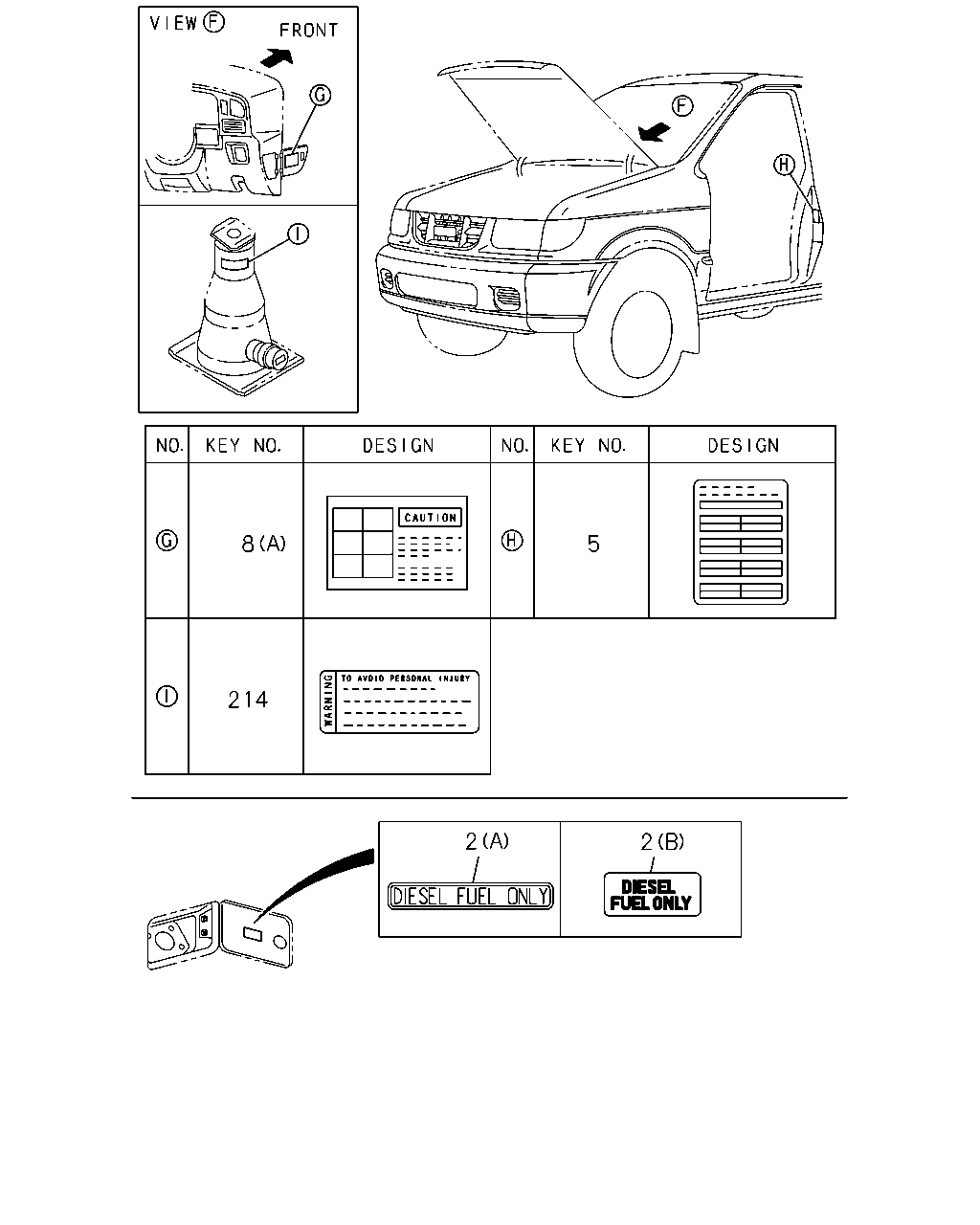

çizim 289896
8 214 5 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LABEL; FUEL CAUTION
(A) IDN 		8-97560-097-0 01 1 0107-0301 ● ●
2 LABEL; FUEL CAUTION
(B) IDN 		8-97562-232-0 01 1 0302- ● ●
5 LABEL; TIRE AIR PRESSURE
IDN 		8-97956-316-2 01 1 0008-0106 ● ● ●
5 LABEL; TIRE AIR PRESSURE
IDN 		8-97959-879-0 01 1 0107- ● ●
8 LABEL; FUSE
(A) IDN 		8-97956-233-1 01 1 0008-0106 ● ● ●
8 LABEL; FUSE
(A) IDN 		8-97956-233-1 01 1 0107- ● ●
8 LABEL; FUSE
(B) IDN 		8-97956-966-1 01 1 0008- ● ●
214 LABEL; JACK
GRADE TOURING(RBG) IDN 		8-97175-050-0 01 1 0107-0107 ● ●
