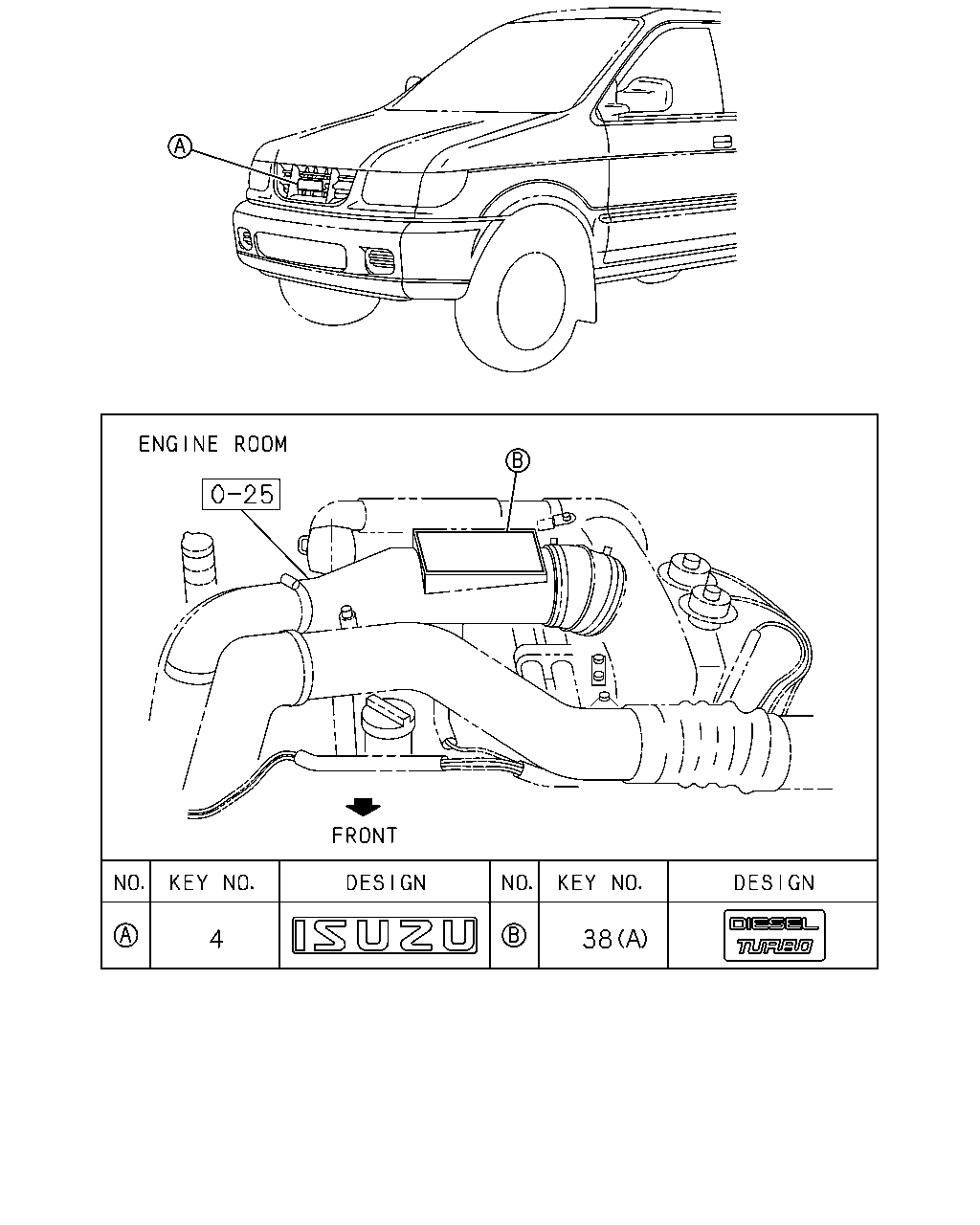

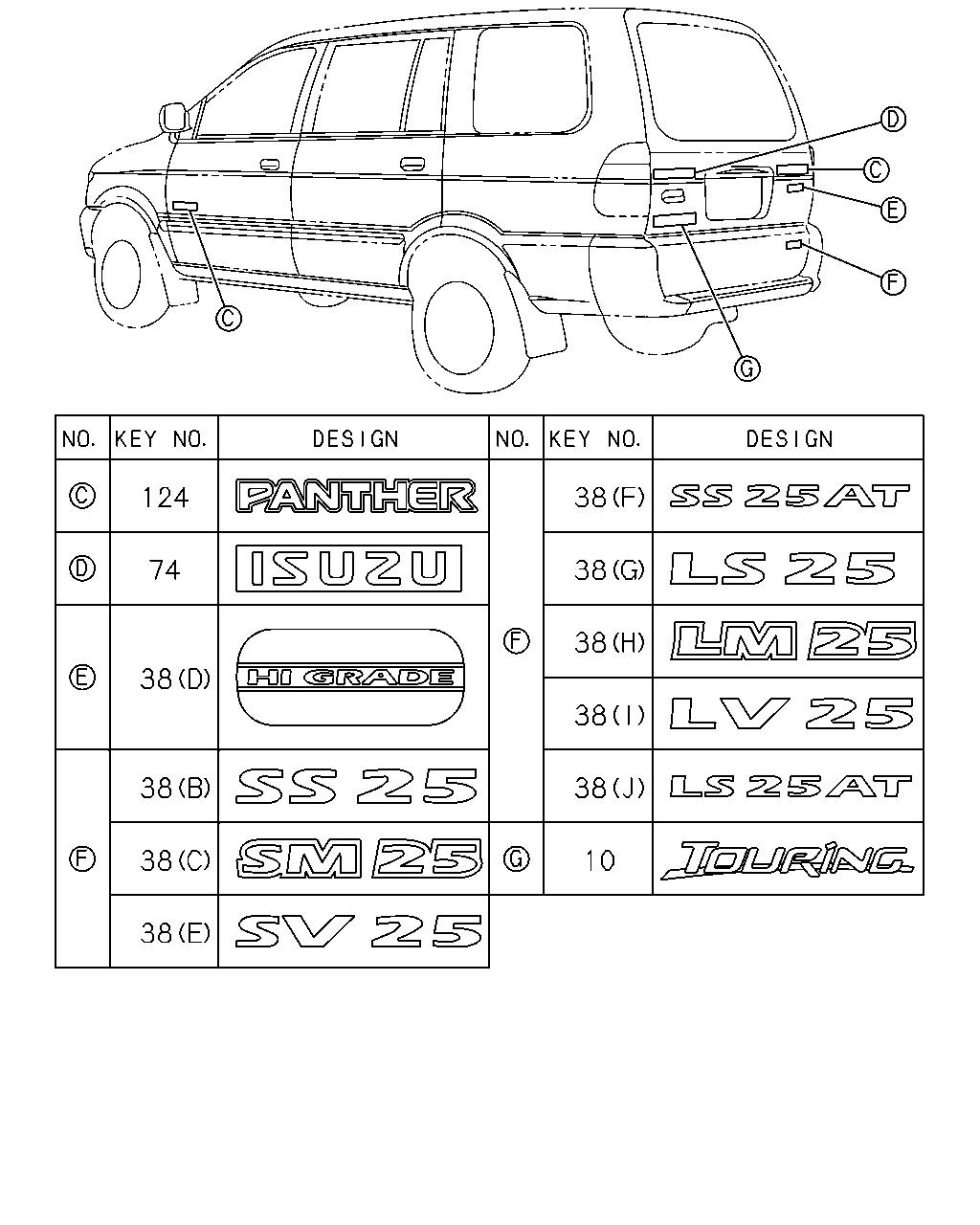

7-01 — EMBLEM AND NAME PLATE (#95387) — 48 parça

124 74 38 38 38 38 38 38 38 38 38 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	EMBLEM; DOOR GRADE TOURING(RBG) IDN	8-97959-670-0	01	1	0107-	●	●
38	PLATE; NAME A/T AISIN(RMD) GRADE ROYAL(RBB) HI GRADE(6PQ) (F) IDN	8-97957-640-0	01	1	0008-0209	●
38	PLATE; NAME A/T AISIN(RMD) GRADE LS(RBD) (F) IDN	8-97957-640-0	01	1	0210-	●
38	PLATE; NAME GRADE NEW SUPER(RBA) (C) IDN	8-97957-634-1	01	1	0008-	●
38	PLATE; NAME GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) (E) IDN	8-97957-638-0	01	1	0008-0209	●
38	PLATE; NAME GRADE ROYAL(RBB) (E) IDN	8-97957-638-0	01	1	0210-	●
38	PLATE; NAME M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) IDN	8-97957-637-0	01	1	0008-0209	●
38	PLATE; NAME M/T MSG 5 SPEED(M75) GRADE LS(RBD) (B) IDN	8-97957-637-0	01	1	0210-	●
38	PLATE; NAME GRADE ROYAL(RBB) HI GRADE(6PQ) (D) IDN	8-97957-622-0	01	1	0008-0209	●	●
38	PLATE; NAME GRADE LS(RBD) (D) IDN	8-97957-622-0	01	1	0210-	●	●
38	PLATE; NAME TURBOCHARGER<K51> TACHOMETER<U16> COOLER WO/HEATER(YL1) (A)	8-97115-470-0	01	1	0008-0508	●	●
38	PLATE; NAME A/T AISIN(RMD) TURBOCHARGER<K51> TACHOMETER<U16> COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97115-470-0	01	1	0509-	●	●
38	PLATE; NAME AIR CONDITIONER ROOF MOUNTED<C69> TURBOCHARGER<K51> TACHOMETER<U16> COOLER WO/HEATER(YL1) (A)	8-97115-470-0	01	1	0509-	●	●
38	PLATE; NAME A/T AISIN(RMD) GRADE ROYAL(RBB) HI GRADE(6PQ) (J) IDN	8-97957-639-0	01	1	0008-0209		●
38	PLATE; NAME A/T AISIN(RMD) GRADE LS(RBD) (J) IDN	8-97957-639-0	01	1	0210-		●
38	PLATE; NAME GRADE NEW SUPER(RBA) (H) IDN	8-97957-633-1	01	1	0008-		●
38	PLATE; NAME GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) (I) IDN	8-97957-635-0	01	1	0008-0209		●
38	PLATE; NAME GRADE ROYAL(RBB) (I) IDN	8-97957-635-0	01	1	0210-		●
38	PLATE; NAME M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) HI GRADE(6PQ) (G) IDN	8-97957-636-0	01	1	0008-0209		●
38	PLATE; NAME M/T MSG 5 SPEED(M75) GRADE LS(RBD) (G) IDN	8-97957-636-0	01	1	0210-		●
74	DECAL; "ISUZU" IDN	8-97957-665-0	01	1	0008-0106	●	●	●
74	DECAL; "ISUZU" IDN	8-97957-665-0	01	1	0107-	●	●
124	PLATE; NAME IDN	8-97957-641-0	02	1	0008-0106	●	●	●
124	PLATE; NAME IDN	8-97957-641-0	02	1	0107-	●	●
124	PLATE; NAME IDN	8-97957-641-0	01	1	0008-0104	●	●
124	PLATE; NAME GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN	8-97957-641-0	01	1	0105-0209	●	●
124	PLATE; NAME GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN	8-97957-641-0	01	1	0210-	●	●

4 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	EMBLEM; RAD GRILLE IDN	8-97957-595-1	01	1	0008-0106	●	●	●
4	EMBLEM; RAD GRILLE IDN	8-97957-595-1	01	1	0107-	●	●
38	PLATE; NAME A/T AISIN(RMD) GRADE ROYAL(RBB) HI GRADE(6PQ) (F) IDN	8-97957-640-0	01	1	0008-0209	●
38	PLATE; NAME A/T AISIN(RMD) GRADE LS(RBD) (F) IDN	8-97957-640-0	01	1	0210-	●
38	PLATE; NAME GRADE NEW SUPER(RBA) (C) IDN	8-97957-634-1	01	1	0008-	●
38	PLATE; NAME GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) (E) IDN	8-97957-638-0	01	1	0008-0209	●
38	PLATE; NAME GRADE ROYAL(RBB) (E) IDN	8-97957-638-0	01	1	0210-	●
38	PLATE; NAME M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) HI GRADE(6PQ) (B) IDN	8-97957-637-0	01	1	0008-0209	●
38	PLATE; NAME M/T MSG 5 SPEED(M75) GRADE LS(RBD) (B) IDN	8-97957-637-0	01	1	0210-	●
38	PLATE; NAME GRADE ROYAL(RBB) HI GRADE(6PQ) (D) IDN	8-97957-622-0	01	1	0008-0209	●	●
38	PLATE; NAME GRADE LS(RBD) (D) IDN	8-97957-622-0	01	1	0210-	●	●
38	PLATE; NAME TURBOCHARGER<K51> TACHOMETER<U16> COOLER WO/HEATER(YL1) (A)	8-97115-470-0	01	1	0008-0508	●	●
38	PLATE; NAME A/T AISIN(RMD) TURBOCHARGER<K51> TACHOMETER<U16> COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (A)	8-97115-470-0	01	1	0509-	●	●
38	PLATE; NAME AIR CONDITIONER ROOF MOUNTED<C69> TURBOCHARGER<K51> TACHOMETER<U16> COOLER WO/HEATER(YL1) (A)	8-97115-470-0	01	1	0509-	●	●
38	PLATE; NAME A/T AISIN(RMD) GRADE ROYAL(RBB) HI GRADE(6PQ) (J) IDN	8-97957-639-0	01	1	0008-0209		●
38	PLATE; NAME A/T AISIN(RMD) GRADE LS(RBD) (J) IDN	8-97957-639-0	01	1	0210-		●
38	PLATE; NAME GRADE NEW SUPER(RBA) (H) IDN	8-97957-633-1	01	1	0008-		●
38	PLATE; NAME GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) (I) IDN	8-97957-635-0	01	1	0008-0209		●
38	PLATE; NAME GRADE ROYAL(RBB) (I) IDN	8-97957-635-0	01	1	0210-		●
38	PLATE; NAME M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) HI GRADE(6PQ) (G) IDN	8-97957-636-0	01	1	0008-0209		●
38	PLATE; NAME M/T MSG 5 SPEED(M75) GRADE LS(RBD) (G) IDN	8-97957-636-0	01	1	0210-		●
