◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#95384) — 47 parça

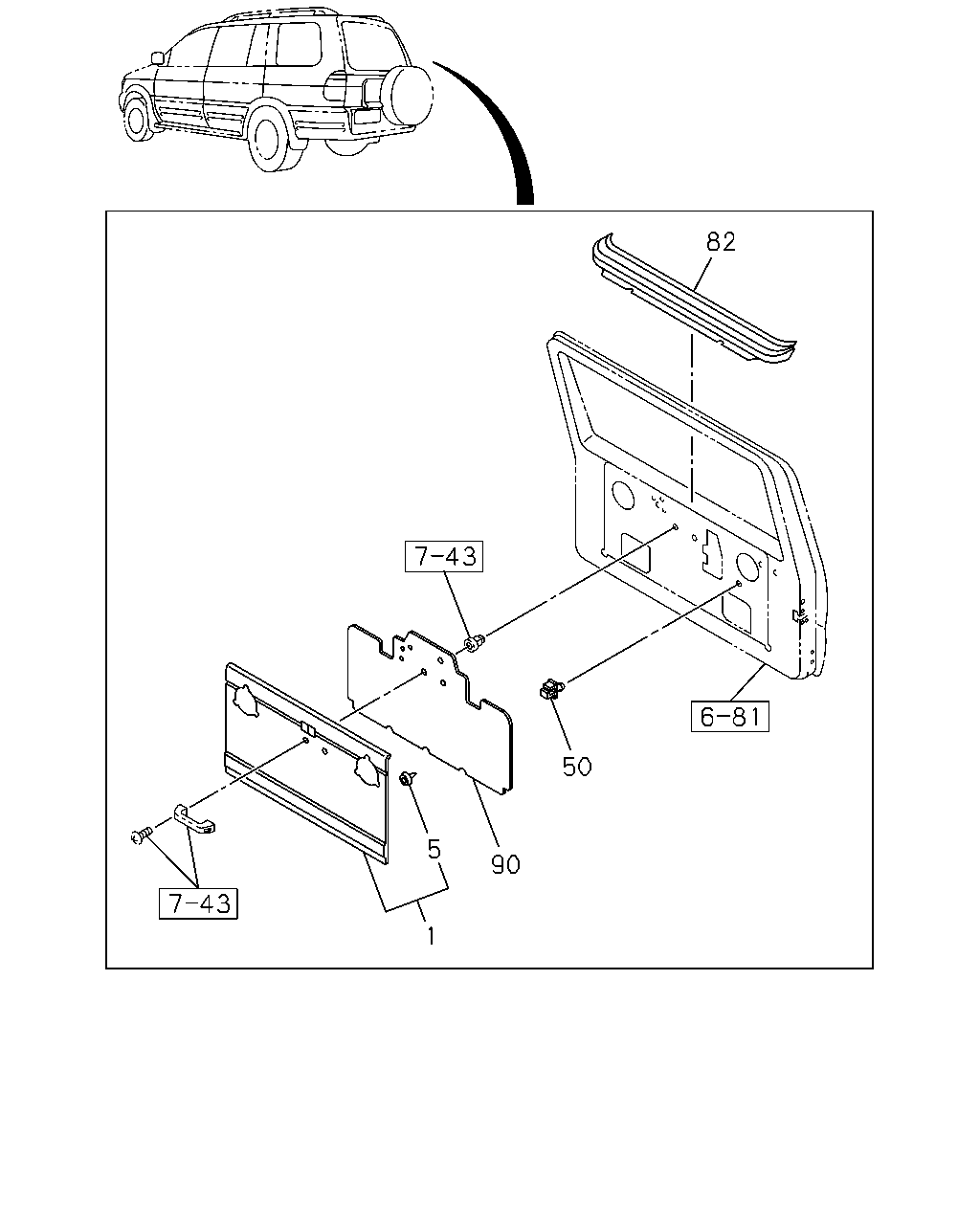

çizim 289895
82 50 90 5 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAD; TRIM,BACK DOOR
WAGON LONG(TB**VF) 3RD SEAT 7 PASSENGERS<AS3> RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) DARK GRAY IDN 		8-97407-278-0 01 1 0605- ● ● ● ●
1 PAD; TRIM,BACK DOOR
WAGON LONG(TB**VF) 3RD SEAT 7 PASSENGERS<AS3> EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) DARK GRAY IDN 		8-97407-277-0 01 1 0605- ● ● ● ●
1 PAD; TRIM,BACK DOOR
WAGON(TB**V*) EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY IDN 		8-97196-914-6 01 1 0008-0106 ● ● ●
1 PAD; TRIM,BACK DOOR
WAGON(TB**V*) EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY IDN 		8-97196-914-6 01 1 0107-0209 ● ● ●
1 PAD; TRIM,BACK DOOR
WAGON(TB**V*) EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) BLACK IDN 		8-97561-592-6 01 1 0210-0604 ● ● ● ●
1 PAD; TRIM,BACK DOOR
SHORT(TB***C) EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) BLACK IDN 		8-97561-592-6 01 1 0605- ● ● ● ●
1 PAD; TRIM,BACK DOOR
WAGON LONG(TB**VF) EXC. 3RD SEAT 7 PASSENGERS<AS3>,RR WIPER<C25>, AM/FM W/CASSETTE 4 SPEAKERS(UM6) BLACK IDN 		8-97561-592-6 01 1 0605- ● ● ● ●
1 PAD; TRIM,BACK DOOR
AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> GRAY IDN 		8-97196-913-6 01 1 0008-0106 ● ●
1 PAD; TRIM,BACK DOOR
AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> GRAY IDN 		8-97196-913-6 01 1 0107-0209 ● ●
1 PAD; TRIM,BACK DOOR
AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> BLACK IDN 		8-97561-591-6 01 1 0210-0302 ● ● ●
1 PAD; TRIM,BACK DOOR
AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> BLACK IDN 		8-97397-433-0 01 1 0303- ● ● ●
1 PAD; TRIM,BACK DOOR
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY IDN 		8-97198-409-7 01 1 0008-0106 ● ●
1 PAD; TRIM,BACK DOOR
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY IDN 		8-97198-409-7 01 1 0107-0209 ● ●
1 PAD; TRIM,BACK DOOR
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) BLACK IDN 		8-97561-593-7 01 1 0210-0302 ● ● ●
1 PAD; TRIM,BACK DOOR
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) BLACK IDN 		8-97397-435-0 01 1 0303-0604 ● ● ●
1 PAD; TRIM,BACK DOOR
SHORT(TB***C) RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) BLACK IDN 		8-97397-435-0 01 1 0605- ● ● ● ●
1 PAD; TRIM,BACK DOOR
WAGON LONG(TB**VF) RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97397-435-0 01 1 0605- ● ● ● ●
1 PAD; TRIM,BACK DOOR
RR WIPER<C25> EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY IDN 		8-97198-410-7 01 1 0008-0106 ● ●
1 PAD; TRIM,BACK DOOR
RR WIPER<C25> EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY IDN 		8-97198-410-7 01 1 0107-0209 ● ●
1 PAD; TRIM,BACK DOOR
RR WIPER<C25> EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6) BLACK IDN 		8-97561-594-7 01 1 0210- ● ● ●
5 CLIP; BACK DOOR TRIM
WAGON(TB**V*) H=16.3 IDN 		8-97126-393-0 12 1 0008-0009 ● ● ● ●
5 CLIP; BACK DOOR TRIM
WAGON(TB**V*) H=20.6 D8X13.8 IDN 		8-97260-948-0 12 1 0010-0106 ● ● ● ●
5 CLIP; BACK DOOR TRIM
H=20.6 D8X13.8 IDN 		8-97260-948-0 12 1 0107-0209 ● ● ●
5 CLIP; BACK DOOR TRIM
H=20.6 D8X13.8 IDN 		8-97260-948-0 12 1 0210- ● ● ● ●
50 ANTIRATTLER; TAIL GATE
WAGON(TB**V*) 		8-97126-660-0 04 1 0008-0106 ● ● ●
50 ANTIRATTLER; TAIL GATE 8-97126-660-0 04 1 0107-0209 ● ● ●
50 ANTIRATTLER; TAIL GATE 8-97126-660-0 04 1 0210-0604 ● ● ● ●
50 ANTIRATTLER; TAIL GATE
SHORT(TB***C) 		8-97126-660-0 04 1 0605- ● ● ● ●
50 ANTIRATTLER; TAIL GATE
WAGON LONG(TB**VF) EXC. 3RD SEAT 7 PASSENGERS<AS3> 		8-97126-660-0 04 1 0605- ● ● ● ●
82 COVER; TRIM,BACK DOOR
WAGON(TB**V*) GRAY IDN 		8-97196-915-4 01 1 0008-0106 ●
82 COVER; TRIM,BACK DOOR
GRAY IDN 		8-97196-915-4 01 1 0008-0106 ●
82 COVER; TRIM,BACK DOOR
GRAY IDN 		8-97196-915-4 01 1 0107-0109 ● ●
82 COVER; TRIM,BACK DOOR
GRAY IDN 		8-97560-656-4 01 1 0110-0209 ● ●
82 COVER; TRIM,BACK DOOR
BLACK IDN 		8-97561-595-5 01 1 0210-0508 ● ● ●
82 COVER; TRIM,BACK DOOR
BLACK IDN 		8-97562-700-5 01 1 0509- ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
WAGON(TB**V*) EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97955-561-4 01 1 0008-0106 ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97955-561-4 01 1 0107-0209 ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97955-561-4 01 1 0210- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> IDN 		8-97955-560-4 01 1 0008-0106 ● ●
90 SHEET; WATER PROOF,BACK DOOR
AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> IDN 		8-97955-560-4 01 1 0107-0209 ● ●
90 SHEET; WATER PROOF,BACK DOOR
AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> IDN 		8-97955-560-4 01 1 0210- ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97957-010-3 01 1 0008-0106 ● ●
90 SHEET; WATER PROOF,BACK DOOR
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97957-010-3 01 1 0107-0209 ● ●
90 SHEET; WATER PROOF,BACK DOOR
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97957-010-3 01 1 0210- ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
RR WIPER<C25> EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97957-011-3 01 1 0008-0106 ● ●
90 SHEET; WATER PROOF,BACK DOOR
RR WIPER<C25> EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97957-011-3 01 1 0107-0209 ● ●
90 SHEET; WATER PROOF,BACK DOOR
RR WIPER<C25> EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN 		8-97957-011-3 01 1 0210- ● ● ●
