◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-83 - BACK DOOR LOCK AND HANDLE ▶
6-83 — BACK DOOR LOCK AND HANDLE (#95383) — 48 parça

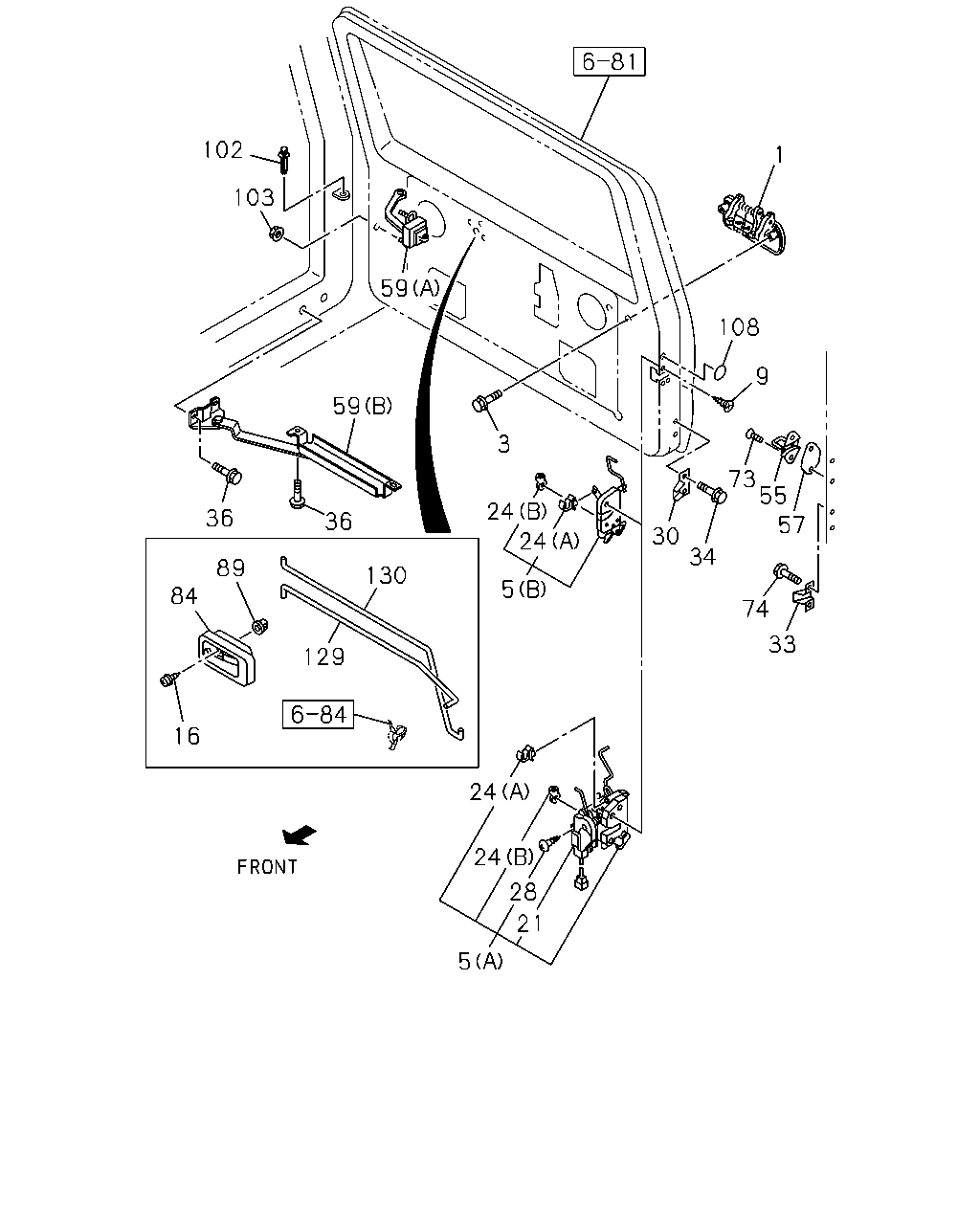

çizim 289216
33 74 34 30 57 55 73 9 108 1 102 103 59 59 3 24 24 5 130 36 36 89 84 16 129 24 24 28 21 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,BACK DOOR
IDN 		8-97072-484-1 01 1 0008- ● ●
3 BOLT; TAIL GATE HANDLE
M6X8 IDN 		8-94155-893-0 02 1 0008- ● ●
5 LOCK; BACK DOOR
AUTO DOOR LOCK<AU4> (A) 		8-97250-484-2 01 1 0008- ● ●
5 LOCK; BACK DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-97250-483-1 01 1 0008- ● ●
9 SCREW; LOCK TO BACK DOOR 8-97811-252-0 03 1 0008- ● ●
16 SCREW; INSIDE LEVER,BACK DOOR
M5X14 IDN 		8-94152-495-0 01 1 0008-0604 ● ●
16 SCREW; INSIDE LEVER,BACK DOOR
M5X14 IDN 		8-94152-495-0 01 1 0605- ●
16 SCREW; INSIDE LEVER,BACK DOOR
EXC. 3RD SEAT 7 PASSENGERS<AS3> M5X14 IDN 		8-94152-495-0 01 1 0605- ●
21 ACTUATOR; BACK DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97251-150-1 01 1 0008- ● ●
24 CLIP; LINK ROD
(A) 		8-97264-613-0 01 1 0008- ● ●
24 CLIP; LINK ROD
(B) 		8-97264-639-0 01 1 0008- ● ●
28 SCREW; ACTUATOR
AUTO DOOR LOCK<AU4> 		8-97264-615-0 02 1 0008- ● ●
30 DOVETAIL; BACK DOOR 8-94198-167-0 01 1 0008- ● ●
33 STRIKER; DOVETAIL 8-94353-030-0 01 1 0008- ● ●
34 BOLT; DOVETAIL TO BACK DOOR
M8X23 FLANGE 		8-97105-376-0 02 1 0008- ● ●
36 BOLT; LINK
GRADE TOURING(RBG) M8X23 FLANGE 		8-97105-376-0 04 1 0107- ● ●
55 STRIKER; BACK DOOR 8-97147-406-0 01 1 0008- ● ●
57 SEAT; DOOR STRIKER,BACK DOOR
IDN 		8-94239-378-0 AR 1 0008- ● ●
59 ARM ASM; CHECK,BACK DOOR
(A) 		8-97174-265-0 01 1 0008-0106 ● ●
59 ARM ASM; CHECK,BACK DOOR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) 		8-97174-265-0 01 1 0107-0209 ● ●
59 ARM ASM; CHECK,BACK DOOR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) 		8-97174-265-2 01 1 0210- ● ●
59 ARM ASM; CHECK,BACK DOOR
GRADE TOURING(RBG) (B) DARK GREEN 		8-97188-600-2 01 1 0107- ● ●
73 SCREW; STRIKER TO BACK DOOR
M8X20 		9-03097-820-0 02 1 0008-0604 ● ●
73 SCREW; STRIKER TO BACK DOOR
M8X20 		0-30218-820-0 02 1 0605- ● ●
74 BOLT; DOVETAIL STRIKER
M8X23 FLANGE 		8-97105-376-0 02 1 0008- ● ●
84 HANDLE; INSIDE,BACK DOOR
GRAY IDN 		8-97196-873-0 01 1 0008-0209 ● ●
84 HANDLE; INSIDE,BACK DOOR
BLACK 		8-97394-016-0 01 1 0210-0305 ● ●
84 HANDLE; INSIDE,BACK DOOR
BLACK IDN 		8-97398-367-0 01 1 0306-0508 ● ●
84 HANDLE; INSIDE,BACK DOOR
BLACK IDN 		8-97398-365-0 01 1 0509-0604 ● ●
84 HANDLE; INSIDE,BACK DOOR
BLACK IDN 		8-97398-365-0 01 1 0605- ●
84 HANDLE; INSIDE,BACK DOOR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97398-365-0 01 1 0605- ●
89 SCREW; HANDLE
IDN 		8-94152-494-0 01 1 0008-0604 ● ●
89 SCREW; HANDLE
IDN 		8-94152-494-0 01 1 0605- ●
89 SCREW; HANDLE
EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-94152-494-0 01 1 0605- ●
102 PIN; DOOR CHECK ARM
IDN 		8-94111-468-0 01 1 0008-0106 ● ●
102 PIN; DOOR CHECK ARM
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-94111-468-0 01 1 0107-0209 ● ●
102 PIN; DOOR CHECK ARM
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-94111-468-0 01 1 0210- ● ●
103 NUT
M8 FLANGE 		5-09440-005-0 02 1 0008-0106 ● ●
103 NUT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) M8 FLANGE 		5-09440-005-0 02 1 0107-0209 ● ●
103 NUT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) M8 FLANGE 		5-09440-005-0 02 1 0210-0805 ● ●
103 NUT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) M8 FLANGE 		8-97581-233-0 02 1 0806- ● ●
108 SEAL; TOOL HOLE
OD=36 T=0.05 BLACK IDN 		5-76777-035-0 01 1 0008- ● ●
129 LINK; DOOR LOCK 8-97250-472-1 01 1 0008-0604 ● ●
129 LINK; DOOR LOCK 8-97250-472-1 01 1 0605- ●
129 LINK; DOOR LOCK
EXC. 3RD SEAT 7 PASSENGERS<AS3> 		8-97250-472-1 01 1 0605- ●
130 LINK; INSIDE LEVER 8-97250-473-1 01 1 0008-0604 ● ●
130 LINK; INSIDE LEVER 8-97250-473-1 01 1 0605- ●
130 LINK; INSIDE LEVER
EXC. 3RD SEAT 7 PASSENGERS<AS3> 		8-97250-473-1 01 1 0605- ●
