◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-82 - BACK GLASS AND WEATHERSTRIP ▶
6-82 — BACK GLASS AND WEATHERSTRIP (#95382) — 9 parça
çizim 289183
16 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; BACKLIGHT
IDN 		8-94366-928-0 01 1 0008-0106 ●
16 WEATHERSTRIP; BACKLIGHT
IDN 		8-94366-929-0 01 1 0008-0106 ●

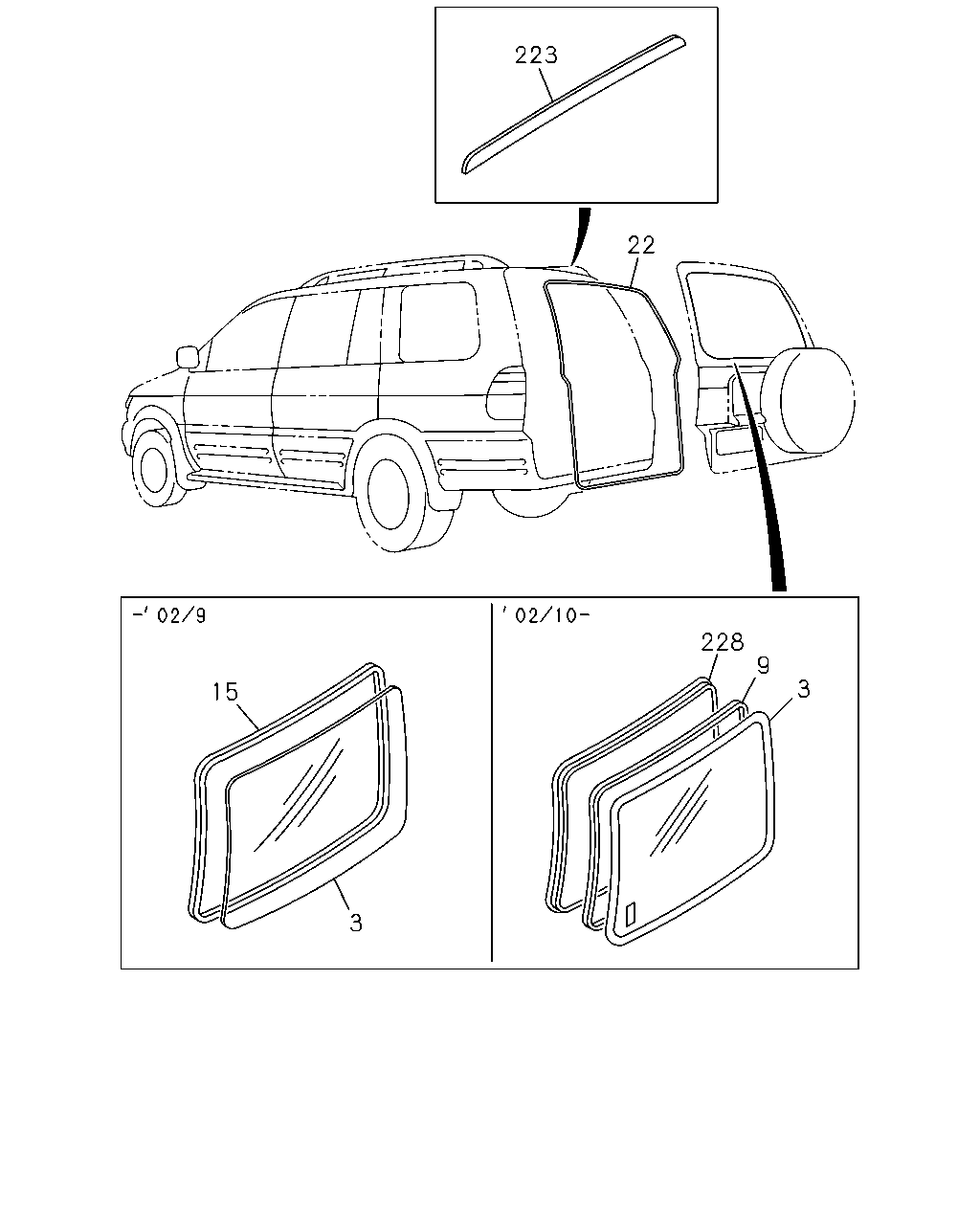

çizim 289184
3 9 228 22 223 15 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 GLASS; BACK DOOR WINDOW
IDN 		8-97955-557-2 01 1 0008-0209 ● ●
3 GLASS; BACK DOOR WINDOW
IDN 		8-97561-160-1 01 1 0210- ● ●
9 MOLDING; BACK DOOR WINDOW
IDN 		8-97561-162-2 01 1 0210- ● ●
15 WEATHERSTRIP; BACK DOOR GLASS
IDN 		8-97955-558-1 01 1 0008-0209 ● ●
22 WEATHERSTRIP; BACK DOOR
IDN 		8-97955-562-3 01 1 0008- ● ●
223 SEAL; DRIP
IDN 		8-97955-563-1 01 1 0008- ● ●
228 FINISHER; BACK DOOR GLASS
IDN 		8-97561-164-2 01 1 0210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
