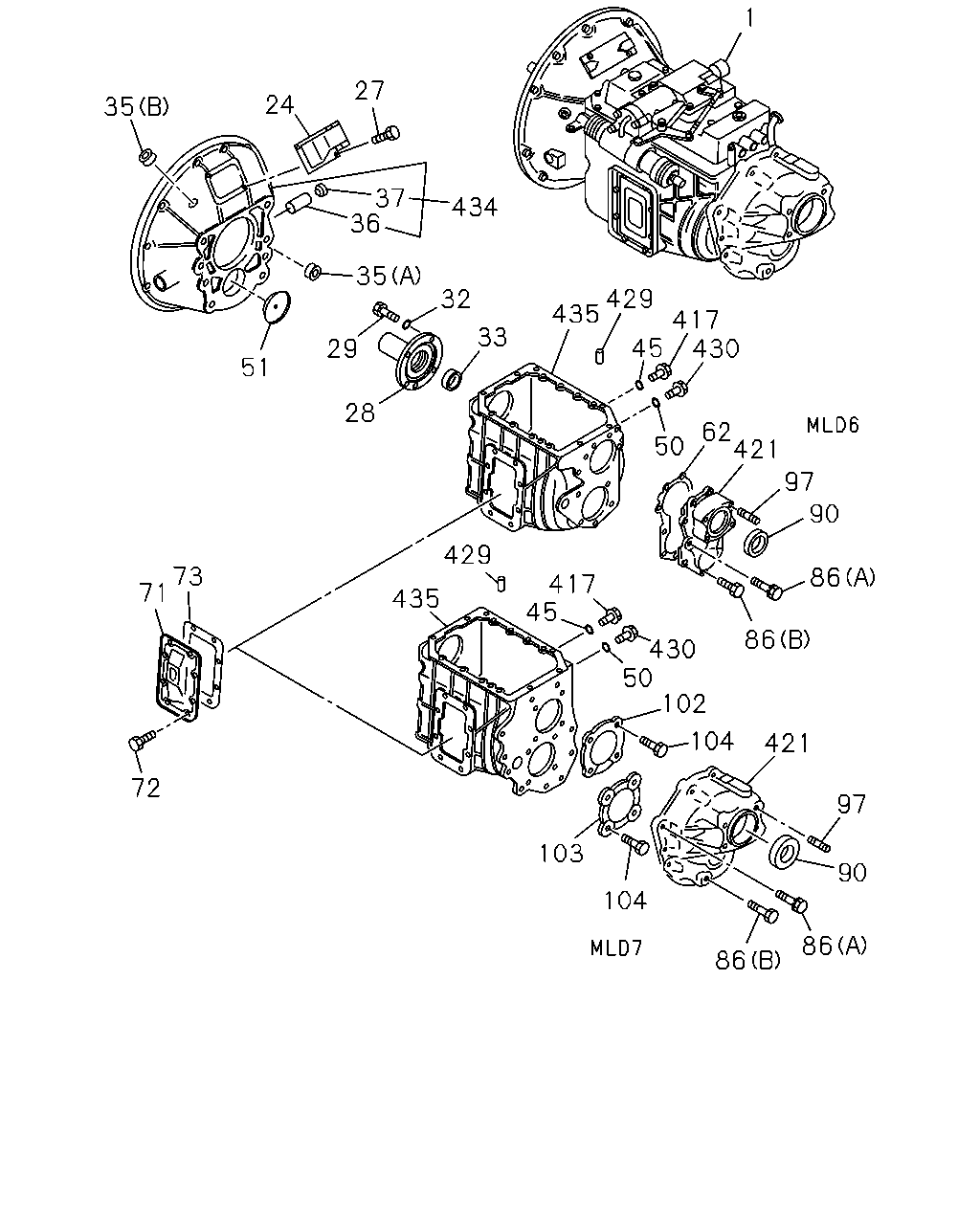

2-20 — MANUAL TRANSMISSION ASM AND CASE (#9538) — 67 parça

1 27 24 35 37 36 434 35 429 435 32 417 33 29 51 28 62 421 50 97 90 429 73 71 86 417 45 435 86 430 50 102 104 421 72 97 103 90 104 86 86 45 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	1-33042-984-0	01	1	0005-0210	●
1	TRANSMISSION ASM; MANUAL	1-33041-583-0	01	1	0005-0210		●
1	TRANSMISSION ASM; MANUAL	1-33043-612-0	01	1	0211-		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0005-0210	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0211-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	0005-0104	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0210	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	0005-0210	●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0211-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0005-0210	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0211-0805		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0005-0210	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0211-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	0005-0210	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0211-		●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	0005-0210	●	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	0211-		●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	0005-0210	●	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	0211-		●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0005-0210	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0211-		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0005-0210	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0211-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-0210	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0211-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0005-0210	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0211-0509		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0510-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	0005-0210	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0211-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0005-0210	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	0005-0210	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	0211-		●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0005-0210	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	0211-0512		●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28151-016-0	08	1	0601-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0005-0210	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0211-		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	0005-0210	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	0005-0210	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	09	1	0005-		●
86	BOLT; RR COVER (A) M12X50	1-09044-085-0	02	1	0005-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0005-0210	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0211-		●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0005-0210	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0211-		●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-036-0	01	1	0005-		●
103	RETAINER; BRG	1-33151-037-0	01	1	0005-		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0005-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	0005-0201	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-0210	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0211-		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0005-0210	●
421	COVER; RR,TRANS	1-33131-087-4	01	1	0005-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0005-0210	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0211-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0005-0210	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0211-0509		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	02	1	0510-		●
434	HOUSING; CLU	1-31110-169-0	01	1	0005-0210	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	0211-		●
435	CASE; TRANS	1-33111-235-0	01	1	0005-0201	●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0210	●
435	CASE; TRANS	1-33111-236-1	01	1	0005-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
