◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#95376) — 151 parça

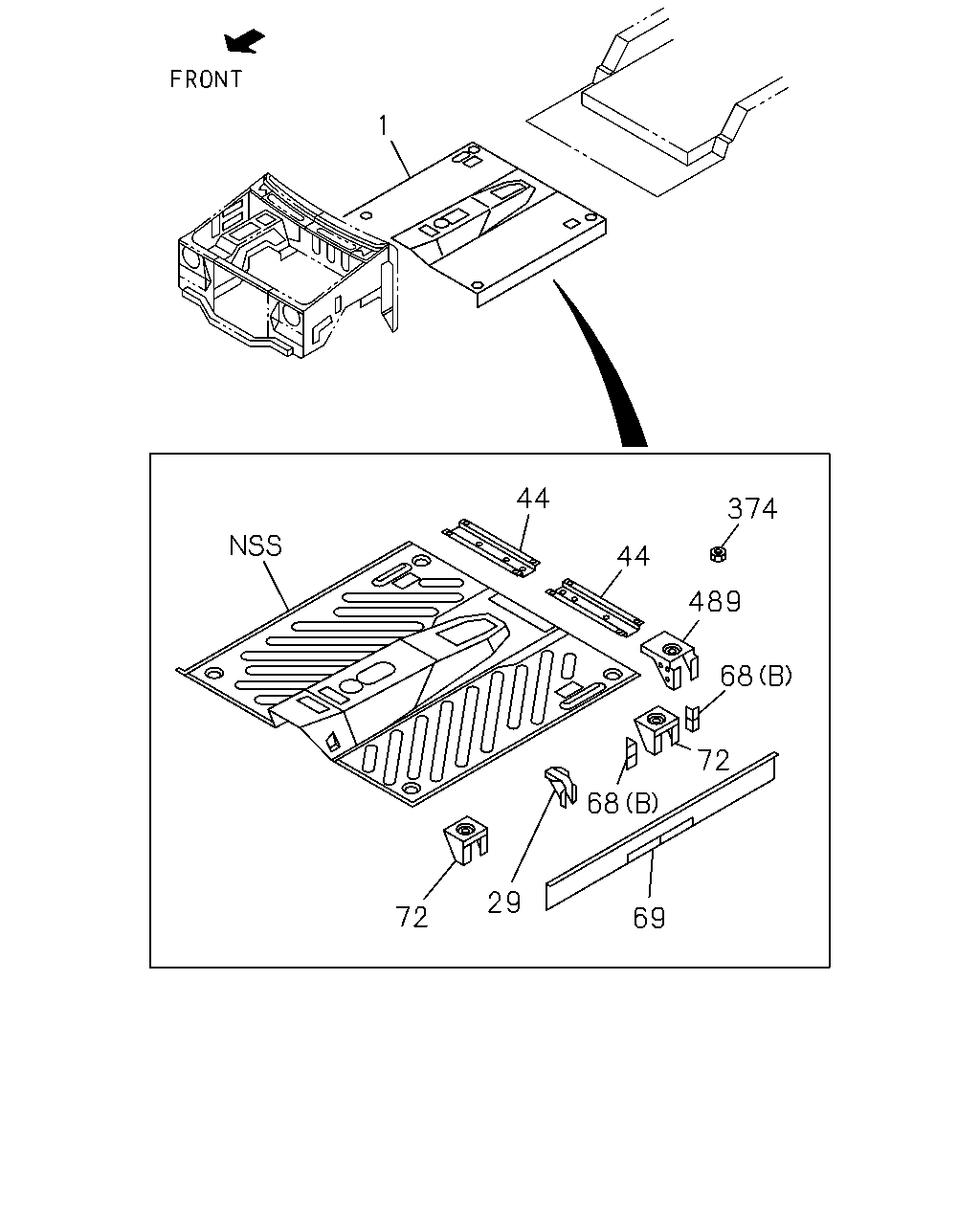

çizim 289002
44 44 374 489 68 72 68 69 29 72 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR
IDN 		8-97955-226-1 01 1 0008-0106 ●
1 PANEL; FLOOR
A/T AISIN(RMD) IDN 		8-97955-225-3 01 1 0008-0009 ● ●
1 PANEL; FLOOR
A/T AISIN(RMD) IDN 		8-97958-982-1 01 1 0010- ● ●
1 PANEL; FLOOR
M/T MSG 5 SPEED(M75) IDN 		8-97955-224-2 01 1 0008-0009 ● ●
1 PANEL; FLOOR
M/T MSG 5 SPEED(M75) IDN 		8-97958-981-1 01 1 0010- ● ●
29 GUSSET
IDN 		8-94366-724-0 02 1 0008-0405 ● ●
29 GUSSET
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-94366-724-0 02 1 0406- ● ●
29 GUSSET
EXC. CAB UP<W60> IDN 		8-94366-724-0 02 1 0406- ● ●
29 GUSSET
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-94366-724-0 02 1 0406- ●
44 BAR; FRT COMPT PAN,RR
IDN 		8-97955-367-2 01 1 0008-0009 ● ●
44 BAR; FRT COMPT PAN,RR
IDN 		8-97958-986-1 01 1 0010-0405 ● ●
44 BAR; FRT COMPT PAN,RR
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97958-986-1 01 1 0406- ● ●
44 BAR; FRT COMPT PAN,RR
EXC. CAB UP<W60> IDN 		8-97958-986-1 01 1 0406- ● ●
44 BAR; FRT COMPT PAN,RR
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97958-986-1 01 1 0406- ●
44 BAR; FRT COMPT PAN,RR
IDN 		8-97955-366-2 01 1 0008-0009 ● ●
44 BAR; FRT COMPT PAN,RR
IDN 		8-97958-985-1 01 1 0010-0405 ● ●
44 BAR; FRT COMPT PAN,RR
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97958-985-1 01 1 0406- ● ●
44 BAR; FRT COMPT PAN,RR
EXC. CAB UP<W60> IDN 		8-97958-985-1 01 1 0406- ● ●
44 BAR; FRT COMPT PAN,RR
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97958-985-1 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-289-0 01 1 0008-0405 ●
68 PANEL; ROCKER INNER,CENTER
GRADE TOURING(RBG) CAB UP<W60> (A) IDN 		8-97955-289-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
EXC. CAB UP<W60> (A) IDN 		8-97955-289-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-288-0 01 1 0008-0405 ●
68 PANEL; ROCKER INNER,CENTER
GRADE TOURING(RBG) CAB UP<W60> (A) IDN 		8-97955-288-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
EXC. CAB UP<W60> (A) IDN 		8-97955-288-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97011-996-0 04 1 0008-0405 ● ●
68 PANEL; ROCKER INNER,CENTER
GRADE TOURING(RBG) CAB UP<W60> (B) IDN 		8-97011-996-0 04 1 0406- ● ●
68 PANEL; ROCKER INNER,CENTER
EXC. CAB UP<W60> (B) IDN 		8-97011-996-0 04 1 0406- ● ●
68 PANEL; ROCKER INNER,CENTER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> (B) IDN 		8-97011-996-0 04 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-287-0 01 1 0008-0405 ●
68 PANEL; ROCKER INNER,CENTER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> (A) IDN 		8-97955-287-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
EXC. CAB UP<W60> (A) IDN 		8-97955-287-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
GRADE TOURING(RBG) CAB UP<W60> (A) IDN 		8-97955-287-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-286-0 01 1 0008-0405 ●
68 PANEL; ROCKER INNER,CENTER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> (A) IDN 		8-97955-286-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
EXC. CAB UP<W60> (A) IDN 		8-97955-286-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
GRADE TOURING(RBG) CAB UP<W60> (A) IDN 		8-97955-286-0 01 1 0406- ●
69 PANEL; ROCKER INNER
IDN 		8-97955-253-0 01 1 0008-0405 ● ●
69 PANEL; ROCKER INNER
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97955-253-0 01 1 0406- ● ●
69 PANEL; ROCKER INNER
EXC. CAB UP<W60> IDN 		8-97955-253-0 01 1 0406- ● ●
69 PANEL; ROCKER INNER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97955-253-0 01 1 0406- ●
69 PANEL; ROCKER INNER
IDN 		8-97955-252-0 01 1 0008-0405 ● ●
69 PANEL; ROCKER INNER
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97955-252-0 01 1 0406- ● ●
69 PANEL; ROCKER INNER
EXC. CAB UP<W60> IDN 		8-97955-252-0 01 1 0406- ● ●
69 PANEL; ROCKER INNER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97955-252-0 01 1 0406- ●
72 BRACKET; CAB MTG,RR
IDN 		8-97956-568-2 02 1 0008-0405 ● ●
72 BRACKET; CAB MTG,RR
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97956-568-2 02 1 0406- ● ●
72 BRACKET; CAB MTG,RR
EXC. CAB UP<W60> IDN 		8-97956-568-2 02 1 0406- ● ●
72 BRACKET; CAB MTG,RR
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97956-568-2 02 1 0406- ●
374 NUT; FLOOR
M6 		9-09114-086-0 02 1 0210- ● ●
489 BRACKET; CAB MTG,NO 3
IDN 		8-97958-990-2 02 1 0008-0405 ● ●
489 BRACKET; CAB MTG,NO 3
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97958-990-2 02 1 0406- ● ●
489 BRACKET; CAB MTG,NO 3
EXC. CAB UP<W60> IDN 		8-97958-990-2 02 1 0406- ● ●
489 BRACKET; CAB MTG,NO 3
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97958-990-2 02 1 0406- ●

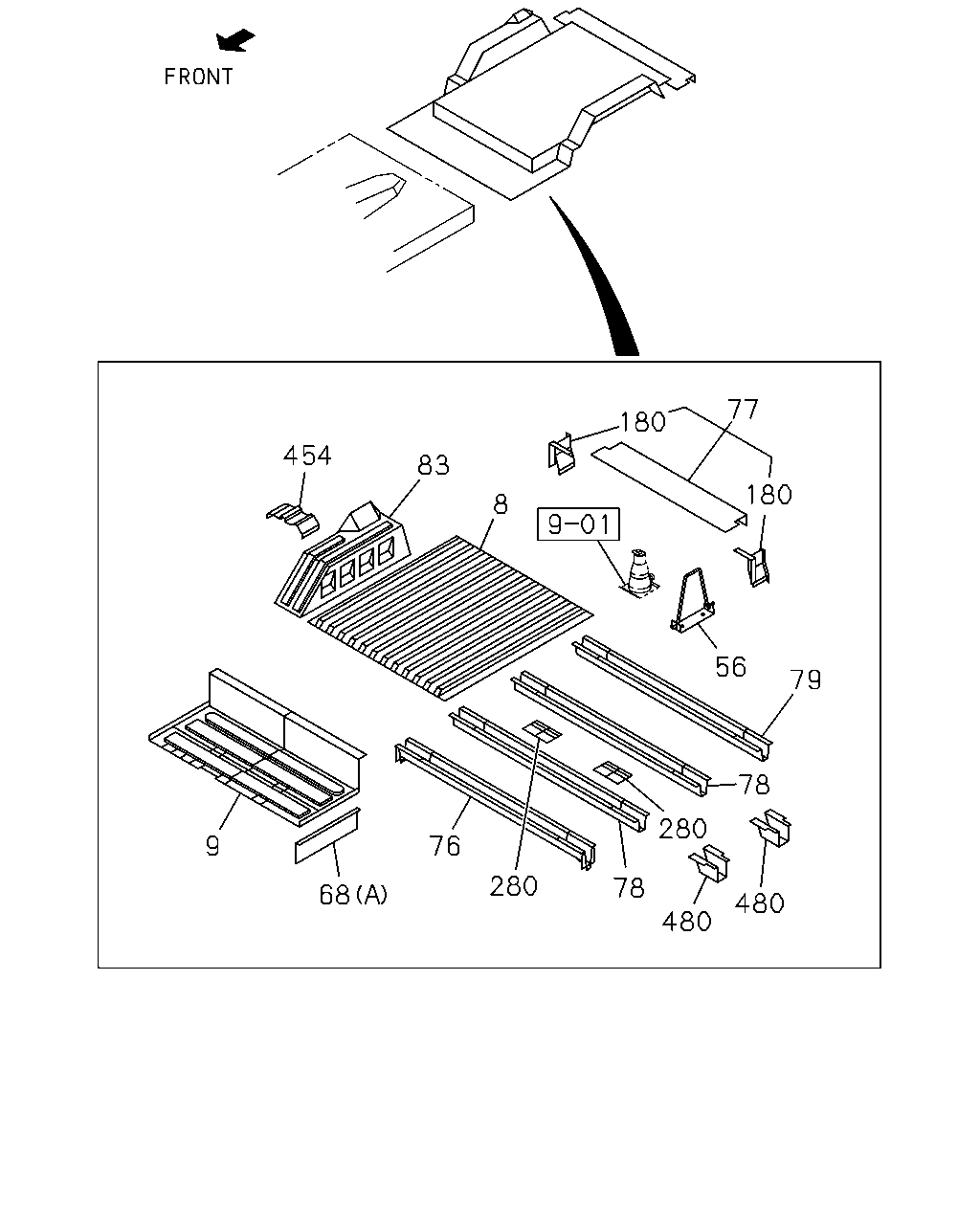

çizim 289038
83 454 8 180 77 180 56 79 78 280 480 480 78 280 76 68 9
BalonParca AdiParca NoAdetTipApplied Date A B C
8 PANEL; RR FLOOR,RR
IDN 		8-97955-295-1 01 1 0008-0009 ● ●
8 PANEL; RR FLOOR,RR
IDN 		8-97957-828-0 01 1 0010-0405 ● ●
8 PANEL; RR FLOOR,RR
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97957-828-0 01 1 0406- ● ●
8 PANEL; RR FLOOR,RR
EXC. CAB UP<W60> IDN 		8-97957-828-0 01 1 0406- ● ●
8 PANEL; RR FLOOR,RR
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97957-828-0 01 1 0406- ●
9 PANEL; RR FLOOR,FRT
IDN 		8-97955-260-0 01 1 0008-0009 ●
9 PANEL; RR FLOOR,FRT
IDN 		8-97958-992-0 01 1 0010-0405 ●
9 PANEL; RR FLOOR,FRT
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97958-992-0 01 1 0406- ●
9 PANEL; RR FLOOR,FRT
EXC. CAB UP<W60> IDN 		8-97958-992-0 01 1 0406- ●
9 PANEL; RR FLOOR,FRT
IDN 		8-97955-259-0 01 1 0008-0009 ●
9 PANEL; RR FLOOR,FRT
IDN 		8-97958-991-1 01 1 0010-0405 ●
9 PANEL; RR FLOOR,FRT
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97958-991-1 01 1 0406- ●
9 PANEL; RR FLOOR,FRT
EXC. CAB UP<W60> IDN 		8-97958-991-1 01 1 0406- ●
9 PANEL; RR FLOOR,FRT
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97958-991-1 01 1 0406- ●
56 BRACKET; JACK
IDN 		8-97956-676-0 01 1 0008-0405 ● ●
56 BRACKET; JACK
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97956-676-0 01 1 0406- ● ●
56 BRACKET; JACK
EXC. CAB UP<W60> IDN 		8-97956-676-0 01 1 0406- ● ●
56 BRACKET; JACK
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97956-676-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-289-0 01 1 0008-0405 ●
68 PANEL; ROCKER INNER,CENTER
GRADE TOURING(RBG) CAB UP<W60> (A) IDN 		8-97955-289-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
EXC. CAB UP<W60> (A) IDN 		8-97955-289-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-288-0 01 1 0008-0405 ●
68 PANEL; ROCKER INNER,CENTER
GRADE TOURING(RBG) CAB UP<W60> (A) IDN 		8-97955-288-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
EXC. CAB UP<W60> (A) IDN 		8-97955-288-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97011-996-0 04 1 0008-0405 ● ●
68 PANEL; ROCKER INNER,CENTER
GRADE TOURING(RBG) CAB UP<W60> (B) IDN 		8-97011-996-0 04 1 0406- ● ●
68 PANEL; ROCKER INNER,CENTER
EXC. CAB UP<W60> (B) IDN 		8-97011-996-0 04 1 0406- ● ●
68 PANEL; ROCKER INNER,CENTER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> (B) IDN 		8-97011-996-0 04 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-287-0 01 1 0008-0405 ●
68 PANEL; ROCKER INNER,CENTER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> (A) IDN 		8-97955-287-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
EXC. CAB UP<W60> (A) IDN 		8-97955-287-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
GRADE TOURING(RBG) CAB UP<W60> (A) IDN 		8-97955-287-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-286-0 01 1 0008-0405 ●
68 PANEL; ROCKER INNER,CENTER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> (A) IDN 		8-97955-286-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
EXC. CAB UP<W60> (A) IDN 		8-97955-286-0 01 1 0406- ●
68 PANEL; ROCKER INNER,CENTER
GRADE TOURING(RBG) CAB UP<W60> (A) IDN 		8-97955-286-0 01 1 0406- ●
76 BOLSTER ASM; RR FLOOR NO 1
IDN 		8-97126-616-1 01 1 0008-0405 ● ●
76 BOLSTER ASM; RR FLOOR NO 1
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97126-616-1 01 1 0406- ● ●
76 BOLSTER ASM; RR FLOOR NO 1
EXC. CAB UP<W60> IDN 		8-97126-616-1 01 1 0406- ● ●
76 BOLSTER ASM; RR FLOOR NO 1
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97126-616-1 01 1 0406- ●
77 BOLSTER ASM; END
IDN 		8-97955-301-0 01 1 0008-0009 ● ●
77 BOLSTER ASM; END
IDN 		8-97958-997-0 01 1 0010-0010 ● ●
77 BOLSTER ASM; END
IDN 		8-97958-997-0 01 1 0011-0104 ●
77 BOLSTER ASM; END
M/T MSG 5 SPEED(M75) IDN 		8-97958-997-0 01 1 0011-0104 ●
77 BOLSTER ASM; END
IDN 		8-97958-997-0 01 1 0105-0106 ● ●
77 BOLSTER ASM; END
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97958-997-0 01 1 0107-0209 ● ●
77 BOLSTER ASM; END
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97958-997-0 01 1 0210-0405 ● ●
77 BOLSTER ASM; END
EXC. CAB UP<W60> IDN 		8-97958-997-0 01 1 0406- ● ●
77 BOLSTER ASM; END
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97958-997-0 01 1 0406- ●
77 BOLSTER ASM; END
GRADE TOURING(RBG) IDN 		8-97958-883-1 01 1 0107-0405 ● ●
77 BOLSTER ASM; END
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97958-883-1 01 1 0406- ● ●
77 BOLSTER ASM; END
A/T AISIN(RMD) IDN 		8-97955-301-0 01 1 0011-0104 ●
78 BOLSTER ASM; RR FLOOR NO 2
IDN 		8-97955-296-0 02 1 0008-0405 ● ●
78 BOLSTER ASM; RR FLOOR NO 2
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97955-296-0 02 1 0406- ● ●
78 BOLSTER ASM; RR FLOOR NO 2
EXC. CAB UP<W60> IDN 		8-97955-296-0 02 1 0406- ● ●
78 BOLSTER ASM; RR FLOOR NO 2
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97955-296-0 02 1 0406- ●
79 BOLSTER ASM; RR FLOOR NO 3
IDN 		8-97955-299-0 01 1 0008-0009 ● ●
79 BOLSTER ASM; RR FLOOR NO 3
IDN 		8-97958-996-0 01 1 0010-0405 ● ●
79 BOLSTER ASM; RR FLOOR NO 3
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97958-996-0 01 1 0406- ● ●
79 BOLSTER ASM; RR FLOOR NO 3
EXC. CAB UP<W60> IDN 		8-97958-996-0 01 1 0406- ● ●
79 BOLSTER ASM; RR FLOOR NO 3
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97958-996-0 01 1 0406- ●
83 ARCH ASM; WHEEL
IDN 		8-97955-273-0 01 1 0008-0010 ● ●
83 ARCH ASM; WHEEL
IDN 		8-97955-273-0 01 1 0011-0405 ●
83 ARCH ASM; WHEEL
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97955-273-0 01 1 0406- ●
83 ARCH ASM; WHEEL
EXC. CAB UP<W60> IDN 		8-97955-273-0 01 1 0406- ●
83 ARCH ASM; WHEEL
IDN 		8-97955-272-0 01 1 0008-0010 ● ●
83 ARCH ASM; WHEEL
IDN 		8-97955-272-0 01 1 0011-0405 ●
83 ARCH ASM; WHEEL
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97955-272-0 01 1 0406- ●
83 ARCH ASM; WHEEL
EXC. CAB UP<W60> IDN 		8-97955-272-0 01 1 0406- ●
83 ARCH ASM; WHEEL
IDN 		8-97959-271-0 01 1 0011-0405 ●
83 ARCH ASM; WHEEL
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97959-271-0 01 1 0406- ●
83 ARCH ASM; WHEEL
EXC. CAB UP<W60> IDN 		8-97959-271-0 01 1 0406- ●
83 ARCH ASM; WHEEL
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97959-271-0 01 1 0406- ●
83 ARCH ASM; WHEEL
IDN 		8-97959-270-0 01 1 0011-0405 ●
83 ARCH ASM; WHEEL
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97959-270-0 01 1 0406- ●
83 ARCH ASM; WHEEL
EXC. CAB UP<W60> IDN 		8-97959-270-0 01 1 0406- ●
83 ARCH ASM; WHEEL
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97959-270-0 01 1 0406- ●
180 GUSSET; RR END
IDN 		8-97955-307-0 01 1 0008-0405 ● ●
180 GUSSET; RR END
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97955-307-0 01 1 0406- ● ●
180 GUSSET; RR END
EXC. CAB UP<W60> IDN 		8-97955-307-0 01 1 0406- ● ●
180 GUSSET; RR END
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97955-307-0 01 1 0406- ●
180 GUSSET; RR END
IDN 		8-97955-306-0 01 1 0008-0405 ● ●
180 GUSSET; RR END
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97955-306-0 01 1 0406- ● ●
180 GUSSET; RR END
EXC. CAB UP<W60> IDN 		8-97955-306-0 01 1 0406- ● ●
180 GUSSET; RR END
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97955-306-0 01 1 0406- ●
280 PATCH; SEAT BELT
IDN 		8-97128-511-0 02 1 0008-0009 ● ●
280 PATCH; SEAT BELT
IDN 		8-97957-826-0 02 1 0010-0405 ● ●
280 PATCH; SEAT BELT
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97957-826-0 02 1 0406- ● ●
280 PATCH; SEAT BELT
EXC. CAB UP<W60> IDN 		8-97957-826-0 02 1 0406- ● ●
280 PATCH; SEAT BELT
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97957-826-0 02 1 0406- ●
454 PATCH; 3RD SEAT
IDN 		8-97955-278-0 02 1 0008-0405 ● ●
454 PATCH; 3RD SEAT
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97955-278-0 02 1 0406- ● ●
454 PATCH; 3RD SEAT
EXC. CAB UP<W60> IDN 		8-97955-278-0 02 1 0406- ● ●
454 PATCH; 3RD SEAT
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97955-278-0 02 1 0406- ●
480 EXTENSION; MTG,BOLSTER
GRADE TOURING(RBG) IDN 		8-97956-627-1 04 1 0107-0405 ● ●
480 EXTENSION; MTG,BOLSTER
GRADE TOURING(RBG) CAB UP<W60> IDN 		8-97956-627-1 04 1 0406- ● ●
480 EXTENSION; MTG,BOLSTER
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> IDN 		8-97956-627-1 04 1 0406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
