◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#95375) — 115 parça
çizim 288932
97 108 67 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LINING; HD
SHORT(TB***C) LIGHT GRAY IDN 		8-97957-324-3 01 1 0008-0008 ●
1 LINING; HD
WAGON LONG(TB**VF) LIGHT GRAY IDN 		8-97957-325-3 01 1 0008-0008 ●
1 LINING; HD
PICK UP(TB**S*) LIGHT GRAY IDN 		8-97957-326-0 01 1 0008-0106 ● ●
1 LINING; HD
SHORT(TB***C) LIGHT GRAY IDN 		8-97957-251-3 01 1 0008-0008 ●
1 LINING; HD
SHORT(TB***C) LIGHT GRAY IDN 		8-97957-251-3 01 1 0009-0106 ● ●
1 LINING; HD
SHORT(TB***C) LIGHT GRAY IDN 		8-97957-251-3 01 1 0107-0209 ● ● ●
1 LINING; HD
SHORT(TB***C) LIGHT GRAY IDN 		8-97561-530-3 01 1 0210- ● ● ● ●
1 LINING; HD
WAGON LONG(TB**VF) LIGHT GRAY IDN 		8-97957-252-3 01 1 0008-0008 ● ●
1 LINING; HD
WAGON LONG(TB**VF) LIGHT GRAY IDN 		8-97957-252-3 01 1 0009-0106 ● ● ●
1 LINING; HD
WAGON LONG(TB**VF) LIGHT GRAY IDN 		8-97957-252-3 01 1 0107-0209 ● ● ●
1 LINING; HD
WAGON LONG(TB**VF) LIGHT GRAY IDN 		8-97561-531-3 01 1 0210- ● ● ● ●
67 GROMMET; SCREW
SHORT(TB***C) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 12 1 0008-0106 ● ●
67 GROMMET; SCREW
SHORT(TB***C) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 12 1 0107- ● ● ● ●
67 GROMMET; SCREW
PICK UP(TB**S*) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 08 1 0008-0106 ● ●
67 GROMMET; SCREW
WAGON LONG(TB**VF) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 14 1 0008-0106 ● ● ●
67 GROMMET; SCREW
WAGON LONG(TB**VF) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 14 1 0107-0209 ● ● ●
67 GROMMET; SCREW
WAGON LONG(TB**VF) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 14 1 0210- ● ● ● ●
97 SCREW; TAP
SHORT(TB***C) (A) M5X16 IDN 		8-94380-268-0 12 1 0008-0106 ● ●
97 SCREW; TAP
SHORT(TB***C) (A) M5X16 IDN 		8-94380-268-0 12 1 0107- ● ● ● ●
97 SCREW; TAP
PICK UP(TB**S*) (A) M5X16 IDN 		8-94380-268-0 08 1 0008-0106 ● ●
97 SCREW; TAP
WAGON(TB**V*) (B) M4X16 TAPPING W/PL WASHER 		0-74300-416-0 05 1 0008-0106 ● ● ●
97 SCREW; TAP
(B) M4X16 TAPPING W/PL WASHER 		0-74300-416-0 05 1 0107-0209 ● ● ●
97 SCREW; TAP
(B) M4X16 TAPPING W/PL WASHER 		0-74300-416-0 05 1 0210-0604 ● ● ● ●
97 SCREW; TAP
(B) M4X16 TAPPING W/PL WASHER 		0-74360-416-0 05 1 0605- ● ● ● ●
97 SCREW; TAP
WAGON LONG(TB**VF) (A) M5X16 IDN 		8-94380-268-0 14 1 0008-0106 ● ● ●
97 SCREW; TAP
WAGON LONG(TB**VF) (A) M5X16 IDN 		8-94380-268-0 14 1 0107-0209 ● ● ●
97 SCREW; TAP
WAGON LONG(TB**VF) (A) M5X16 IDN 		8-94380-268-0 14 1 0210- ● ● ● ●
108 PLATE; TREAD
SHORT(TB***C) (B) GRAY IDN 		8-97959-087-0 02 1 0008-0106 ● ●
108 PLATE; TREAD
SHORT(TB***C) (B) GRAY IDN 		8-97959-087-0 02 1 0107-0209 ● ● ●
108 PLATE; TREAD
SHORT(TB***C) (B) BLACK IDN 		8-97561-517-0 02 1 0210-0508 ● ● ● ●
108 PLATE; TREAD
SHORT(TB***C) (B) BLACK IDN 		8-97562-671-0 02 1 0509- ● ● ● ●
108 PLATE; TREAD
(A) GRAY IDN 		8-97959-085-0 02 1 0008-0106 ● ● ●
108 PLATE; TREAD
(A) GRAY IDN 		8-97959-085-0 02 1 0107-0209 ● ● ●
108 PLATE; TREAD
(A) BLACK IDN 		8-97561-515-0 02 1 0210-0508 ● ● ● ●
108 PLATE; TREAD
(A) BLACK IDN 		8-97562-669-0 02 1 0509- ● ● ● ●
108 PLATE; TREAD
WAGON(TB**V*) (C) IDN 		8-97955-624-1 01 1 0008-0106 ● ● ●
108 PLATE; TREAD
(C) IDN 		8-97955-624-1 01 1 0107-0209 ● ● ●
108 PLATE; TREAD
(C) IDN 		8-97955-624-1 01 1 0210- ● ● ● ●
108 PLATE; TREAD
WAGON LONG(TB**VF) (B) GRAY IDN 		8-97959-086-0 02 1 0008-0106 ● ● ●
108 PLATE; TREAD
WAGON LONG(TB**VF) (B) GRAY IDN 		8-97959-086-0 02 1 0107-0209 ● ● ●
108 PLATE; TREAD
WAGON LONG(TB**VF) (B) BLACK IDN 		8-97561-516-0 02 1 0210-0508 ● ● ● ●
108 PLATE; TREAD
WAGON LONG(TB**VF) (B) BLACK IDN 		8-97562-670-0 02 1 0509- ● ● ● ●

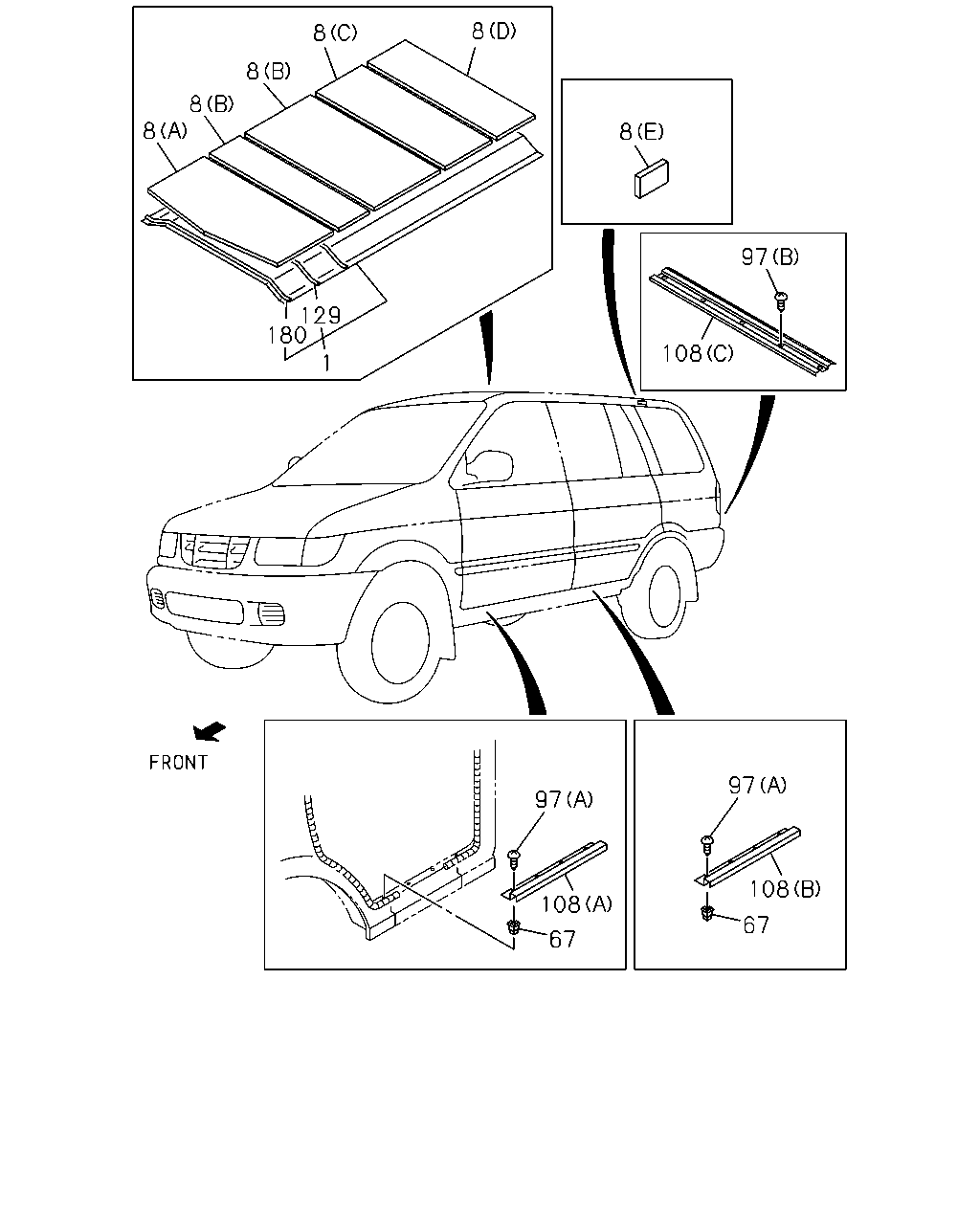

çizim 288967
8 97 108 129 180 1 8 8 8 8 8 97 97 108 67 67 108
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LINING; HD
SHORT(TB***C) LIGHT GRAY IDN 		8-97957-324-3 01 1 0008-0008 ●
1 LINING; HD
WAGON LONG(TB**VF) LIGHT GRAY IDN 		8-97957-325-3 01 1 0008-0008 ●
1 LINING; HD
PICK UP(TB**S*) LIGHT GRAY IDN 		8-97957-326-0 01 1 0008-0106 ● ●
1 LINING; HD
SHORT(TB***C) LIGHT GRAY IDN 		8-97957-251-3 01 1 0008-0008 ●
1 LINING; HD
SHORT(TB***C) LIGHT GRAY IDN 		8-97957-251-3 01 1 0009-0106 ● ●
1 LINING; HD
SHORT(TB***C) LIGHT GRAY IDN 		8-97957-251-3 01 1 0107-0209 ● ● ●
1 LINING; HD
SHORT(TB***C) LIGHT GRAY IDN 		8-97561-530-3 01 1 0210- ● ● ● ●
1 LINING; HD
WAGON LONG(TB**VF) LIGHT GRAY IDN 		8-97957-252-3 01 1 0008-0008 ● ●
1 LINING; HD
WAGON LONG(TB**VF) LIGHT GRAY IDN 		8-97957-252-3 01 1 0009-0106 ● ● ●
1 LINING; HD
WAGON LONG(TB**VF) LIGHT GRAY IDN 		8-97957-252-3 01 1 0107-0209 ● ● ●
1 LINING; HD
WAGON LONG(TB**VF) LIGHT GRAY IDN 		8-97561-531-3 01 1 0210- ● ● ● ●
8 PAD; HEADLINING
SHORT(TB***C) (B) FRT 178X755 IDN 		8-97955-653-2 01 1 0008-0106 ● ●
8 PAD; HEADLINING
SHORT(TB***C) (B) FRT 178X755 IDN 		8-97955-653-2 01 1 0107- ● ● ● ●
8 PAD; HEADLINING
SHORT(TB***C) (B) RR 344X755 IDN 		8-97955-655-2 01 1 0008-0106 ● ●
8 PAD; HEADLINING
SHORT(TB***C) (B) RR 344X755 IDN 		8-97955-655-2 01 1 0107- ● ● ● ●
8 PAD; HEADLINING
WAGON(TB**V*) (A) 350X755 IDN 		8-97955-652-2 01 1 0008-0106 ● ● ●
8 PAD; HEADLINING
(A) 350X755 IDN 		8-97955-652-2 01 1 0107-0209 ● ● ●
8 PAD; HEADLINING
(A) 350X755 IDN 		8-97955-652-2 01 1 0210- ● ● ● ●
8 PAD; HEADLINING
WAGON(TB**V*) (C) 286X755 IDN 		8-97955-656-2 01 1 0008-0106 ● ● ●
8 PAD; HEADLINING
(C) 286X755 IDN 		8-97955-656-2 01 1 0107-0209 ● ● ●
8 PAD; HEADLINING
(C) 286X755 IDN 		8-97955-656-2 01 1 0210- ● ● ● ●
8 PAD; HEADLINING
WAGON(TB**V*) (D) 248X755 IDN 		8-97955-657-2 01 1 0008-0106 ● ● ●
8 PAD; HEADLINING
(D) 248X755 IDN 		8-97955-657-2 01 1 0107-0209 ● ● ●
8 PAD; HEADLINING
(D) 248X755 IDN 		8-97955-657-2 01 1 0210- ● ● ● ●
8 PAD; HEADLINING
WAGON(TB**V*) (E) 40X150 IDN 		8-97957-593-1 04 1 0008-0106 ● ● ●
8 PAD; HEADLINING
(E) 40X150 IDN 		8-97957-593-1 04 1 0107-0209 ● ● ●
8 PAD; HEADLINING
(E) 40X150 IDN 		8-97957-593-2 04 1 0210- ● ● ● ●
8 PAD; HEADLINING
WAGON LONG(TB**VF) (B) 344X755 IDN 		8-97955-655-2 02 1 0008-0106 ● ● ●
8 PAD; HEADLINING
WAGON LONG(TB**VF) (B) 344X755 IDN 		8-97955-655-2 02 1 0107-0209 ● ● ●
8 PAD; HEADLINING
WAGON LONG(TB**VF) (B) 344X755 IDN 		8-97955-655-2 02 1 0210- ● ● ● ●
67 GROMMET; SCREW
SHORT(TB***C) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 12 1 0008-0106 ● ●
67 GROMMET; SCREW
SHORT(TB***C) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 12 1 0107- ● ● ● ●
67 GROMMET; SCREW
PICK UP(TB**S*) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 08 1 0008-0106 ● ●
67 GROMMET; SCREW
WAGON LONG(TB**VF) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 14 1 0008-0106 ● ● ●
67 GROMMET; SCREW
WAGON LONG(TB**VF) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 14 1 0107-0209 ● ● ●
67 GROMMET; SCREW
WAGON LONG(TB**VF) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 14 1 0210- ● ● ● ●
97 SCREW; TAP
SHORT(TB***C) (A) M5X16 IDN 		8-94380-268-0 12 1 0008-0106 ● ●
97 SCREW; TAP
SHORT(TB***C) (A) M5X16 IDN 		8-94380-268-0 12 1 0107- ● ● ● ●
97 SCREW; TAP
PICK UP(TB**S*) (A) M5X16 IDN 		8-94380-268-0 08 1 0008-0106 ● ●
97 SCREW; TAP
WAGON(TB**V*) (B) M4X16 TAPPING W/PL WASHER 		0-74300-416-0 05 1 0008-0106 ● ● ●
97 SCREW; TAP
(B) M4X16 TAPPING W/PL WASHER 		0-74300-416-0 05 1 0107-0209 ● ● ●
97 SCREW; TAP
(B) M4X16 TAPPING W/PL WASHER 		0-74300-416-0 05 1 0210-0604 ● ● ● ●
97 SCREW; TAP
(B) M4X16 TAPPING W/PL WASHER 		0-74360-416-0 05 1 0605- ● ● ● ●
97 SCREW; TAP
WAGON LONG(TB**VF) (A) M5X16 IDN 		8-94380-268-0 14 1 0008-0106 ● ● ●
97 SCREW; TAP
WAGON LONG(TB**VF) (A) M5X16 IDN 		8-94380-268-0 14 1 0107-0209 ● ● ●
97 SCREW; TAP
WAGON LONG(TB**VF) (A) M5X16 IDN 		8-94380-268-0 14 1 0210- ● ● ● ●
108 PLATE; TREAD
SHORT(TB***C) (B) GRAY IDN 		8-97959-087-0 02 1 0008-0106 ● ●
108 PLATE; TREAD
SHORT(TB***C) (B) GRAY IDN 		8-97959-087-0 02 1 0107-0209 ● ● ●
108 PLATE; TREAD
SHORT(TB***C) (B) BLACK IDN 		8-97561-517-0 02 1 0210-0508 ● ● ● ●
108 PLATE; TREAD
SHORT(TB***C) (B) BLACK IDN 		8-97562-671-0 02 1 0509- ● ● ● ●
108 PLATE; TREAD
(A) GRAY IDN 		8-97959-085-0 02 1 0008-0106 ● ● ●
108 PLATE; TREAD
(A) GRAY IDN 		8-97959-085-0 02 1 0107-0209 ● ● ●
108 PLATE; TREAD
(A) BLACK IDN 		8-97561-515-0 02 1 0210-0508 ● ● ● ●
108 PLATE; TREAD
(A) BLACK IDN 		8-97562-669-0 02 1 0509- ● ● ● ●
108 PLATE; TREAD
WAGON(TB**V*) (C) IDN 		8-97955-624-1 01 1 0008-0106 ● ● ●
108 PLATE; TREAD
(C) IDN 		8-97955-624-1 01 1 0107-0209 ● ● ●
108 PLATE; TREAD
(C) IDN 		8-97955-624-1 01 1 0210- ● ● ● ●
108 PLATE; TREAD
WAGON LONG(TB**VF) (B) GRAY IDN 		8-97959-086-0 02 1 0008-0106 ● ● ●
108 PLATE; TREAD
WAGON LONG(TB**VF) (B) GRAY IDN 		8-97959-086-0 02 1 0107-0209 ● ● ●
108 PLATE; TREAD
WAGON LONG(TB**VF) (B) BLACK IDN 		8-97561-516-0 02 1 0210-0508 ● ● ● ●
108 PLATE; TREAD
WAGON LONG(TB**VF) (B) BLACK IDN 		8-97562-670-0 02 1 0509- ● ● ● ●
129 RAIL; LISTING,NO 2
SHORT(TB***C) IDN 		8-97955-662-1 06 1 0008-0008 ● ●
129 RAIL; LISTING,NO 2
SHORT(TB***C) IDN 		8-97955-662-1 06 1 0009-0106 ● ●
129 RAIL; LISTING,NO 2
SHORT(TB***C) IDN 		8-97955-662-1 06 1 0107-0209 ● ● ●
129 RAIL; LISTING,NO 2
SHORT(TB***C) IDN 		8-97955-662-1 06 1 0210- ● ● ● ●
129 RAIL; LISTING,NO 2
WAGON LONG(TB**VF) IDN 		8-97955-662-1 07 1 0008-0008 ● ● ●
129 RAIL; LISTING,NO 2
WAGON LONG(TB**VF) IDN 		8-97955-662-1 07 1 0009-0106 ● ● ●
129 RAIL; LISTING,NO 2
WAGON LONG(TB**VF) IDN 		8-97955-662-1 07 1 0107-0209 ● ● ●
129 RAIL; LISTING,NO 2
WAGON LONG(TB**VF) IDN 		8-97955-662-1 07 1 0210- ● ● ● ●
180 RAIL; LISTING,NO 1
WAGON(TB**V*) IDN 		8-97955-661-1 01 1 0008-0106 ● ●
180 RAIL; LISTING,NO 1
IDN 		8-97955-661-1 01 1 0008-0106 ●
180 RAIL; LISTING,NO 1
IDN 		8-97955-661-1 01 1 0107-0209 ● ● ●
180 RAIL; LISTING,NO 1
IDN 		8-97955-661-1 01 1 0210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
