◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#95373) — 295 parça

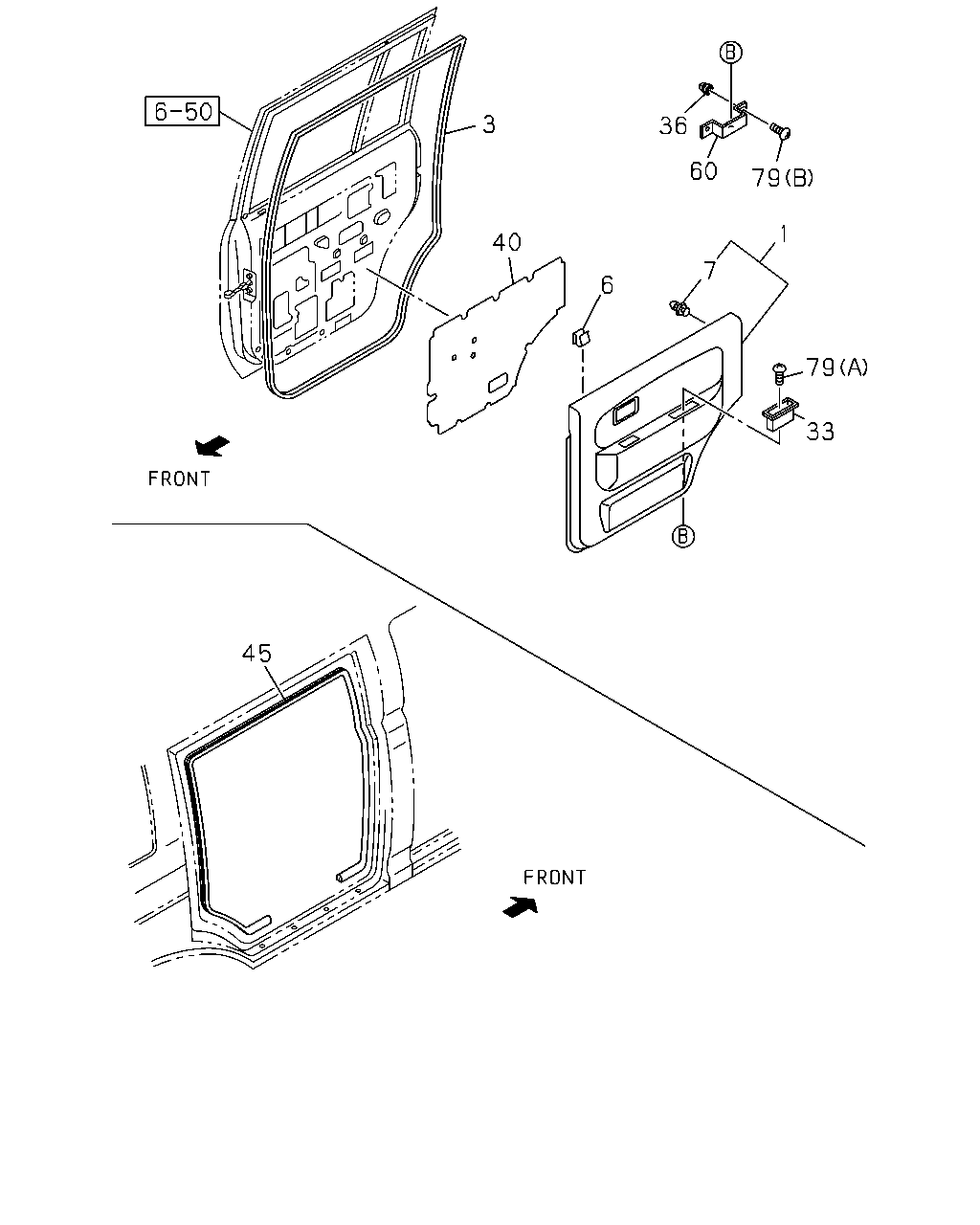

çizim 289388
40 6 3 7 1 79 60 36 79 33 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAD; TRIM,RR DOOR
UP GRADE PACKAGE<7MA> BLACK IDN 		8-97562-495-0 01 1 0406- ●
1 PAD; TRIM,RR DOOR
UP GRADE PACKAGE<7MA> BLACK IDN 		8-97562-496-0 01 1 0406- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) GRAY IDN 		8-97957-343-5 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-579-5 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) GRAY IDN 		8-97957-342-5 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-578-5 01 1 0210- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97957-349-6 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-583-6 01 1 0210- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97957-348-6 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-582-6 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) HI GRADE(6PQ) GRAY IDN 		8-97957-294-2 01 1 0008-0008 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) HI GRADE(6PQ) GRAY IDN 		8-97957-285-5 01 1 0009-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-581-1 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) HI GRADE(6PQ) GRAY IDN 		8-97957-282-2 01 1 0008-0008 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) HI GRADE(6PQ) GRAY IDN 		8-97957-284-5 01 1 0009-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-580-1 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) EXC. HI GRADE(6PQ) GRAY IDN 		8-97957-345-6 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-589-1 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) EXC. HI GRADE(6PQ) GRAY IDN 		8-97957-344-6 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-588-1 01 1 0210- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) HI GRADE(6PQ) GRAY IDN 		8-97957-285-2 01 1 0008-0008 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) HI GRADE(6PQ) GRAY IDN 		8-97957-294-6 01 1 0009-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-585-1 01 1 0210- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) HI GRADE(6PQ) GRAY IDN 		8-97957-284-2 01 1 0008-0008 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) HI GRADE(6PQ) GRAY IDN 		8-97957-282-6 01 1 0009-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-584-1 01 1 0210- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) EXC. HI GRADE(6PQ) GRAY IDN 		8-97957-351-7 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-587-1 01 1 0210-0405 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) EXC. UP GRADE PACKAGE<7MA> BLACK IDN 		8-97561-587-1 01 1 0406- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) EXC. HI GRADE(6PQ) GRAY 		8-97957-350-7 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-586-1 01 1 0210-0405 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) EXC. UP GRADE PACKAGE<7MA> BLACK IDN 		8-97561-586-1 01 1 0406- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97957-353-3 01 1 0008-0106 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97560-502-1 01 1 0107-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-985-2 01 1 0210- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97957-352-3 01 1 0008-0106 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97560-501-1 01 1 0107-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-984-2 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) GRAY IDN 		8-97560-351-2 01 1 0107-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-987-3 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) GRAY IDN 		8-97560-350-2 01 1 0107-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-986-3 01 1 0210- ●
3 WEATHERSTRIP; RR DOOR
SHORT(TB***C) IDN 		8-97562-618-0 01 1 0411- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
SHORT(TB***C) IDN 		8-97562-619-0 01 1 0411- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97562-616-0 01 1 0411- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97562-617-0 01 1 0411- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
SHORT(TB***C) IDN 		8-97955-534-2 01 1 0008-0106 ● ●
3 WEATHERSTRIP; RR DOOR
SHORT(TB***C) IDN 		8-97955-534-3 01 1 0107- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
SHORT(TB***C) IDN 		8-97955-533-2 01 1 0008-0106 ● ●
3 WEATHERSTRIP; RR DOOR
SHORT(TB***C) IDN 		8-97955-533-3 01 1 0107- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97955-532-2 01 1 0008-0106 ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97955-532-3 01 1 0107-0209 ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97955-532-3 01 1 0210- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97955-531-2 01 1 0008-0106 ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97955-531-3 01 1 0107-0209 ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97955-531-3 01 1 0210- ● ● ● ●
6 CLIP; DOOR PAD
WAGON(TB**V*) B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0008-0106 ●
6 CLIP; DOOR PAD
B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0008-0106 ●
6 CLIP; DOOR PAD
B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0107-0209 ● ●
6 CLIP; DOOR PAD
B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0210- ● ● ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=20.6 D8X13.8 IDN 		8-97260-948-0 22 1 0009-0009 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) EXC. HI GRADE(6PQ) H=20.6 D8X13.8 IDN 		8-97260-948-0 22 1 0009-0009 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=15.9 D8X11 IDN 		8-97288-141-0 02 1 0009-0009 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) HI GRADE(6PQ) H=15.9 D8X11 IDN 		8-97288-141-0 02 1 0009-0009 ●
7 CLIP; DOOR PAD
WAGON(TB**V*) H=15.9 D8X11 IDN 		8-97288-141-0 02 1 0009-0106 ● ●
7 CLIP; DOOR PAD
H=15.9 D8X11 IDN 		8-97288-141-0 02 1 0009-0106 ●
7 CLIP; DOOR PAD
H=15.9 D8X11 IDN 		8-97288-141-0 02 1 0107-0209 ● ● ●
7 CLIP; DOOR PAD
H=15.9 D8X11 IDN 		8-97288-141-0 02 1 0210- ● ● ● ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=20.6 D8X13.8 IDN 		8-97260-948-0 20 1 0008-0008 ● ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=20.6 D8X13.8 IDN 		8-97260-948-0 20 1 0009-0009 ●
7 CLIP; DOOR PAD
SHORT(TB***C) EXC. HI GRADE(6PQ) H=20.6 D8X13.8 IDN 		8-97260-948-0 20 1 0009-0009 ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=20.6 D8X13.8 IDN 		8-97260-948-0 18 1 0009-0104 ● ●
7 CLIP; DOOR PAD
H=20.6 D8X13.8 IDN 		8-97260-948-0 18 1 0009-0104 ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=20.6 D8X13.8 IDN 		8-97260-948-0 18 1 0105-0209 ● ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=20.6 D8X13.8 IDN 		8-97260-948-0 18 1 0210- ● ● ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0008-0008 ● ●
7 CLIP; DOOR PAD
SHORT(TB***C) HI GRADE(6PQ) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0009-0009 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=20.6 D8X13.8 IDN 		8-97260-948-0 22 1 0009-0209 ● ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=20.6 D8X13.8 IDN 		8-97260-948-0 22 1 0210-0405 ● ● ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=20.6 D8X13.8 IDN 		8-97260-948-0 22 1 0406- ● ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) EXC. UP GRADE PACKAGE<7MA> H=20.6 D8X13.8 IDN 		8-97260-948-0 22 1 0406- ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) HI GRADE(6PQ) H=20.6 D8X13.8 IDN 		8-97260-948-0 18 1 0009-0009 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) EXC. HI GRADE(6PQ) H=15.9 D8X11 IDN 		8-97288-141-0 12 1 0009-0009 ●
7 CLIP; DOOR PAD
H=16.3 IDN 		8-97126-393-0 14 1 0105-0106 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=16.3 IDN 		8-97126-393-0 14 1 0107-0107 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=16.3 IDN 		8-97126-393-0 12 1 0107-0405 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) UP GRADE PACKAGE<7MA> H=16.3 IDN 		8-97126-393-0 12 1 0406- ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=16.3 IDN 		8-97126-393-0 12 1 0406- ●
7 CLIP; DOOR PAD
H=20.6 D8X13.8 IDN 		8-97260-948-0 04 1 0105-0106 ●
7 CLIP; DOOR PAD
H=20.6 D8X13.8 IDN 		8-97260-948-0 04 1 0107-0405 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) UP GRADE PACKAGE<7MA> H=20.6 D8X13.8 IDN 		8-97260-948-0 04 1 0406- ●
7 CLIP; DOOR PAD
H=20.6 D8X13.8 IDN 		8-97260-948-0 04 1 0406- ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=16.3 IDN 		8-97126-393-0 20 1 0008-0008 ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=16.3 IDN 		8-97126-393-0 12 1 0107-0107 ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=16.3 IDN 		8-97126-393-0 10 1 0107- ●
33 BOX; RR DOOR
GRAY 		8-97196-884-0 02 1 0008-0106 ●
33 BOX; RR DOOR
GRAY 		8-97196-884-0 02 1 0107-0209 ●
33 BOX; RR DOOR
BLACK IDN 		8-97394-019-0 02 1 0210-0405 ●
33 BOX; RR DOOR
WAGON LONG(TB**VF) UP GRADE PACKAGE<7MA> BLACK IDN 		8-97394-019-0 02 1 0406-0508 ●
33 BOX; RR DOOR
BLACK IDN 		8-97394-019-0 02 1 0406-0508 ●
33 BOX; RR DOOR
WAGON LONG(TB**VF) UP GRADE PACKAGE<7MA> BLACK IDN 		8-97404-852-0 02 1 0509- ●
33 BOX; RR DOOR
BLACK IDN 		8-97404-852-0 02 1 0509- ●
36 GROMMET; SCREW,DOOR TRIM
IDN 		8-94481-286-2 06 1 0008-0106 ●
36 GROMMET; SCREW,DOOR TRIM
IDN 		8-94481-286-2 06 1 0107-0405 ●
36 GROMMET; SCREW,DOOR TRIM
WAGON LONG(TB**VF) UP GRADE PACKAGE<7MA> IDN 		8-94481-286-2 06 1 0406- ●
36 GROMMET; SCREW,DOOR TRIM
IDN 		8-94481-286-2 06 1 0406- ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) POWER WINDOW<A30> IDN 		8-97955-528-2 01 1 0008-0106 ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) POWER WINDOW<A30> IDN 		8-97955-528-2 01 1 0107- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) POWER WINDOW<A30> IDN 		8-97955-527-2 01 1 0008-0106 ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) POWER WINDOW<A30> IDN 		8-97955-527-2 01 1 0107- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) EXC. POWER WINDOW<A30> IDN 		8-97955-530-2 01 1 0008-0106 ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) EXC. POWER WINDOW<A30> IDN 		8-97955-530-2 01 1 0107- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) EXC. POWER WINDOW<A30> IDN 		8-97955-529-2 01 1 0008-0106 ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) EXC. POWER WINDOW<A30> IDN 		8-97955-529-2 01 1 0107- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) POWER WINDOW<A30> IDN 		8-97955-524-2 01 1 0008-0106 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) POWER WINDOW<A30> IDN 		8-97955-524-2 01 1 0107-0209 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) POWER WINDOW<A30> IDN 		8-97955-524-2 01 1 0210- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) POWER WINDOW<A30> IDN 		8-97955-523-2 01 1 0008-0106 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) POWER WINDOW<A30> IDN 		8-97955-523-2 01 1 0107-0209 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) POWER WINDOW<A30> IDN 		8-97955-523-2 01 1 0210- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) EXC. POWER WINDOW<A30> IDN 		8-97955-526-2 01 1 0008-0106 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) EXC. POWER WINDOW<A30> IDN 		8-97955-526-2 01 1 0107-0209 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) EXC. POWER WINDOW<A30> IDN 		8-97955-526-2 01 1 0210- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) EXC. POWER WINDOW<A30> IDN 		8-97955-525-2 01 1 0008-0106 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) EXC. POWER WINDOW<A30> IDN 		8-97955-525-2 01 1 0107-0209 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) EXC. POWER WINDOW<A30> IDN 		8-97955-525-2 01 1 0210- ● ● ● ●
45 FINISHER; RR DOOR
SHORT(TB***C) 		8-97248-143-1 02 1 0008-0106 ● ●
45 FINISHER; RR DOOR
SHORT(TB***C) 		8-97248-143-1 02 1 0107- ● ● ● ●
45 FINISHER; RR DOOR
WAGON LONG(TB**VF) 		8-97248-142-1 02 1 0008-0106 ● ● ●
45 FINISHER; RR DOOR
WAGON LONG(TB**VF) 		8-97248-142-1 02 1 0107-0209 ● ● ●
45 FINISHER; RR DOOR
WAGON LONG(TB**VF) 		8-97248-142-1 02 1 0210-0402 ● ● ● ●
45 FINISHER; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97562-377-0 02 1 0403- ● ● ● ●
60 BRACKET; BOX
IDN 		8-97955-688-0 02 1 0008-0106 ●
60 BRACKET; BOX
IDN 		8-97955-688-0 02 1 0107-0405 ●
60 BRACKET; BOX
WAGON LONG(TB**VF) UP GRADE PACKAGE<7MA> IDN 		8-97955-688-0 02 1 0406- ●
60 BRACKET; BOX
IDN 		8-97955-688-0 02 1 0406- ●
79 SCREW; BRKT
(A) M5X16 IDN 		8-94380-268-0 02 1 0008-0106 ●
79 SCREW; BRKT
(A) M5X16 IDN 		8-94380-268-0 02 1 0107-0405 ●
79 SCREW; BRKT
WAGON LONG(TB**VF) UP GRADE PACKAGE<7MA> (A) M5X16 IDN 		8-94380-268-0 02 1 0406- ●
79 SCREW; BRKT
(A) M5X16 IDN 		8-94380-268-0 02 1 0406- ●
79 SCREW; BRKT
(B) M6X25 TAPPING 		9-07077-625-0 06 1 0008-0106 ●
79 SCREW; BRKT
(B) M6X25 TAPPING 		9-07077-625-0 06 1 0107-0405 ●
79 SCREW; BRKT
WAGON LONG(TB**VF) UP GRADE PACKAGE<7MA> (B) M6X25 TAPPING 		9-07077-625-0 06 1 0406- ●
79 SCREW; BRKT
(B) M6X25 TAPPING 		9-07077-625-0 06 1 0406- ●

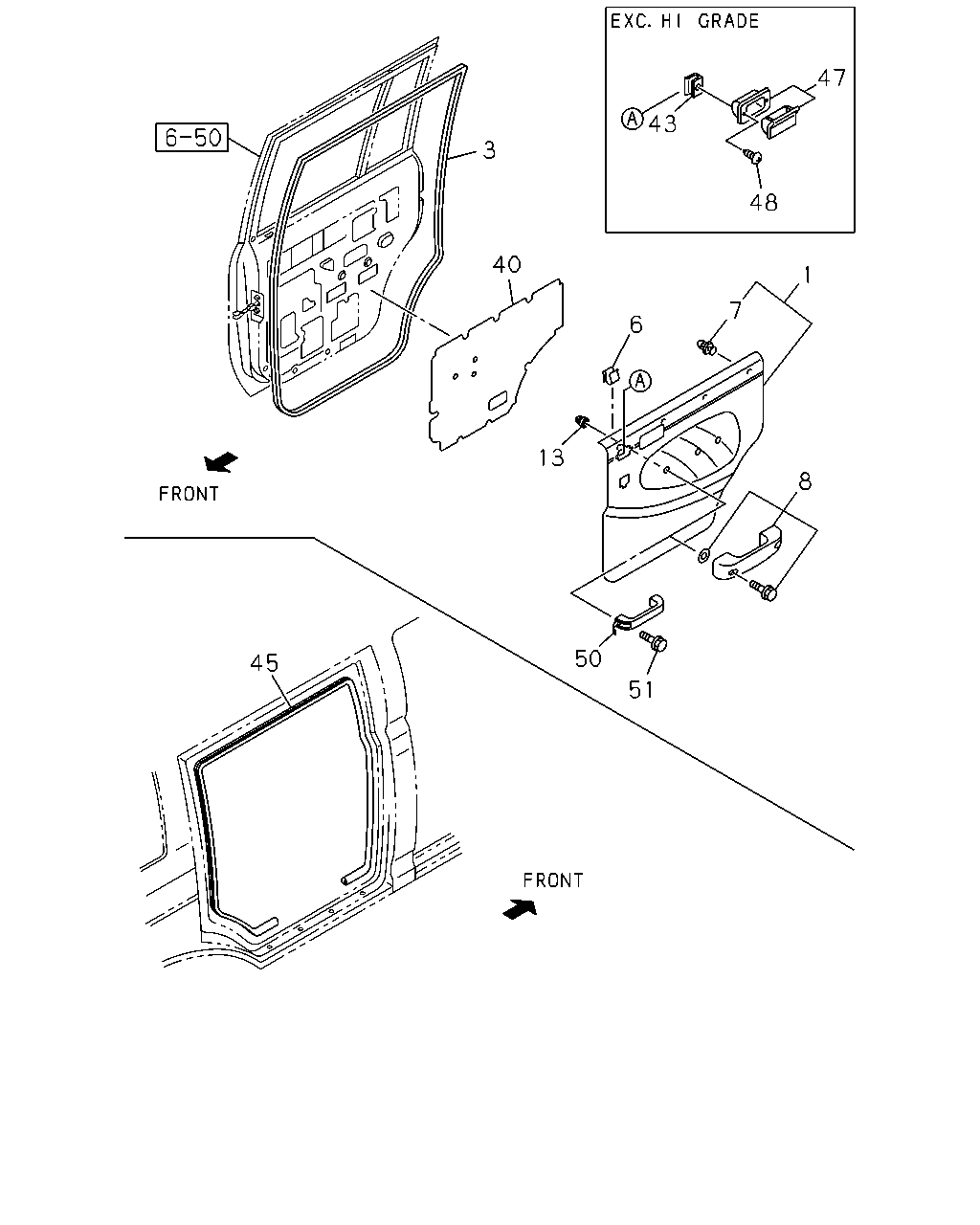

çizim 289890
43 48 47 1 7 6 40 3 13 50 51 8 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAD; TRIM,RR DOOR
UP GRADE PACKAGE<7MA> BLACK IDN 		8-97562-495-0 01 1 0406- ●
1 PAD; TRIM,RR DOOR
UP GRADE PACKAGE<7MA> BLACK IDN 		8-97562-496-0 01 1 0406- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) GRAY IDN 		8-97957-343-5 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-579-5 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) GRAY IDN 		8-97957-342-5 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-578-5 01 1 0210- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97957-349-6 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-583-6 01 1 0210- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97957-348-6 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-582-6 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) HI GRADE(6PQ) GRAY IDN 		8-97957-294-2 01 1 0008-0008 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) HI GRADE(6PQ) GRAY IDN 		8-97957-285-5 01 1 0009-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-581-1 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) HI GRADE(6PQ) GRAY IDN 		8-97957-282-2 01 1 0008-0008 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) HI GRADE(6PQ) GRAY IDN 		8-97957-284-5 01 1 0009-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-580-1 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) EXC. HI GRADE(6PQ) GRAY IDN 		8-97957-345-6 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-589-1 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) EXC. HI GRADE(6PQ) GRAY IDN 		8-97957-344-6 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-588-1 01 1 0210- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) HI GRADE(6PQ) GRAY IDN 		8-97957-285-2 01 1 0008-0008 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) HI GRADE(6PQ) GRAY IDN 		8-97957-294-6 01 1 0009-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-585-1 01 1 0210- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) HI GRADE(6PQ) GRAY IDN 		8-97957-284-2 01 1 0008-0008 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) HI GRADE(6PQ) GRAY IDN 		8-97957-282-6 01 1 0009-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-584-1 01 1 0210- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) EXC. HI GRADE(6PQ) GRAY IDN 		8-97957-351-7 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-587-1 01 1 0210-0405 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) EXC. UP GRADE PACKAGE<7MA> BLACK IDN 		8-97561-587-1 01 1 0406- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) EXC. HI GRADE(6PQ) GRAY 		8-97957-350-7 01 1 0008-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-586-1 01 1 0210-0405 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) EXC. UP GRADE PACKAGE<7MA> BLACK IDN 		8-97561-586-1 01 1 0406- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97957-353-3 01 1 0008-0106 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97560-502-1 01 1 0107-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-985-2 01 1 0210- ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97957-352-3 01 1 0008-0106 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) GRAY IDN 		8-97560-501-1 01 1 0107-0209 ●
1 PAD; TRIM,RR DOOR
WAGON LONG(TB**VF) BLACK IDN 		8-97561-984-2 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) GRAY IDN 		8-97560-351-2 01 1 0107-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-987-3 01 1 0210- ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) GRAY IDN 		8-97560-350-2 01 1 0107-0209 ●
1 PAD; TRIM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-986-3 01 1 0210- ●
3 WEATHERSTRIP; RR DOOR
SHORT(TB***C) IDN 		8-97562-618-0 01 1 0411- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
SHORT(TB***C) IDN 		8-97562-619-0 01 1 0411- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97562-616-0 01 1 0411- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97562-617-0 01 1 0411- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
SHORT(TB***C) IDN 		8-97955-534-2 01 1 0008-0106 ● ●
3 WEATHERSTRIP; RR DOOR
SHORT(TB***C) IDN 		8-97955-534-3 01 1 0107- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
SHORT(TB***C) IDN 		8-97955-533-2 01 1 0008-0106 ● ●
3 WEATHERSTRIP; RR DOOR
SHORT(TB***C) IDN 		8-97955-533-3 01 1 0107- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97955-532-2 01 1 0008-0106 ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97955-532-3 01 1 0107-0209 ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97955-532-3 01 1 0210- ● ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97955-531-2 01 1 0008-0106 ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97955-531-3 01 1 0107-0209 ● ● ●
3 WEATHERSTRIP; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97955-531-3 01 1 0210- ● ● ● ●
6 CLIP; DOOR PAD
WAGON(TB**V*) B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0008-0106 ●
6 CLIP; DOOR PAD
B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0008-0106 ●
6 CLIP; DOOR PAD
B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0107-0209 ● ●
6 CLIP; DOOR PAD
B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0210- ● ● ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=20.6 D8X13.8 IDN 		8-97260-948-0 22 1 0009-0009 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) EXC. HI GRADE(6PQ) H=20.6 D8X13.8 IDN 		8-97260-948-0 22 1 0009-0009 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=15.9 D8X11 IDN 		8-97288-141-0 02 1 0009-0009 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) HI GRADE(6PQ) H=15.9 D8X11 IDN 		8-97288-141-0 02 1 0009-0009 ●
7 CLIP; DOOR PAD
WAGON(TB**V*) H=15.9 D8X11 IDN 		8-97288-141-0 02 1 0009-0106 ● ●
7 CLIP; DOOR PAD
H=15.9 D8X11 IDN 		8-97288-141-0 02 1 0009-0106 ●
7 CLIP; DOOR PAD
H=15.9 D8X11 IDN 		8-97288-141-0 02 1 0107-0209 ● ● ●
7 CLIP; DOOR PAD
H=15.9 D8X11 IDN 		8-97288-141-0 02 1 0210- ● ● ● ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=20.6 D8X13.8 IDN 		8-97260-948-0 20 1 0008-0008 ● ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=20.6 D8X13.8 IDN 		8-97260-948-0 20 1 0009-0009 ●
7 CLIP; DOOR PAD
SHORT(TB***C) EXC. HI GRADE(6PQ) H=20.6 D8X13.8 IDN 		8-97260-948-0 20 1 0009-0009 ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=20.6 D8X13.8 IDN 		8-97260-948-0 18 1 0009-0104 ● ●
7 CLIP; DOOR PAD
H=20.6 D8X13.8 IDN 		8-97260-948-0 18 1 0009-0104 ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=20.6 D8X13.8 IDN 		8-97260-948-0 18 1 0105-0209 ● ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=20.6 D8X13.8 IDN 		8-97260-948-0 18 1 0210- ● ● ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0008-0008 ● ●
7 CLIP; DOOR PAD
SHORT(TB***C) HI GRADE(6PQ) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0009-0009 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=20.6 D8X13.8 IDN 		8-97260-948-0 22 1 0009-0209 ● ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=20.6 D8X13.8 IDN 		8-97260-948-0 22 1 0210-0405 ● ● ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=20.6 D8X13.8 IDN 		8-97260-948-0 22 1 0406- ● ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) EXC. UP GRADE PACKAGE<7MA> H=20.6 D8X13.8 IDN 		8-97260-948-0 22 1 0406- ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) HI GRADE(6PQ) H=20.6 D8X13.8 IDN 		8-97260-948-0 18 1 0009-0009 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) EXC. HI GRADE(6PQ) H=15.9 D8X11 IDN 		8-97288-141-0 12 1 0009-0009 ●
7 CLIP; DOOR PAD
H=16.3 IDN 		8-97126-393-0 14 1 0105-0106 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=16.3 IDN 		8-97126-393-0 14 1 0107-0107 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=16.3 IDN 		8-97126-393-0 12 1 0107-0405 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) UP GRADE PACKAGE<7MA> H=16.3 IDN 		8-97126-393-0 12 1 0406- ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=16.3 IDN 		8-97126-393-0 12 1 0406- ●
7 CLIP; DOOR PAD
H=20.6 D8X13.8 IDN 		8-97260-948-0 04 1 0105-0106 ●
7 CLIP; DOOR PAD
H=20.6 D8X13.8 IDN 		8-97260-948-0 04 1 0107-0405 ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) UP GRADE PACKAGE<7MA> H=20.6 D8X13.8 IDN 		8-97260-948-0 04 1 0406- ●
7 CLIP; DOOR PAD
H=20.6 D8X13.8 IDN 		8-97260-948-0 04 1 0406- ●
7 CLIP; DOOR PAD
WAGON LONG(TB**VF) H=16.3 IDN 		8-97126-393-0 20 1 0008-0008 ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=16.3 IDN 		8-97126-393-0 12 1 0107-0107 ●
7 CLIP; DOOR PAD
SHORT(TB***C) H=16.3 IDN 		8-97126-393-0 10 1 0107- ●
8 REST; ARM,RR DOOR
WAGON(TB**V*) GRAY IDN 		8-97957-281-1 02 1 0008-0106 ●
8 REST; ARM,RR DOOR
GRAY IDN 		8-97957-281-1 02 1 0107-0209 ●
8 REST; ARM,RR DOOR
BLACK IDN 		8-97561-571-2 02 1 0210-0405 ● ●
8 REST; ARM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97561-571-2 02 1 0406-0508 ● ●
8 REST; ARM,RR DOOR
WAGON LONG(TB**VF) EXC. UP GRADE PACKAGE<7MA> BLACK IDN 		8-97561-571-2 02 1 0406-0508 ● ●
8 REST; ARM,RR DOOR
SHORT(TB***C) BLACK IDN 		8-97562-697-2 02 1 0509- ● ●
8 REST; ARM,RR DOOR
WAGON LONG(TB**VF) EXC. UP GRADE PACKAGE<7MA> BLACK IDN 		8-97562-697-2 02 1 0509- ● ●
13 GROMMET; SCREW,ARM REST
WAGON(TB**V*) IDN 		8-94481-286-2 04 1 0008-0106 ● ●
13 GROMMET; SCREW,ARM REST
IDN 		8-94481-286-2 04 1 0107-0209 ● ●
13 GROMMET; SCREW,ARM REST
IDN 		8-94481-286-2 04 1 0210-0405 ● ● ●
13 GROMMET; SCREW,ARM REST
SHORT(TB***C) IDN 		8-94481-286-2 04 1 0406- ● ● ●
13 GROMMET; SCREW,ARM REST
WAGON LONG(TB**VF) EXC. UP GRADE PACKAGE<7MA> IDN 		8-94481-286-2 04 1 0406- ● ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) POWER WINDOW<A30> IDN 		8-97955-528-2 01 1 0008-0106 ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) POWER WINDOW<A30> IDN 		8-97955-528-2 01 1 0107- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) POWER WINDOW<A30> IDN 		8-97955-527-2 01 1 0008-0106 ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) POWER WINDOW<A30> IDN 		8-97955-527-2 01 1 0107- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) EXC. POWER WINDOW<A30> IDN 		8-97955-530-2 01 1 0008-0106 ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) EXC. POWER WINDOW<A30> IDN 		8-97955-530-2 01 1 0107- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) EXC. POWER WINDOW<A30> IDN 		8-97955-529-2 01 1 0008-0106 ● ●
40 SHEET; WATER PROOF,RR DOOR
SHORT(TB***C) EXC. POWER WINDOW<A30> IDN 		8-97955-529-2 01 1 0107- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) POWER WINDOW<A30> IDN 		8-97955-524-2 01 1 0008-0106 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) POWER WINDOW<A30> IDN 		8-97955-524-2 01 1 0107-0209 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) POWER WINDOW<A30> IDN 		8-97955-524-2 01 1 0210- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) POWER WINDOW<A30> IDN 		8-97955-523-2 01 1 0008-0106 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) POWER WINDOW<A30> IDN 		8-97955-523-2 01 1 0107-0209 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) POWER WINDOW<A30> IDN 		8-97955-523-2 01 1 0210- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) EXC. POWER WINDOW<A30> IDN 		8-97955-526-2 01 1 0008-0106 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) EXC. POWER WINDOW<A30> IDN 		8-97955-526-2 01 1 0107-0209 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) EXC. POWER WINDOW<A30> IDN 		8-97955-526-2 01 1 0210- ● ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) EXC. POWER WINDOW<A30> IDN 		8-97955-525-2 01 1 0008-0106 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) EXC. POWER WINDOW<A30> IDN 		8-97955-525-2 01 1 0107-0209 ● ● ●
40 SHEET; WATER PROOF,RR DOOR
WAGON LONG(TB**VF) EXC. POWER WINDOW<A30> IDN 		8-97955-525-2 01 1 0210- ● ● ● ●
43 RETAINER; ASH TRAY,RR DOOR
WAGON(TB**V*) IDN 		8-94123-300-5 04 1 0008-0209 ●
43 RETAINER; ASH TRAY,RR DOOR
WAGON(TB**V*) EXC. HI GRADE(6PQ) IDN 		8-94123-300-5 04 1 0008-0209 ●
43 RETAINER; ASH TRAY,RR DOOR
IDN 		8-94123-300-5 04 1 0210- ● ●
45 FINISHER; RR DOOR
SHORT(TB***C) 		8-97248-143-1 02 1 0008-0106 ● ●
45 FINISHER; RR DOOR
SHORT(TB***C) 		8-97248-143-1 02 1 0107- ● ● ● ●
45 FINISHER; RR DOOR
WAGON LONG(TB**VF) 		8-97248-142-1 02 1 0008-0106 ● ● ●
45 FINISHER; RR DOOR
WAGON LONG(TB**VF) 		8-97248-142-1 02 1 0107-0209 ● ● ●
45 FINISHER; RR DOOR
WAGON LONG(TB**VF) 		8-97248-142-1 02 1 0210-0402 ● ● ● ●
45 FINISHER; RR DOOR
WAGON LONG(TB**VF) IDN 		8-97562-377-0 02 1 0403- ● ● ● ●
47 TRAY; ASH,RR
WAGON(TB**V*) GRAY 		8-97150-683-1 02 1 0008-0106 ●
47 TRAY; ASH,RR
WAGON(TB**V*) EXC. HI GRADE(6PQ) GRAY 		8-97150-683-1 02 1 0008-0106 ●
47 TRAY; ASH,RR
GRAY 		8-97150-683-1 02 1 0107-0209 ●
47 TRAY; ASH,RR
EXC. HI GRADE(6PQ) GRAY 		8-97150-683-1 02 1 0107-0209 ●
47 TRAY; ASH,RR
DARK GRAY IDN 		8-97394-025-1 02 1 0210-0508 ● ●
47 TRAY; ASH,RR
BLACK 		8-94154-193-1 02 1 0509- ● ●
48 SCREW; RET,ASH TRAY
WAGON(TB**V*) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 04 1 0008-0209 ●
48 SCREW; RET,ASH TRAY
WAGON(TB**V*) EXC. HI GRADE(6PQ) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 04 1 0008-0209 ●
48 SCREW; RET,ASH TRAY
M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 04 1 0210- ● ●
50 GRIP; ASSIST,RR DOOR TRIM
WAGON(TB**V*) GRAY IDN 		8-97152-650-2 02 1 0008-0209 ●
50 GRIP; ASSIST,RR DOOR TRIM
WAGON(TB**V*) DARK GRAY IDN 		8-97394-020-2 02 1 0210-0406 ●
50 GRIP; ASSIST,RR DOOR TRIM
DARK GRAY IDN 		8-97394-020-2 02 1 0407-0508 ●
50 GRIP; ASSIST,RR DOOR TRIM
BLACK IDN 		8-94484-616-2 02 1 0509- ●
51 SCREW; ASSIST GRIP,RR DOOR TRIM
WAGON(TB**V*) M6X25 TAPPING 		9-07077-625-0 04 1 0008-0106 ●
51 SCREW; ASSIST GRIP,RR DOOR TRIM
M6X25 TAPPING 		9-07077-625-0 04 1 0107- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
