◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#95372) — 42 parça

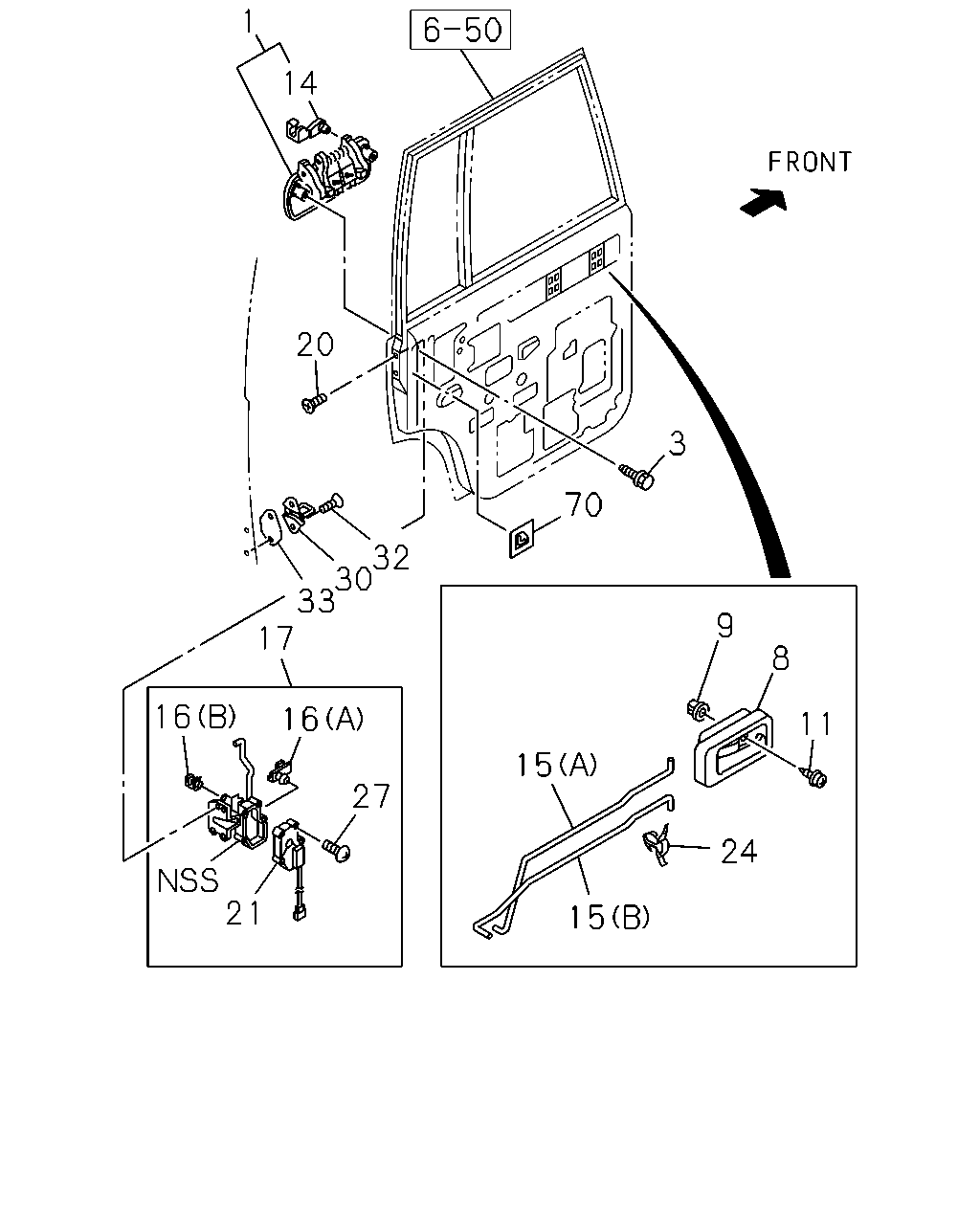

çizim 289320
3 70 20 14 1 32 30 33 17 16 16 27 21 9 8 11 24 15 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,RR DOOR
IDN 		8-97072-485-1 01 1 0008- ● ●
1 HANDLE; OUTSIDE,RR DOOR
IDN 		8-97072-484-1 01 1 0008- ● ●
3 BOLT; DOOR OUTSIDE HANDLE
M6X8 IDN 		8-94155-893-0 04 1 0008- ● ●
8 HANDLE; INSIDE,RR DOOR
GRAY IDN 		8-97196-874-0 01 1 0008-0209 ● ●
8 HANDLE; INSIDE,RR DOOR
BLACK 		8-97394-017-0 01 1 0210-0305 ● ●
8 HANDLE; INSIDE,RR DOOR
BLACK IDN 		8-97398-368-0 01 1 0306-0508 ● ●
8 HANDLE; INSIDE,RR DOOR
BLACK IDN 		8-97398-366-0 01 1 0509- ● ●
8 HANDLE; INSIDE,RR DOOR
GRAY IDN 		8-97196-873-0 01 1 0008-0209 ● ●
8 HANDLE; INSIDE,RR DOOR
BLACK 		8-97394-016-0 01 1 0210-0305 ● ●
8 HANDLE; INSIDE,RR DOOR
BLACK IDN 		8-97398-367-0 01 1 0306-0508 ● ●
8 HANDLE; INSIDE,RR DOOR
BLACK IDN 		8-97398-365-0 01 1 0509- ● ●
9 GROMMET; SCREW,INSIDE HANDLE
IDN 		8-94152-494-0 02 1 0008- ● ●
11 SCREW; INSIDE HANDLE
M5X14 IDN 		8-94152-495-0 02 1 0008- ● ●
14 HOLDER; DOOR LK ROD
BROWN IDN 		8-97037-509-0 01 1 0008- ● ●
14 HOLDER; DOOR LK ROD
WHITE IDN 		8-97037-508-0 01 1 0008- ● ●
15 LINK; RR DOOR LK
(A) 		8-97248-086-1 01 1 0008- ●
15 LINK; RR DOOR LK
(B) 		8-97248-090-1 01 1 0008- ●
15 LINK; RR DOOR LK
(A) 		8-97248-085-1 01 1 0008- ●
15 LINK; RR DOOR LK
(B) 		8-97248-089-1 01 1 0008- ●
15 LINK; RR DOOR LK
(A) 		8-97248-084-0 01 1 0008- ●
15 LINK; RR DOOR LK
(B) 		8-97248-088-0 01 1 0008- ●
15 LINK; RR DOOR LK
(A) 		8-97248-083-0 01 1 0008- ●
15 LINK; RR DOOR LK
(B) 		8-97248-087-0 01 1 0008- ●
16 CLIP; DOOR LK LINK
(A) 		8-97264-614-0 01 1 0008- ● ●
16 CLIP; DOOR LK LINK
(B) 		8-97264-640-0 01 1 0008- ● ●
16 CLIP; DOOR LK LINK
(A) 		8-97264-613-0 01 1 0008- ● ●
16 CLIP; DOOR LK LINK
(B) 		8-97264-639-0 01 1 0008- ● ●
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> 		8-97248-074-2 01 1 0008- ● ●
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> 		8-97248-073-2 01 1 0008- ● ●
17 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97248-072-1 01 1 0008- ● ●
17 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97248-071-1 01 1 0008- ● ●
20 SCREW; DOOR LK
M6X16 OVAL-HD IDN 		8-94172-523-0 06 1 0008- ● ●
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97251-149-1 01 1 0008- ● ●
21 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97251-148-1 01 1 0008- ● ●
24 ANTIRATTLER; DOOR INSIDE HANDLE 8-97126-660-0 04 1 0008- ● ●
27 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97264-615-0 04 1 0008- ● ●
30 STRIKER; RR DOOR 8-94115-959-0 02 1 0008- ● ●
32 SCREW; DOOR STRIKER
M8X20 		9-03097-820-0 04 1 0008-0604 ● ●
32 SCREW; DOOR STRIKER
M8X20 		0-30218-820-0 04 1 0605- ● ●
33 SHEET; ADJ,RR DOOR STRIKER
IDN 		8-94239-378-0 AR 1 0008- ● ●
70 SEAL; LOCK CHILD LEVER 8-97287-967-1 01 1 0008- ● ●
70 SEAL; LOCK CHILD LEVER 8-97287-966-1 01 1 0008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
