◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#95371) — 69 parça

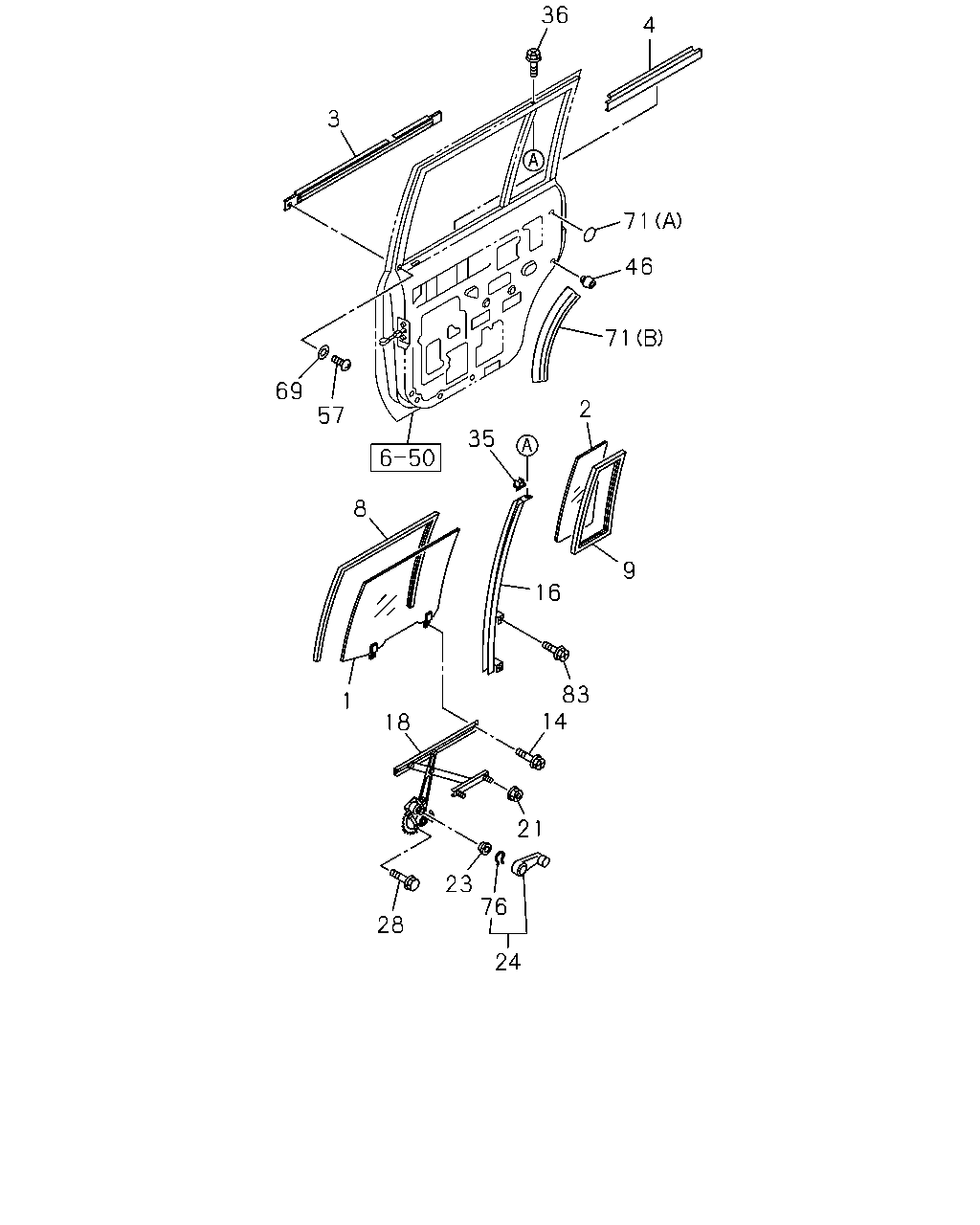

çizim 289283
3 36 4 71 46 71 2 35 9 16 83 14 21 76 24 23 28 18 1 8 57 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; RR DOOR
IDN 		8-97955-112-1 01 1 0008- ●
1 GLASS; RR DOOR
IDN 		8-97955-111-1 01 1 0008- ●
1 GLASS; RR DOOR
IDN 		8-97955-114-1 01 1 0008- ●
1 GLASS; RR DOOR
IDN 		8-97955-113-1 01 1 0008- ●
2 GLASS; RR DOOR,RR
IDN 		8-97955-520-0 01 1 0008- ● ●
2 GLASS; RR DOOR,RR
IDN 		8-97955-519-0 01 1 0008- ● ●
3 SEAL; RR DOOR OUTER WAIST
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN 		8-97562-425-0 01 1 0406-0504 ●
3 SEAL; RR DOOR OUTER WAIST
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN 		8-97562-426-0 01 1 0406-0504 ●
3 SEAL; RR DOOR OUTER WAIST 8-97174-256-2 01 1 0008- ●
3 SEAL; RR DOOR OUTER WAIST 8-97174-255-2 01 1 0008- ●
3 SEAL; RR DOOR OUTER WAIST 8-97174-254-1 01 1 0008-0405 ●
3 SEAL; RR DOOR OUTER WAIST
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE TOURING(RBG) 		8-97174-254-2 01 1 0406-0504 ●
3 SEAL; RR DOOR OUTER WAIST
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> 		8-97174-254-2 01 1 0406-0504 ●
3 SEAL; RR DOOR OUTER WAIST 8-97174-254-2 01 1 0505- ●
3 SEAL; RR DOOR OUTER WAIST 8-97174-253-1 01 1 0008-0405 ●
3 SEAL; RR DOOR OUTER WAIST
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE TOURING(RBG) 		8-97174-253-2 01 1 0406-0504 ●
3 SEAL; RR DOOR OUTER WAIST
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> 		8-97174-253-2 01 1 0406-0504 ●
3 SEAL; RR DOOR OUTER WAIST 8-97174-253-2 01 1 0505- ●
4 SEAL; RR DOOR GLASS 8-97174-260-0 01 1 0008-0401 ●
4 SEAL; RR DOOR GLASS 8-97371-604-0 01 1 0402-0412 ●
4 SEAL; RR DOOR GLASS 8-97174-260-0 01 1 0501- ●
4 SEAL; RR DOOR GLASS 8-97174-259-0 01 1 0008-0401 ●
4 SEAL; RR DOOR GLASS 8-97371-603-0 01 1 0402-0412 ●
4 SEAL; RR DOOR GLASS 8-97174-259-0 01 1 0501- ●
4 SEAL; RR DOOR GLASS 8-97174-258-0 01 1 0008-0401 ●
4 SEAL; RR DOOR GLASS 8-97371-602-0 01 1 0402-0412 ●
4 SEAL; RR DOOR GLASS 8-97174-258-0 01 1 0501- ●
4 SEAL; RR DOOR GLASS 8-97174-257-0 01 1 0008-0401 ●
4 SEAL; RR DOOR GLASS 8-97371-601-0 01 1 0402-0412 ●
4 SEAL; RR DOOR GLASS 8-97174-257-0 01 1 0501- ●
8 RUN; GLASS,RR DOOR
IDN 		8-97955-512-0 01 1 0008-0209 ●
8 RUN; GLASS,RR DOOR
IDN 		8-97562-223-0 01 1 0210- ●
8 RUN; GLASS,RR DOOR
IDN 		8-97955-511-0 01 1 0008-0209 ●
8 RUN; GLASS,RR DOOR
IDN 		8-97562-222-0 01 1 0210- ●
8 RUN; GLASS,RR DOOR
IDN 		8-97955-510-0 01 1 0008-0209 ●
8 RUN; GLASS,RR DOOR
IDN 		8-97562-221-0 01 1 0210- ●
8 RUN; GLASS,RR DOOR
IDN 		8-97955-509-0 01 1 0008-0209 ●
8 RUN; GLASS,RR DOOR
IDN 		8-97562-220-0 01 1 0210- ●
9 WEATHERSTRIP; RR DOOR
IDN 		8-97955-522-0 01 1 0008- ● ●
9 WEATHERSTRIP; RR DOOR
IDN 		8-97955-521-0 01 1 0008- ● ●
14 BOLT; RR DOOR GLASS
M6X8 IDN 		8-94155-893-0 04 1 0008- ● ●
16 SASH ASM; DIVISION
IDN 		8-97955-605-0 01 1 0008- ● ●
16 SASH ASM; DIVISION
IDN 		8-97955-604-0 01 1 0008- ● ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> IDN 		8-97955-504-3 01 1 0008- ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> IDN 		8-97955-503-3 01 1 0008- ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-508-2 01 1 0008- ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-507-2 01 1 0008- ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> IDN 		8-97955-502-2 01 1 0107- ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> IDN 		8-97955-501-2 01 1 0107- ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-506-2 01 1 0008- ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-505-2 01 1 0008- ●
21 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91150-106-0 04 1 0008-0602 ● ●
21 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
23 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> IDN 		8-94220-668-1 02 1 0008- ● ●
24 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW<A30> GRAY IDN 		8-97196-875-0 02 1 0008-0209 ● ●
24 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW<A30> BLACK IDN 		8-97394-018-0 02 1 0210-0508 ● ●
24 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW<A30> BLACK 		8-97404-851-0 02 1 0509- ● ●
28 BOLT; WINDOW REG
M6X8 IDN 		8-94155-893-0 08 1 0008- ● ●
35 CAP; DOOR SASH END 8-97957-137-0 01 1 0008- ● ●
35 CAP; DOOR SASH END 8-97957-136-0 01 1 0008- ● ●
36 SCREW; DIVISION SASH
M4X8 CK-HEAD 		9-03094-408-0 02 1 0008- ● ●
46 BUFFER; RR DOOR
IDN 		8-97957-223-0 02 1 0008- ● ●
57 SCREW; WAIST OUTER SEAL 8-97802-968-1 02 1 0008- ● ●
69 WASHER; WAIST SEAL
D=16 		8-94427-941-0 02 1 0008- ● ●
71 SEAL; WATER,RR DOOR
(A) OD=25 BLACK 		1-76798-019-0 02 1 0008- ● ●
71 SEAL; WATER,RR DOOR
OVER FENDER<6GH> (B) 		8-97316-981-2 01 1 0107- ● ●
71 SEAL; WATER,RR DOOR
OVER FENDER<6GH> (B) 		8-97316-979-2 01 1 0107- ● ●
76 PIN
EXC. POWER WINDOW<A30> IDN 		8-94220-591-0 02 1 0008- ● ●
83 BOLT; BAR,DIVISION,LWR FIX
M6X8 IDN 		8-94155-893-0 04 1 0008- ● ●
