◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-50 - REAR DOOR AND HINGE ▶
6-50 — REAR DOOR AND HINGE (#95370) — 65 parça

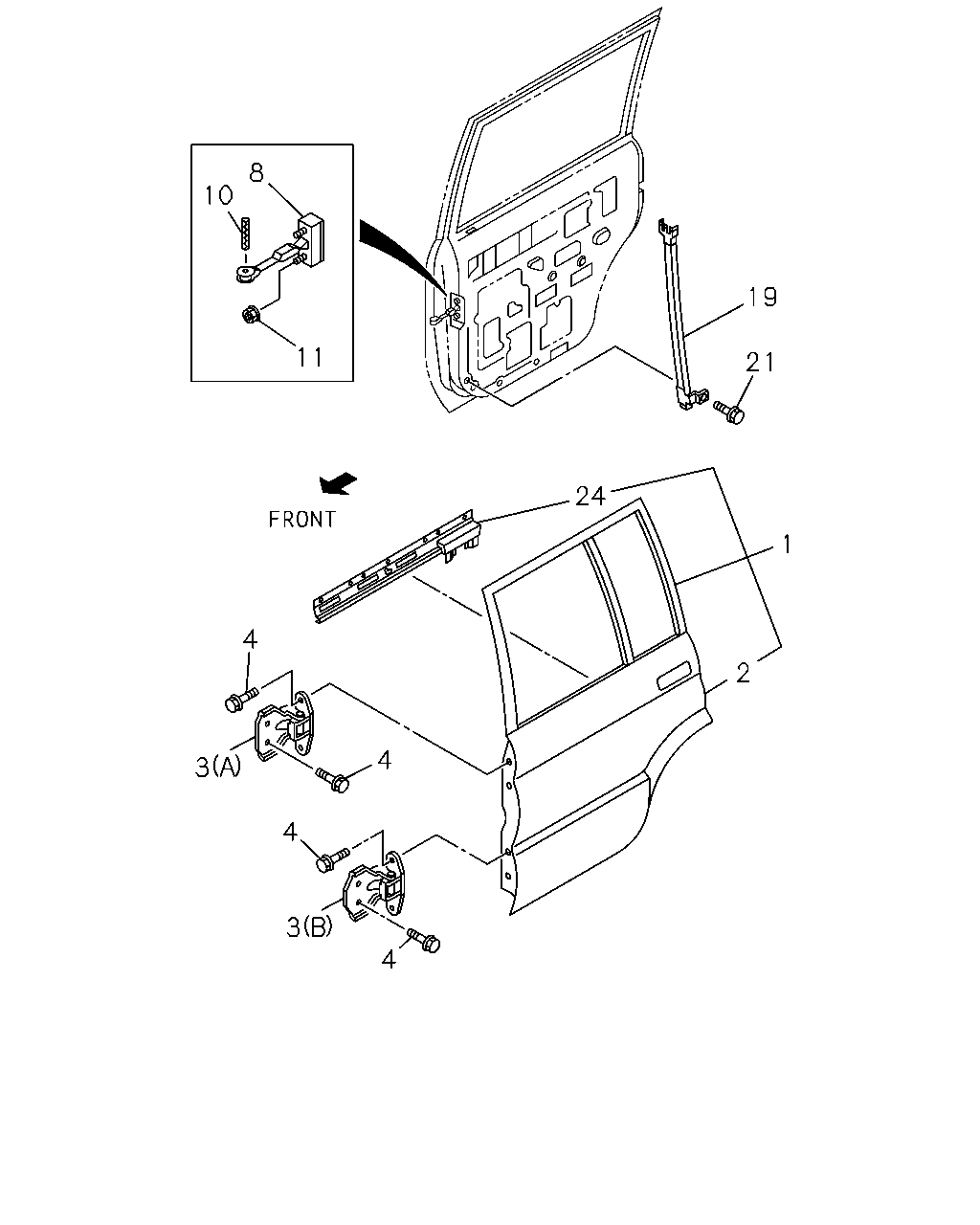

çizim 289215
8 10 11 4 3 4 4 3 4 2 1 24 21 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; REAR
IDN 		8-97955-976-2 01 1 0008-0106 ●
1 DOOR ASM; REAR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-976-2 01 1 0107-0209 ●
1 DOOR ASM; REAR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-976-2 01 1 0210- ●
1 DOOR ASM; REAR
IDN 		8-97955-975-2 01 1 0008-0106 ●
1 DOOR ASM; REAR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-975-2 01 1 0107-0209 ●
1 DOOR ASM; REAR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-975-2 01 1 0210- ●
1 DOOR ASM; REAR
GRADE TOURING(RBG) IDN 		8-97958-053-1 01 1 0107- ●
1 DOOR ASM; REAR
GRADE TOURING(RBG) IDN 		8-97958-052-1 01 1 0107- ●
1 DOOR ASM; REAR
IDN 		8-97955-974-2 01 1 0008-0106 ●
1 DOOR ASM; REAR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-974-2 01 1 0107-0209 ●
1 DOOR ASM; REAR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-974-2 01 1 0210- ●
1 DOOR ASM; REAR
IDN 		8-97955-973-2 01 1 0008-0106 ●
1 DOOR ASM; REAR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-973-2 01 1 0107-0209 ●
1 DOOR ASM; REAR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-973-2 01 1 0210- ●
1 DOOR ASM; REAR
GRADE TOURING(RBG) IDN 		8-97958-051-1 01 1 0107- ●
1 DOOR ASM; REAR
GRADE TOURING(RBG) IDN 		8-97958-050-1 01 1 0107- ●
2 PANEL; RR DOOR OUTER
IDN 		8-97955-984-4 01 1 0008-0106 ●
2 PANEL; RR DOOR OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-984-4 01 1 0107-0209 ●
2 PANEL; RR DOOR OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-984-4 01 1 0210- ●
2 PANEL; RR DOOR OUTER
IDN 		8-97955-983-4 01 1 0008-0106 ●
2 PANEL; RR DOOR OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-983-4 01 1 0107-0209 ●
2 PANEL; RR DOOR OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-983-4 01 1 0210- ●
2 PANEL; RR DOOR OUTER
GRADE TOURING(RBG) IDN 		8-97958-023-2 01 1 0107- ●
2 PANEL; RR DOOR OUTER
GRADE TOURING(RBG) IDN 		8-97958-022-2 01 1 0107- ●
2 PANEL; RR DOOR OUTER
IDN 		8-97955-982-4 01 1 0008-0106 ●
2 PANEL; RR DOOR OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-982-4 01 1 0107-0209 ●
2 PANEL; RR DOOR OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-982-4 01 1 0210- ●
2 PANEL; RR DOOR OUTER
IDN 		8-97955-981-4 01 1 0008-0106 ●
2 PANEL; RR DOOR OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-981-4 01 1 0107-0209 ●
2 PANEL; RR DOOR OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-981-4 01 1 0210- ●
2 PANEL; RR DOOR OUTER
GRADE TOURING(RBG) IDN 		8-97958-021-2 01 1 0107- ●
2 PANEL; RR DOOR OUTER
GRADE TOURING(RBG) IDN 		8-97958-020-2 01 1 0107- ●
3 HINGE; RR DOOR
(A) UPPER 		8-97076-891-0 01 1 0008- ● ●
3 HINGE; RR DOOR
(B) LOWER 		8-97076-893-0 01 1 0008- ● ●
3 HINGE; RR DOOR
(A) UPPER 		8-97076-890-0 01 1 0008- ● ●
3 HINGE; RR DOOR
(B) LOWER 		8-97076-892-0 01 1 0008- ● ●
4 BOLT; HINGE
M8X23 FLANGE IDN 		8-94174-559-2 08 1 0008- ● ●
4 BOLT; HINGE
M8X23 FLANGE IDN 		8-94174-559-2 08 1 0008- ● ●
8 ARM; CHECK,RR DOOR 8-94358-620-1 02 1 0008- ● ●
10 PIN; CHECK ARM 8-97020-859-0 02 1 0008- ● ●
11 NUT
M6 FLANGE IDN 		5-09440-004-0 04 1 0008- ● ●
19 RAIL; FRT GUIDE,RR DOOR
IDN 		8-97955-514-1 01 1 0008- ● ●
19 RAIL; FRT GUIDE,RR DOOR
IDN 		8-97955-513-1 01 1 0008- ● ●
21 BOLT; GUIDE RAIL
M6X8 IDN 		8-94155-893-0 02 1 0008- ● ●
24 REINFORCEMENT; RR DOOR
IDN 		8-97956-352-0 01 1 0008- ●
24 REINFORCEMENT; RR DOOR
IDN 		8-97956-351-0 01 1 0008- ●
24 REINFORCEMENT; RR DOOR
IDN 		8-97956-350-0 01 1 0008- ●
24 REINFORCEMENT; RR DOOR
IDN 		8-97956-349-0 01 1 0008- ●

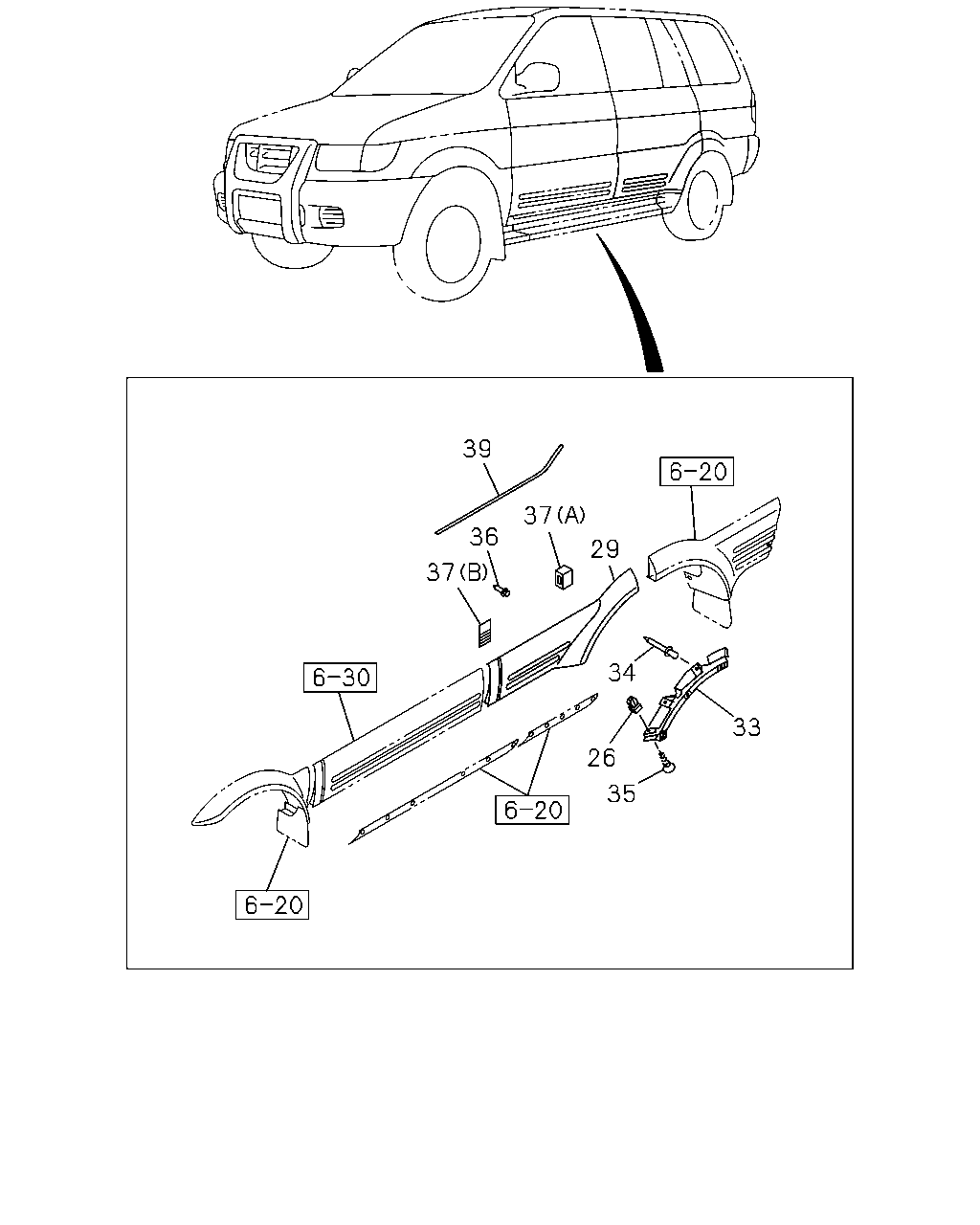

çizim 289893
39 37 29 36 37 26 35 34 33
BalonParca AdiParca NoAdetTipApplied Date A B
26 GROMMET; SCREW,BRKT
OVER FENDER<6GH> IDN 		8-94152-494-0 06 1 0107- ● ●
29 EXTENSION; RR DOOR
OVER FENDER<6GH> IDN 		8-97560-014-0 01 1 0107- ●
29 EXTENSION; RR DOOR
OVER FENDER<6GH> IDN 		8-97560-013-0 01 1 0107- ●
29 EXTENSION; RR DOOR
OVER FENDER<6GH> IDN 		8-97560-012-0 01 1 0107- ●
29 EXTENSION; RR DOOR
OVER FENDER<6GH> IDN 		8-97560-011-0 01 1 0107- ●
33 RETAINER; EXTENSION
OVER FENDER<6GH> IDN 		8-97959-935-1 01 1 0107- ● ●
33 RETAINER; EXTENSION
OVER FENDER<6GH> IDN 		8-97959-934-1 01 1 0107- ● ●
34 RIVET; EXTENSION
OVER FENDER<6GH> 		8-97122-143-0 08 1 0107- ● ●
35 SCREW; EXTENSION
OVER FENDER<6GH> M5X14 IDN 		8-94152-495-0 06 1 0107- ● ●
36 CLIP; EXTENSION
OVER FENDER<6GH> IDN 		8-97117-942-0 16 1 0107- ●
36 CLIP; EXTENSION
OVER FENDER<6GH> IDN 		8-97117-942-0 20 1 0107- ●
37 SPACER ASM; EXT
OVER FENDER<6GH> (A) IDN 		8-97959-963-1 06 1 0107- ●
37 SPACER ASM; EXT
OVER FENDER<6GH> (B) IDN 		8-97959-967-1 01 1 0107- ● ●
37 SPACER ASM; EXT
OVER FENDER<6GH> (B) IDN 		8-97959-966-1 01 1 0107- ● ●
37 SPACER ASM; EXT
OVER FENDER<6GH> (A) IDN 		8-97959-963-1 08 1 0107- ●
39 FINISHER; EXT,REAR DOOR
OVER FENDER<6GH> IDN 		8-97307-380-1 02 1 0107- ●
39 FINISHER; EXT,REAR DOOR
OVER FENDER<6GH> IDN 		8-97307-379-1 02 1 0107- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
