◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#95369) — 75 parça

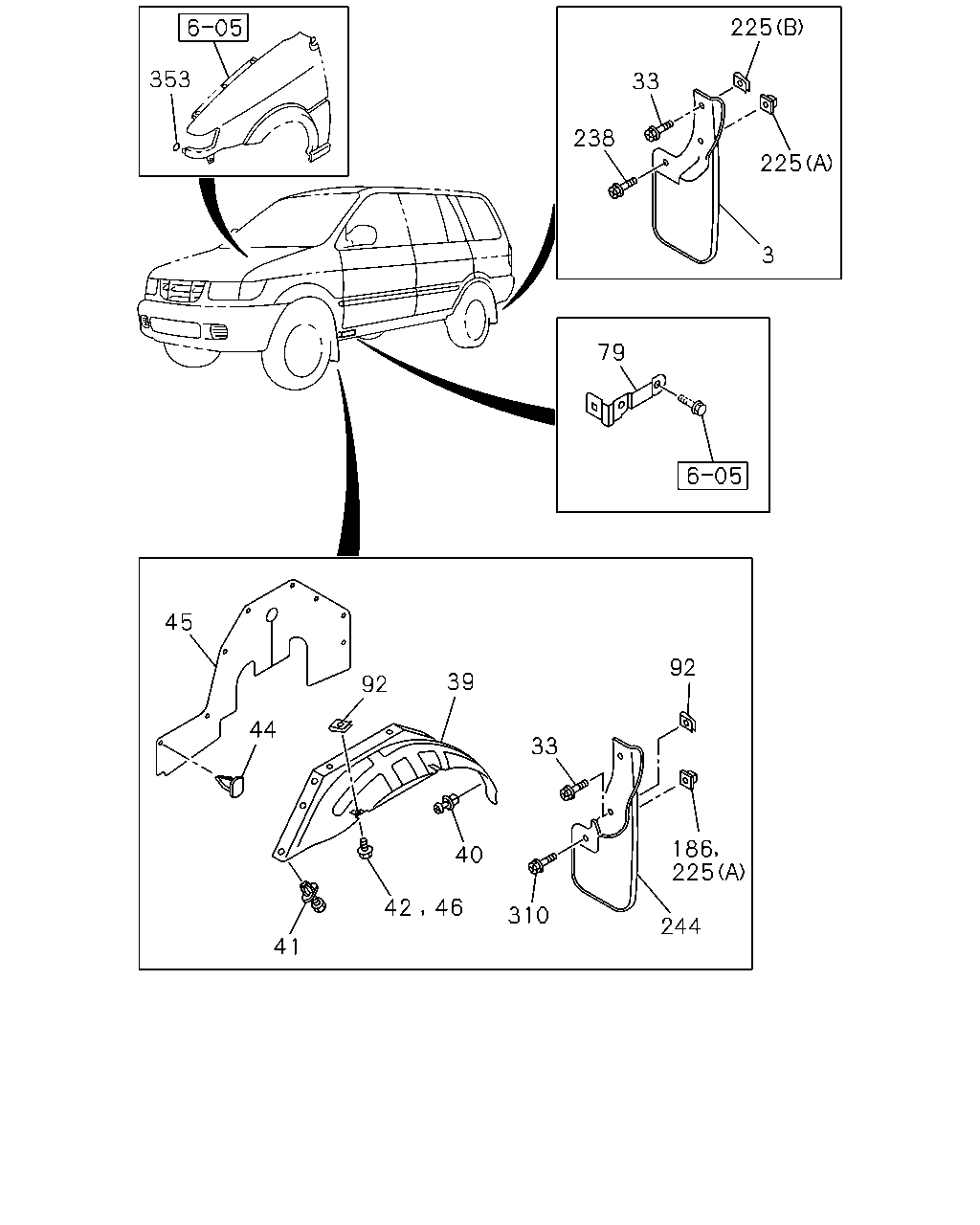

çizim 289213
353 238 33 225 225 3 79 92 186 225 244 310 33 39 40 46 42 92 44 45 41
BalonParca AdiParca NoAdetTipApplied Date A B C
3 GUARD; MUD,RR
IDN 		8-97955-913-1 01 1 0008-0106 ● ●
3 GUARD; MUD,RR
MUD FLAP<VH4> IDN 		8-97955-913-1 01 1 0107-0110 ● ●
3 GUARD; MUD,RR
MUD FLAP<VH4> IDN 		8-97561-080-0 01 1 0111- ● ●
3 GUARD; MUD,RR
IDN 		8-97955-912-1 01 1 0008-0106 ● ●
3 GUARD; MUD,RR
MUD FLAP<VH4> IDN 		8-97955-912-1 01 1 0107-0110 ● ●
3 GUARD; MUD,RR
MUD FLAP<VH4> IDN 		8-97561-079-0 01 1 0111- ● ●
33 BOLT; MUD COVER
M6X16 W/PL WASHER 		8-97803-781-0 08 1 0008-0011 ● ●
33 BOLT; MUD COVER
M6X16 W/PL WASHER 		8-97803-781-0 08 1 0012-0106 ● ●
33 BOLT; MUD COVER
MUD FLAP<VH4> M6X16 W/PL WASHER 		8-97803-781-0 08 1 0107- ● ●
39 LINER; FENDER
IDN 		8-97955-565-2 01 1 0008-0106 ● ● ●
39 LINER; FENDER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-565-2 01 1 0107-0209 ● ●
39 LINER; FENDER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-565-2 01 1 0210-0405 ● ●
39 LINER; FENDER
EXC. CAB UP<W60> IDN 		8-97955-565-3 01 1 0406- ● ●
39 LINER; FENDER
IDN 		8-97955-564-2 01 1 0008-0106 ● ● ●
39 LINER; FENDER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-564-2 01 1 0107-0209 ● ●
39 LINER; FENDER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-564-2 01 1 0210-0405 ● ●
39 LINER; FENDER
EXC. CAB UP<W60> IDN 		8-97955-564-3 01 1 0406- ● ●
39 LINER; FENDER
GRADE TOURING(RBG) IDN 		8-97956-932-2 01 1 0107-0405 ● ●
39 LINER; FENDER
CAB UP<W60> IDN 		8-97956-932-3 01 1 0406- ● ●
39 LINER; FENDER
GRADE TOURING(RBG) IDN 		8-97956-931-2 01 1 0107-0405 ● ●
39 LINER; FENDER
CAB UP<W60> IDN 		8-97956-931-3 01 1 0406- ● ●
40 CLIP; INNER LINER
GRADE TOURING(RBG) 		8-94244-699-0 02 1 0107-0405 ● ●
40 CLIP; INNER LINER
CAB UP<W60> 		8-94244-699-0 02 1 0406- ● ●
41 RIVET; INNER LINER 8-94221-150-0 18 1 0008-0008 ● ● ●
41 RIVET; INNER LINER 8-94221-150-0 20 1 0009-0106 ● ● ●
41 RIVET; INNER LINER 8-94221-150-0 20 1 0107- ● ●
42 BOLT; INNER LINER TO FENDER
M6X16 W/PL WASHER 		8-97803-781-0 04 1 0101-0106 ● ● ●
42 BOLT; INNER LINER TO FENDER
M6X16 W/PL WASHER 		8-97803-781-0 04 1 0107- ● ●
44 CLIP; ANCHOR 8-94215-211-0 16 1 0008-0106 ● ● ●
44 CLIP; ANCHOR 8-94215-211-0 16 1 0107- ● ●
45 COVER; MUD,FENDER SKIRT
IDN 		8-97956-080-0 02 1 0008-0103 ● ● ●
45 COVER; MUD,FENDER SKIRT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-080-0 02 1 0104-0106 ● ● ●
45 COVER; MUD,FENDER SKIRT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-080-0 02 1 0107-0204 ● ●
45 COVER; MUD,FENDER SKIRT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97353-753-0 02 1 0205-0209 ● ●
45 COVER; MUD,FENDER SKIRT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97353-753-0 02 1 0210-0405 ● ●
45 COVER; MUD,FENDER SKIRT
EXC. CAB UP<W60> IDN 		8-97353-753-0 02 1 0406- ● ●
45 COVER; MUD,FENDER SKIRT
GRADE TOURING(RBG) IDN 		8-97959-906-0 02 1 0107-0204 ● ●
45 COVER; MUD,FENDER SKIRT
GRADE TOURING(RBG) IDN 		8-97353-754-0 02 1 0205-0405 ● ●
45 COVER; MUD,FENDER SKIRT
CAB UP<W60> IDN 		8-97353-754-0 02 1 0406- ● ●
46 SCREW; INNER LINER
M6X16 W/PL WASHER 		8-97803-781-0 04 1 0008-0009 ● ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING IDN 		8-94321-767-1 04 1 0010-0012 ● ● ●
79 RETAINER; MUD COVER
IDN 		8-97955-904-1 01 1 0008-0106 ● ● ●
79 RETAINER; MUD COVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-904-1 01 1 0107-0209 ● ●
79 RETAINER; MUD COVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-904-1 01 1 0210- ● ●
79 RETAINER; MUD COVER
IDN 		8-97955-903-1 01 1 0008-0106 ● ● ●
79 RETAINER; MUD COVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-903-1 01 1 0107-0209 ● ●
79 RETAINER; MUD COVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-903-1 01 1 0210- ● ●
92 NUT; MUD COVER 8-94334-769-0 04 1 0008-0009 ● ● ●
92 NUT; MUD COVER 8-94334-769-0 04 1 0008-0009 ● ● ●
92 NUT; MUD COVER 8-94334-769-0 04 1 0010-0106 ● ● ●
92 NUT; MUD COVER 8-94334-769-0 04 1 0010-0106 ● ● ●
92 NUT; MUD COVER 8-94334-769-0 04 1 0107- ● ●
92 NUT; MUD COVER
MUD FLAP<VH4> 		8-94334-769-0 04 1 0107- ● ●
186 GROMMET; MUD COVER
MUD FLAP<VH4> D=9.7X9.7 L=8 		8-94222-314-0 02 1 0205- ● ●
186 GROMMET; MUD COVER
MUD FLAP<VH4> D=9.7X9.7 L=8 		8-94222-314-0 02 1 0205- ● ●
225 NUT; MUD GUARD
(A) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0008-0106 ● ● ●
225 NUT; MUD GUARD
(A) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0008-0106 ● ●
225 NUT; MUD GUARD
MUD FLAP<VH4> (A) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0107-0204 ● ●
225 NUT; MUD GUARD
MUD FLAP<VH4> (A) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0107-0204 ● ●
225 NUT; MUD GUARD
(B) 		8-94334-769-0 04 1 0008-0106 ● ●
225 NUT; MUD GUARD
MUD FLAP<VH4> (B) 		8-94334-769-0 04 1 0107- ● ●
238 SCREW; MUD GUARD
M6X20 W/PL WASHER TAPPING IDN 		8-94321-767-1 02 1 0008-0106 ● ●
238 SCREW; MUD GUARD
MUD FLAP<VH4> M6X20 W/PL WASHER TAPPING IDN 		8-94321-767-1 02 1 0107-0805 ● ●
238 SCREW; MUD GUARD
MUD FLAP<VH4> M6X20 W/PL WASHER 		8-98059-504-0 02 1 0806- ● ●
244 GUARD; MUD,SPLASH
IDN 		8-97955-902-1 01 1 0008-0106 ● ● ●
244 GUARD; MUD,SPLASH
MUD FLAP<VH4> IDN 		8-97955-902-1 01 1 0107- ● ●
244 GUARD; MUD,SPLASH
IDN 		8-97955-901-1 01 1 0008-0106 ● ● ●
244 GUARD; MUD,SPLASH
MUD FLAP<VH4> IDN 		8-97955-901-1 01 1 0107- ● ●
310 SCREW; MUD COVER
M6X20 W/PL WASHER TAPPING IDN 		8-94321-767-1 02 1 0008-0106 ● ● ●
310 SCREW; MUD COVER
MUD FLAP<VH4> M6X20 W/PL WASHER TAPPING IDN 		8-94321-767-1 02 1 0107-0805 ● ●
310 SCREW; MUD COVER
MUD FLAP<VH4> M6X20 W/PL WASHER 		8-98059-504-0 02 1 0806- ● ●
353 TAPE; FENDER,CHIPPING GUARD
IDN 		8-97959-084-0 02 1 0010-0106 ● ● ●
353 TAPE; FENDER,CHIPPING GUARD
IDN 		8-97959-084-0 02 1 0107-0603 ● ●
353 TAPE; FENDER,CHIPPING GUARD
IDN 		8-97959-084-0 02 1 0604- ●
353 TAPE; FENDER,CHIPPING GUARD
EXC. FACE LIFT MODEL<TX7> IDN 		8-97959-084-0 02 1 0604- ●
