6-43 — SIDE TRIM (#95367) — 255 parça

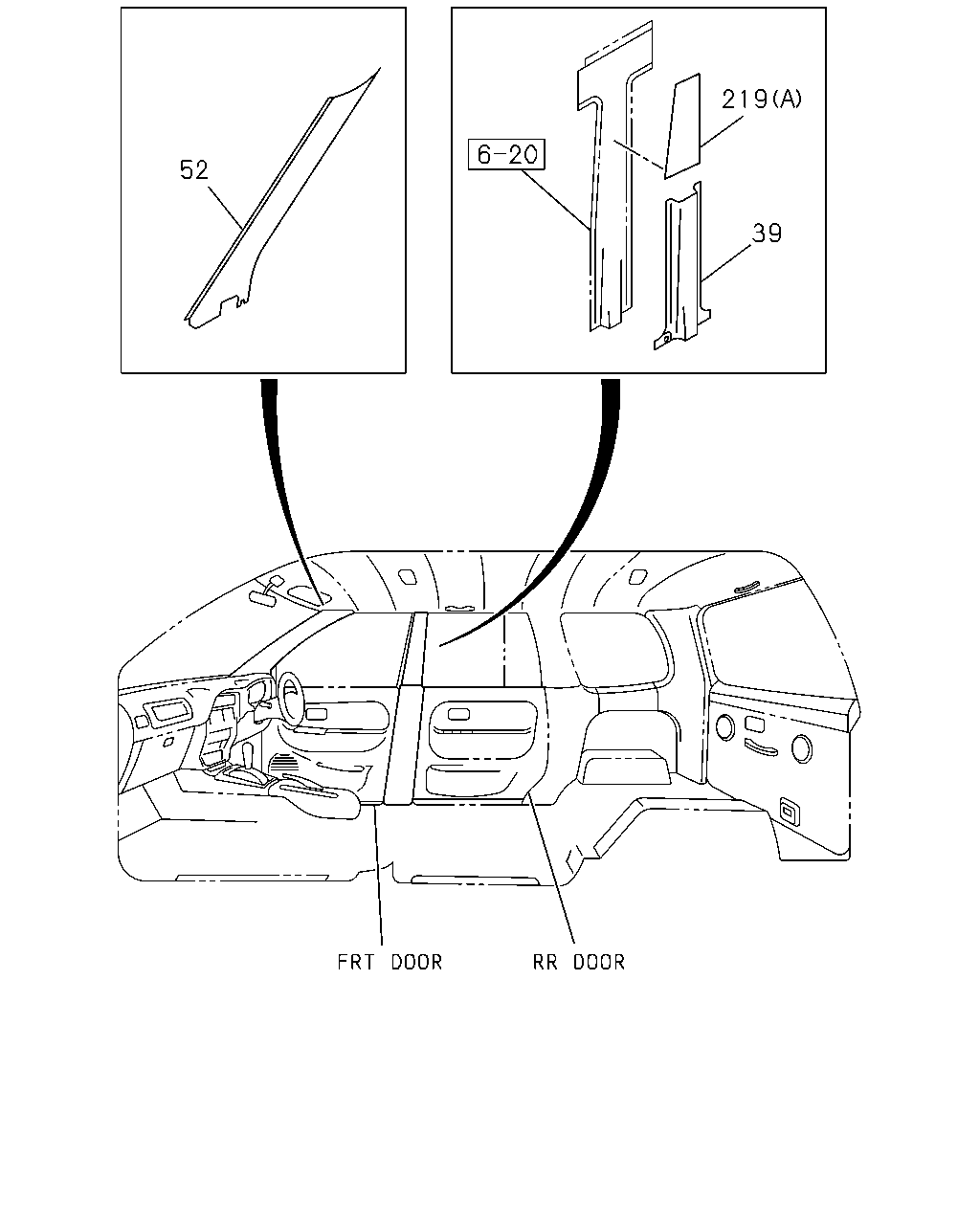

çizim 289146
52 219 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 COVER; TRIM,CENTER PILLAR
WAGON(TB**V*) GRAY IDN 		8-97296-058-2 01 1 0008-0106 ●
39 COVER; TRIM,CENTER PILLAR
WAGON(TB**V*) EXC. HI GRADE(6PQ) GRAY IDN 		8-97296-058-2 01 1 0008-0106 ●
39 COVER; TRIM,CENTER PILLAR
GRAY IDN 		8-97296-058-2 01 1 0107-0109 ●
39 COVER; TRIM,CENTER PILLAR
EXC. HI GRADE(6PQ) GRAY IDN 		8-97296-058-2 01 1 0107-0109 ●
39 COVER; TRIM,CENTER PILLAR
GRAY IDN 		8-97560-643-2 01 1 0110-0209 ●
39 COVER; TRIM,CENTER PILLAR
EXC. HI GRADE(6PQ) GRAY IDN 		8-97560-643-2 01 1 0110-0209 ●
39 COVER; TRIM,CENTER PILLAR
BLACK IDN 		8-97561-548-3 01 1 0210-0508 ● ●
39 COVER; TRIM,CENTER PILLAR
BLACK IDN 		8-97562-683-3 01 1 0509- ● ●
39 COVER; TRIM,CENTER PILLAR
WAGON(TB**V*) GRAY IDN 		8-97296-057-2 01 1 0008-0106 ●
39 COVER; TRIM,CENTER PILLAR
WAGON(TB**V*) EXC. HI GRADE(6PQ) GRAY IDN 		8-97296-057-2 01 1 0008-0106 ●
39 COVER; TRIM,CENTER PILLAR
GRAY IDN 		8-97296-057-2 01 1 0107-0109 ●
39 COVER; TRIM,CENTER PILLAR
EXC. HI GRADE(6PQ) GRAY IDN 		8-97296-057-2 01 1 0107-0109 ●
39 COVER; TRIM,CENTER PILLAR
GRAY IDN 		8-97560-642-2 01 1 0110-0209 ●
39 COVER; TRIM,CENTER PILLAR
EXC. HI GRADE(6PQ) GRAY IDN 		8-97560-642-2 01 1 0110-0209 ●
39 COVER; TRIM,CENTER PILLAR
BLACK IDN 		8-97561-547-3 01 1 0210-0508 ● ●
39 COVER; TRIM,CENTER PILLAR
BLACK IDN 		8-97562-682-3 01 1 0509- ● ●
39 COVER; TRIM,CENTER PILLAR
HI GRADE(6PQ) GRAY IDN 		8-97957-265-4 01 1 0008-0106 ●
39 COVER; TRIM,CENTER PILLAR
GRAY IDN 		8-97957-265-4 01 1 0008-0106 ●
39 COVER; TRIM,CENTER PILLAR
HI GRADE(6PQ) GRAY IDN 		8-97957-265-4 01 1 0107-0109 ●
39 COVER; TRIM,CENTER PILLAR
GRAY IDN 		8-97957-265-4 01 1 0107-0109 ●
39 COVER; TRIM,CENTER PILLAR
HI GRADE(6PQ) GRAY IDN 		8-97560-641-4 01 1 0110-0209 ●
39 COVER; TRIM,CENTER PILLAR
GRAY IDN 		8-97560-641-4 01 1 0110-0209 ●
39 COVER; TRIM,CENTER PILLAR
BLACK IDN 		8-97561-546-5 01 1 0210-0508 ● ●
39 COVER; TRIM,CENTER PILLAR
BLACK IDN 		8-97562-681-5 01 1 0509- ● ●
39 COVER; TRIM,CENTER PILLAR
HI GRADE(6PQ) GRAY IDN 		8-97957-264-4 01 1 0008-0106 ●
39 COVER; TRIM,CENTER PILLAR
GRAY IDN 		8-97957-264-4 01 1 0008-0106 ●
39 COVER; TRIM,CENTER PILLAR
HI GRADE(6PQ) GRAY IDN 		8-97957-264-4 01 1 0107-0109 ●
39 COVER; TRIM,CENTER PILLAR
GRAY IDN 		8-97957-264-4 01 1 0107-0109 ●
39 COVER; TRIM,CENTER PILLAR
HI GRADE(6PQ) GRAY IDN 		8-97560-640-4 01 1 0110-0209 ●
39 COVER; TRIM,CENTER PILLAR
GRAY IDN 		8-97560-640-4 01 1 0110-0209 ●
39 COVER; TRIM,CENTER PILLAR
BLACK IDN 		8-97561-545-5 01 1 0210-0508 ● ●
39 COVER; TRIM,CENTER PILLAR
BLACK IDN 		8-97562-680-5 01 1 0509- ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY IDN 		8-97957-220-2 01 1 0008-0106 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY IDN 		8-97957-220-2 01 1 0107-0209 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY IDN 		8-97561-544-2 01 1 0210- ● ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY IDN 		8-97957-219-2 01 1 0008-0106 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY IDN 		8-97957-219-2 01 1 0107-0209 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY IDN 		8-97561-543-2 01 1 0210- ● ● ● ●
219 PAD; PILLAR,SOFT
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 01 1 0009-0106 ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 01 1 0009-0106 ●
219 PAD; PILLAR,SOFT
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 01 1 0107-0209 ● ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 01 1 0210-0405 ● ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 02 1 0406- ● ●
219 PAD; PILLAR,SOFT
WAGON(TB**V*) (A) IDN 		8-97957-616-0 02 1 0008-0008 ●
219 PAD; PILLAR,SOFT
(A) IDN 		8-97957-616-0 02 1 0008-0008 ●
219 PAD; PILLAR,SOFT
WAGON(TB**V*) (A) IDN 		8-97957-616-0 02 1 0009-0106 ● ● ●
219 PAD; PILLAR,SOFT
(A) IDN 		8-97957-616-1 02 1 0107-0209 ● ● ●
219 PAD; PILLAR,SOFT
(A) IDN 		8-97957-616-1 02 1 0210- ● ● ● ●
219 PAD; PILLAR,SOFT
WAGON(TB**V*) (B) IDN 		8-97958-116-0 01 1 0008-0008 ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97958-116-0 01 1 0008-0008 ●
219 PAD; PILLAR,SOFT
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97958-116-1 01 1 0009-0106 ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97958-116-1 01 1 0009-0106 ●
219 PAD; PILLAR,SOFT
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97958-116-1 01 1 0107-0209 ● ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97958-116-1 01 1 0210- ● ●
219 PAD; PILLAR,SOFT
WAGON(TB**V*) (B) IDN 		8-97957-617-0 02 1 0008-0008 ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-0 02 1 0008-0008 ●
219 PAD; PILLAR,SOFT
WAGON(TB**V*) (B) IDN 		8-97957-617-1 02 1 0009-0106 ●
219 PAD; PILLAR,SOFT
WAGON(TB**V*) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 02 1 0009-0106 ●
219 PAD; PILLAR,SOFT
WAGON LONG(TB**VF) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 02 1 0009-0106 ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 02 1 0107-0209 ●
219 PAD; PILLAR,SOFT
EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 02 1 0107-0209 ● ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 02 1 0210-0405 ● ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 01 1 0406- ● ●

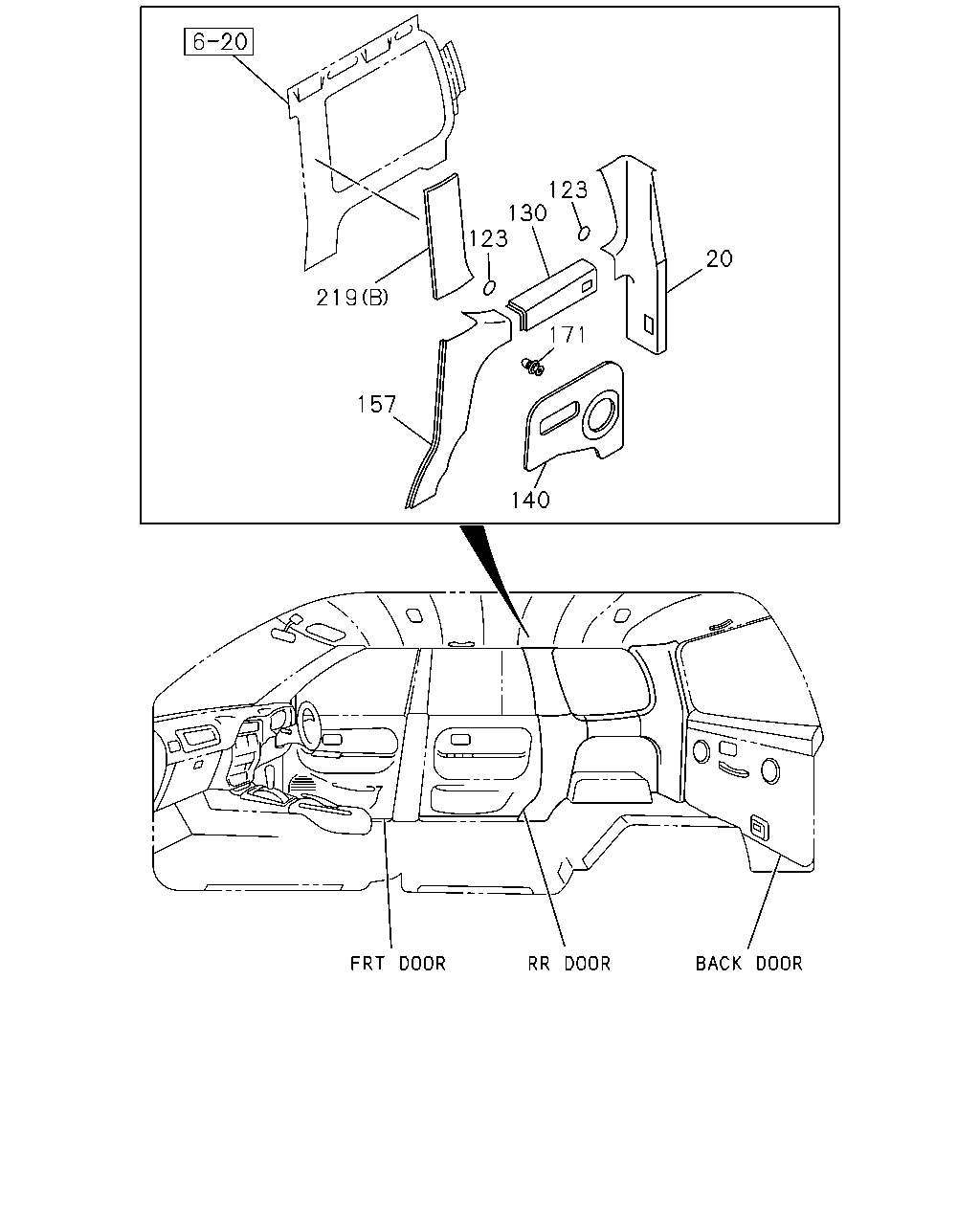

çizim 289148
219 157 123 130 123 20 171 140
BalonParca AdiParca NoAdetTipApplied Date A B C D
20 COVER; TRIM,RR PILLAR
WAGON(TB**V*) LIGHT GRAY IDN 		8-97957-267-2 01 1 0008-0008 ●
20 COVER; TRIM,RR PILLAR
LIGHT GRAY IDN 		8-97957-267-2 01 1 0008-0008 ●
20 COVER; TRIM,RR PILLAR
WAGON(TB**V*) LIGHT GRAY IDN 		8-97957-267-3 01 1 0009-0106 ● ● ●
20 COVER; TRIM,RR PILLAR
LIGHT GRAY IDN 		8-97957-267-3 01 1 0107-0109 ●
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> LIGHT GRAY IDN 		8-97957-267-3 01 1 0107-0109 ● ●
20 COVER; TRIM,RR PILLAR
GRAY IDN 		8-97560-645-3 01 1 0110-0209 ●
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-645-3 01 1 0110-0209 ● ●
20 COVER; TRIM,RR PILLAR
BLACK IDN 		8-97561-550-4 01 1 0210-0508 ●
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-550-4 01 1 0210-0508 ● ● ●
20 COVER; TRIM,RR PILLAR
BLACK IDN 		8-97562-685-4 01 1 0509- ●
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-685-4 01 1 0509- ● ● ●
20 COVER; TRIM,RR PILLAR
WAGON(TB**V*) LIGHT GRAY IDN 		8-97957-266-2 01 1 0008-0008 ●
20 COVER; TRIM,RR PILLAR
LIGHT GRAY IDN 		8-97957-266-2 01 1 0008-0008 ●
20 COVER; TRIM,RR PILLAR
WAGON(TB**V*) LIGHT GRAY IDN 		8-97957-266-3 01 1 0009-0106 ● ● ●
20 COVER; TRIM,RR PILLAR
LIGHT GRAY IDN 		8-97957-266-3 01 1 0107-0109 ●
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> LIGHT GRAY IDN 		8-97957-266-3 01 1 0107-0109 ● ●
20 COVER; TRIM,RR PILLAR
GRAY IDN 		8-97560-644-3 01 1 0110-0209 ●
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-644-3 01 1 0110-0209 ● ●
20 COVER; TRIM,RR PILLAR
BLACK IDN 		8-97561-549-4 01 1 0210-0508 ●
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-549-4 01 1 0210-0508 ● ● ●
20 COVER; TRIM,RR PILLAR
BLACK IDN 		8-97562-684-4 01 1 0509- ●
20 COVER; TRIM,RR PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-684-4 01 1 0509- ● ● ●
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> LIGHT GRAY IDN 		8-97957-269-0 01 1 0107-0109 ● ●
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-647-0 01 1 0110-0209 ● ●
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-552-1 01 1 0210-0508 ● ● ●
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-687-1 01 1 0509- ● ● ●
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> LIGHT GRAY IDN 		8-97957-268-0 01 1 0107-0109 ● ●
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-646-0 01 1 0110-0209 ● ●
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-551-1 01 1 0210-0508 ● ● ●
20 COVER; TRIM,RR PILLAR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-686-1 01 1 0509- ● ● ●
123 SEAL; RR QUARTER
WAGON(TB**V*) OD=20 T=0.05 WHITE IDN 		8-97856-832-1 04 1 0008-0106 ● ● ●
123 SEAL; RR QUARTER
OD=20 T=0.05 WHITE IDN 		8-97856-832-1 04 1 0107-0209 ● ● ●
123 SEAL; RR QUARTER
OD=20 T=0.05 WHITE IDN 		8-97856-832-2 04 1 0210- ● ● ● ●
130 COVER; TRIM,QUARTER PILLAR
WAGON(TB**V*) LIGHT GRAY IDN 		8-97957-273-4 01 1 0008-0008 ●
130 COVER; TRIM,QUARTER PILLAR
LIGHT GRAY IDN 		8-97957-273-4 01 1 0008-0008 ●
130 COVER; TRIM,QUARTER PILLAR
WAGON(TB**V*) LIGHT GRAY IDN 		8-97957-273-4 01 1 0009-0106 ● ●
130 COVER; TRIM,QUARTER PILLAR
LIGHT GRAY IDN 		8-97957-273-4 01 1 0009-0106 ●
130 COVER; TRIM,QUARTER PILLAR
LIGHT GRAY IDN 		8-97957-273-5 01 1 0107-0109 ●
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> LIGHT GRAY IDN 		8-97957-273-5 01 1 0107-0109 ● ●
130 COVER; TRIM,QUARTER PILLAR
GRAY IDN 		8-97560-653-5 01 1 0110-0209 ●
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-653-5 01 1 0110-0209 ● ●
130 COVER; TRIM,QUARTER PILLAR
BLACK IDN 		8-97561-558-6 01 1 0210-0508 ●
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-558-6 01 1 0210-0508 ● ●
130 COVER; TRIM,QUARTER PILLAR
BLACK IDN 		8-97562-693-6 01 1 0509- ●
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-693-6 01 1 0509- ● ●
130 COVER; TRIM,QUARTER PILLAR
WAGON(TB**V*) LIGHT GRAY IDN 		8-97957-272-4 01 1 0008-0008 ●
130 COVER; TRIM,QUARTER PILLAR
LIGHT GRAY IDN 		8-97957-272-4 01 1 0008-0008 ●
130 COVER; TRIM,QUARTER PILLAR
WAGON(TB**V*) LIGHT GRAY IDN 		8-97957-272-4 01 1 0009-0106 ● ●
130 COVER; TRIM,QUARTER PILLAR
LIGHT GRAY IDN 		8-97957-272-4 01 1 0009-0106 ●
130 COVER; TRIM,QUARTER PILLAR
LIGHT GRAY IDN 		8-97957-272-5 01 1 0107-0109 ●
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> LIGHT GRAY IDN 		8-97957-272-5 01 1 0107-0109 ● ●
130 COVER; TRIM,QUARTER PILLAR
GRAY IDN 		8-97560-652-5 01 1 0110-0209 ●
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-652-5 01 1 0110-0209 ● ●
130 COVER; TRIM,QUARTER PILLAR
BLACK IDN 		8-97561-557-6 01 1 0210-0508 ●
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-557-6 01 1 0210-0508 ● ●
130 COVER; TRIM,QUARTER PILLAR
BLACK IDN 		8-97562-692-6 01 1 0509- ●
130 COVER; TRIM,QUARTER PILLAR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-692-6 01 1 0509- ● ●
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> LIGHT GRAY IDN 		8-97957-275-0 01 1 0107-0109 ● ●
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-655-0 01 1 0110-0209 ● ●
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-560-1 01 1 0210-0508 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-695-1 01 1 0509- ● ● ●
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> LIGHT GRAY IDN 		8-97957-274-0 01 1 0107-0109 ● ●
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-654-0 01 1 0110-0209 ● ●
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-559-1 01 1 0210-0508 ● ● ●
130 COVER; TRIM,QUARTER PILLAR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-694-1 01 1 0509- ● ● ●
140 PAD; TRIM,QTR
GRAY IDN 		8-97957-253-3 01 1 0107-0209 ●
140 PAD; TRIM,QTR
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97957-253-3 01 1 0107-0209 ● ●
140 PAD; TRIM,QTR
BLACK IDN 		8-97561-640-3 01 1 0210- ●
140 PAD; TRIM,QTR
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-640-3 01 1 0210- ● ●
140 PAD; TRIM,QTR
WAGON(TB**V*) EXC. AIR CONDITIONER ROOF MOUNTED<C69> GRAY IDN 		8-97957-901-1 01 1 0008-0101 ● ●
140 PAD; TRIM,QTR
EXC. AIR CONDITIONER ROOF MOUNTED<C69> GRAY IDN 		8-97957-901-1 01 1 0008-0101 ●
140 PAD; TRIM,QTR
WAGON(TB**V*) GRAY IDN 		8-97957-901-1 01 1 0102-0102 ●
140 PAD; TRIM,QTR
WAGON(TB**V*) EXC. AIR CONDITIONER ROOF MOUNTED<C69> GRAY IDN 		8-97957-901-2 01 1 0102-0106 ● ●
140 PAD; TRIM,QTR
EXC. 3RD SEAT 7 PASSENGERS<AS3>,AIR CONDITIONER ROOF MOUNTED<C69> GRAY IDN 		8-97957-901-2 01 1 0107-0209 ● ● ●
140 PAD; TRIM,QTR
EXC. 3RD SEAT 7 PASSENGERS<AS3>,AIR CONDITIONER ROOF MOUNTED<C69> BLACK IDN 		8-97561-641-2 01 1 0210- ● ● ● ●
140 PAD; TRIM,QTR
AIR CONDITIONER ROOF MOUNTED<C69> GRAY IDN 		8-97957-897-2 01 1 0008-0101 ● ● ●
140 PAD; TRIM,QTR
WAGON(TB**V*) GRAY IDN 		8-97957-253-0 01 1 0008-0106 ● ● ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97959-461-1 01 1 0107-0209 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-070-1 01 1 0210- ●
140 PAD; TRIM,QTR
AIR CONDITIONER ROOF MOUNTED<C69> GRAY IDN 		8-97957-897-3 01 1 0102-0106 ●
140 PAD; TRIM,QTR
AIR CONDITIONER ROOF MOUNTED<C69> EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97959-658-1 01 1 0107-0209 ● ●
140 PAD; TRIM,QTR
AIR CONDITIONER ROOF MOUNTED<C69> EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-648-1 01 1 0210- ● ● ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> HI GRADE(6PQ) LIGHT GRAY IDN 		8-97957-300-2 01 1 0107-0209 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-644-0 01 1 0210- ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> HI GRADE(6PQ) LIGHT GRAY IDN 		8-97957-297-1 01 1 0107-0209 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-642-0 01 1 0210- ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> HI GRADE(6PQ) EXC. AIR CONDITIONER ROOF MOUNTED<C69> LIGHT GRAY IDN 		8-97957-298-1 01 1 0107-0107 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> EXC. HI GRADE(6PQ) LIGHT GRAY IDN 		8-97957-296-2 01 1 0107-0209 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> BLACK IDN 		8-97561-645-0 01 1 0210-0406 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY IDN 		8-97562-588-0 01 1 0407- ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> EXC. HI GRADE(6PQ) LIGHT GRAY IDN 		8-97957-295-1 01 1 0107-0209 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-643-0 01 1 0210-0406 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97562-586-0 01 1 0407- ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> GRAY IDN 		8-97959-463-1 01 1 0107-0209 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> BLACK IDN 		8-97562-071-1 01 1 0210-0406 ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> DARK GRAY IDN 		8-97562-587-0 01 1 0407- ●
140 PAD; TRIM,QTR
3RD SEAT 7 PASSENGERS<AS3> EXC. AIR CONDITIONER ROOF MOUNTED<C69> GRAY IDN 		8-97959-462-0 01 1 0107-0107 ●
157 COVER; TRIM,RR QUARTER
WAGON(TB**V*) GRAY IDN 		8-97957-271-3 01 1 0008-0008 ●
157 COVER; TRIM,RR QUARTER
WAGON(TB**V*) GRAY IDN 		8-97957-271-4 01 1 0009-0106 ● ●
157 COVER; TRIM,RR QUARTER
GRAY IDN 		8-97957-271-5 01 1 0107-0109 ●
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97957-271-5 01 1 0107-0109 ● ●
157 COVER; TRIM,RR QUARTER
GRAY IDN 		8-97560-651-5 01 1 0110-0209 ●
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-651-5 01 1 0110-0209 ● ●
157 COVER; TRIM,RR QUARTER
BLACK IDN 		8-97561-556-6 01 1 0210-0508 ●
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-556-6 01 1 0210-0508 ● ● ●
157 COVER; TRIM,RR QUARTER
BLACK IDN 		8-97562-691-6 01 1 0509- ●
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-691-6 01 1 0509- ● ● ●
157 COVER; TRIM,RR QUARTER
WAGON(TB**V*) GRAY IDN 		8-97957-270-3 01 1 0008-0008 ●
157 COVER; TRIM,RR QUARTER
WAGON(TB**V*) GRAY IDN 		8-97957-270-4 01 1 0009-0106 ● ●
157 COVER; TRIM,RR QUARTER
GRAY IDN 		8-97957-270-5 01 1 0107-0109 ●
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97957-270-5 01 1 0107-0109 ● ●
157 COVER; TRIM,RR QUARTER
GRAY IDN 		8-97560-650-5 01 1 0110-0209 ●
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-650-5 01 1 0110-0209 ● ●
157 COVER; TRIM,RR QUARTER
BLACK IDN 		8-97561-555-6 01 1 0210-0508 ●
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-555-6 01 1 0210-0508 ● ● ●
157 COVER; TRIM,RR QUARTER
BLACK IDN 		8-97562-690-6 01 1 0509- ●
157 COVER; TRIM,RR QUARTER
EXC. 3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-690-6 01 1 0509- ● ● ●
157 COVER; TRIM,RR QUARTER
LIGHT GRAY IDN 		8-97957-329-4 01 1 0008-0106 ●
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-304-0 01 1 0107-0109 ● ●
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-649-0 01 1 0110-0209 ● ●
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-554-1 01 1 0210-0508 ● ● ●
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-689-1 01 1 0509- ● ● ●
157 COVER; TRIM,RR QUARTER
LIGHT GRAY IDN 		8-97957-328-4 01 1 0008-0106 ●
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-303-0 01 1 0107-0109 ● ●
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> GRAY IDN 		8-97560-648-0 01 1 0110-0209 ● ●
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97561-553-1 01 1 0210-0508 ● ● ●
157 COVER; TRIM,RR QUARTER
3RD SEAT 7 PASSENGERS<AS3> BLACK IDN 		8-97562-688-1 01 1 0509- ● ● ●
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3>,AIR CONDITIONER ROOF MOUNTED<C69> H=19.1 		8-94385-553-0 02 1 0305- ● ● ● ●
171 CLIP; TRIM PAD
WAGON LONG(TB**VF) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> H=19.1 		8-94385-553-0 02 1 0305- ● ● ● ●
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3> H=19.1 		8-94385-553-0 02 1 0305- ● ●
171 CLIP; TRIM PAD
H=19.1 		8-94385-553-0 02 1 0305- ● ●
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3>,AIR CONDITIONER ROOF MOUNTED<C69> H=29.8 		8-97262-708-0 10 1 0305- ● ● ● ●
171 CLIP; TRIM PAD
WAGON LONG(TB**VF) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> H=29.8 		8-97262-708-0 10 1 0305- ● ●
171 CLIP; TRIM PAD
3RD SEAT 7 PASSENGERS<AS3> H=19.1 		8-94385-553-0 04 1 0305- ●
171 CLIP; TRIM PAD
H=29.8 		8-97262-708-0 13 1 0107-0107 ●
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 13 1 0107-0107 ● ●
171 CLIP; TRIM PAD
3RD SEAT 7 PASSENGERS<AS3> HI GRADE(6PQ) H=29.8 		8-97262-708-0 13 1 0107-0107 ●
171 CLIP; TRIM PAD
H=29.8 		8-97262-708-0 13 1 0107-0209 ● ●
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 13 1 0107-0209 ●
171 CLIP; TRIM PAD
3RD SEAT 7 PASSENGERS<AS3> HI GRADE(6PQ) H=29.8 		8-97262-708-0 13 1 0107-0209 ●
171 CLIP; TRIM PAD
H=29.8 		8-97262-708-0 13 1 0210-0304 ● ● ●
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 13 1 0210-0304 ●
171 CLIP; TRIM PAD
H=29.8 		8-97262-708-0 11 1 0305- ● ● ●
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 11 1 0305- ●
171 CLIP; TRIM PAD
WAGON(TB**V*) H=16.3 IDN 		8-97126-393-0 11 1 0008-0009 ● ● ●
171 CLIP; TRIM PAD
WAGON(TB**V*) H=29.8 		8-97262-708-0 12 1 0010-0101 ● ● ●
171 CLIP; TRIM PAD
WAGON(TB**V*) H=29.8 		8-97262-708-0 25 1 0102-0102 ●
171 CLIP; TRIM PAD
WAGON(TB**V*) EXC. AIR CONDITIONER ROOF MOUNTED<C69> H=29.8 		8-97262-708-0 12 1 0102-0106 ●
171 CLIP; TRIM PAD
WAGON(TB**V*) H=29.8 		8-97262-708-0 12 1 0102-0106 ●
171 CLIP; TRIM PAD
H=29.8 		8-97262-708-0 12 1 0107-0107 ●
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 12 1 0107-0107 ● ●
171 CLIP; TRIM PAD
3RD SEAT 7 PASSENGERS<AS3> HI GRADE(6PQ) H=29.8 		8-97262-708-0 12 1 0107-0107 ●
171 CLIP; TRIM PAD
H=29.8 		8-97262-708-0 12 1 0107-0209 ●
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 12 1 0107-0209 ● ●
171 CLIP; TRIM PAD
3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> H=29.8 		8-97262-708-0 12 1 0107-0209 ● ●
171 CLIP; TRIM PAD
H=29.8 		8-97262-708-0 12 1 0210-0304 ●
171 CLIP; TRIM PAD
EXC. 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 12 1 0210-0304 ● ● ●
171 CLIP; TRIM PAD
AIR CONDITIONER ROOF MOUNTED<C69> EXC. 3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 12 1 0305- ● ● ●
171 CLIP; TRIM PAD
WAGON(TB**V*) H=16.3 IDN 		8-97126-393-0 12 1 0008-0009 ● ● ●
171 CLIP; TRIM PAD
WAGON(TB**V*) H=29.8 		8-97262-708-0 13 1 0010-0101 ● ● ●
171 CLIP; TRIM PAD
WAGON(TB**V*) H=29.8 		8-97262-708-0 26 1 0102-0106 ● ● ●
171 CLIP; TRIM PAD
AIR CONDITIONER ROOF MOUNTED<C69> HI GRADE(6PQ) H=16.3 IDN 		8-97126-393-0 14 1 0102-0102 ●
171 CLIP; TRIM PAD
HI GRADE(6PQ) EXC. AIR CONDITIONER ROOF MOUNTED<C69> H=16.3 IDN 		8-97126-393-0 28 1 0102-0102 ●
171 CLIP; TRIM PAD
3RD SEAT 7 PASSENGERS<AS3> EXC. HI GRADE(6PQ) H=29.8 		8-97262-708-0 25 1 0107-0209 ●
171 CLIP; TRIM PAD
3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 25 1 0210-0304 ●
171 CLIP; TRIM PAD
3RD SEAT 7 PASSENGERS<AS3> H=29.8 		8-97262-708-0 21 1 0305- ●
171 CLIP; TRIM PAD
WAGON(TB**V*) EXC. HI GRADE(6PQ) H=16.3 IDN 		8-97126-393-0 29 1 0102-0102 ●
219 PAD; PILLAR,SOFT
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 01 1 0009-0106 ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 01 1 0009-0106 ●
219 PAD; PILLAR,SOFT
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 01 1 0107-0209 ● ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 01 1 0210-0405 ● ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 02 1 0406- ● ●
219 PAD; PILLAR,SOFT
WAGON(TB**V*) (A) IDN 		8-97957-616-0 02 1 0008-0008 ●
219 PAD; PILLAR,SOFT
(A) IDN 		8-97957-616-0 02 1 0008-0008 ●
219 PAD; PILLAR,SOFT
WAGON(TB**V*) (A) IDN 		8-97957-616-0 02 1 0009-0106 ● ● ●
219 PAD; PILLAR,SOFT
(A) IDN 		8-97957-616-1 02 1 0107-0209 ● ● ●
219 PAD; PILLAR,SOFT
(A) IDN 		8-97957-616-1 02 1 0210- ● ● ● ●
219 PAD; PILLAR,SOFT
WAGON(TB**V*) (B) IDN 		8-97958-116-0 01 1 0008-0008 ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97958-116-0 01 1 0008-0008 ●
219 PAD; PILLAR,SOFT
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97958-116-1 01 1 0009-0106 ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97958-116-1 01 1 0009-0106 ●
219 PAD; PILLAR,SOFT
AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97958-116-1 01 1 0107-0209 ● ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97958-116-1 01 1 0210- ● ●
219 PAD; PILLAR,SOFT
WAGON(TB**V*) (B) IDN 		8-97957-617-0 02 1 0008-0008 ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-0 02 1 0008-0008 ●
219 PAD; PILLAR,SOFT
WAGON(TB**V*) (B) IDN 		8-97957-617-1 02 1 0009-0106 ●
219 PAD; PILLAR,SOFT
WAGON(TB**V*) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 02 1 0009-0106 ●
219 PAD; PILLAR,SOFT
WAGON LONG(TB**VF) EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 02 1 0009-0106 ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 02 1 0107-0209 ●
219 PAD; PILLAR,SOFT
EXC. AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97957-617-1 02 1 0107-0209 ● ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 02 1 0210-0405 ● ●
219 PAD; PILLAR,SOFT
(B) IDN 		8-97957-617-1 01 1 0406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
