◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-41 - SIDE WINDOW GLASS AND WEATHERSTRIP ▶
6-41 — SIDE WINDOW GLASS AND WEATHERSTRIP (#95366) — 9 parça

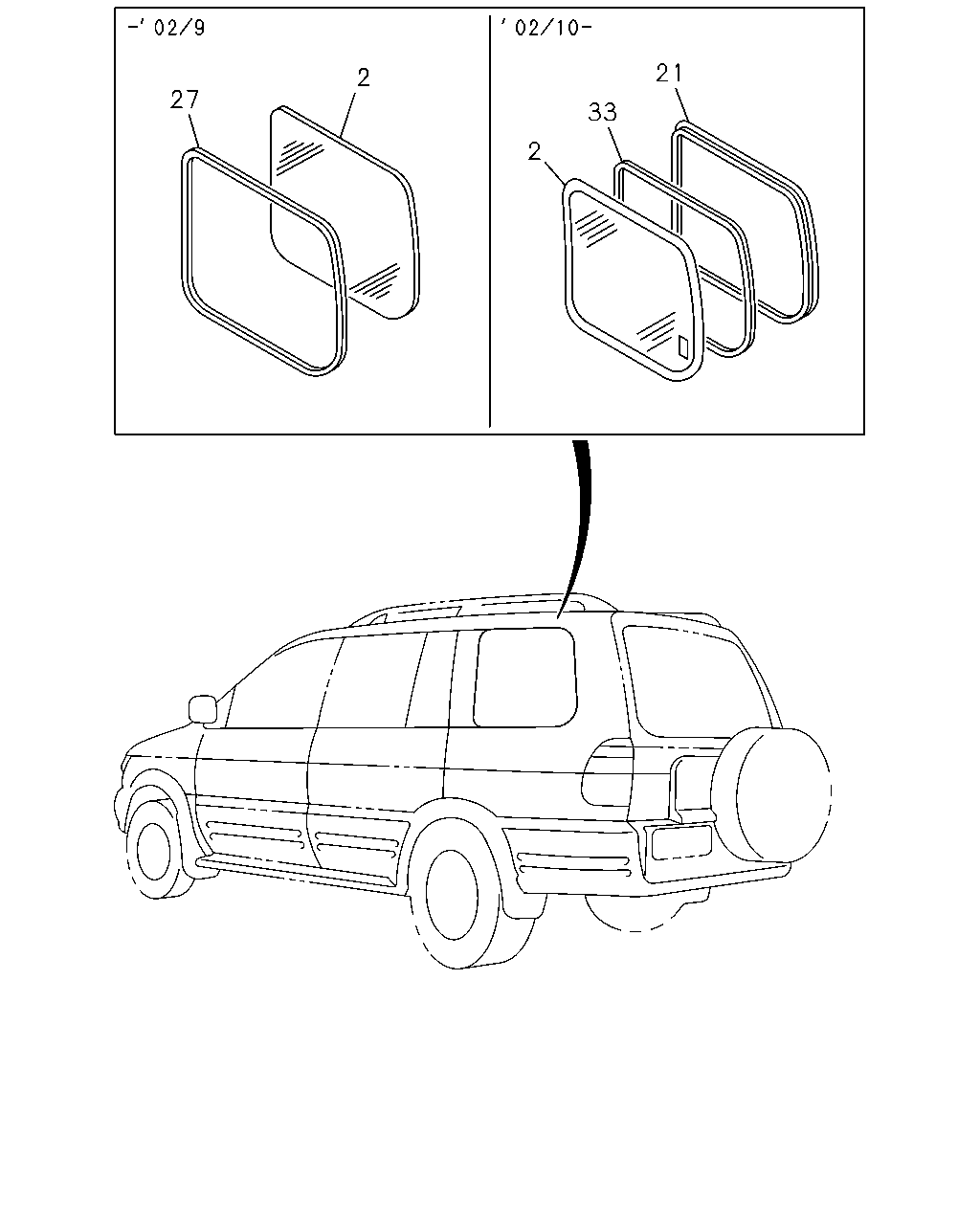

çizim 289107
27 2 2 33 21
BalonParca AdiParca NoAdetTipApplied Date A B
2 GLASS; RR QUARTER
IDN 		8-97955-909-1 01 1 0008-0209 ● ●
2 GLASS; RR QUARTER
IDN 		8-97561-159-1 01 1 0210- ● ●
2 GLASS; RR QUARTER
IDN 		8-97955-908-1 01 1 0008-0209 ● ●
2 GLASS; RR QUARTER
IDN 		8-97561-158-1 01 1 0210- ● ●
21 FINISHER; SIDE WINDOW,RR
IDN 		8-97561-396-2 01 1 0210- ● ●
21 FINISHER; SIDE WINDOW,RR
IDN 		8-97561-163-2 01 1 0210- ● ●
27 WEATHERSTRIP; RR QUARTER
IDN 		8-97955-911-0 01 1 0008-0209 ● ●
27 WEATHERSTRIP; RR QUARTER
IDN 		8-97955-910-0 01 1 0008-0209 ● ●
33 MOLDING; SIDE WINDOW
IDN 		8-97561-161-2 02 1 0210- ● ●
