6-35 — FRONT DOOR TRIM (#95365) — 157 parça

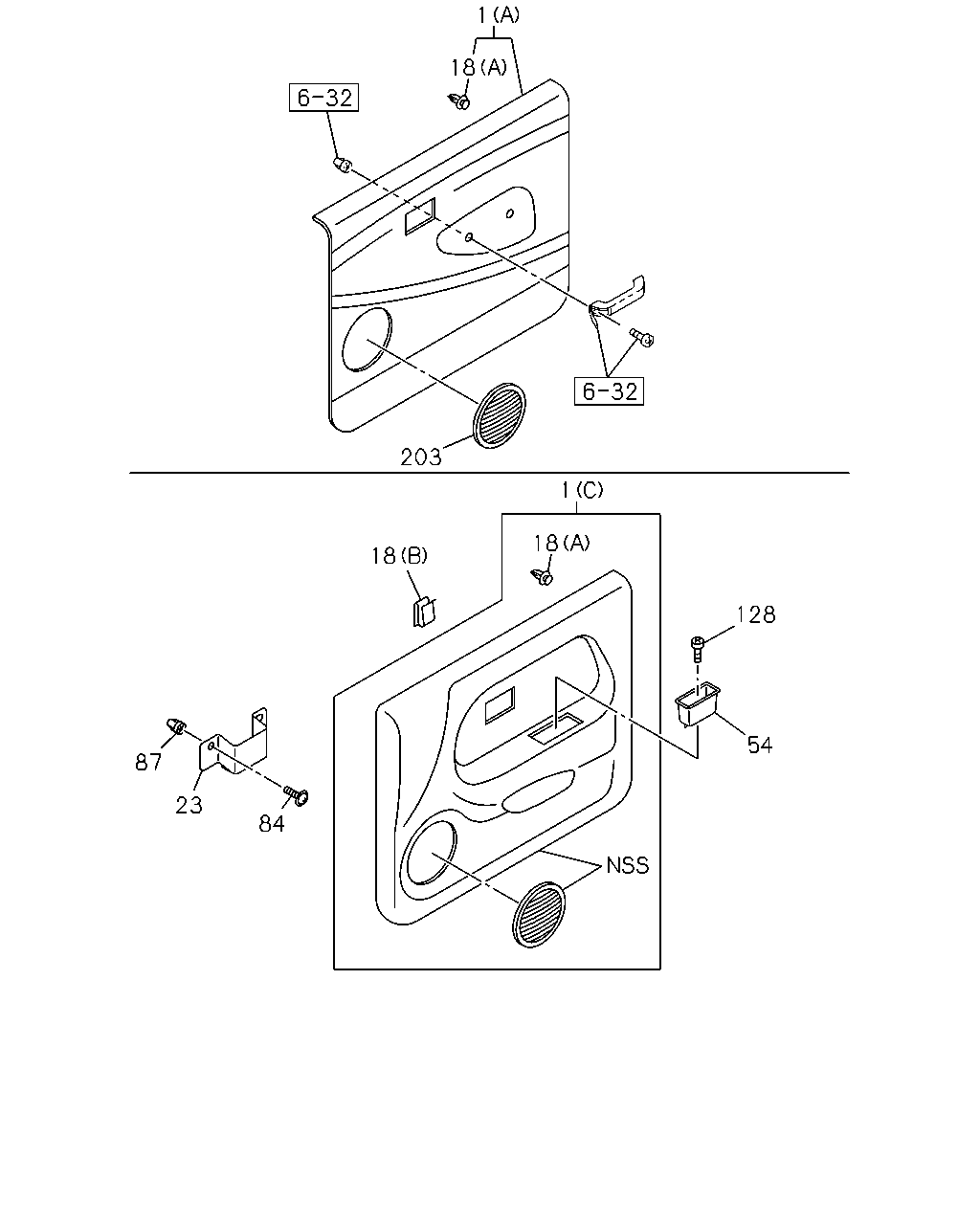

çizim 289065
1 18 1 203 18 18 128 54 84 23 87
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAD; TRIM,FRT DOOR
UP GRADE PACKAGE<7MA> (C) DARK GRAY IDN 		8-97562-494-0 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
UP GRADE PACKAGE<7MA> (C) DARK GRAY IDN 		8-97562-498-0 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
(A) GRAY IDN 		8-97957-337-6 01 1 0008-0209 ●
1 PAD; TRIM,FRT DOOR
(A) BLACK IDN 		8-97561-566-6 01 1 0210- ●
1 PAD; TRIM,FRT DOOR
(A) GRAY IDN 		8-97957-336-6 01 1 0008-0209 ●
1 PAD; TRIM,FRT DOOR
(A) BLACK IDN 		8-97561-565-6 01 1 0210- ●
1 PAD; TRIM,FRT DOOR
HI GRADE(6PQ) (B) GRAY IDN 		8-97957-280-6 01 1 0008-0209 ●
1 PAD; TRIM,FRT DOOR
(B) BLACK IDN 		8-97561-568-1 01 1 0210- ●
1 PAD; TRIM,FRT DOOR
HI GRADE(6PQ) (B) GRAY IDN 		8-97957-279-7 01 1 0008-0209 ●
1 PAD; TRIM,FRT DOOR
(B) BLACK IDN 		8-97561-567-1 01 1 0210- ●
1 PAD; TRIM,FRT DOOR
EXC. HI GRADE(6PQ) (B) GRAY IDN 		8-97957-339-7 01 1 0008-0209 ●
1 PAD; TRIM,FRT DOOR
(B) BLACK IDN 		8-97561-570-1 01 1 0210-0405 ●
1 PAD; TRIM,FRT DOOR
EXC. UP GRADE PACKAGE<7MA> (B) BLACK IDN 		8-97561-570-1 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
EXC. HI GRADE(6PQ) (B) GRAY IDN 		8-97957-338-7 01 1 0008-0209 ●
1 PAD; TRIM,FRT DOOR
(B) BLACK IDN 		8-97561-569-1 01 1 0210-0405 ●
1 PAD; TRIM,FRT DOOR
EXC. UP GRADE PACKAGE<7MA> (B) BLACK IDN 		8-97561-569-1 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
(C) GRAY IDN 		8-97957-341-3 01 1 0008-0106 ●
1 PAD; TRIM,FRT DOOR
(C) GRAY IDN 		8-97560-510-1 01 1 0107-0209 ●
1 PAD; TRIM,FRT DOOR
(C) BLACK IDN 		8-97561-983-2 01 1 0210- ●
1 PAD; TRIM,FRT DOOR
(C) GRAY IDN 		8-97957-340-3 01 1 0008-0106 ●
1 PAD; TRIM,FRT DOOR
(C) GRAY IDN 		8-97560-509-1 01 1 0107-0209 ●
1 PAD; TRIM,FRT DOOR
(C) BLACK IDN 		8-97561-982-2 01 1 0210- ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0008-0209 ● ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0210-0405 ● ● ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0406- ● ●
18 CLIP; DOOR PAD
EXC. UP GRADE PACKAGE<7MA> (A) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0406- ●
18 CLIP; DOOR PAD
(B) B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0008-0106 ● ●
18 CLIP; DOOR PAD
(B) B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0107-0209 ● ●
18 CLIP; DOOR PAD
(B) B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0210- ● ● ●
18 CLIP; DOOR PAD
(A) H=16.3 IDN 		8-97126-393-0 20 1 0008-0009 ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 20 1 0010-0103 ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 06 1 0104-0106 ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 06 1 0107-0405 ●
18 CLIP; DOOR PAD
UP GRADE PACKAGE<7MA> (A) H=20.6 D8X13.8 IDN 		8-97260-948-0 06 1 0406- ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 06 1 0406- ●
18 CLIP; DOOR PAD
(A) H=16.3 IDN 		8-97126-393-0 14 1 0104-0106 ●
18 CLIP; DOOR PAD
(A) H=16.3 IDN 		8-97126-393-0 14 1 0107-0107 ●
18 CLIP; DOOR PAD
(A) H=16.3 IDN 		8-97126-393-0 12 1 0107-0405 ●
18 CLIP; DOOR PAD
UP GRADE PACKAGE<7MA> (A) H=16.3 IDN 		8-97126-393-0 12 1 0406- ●
18 CLIP; DOOR PAD
(A) H=16.3 IDN 		8-97126-393-0 12 1 0406- ●
23 BRACKET; DOOR TRIM
IDN 		8-97955-688-0 02 1 0008-0106 ●
23 BRACKET; DOOR TRIM
IDN 		8-97955-688-0 02 1 0107-0405 ●
23 BRACKET; DOOR TRIM
UP GRADE PACKAGE<7MA> IDN 		8-97955-688-0 02 1 0406- ●
23 BRACKET; DOOR TRIM
IDN 		8-97955-688-0 02 1 0406- ●
54 BOX; FRT DOOR
GRAY 		8-97196-884-0 02 1 0008-0106 ●
54 BOX; FRT DOOR
GRAY 		8-97196-884-0 02 1 0107-0209 ●
54 BOX; FRT DOOR
BLACK IDN 		8-97394-019-0 02 1 0210-0405 ●
54 BOX; FRT DOOR
UP GRADE PACKAGE<7MA> BLACK IDN 		8-97394-019-0 02 1 0406-0508 ●
54 BOX; FRT DOOR
BLACK IDN 		8-97394-019-0 02 1 0406-0508 ●
54 BOX; FRT DOOR
UP GRADE PACKAGE<7MA> BLACK IDN 		8-97404-852-0 02 1 0509- ●
54 BOX; FRT DOOR
BLACK IDN 		8-97404-852-0 02 1 0509- ●
84 SCREW; BOX BRKT
M6X25 TAPPING 		9-07077-625-0 06 1 0008-0106 ●
84 SCREW; BOX BRKT
M6X25 TAPPING 		9-07077-625-0 06 1 0107-0405 ●
84 SCREW; BOX BRKT
UP GRADE PACKAGE<7MA> M6X25 TAPPING 		9-07077-625-0 06 1 0406- ●
84 SCREW; BOX BRKT
M6X25 TAPPING 		9-07077-625-0 06 1 0406- ●
87 GROMMET; SCREW,BRKT
IDN 		8-94481-286-2 06 1 0008-0106 ●
87 GROMMET; SCREW,BRKT
IDN 		8-94481-286-2 06 1 0107-0405 ●
87 GROMMET; SCREW,BRKT
UP GRADE PACKAGE<7MA> IDN 		8-94481-286-2 06 1 0406- ●
87 GROMMET; SCREW,BRKT
IDN 		8-94481-286-2 06 1 0406- ●
128 SCREW; TAP
M5X16 IDN 		8-94380-268-0 02 1 0008-0106 ●
128 SCREW; TAP
M5X16 IDN 		8-94380-268-0 02 1 0107-0405 ●
128 SCREW; TAP
UP GRADE PACKAGE<7MA> M5X16 IDN 		8-94380-268-0 02 1 0406- ●
128 SCREW; TAP
M5X16 IDN 		8-94380-268-0 02 1 0406- ●
203 GRILLE; SPEAKER
DARK GRAY IDN 		8-97561-659-0 02 1 0210-0405 ● ● ●
203 GRILLE; SPEAKER
DARK GRAY IDN 		8-97561-659-0 02 1 0406- ● ●
203 GRILLE; SPEAKER
EXC. UP GRADE PACKAGE<7MA> DARK GRAY IDN 		8-97561-659-0 02 1 0406- ●

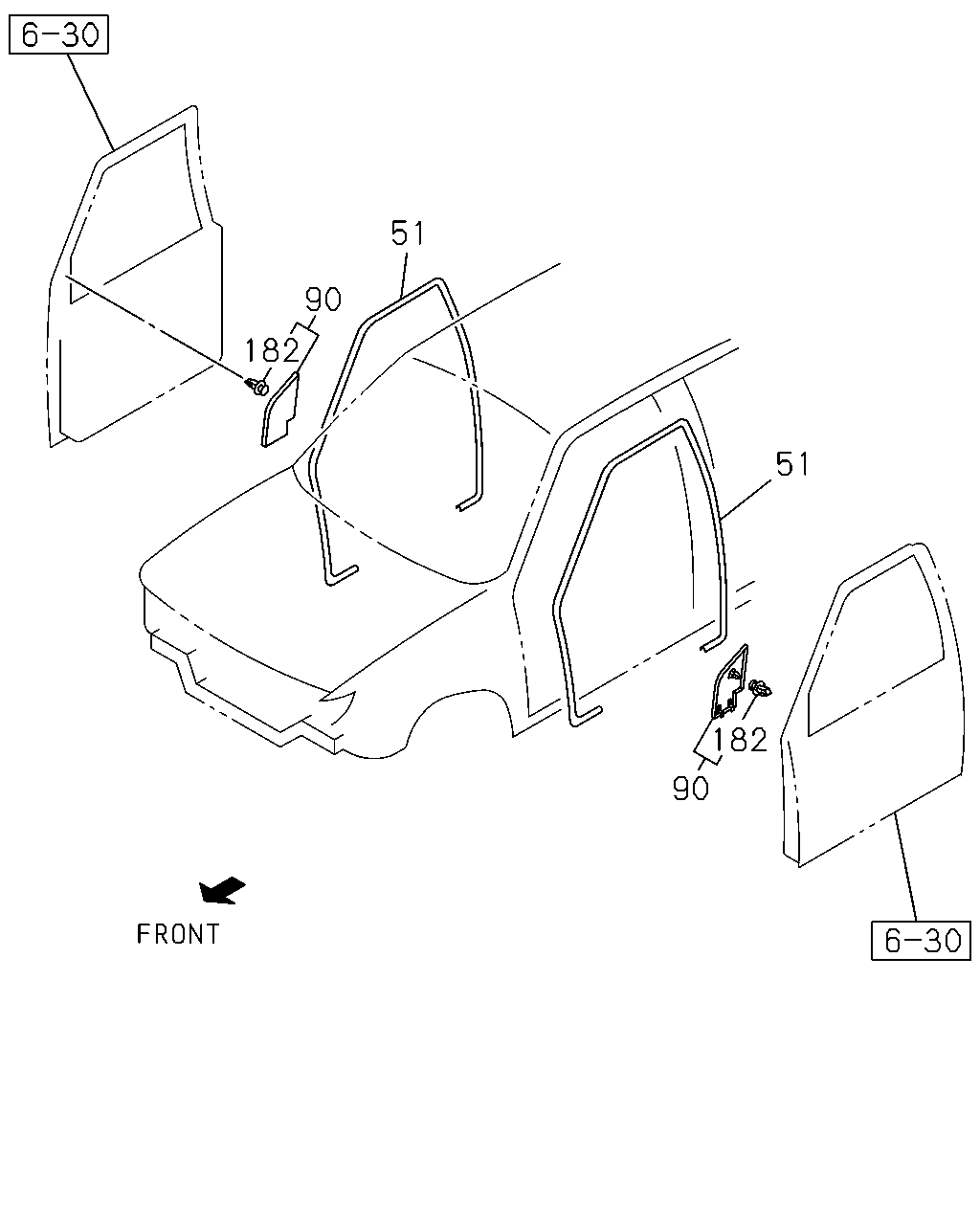

çizim 289067
182 90 51 51 182 90
BalonParca AdiParca NoAdetTipApplied Date A B C D
51 WEATHERSTRIP; FRONT DOOR 8-97248-141-1 02 1 0008-0106 ● ● ●
51 WEATHERSTRIP; FRONT DOOR 8-97248-141-1 02 1 0107-0209 ● ● ●
51 WEATHERSTRIP; FRONT DOOR 8-97248-141-1 02 1 0210-0402 ● ● ● ●
51 WEATHERSTRIP; FRONT DOOR
IDN 		8-97562-376-0 02 1 0403- ● ● ● ●
90 COVER; DOOR CORNER
IDN 		8-97956-004-2 01 1 0008-0010 ● ● ●
90 COVER; DOOR CORNER
IDN 		8-97956-004-2 01 1 0011-0209 ● ●
90 COVER; DOOR CORNER
IDN 		8-97956-004-2 01 1 0210-0405 ● ● ●
90 COVER; DOOR CORNER
EXC. UP GRADE PACKAGE<7MA> IDN 		8-97956-004-2 01 1 0406- ● ● ●
90 COVER; DOOR CORNER
IDN 		8-97956-003-2 01 1 0008-0010 ● ● ●
90 COVER; DOOR CORNER
IDN 		8-97956-003-2 01 1 0011-0209 ● ●
90 COVER; DOOR CORNER
IDN 		8-97956-003-2 01 1 0210-0405 ● ● ●
90 COVER; DOOR CORNER
EXC. UP GRADE PACKAGE<7MA> IDN 		8-97956-003-2 01 1 0406- ● ● ●
90 COVER; DOOR CORNER
IDN 		8-97959-122-0 01 1 0011-0106 ●
90 COVER; DOOR CORNER
IDN 		8-97959-122-0 01 1 0107-0405 ●
90 COVER; DOOR CORNER
UP GRADE PACKAGE<7MA> IDN 		8-97959-122-0 01 1 0406- ●
90 COVER; DOOR CORNER
IDN 		8-97959-122-0 01 1 0406- ●
90 COVER; DOOR CORNER
IDN 		8-97959-121-0 01 1 0011-0106 ●
90 COVER; DOOR CORNER
IDN 		8-97959-121-0 01 1 0107-0405 ●
90 COVER; DOOR CORNER
UP GRADE PACKAGE<7MA> IDN 		8-97959-121-0 01 1 0406- ●
90 COVER; DOOR CORNER
IDN 		8-97959-121-0 01 1 0406- ●
182 CLIP; COVER
H=20.6 D8X13.8 IDN 		8-97260-948-0 02 1 0008-0104 ● ● ●
182 CLIP; COVER
H=16.3 IDN 		8-97126-393-0 02 1 0105-0106 ● ● ●
182 CLIP; COVER
H=16.3 IDN 		8-97126-393-0 02 1 0107-0209 ● ● ●
182 CLIP; COVER
H=16.3 IDN 		8-97126-393-0 02 1 0210-0405 ● ● ●
182 CLIP; COVER
EXC. UP GRADE PACKAGE<7MA> H=16.3 IDN 		8-97126-393-0 02 1 0406- ● ●
182 CLIP; COVER
H=16.3 IDN 		8-97126-393-0 02 1 0406- ● ●
çizim 289888
43 18 41 18 1 5 9 112 9 203
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAD; TRIM,FRT DOOR
UP GRADE PACKAGE<7MA> (C) DARK GRAY IDN 		8-97562-494-0 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
UP GRADE PACKAGE<7MA> (C) DARK GRAY IDN 		8-97562-498-0 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
(A) GRAY IDN 		8-97957-337-6 01 1 0008-0209 ●
1 PAD; TRIM,FRT DOOR
(A) BLACK IDN 		8-97561-566-6 01 1 0210- ●
1 PAD; TRIM,FRT DOOR
(A) GRAY IDN 		8-97957-336-6 01 1 0008-0209 ●
1 PAD; TRIM,FRT DOOR
(A) BLACK IDN 		8-97561-565-6 01 1 0210- ●
1 PAD; TRIM,FRT DOOR
HI GRADE(6PQ) (B) GRAY IDN 		8-97957-280-6 01 1 0008-0209 ●
1 PAD; TRIM,FRT DOOR
(B) BLACK IDN 		8-97561-568-1 01 1 0210- ●
1 PAD; TRIM,FRT DOOR
HI GRADE(6PQ) (B) GRAY IDN 		8-97957-279-7 01 1 0008-0209 ●
1 PAD; TRIM,FRT DOOR
(B) BLACK IDN 		8-97561-567-1 01 1 0210- ●
1 PAD; TRIM,FRT DOOR
EXC. HI GRADE(6PQ) (B) GRAY IDN 		8-97957-339-7 01 1 0008-0209 ●
1 PAD; TRIM,FRT DOOR
(B) BLACK IDN 		8-97561-570-1 01 1 0210-0405 ●
1 PAD; TRIM,FRT DOOR
EXC. UP GRADE PACKAGE<7MA> (B) BLACK IDN 		8-97561-570-1 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
EXC. HI GRADE(6PQ) (B) GRAY IDN 		8-97957-338-7 01 1 0008-0209 ●
1 PAD; TRIM,FRT DOOR
(B) BLACK IDN 		8-97561-569-1 01 1 0210-0405 ●
1 PAD; TRIM,FRT DOOR
EXC. UP GRADE PACKAGE<7MA> (B) BLACK IDN 		8-97561-569-1 01 1 0406- ●
1 PAD; TRIM,FRT DOOR
(C) GRAY IDN 		8-97957-341-3 01 1 0008-0106 ●
1 PAD; TRIM,FRT DOOR
(C) GRAY IDN 		8-97560-510-1 01 1 0107-0209 ●
1 PAD; TRIM,FRT DOOR
(C) BLACK IDN 		8-97561-983-2 01 1 0210- ●
1 PAD; TRIM,FRT DOOR
(C) GRAY IDN 		8-97957-340-3 01 1 0008-0106 ●
1 PAD; TRIM,FRT DOOR
(C) GRAY IDN 		8-97560-509-1 01 1 0107-0209 ●
1 PAD; TRIM,FRT DOOR
(C) BLACK IDN 		8-97561-982-2 01 1 0210- ●
5 POCKET; DOOR
HI GRADE(6PQ) GRAY IDN 		8-97150-665-1 01 1 0008-0209 ●
5 POCKET; DOOR
BLACK 		8-97394-166-1 01 1 0210-0405 ●
5 POCKET; DOOR
EXC. UP GRADE PACKAGE<7MA> BLACK 		8-97394-166-1 01 1 0406-0508 ●
5 POCKET; DOOR
EXC. UP GRADE PACKAGE<7MA> BLACK 		8-97404-880-1 01 1 0509- ●
9 REST; ARM,FRT DOOR
HI GRADE(6PQ) (A) GRAY IDN 		8-97957-281-1 01 1 0008-0209 ●
9 REST; ARM,FRT DOOR
(A) BLACK IDN 		8-97561-571-2 01 1 0210-0405 ●
9 REST; ARM,FRT DOOR
EXC. UP GRADE PACKAGE<7MA> (A) BLACK IDN 		8-97561-571-2 01 1 0406-0508 ●
9 REST; ARM,FRT DOOR
EXC. UP GRADE PACKAGE<7MA> (A) BLACK IDN 		8-97562-697-2 01 1 0509- ●
9 REST; ARM,FRT DOOR
HI GRADE(6PQ) (B) GRAY IDN 		8-97957-226-3 01 1 0008-0209 ●
9 REST; ARM,FRT DOOR
(A) BLACK IDN 		8-97561-571-2 02 1 0210-0508 ●
9 REST; ARM,FRT DOOR
(A) BLACK IDN 		8-97562-697-2 02 1 0509- ●
9 REST; ARM,FRT DOOR
EXC. HI GRADE(6PQ) (A) GRAY IDN 		8-97957-281-1 02 1 0008-0209 ●
9 REST; ARM,FRT DOOR
(B) BLACK IDN 		8-97561-572-3 01 1 0210-0405 ●
9 REST; ARM,FRT DOOR
EXC. UP GRADE PACKAGE<7MA> (B) BLACK IDN 		8-97561-572-3 01 1 0406-0508 ●
9 REST; ARM,FRT DOOR
EXC. UP GRADE PACKAGE<7MA> (B) BLACK IDN 		8-97562-698-3 01 1 0509- ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0008-0209 ● ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0210-0405 ● ● ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0406- ● ●
18 CLIP; DOOR PAD
EXC. UP GRADE PACKAGE<7MA> (A) H=20.6 D8X13.8 IDN 		8-97260-948-0 24 1 0406- ●
18 CLIP; DOOR PAD
(B) B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0008-0106 ● ●
18 CLIP; DOOR PAD
(B) B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0107-0209 ● ●
18 CLIP; DOOR PAD
(B) B=8.4 H=16 CR-PLATED IDN 		8-94116-002-3 06 1 0210- ● ● ●
18 CLIP; DOOR PAD
(A) H=16.3 IDN 		8-97126-393-0 20 1 0008-0009 ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 20 1 0010-0103 ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 06 1 0104-0106 ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 06 1 0107-0405 ●
18 CLIP; DOOR PAD
UP GRADE PACKAGE<7MA> (A) H=20.6 D8X13.8 IDN 		8-97260-948-0 06 1 0406- ●
18 CLIP; DOOR PAD
(A) H=20.6 D8X13.8 IDN 		8-97260-948-0 06 1 0406- ●
18 CLIP; DOOR PAD
(A) H=16.3 IDN 		8-97126-393-0 14 1 0104-0106 ●
18 CLIP; DOOR PAD
(A) H=16.3 IDN 		8-97126-393-0 14 1 0107-0107 ●
18 CLIP; DOOR PAD
(A) H=16.3 IDN 		8-97126-393-0 12 1 0107-0405 ●
18 CLIP; DOOR PAD
UP GRADE PACKAGE<7MA> (A) H=16.3 IDN 		8-97126-393-0 12 1 0406- ●
18 CLIP; DOOR PAD
(A) H=16.3 IDN 		8-97126-393-0 12 1 0406- ●
41 GROMMET; SCREW,DOOR PAD
HI GRADE(6PQ) IDN 		8-94152-494-0 01 1 0106-0209 ●
41 GROMMET; SCREW,DOOR PAD
IDN 		8-94152-494-0 01 1 0210-0405 ●
41 GROMMET; SCREW,DOOR PAD
EXC. UP GRADE PACKAGE<7MA> IDN 		8-94152-494-0 01 1 0406- ●
43 SCREW; DOOR POCKET
HI GRADE(6PQ) M4X14 IDN 		8-94318-550-0 04 1 0008-0209 ●
43 SCREW; DOOR POCKET
M4X14 IDN 		8-94318-550-0 04 1 0210-0405 ●
43 SCREW; DOOR POCKET
EXC. UP GRADE PACKAGE<7MA> M4X14 IDN 		8-94318-550-0 04 1 0406- ●
112 NUT; SPIRE
HI GRADE(6PQ) IDN 		8-97810-118-0 01 1 0008-0105 ●
203 GRILLE; SPEAKER
DARK GRAY IDN 		8-97561-659-0 02 1 0210-0405 ● ● ●
203 GRILLE; SPEAKER
DARK GRAY IDN 		8-97561-659-0 02 1 0406- ● ●
203 GRILLE; SPEAKER
EXC. UP GRADE PACKAGE<7MA> DARK GRAY IDN 		8-97561-659-0 02 1 0406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
