6-32 — FRONT DOOR LOCK AND HANDLE (#95364) — 84 parça

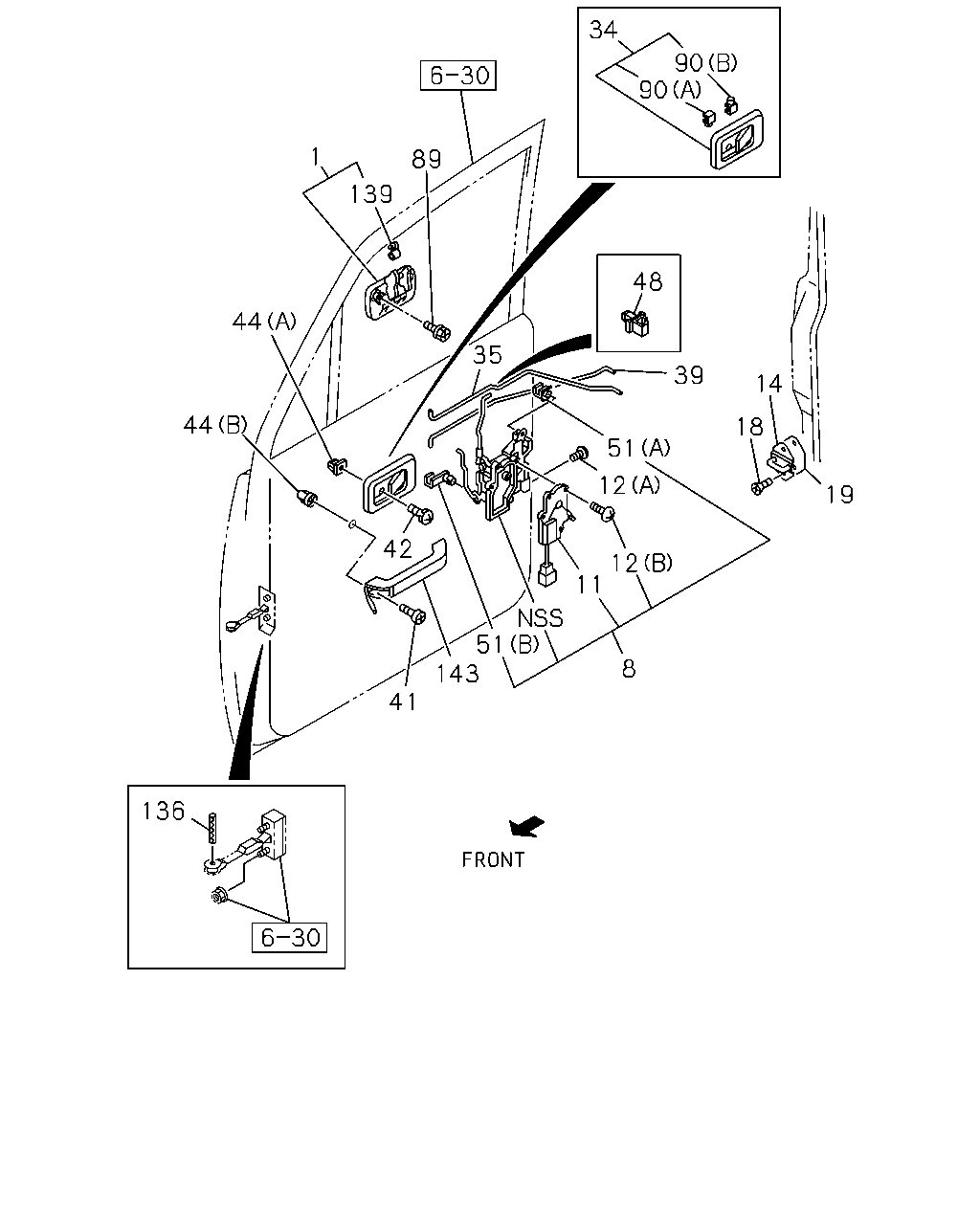

çizim 289036
1 139 89 44 44 42 41 136 143 51 8 11 12 12 51 19 18 39 14 48 35 90 90 34
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; OUTSIDE,FRT DOOR
IDN 		8-97072-485-1 01 1 0008-0106 ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
IDN 		8-97072-485-1 01 1 0107- ● ●
1 HANDLE; OUTSIDE,FRT DOOR
IDN 		8-97072-484-1 01 1 0008-0106 ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR
IDN 		8-97072-484-1 01 1 0107- ● ●
8 LOCK; DOOR,FRT DOOR 8-97250-480-0 01 1 0008-0106 ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97250-480-0 01 1 0008-0106 ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97250-480-1 01 1 0107- ● ●
8 LOCK; DOOR,FRT DOOR 8-97250-479-0 01 1 0008-0106 ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97250-479-0 01 1 0008-0106 ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97250-479-1 01 1 0107- ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-97250-482-2 01 1 0008- ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-97250-481-2 01 1 0008- ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97251-147-2 01 1 0008- ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97251-146-2 01 1 0008- ● ●
12 SCREW; DOOR LK
(A) M6X16 OVAL-HD IDN 		8-94172-523-0 06 1 0008-0106 ● ● ●
12 SCREW; DOOR LK
(A) M6X16 OVAL-HD IDN 		8-94172-523-0 06 1 0107- ● ●
12 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) 		8-97264-641-0 02 1 0008- ● ●
12 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) 		8-97264-615-0 02 1 0008- ● ●
14 STRIKER; FRT DOOR 8-94115-959-0 02 1 0008-0106 ● ● ●
14 STRIKER; FRT DOOR 8-94115-959-0 02 1 0107- ● ●
18 SCREW; DOOR STRIKER
M8X20 		9-03097-820-0 04 1 0008-0106 ● ● ●
18 SCREW; DOOR STRIKER
M8X20 		9-03097-820-0 04 1 0107-0604 ● ●
18 SCREW; DOOR STRIKER
M8X20 		0-30218-820-0 04 1 0605- ● ●
19 SHEET; ADJ,DOOR STRIKER
IDN 		8-94239-378-0 AR 1 0008-0106 ● ● ●
19 SHEET; ADJ,DOOR STRIKER
IDN 		8-94239-378-0 AR 1 0107- ● ●
34 HANDLE; INSIDE,FRT DOOR
GRAY IDN 		8-97196-874-0 01 1 0008-0106 ● ● ●
34 HANDLE; INSIDE,FRT DOOR
GRAY IDN 		8-97196-874-0 01 1 0107-0209 ● ●
34 HANDLE; INSIDE,FRT DOOR
BLACK 		8-97394-017-0 01 1 0210-0305 ● ●
34 HANDLE; INSIDE,FRT DOOR
BLACK IDN 		8-97398-368-0 01 1 0306-0508 ● ●
34 HANDLE; INSIDE,FRT DOOR
BLACK IDN 		8-97398-366-0 01 1 0509- ● ●
34 HANDLE; INSIDE,FRT DOOR
GRAY IDN 		8-97196-873-0 01 1 0008-0106 ● ● ●
34 HANDLE; INSIDE,FRT DOOR
GRAY IDN 		8-97196-873-0 01 1 0107-0209 ● ●
34 HANDLE; INSIDE,FRT DOOR
BLACK 		8-97394-016-0 01 1 0210-0305 ● ●
34 HANDLE; INSIDE,FRT DOOR
BLACK IDN 		8-97398-367-0 01 1 0306-0508 ● ●
34 HANDLE; INSIDE,FRT DOOR
BLACK IDN 		8-97398-365-0 01 1 0509- ● ●
35 LINK; DOOR LOCK,INSIDE 8-97250-468-0 01 1 0008-0106 ● ● ●
35 LINK; DOOR LOCK,INSIDE 8-97250-468-0 01 1 0107- ● ●
35 LINK; DOOR LOCK,INSIDE 8-97250-467-0 01 1 0008-0106 ● ● ●
35 LINK; DOOR LOCK,INSIDE 8-97250-467-0 01 1 0107- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 8-97250-471-0 01 1 0008-0106 ● ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 8-97250-471-0 01 1 0107- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 8-97250-470-0 01 1 0008-0106 ● ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 8-97250-470-0 01 1 0107- ● ●
41 SCREW; INSIDE HANDLE
GRADE NEW SUPER(RBA) M6X25 TAPPING 		9-07077-625-0 04 1 0008-0106 ● ● ●
41 SCREW; INSIDE HANDLE
GRADE NEW SUPER(RBA) M6X25 TAPPING 		9-07077-625-0 04 1 0107- ● ●
42 SCREW; TAPPING,INSIDE LEVER
M5X14 IDN 		8-94152-495-0 02 1 0008-0106 ● ● ●
42 SCREW; TAPPING,INSIDE LEVER
M5X14 IDN 		8-94152-495-0 02 1 0107- ● ●
44 GROMMET; SCREW,INSIDE HANDLE
(A) IDN 		8-94152-494-0 02 1 0008-0106 ● ● ●
44 GROMMET; SCREW,INSIDE HANDLE
(A) IDN 		8-94152-494-0 02 1 0107- ● ●
44 GROMMET; SCREW,INSIDE HANDLE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-94481-286-2 04 1 0008-0106 ● ● ●
44 GROMMET; SCREW,INSIDE HANDLE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-94481-286-2 04 1 0107-0209 ● ●
44 GROMMET; SCREW,INSIDE HANDLE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) IDN 		8-94481-286-2 04 1 0210-0405 ● ●
44 GROMMET; SCREW,INSIDE HANDLE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) IDN 		8-94481-286-2 04 1 0406- ●
44 GROMMET; SCREW,INSIDE HANDLE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> (B) IDN 		8-94481-286-2 04 1 0406- ●
48 ANTIRATTLER; DOOR LINK 8-97126-660-0 04 1 0008-0106 ● ● ●
48 ANTIRATTLER; DOOR LINK 8-97126-660-0 04 1 0107- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
(A) 		8-97264-614-0 01 1 0008-0106 ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
(A) 		8-97264-614-0 01 1 0107- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
(B) 		8-97264-640-0 01 1 0008-0106 ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
(B) 		8-97264-640-0 01 1 0107- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
(A) 		8-97264-613-0 01 1 0008-0106 ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
(A) 		8-97264-613-0 01 1 0107- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
(B) 		8-97264-639-0 01 1 0008-0106 ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
(B) 		8-97264-639-0 01 1 0107- ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 IDN 		8-94155-893-0 04 1 0008-0106 ● ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 IDN 		8-94155-893-0 04 1 0107- ● ●
90 CLIP; DOOR LK LINK
(A) IDN 		8-97079-979-0 01 1 0008-0106 ● ● ●
90 CLIP; DOOR LK LINK
(A) IDN 		8-97079-979-0 01 1 0107- ● ●
90 CLIP; DOOR LK LINK
(B) IDN 		8-97080-106-0 01 1 0008-0106 ● ● ●
90 CLIP; DOOR LK LINK
(B) IDN 		8-97080-106-0 01 1 0107- ● ●
90 CLIP; DOOR LK LINK
(A) IDN 		8-97079-978-0 01 1 0008-0106 ● ● ●
90 CLIP; DOOR LK LINK
(A) IDN 		8-97079-978-0 01 1 0107- ● ●
90 CLIP; DOOR LK LINK
(B) IDN 		8-97080-105-0 01 1 0008-0106 ● ● ●
90 CLIP; DOOR LK LINK
(B) IDN 		8-97080-105-0 01 1 0107- ● ●
136 PIN; DOOR HINGE 8-97020-859-0 02 1 0008-0106 ● ● ●
136 PIN; DOOR HINGE 8-97020-859-0 02 1 0107- ● ●
139 HOLDER; ROD,DOOR HANDLE
BROWN IDN 		8-97037-509-0 01 1 0008-0106 ● ● ●
139 HOLDER; ROD,DOOR HANDLE
BROWN IDN 		8-97037-509-0 01 1 0107- ● ●
139 HOLDER; ROD,DOOR HANDLE
WHITE IDN 		8-97037-508-0 01 1 0008-0106 ● ● ●
139 HOLDER; ROD,DOOR HANDLE
WHITE IDN 		8-97037-508-0 01 1 0107- ● ●
143 GRIP; ASSIST,FRT DOOR
GRADE NEW SUPER(RBA) GRAY IDN 		8-97152-650-2 02 1 0008-0106 ● ● ●
143 GRIP; ASSIST,FRT DOOR
GRADE NEW SUPER(RBA) GRAY IDN 		8-97152-650-2 02 1 0107-0209 ● ●
143 GRIP; ASSIST,FRT DOOR
GRADE NEW SUPER(RBA) DARK GRAY IDN 		8-97394-020-2 02 1 0210-0508 ● ●
143 GRIP; ASSIST,FRT DOOR
GRADE NEW SUPER(RBA) BLACK IDN 		8-94484-616-2 02 1 0509- ● ●
