◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#95363) — 104 parça
çizim 288963
7 1 27 19 36 26 39 43 25 19 27 26 25 265
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; FRT DOOR
IDN 		8-97955-100-2 01 1 0008-0106 ● ● ●
1 GLASS; FRT DOOR
IDN 		8-97955-100-2 01 1 0107- ● ●
1 GLASS; FRT DOOR
IDN 		8-97955-099-2 01 1 0008-0106 ● ● ●
1 GLASS; FRT DOOR
IDN 		8-97955-099-2 01 1 0107- ● ●
7 GLASS RUN; FRT DOOR
IDN 		8-97955-951-1 01 1 0008-0106 ● ● ●
7 GLASS RUN; FRT DOOR
IDN 		8-97955-951-1 01 1 0107-0209 ● ●
7 GLASS RUN; FRT DOOR
IDN 		8-97562-219-0 01 1 0210- ● ●
7 GLASS RUN; FRT DOOR
IDN 		8-97955-950-1 01 1 0008-0106 ● ● ●
7 GLASS RUN; FRT DOOR
IDN 		8-97955-950-1 01 1 0107-0209 ● ●
7 GLASS RUN; FRT DOOR
IDN 		8-97562-218-0 01 1 0210- ● ●
19 REGULATOR; WINDOW,FRT DOOR
IDN 		8-97955-949-1 01 1 0008-0106 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-949-1 01 1 0008-0106 ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-949-2 01 1 0107- ● ●
19 REGULATOR; WINDOW,FRT DOOR
IDN 		8-97955-948-1 01 1 0008-0106 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-948-1 01 1 0008-0106 ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-948-2 01 1 0107- ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> IDN 		8-97955-947-2 01 1 0008- ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> IDN 		8-97955-946-2 01 1 0008- ● ●
25 BOLT; WINDOW REG
M6X8 IDN 		8-94155-893-0 08 1 0008-0106 ● ● ●
25 BOLT; WINDOW REG
M6X8 IDN 		8-94155-893-0 08 1 0107- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91150-106-0 04 1 0008-0106 ● ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91150-106-0 04 1 0107-0602 ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
27 BOLT; GLASS FIX
M6X8 IDN 		8-94155-893-0 04 1 0008-0106 ● ● ●
27 BOLT; GLASS FIX
M6X8 IDN 		8-94155-893-0 04 1 0107- ● ●
36 ESCUTCHEON; HANDLE,WINDOW REG
IDN 		8-94220-668-1 02 1 0008-0106 ●
36 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> IDN 		8-94220-668-1 02 1 0008-0106 ● ●
36 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> IDN 		8-94220-668-1 02 1 0107- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
GRAY IDN 		8-97196-875-0 02 1 0008-0106 ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> GRAY IDN 		8-97196-875-0 02 1 0008-0106 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> GRAY IDN 		8-97196-875-0 02 1 0107-0209 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK IDN 		8-97394-018-0 02 1 0210-0508 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-97404-851-0 02 1 0509- ● ●
43 CLIP; REG HANDLE,FRT DOOR
IDN 		8-94220-591-0 02 1 0008-0106 ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-94220-591-0 02 1 0008-0106 ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-94220-591-0 02 1 0107- ● ●
265 CLIP; HARNESS
POWER WINDOW<A30> L=140 IDN 		5-09707-031-1 02 1 0008- ● ●

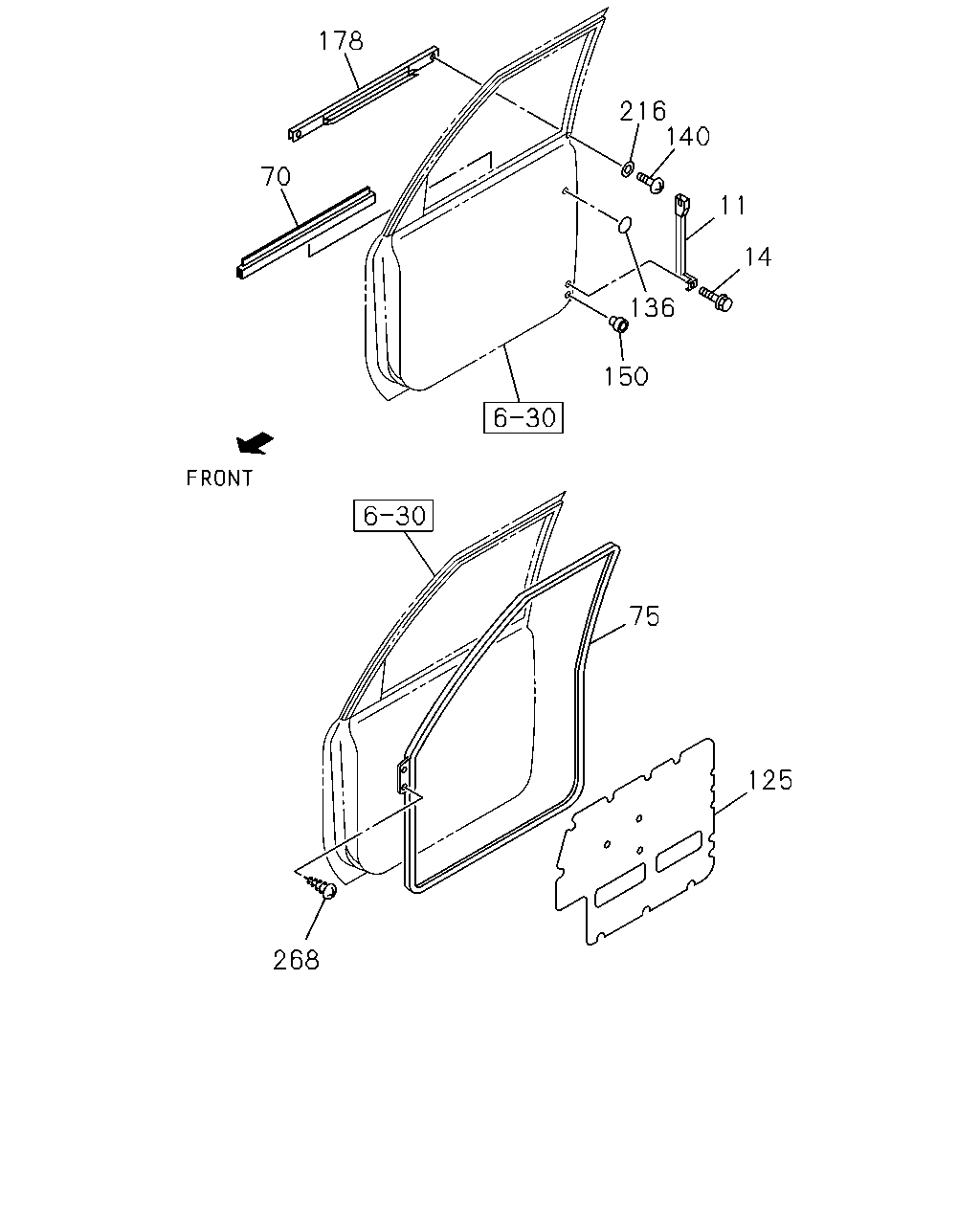

çizim 288965
178 216 11 140 14 136 150 75 125 268 70
BalonParca AdiParca NoAdetTipApplied Date A B C
11 RAIL; RR GUIDE,FRT DOOR
IDN 		8-97955-953-1 01 1 0008-0106 ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
IDN 		8-97955-953-1 01 1 0107- ● ●
11 RAIL; RR GUIDE,FRT DOOR
IDN 		8-97955-952-1 01 1 0008-0106 ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
IDN 		8-97955-952-1 01 1 0107- ● ●
14 BOLT; RR GUIDE RAIL
M6X12 W/PL WASHER 		8-94232-078-0 02 1 0008-0106 ● ● ●
14 BOLT; RR GUIDE RAIL
M6X12 W/PL WASHER 		8-94232-078-0 02 1 0107- ● ●
70 SEAL; WAIST,FRT DOOR INNER 8-97174-424-0 01 1 0008-0106 ● ● ●
70 SEAL; WAIST,FRT DOOR INNER 8-97174-424-0 01 1 0107-0401 ● ●
70 SEAL; WAIST,FRT DOOR INNER 8-97371-600-0 01 1 0402-0412 ● ●
70 SEAL; WAIST,FRT DOOR INNER 8-97174-424-0 01 1 0501- ● ●
70 SEAL; WAIST,FRT DOOR INNER 8-97174-423-0 01 1 0008-0106 ● ● ●
70 SEAL; WAIST,FRT DOOR INNER 8-97174-423-0 01 1 0107-0401 ● ●
70 SEAL; WAIST,FRT DOOR INNER 8-97371-599-0 01 1 0402-0412 ● ●
70 SEAL; WAIST,FRT DOOR INNER 8-97174-423-0 01 1 0501- ● ●
75 WEATHERSTRIP; FRT DOOR
IDN 		8-97562-614-0 01 1 0411- ● ●
75 WEATHERSTRIP; FRT DOOR
IDN 		8-97562-615-0 01 1 0411- ● ●
75 WEATHERSTRIP; FRT DOOR
IDN 		8-97955-961-1 01 1 0008-0106 ● ● ●
75 WEATHERSTRIP; FRT DOOR
IDN 		8-97955-961-3 01 1 0107- ● ●
75 WEATHERSTRIP; FRT DOOR
IDN 		8-97955-960-1 01 1 0008-0106 ● ● ●
75 WEATHERSTRIP; FRT DOOR
IDN 		8-97955-960-3 01 1 0107- ● ●
125 SHEET; WATER PROOF,FRT DOOR
IDN 		8-97955-959-3 01 1 0008-0106 ●
125 SHEET; WATER PROOF,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-959-3 01 1 0008-0106 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE NEW SUPER(RBA) IDN 		8-97955-959-3 01 1 0107-0209 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) IDN 		8-97955-959-3 01 1 0107-0209 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-959-3 01 1 0210- ● ●
125 SHEET; WATER PROOF,FRT DOOR
IDN 		8-97955-958-3 01 1 0008-0106 ●
125 SHEET; WATER PROOF,FRT DOOR
EXC. POWER WINDOW<A30> IDN 		8-97955-958-3 01 1 0008-0106 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE NEW SUPER(RBA) IDN 		8-97955-958-3 01 1 0107-0209 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) IDN 		8-97955-958-3 01 1 0107-0209 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-958-3 01 1 0210- ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE TOURING(RBG) IDN 		8-97560-100-0 01 1 0107-0405 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE TOURING(RBG) IDN 		8-97560-100-0 01 1 0406- ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN 		8-97560-100-0 01 1 0406- ●
125 SHEET; WATER PROOF,FRT DOOR
POWER WINDOW<A30> IDN 		8-97955-956-3 01 1 0008-0106 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97560-069-0 01 1 0107-0209 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE LS(RBD) IDN 		8-97560-069-0 01 1 0210-0405 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE LS(RBD) IDN 		8-97560-069-0 01 1 0406- ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> IDN 		8-97560-069-0 01 1 0406- ●
125 SHEET; WATER PROOF,FRT DOOR
POWER WINDOW<A30> IDN 		8-97955-957-3 01 1 0008-0106 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE ROYAL(RBB) HI GRADE(6PQ) IDN 		8-97560-101-0 01 1 0107-0209 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE TOURING(RBG) IDN 		8-97560-101-0 01 1 0107-0209 ● ●
125 SHEET; WATER PROOF,FRT DOOR
GRADE LS(RBD),GRADE TOURING(RBG) IDN 		8-97560-101-0 01 1 0210- ● ●
136 SEAL; DOOR INNER,FRT DOOR
OD=25 BLACK 		1-76798-019-0 02 1 0008-0106 ● ● ●
136 SEAL; DOOR INNER,FRT DOOR
OD=25 BLACK 		1-76798-019-0 02 1 0107- ● ●
140 SCREW; SUPPORT,DOOR SEAL 8-97802-968-1 02 1 0008-0106 ● ● ●
140 SCREW; SUPPORT,DOOR SEAL 8-97802-968-1 02 1 0107- ● ●
150 BUFFER; FRT DOOR
IDN 		8-97957-223-0 04 1 0008-0106 ● ● ●
150 BUFFER; FRT DOOR
IDN 		8-97957-223-0 04 1 0107- ● ●
178 SEAL; WAIST OUTER,FRT DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN 		8-97562-423-0 01 1 0406-0504 ●
178 SEAL; WAIST OUTER,FRT DOOR
GRADE LS(RBD) UP GRADE PACKAGE<7MA> IDN 		8-97562-424-0 01 1 0406-0504 ●
178 SEAL; WAIST OUTER,FRT DOOR 8-97174-422-1 01 1 0008-0106 ● ● ●
178 SEAL; WAIST OUTER,FRT DOOR 8-97174-422-2 01 1 0107-0405 ● ●
178 SEAL; WAIST OUTER,FRT DOOR 8-97174-422-3 01 1 0406-0504 ●
178 SEAL; WAIST OUTER,FRT DOOR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE TOURING(RBG) 		8-97174-422-3 01 1 0406-0504 ●
178 SEAL; WAIST OUTER,FRT DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> 		8-97174-422-3 01 1 0406-0504 ●
178 SEAL; WAIST OUTER,FRT DOOR 8-97174-422-3 01 1 0505- ● ●
178 SEAL; WAIST OUTER,FRT DOOR 8-97174-421-1 01 1 0008-0106 ● ● ●
178 SEAL; WAIST OUTER,FRT DOOR 8-97174-421-2 01 1 0107-0405 ● ●
178 SEAL; WAIST OUTER,FRT DOOR 8-97174-421-3 01 1 0406-0504 ●
178 SEAL; WAIST OUTER,FRT DOOR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE TOURING(RBG) 		8-97174-421-3 01 1 0406-0504 ●
178 SEAL; WAIST OUTER,FRT DOOR
GRADE LS(RBD) EXC. UP GRADE PACKAGE<7MA> 		8-97174-421-3 01 1 0406-0504 ●
178 SEAL; WAIST OUTER,FRT DOOR 8-97174-421-3 01 1 0505- ● ●
216 WASHER; WAIST SEAL
D=16 		8-94427-941-0 02 1 0008-0106 ● ● ●
216 WASHER; WAIST SEAL
D=16 		8-94427-941-0 02 1 0107- ● ●
268 SCREW; WEATHER STRIP
M4X8 TAPPING W/PL WASHER 		0-74100-408-0 04 1 0008-0106 ● ● ●
268 SCREW; WEATHER STRIP
M4X8 TAPPING W/PL WASHER 		0-74100-408-0 04 1 0107-0604 ● ●
268 SCREW; WEATHER STRIP
M4X8 TAPPING W/PL WASHER 		0-74160-408-0 04 1 0605- ● ●
