◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#95361) — 298 parça

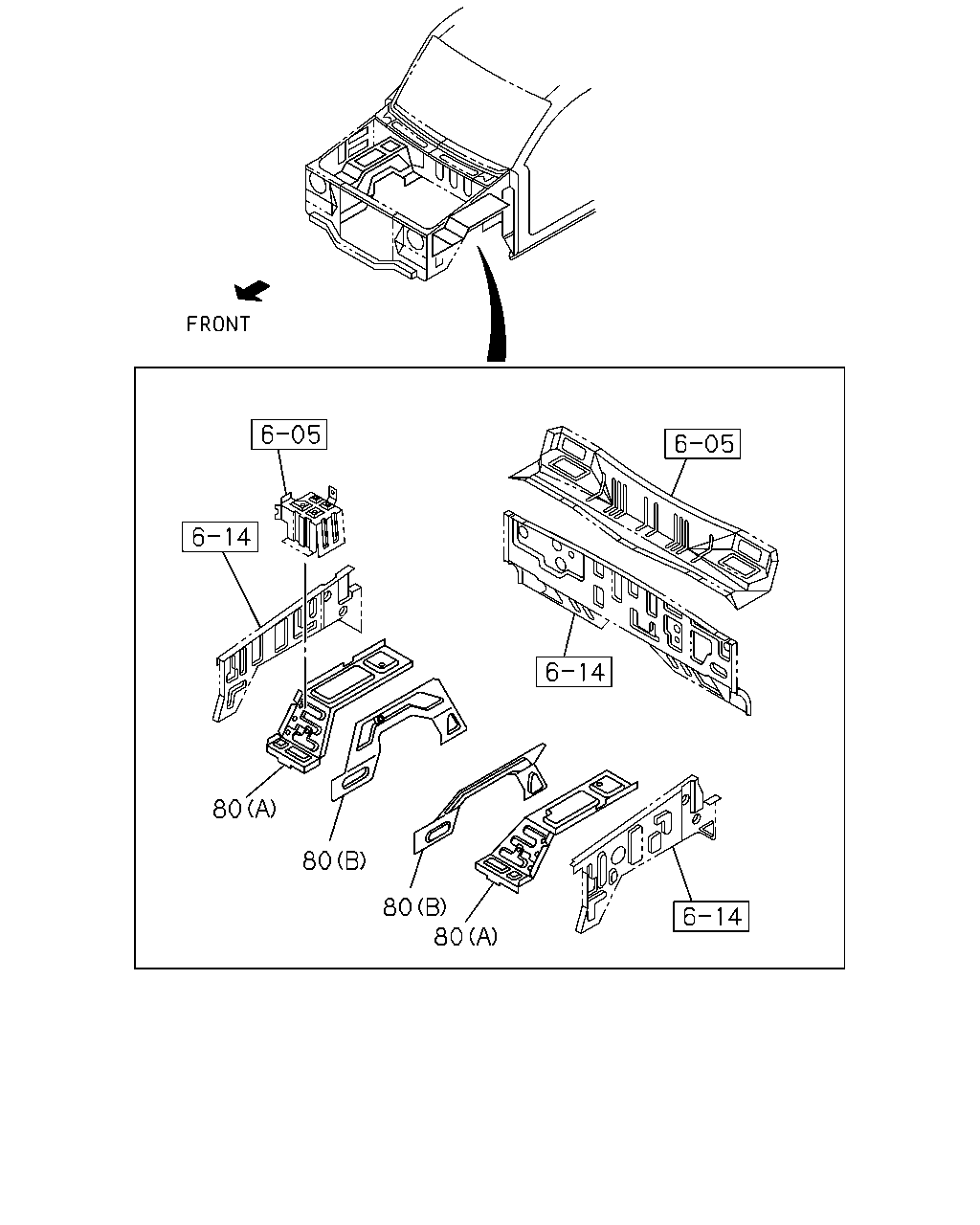

çizim 289242
80 80 80 80
BalonParca AdiParca NoAdetTipApplied Date A B C
80 PANEL; WHEEL HOUSE,INNER
(A) IDN 		8-97955-317-0 01 1 0008-0106 ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(A) IDN 		8-97955-317-1 01 1 0107- ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) IDN 		8-97955-321-0 01 1 0008-0106 ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) IDN 		8-97955-321-1 01 1 0107- ● ●
80 PANEL; WHEEL HOUSE,INNER
(A) IDN 		8-97955-316-0 01 1 0008-0106 ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(A) IDN 		8-97955-316-1 01 1 0107- ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) IDN 		8-97955-320-0 01 1 0008-0106 ● ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) IDN 		8-97955-320-1 01 1 0107- ● ●

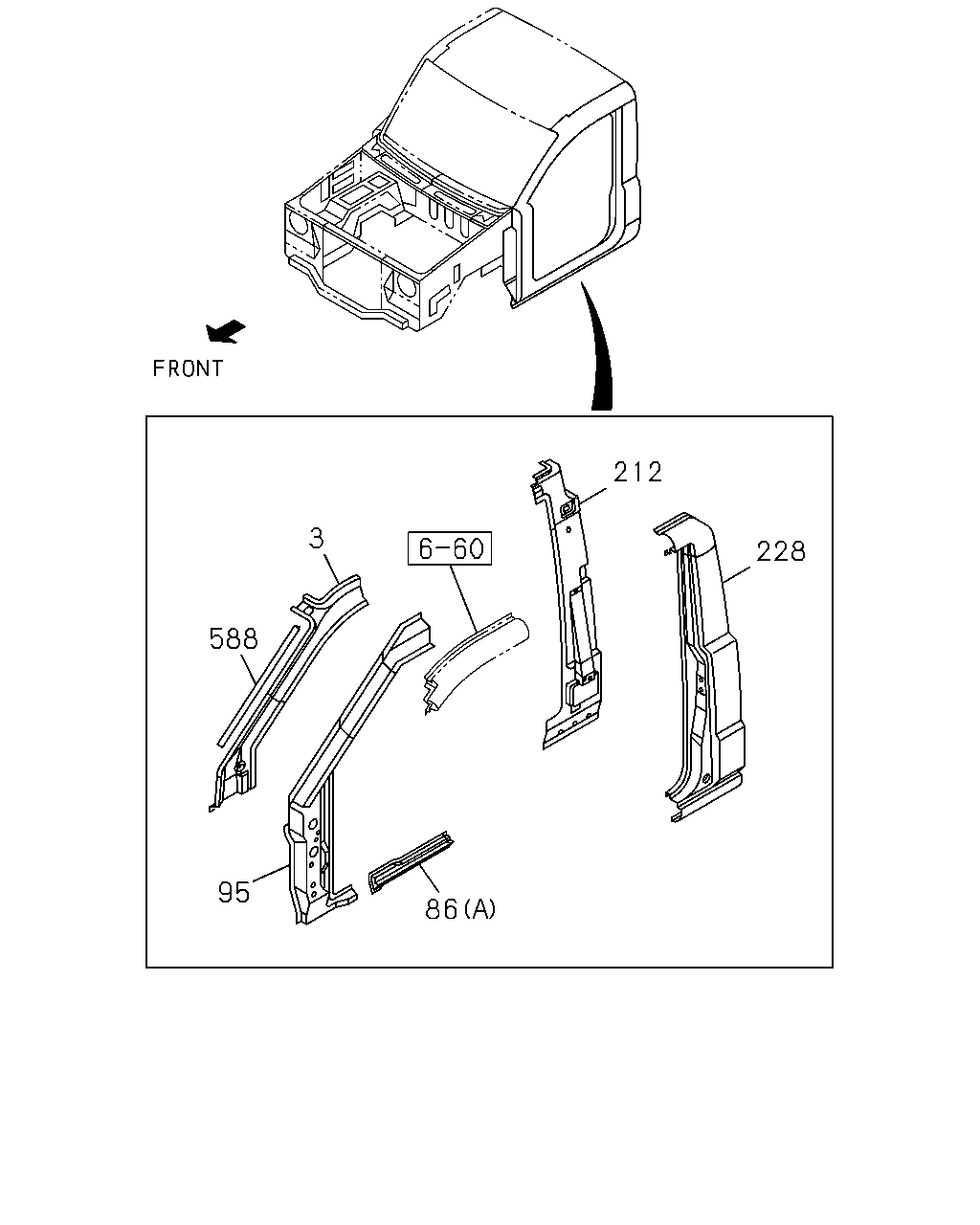

çizim 289244
228 212 3 588 86 95
BalonParca AdiParca NoAdetTipApplied Date A B C
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-97955-733-0 01 1 0008-0106 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-97955-733-0 01 1 0107- ● ●
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-97955-732-0 01 1 0008-0106 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-97955-732-0 01 1 0107- ● ●
86 PANEL; ROCKER OUTER
(A) IDN 		8-97956-570-0 01 1 0008-0106 ● ● ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN 		8-97956-570-0 01 1 0107-0209 ● ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN 		8-97956-570-0 01 1 0210- ● ●
86 PANEL; ROCKER OUTER
(A) IDN 		8-97956-569-0 01 1 0008-0106 ● ● ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN 		8-97956-569-0 01 1 0107-0209 ● ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN 		8-97956-569-0 01 1 0210- ● ●
86 PANEL; ROCKER OUTER
(B) IDN 		8-97955-779-0 02 1 0008-0106 ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-97955-779-0 02 1 0107-0209 ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) IDN 		8-97955-779-0 02 1 0210- ●
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (B) IDN 		8-97958-113-1 02 1 0107- ●
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (A) IDN 		8-97958-029-2 01 1 0107- ● ●
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (A) IDN 		8-97958-028-2 01 1 0107- ● ●
86 PANEL; ROCKER OUTER
(B) IDN 		8-97955-778-0 02 1 0008-0106 ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-97955-778-0 02 1 0107-0209 ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) IDN 		8-97955-778-0 02 1 0210- ●
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (B) IDN 		8-97958-033-1 01 1 0107- ●
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (B) IDN 		8-97958-032-1 01 1 0107- ●
95 PILLAR; FRT
IDN 		8-97955-379-0 01 1 0008-0106 ● ● ●
95 PILLAR; FRT
IDN 		8-97955-379-0 01 1 0107- ● ●
95 PILLAR; FRT
IDN 		8-97955-377-0 01 1 0008-0106 ● ● ●
95 PILLAR; FRT
IDN 		8-97955-377-0 01 1 0107- ● ●
212 CLOSING; PILLAR
IDN 		8-97955-846-0 01 1 0008-0106 ●
212 CLOSING; PILLAR
IDN 		8-97955-845-0 01 1 0008-0106 ●
212 CLOSING; PILLAR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97333-750-0 01 1 0203-0209 ●
228 PANEL; RR PILLAR OUTER
IDN 		8-97955-842-0 01 1 0008-0106 ●
228 PANEL; RR PILLAR OUTER
IDN 		8-97955-841-0 01 1 0008-0106 ●
228 PANEL; RR PILLAR OUTER
IDN 		8-97955-814-0 01 1 0008- ● ●
228 PANEL; RR PILLAR OUTER
IDN 		8-97955-813-0 01 1 0008- ● ●
588 RETAINER; MOLDING,SIDE
IDN 		8-97955-892-0 01 1 0008-0106 ● ● ●
588 RETAINER; MOLDING,SIDE
IDN 		8-97955-892-0 01 1 0107- ● ●
588 RETAINER; MOLDING,SIDE
IDN 		8-97955-891-0 01 1 0008-0106 ● ● ●
588 RETAINER; MOLDING,SIDE
IDN 		8-97955-891-0 01 1 0107- ● ●

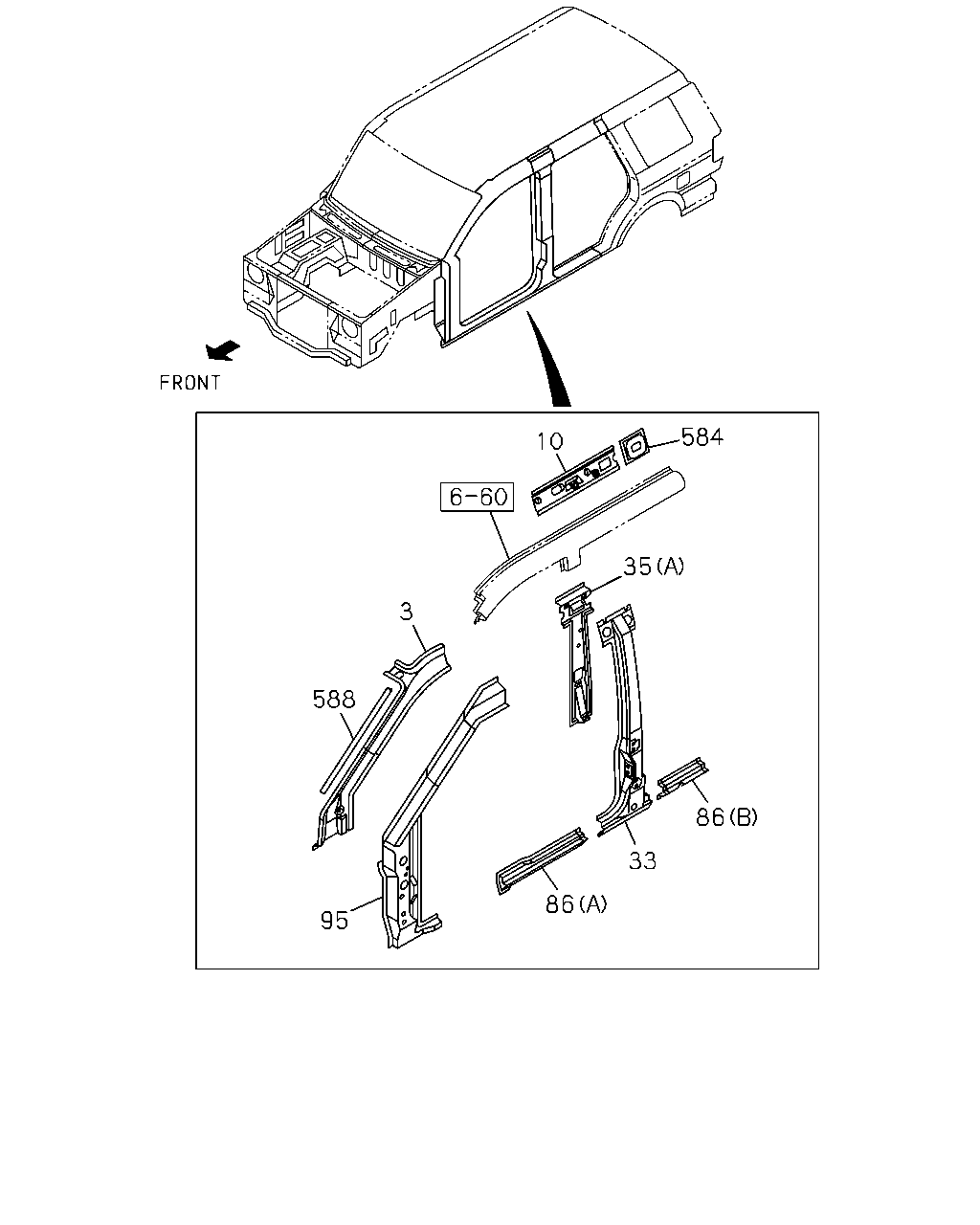

çizim 289281
10 584 35 3 588 95 86 33 86
BalonParca AdiParca NoAdetTipApplied Date A B C
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-97955-733-0 01 1 0008-0106 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-97955-733-0 01 1 0107- ● ●
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-97955-732-0 01 1 0008-0106 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-97955-732-0 01 1 0107- ● ●
10 CLOSING; ROOF SIDE
IDN 		8-97955-773-1 01 1 0008- ●
10 CLOSING; ROOF SIDE
IDN 		8-97955-772-1 01 1 0008- ●
10 CLOSING; ROOF SIDE
IDN 		8-97955-771-1 01 1 0008- ●
10 CLOSING; ROOF SIDE
IDN 		8-97955-770-1 01 1 0008- ●
33 PANEL; CENTER PILLAR,OUTER
IDN 		8-97955-745-0 01 1 0008-0106 ● ●
33 PANEL; CENTER PILLAR,OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-745-0 01 1 0107-0209 ● ●
33 PANEL; CENTER PILLAR,OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-745-0 01 1 0210- ● ●
33 PANEL; CENTER PILLAR,OUTER
IDN 		8-97955-744-0 01 1 0008-0106 ● ●
33 PANEL; CENTER PILLAR,OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-744-0 01 1 0107-0209 ● ●
33 PANEL; CENTER PILLAR,OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97955-744-0 01 1 0210- ● ●
33 PANEL; CENTER PILLAR,OUTER
GRADE TOURING(RBG) IDN 		8-97958-866-0 01 1 0107- ● ●
33 PANEL; CENTER PILLAR,OUTER
GRADE TOURING(RBG) IDN 		8-97958-865-0 01 1 0107- ● ●
35 PANEL; CENTER PILLAR,INNER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) IDN 		8-97333-782-0 01 1 0203-0209 ●
35 PANEL; CENTER PILLAR,INNER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97333-782-0 01 1 0203-0209 ●
35 PANEL; CENTER PILLAR,INNER
(A) IDN 		8-97955-753-0 01 1 0008- ● ●
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-116-0 01 1 0008-0106 ● ●
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-116-0 01 1 0107- ●
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-116-0 01 1 0107- ●
35 PANEL; CENTER PILLAR,INNER
(A) IDN 		8-97955-752-0 01 1 0008- ● ●
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97955-837-3 01 1 0008- ● ●
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-115-0 01 1 0008-0106 ● ●
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-115-0 01 1 0107-0202 ●
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-115-0 01 1 0107-0202 ●
35 PANEL; CENTER PILLAR,INNER
GRADE TOURING(RBG) (C) IDN 		8-97956-115-0 01 1 0203-0209 ●
35 PANEL; CENTER PILLAR,INNER
GRADE TOURING(RBG) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-115-0 01 1 0203-0209 ●
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-115-0 01 1 0210-0406 ●
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-115-0 01 1 0210-0406 ●
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-115-0 01 1 0407- ●
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-115-0 01 1 0407- ●
35 PANEL; CENTER PILLAR,INNER
AIR CONDITIONER ROOF MOUNTED<C69> (B) W/NUT IDN 		8-97956-739-0 01 1 0008-0008 ● ●
35 PANEL; CENTER PILLAR,INNER
GRADE ROYAL(RBB),GRADE LS(RBD) AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97956-739-0 01 1 0009-0010 ● ●
35 PANEL; CENTER PILLAR,INNER
(B) W/NUT IDN 		8-97956-739-0 01 1 0011- ● ●
35 PANEL; CENTER PILLAR,INNER
GRADE ROYAL(RBB),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN 		8-97957-163-0 01 1 0107-0209 ●
35 PANEL; CENTER PILLAR,INNER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN 		8-97957-163-0 01 1 0210- ●
35 PANEL; CENTER PILLAR,INNER
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97957-163-0 01 1 0210- ●
86 PANEL; ROCKER OUTER
(A) IDN 		8-97956-570-0 01 1 0008-0106 ● ● ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN 		8-97956-570-0 01 1 0107-0209 ● ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN 		8-97956-570-0 01 1 0210- ● ●
86 PANEL; ROCKER OUTER
(A) IDN 		8-97956-569-0 01 1 0008-0106 ● ● ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN 		8-97956-569-0 01 1 0107-0209 ● ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN 		8-97956-569-0 01 1 0210- ● ●
86 PANEL; ROCKER OUTER
(B) IDN 		8-97955-779-0 02 1 0008-0106 ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-97955-779-0 02 1 0107-0209 ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) IDN 		8-97955-779-0 02 1 0210- ●
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (B) IDN 		8-97958-113-1 02 1 0107- ●
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (A) IDN 		8-97958-029-2 01 1 0107- ● ●
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (A) IDN 		8-97958-028-2 01 1 0107- ● ●
86 PANEL; ROCKER OUTER
(B) IDN 		8-97955-778-0 02 1 0008-0106 ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-97955-778-0 02 1 0107-0209 ●
86 PANEL; ROCKER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) IDN 		8-97955-778-0 02 1 0210- ●
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (B) IDN 		8-97958-033-1 01 1 0107- ●
86 PANEL; ROCKER OUTER
GRADE TOURING(RBG) (B) IDN 		8-97958-032-1 01 1 0107- ●
95 PILLAR; FRT
IDN 		8-97955-379-0 01 1 0008-0106 ● ● ●
95 PILLAR; FRT
IDN 		8-97955-379-0 01 1 0107- ● ●
95 PILLAR; FRT
IDN 		8-97955-377-0 01 1 0008-0106 ● ● ●
95 PILLAR; FRT
IDN 		8-97955-377-0 01 1 0107- ● ●
584 PALTE; ROOF SIDE
IDN 		8-97957-590-0 02 1 0008- ● ●
588 RETAINER; MOLDING,SIDE
IDN 		8-97955-892-0 01 1 0008-0106 ● ● ●
588 RETAINER; MOLDING,SIDE
IDN 		8-97955-892-0 01 1 0107- ● ●
588 RETAINER; MOLDING,SIDE
IDN 		8-97955-891-0 01 1 0008-0106 ● ● ●
588 RETAINER; MOLDING,SIDE
IDN 		8-97955-891-0 01 1 0107- ● ●

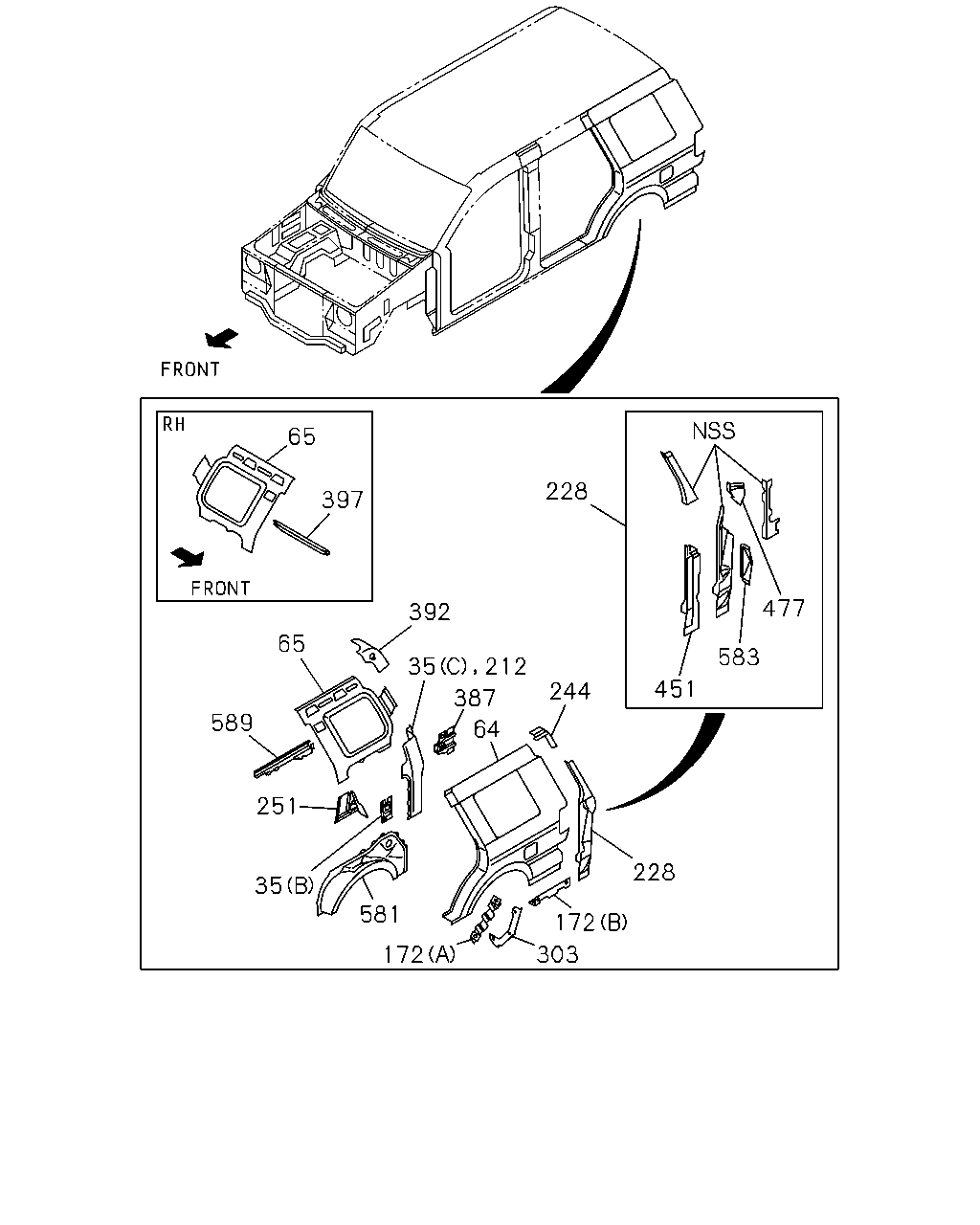

çizim 289317
65 397 392 65 35 212 244 451 583 477 228 387 64 228 172 303 172 581 35 251 589
BalonParca AdiParca NoAdetTipApplied Date A B C
35 PANEL; CENTER PILLAR,INNER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) IDN 		8-97333-782-0 01 1 0203-0209 ●
35 PANEL; CENTER PILLAR,INNER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97333-782-0 01 1 0203-0209 ●
35 PANEL; CENTER PILLAR,INNER
(A) IDN 		8-97955-753-0 01 1 0008- ● ●
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-116-0 01 1 0008-0106 ● ●
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-116-0 01 1 0107- ●
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-116-0 01 1 0107- ●
35 PANEL; CENTER PILLAR,INNER
(A) IDN 		8-97955-752-0 01 1 0008- ● ●
35 PANEL; CENTER PILLAR,INNER
(B) IDN 		8-97955-837-3 01 1 0008- ● ●
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-115-0 01 1 0008-0106 ● ●
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-115-0 01 1 0107-0202 ●
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-115-0 01 1 0107-0202 ●
35 PANEL; CENTER PILLAR,INNER
GRADE TOURING(RBG) (C) IDN 		8-97956-115-0 01 1 0203-0209 ●
35 PANEL; CENTER PILLAR,INNER
GRADE TOURING(RBG) EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-115-0 01 1 0203-0209 ●
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-115-0 01 1 0210-0406 ●
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-115-0 01 1 0210-0406 ●
35 PANEL; CENTER PILLAR,INNER
(C) IDN 		8-97956-115-0 01 1 0407- ●
35 PANEL; CENTER PILLAR,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97956-115-0 01 1 0407- ●
35 PANEL; CENTER PILLAR,INNER
AIR CONDITIONER ROOF MOUNTED<C69> (B) W/NUT IDN 		8-97956-739-0 01 1 0008-0008 ● ●
35 PANEL; CENTER PILLAR,INNER
GRADE ROYAL(RBB),GRADE LS(RBD) AIR CONDITIONER ROOF MOUNTED<C69> (B) IDN 		8-97956-739-0 01 1 0009-0010 ● ●
35 PANEL; CENTER PILLAR,INNER
(B) W/NUT IDN 		8-97956-739-0 01 1 0011- ● ●
35 PANEL; CENTER PILLAR,INNER
GRADE ROYAL(RBB),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN 		8-97957-163-0 01 1 0107-0209 ●
35 PANEL; CENTER PILLAR,INNER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> (C) IDN 		8-97957-163-0 01 1 0210- ●
35 PANEL; CENTER PILLAR,INNER
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> (C) IDN 		8-97957-163-0 01 1 0210- ●
64 PANEL; QUARTER OUTER
IDN 		8-97955-783-3 01 1 0008-0010 ●
64 PANEL; QUARTER OUTER
IDN 		8-97955-782-3 01 1 0008-0010 ●
64 PANEL; QUARTER OUTER
GRADE TOURING(RBG) IDN 		8-97958-705-0 01 1 0107-0209 ● ●
64 PANEL; QUARTER OUTER
GRADE TOURING(RBG) IDN 		8-97561-145-0 01 1 0210- ● ●
64 PANEL; QUARTER OUTER
GRADE TOURING(RBG) IDN 		8-97958-704-0 01 1 0107-0209 ● ●
64 PANEL; QUARTER OUTER
GRADE TOURING(RBG) IDN 		8-97561-144-0 01 1 0210- ● ●
64 PANEL; QUARTER OUTER
IDN 		8-97955-781-3 01 1 0008-0010 ●
64 PANEL; QUARTER OUTER
IDN 		8-97955-781-3 01 1 0011-0106 ● ●
64 PANEL; QUARTER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-781-3 01 1 0107-0209 ● ●
64 PANEL; QUARTER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97561-141-0 01 1 0210- ● ●
64 PANEL; QUARTER OUTER
IDN 		8-97955-780-3 01 1 0008-0010 ●
64 PANEL; QUARTER OUTER
IDN 		8-97955-780-3 01 1 0011-0106 ● ●
64 PANEL; QUARTER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97955-780-3 01 1 0107-0209 ● ●
64 PANEL; QUARTER OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97561-140-0 01 1 0210- ● ●
65 PANEL; QUARTER,INNER
IDN 		8-97955-809-0 01 1 0008-0106 ● ●
65 PANEL; QUARTER,INNER
IDN 		8-97955-809-0 01 1 0107-0209 ●
65 PANEL; QUARTER,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97955-809-0 01 1 0107-0209 ●
65 PANEL; QUARTER,INNER
IDN 		8-97955-809-0 01 1 0210-0406 ●
65 PANEL; QUARTER,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97955-809-0 01 1 0210-0406 ●
65 PANEL; QUARTER,INNER
IDN 		8-97955-809-0 01 1 0407- ●
65 PANEL; QUARTER,INNER
EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97955-809-0 01 1 0407- ●
65 PANEL; QUARTER,INNER
AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97956-064-0 01 1 0008-0008 ● ●
65 PANEL; QUARTER,INNER
GRADE ROYAL(RBB),GRADE LS(RBD) AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97956-064-0 01 1 0009-0106 ● ●
65 PANEL; QUARTER,INNER
GRADE ROYAL(RBB),GRADE TOURING(RBG) AIR CONDITIONER ROOF MOUNTED<C69> EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97956-064-0 01 1 0107-0209 ● ●
65 PANEL; QUARTER,INNER
GRADE LS(RBD) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97956-064-0 01 1 0210- ● ●
65 PANEL; QUARTER,INNER
EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97955-810-0 01 1 0008-0008 ● ●
65 PANEL; QUARTER,INNER
GRADE NEW SUPER(RBA) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97955-810-0 01 1 0009-0104 ● ●
65 PANEL; QUARTER,INNER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97955-810-0 01 1 0105-0106 ● ●
65 PANEL; QUARTER,INNER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3>,AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97955-810-0 01 1 0107-0209 ● ●
65 PANEL; QUARTER,INNER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97955-810-0 01 1 0210- ● ●
65 PANEL; QUARTER,INNER
GRADE ROYAL(RBB) 3RD SEAT 7 PASSENGERS<AS3> EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-160-0 01 1 0107-0209 ●
65 PANEL; QUARTER,INNER
GRADE ROYAL(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-160-0 01 1 0210- ●
65 PANEL; QUARTER,INNER
GRADE ROYAL(RBB),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-159-0 01 1 0107-0209 ●
65 PANEL; QUARTER,INNER
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-159-0 01 1 0210- ●
65 PANEL; QUARTER,INNER
GRADE ROYAL(RBB),GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-161-0 01 1 0107-0209 ●
65 PANEL; QUARTER,INNER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) 3RD SEAT 7 PASSENGERS<AS3> AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-161-0 01 1 0210- ●
65 PANEL; QUARTER,INNER
GRADE TOURING(RBG) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-161-0 01 1 0210- ●
172 EXTENSION; QUARTER PANEL
GRADE TOURING(RBG) (A) IDN 		8-97958-107-0 01 1 0107- ● ●
172 EXTENSION; QUARTER PANEL
GRADE TOURING(RBG) (B) IDN 		8-97958-109-1 01 1 0107- ● ●
172 EXTENSION; QUARTER PANEL
GRADE TOURING(RBG) (A) IDN 		8-97958-106-0 01 1 0107- ● ●
172 EXTENSION; QUARTER PANEL
GRADE TOURING(RBG) (B) IDN 		8-97958-108-1 01 1 0107- ● ●
212 CLOSING; PILLAR
IDN 		8-97955-846-0 01 1 0008-0106 ●
212 CLOSING; PILLAR
IDN 		8-97955-845-0 01 1 0008-0106 ●
212 CLOSING; PILLAR
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97333-750-0 01 1 0203-0209 ●
228 PANEL; RR PILLAR OUTER
IDN 		8-97955-842-0 01 1 0008-0106 ●
228 PANEL; RR PILLAR OUTER
IDN 		8-97955-841-0 01 1 0008-0106 ●
228 PANEL; RR PILLAR OUTER
IDN 		8-97955-814-0 01 1 0008- ● ●
228 PANEL; RR PILLAR OUTER
IDN 		8-97955-813-0 01 1 0008- ● ●
244 PANEL; RR PILLAR UPR,OUTER
IDN 		8-97955-836-0 01 1 0008- ● ●
244 PANEL; RR PILLAR UPR,OUTER
IDN 		8-97955-835-0 01 1 0008- ● ●
251 EXTENSION; QUARTER PILLAR LWR
IDN 		8-97955-800-0 01 1 0008- ● ●
251 EXTENSION; QUARTER PILLAR LWR
IDN 		8-97955-799-0 01 1 0008- ● ●
303 RETAINER; SIDE SKIRT,ROCKER
IDN 		8-97955-915-1 01 1 0008- ● ●
303 RETAINER; SIDE SKIRT,ROCKER
IDN 		8-97955-914-1 01 1 0008- ● ●
387 BRACKET; 3RD SEAT
IDN 		8-97956-457-0 01 1 0008-0008 ● ●
387 BRACKET; 3RD SEAT
IDN 		8-97956-457-0 01 1 0009-0104 ● ●
387 BRACKET; 3RD SEAT
GRADE NEW SUPER(RBA),GRADE LS(RBD) IDN 		8-97956-457-0 01 1 0009-0104 ● ●
387 BRACKET; 3RD SEAT
GRADE ROYAL(RBB) AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97956-457-0 01 1 0009-0104 ● ●
387 BRACKET; 3RD SEAT
IDN 		8-97956-457-0 01 1 0105-0106 ● ●
387 BRACKET; 3RD SEAT
IDN 		8-97956-457-0 01 1 0105-0106 ● ●
387 BRACKET; 3RD SEAT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-457-0 01 1 0107-0209 ● ●
387 BRACKET; 3RD SEAT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-457-0 01 1 0107-0209 ● ●
387 BRACKET; 3RD SEAT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97956-457-0 01 1 0210- ● ●
387 BRACKET; 3RD SEAT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97956-457-0 01 1 0210- ● ●
387 BRACKET; 3RD SEAT
GRADE TOURING(RBG) IDN 		8-97956-457-0 02 1 0107- ● ●
392 GUSSET; RR PILLAR
IDN 		8-97955-832-0 01 1 0008- ● ●
392 GUSSET; RR PILLAR
IDN 		8-97955-831-0 01 1 0008- ● ●
397 REINFORCEMENT; QUARTER PILLAR INNER
IDN 		8-97956-608-1 01 1 0008- ● ●
451 REINFORCEMENT; GUIDE RAIL
IDN 		8-97955-827-0 01 1 0008- ● ●
451 REINFORCEMENT; GUIDE RAIL
IDN 		8-97955-826-0 01 1 0008- ● ●
477 EXTENSION; RR PILLAR,OUTER
IDN 		8-97955-818-1 01 1 0008- ● ●
477 EXTENSION; RR PILLAR,OUTER
IDN 		8-97955-817-1 01 1 0008- ● ●
581 PANEL; WHEEL HOUSE,OUTER
IDN 		8-97955-796-0 01 1 0008-0008 ●
581 PANEL; WHEEL HOUSE,OUTER
EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97955-796-0 01 1 0008-0008 ●
581 PANEL; WHEEL HOUSE,OUTER
GRADE NEW SUPER(RBA) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97955-796-0 01 1 0009-0010 ● ●
581 PANEL; WHEEL HOUSE,OUTER
GRADE ROYAL(RBB) AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97955-796-0 01 1 0009-0010 ●
581 PANEL; WHEEL HOUSE,OUTER
GRADE NEW SUPER(RBA) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97955-796-0 01 1 0011-0104 ● ●
581 PANEL; WHEEL HOUSE,OUTER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97955-796-0 01 1 0105-0106 ● ●
581 PANEL; WHEEL HOUSE,OUTER
IDN 		8-97955-796-0 01 1 0107- ● ●
581 PANEL; WHEEL HOUSE,OUTER
IDN 		8-97955-795-0 01 1 0008- ● ●
583 BRACKET; STRIKER,BACK DOOR
IDN 		8-97955-893-0 01 1 0008- ● ●
589 REINFORCEMENT; COOLER UNIT
IDN 		8-97956-610-1 01 1 0008- ● ●

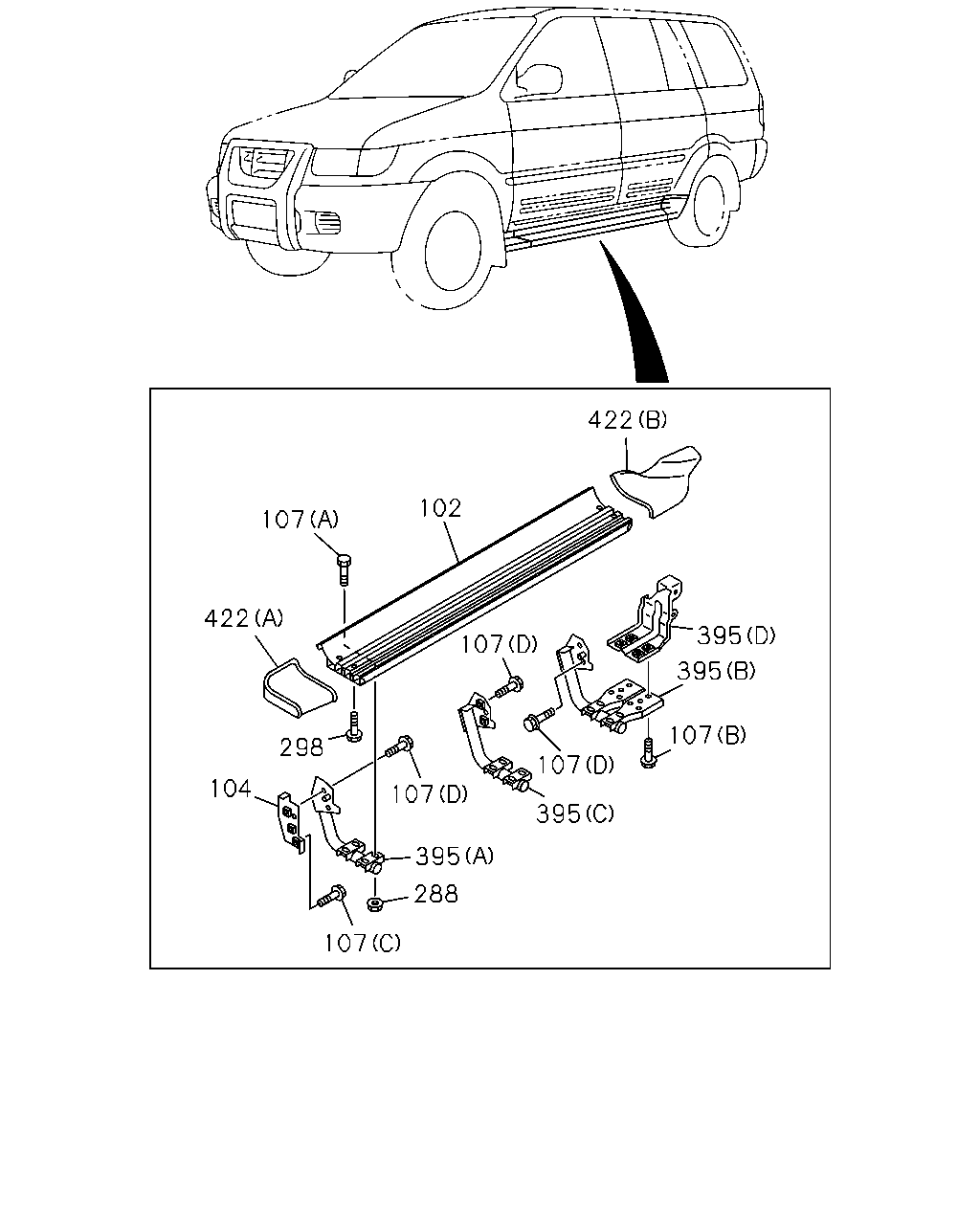

çizim 289352
422 395 395 107 107 107 102 107 422 104 298 107 395 288 107 395
BalonParca AdiParca NoAdetTipApplied Date A B C
102 STEP; BODY SIDE
SIDE STEP<6TC> IDN 		8-97956-541-1 01 1 0107- ●
102 STEP; BODY SIDE
SIDE STEP<6TC> IDN 		8-97959-923-0 01 1 0107- ●
102 STEP; BODY SIDE
SIDE STEP<6TC> IDN 		8-97956-534-1 01 1 0107- ●
102 STEP; BODY SIDE
SIDE STEP<6TC> IDN 		8-97959-922-0 01 1 0107- ●
104 PLATE; SIDE STEP
SIDE STEP<6TC> IDN 		8-97956-507-2 01 1 0107- ● ●
104 PLATE; SIDE STEP
SIDE STEP<6TC> IDN 		8-97956-506-2 01 1 0107- ● ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> (A) M6X16 		0-20800-616-0 24 1 0107- ● ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> (B) M6X12 FLANGE 		0-28080-612-0 08 1 0107-0512 ● ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> (B) M6X12 FLANGE 		0-28050-612-0 08 1 0601- ● ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> (C) M6X12 FLANGE 		0-28080-612-0 02 1 0107-0512 ● ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> (C) M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> (D) M8X22 FLANGE 		8-97131-511-0 12 1 0107- ● ●
288 NUT; STEP
SIDE STEP<6TC> M6 FLANGE 		0-91150-106-0 24 1 0107-0602 ● ●
288 NUT; STEP
SIDE STEP<6TC> M6 FLANGE 		0-91180-106-0 24 1 0603- ● ●
298 SCREW; SIDE STEP
SIDE STEP<6TC> M5X12 TAPPING W/PL WASHER 		0-74100-512-0 12 1 0107-0604 ● ●
298 SCREW; SIDE STEP
SIDE STEP<6TC> M5X12 TAPPING W/PL WASHER IDN 		0-74160-512-0 12 1 0605- ● ●
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (A) IDN 		8-97956-509-4 01 1 0107- ● ●
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (B) IDN 		8-97956-511-4 01 1 0107- ● ●
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (C) IDN 		8-97958-059-0 01 1 0107- ● ●
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (D) IDN 		8-97958-125-3 01 1 0107- ● ●
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (A) IDN 		8-97956-508-4 01 1 0107- ● ●
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (B) IDN 		8-97956-510-4 01 1 0107- ● ●
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (C) IDN 		8-97958-058-0 01 1 0107- ● ●
395 BRACKET; SIDE STEP
SIDE STEP<6TC> (D) IDN 		8-97958-124-3 01 1 0107- ● ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (A) IDN 		8-97958-055-1 01 1 0107- ● ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (B) DARK GRAY IDN 		8-97959-465-2 01 1 0107- ● ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (A) IDN 		8-97958-054-1 01 1 0107- ● ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (B) DARK GRAY IDN 		8-97959-464-2 01 1 0107- ● ●

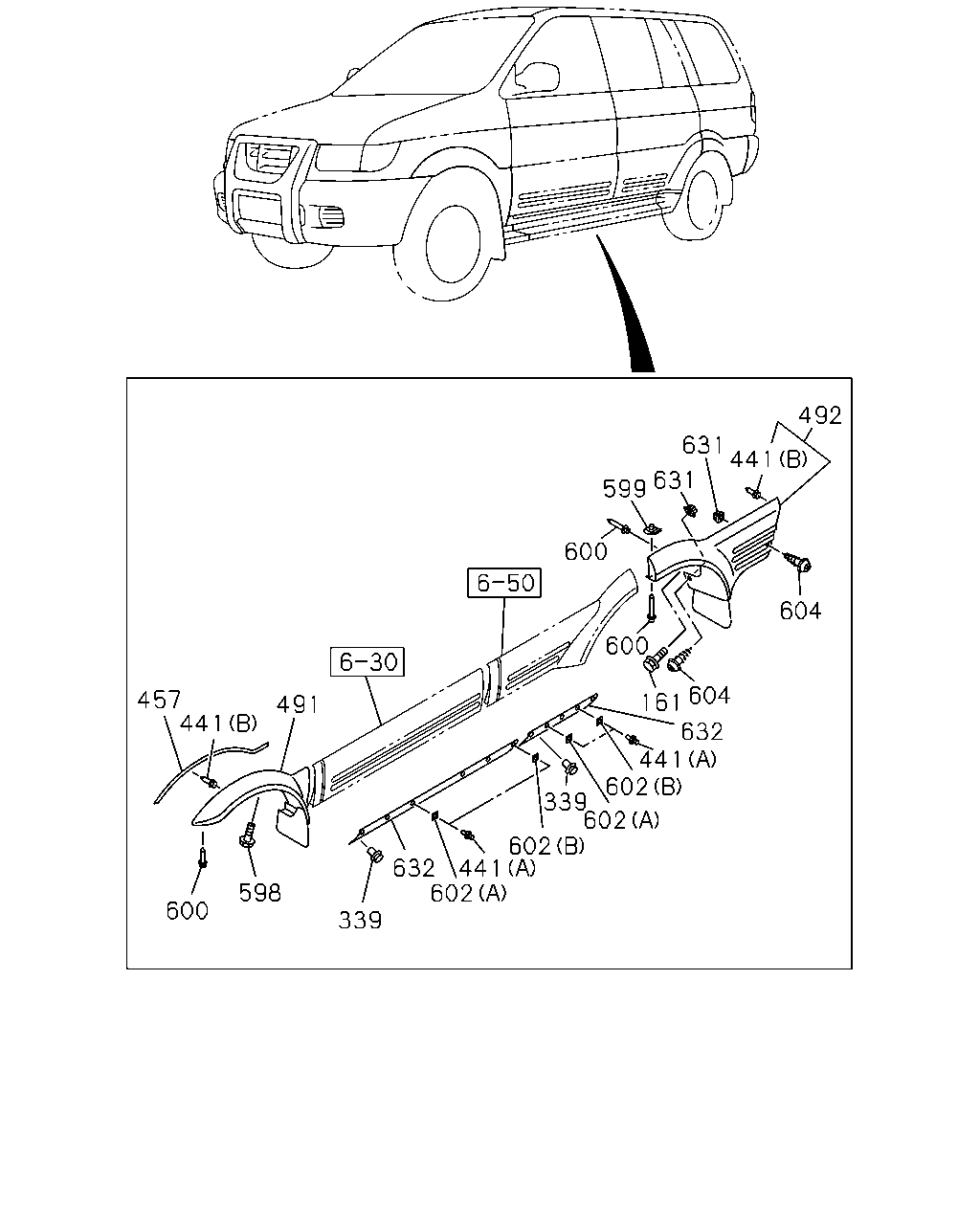

çizim 289386
631 492 441 604 631 599 600 600 604 632 161 441 602 339 602 602 441 602 632 339 598 600 441 457 491
BalonParca AdiParca NoAdetTipApplied Date A B C
161 BOLT; FIX
OVER FENDER<6GH> M6X16 W/PL WASHER 		8-97803-781-0 08 1 0107- ● ●
339 FASTENER; SIDE
GRADE TOURING(RBG) D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 06 1 0107- ●
339 FASTENER; SIDE
GRADE TOURING(RBG) D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 12 1 0107- ● ●
339 FASTENER; SIDE
GRADE TOURING(RBG) D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 08 1 0107- ●
441 CLIP
GRADE TOURING(RBG) (A) OD=14.2 L=19.0 IDN 		8-94340-505-0 12 1 0107- ● ●
441 CLIP
GRADE TOURING(RBG) (A) OD=14.2 L=19.0 IDN 		8-94340-505-0 08 1 0107- ●
441 CLIP
OVER FENDER<6GH> (B) IDN 		8-97117-942-0 26 1 0107- ● ●
441 CLIP
GRADE TOURING(RBG) (A) OD=14.2 L=19.0 IDN 		8-94340-505-0 10 1 0107- ●
457 FINISHER
OVER FENDER<6GH> IDN 		8-97307-301-1 01 1 0107- ● ●
457 FINISHER
OVER FENDER<6GH> IDN 		8-97307-300-1 01 1 0107- ● ●
491 EXTENSION; WHL,FRT
OVER FENDER<6GH> IDN 		8-97959-994-1 01 1 0107- ● ●
491 EXTENSION; WHL,FRT
OVER FENDER<6GH> IDN 		8-97959-993-1 01 1 0107- ● ●
492 EXTENSION; WHL,RR
OVER FENDER<6GH> LIGHT SILVER IDN 		8-97959-374-1 01 1 0107- ● ●
492 EXTENSION; WHL,RR
OVER FENDER<6GH> LIGHT SILVER IDN 		8-97959-373-1 01 1 0107- ● ●
598 BOLT; EXTENSION
OVER FENDER<6GH> M6X16 W/PL WASHER 		8-97803-781-0 08 1 0107- ● ●
599 NUT; EXTENSION
OVER FENDER<6GH> 		8-94334-769-0 16 1 0107- ● ●
600 RIVET; EXTENSION
OVER FENDER<6GH> 		8-97122-143-0 04 1 0107- ● ●
600 RIVET; EXTENSION
OVER FENDER<6GH> 		8-97122-143-0 06 1 0107- ● ●
602 PLATE
GRADE TOURING(RBG) (A) IDN 		8-97958-010-1 03 1 0107- ●
602 PLATE
GRADE TOURING(RBG) (A) IDN 		8-97958-011-1 03 1 0107- ●
602 PLATE
GRADE TOURING(RBG) (B) IDN 		8-97958-012-1 02 1 0107- ● ●
602 PLATE
GRADE TOURING(RBG) (B) IDN 		8-97958-012-1 02 1 0107- ● ●
602 PLATE
GRADE TOURING(RBG) (A) IDN 		8-97958-010-1 05 1 0107- ● ●
602 PLATE
GRADE TOURING(RBG) (A) IDN 		8-97958-011-1 05 1 0107- ● ●
602 PLATE
GRADE TOURING(RBG) (A) IDN 		8-97958-010-1 04 1 0107- ●
602 PLATE
GRADE TOURING(RBG) (A) IDN 		8-97958-011-1 04 1 0107- ●
604 SCREW; EXTENSION
OVER FENDER<6GH> M6X20 W/PL WASHER TAPPING IDN 		8-94321-767-1 02 1 0107-0805 ● ●
604 SCREW; EXTENSION
OVER FENDER<6GH> M6X20 W/PL WASHER 		8-98059-504-0 02 1 0806- ● ●
631 GROMMET; SCREW
OVER FENDER<6GH> D=9.7X9.7 L=8 		8-94222-314-0 02 1 0107- ● ●
632 EXTENSION; ROCKR FRT
GRADE TOURING(RBG) REAR IDN 		8-97560-026-0 01 1 0107- ●
632 EXTENSION; ROCKR FRT
GRADE TOURING(RBG) REAR IDN 		8-97560-025-0 01 1 0107- ●
632 EXTENSION; ROCKR FRT
GRADE TOURING(RBG) FRONT IDN 		8-97560-020-0 01 1 0107- ● ●
632 EXTENSION; ROCKR FRT
GRADE TOURING(RBG) FRONT IDN 		8-97560-019-0 01 1 0107- ● ●
632 EXTENSION; ROCKR FRT
GRADE TOURING(RBG) REAR IDN 		8-97560-024-0 01 1 0107- ●
632 EXTENSION; ROCKR FRT
GRADE TOURING(RBG) REAR IDN 		8-97560-023-0 01 1 0107- ●
çizim 289873
582 374 199 199 199 199
BalonParca AdiParca NoAdetTipApplied Date A B C
199 PANEL; RR SIDE
(A) IDN 		8-97955-265-0 01 1 0008-0405 ● ●
199 PANEL; RR SIDE
GRADE TOURING(RBG) CAB UP<W60> (A) IDN 		8-97955-265-0 01 1 0406- ● ●
199 PANEL; RR SIDE
EXC. CAB UP<W60> (A) IDN 		8-97955-265-0 01 1 0406- ● ●
199 PANEL; RR SIDE
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> (A) IDN 		8-97955-265-0 01 1 0406- ●
199 PANEL; RR SIDE
(B) IDN 		8-97956-092-1 01 1 0008-0405 ● ●
199 PANEL; RR SIDE
GRADE TOURING(RBG) CAB UP<W60> (B) IDN 		8-97956-092-1 01 1 0406- ● ●
199 PANEL; RR SIDE
EXC. CAB UP<W60> (B) IDN 		8-97956-092-1 01 1 0406- ● ●
199 PANEL; RR SIDE
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> (B) IDN 		8-97956-092-1 01 1 0406- ●
199 PANEL; RR SIDE
(A) IDN 		8-97955-264-0 01 1 0008-0405 ● ●
199 PANEL; RR SIDE
GRADE TOURING(RBG) CAB UP<W60> (A) IDN 		8-97955-264-0 01 1 0406- ● ●
199 PANEL; RR SIDE
EXC. CAB UP<W60> (A) IDN 		8-97955-264-0 01 1 0406- ● ●
199 PANEL; RR SIDE
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> (A) IDN 		8-97955-264-0 01 1 0406- ●
199 PANEL; RR SIDE
(B) IDN 		8-97956-091-1 01 1 0008-0405 ● ●
199 PANEL; RR SIDE
GRADE TOURING(RBG) CAB UP<W60> (B) IDN 		8-97956-091-1 01 1 0406- ● ●
199 PANEL; RR SIDE
EXC. CAB UP<W60> (B) IDN 		8-97956-091-1 01 1 0406- ● ●
199 PANEL; RR SIDE
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) CAB UP<W60> (B) IDN 		8-97956-091-1 01 1 0406- ●
374 BOLT; BRKT
M6X16 FLANGE 		0-28080-616-0 02 1 0008-0512 ● ●
374 BOLT; BRKT
M6X16 FLANGE IDN 		0-28050-616-0 02 1 0601- ● ●
582 BRACKET; CHECK ARM
IDN 		8-97956-002-0 01 1 0008-0106 ● ●
582 BRACKET; CHECK ARM
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97956-002-0 01 1 0107-0209 ● ●
582 BRACKET; CHECK ARM
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97956-002-0 01 1 0210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
