2-08 — CLUTCH MASTER CYLINDER (#9536) — 18 parça

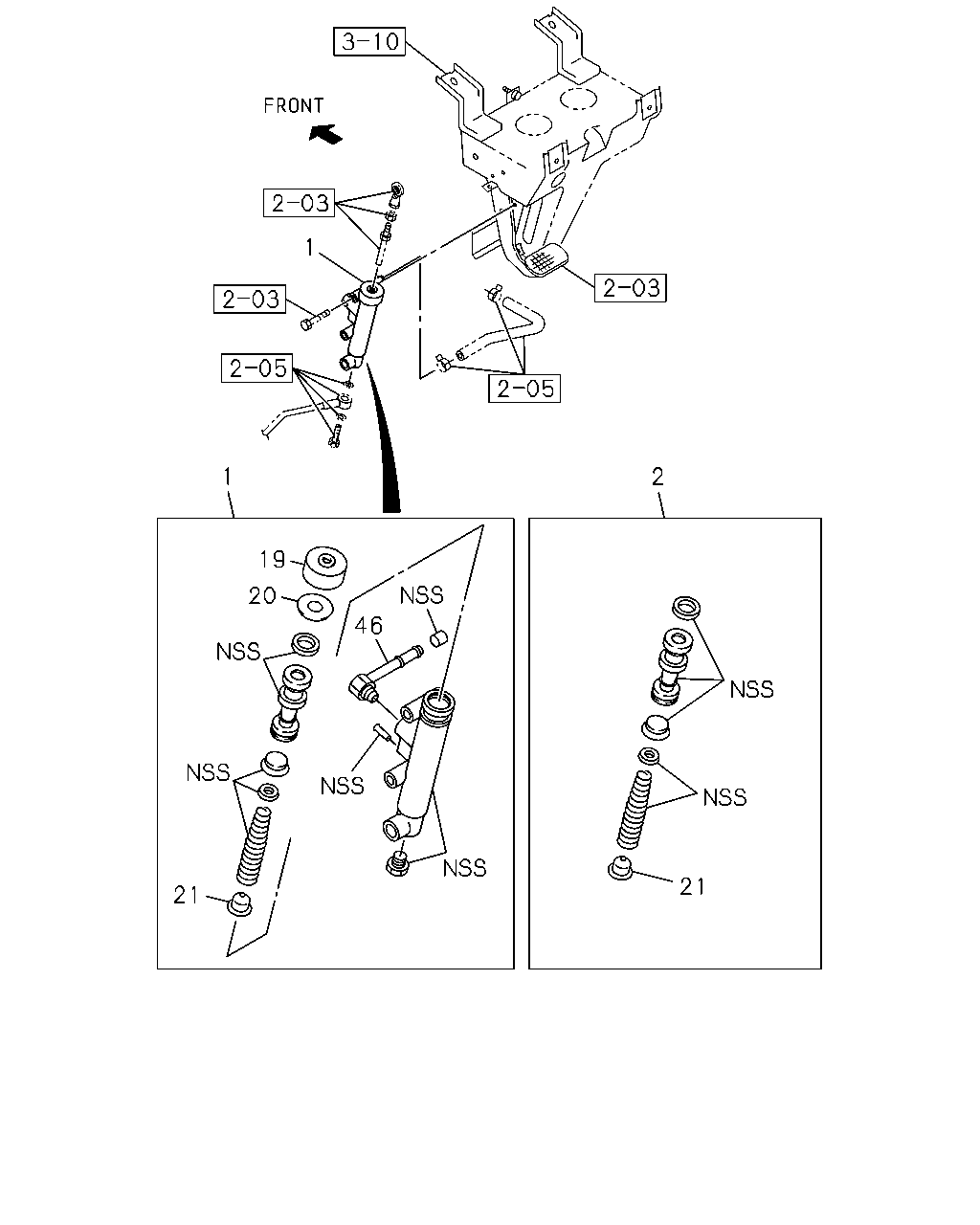

çizim 40315
1 2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0005-0210 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0212- ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0211- ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0005-0210 ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0212- ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0211- ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0005-0210 ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0212- ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0211- ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0005-0210 ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0212- ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0211- ●
21 VALVE; CHECK 1-47565-004-0 01 1 0005-0210 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 0212- ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 0211- ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0005-0210 ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0212- ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0211- ●
