6-10 — ENGINE HOOD AND LOCK (#95359) — 47 parça

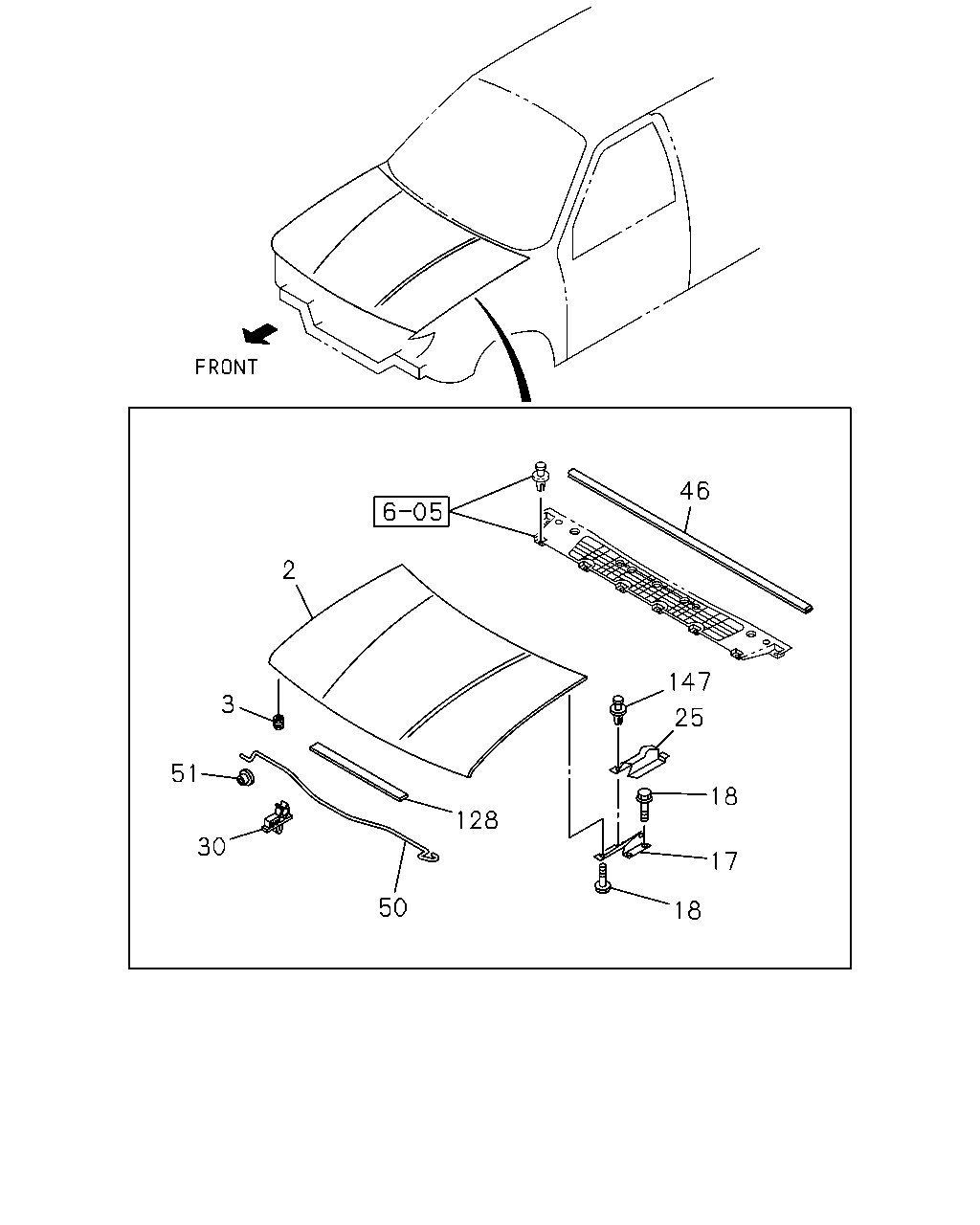

çizim 289209
46 147 25 18 17 18 128 2 3 51 30 50
BalonParca AdiParca NoAdetTipApplied Date A B C
2 PANEL; ENG HOOD
IDN 		8-97955-136-0 01 1 0008-0104 ● ● ●
2 PANEL; ENG HOOD
IDN 		8-97560-160-0 01 1 0105-0106 ● ● ●
2 PANEL; ENG HOOD
IDN 		8-97560-160-0 01 1 0107- ● ●
3 BUFFER; ENG HOOD,FRT
IDN 		8-97957-224-0 02 1 0008-0106 ● ● ●
3 BUFFER; ENG HOOD,FRT
IDN 		8-97957-224-0 02 1 0107- ● ●
17 HINGE; ENG HOOD
IDN 		8-97955-869-1 01 1 0008-0106 ● ● ●
17 HINGE; ENG HOOD
IDN 		8-97955-869-1 01 1 0107- ● ●
17 HINGE; ENG HOOD
IDN 		8-97955-868-1 01 1 0008-0106 ● ● ●
17 HINGE; ENG HOOD
IDN 		8-97955-868-1 01 1 0107- ● ●
18 BOLT; HINGE
M8X16 FLANGE 		0-28080-816-0 08 1 0008-0106 ● ● ●
18 BOLT; HINGE
M8X16 FLANGE 		0-28080-816-0 08 1 0107-0512 ● ●
18 BOLT; HINGE
M8X16 FLANGE 		0-28050-816-0 08 1 0601- ● ●
25 COVER; ENG HOOD HINGE
IDN 		8-97955-907-0 01 1 0008-0106 ● ● ●
25 COVER; ENG HOOD HINGE
IDN 		8-97955-907-0 01 1 0107- ● ●
25 COVER; ENG HOOD HINGE
IDN 		8-97955-906-0 01 1 0008-0106 ● ● ●
25 COVER; ENG HOOD HINGE
IDN 		8-97955-906-0 01 1 0107- ● ●
30 CLIP; SUPPORT ROD,HOOD 8-97104-427-0 02 1 0008-0106 ● ● ●
30 CLIP; SUPPORT ROD,HOOD 8-97104-427-0 02 1 0107- ● ●
46 SEAL; ENG HOOD
IDN 		8-97955-899-1 01 1 0008-0106 ● ● ●
46 SEAL; ENG HOOD
IDN 		8-97955-899-1 01 1 0107- ● ●
50 ROD; SUPPORT,ENG HOOD
IDN 		8-97955-897-0 01 1 0008-0106 ● ● ●
50 ROD; SUPPORT,ENG HOOD
IDN 		8-97955-897-1 01 1 0107- ● ●
51 GROMMET; SUPPORT ROD
IDN 		8-94220-508-2 01 1 0008-0106 ● ● ●
51 GROMMET; SUPPORT ROD
IDN 		8-94220-508-2 01 1 0107-0210 ● ●
51 GROMMET; SUPPORT ROD
IDN 		8-97362-324-0 01 1 0211- ● ●
128 SEAL; PLATFORM
A/T AISIN(RMD) COOLER WO/HEATER(YL1) IDN 		8-97957-062-1 01 1 0008-0106 ● ●
128 SEAL; PLATFORM
M/T MSG 5 SPEED(M75) GRADE TOURING(RBG) COOLER WO/HEATER(YL1) IDN 		8-97957-062-1 01 1 0107-0405 ● ●
128 SEAL; PLATFORM
A/T AISIN(RMD) COOLER WO/HEATER(YL1) IDN 		8-97957-062-1 01 1 0107-0405 ● ●
128 SEAL; PLATFORM
M/T MSG 5 SPEED(M75) AIR CONDITIONER ROOF MOUNTED<C69> CAB UP<W60> IDN 		8-97957-062-1 01 1 0406- ● ●
128 SEAL; PLATFORM
M/T MSG 5 SPEED(M75) CAB UP<W60> COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-062-1 01 1 0406- ● ●
128 SEAL; PLATFORM
A/T AISIN(RMD) AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-062-1 01 1 0406- ● ●
128 SEAL; PLATFORM
A/T AISIN(RMD) COOLER WO/HEATER(YL1) EXC. AIR CONDITIONER ROOF MOUNTED<C69> IDN 		8-97957-062-1 01 1 0406- ● ●
147 CLIP; COVER 8-97013-997-0 02 1 0107- ● ●
çizim 289872
48 49 24 24 24 26 31 32
BalonParca AdiParca NoAdetTipApplied Date A B C
24 CLIP; CONT CABLE
(A) L=140 IDN 		5-09707-031-1 01 1 0008-0106 ● ● ●
24 CLIP; CONT CABLE
(A) L=140 IDN 		5-09707-031-1 01 1 0107- ● ●
24 CLIP; CONT CABLE
(B) 		8-94225-098-0 03 1 0008-0106 ● ● ●
24 CLIP; CONT CABLE
(B) 		8-94225-098-0 03 1 0107- ● ●
26 CABLE; ENG HOOD CONT
IDN 		8-97955-898-0 01 1 0008-0106 ● ● ●
26 CABLE; ENG HOOD CONT
IDN 		8-97955-898-0 01 1 0107- ● ●
31 LOCK; ENG HOOD 8-97174-025-0 01 1 0008-0106 ● ● ●
31 LOCK; ENG HOOD 8-97174-025-1 01 1 0107- ● ●
32 BOLT; HOOD LK
M6X18 		8-94408-386-1 02 1 0008-0106 ● ● ●
32 BOLT; HOOD LK
M6X18 		8-94408-386-1 02 1 0107- ● ●
48 LEVER; ENG HOOD
BLACK 		8-97150-583-0 01 1 0008-0106 ● ● ●
48 LEVER; ENG HOOD
BLACK 		8-97150-583-0 01 1 0107- ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X10 		9-09829-185-0 02 1 0008-0106 ● ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X10 		9-09829-185-0 02 1 0107- ● ●
