Sayfa 6-05 - Isuzu EPC

6-05 — FRONT PANEL (#95357) — 206 parça

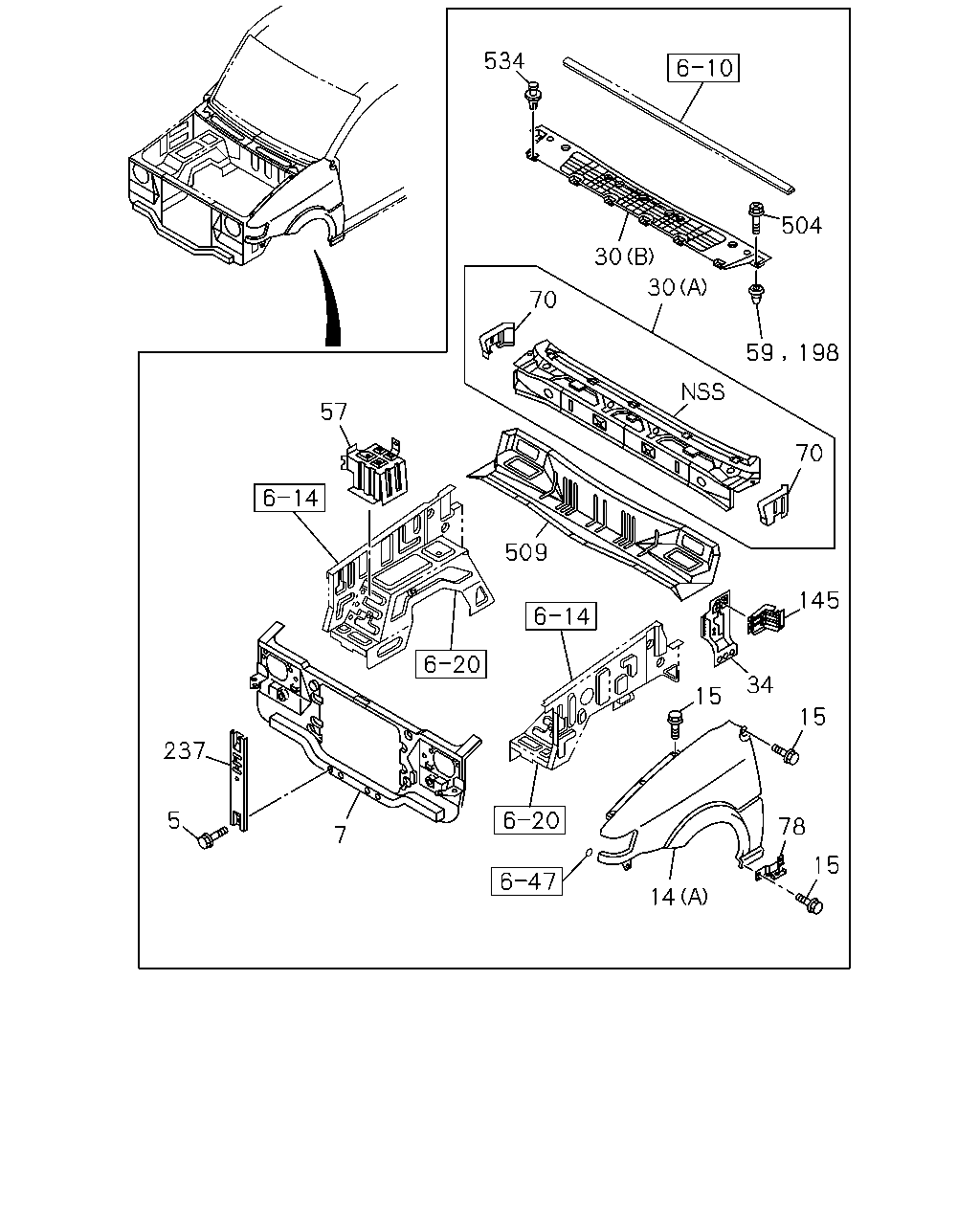

534 504 30 30 198 59 70 70 509 57 145 34 15 15 78 15 14 7 237 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	BOLT; SUPPORT M6X18	8-94408-386-1	02	1	0008-0106	●	●	●
5	BOLT; SUPPORT M6X18	8-94408-386-1	02	1	0107-0406		●	●
5	BOLT; SUPPORT M6X18	8-94408-386-1	02	1	0407-		●	●
7	PANEL; DEFLECTOR FACE LIFT MODEL<TX7> IDN	8-97562-302-2	01	1	0407-			●
7	PANEL; DEFLECTOR IDN	8-97955-062-1	01	1	0008-0106	●	●	●
7	PANEL; DEFLECTOR IDN	8-97955-062-4	01	1	0107-0406		●	●
7	PANEL; DEFLECTOR IDN	8-97955-062-4	01	1	0407-		●
7	PANEL; DEFLECTOR EXC. FACE LIFT MODEL<TX7> IDN	8-97955-062-4	01	1	0407-			●
14	FENDER; FRT GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> CAB UP<W60> (B) IDN	8-97589-089-1	01	1	0407-			●
14	FENDER; FRT GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> CAB UP<W60> (B) IDN	8-97589-090-1	01	1	0407-			●
14	FENDER; FRT FACE LIFT MODEL<TX7> EXC. CAB UP<W60> (B) IDN	8-97562-294-1	01	1	0407-			●
14	FENDER; FRT FACE LIFT MODEL<TX7> EXC. CAB UP<W60> (B) IDN	8-97562-295-1	01	1	0407-			●
14	FENDER; FRT GRADE TOURING(RBG) FACE LIFT MODEL<TX7> CAB UP<W60> (B) IDN	8-97562-290-1	01	1	0407-			●
14	FENDER; FRT GRADE TOURING(RBG) FACE LIFT MODEL<TX7> CAB UP<W60> (B) IDN	8-97562-291-1	01	1	0407-			●
14	FENDER; FRT (A) IDN	8-97955-861-4	01	1	0008-0106	●	●	●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN	8-97955-861-4	01	1	0107-0209		●	●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN	8-97955-861-4	01	1	0210-0406		●	●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN	8-97955-861-4	01	1	0407-		●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) EXC. FACE LIFT MODEL<TX7> (A) IDN	8-97955-861-4	01	1	0407-			●
14	FENDER; FRT (A) IDN	8-97955-860-4	01	1	0008-0106	●	●	●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN	8-97955-860-4	01	1	0107-0209		●	●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN	8-97955-860-4	01	1	0210-0406		●	●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN	8-97955-860-4	01	1	0407-		●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) EXC. FACE LIFT MODEL<TX7> (A) IDN	8-97955-860-4	01	1	0407-			●
14	FENDER; FRT GRADE TOURING(RBG) (A) IDN	8-97958-158-2	01	1	0107-0406		●	●
14	FENDER; FRT GRADE TOURING(RBG) (A) IDN	8-97958-158-2	01	1	0407-		●
14	FENDER; FRT GRADE TOURING(RBG) EXC. FACE LIFT MODEL<TX7> (A) IDN	8-97958-158-2	01	1	0407-			●
14	FENDER; FRT GRADE TOURING(RBG) (A) IDN	8-97958-157-2	01	1	0107-0406		●	●
14	FENDER; FRT GRADE TOURING(RBG) (A) IDN	8-97958-157-2	01	1	0407-		●
14	FENDER; FRT GRADE TOURING(RBG) EXC. FACE LIFT MODEL<TX7> (A) IDN	8-97958-157-2	01	1	0407-			●
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0008-0106	●	●	●
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0107-0406		●	●
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0407-0512		●	●
15	BOLT; FENDER M6X16 FLANGE	0-28650-616-0	02	1	0601-		●	●
15	BOLT; FENDER M6X16 W/PL WASHER IDN	8-94204-636-0	16	1	0008-0008	●	●	●
15	BOLT; FENDER M6X16 W/PL WASHER IDN	8-94204-636-0	10	1	0009-0106	●	●	●
15	BOLT; FENDER M6X16 W/PL WASHER IDN	8-94204-636-0	10	1	0107-0406		●	●
15	BOLT; FENDER M6X16 W/PL WASHER IDN	8-94204-636-0	10	1	0407-		●
15	BOLT; FENDER EXC. FACE LIFT MODEL<TX7> M6X16 W/PL WASHER IDN	8-94204-636-0	10	1	0407-			●
15	BOLT; FENDER M6X12 W/PL WASHER	8-94232-078-0	06	1	0009-0106	●	●	●
15	BOLT; FENDER M6X12 W/PL WASHER	8-94232-078-0	06	1	0107-0406		●	●
15	BOLT; FENDER M6X12 W/PL WASHER	8-94232-078-0	06	1	0407-		●	●
30	PANEL; COWL UPR (A) IDN	8-97955-060-1	01	1	0008-0106	●	●	●
30	PANEL; COWL UPR (A) IDN	8-97955-060-1	01	1	0107-		●	●
30	PANEL; COWL UPR (B) IDN	8-97955-905-4	01	1	0008-0106	●	●	●
30	PANEL; COWL UPR (B) IDN	8-97955-905-4	01	1	0107-		●	●
34	PANEL; DASH SIDE IDN	8-97955-738-0	01	1	0008-0106	●	●	●
34	PANEL; DASH SIDE IDN	8-97955-738-0	01	1	0107-		●	●
34	PANEL; DASH SIDE IDN	8-97955-737-0	01	1	0008-0106	●	●	●
34	PANEL; DASH SIDE IDN	8-97955-737-0	01	1	0107-		●	●
57	TRAY; BATTERY IDN	8-97956-566-0	01	1	0008-0106	●	●	●
57	TRAY; BATTERY IDN	8-97956-566-0	01	1	0107-		●	●
59	GROMMET; SCREW D=7.9X7.9 L=20 M5 IDN	8-94441-539-0	07	1	0205-		●	●
70	PANEL ASM; COWL SIDE IDN	8-97955-346-3	01	1	0008-0106	●	●	●
70	PANEL ASM; COWL SIDE IDN	8-97955-346-3	01	1	0107-		●	●
70	PANEL ASM; COWL SIDE IDN	8-97955-345-3	01	1	0008-0106	●	●	●
70	PANEL ASM; COWL SIDE IDN	8-97955-345-3	01	1	0107-		●	●
78	BRACKET; FENDER GRADE TOURING(RBG) IDN	8-97958-105-0	01	1	0107-		●	●
78	BRACKET; FENDER GRADE TOURING(RBG) IDN	8-97958-104-0	01	1	0107-		●	●
145	GUSSET; FRT PILLAR,UPR IDN	8-97955-361-1	01	1	0008-0106	●	●	●
145	GUSSET; FRT PILLAR,UPR IDN	8-97955-361-1	01	1	0107-		●	●
145	GUSSET; FRT PILLAR,UPR IDN	8-97955-360-1	01	1	0008-0106	●	●	●
145	GUSSET; FRT PILLAR,UPR IDN	8-97955-360-1	01	1	0107-		●	●
198	NUT; PANEL D=7.9X7.9 L=20 M5 IDN	8-94441-539-0	07	1	0008-0106	●	●	●
198	NUT; PANEL D=7.9X7.9 L=20 M5 IDN	8-94441-539-0	07	1	0107-0204		●	●
237	SUPPORT; DEFLECTOR FACE LIFT MODEL<TX7> IDN	8-97562-314-0	01	1	0407-			●
237	SUPPORT; DEFLECTOR IDN	8-97955-896-1	01	1	0008-0106	●	●	●
237	SUPPORT; DEFLECTOR IDN	8-97955-896-1	01	1	0107-0406		●	●
237	SUPPORT; DEFLECTOR IDN	8-97955-896-1	01	1	0407-		●
237	SUPPORT; DEFLECTOR EXC. FACE LIFT MODEL<TX7> IDN	8-97955-896-1	01	1	0407-			●
504	SCREW; COWL M5X19	8-97142-720-1	07	1	0008-0106	●	●	●
504	SCREW; COWL M5X19	8-97142-720-1	07	1	0107-		●	●
509	PANEL; DASH IDN	8-97955-061-4	01	1	0008-0106	●	●	●
509	PANEL; DASH IDN	8-97955-061-6	01	1	0107-		●	●
534	FASTENER D=5.8 SCREW & GROMMET NYLON IDN	8-94242-150-0	06	1	0008-0106	●	●	●
534	FASTENER D=5.8 SCREW & GROMMET NYLON IDN	8-94242-150-0	06	1	0107-		●	●

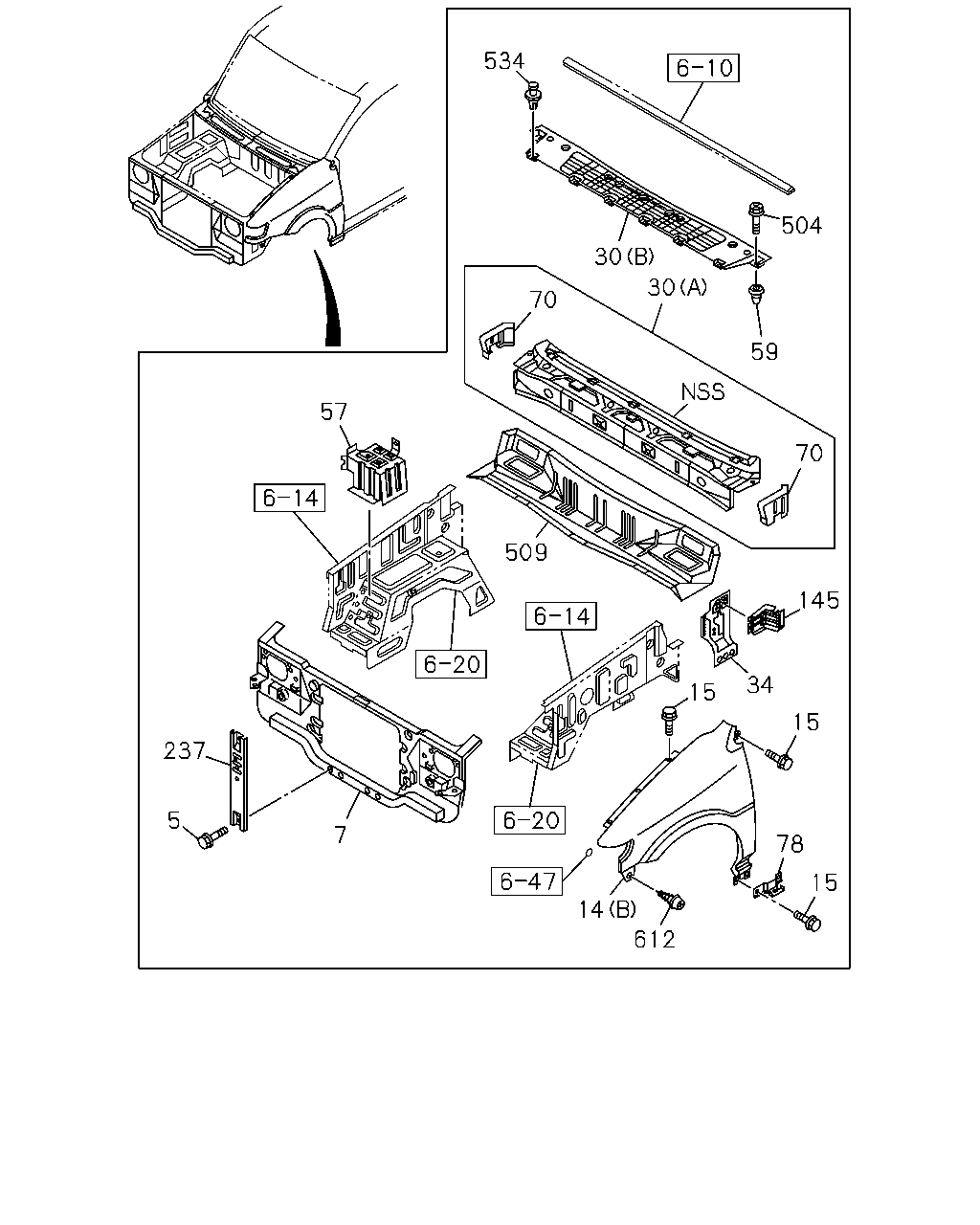

504 534 30 30 59 70 70 145 509 57 34 15 15 7 5 237 78 15 612 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	BOLT; SUPPORT M6X18	8-94408-386-1	02	1	0008-0106	●	●	●
5	BOLT; SUPPORT M6X18	8-94408-386-1	02	1	0107-0406		●	●
5	BOLT; SUPPORT M6X18	8-94408-386-1	02	1	0407-		●	●
7	PANEL; DEFLECTOR FACE LIFT MODEL<TX7> IDN	8-97562-302-2	01	1	0407-			●
7	PANEL; DEFLECTOR IDN	8-97955-062-1	01	1	0008-0106	●	●	●
7	PANEL; DEFLECTOR IDN	8-97955-062-4	01	1	0107-0406		●	●
7	PANEL; DEFLECTOR IDN	8-97955-062-4	01	1	0407-		●
7	PANEL; DEFLECTOR EXC. FACE LIFT MODEL<TX7> IDN	8-97955-062-4	01	1	0407-			●
14	FENDER; FRT GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> CAB UP<W60> (B) IDN	8-97589-089-1	01	1	0407-			●
14	FENDER; FRT GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> CAB UP<W60> (B) IDN	8-97589-090-1	01	1	0407-			●
14	FENDER; FRT FACE LIFT MODEL<TX7> EXC. CAB UP<W60> (B) IDN	8-97562-294-1	01	1	0407-			●
14	FENDER; FRT FACE LIFT MODEL<TX7> EXC. CAB UP<W60> (B) IDN	8-97562-295-1	01	1	0407-			●
14	FENDER; FRT GRADE TOURING(RBG) FACE LIFT MODEL<TX7> CAB UP<W60> (B) IDN	8-97562-290-1	01	1	0407-			●
14	FENDER; FRT GRADE TOURING(RBG) FACE LIFT MODEL<TX7> CAB UP<W60> (B) IDN	8-97562-291-1	01	1	0407-			●
14	FENDER; FRT (A) IDN	8-97955-861-4	01	1	0008-0106	●	●	●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN	8-97955-861-4	01	1	0107-0209		●	●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN	8-97955-861-4	01	1	0210-0406		●	●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN	8-97955-861-4	01	1	0407-		●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) EXC. FACE LIFT MODEL<TX7> (A) IDN	8-97955-861-4	01	1	0407-			●
14	FENDER; FRT (A) IDN	8-97955-860-4	01	1	0008-0106	●	●	●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN	8-97955-860-4	01	1	0107-0209		●	●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN	8-97955-860-4	01	1	0210-0406		●	●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN	8-97955-860-4	01	1	0407-		●
14	FENDER; FRT GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) EXC. FACE LIFT MODEL<TX7> (A) IDN	8-97955-860-4	01	1	0407-			●
14	FENDER; FRT GRADE TOURING(RBG) (A) IDN	8-97958-158-2	01	1	0107-0406		●	●
14	FENDER; FRT GRADE TOURING(RBG) (A) IDN	8-97958-158-2	01	1	0407-		●
14	FENDER; FRT GRADE TOURING(RBG) EXC. FACE LIFT MODEL<TX7> (A) IDN	8-97958-158-2	01	1	0407-			●
14	FENDER; FRT GRADE TOURING(RBG) (A) IDN	8-97958-157-2	01	1	0107-0406		●	●
14	FENDER; FRT GRADE TOURING(RBG) (A) IDN	8-97958-157-2	01	1	0407-		●
14	FENDER; FRT GRADE TOURING(RBG) EXC. FACE LIFT MODEL<TX7> (A) IDN	8-97958-157-2	01	1	0407-			●
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0008-0106	●	●	●
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0107-0406		●	●
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0407-0512		●	●
15	BOLT; FENDER M6X16 FLANGE	0-28650-616-0	02	1	0601-		●	●
15	BOLT; FENDER M6X16 W/PL WASHER IDN	8-94204-636-0	16	1	0008-0008	●	●	●
15	BOLT; FENDER M6X16 W/PL WASHER IDN	8-94204-636-0	10	1	0009-0106	●	●	●
15	BOLT; FENDER M6X16 W/PL WASHER IDN	8-94204-636-0	10	1	0107-0406		●	●
15	BOLT; FENDER M6X16 W/PL WASHER IDN	8-94204-636-0	10	1	0407-		●
15	BOLT; FENDER EXC. FACE LIFT MODEL<TX7> M6X16 W/PL WASHER IDN	8-94204-636-0	10	1	0407-			●
15	BOLT; FENDER M6X12 W/PL WASHER	8-94232-078-0	06	1	0009-0106	●	●	●
15	BOLT; FENDER M6X12 W/PL WASHER	8-94232-078-0	06	1	0107-0406		●	●
15	BOLT; FENDER M6X12 W/PL WASHER	8-94232-078-0	06	1	0407-		●	●
30	PANEL; COWL UPR (A) IDN	8-97955-060-1	01	1	0008-0106	●	●	●
30	PANEL; COWL UPR (A) IDN	8-97955-060-1	01	1	0107-		●	●
30	PANEL; COWL UPR (B) IDN	8-97955-905-4	01	1	0008-0106	●	●	●
30	PANEL; COWL UPR (B) IDN	8-97955-905-4	01	1	0107-		●	●
34	PANEL; DASH SIDE IDN	8-97955-738-0	01	1	0008-0106	●	●	●
34	PANEL; DASH SIDE IDN	8-97955-738-0	01	1	0107-		●	●
34	PANEL; DASH SIDE IDN	8-97955-737-0	01	1	0008-0106	●	●	●
34	PANEL; DASH SIDE IDN	8-97955-737-0	01	1	0107-		●	●
57	TRAY; BATTERY IDN	8-97956-566-0	01	1	0008-0106	●	●	●
57	TRAY; BATTERY IDN	8-97956-566-0	01	1	0107-		●	●
59	GROMMET; SCREW D=7.9X7.9 L=20 M5 IDN	8-94441-539-0	07	1	0205-		●	●
70	PANEL ASM; COWL SIDE IDN	8-97955-346-3	01	1	0008-0106	●	●	●
70	PANEL ASM; COWL SIDE IDN	8-97955-346-3	01	1	0107-		●	●
70	PANEL ASM; COWL SIDE IDN	8-97955-345-3	01	1	0008-0106	●	●	●
70	PANEL ASM; COWL SIDE IDN	8-97955-345-3	01	1	0107-		●	●
78	BRACKET; FENDER GRADE TOURING(RBG) IDN	8-97958-105-0	01	1	0107-		●	●
78	BRACKET; FENDER GRADE TOURING(RBG) IDN	8-97958-104-0	01	1	0107-		●	●
145	GUSSET; FRT PILLAR,UPR IDN	8-97955-361-1	01	1	0008-0106	●	●	●
145	GUSSET; FRT PILLAR,UPR IDN	8-97955-361-1	01	1	0107-		●	●
145	GUSSET; FRT PILLAR,UPR IDN	8-97955-360-1	01	1	0008-0106	●	●	●
145	GUSSET; FRT PILLAR,UPR IDN	8-97955-360-1	01	1	0107-		●	●
237	SUPPORT; DEFLECTOR FACE LIFT MODEL<TX7> IDN	8-97562-314-0	01	1	0407-			●
237	SUPPORT; DEFLECTOR IDN	8-97955-896-1	01	1	0008-0106	●	●	●
237	SUPPORT; DEFLECTOR IDN	8-97955-896-1	01	1	0107-0406		●	●
237	SUPPORT; DEFLECTOR IDN	8-97955-896-1	01	1	0407-		●
237	SUPPORT; DEFLECTOR EXC. FACE LIFT MODEL<TX7> IDN	8-97955-896-1	01	1	0407-			●
504	SCREW; COWL M5X19	8-97142-720-1	07	1	0008-0106	●	●	●
504	SCREW; COWL M5X19	8-97142-720-1	07	1	0107-		●	●
509	PANEL; DASH IDN	8-97955-061-4	01	1	0008-0106	●	●	●
509	PANEL; DASH IDN	8-97955-061-6	01	1	0107-		●	●
534	FASTENER D=5.8 SCREW & GROMMET NYLON IDN	8-94242-150-0	06	1	0008-0106	●	●	●
534	FASTENER D=5.8 SCREW & GROMMET NYLON IDN	8-94242-150-0	06	1	0107-		●	●
612	SCREW; TAP,FENDER FACE LIFT MODEL<TX7> M6X16 W/PL WASHER IDN	8-94204-636-0	08	1	0407-			●

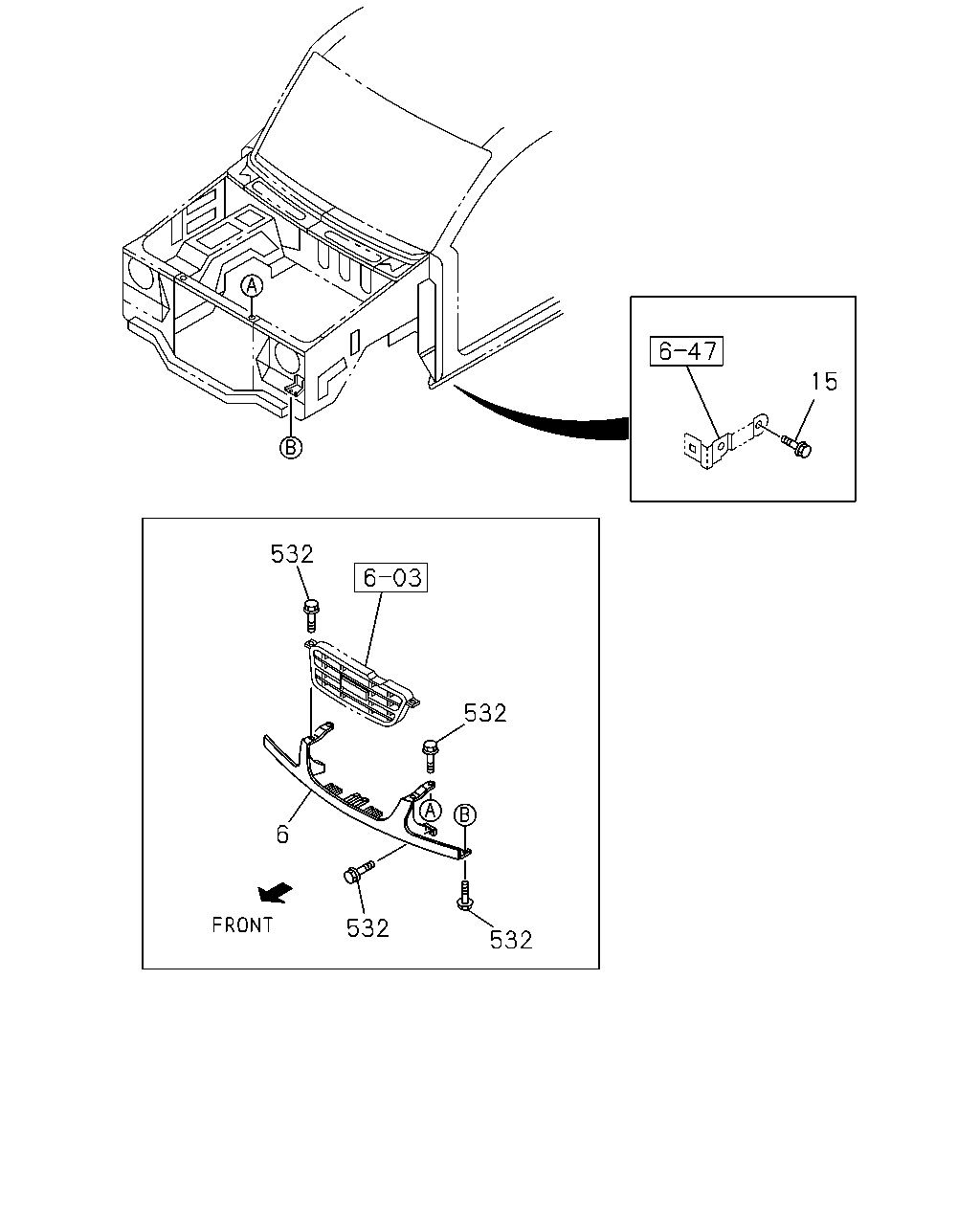

15 532 532 6 532 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	PANEL; FRONT BODY COLOR BRILLIANT RED MICA(605) RED IDN	8-97957-486-2	01	1	0008-0008	●	●	●
6	PANEL; FRONT BODY COLOR BRILLIANT RED MICA(605) RED IDN	8-97957-486-2	01	1	0009-0406		●	●
6	PANEL; FRONT BODY COLOR BRILLIANT RED MICA(605) RED IDN	8-97957-486-2	01	1	0407-		●
6	PANEL; FRONT BODY COLOR BRILLIANT RED MICA(605) EXC. FACE LIFT MODEL<TX7> RED IDN	8-97957-486-2	01	1	0407-			●
6	PANEL; FRONT BODY COLOR BRONZE BLUE MICA(607) BLUE IDN	8-97957-488-2	01	1	0008-0008	●	●	●
6	PANEL; FRONT BODY COLOR BRONZE BLUE MICA(607) BLUE IDN	8-97957-488-2	01	1	0009-0209		●	●
6	PANEL; FRONT BODY COLOR MISTY QUARTZ MET(673) DARK GOLD IDN	8-97561-622-2	01	1	0210-0406		●	●
6	PANEL; FRONT BODY COLOR MISTY QUARTZ MET(673) DARK GOLD IDN	8-97561-622-2	01	1	0407-		●
6	PANEL; FRONT BODY COLOR MISTY QUARTZ MET(673) EXC. FACE LIFT MODEL<TX7> DARK GOLD IDN	8-97561-622-2	01	1	0407-			●
6	PANEL; FRONT BODY COLOR KEYSER SILVER MET(604) SILVER IDN	8-97957-485-2	01	1	0008-0008	●	●	●
6	PANEL; FRONT BODY COLOR KEYSER SILVER MET(604) SILVER IDN	8-97957-485-2	01	1	0009-0106		●	●
6	PANEL; FRONT BODY COLOR MOONMIST GRAY MICA(652) GRAY IDN	8-97959-384-2	01	1	0107-0406		●	●
6	PANEL; FRONT BODY COLOR MOONMIST GRAY MICA(652) GRAY IDN	8-97959-384-2	01	1	0407-		●
6	PANEL; FRONT BODY COLOR MOONMIST GRAY MICA(652) EXC. FACE LIFT MODEL<TX7> GRAY IDN	8-97959-384-2	01	1	0407-			●
6	PANEL; FRONT BODY COLOR NORTH WHITE(601) WHITE IDN	8-97957-482-2	01	1	0008-0106	●	●	●
6	PANEL; FRONT BODY COLOR NORTH WHITE(601) WHITE IDN	8-97957-482-2	01	1	0107-0209		●	●
6	PANEL; FRONT BODY COLOR ORGANIC GREEN MICA(608) GREEN IDN	8-97957-489-2	01	1	0008-0106	●	●	●
6	PANEL; FRONT BODY COLOR ORGANIC GREEN MICA(608) GREEN IDN	8-97957-489-2	01	1	0107-0209		●	●
6	PANEL; FRONT BODY COLOR MINERAL BLUE MET(674) BLUE IDN	8-97561-623-2	01	1	0210-0406		●	●
6	PANEL; FRONT BODY COLOR MINERAL BLUE MET(674) BLUE IDN	8-97561-623-2	01	1	0407-		●
6	PANEL; FRONT BODY COLOR MINERAL BLUE MET(674) EXC. FACE LIFT MODEL<TX7> BLUE IDN	8-97561-623-2	01	1	0407-			●
6	PANEL; FRONT BODY COLOR ASTRA BLUE MICA(656) BLUE IDN	8-97560-008-2	01	1	0107-0406		●	●
6	PANEL; FRONT BODY COLOR ASTRA BLUE MICA(656) BLUE IDN	8-97560-008-2	01	1	0407-		●
6	PANEL; FRONT BODY COLOR ASTRA BLUE MICA(656) EXC. FACE LIFT MODEL<TX7> BLUE IDN	8-97560-008-2	01	1	0407-			●
6	PANEL; FRONT BODY COLOR BLUE MET(606) BLUE IDN	8-97957-487-2	01	1	0008-0209		●	●
6	PANEL; FRONT BODY COLOR COPPER HEAT BR0WN(660) BROWN IDN	8-97560-537-2	01	1	0107-0406		●	●
6	PANEL; FRONT BODY COLOR COPPER HEAT BR0WN(660) BROWN IDN	8-97560-537-2	01	1	0407-		●
6	PANEL; FRONT BODY COLOR COPPER HEAT BR0WN(660) EXC. FACE LIFT MODEL<TX7> BROWN IDN	8-97560-537-2	01	1	0407-			●
6	PANEL; FRONT BODY COLOR HONEY SILVER MET(603) IDN	8-97957-484-2	01	1	0008-0209		●	●
6	PANEL; FRONT BODY COLOR ARCTIC SILVER MET(672) SILVER IDN	8-97561-621-2	01	1	0210-0406		●	●
6	PANEL; FRONT BODY COLOR ARCTIC SILVER MET(672) SILVER IDN	8-97561-621-2	01	1	0407-		●
6	PANEL; FRONT BODY COLOR ARCTIC SILVER MET(672) EXC. FACE LIFT MODEL<TX7> SILVER IDN	8-97561-621-2	01	1	0407-			●
6	PANEL; FRONT BODY COLOR KEYSER SILVER MET(604) SILVER IDN	8-97957-485-2	01	1	0107-0209		●	●
6	PANEL; FRONT BODY COLOR PLATINUM SILVER MET(602) SILVER IDN	8-97957-483-2	01	1	0008-0406		●	●
6	PANEL; FRONT BODY COLOR PLATINUM SILVER MET(602) SILVER IDN	8-97957-483-2	01	1	0407-		●
6	PANEL; FRONT BODY COLOR PLATINUM SILVER MET(602) EXC. FACE LIFT MODEL<TX7> SILVER IDN	8-97957-483-2	01	1	0407-			●
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0008-0106	●	●	●
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0107-0406		●	●
15	BOLT; FENDER M6X16 FLANGE	0-28680-616-0	02	1	0407-0512		●	●
15	BOLT; FENDER M6X16 FLANGE	0-28650-616-0	02	1	0601-		●	●
15	BOLT; FENDER M6X16 W/PL WASHER IDN	8-94204-636-0	16	1	0008-0008	●	●	●
15	BOLT; FENDER M6X16 W/PL WASHER IDN	8-94204-636-0	10	1	0009-0106	●	●	●
15	BOLT; FENDER M6X16 W/PL WASHER IDN	8-94204-636-0	10	1	0107-0406		●	●
15	BOLT; FENDER M6X16 W/PL WASHER IDN	8-94204-636-0	10	1	0407-		●
15	BOLT; FENDER EXC. FACE LIFT MODEL<TX7> M6X16 W/PL WASHER IDN	8-94204-636-0	10	1	0407-			●
15	BOLT; FENDER M6X12 W/PL WASHER	8-94232-078-0	06	1	0009-0106	●	●	●
15	BOLT; FENDER M6X12 W/PL WASHER	8-94232-078-0	06	1	0107-0406		●	●
15	BOLT; FENDER M6X12 W/PL WASHER	8-94232-078-0	06	1	0407-		●	●
532	BOLT; FRT PANEL M6X16 FLANGE	0-28480-616-0	09	1	0008-0011	●	●	●
532	BOLT; FRT PANEL M6X16 FLANGE	0-28480-616-0	06	1	0012-0106	●	●	●
532	BOLT; FRT PANEL M6X16 FLANGE	0-28480-616-0	06	1	0107-0406		●	●
532	BOLT; FRT PANEL M6X16 FLANGE	0-28480-616-0	06	1	0407-0512		●
532	BOLT; FRT PANEL EXC. FACE LIFT MODEL<TX7> M6X16 FLANGE	0-28480-616-0	06	1	0407-0512			●
532	BOLT; FRT PANEL M6X16 FLANGE	0-28450-616-0	06	1	0601-		●
532	BOLT; FRT PANEL EXC. FACE LIFT MODEL<TX7> M6X16 FLANGE	0-28450-616-0	06	1	0601-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
