◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#95356) — 319 parça

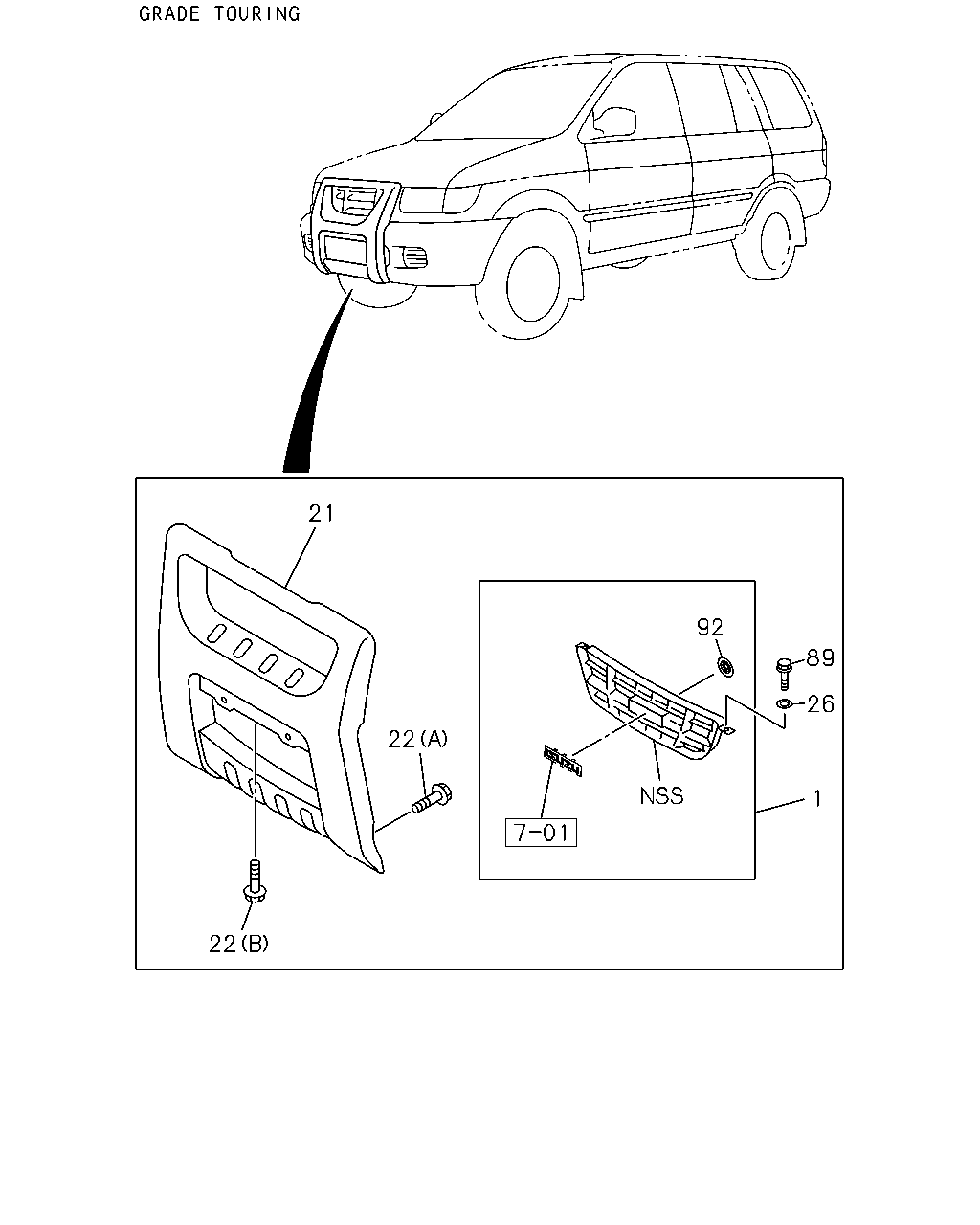

çizim 289035
1 26 92 89 22 21 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-527-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-516-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR HONEY SILVER MET(603) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-517-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> RED IDN 		8-97399-528-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> RED IDN 		8-97399-518-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR BRONZE BLUE MICA(607) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> DARK BLUE IDN 		8-97399-519-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ORGANIC GREEN MICA(608) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GREEN IDN 		8-97399-520-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MOONMIST GRAY MICA(652) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> GRAY IDN 		8-97399-529-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MOONMIST GRAY MICA(652) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GRAY IDN 		8-97399-521-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ASTRA BLUE MICA(656) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-530-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ASTRA BLUE MICA(656) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-522-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BROWN IDN 		8-97399-531-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BROWN IDN 		8-97399-523-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-532-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-524-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> DARK GOLD IDN 		8-97399-533-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> DARK GOLD IDN 		8-97399-525-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-534-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-526-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
BODY COLOR ARCTIC SILVER MET(672) DARK GRAY IDN 		8-97562-141-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR ARCTIC SILVER MET(672) EXC. FACE LIFT MODEL<TX7> DARK GRAY IDN 		8-97562-141-1 01 1 0407- ● ●
1 GRILLE; RAD
BODY COLOR MISTY QUARTZ MET(673) DARK GOLD IDN 		8-97561-619-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR MISTY QUARTZ MET(673) EXC. FACE LIFT MODEL<TX7> DARK GOLD IDN 		8-97561-619-1 01 1 0407- ● ●
1 GRILLE; RAD
BODY COLOR MINERAL BLUE MET(674) BLUE IDN 		8-97561-620-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR MINERAL BLUE MET(674) EXC. FACE LIFT MODEL<TX7> BLUE IDN 		8-97561-620-1 01 1 0407- ● ●
1 GRILLE; RAD
PICK UP(TB**S*) DARK GRAY IDN 		8-97957-225-1 01 1 0008-0106 ● ●
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) HI GRADE(6PQ) GRAY IDN 		8-97959-381-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) GRAY IDN 		8-97959-381-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) GRAY IDN 		8-97959-381-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) EXC. FACE LIFT MODEL<TX7> GRAY IDN 		8-97959-381-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR BLUE MET(606) BLUE IDN 		8-97957-878-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR BLUE MET(606) HI GRADE(6PQ) BLUE IDN 		8-97957-878-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR BLUE MET(606) BLUE IDN 		8-97957-878-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR ORGANIC GREEN MICA(608) GREEN IDN 		8-97957-880-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR ORGANIC GREEN MICA(608) EXC. FACE LIFT MODEL<TX7> GREEN IDN 		8-97957-880-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR BRILLIANT RED MICA(605) RED IDN 		8-97957-877-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) HI GRADE(6PQ) RED IDN 		8-97957-877-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) RED IDN 		8-97957-877-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) RED IDN 		8-97957-877-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) EXC. FACE LIFT MODEL<TX7> RED IDN 		8-97957-877-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR BRONZE BLUE MICA(607) DARK BLUE IDN 		8-97957-879-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) HI GRADE(6PQ) BLUE IDN 		8-97560-006-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) BLUE IDN 		8-97560-006-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) BLUE IDN 		8-97560-006-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) EXC. FACE LIFT MODEL<TX7> BLUE IDN 		8-97560-006-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR HONEY SILVER MET(603) SILVER IDN 		8-97957-875-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) HI GRADE(6PQ) SILVER IDN 		8-97957-875-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) SILVER IDN 		8-97957-875-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) SILVER IDN 		8-97957-875-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) EXC. FACE LIFT MODEL<TX7> SILVER IDN 		8-97957-875-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR KEYSER SILVER MET(604) SILVER IDN 		8-97957-876-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
EXC. HI GRADE(6PQ) SILVER IDN 		8-97957-876-1 01 1 0107-0209 ● ●
1 GRILLE; RAD
BODY COLOR KEYSER SILVER MET(604) HI GRADE(6PQ) SILVER IDN 		8-97957-876-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR KEYSER SILVER MET(604) SILVER IDN 		8-97957-876-1 01 1 0107-0209 ●
1 GRILLE; RAD
SILVER IDN 		8-97957-876-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
EXC. FACE LIFT MODEL<TX7> SILVER IDN 		8-97957-876-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR NORTH WHITE(601) WHITE IDN 		8-97957-873-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR NORTH WHITE(601) HI GRADE(6PQ) WHITE IDN 		8-97957-873-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR NORTH WHITE(601) WHITE IDN 		8-97957-873-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(607) DARK BLUE IDN 		8-97957-879-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(607) EXC. FACE LIFT MODEL<TX7> DARK BLUE IDN 		8-97957-879-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR ORGANIC GREEN MICA(608) GREEN IDN 		8-97957-880-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR COPPER HEAT BR0WN(660) BROWN IDN 		8-97560-536-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR COPPER HEAT BR0WN(660) LIGHT SILVER IDN 		8-97560-007-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR COPPER HEAT BR0WN(660) EXC. FACE LIFT MODEL<TX7> LIGHT SILVER IDN 		8-97560-007-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR PLATINUM SILVER MET(602) SILVER IDN 		8-97957-874-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) HI GRADE(6PQ) SILVER IDN 		8-97957-874-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) SILVER IDN 		8-97957-874-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) SILVER IDN 		8-97957-874-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) EXC. FACE LIFT MODEL<TX7> SILVER IDN 		8-97957-874-1 01 1 0407- ● ●
21 GUARD ASM; RAD GRILLE
IDN 		8-97956-741-0 01 1 0107-0406 ●
21 GUARD ASM; RAD GRILLE
SHORT(TB***C) IDN 		8-97956-741-0 01 1 0407- ●
21 GUARD ASM; RAD GRILLE
WAGON LONG(TB**VF) EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-741-0 01 1 0407- ●
22 BOLT; GUARD,RAD GRILLE
(A) M8X12 FLANGE 		0-28080-812-0 03 1 0107-0406 ●
22 BOLT; GUARD,RAD GRILLE
SHORT(TB***C) (A) M8X12 FLANGE 		0-28080-812-0 03 1 0407-0512 ●
22 BOLT; GUARD,RAD GRILLE
WAGON LONG(TB**VF) EXC. FACE LIFT MODEL<TX7> (A) M8X12 FLANGE 		0-28080-812-0 03 1 0407-0512 ●
22 BOLT; GUARD,RAD GRILLE
SHORT(TB***C) (A) M8X12 FLANGE 		0-28050-812-0 03 1 0601- ●
22 BOLT; GUARD,RAD GRILLE
WAGON LONG(TB**VF) EXC. FACE LIFT MODEL<TX7> (A) M8X12 FLANGE 		0-28050-812-0 03 1 0601- ●
22 BOLT; GUARD,RAD GRILLE
(B) M8X22 FLANGE 		8-94448-815-3 05 1 0107-0406 ●
22 BOLT; GUARD,RAD GRILLE
SHORT(TB***C) (B) M8X22 FLANGE 		8-94448-815-3 05 1 0407- ●
22 BOLT; GUARD,RAD GRILLE
WAGON LONG(TB**VF) EXC. FACE LIFT MODEL<TX7> (B) M8X22 FLANGE 		8-94448-815-3 05 1 0407- ●
26 WASHER; PL
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> ID=8.4 OD=18 		9-09160-608-0 02 1 0407-0605 ● ● ●
26 WASHER; PL
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 02 1 0606- ● ● ●
26 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 03 1 0012-0106 ● ● ●
26 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 03 1 0107-0209 ● ● ●
26 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 03 1 0210-0406 ● ● ● ●
26 WASHER; PL
EXC. FACE LIFT MODEL<TX7> ID=8.4 OD=18 		9-09160-608-0 03 1 0407-0605 ● ● ● ●
26 WASHER; PL
EXC. FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 03 1 0606- ● ● ● ●
89 BOLT; RAD GRILLE
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 02 1 0407- ● ● ●
89 BOLT; RAD GRILLE
M6X16 FLANGE 		8-97804-671-1 03 1 0012-0106 ● ● ●
89 BOLT; RAD GRILLE
M6X16 FLANGE 		8-97804-671-1 03 1 0107-0209 ● ● ●
89 BOLT; RAD GRILLE
M6X16 FLANGE 		8-97804-671-1 03 1 0210-0406 ● ● ● ●
89 BOLT; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 03 1 0407- ● ● ● ●
92 STOPPER; RAD GRILLE
IDN 		8-97182-223-0 03 1 0008-0106 ● ● ●
92 STOPPER; RAD GRILLE
IDN 		8-97182-223-0 03 1 0107-0209 ● ● ●
92 STOPPER; RAD GRILLE
IDN 		8-97182-223-0 03 1 0210- ● ● ● ●

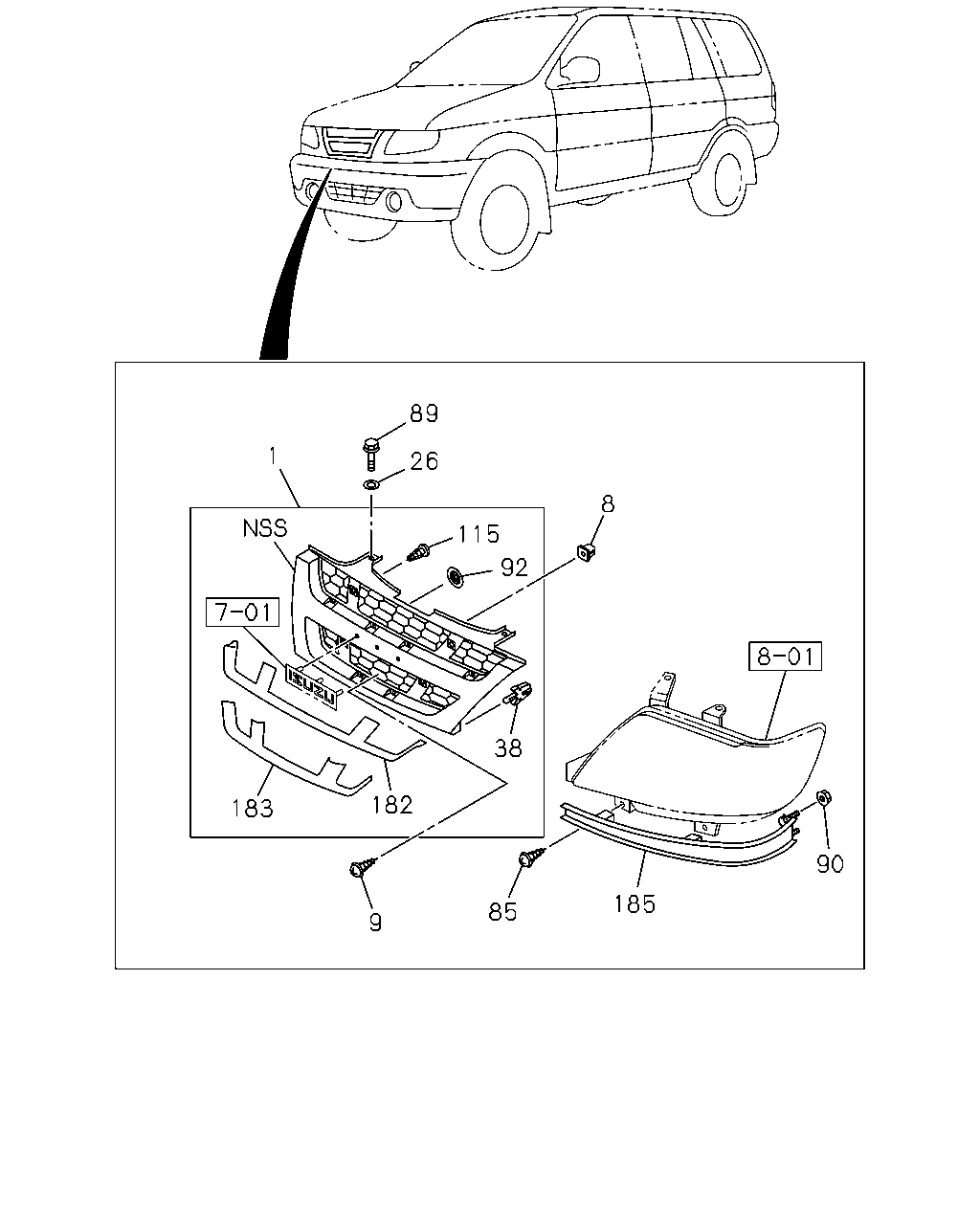

çizim 289063
90 8 89 1 26 92 115 38 182 183 185 85 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-527-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-516-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR HONEY SILVER MET(603) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-517-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> RED IDN 		8-97399-528-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> RED IDN 		8-97399-518-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR BRONZE BLUE MICA(607) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> DARK BLUE IDN 		8-97399-519-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ORGANIC GREEN MICA(608) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GREEN IDN 		8-97399-520-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MOONMIST GRAY MICA(652) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> GRAY IDN 		8-97399-529-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MOONMIST GRAY MICA(652) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GRAY IDN 		8-97399-521-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ASTRA BLUE MICA(656) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-530-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ASTRA BLUE MICA(656) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-522-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BROWN IDN 		8-97399-531-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BROWN IDN 		8-97399-523-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-532-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-524-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> DARK GOLD IDN 		8-97399-533-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> DARK GOLD IDN 		8-97399-525-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-534-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-526-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
BODY COLOR ARCTIC SILVER MET(672) DARK GRAY IDN 		8-97562-141-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR ARCTIC SILVER MET(672) EXC. FACE LIFT MODEL<TX7> DARK GRAY IDN 		8-97562-141-1 01 1 0407- ● ●
1 GRILLE; RAD
BODY COLOR MISTY QUARTZ MET(673) DARK GOLD IDN 		8-97561-619-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR MISTY QUARTZ MET(673) EXC. FACE LIFT MODEL<TX7> DARK GOLD IDN 		8-97561-619-1 01 1 0407- ● ●
1 GRILLE; RAD
BODY COLOR MINERAL BLUE MET(674) BLUE IDN 		8-97561-620-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR MINERAL BLUE MET(674) EXC. FACE LIFT MODEL<TX7> BLUE IDN 		8-97561-620-1 01 1 0407- ● ●
1 GRILLE; RAD
PICK UP(TB**S*) DARK GRAY IDN 		8-97957-225-1 01 1 0008-0106 ● ●
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) HI GRADE(6PQ) GRAY IDN 		8-97959-381-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) GRAY IDN 		8-97959-381-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) GRAY IDN 		8-97959-381-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) EXC. FACE LIFT MODEL<TX7> GRAY IDN 		8-97959-381-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR BLUE MET(606) BLUE IDN 		8-97957-878-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR BLUE MET(606) HI GRADE(6PQ) BLUE IDN 		8-97957-878-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR BLUE MET(606) BLUE IDN 		8-97957-878-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR ORGANIC GREEN MICA(608) GREEN IDN 		8-97957-880-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR ORGANIC GREEN MICA(608) EXC. FACE LIFT MODEL<TX7> GREEN IDN 		8-97957-880-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR BRILLIANT RED MICA(605) RED IDN 		8-97957-877-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) HI GRADE(6PQ) RED IDN 		8-97957-877-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) RED IDN 		8-97957-877-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) RED IDN 		8-97957-877-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) EXC. FACE LIFT MODEL<TX7> RED IDN 		8-97957-877-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR BRONZE BLUE MICA(607) DARK BLUE IDN 		8-97957-879-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) HI GRADE(6PQ) BLUE IDN 		8-97560-006-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) BLUE IDN 		8-97560-006-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) BLUE IDN 		8-97560-006-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) EXC. FACE LIFT MODEL<TX7> BLUE IDN 		8-97560-006-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR HONEY SILVER MET(603) SILVER IDN 		8-97957-875-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) HI GRADE(6PQ) SILVER IDN 		8-97957-875-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) SILVER IDN 		8-97957-875-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) SILVER IDN 		8-97957-875-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) EXC. FACE LIFT MODEL<TX7> SILVER IDN 		8-97957-875-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR KEYSER SILVER MET(604) SILVER IDN 		8-97957-876-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
EXC. HI GRADE(6PQ) SILVER IDN 		8-97957-876-1 01 1 0107-0209 ● ●
1 GRILLE; RAD
BODY COLOR KEYSER SILVER MET(604) HI GRADE(6PQ) SILVER IDN 		8-97957-876-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR KEYSER SILVER MET(604) SILVER IDN 		8-97957-876-1 01 1 0107-0209 ●
1 GRILLE; RAD
SILVER IDN 		8-97957-876-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
EXC. FACE LIFT MODEL<TX7> SILVER IDN 		8-97957-876-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR NORTH WHITE(601) WHITE IDN 		8-97957-873-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR NORTH WHITE(601) HI GRADE(6PQ) WHITE IDN 		8-97957-873-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR NORTH WHITE(601) WHITE IDN 		8-97957-873-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(607) DARK BLUE IDN 		8-97957-879-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(607) EXC. FACE LIFT MODEL<TX7> DARK BLUE IDN 		8-97957-879-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR ORGANIC GREEN MICA(608) GREEN IDN 		8-97957-880-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR COPPER HEAT BR0WN(660) BROWN IDN 		8-97560-536-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR COPPER HEAT BR0WN(660) LIGHT SILVER IDN 		8-97560-007-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR COPPER HEAT BR0WN(660) EXC. FACE LIFT MODEL<TX7> LIGHT SILVER IDN 		8-97560-007-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR PLATINUM SILVER MET(602) SILVER IDN 		8-97957-874-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) HI GRADE(6PQ) SILVER IDN 		8-97957-874-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) SILVER IDN 		8-97957-874-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) SILVER IDN 		8-97957-874-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) EXC. FACE LIFT MODEL<TX7> SILVER IDN 		8-97957-874-1 01 1 0407- ● ●
8 GROMMET; SCREW,RAD GRILLE
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> D=7X7 L=7.5 IDN 		8-94291-927-0 01 1 0407- ● ● ●
9 SCREW; RAD GRILLE
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M5X16 IDN 		8-94380-268-0 01 1 0407- ● ● ●
26 WASHER; PL
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> ID=8.4 OD=18 		9-09160-608-0 02 1 0407-0605 ● ● ●
26 WASHER; PL
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 02 1 0606- ● ● ●
26 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 03 1 0012-0106 ● ● ●
26 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 03 1 0107-0209 ● ● ●
26 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 03 1 0210-0406 ● ● ● ●
26 WASHER; PL
EXC. FACE LIFT MODEL<TX7> ID=8.4 OD=18 		9-09160-608-0 03 1 0407-0605 ● ● ● ●
26 WASHER; PL
EXC. FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 03 1 0606- ● ● ● ●
38 CLIP; GRILLE
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> BLACK 		8-94218-027-0 02 1 0407- ● ● ●
85 SCREW; RAD GRILLE SIDE
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M5X16 IDN 		8-94380-268-0 04 1 0407- ● ● ●
89 BOLT; RAD GRILLE
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 02 1 0407- ● ● ●
89 BOLT; RAD GRILLE
M6X16 FLANGE 		8-97804-671-1 03 1 0012-0106 ● ● ●
89 BOLT; RAD GRILLE
M6X16 FLANGE 		8-97804-671-1 03 1 0107-0209 ● ● ●
89 BOLT; RAD GRILLE
M6X16 FLANGE 		8-97804-671-1 03 1 0210-0406 ● ● ● ●
89 BOLT; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 03 1 0407- ● ● ● ●
90 NUT; RAD GRILLE
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M6 FLANGE 		0-91150-106-0 02 1 0407-0602 ● ● ●
90 NUT; RAD GRILLE
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ●
92 STOPPER; RAD GRILLE
IDN 		8-97182-223-0 03 1 0008-0106 ● ● ●
92 STOPPER; RAD GRILLE
IDN 		8-97182-223-0 03 1 0107-0209 ● ● ●
92 STOPPER; RAD GRILLE
IDN 		8-97182-223-0 03 1 0210- ● ● ● ●
115 SCREW; FRT GRILLE
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97944-140-0 14 1 0407- ● ● ●
182 MOLDING; RAD GRILLE,UPR
WAGON LONG(TB**VF) BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97944-244-0 01 1 0407- ● ● ● ●
182 MOLDING; RAD GRILLE,UPR
WAGON LONG(TB**VF) BODY COLOR HONEY SILVER MET(603) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97944-246-0 01 1 0407- ● ● ● ●
182 MOLDING; RAD GRILLE,UPR
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> RED IDN 		8-97944-248-0 01 1 0407- ● ● ● ●
182 MOLDING; RAD GRILLE,UPR
WAGON LONG(TB**VF) BODY COLOR BRONZE BLUE MICA(607) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> DARK BLUE IDN 		8-97944-250-0 01 1 0407- ● ● ● ●
182 MOLDING; RAD GRILLE,UPR
WAGON LONG(TB**VF) BODY COLOR ORGANIC GREEN MICA(608) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GREEN IDN 		8-97944-252-0 01 1 0407- ● ● ● ●
182 MOLDING; RAD GRILLE,UPR
WAGON LONG(TB**VF) BODY COLOR MOONMIST GRAY MICA(652) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GRAY IDN 		8-97944-254-0 01 1 0407- ● ● ● ●
182 MOLDING; RAD GRILLE,UPR
WAGON LONG(TB**VF) BODY COLOR ASTRA BLUE MICA(656) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97944-256-0 01 1 0407- ● ● ● ●
182 MOLDING; RAD GRILLE,UPR
WAGON LONG(TB**VF) BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BROWN IDN 		8-97944-258-0 01 1 0407- ● ● ● ●
182 MOLDING; RAD GRILLE,UPR
WAGON LONG(TB**VF) BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97944-260-0 01 1 0407- ● ● ● ●
182 MOLDING; RAD GRILLE,UPR
WAGON LONG(TB**VF) BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> DARK GOLD IDN 		8-97944-262-0 01 1 0407- ● ● ● ●
182 MOLDING; RAD GRILLE,UPR
WAGON LONG(TB**VF) BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97944-264-0 01 1 0407- ● ● ● ●
182 MOLDING; RAD GRILLE,UPR
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> CHROMIUM PLATE IDN 		8-97943-977-0 01 1 0407- ● ●
183 MOLDING; RAD GRILLE,LWR
WAGON LONG(TB**VF) BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97944-245-0 01 1 0407- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
WAGON LONG(TB**VF) BODY COLOR HONEY SILVER MET(603) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97944-247-0 01 1 0407- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> RED IDN 		8-97944-249-0 01 1 0407- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
WAGON LONG(TB**VF) BODY COLOR BRONZE BLUE MICA(607) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> DARK BLUE IDN 		8-97944-251-0 01 1 0407- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
WAGON LONG(TB**VF) BODY COLOR ORGANIC GREEN MICA(608) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GREEN IDN 		8-97944-253-0 01 1 0407- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
WAGON LONG(TB**VF) BODY COLOR MOONMIST GRAY MICA(652) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GRAY IDN 		8-97944-255-0 01 1 0407- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
WAGON LONG(TB**VF) BODY COLOR ASTRA BLUE MICA(656) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97944-257-0 01 1 0407- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
WAGON LONG(TB**VF) BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BROWN IDN 		8-97944-259-0 01 1 0407- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
WAGON LONG(TB**VF) BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97944-261-0 01 1 0407- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
WAGON LONG(TB**VF) BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> DARK GOLD IDN 		8-97944-263-0 01 1 0407- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
WAGON LONG(TB**VF) BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97944-265-0 01 1 0407- ● ● ● ●
183 MOLDING; RAD GRILLE,LWR
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> CHROMIUM PLATE IDN 		8-97943-979-0 01 1 0407- ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR HONEY SILVER MET(603) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR HONEY SILVER MET(603) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR BRONZE BLUE MICA(607) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR BRONZE BLUE MICA(607) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ORGANIC GREEN MICA(608) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ORGANIC GREEN MICA(608) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR MOONMIST GRAY MICA(652) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR MOONMIST GRAY MICA(652) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ASTRA BLUE MICA(656) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ASTRA BLUE MICA(656) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-034-2 01 1 0407- ● ● ●
185 MOLDING; RAD GRILLE,SIDE
BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> BLACK THA 		8-97944-035-2 01 1 0407- ● ● ●
çizim 289870
1 26 89 92
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-527-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-516-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR HONEY SILVER MET(603) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-517-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> RED IDN 		8-97399-528-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> RED IDN 		8-97399-518-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR BRONZE BLUE MICA(607) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> DARK BLUE IDN 		8-97399-519-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ORGANIC GREEN MICA(608) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GREEN IDN 		8-97399-520-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MOONMIST GRAY MICA(652) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> GRAY IDN 		8-97399-529-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MOONMIST GRAY MICA(652) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GRAY IDN 		8-97399-521-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ASTRA BLUE MICA(656) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-530-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ASTRA BLUE MICA(656) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-522-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BROWN IDN 		8-97399-531-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BROWN IDN 		8-97399-523-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-532-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> SILVER IDN 		8-97399-524-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> DARK GOLD IDN 		8-97399-533-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> DARK GOLD IDN 		8-97399-525-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-534-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
WAGON LONG(TB**VF) BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE IDN 		8-97399-526-2 01 1 0407- ● ● ● ●
1 GRILLE; RAD
BODY COLOR ARCTIC SILVER MET(672) DARK GRAY IDN 		8-97562-141-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR ARCTIC SILVER MET(672) EXC. FACE LIFT MODEL<TX7> DARK GRAY IDN 		8-97562-141-1 01 1 0407- ● ●
1 GRILLE; RAD
BODY COLOR MISTY QUARTZ MET(673) DARK GOLD IDN 		8-97561-619-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR MISTY QUARTZ MET(673) EXC. FACE LIFT MODEL<TX7> DARK GOLD IDN 		8-97561-619-1 01 1 0407- ● ●
1 GRILLE; RAD
BODY COLOR MINERAL BLUE MET(674) BLUE IDN 		8-97561-620-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR MINERAL BLUE MET(674) EXC. FACE LIFT MODEL<TX7> BLUE IDN 		8-97561-620-1 01 1 0407- ● ●
1 GRILLE; RAD
PICK UP(TB**S*) DARK GRAY IDN 		8-97957-225-1 01 1 0008-0106 ● ●
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) HI GRADE(6PQ) GRAY IDN 		8-97959-381-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) GRAY IDN 		8-97959-381-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) GRAY IDN 		8-97959-381-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR MOONMIST GRAY MICA(652) EXC. FACE LIFT MODEL<TX7> GRAY IDN 		8-97959-381-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR BLUE MET(606) BLUE IDN 		8-97957-878-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR BLUE MET(606) HI GRADE(6PQ) BLUE IDN 		8-97957-878-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR BLUE MET(606) BLUE IDN 		8-97957-878-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR ORGANIC GREEN MICA(608) GREEN IDN 		8-97957-880-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR ORGANIC GREEN MICA(608) EXC. FACE LIFT MODEL<TX7> GREEN IDN 		8-97957-880-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR BRILLIANT RED MICA(605) RED IDN 		8-97957-877-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) HI GRADE(6PQ) RED IDN 		8-97957-877-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) RED IDN 		8-97957-877-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) RED IDN 		8-97957-877-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR BRILLIANT RED MICA(605) EXC. FACE LIFT MODEL<TX7> RED IDN 		8-97957-877-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR BRONZE BLUE MICA(607) DARK BLUE IDN 		8-97957-879-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) HI GRADE(6PQ) BLUE IDN 		8-97560-006-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) BLUE IDN 		8-97560-006-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) BLUE IDN 		8-97560-006-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR ASTRA BLUE MICA(656) EXC. FACE LIFT MODEL<TX7> BLUE IDN 		8-97560-006-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR HONEY SILVER MET(603) SILVER IDN 		8-97957-875-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) HI GRADE(6PQ) SILVER IDN 		8-97957-875-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) SILVER IDN 		8-97957-875-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) SILVER IDN 		8-97957-875-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR HONEY SILVER MET(603) EXC. FACE LIFT MODEL<TX7> SILVER IDN 		8-97957-875-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR KEYSER SILVER MET(604) SILVER IDN 		8-97957-876-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
EXC. HI GRADE(6PQ) SILVER IDN 		8-97957-876-1 01 1 0107-0209 ● ●
1 GRILLE; RAD
BODY COLOR KEYSER SILVER MET(604) HI GRADE(6PQ) SILVER IDN 		8-97957-876-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR KEYSER SILVER MET(604) SILVER IDN 		8-97957-876-1 01 1 0107-0209 ●
1 GRILLE; RAD
SILVER IDN 		8-97957-876-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
EXC. FACE LIFT MODEL<TX7> SILVER IDN 		8-97957-876-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR NORTH WHITE(601) WHITE IDN 		8-97957-873-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR NORTH WHITE(601) HI GRADE(6PQ) WHITE IDN 		8-97957-873-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR NORTH WHITE(601) WHITE IDN 		8-97957-873-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(607) DARK BLUE IDN 		8-97957-879-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(607) EXC. FACE LIFT MODEL<TX7> DARK BLUE IDN 		8-97957-879-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR ORGANIC GREEN MICA(608) GREEN IDN 		8-97957-880-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR COPPER HEAT BR0WN(660) BROWN IDN 		8-97560-536-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR COPPER HEAT BR0WN(660) LIGHT SILVER IDN 		8-97560-007-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR COPPER HEAT BR0WN(660) EXC. FACE LIFT MODEL<TX7> LIGHT SILVER IDN 		8-97560-007-1 01 1 0407- ● ●
1 GRILLE; RAD
WAGON(TB**V*) BODY COLOR PLATINUM SILVER MET(602) SILVER IDN 		8-97957-874-1 01 1 0008-0106 ● ● ●
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) HI GRADE(6PQ) SILVER IDN 		8-97957-874-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) SILVER IDN 		8-97957-874-1 01 1 0107-0209 ●
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) SILVER IDN 		8-97957-874-1 01 1 0210-0406 ● ●
1 GRILLE; RAD
BODY COLOR PLATINUM SILVER MET(602) EXC. FACE LIFT MODEL<TX7> SILVER IDN 		8-97957-874-1 01 1 0407- ● ●
26 WASHER; PL
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> ID=8.4 OD=18 		9-09160-608-0 02 1 0407-0605 ● ● ●
26 WASHER; PL
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 02 1 0606- ● ● ●
26 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 03 1 0012-0106 ● ● ●
26 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 03 1 0107-0209 ● ● ●
26 WASHER; PL
ID=8.4 OD=18 		9-09160-608-0 03 1 0210-0406 ● ● ● ●
26 WASHER; PL
EXC. FACE LIFT MODEL<TX7> ID=8.4 OD=18 		9-09160-608-0 03 1 0407-0605 ● ● ● ●
26 WASHER; PL
EXC. FACE LIFT MODEL<TX7> ID=8.4 OD=18 		0-91610-608-0 03 1 0606- ● ● ● ●
89 BOLT; RAD GRILLE
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 02 1 0407- ● ● ●
89 BOLT; RAD GRILLE
M6X16 FLANGE 		8-97804-671-1 03 1 0012-0106 ● ● ●
89 BOLT; RAD GRILLE
M6X16 FLANGE 		8-97804-671-1 03 1 0107-0209 ● ● ●
89 BOLT; RAD GRILLE
M6X16 FLANGE 		8-97804-671-1 03 1 0210-0406 ● ● ● ●
89 BOLT; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> M6X16 FLANGE 		8-97804-671-1 03 1 0407- ● ● ● ●
92 STOPPER; RAD GRILLE
IDN 		8-97182-223-0 03 1 0008-0106 ● ● ●
92 STOPPER; RAD GRILLE
IDN 		8-97182-223-0 03 1 0107-0209 ● ● ●
92 STOPPER; RAD GRILLE
IDN 		8-97182-223-0 03 1 0210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
