◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#95355) — 276 parça

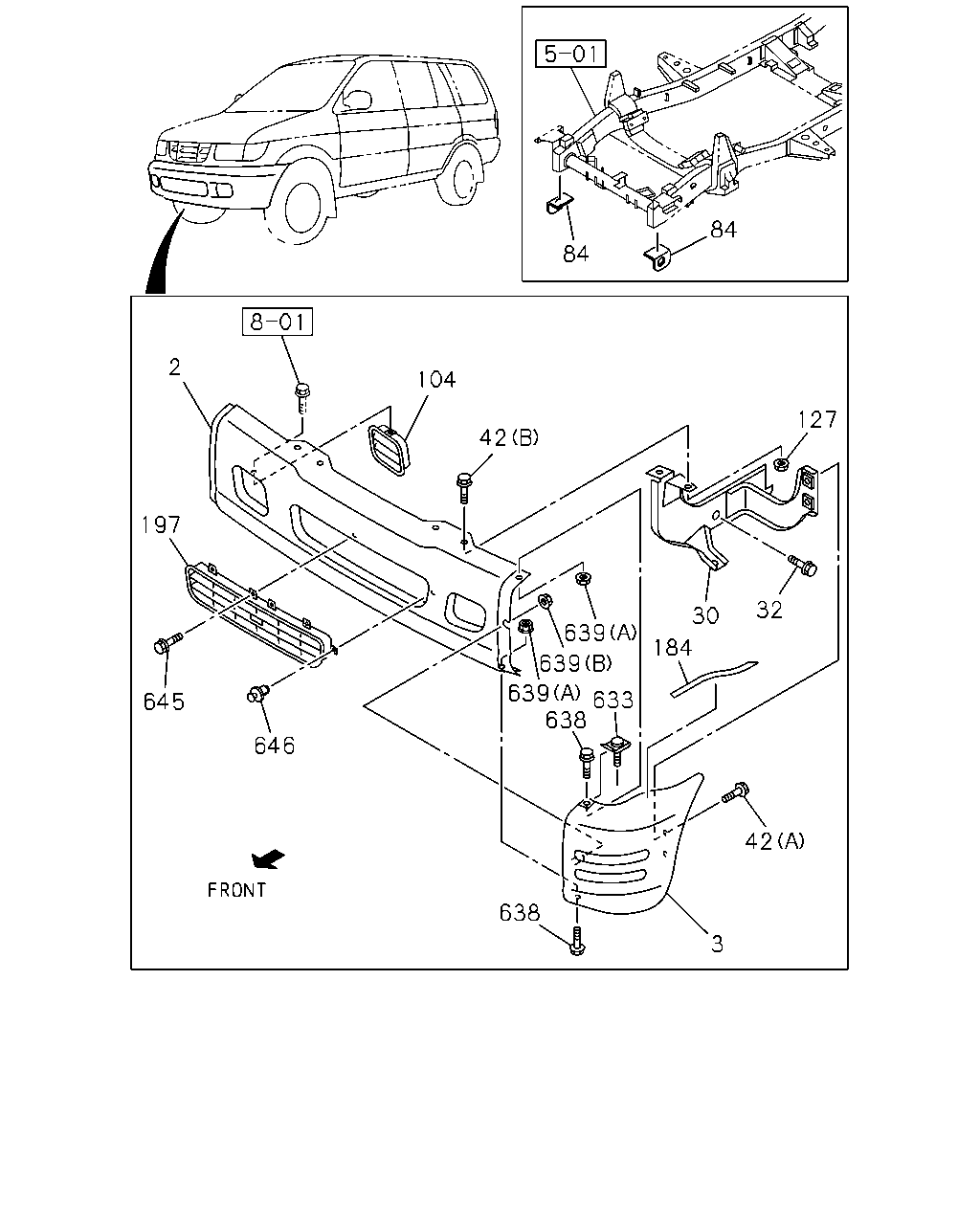

çizim 288962
3 42 638 646 645 638 639 633 639 639 184 30 32 127 42 104 197 2 84 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BUMPER; FRT,CENTER
IDN 		8-97958-552-2 01 1 0008-0106 ●
2 BUMPER; FRT,CENTER
PICK UP(TB**S*) IDN 		8-97958-552-2 01 1 0008-0106 ●
2 BUMPER; FRT,CENTER
IDN 		8-97958-552-2 01 1 0107-0406 ●
2 BUMPER; FRT,CENTER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97958-552-2 01 1 0407- ●
2 BUMPER; FRT,CENTER
WAGON(TB**V*) IDN 		8-97958-553-2 01 1 0008-0106 ●
2 BUMPER; FRT,CENTER
IDN 		8-97958-553-2 01 1 0008-0106 ●
2 BUMPER; FRT,CENTER
IDN 		8-97958-553-2 01 1 0107-0406 ● ●
2 BUMPER; FRT,CENTER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97958-553-2 01 1 0407- ● ●
2 BUMPER; FRT,CENTER
IDN 		8-97957-993-1 01 1 0107-0406 ●
2 BUMPER; FRT,CENTER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97957-993-1 01 1 0407- ●
3 BUMPER; FRT,SIDE
IDN 		8-97958-555-0 01 1 0008-0106 ● ● ●
3 BUMPER; FRT,SIDE
IDN 		8-97958-555-0 01 1 0107-0209 ● ●
3 BUMPER; FRT,SIDE
IDN 		8-97958-555-0 01 1 0210-0406 ● ● ●
3 BUMPER; FRT,SIDE
EXC. FACE LIFT MODEL<TX7> IDN 		8-97958-555-0 01 1 0407- ● ● ●
3 BUMPER; FRT,SIDE
IDN 		8-97958-554-0 01 1 0008-0106 ● ● ●
3 BUMPER; FRT,SIDE
IDN 		8-97958-554-0 01 1 0107-0209 ● ●
3 BUMPER; FRT,SIDE
IDN 		8-97958-554-0 01 1 0210-0406 ● ● ●
3 BUMPER; FRT,SIDE
EXC. FACE LIFT MODEL<TX7> IDN 		8-97958-554-0 01 1 0407- ● ● ●
3 BUMPER; FRT,SIDE
IDN 		8-97957-996-3 01 1 0107-0406 ●
3 BUMPER; FRT,SIDE
EXC. FACE LIFT MODEL<TX7> IDN 		8-97957-996-3 01 1 0407- ●
3 BUMPER; FRT,SIDE
IDN 		8-97957-995-3 01 1 0107-0406 ●
3 BUMPER; FRT,SIDE
EXC. FACE LIFT MODEL<TX7> IDN 		8-97957-995-3 01 1 0407- ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> EXC. CAB UP<W60> IDN 		8-97944-012-1 01 1 0407-0407 ● ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> EXC. CAB UP<W60> TAI 		8-97944-016-2 01 1 0408- ● ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> EXC. CAB UP<W60> IDN 		8-97944-013-1 01 1 0407-0407 ● ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> EXC. CAB UP<W60> TAI 		8-97944-017-2 01 1 0408- ● ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> CAB UP<W60> IDN 		8-97944-014-1 01 1 0407-0407 ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97944-014-1 01 1 0407-0407 ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> CAB UP<W60> TAI 		8-97944-018-2 01 1 0408- ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> TAI 		8-97944-018-2 01 1 0408- ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> CAB UP<W60> IDN 		8-97944-015-1 01 1 0407-0407 ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97944-015-1 01 1 0407-0407 ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> CAB UP<W60> TAI 		8-97944-019-2 01 1 0408- ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> TAI 		8-97944-019-2 01 1 0408- ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-583-2 01 1 0008-0106 ● ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-583-2 01 1 0107-0209 ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-583-2 01 1 0210-0406 ● ● ●
30 BRACKET; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97955-583-2 01 1 0407- ● ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-582-2 01 1 0008-0106 ● ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-582-2 01 1 0107-0209 ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-582-2 01 1 0210-0406 ● ● ●
30 BRACKET; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97955-582-2 01 1 0407- ● ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97956-553-1 01 1 0107-0406 ●
30 BRACKET; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-553-1 01 1 0407- ●
30 BRACKET; FRT BUMPER
IDN 		8-97956-552-1 01 1 0107-0406 ●
30 BRACKET; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-552-1 01 1 0407- ●
32 BOLT; BRKT,BUMPER
M12X30 FLANGE 		0-28691-230-0 04 1 0008-0106 ● ● ●
32 BOLT; BRKT,BUMPER
M12X30 FLANGE 		0-28691-230-0 04 1 0107-0209 ● ● ●
32 BOLT; BRKT,BUMPER
M12X30 FLANGE 		0-28691-230-0 04 1 0210-0512 ● ● ● ●
32 BOLT; BRKT,BUMPER
M12X30 FLANGE 		0-28661-230-0 04 1 0601- ● ● ● ●
42 BOLT; BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0512 ● ● ●
42 BOLT; BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> (A) M8X20 FLANGE IDN 		0-28650-820-0 03 1 0601- ● ● ●
42 BOLT; BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING THA 		8-94241-821-0 06 1 0407- ● ● ●
42 BOLT; BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> (C) M6X12 FLANGE 		8-97351-109-0 06 1 0407- ● ● ●
42 BOLT; BUMPER
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0008-0106 ● ● ●
42 BOLT; BUMPER
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0107-0209 ● ● ●
42 BOLT; BUMPER
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0210-0512 ● ● ● ●
42 BOLT; BUMPER
(A) M8X20 FLANGE IDN 		0-28650-820-0 04 1 0601- ● ● ● ●
42 BOLT; BUMPER
(B) M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0008-0106 ● ● ●
42 BOLT; BUMPER
(B) M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0107-0209 ● ● ●
42 BOLT; BUMPER
(B) M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0210-0406 ● ● ● ●
42 BOLT; BUMPER
EXC. FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0407- ● ● ● ●
84 HOOK
FACE LIFT MODEL<TX7> IDN 		8-97562-381-0 01 1 0407- ● ● ● ●
84 HOOK
IDN 		8-97015-038-0 01 1 0008-0009 ● ● ●
84 HOOK
IDN 		8-97958-976-0 01 1 0102-0106 ● ● ●
84 HOOK
IDN 		8-97958-976-0 01 1 0107-0406 ● ● ●
84 HOOK
EXC. FACE LIFT MODEL<TX7> IDN 		8-97958-976-0 01 1 0407- ● ● ● ●
104 COVER; HOLE,FOG LAMP
IDN 		8-97957-481-1 01 1 0008-0010 ● ● ●
104 COVER; HOLE,FOG LAMP
IDN 		8-97956-714-1 01 1 0011-0106 ● ● ●
104 COVER; HOLE,FOG LAMP
IDN 		8-97956-714-1 01 1 0107-0209 ● ● ●
104 COVER; HOLE,FOG LAMP
IDN 		8-97956-714-1 01 1 0210-0406 ● ● ● ●
104 COVER; HOLE,FOG LAMP
EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-714-1 01 1 0407- ● ● ● ●
104 COVER; HOLE,FOG LAMP
IDN 		8-97957-480-1 01 1 0008-0010 ● ● ●
104 COVER; HOLE,FOG LAMP
IDN 		8-97956-713-1 01 1 0011-0106 ● ● ●
104 COVER; HOLE,FOG LAMP
IDN 		8-97956-713-1 01 1 0107-0209 ● ● ●
104 COVER; HOLE,FOG LAMP
IDN 		8-97956-713-1 01 1 0210-0406 ● ● ● ●
104 COVER; HOLE,FOG LAMP
EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-713-1 01 1 0407- ● ● ● ●
127 NUT; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M8 FLANGE 		5-09440-005-0 06 1 0407-0805 ● ● ●
127 NUT; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M8 FLANGE 		8-97581-233-0 06 1 0806- ● ● ●
127 NUT; FRT BUMPER
M8 FLANGE 		5-09440-005-0 08 1 0008-0106 ● ● ●
127 NUT; FRT BUMPER
M8 FLANGE 		5-09440-005-0 08 1 0107-0209 ● ● ●
127 NUT; FRT BUMPER
M8 FLANGE 		5-09440-005-0 08 1 0210-0406 ● ● ● ●
127 NUT; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> M8 FLANGE 		5-09440-005-0 08 1 0407-0805 ● ● ● ●
127 NUT; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> M8 FLANGE 		8-97581-233-0 08 1 0806- ● ● ● ●
184 TAPE; FRONT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97562-553-0 01 1 0407- ● ●
184 TAPE; FRONT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97562-554-0 01 1 0407- ● ●
184 TAPE; FRONT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97562-556-0 01 1 0407- ●
184 TAPE; FRONT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97562-557-0 01 1 0407- ●
184 TAPE; FRONT BUMPER
IDN 		8-97958-888-0 01 1 0008-0106 ● ● ●
184 TAPE; FRONT BUMPER
IDN 		8-97958-888-0 01 1 0107-0209 ● ●
184 TAPE; FRONT BUMPER
IDN 		8-97958-888-0 01 1 0210-0406 ● ● ●
184 TAPE; FRONT BUMPER
SHORT(TB***C) IDN 		8-97958-888-0 01 1 0407- ● ● ●
184 TAPE; FRONT BUMPER
WAGON LONG(TB**VF) EXC. FACE LIFT MODEL<TX7> IDN 		8-97958-888-0 01 1 0407- ● ● ●
184 TAPE; FRONT BUMPER
IDN 		8-97958-887-0 01 1 0008-0106 ● ● ●
184 TAPE; FRONT BUMPER
IDN 		8-97958-887-0 01 1 0107-0209 ● ●
184 TAPE; FRONT BUMPER
IDN 		8-97958-887-0 01 1 0210-0406 ● ● ●
184 TAPE; FRONT BUMPER
SHORT(TB***C) IDN 		8-97958-887-0 01 1 0407- ● ● ●
184 TAPE; FRONT BUMPER
WAGON LONG(TB**VF) EXC. FACE LIFT MODEL<TX7> IDN 		8-97958-887-0 01 1 0407- ● ● ●
184 TAPE; FRONT BUMPER
IDN 		8-97959-275-0 01 1 0107-0406 ●
184 TAPE; FRONT BUMPER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97959-275-0 01 1 0407- ●
184 TAPE; FRONT BUMPER
IDN 		8-97959-274-0 01 1 0107-0406 ●
184 TAPE; FRONT BUMPER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97959-274-0 01 1 0407- ●
197 GRILLE; BUMPER
WAGON(TB**V*) IDN 		8-97957-167-0 01 1 0008-0106 ●
197 GRILLE; BUMPER
IDN 		8-97957-167-0 01 1 0008-0106 ●
197 GRILLE; BUMPER
IDN 		8-97957-167-0 01 1 0107-0209 ● ●
197 GRILLE; BUMPER
IDN 		8-97957-167-0 01 1 0210-0406 ● ● ●
197 GRILLE; BUMPER
SHORT(TB***C) IDN 		8-97957-167-0 01 1 0407- ● ● ●
197 GRILLE; BUMPER
WAGON LONG(TB**VF) EXC. FACE LIFT MODEL<TX7> IDN 		8-97957-167-0 01 1 0407- ● ● ●
633 CLIP; BUMPER 8-97806-845-2 02 1 0107-0406 ●
633 CLIP; BUMPER
EXC. FACE LIFT MODEL<TX7> 		8-97806-845-2 02 1 0407- ●
638 BOLT; CTR TO SIDE,FRT BUMPER
M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0406-0406 ● ●
638 BOLT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0407- ● ●
638 BOLT; CTR TO SIDE,FRT BUMPER
M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0008-0106 ● ● ●
638 BOLT; CTR TO SIDE,FRT BUMPER
M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0107-0209 ● ●
638 BOLT; CTR TO SIDE,FRT BUMPER
M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0210-0311 ● ● ●
638 BOLT; CTR TO SIDE,FRT BUMPER
M8X20 DACRO-COATING THA 		8-94241-821-0 04 1 0312-0405 ● ● ●
638 BOLT; CTR TO SIDE,FRT BUMPER
M8X20 DACRO-COATING THA 		8-94241-821-0 04 1 0312-0405 ● ● ●
638 BOLT; CTR TO SIDE,FRT BUMPER
M8X20 DACRO-COATING THA 		8-94241-821-0 04 1 0406-0406 ●
638 BOLT; CTR TO SIDE,FRT BUMPER
M8X20 DACRO-COATING THA 		8-94241-821-0 04 1 0406-0406 ●
638 BOLT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> M8X20 DACRO-COATING THA 		8-94241-821-0 04 1 0407- ●
638 BOLT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> M8X20 DACRO-COATING THA 		8-94241-821-0 04 1 0407- ●
638 BOLT; CTR TO SIDE,FRT BUMPER
M6X20 FLANGE 		0-28680-620-0 04 1 0107-0406 ●
638 BOLT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> M6X20 FLANGE 		0-28680-620-0 04 1 0407-0512 ●
638 BOLT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> M6X20 FLANGE IDN 		0-28650-620-0 04 1 0601- ●
638 BOLT; CTR TO SIDE,FRT BUMPER
M6X12 		8-97807-917-0 02 1 0107-0208 ●
638 BOLT; CTR TO SIDE,FRT BUMPER
M6X12 FLANGE 		8-97351-109-0 02 1 0209-0406 ●
638 BOLT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> M6X12 FLANGE 		8-97351-109-0 02 1 0407- ●
639 NUT; CTR TO SIDE,FRT BUMPER
(A) M8 FLANGE 		5-09440-005-0 08 1 0406-0406 ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> (A) M8 FLANGE 		5-09440-005-0 08 1 0407-0805 ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> (A) M8 FLANGE 		8-97581-233-0 08 1 0806- ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
(B) M8 W/LK WASHER 		8-97065-435-0 04 1 0406-0406 ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> (B) M8 W/LK WASHER 		8-97065-435-0 04 1 0407- ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
(A) M8 FLANGE 		5-09440-005-0 08 1 0008-0106 ● ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
(A) M8 FLANGE 		5-09440-005-0 08 1 0107-0209 ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
(A) M8 FLANGE 		5-09440-005-0 08 1 0210-0311 ● ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
(A) M8 FLANGE 		5-09440-005-0 04 1 0312-0405 ● ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
(A) M8 FLANGE 		5-09440-005-0 04 1 0312-0405 ● ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
(A) M8 FLANGE 		5-09440-005-0 04 1 0406-0406 ●
639 NUT; CTR TO SIDE,FRT BUMPER
(A) M8 FLANGE 		5-09440-005-0 04 1 0406-0406 ●
639 NUT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> (A) M8 FLANGE 		5-09440-005-0 04 1 0407-0805 ●
639 NUT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> (A) M8 FLANGE 		5-09440-005-0 04 1 0407-0805 ●
639 NUT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> (A) M8 FLANGE 		8-97581-233-0 04 1 0806- ●
639 NUT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> (A) M8 FLANGE 		8-97581-233-0 04 1 0806- ●
639 NUT; CTR TO SIDE,FRT BUMPER
(B) M8 W/LK WASHER 		8-97065-435-0 04 1 0008-0106 ● ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
(B) M8 W/LK WASHER 		8-97065-435-0 04 1 0107-0209 ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
(B) M8 W/LK WASHER 		8-97065-435-0 04 1 0210-0311 ● ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
(B) M8 W/LK WASHER 		8-97065-435-0 02 1 0312-0405 ● ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
(B) M8 W/LK WASHER 		8-97065-435-0 02 1 0312-0405 ● ● ●
639 NUT; CTR TO SIDE,FRT BUMPER
(B) M8 W/LK WASHER 		8-97065-435-0 02 1 0406-0406 ●
639 NUT; CTR TO SIDE,FRT BUMPER
(B) M8 W/LK WASHER 		8-97065-435-0 02 1 0406-0406 ●
639 NUT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> (B) M8 W/LK WASHER 		8-97065-435-0 02 1 0407- ●
639 NUT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> (B) M8 W/LK WASHER 		8-97065-435-0 02 1 0407- ●
639 NUT; CTR TO SIDE,FRT BUMPER
(B) M6 FLANGE 		0-91150-106-0 04 1 0107-0406 ●
639 NUT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> (B) M6 FLANGE 		0-91150-106-0 04 1 0407-0602 ●
639 NUT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> (B) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
639 NUT; CTR TO SIDE,FRT BUMPER
(A) IDN 		8-94471-330-2 04 1 0107-0406 ●
639 NUT; CTR TO SIDE,FRT BUMPER
EXC. FACE LIFT MODEL<TX7> (A) IDN 		8-94471-330-2 04 1 0407- ●
645 BOLT; BUMPER GRILLE
WAGON(TB**V*) M6X12 		8-97807-917-0 05 1 0008-0106 ●
645 BOLT; BUMPER GRILLE
M6X12 		8-97807-917-0 05 1 0008-0106 ●
645 BOLT; BUMPER GRILLE
M6X12 		8-97807-917-0 05 1 0107-0208 ● ●
645 BOLT; BUMPER GRILLE
M6X12 FLANGE 		8-97351-109-0 05 1 0209-0209 ● ●
645 BOLT; BUMPER GRILLE
M6X12 FLANGE 		8-97351-109-0 05 1 0210-0406 ● ● ●
645 BOLT; BUMPER GRILLE
SHORT(TB***C) M6X12 FLANGE 		8-97351-109-0 05 1 0407- ● ● ●
645 BOLT; BUMPER GRILLE
WAGON LONG(TB**VF) EXC. FACE LIFT MODEL<TX7> M6X12 FLANGE 		8-97351-109-0 05 1 0407- ● ● ●
646 FASTENER; BUMPER GRILLE
WAGON(TB**V*) D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 06 1 0008-0106 ●
646 FASTENER; BUMPER GRILLE
D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 06 1 0008-0106 ●
646 FASTENER; BUMPER GRILLE
D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 06 1 0107-0209 ● ●
646 FASTENER; BUMPER GRILLE
D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 06 1 0210-0406 ● ● ●
646 FASTENER; BUMPER GRILLE
SHORT(TB***C) D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 06 1 0407- ● ● ●
646 FASTENER; BUMPER GRILLE
WAGON LONG(TB**VF) EXC. FACE LIFT MODEL<TX7> D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 06 1 0407- ● ● ●

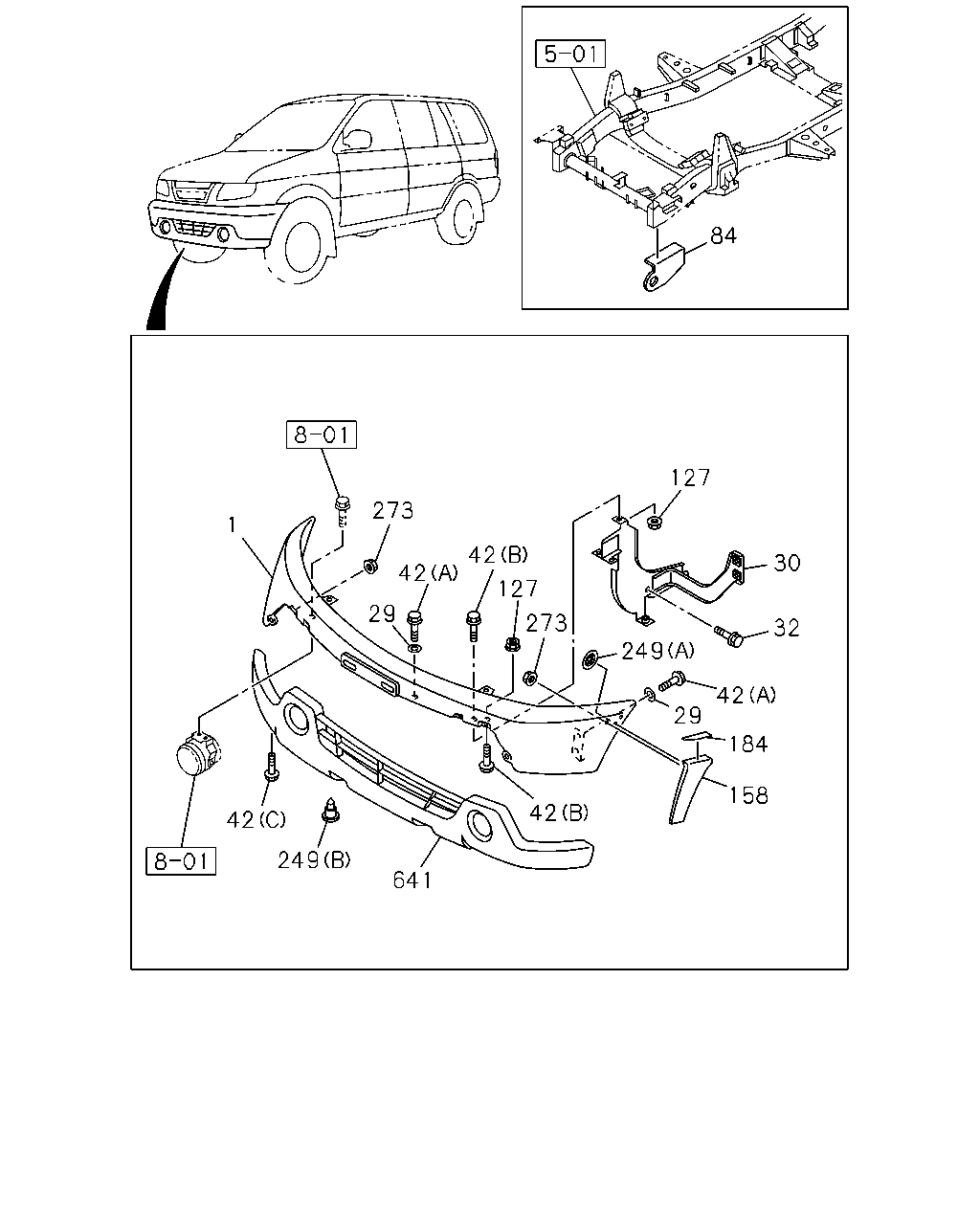

çizim 288999
641 249 42 1 273 42 29 42 127 273 42 249 158 184 29 42 32 30 127 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BUMPER ASM; FRT
WAGON LONG(TB**VF) BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97943-990-2 01 1 0407- ● ●
1 BUMPER ASM; FRT
WAGON LONG(TB**VF) BODY COLOR HONEY SILVER MET(603) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97943-990-2 01 1 0407- ● ●
1 BUMPER ASM; FRT
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97943-990-2 01 1 0407- ● ●
1 BUMPER ASM; FRT
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605),BODY COLOR MOONMIST GRAY MICA(652),BODY COLOR ASTRA BLUE MICA(656),BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR TAI 		8-97943-991-3 01 1 0407- ●
1 BUMPER ASM; FRT
WAGON LONG(TB**VF) BODY COLOR BRONZE BLUE MICA(607) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97943-990-2 01 1 0407- ● ●
1 BUMPER ASM; FRT
WAGON LONG(TB**VF) BODY COLOR ORGANIC GREEN MICA(608) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97943-990-2 01 1 0407- ● ●
1 BUMPER ASM; FRT
WAGON LONG(TB**VF) BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97943-990-2 01 1 0407- ● ●
1 BUMPER ASM; FRT
WAGON LONG(TB**VF) BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97943-990-2 01 1 0407- ● ●
1 BUMPER ASM; FRT
WAGON LONG(TB**VF) BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR IDN 		8-97943-990-2 01 1 0407- ● ●
29 WASHER; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> ID=8.4 OD=22 		9-09160-708-0 04 1 0407-0605 ● ● ●
29 WASHER; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> ID=8.4 OD=22 		0-91610-708-0 04 1 0606- ● ● ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> EXC. CAB UP<W60> IDN 		8-97944-012-1 01 1 0407-0407 ● ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> EXC. CAB UP<W60> TAI 		8-97944-016-2 01 1 0408- ● ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> EXC. CAB UP<W60> IDN 		8-97944-013-1 01 1 0407-0407 ● ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> EXC. CAB UP<W60> TAI 		8-97944-017-2 01 1 0408- ● ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> CAB UP<W60> IDN 		8-97944-014-1 01 1 0407-0407 ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97944-014-1 01 1 0407-0407 ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> CAB UP<W60> TAI 		8-97944-018-2 01 1 0408- ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> TAI 		8-97944-018-2 01 1 0408- ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> CAB UP<W60> IDN 		8-97944-015-1 01 1 0407-0407 ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97944-015-1 01 1 0407-0407 ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> CAB UP<W60> TAI 		8-97944-019-2 01 1 0408- ●
30 BRACKET; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> TAI 		8-97944-019-2 01 1 0408- ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-583-2 01 1 0008-0106 ● ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-583-2 01 1 0107-0209 ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-583-2 01 1 0210-0406 ● ● ●
30 BRACKET; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97955-583-2 01 1 0407- ● ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-582-2 01 1 0008-0106 ● ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-582-2 01 1 0107-0209 ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97955-582-2 01 1 0210-0406 ● ● ●
30 BRACKET; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97955-582-2 01 1 0407- ● ● ●
30 BRACKET; FRT BUMPER
IDN 		8-97956-553-1 01 1 0107-0406 ●
30 BRACKET; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-553-1 01 1 0407- ●
30 BRACKET; FRT BUMPER
IDN 		8-97956-552-1 01 1 0107-0406 ●
30 BRACKET; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-552-1 01 1 0407- ●
32 BOLT; BRKT,BUMPER
M12X30 FLANGE 		0-28691-230-0 04 1 0008-0106 ● ● ●
32 BOLT; BRKT,BUMPER
M12X30 FLANGE 		0-28691-230-0 04 1 0107-0209 ● ● ●
32 BOLT; BRKT,BUMPER
M12X30 FLANGE 		0-28691-230-0 04 1 0210-0512 ● ● ● ●
32 BOLT; BRKT,BUMPER
M12X30 FLANGE 		0-28661-230-0 04 1 0601- ● ● ● ●
42 BOLT; BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0512 ● ● ●
42 BOLT; BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> (A) M8X20 FLANGE IDN 		0-28650-820-0 03 1 0601- ● ● ●
42 BOLT; BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING THA 		8-94241-821-0 06 1 0407- ● ● ●
42 BOLT; BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> (C) M6X12 FLANGE 		8-97351-109-0 06 1 0407- ● ● ●
42 BOLT; BUMPER
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0008-0106 ● ● ●
42 BOLT; BUMPER
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0107-0209 ● ● ●
42 BOLT; BUMPER
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0210-0512 ● ● ● ●
42 BOLT; BUMPER
(A) M8X20 FLANGE IDN 		0-28650-820-0 04 1 0601- ● ● ● ●
42 BOLT; BUMPER
(B) M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0008-0106 ● ● ●
42 BOLT; BUMPER
(B) M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0107-0209 ● ● ●
42 BOLT; BUMPER
(B) M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0210-0406 ● ● ● ●
42 BOLT; BUMPER
EXC. FACE LIFT MODEL<TX7> (B) M8X20 DACRO-COATING THA 		8-94241-821-0 08 1 0407- ● ● ● ●
84 HOOK
FACE LIFT MODEL<TX7> IDN 		8-97562-381-0 01 1 0407- ● ● ● ●
84 HOOK
IDN 		8-97015-038-0 01 1 0008-0009 ● ● ●
84 HOOK
IDN 		8-97958-976-0 01 1 0102-0106 ● ● ●
84 HOOK
IDN 		8-97958-976-0 01 1 0107-0406 ● ● ●
84 HOOK
EXC. FACE LIFT MODEL<TX7> IDN 		8-97958-976-0 01 1 0407- ● ● ● ●
127 NUT; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M8 FLANGE 		5-09440-005-0 06 1 0407-0805 ● ● ●
127 NUT; FRT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M8 FLANGE 		8-97581-233-0 06 1 0806- ● ● ●
127 NUT; FRT BUMPER
M8 FLANGE 		5-09440-005-0 08 1 0008-0106 ● ● ●
127 NUT; FRT BUMPER
M8 FLANGE 		5-09440-005-0 08 1 0107-0209 ● ● ●
127 NUT; FRT BUMPER
M8 FLANGE 		5-09440-005-0 08 1 0210-0406 ● ● ● ●
127 NUT; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> M8 FLANGE 		5-09440-005-0 08 1 0407-0805 ● ● ● ●
127 NUT; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> M8 FLANGE 		8-97581-233-0 08 1 0806- ● ● ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605),BODY COLOR MOONMIST GRAY MICA(652),BODY COLOR ASTRA BLUE MICA(656),BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> TAI 		8-97943-995-0 01 1 0407- ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605),BODY COLOR MOONMIST GRAY MICA(652),BODY COLOR ASTRA BLUE MICA(656),BODY COLOR COPPER HEAT BR0WN(660) FACE LIFT MODEL<TX7> TAI 		8-97943-996-0 01 1 0407- ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> TAI 		8-97943-993-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR PLATINUM SILVER MET(602) FACE LIFT MODEL<TX7> TAI 		8-97943-994-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR HONEY SILVER MET(603) FACE LIFT MODEL<TX7> TAI 		8-97943-993-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR HONEY SILVER MET(603) FACE LIFT MODEL<TX7> TAI 		8-97943-994-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> TAI 		8-97943-993-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR BRILLIANT RED MICA(605) FACE LIFT MODEL<TX7> TAI 		8-97943-994-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR BRONZE BLUE MICA(607) FACE LIFT MODEL<TX7> TAI 		8-97943-993-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR BRONZE BLUE MICA(607) FACE LIFT MODEL<TX7> TAI 		8-97943-994-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR ORGANIC GREEN MICA(608) FACE LIFT MODEL<TX7> TAI 		8-97943-993-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR ORGANIC GREEN MICA(608) FACE LIFT MODEL<TX7> TAI 		8-97943-994-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> TAI 		8-97943-993-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR ARCTIC SILVER MET(672) FACE LIFT MODEL<TX7> TAI 		8-97943-994-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> TAI 		8-97943-993-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR MISTY QUARTZ MET(673) FACE LIFT MODEL<TX7> TAI 		8-97943-994-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> TAI 		8-97943-993-0 01 1 0407- ● ●
158 EXTENSION; FRT BUMPER
WAGON LONG(TB**VF) BODY COLOR MINERAL BLUE MET(674) FACE LIFT MODEL<TX7> TAI 		8-97943-994-0 01 1 0407- ● ●
184 TAPE; FRONT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97562-553-0 01 1 0407- ● ●
184 TAPE; FRONT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97562-554-0 01 1 0407- ● ●
184 TAPE; FRONT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97562-556-0 01 1 0407- ●
184 TAPE; FRONT BUMPER
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97562-557-0 01 1 0407- ●
184 TAPE; FRONT BUMPER
IDN 		8-97958-888-0 01 1 0008-0106 ● ● ●
184 TAPE; FRONT BUMPER
IDN 		8-97958-888-0 01 1 0107-0209 ● ●
184 TAPE; FRONT BUMPER
IDN 		8-97958-888-0 01 1 0210-0406 ● ● ●
184 TAPE; FRONT BUMPER
SHORT(TB***C) IDN 		8-97958-888-0 01 1 0407- ● ● ●
184 TAPE; FRONT BUMPER
WAGON LONG(TB**VF) EXC. FACE LIFT MODEL<TX7> IDN 		8-97958-888-0 01 1 0407- ● ● ●
184 TAPE; FRONT BUMPER
IDN 		8-97958-887-0 01 1 0008-0106 ● ● ●
184 TAPE; FRONT BUMPER
IDN 		8-97958-887-0 01 1 0107-0209 ● ●
184 TAPE; FRONT BUMPER
IDN 		8-97958-887-0 01 1 0210-0406 ● ● ●
184 TAPE; FRONT BUMPER
SHORT(TB***C) IDN 		8-97958-887-0 01 1 0407- ● ● ●
184 TAPE; FRONT BUMPER
WAGON LONG(TB**VF) EXC. FACE LIFT MODEL<TX7> IDN 		8-97958-887-0 01 1 0407- ● ● ●
184 TAPE; FRONT BUMPER
IDN 		8-97959-275-0 01 1 0107-0406 ●
184 TAPE; FRONT BUMPER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97959-275-0 01 1 0407- ●
184 TAPE; FRONT BUMPER
IDN 		8-97959-274-0 01 1 0107-0406 ●
184 TAPE; FRONT BUMPER
EXC. FACE LIFT MODEL<TX7> IDN 		8-97959-274-0 01 1 0407- ●
249 RETAINER; BEAM LWR
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> (A) IDN 		8-97182-223-0 02 1 0407- ● ●
249 RETAINER; BEAM LWR
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> (B) THA 		8-97301-188-0 02 1 0407- ● ● ●
273 NUT; BUMPER TO EXT
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M6 FLANGE 		0-91150-106-0 06 1 0407-0602 ● ● ●
273 NUT; BUMPER TO EXT
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M6 FLANGE 		0-91180-106-0 06 1 0603- ● ● ●
273 NUT; BUMPER TO EXT
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M6 FLANGE 		0-91150-106-0 04 1 0407-0602 ●
273 NUT; BUMPER TO EXT
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> M6 FLANGE 		0-91180-106-0 04 1 0603- ●
641 BUMPER; FRT,LWR
WAGON LONG(TB**VF) FACE LIFT MODEL<TX7> IDN 		8-97944-041-0 01 1 0407- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
