◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#95351) — 304 parça

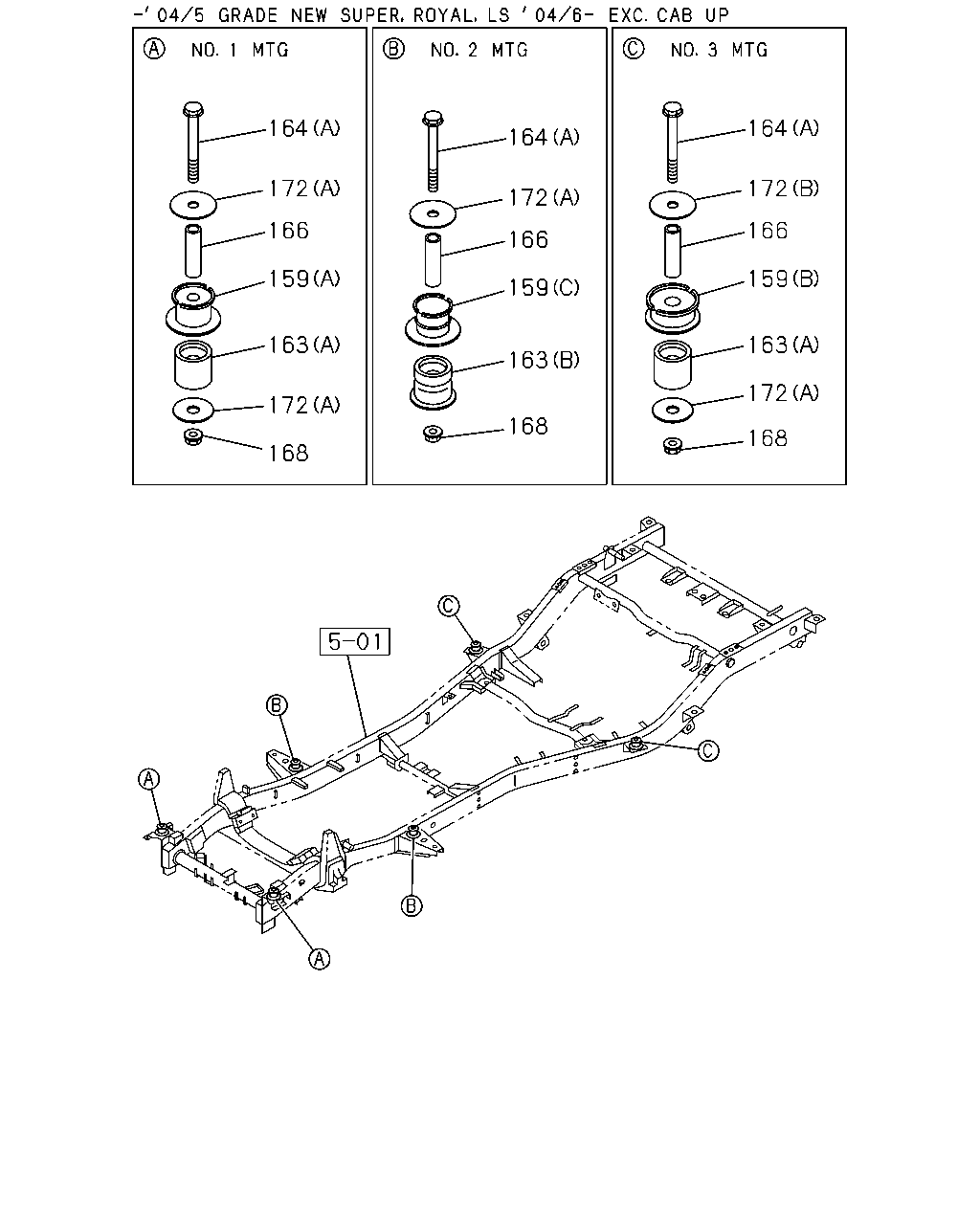

çizim 289315
164 172 166 159 163 172 168 164 172 166 159 163 168 164 172 166 159 163 172 168
BalonParca AdiParca NoAdetTipApplied Date A B C
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0008-0106 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0008-0106 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0008-0106 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0008-0106 ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(C) NO.2 MTG IDN 		8-97957-471-0 02 1 0008-0106 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(C) NO.2 MTG IDN 		8-97957-471-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG IDN 		8-97957-473-0 02 1 0008- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0008-0106 ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0008-0106 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0107- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0107- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG IDN 		8-97957-472-0 02 1 0008-0106 ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG IDN 		8-97957-472-0 02 1 0107- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.4 MTG IDN 		8-97957-474-0 02 1 0008- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0008-0106 ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0107-0209 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0210-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0406-0609 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (C) NO.4 MTG M10X120 		8-98051-536-0 02 1 0610- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0008-0106 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0107-0209 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0210-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0406- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0008-0106 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0107-0209 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0210-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0406-0609 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (A) NO.1,NO.2,NO.3 MTG M10X120 		8-98051-536-0 06 1 0610- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE TOURING(RBG) (D) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE 		8-97287-269-1 08 1 0107-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB UP<W60> (D) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE 		8-97287-269-1 08 1 0406- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE TOURING(RBG) (E) NO.5 NO.6 MTG M10X158 W/LK WASHER 		8-97287-270-0 04 1 0107-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB UP<W60> (E) NO.5 NO.6 MTG M10X158 W/LK WASHER 		8-97287-270-0 04 1 0406- ● ●
166 PIECE; DIST,BODY MTG RUBBER
L=70 IDN 		8-94223-171-0 06 1 0008-0106 ● ● ●
166 PIECE; DIST,BODY MTG RUBBER
L=70 IDN 		8-94223-171-0 06 1 0008-0106 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) L=70 IDN 		8-94223-171-0 06 1 0107-0112 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) L=70 IDN 		8-94223-171-0 06 1 0107-0112 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) L=70 		8-97148-478-0 06 1 0201-0209 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) L=70 		8-97148-478-0 06 1 0201-0209 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) L=70 		8-97148-478-0 06 1 0210-0306 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) L=70 		8-97148-478-0 06 1 0210-0306 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) L=70 IDN 		8-97562-253-0 06 1 0307-0405 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) L=70 IDN 		8-97562-253-0 06 1 0307-0405 ● ●
166 PIECE; DIST,BODY MTG RUBBER
EXC. CAB UP<W60> L=70 IDN 		8-97562-253-0 06 1 0406- ● ●
166 PIECE; DIST,BODY MTG RUBBER
EXC. CAB UP<W60> L=70 IDN 		8-97562-253-0 06 1 0406- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 06 1 0008-0106 ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 06 1 0107-0406 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 02 1 0407-0602 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 02 1 0008-0406 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 06 1 0407-0602 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91180-210-0 06 1 0603- ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 08 1 0008-0009 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 08 1 0008-0009 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0010-0010 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0010-0010 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0010-0106 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0107- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0008-0106 ● ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0107-0209 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0210-0405 ● ●
172 WASHER; BODY MTG RUBBER
EXC. CAB UP<W60> (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0406- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0008-0009 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0010-0010 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0010-0010 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0010-0106 ● ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0107-0209 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0210-0405 ● ●
172 WASHER; BODY MTG RUBBER
EXC. CAB UP<W60> (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0406- ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0010-0209 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0010-0209 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0210- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0010-0106 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0107-0209 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0210-0405 ● ●
172 WASHER; BODY MTG RUBBER
EXC. CAB UP<W60> (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0406- ● ●

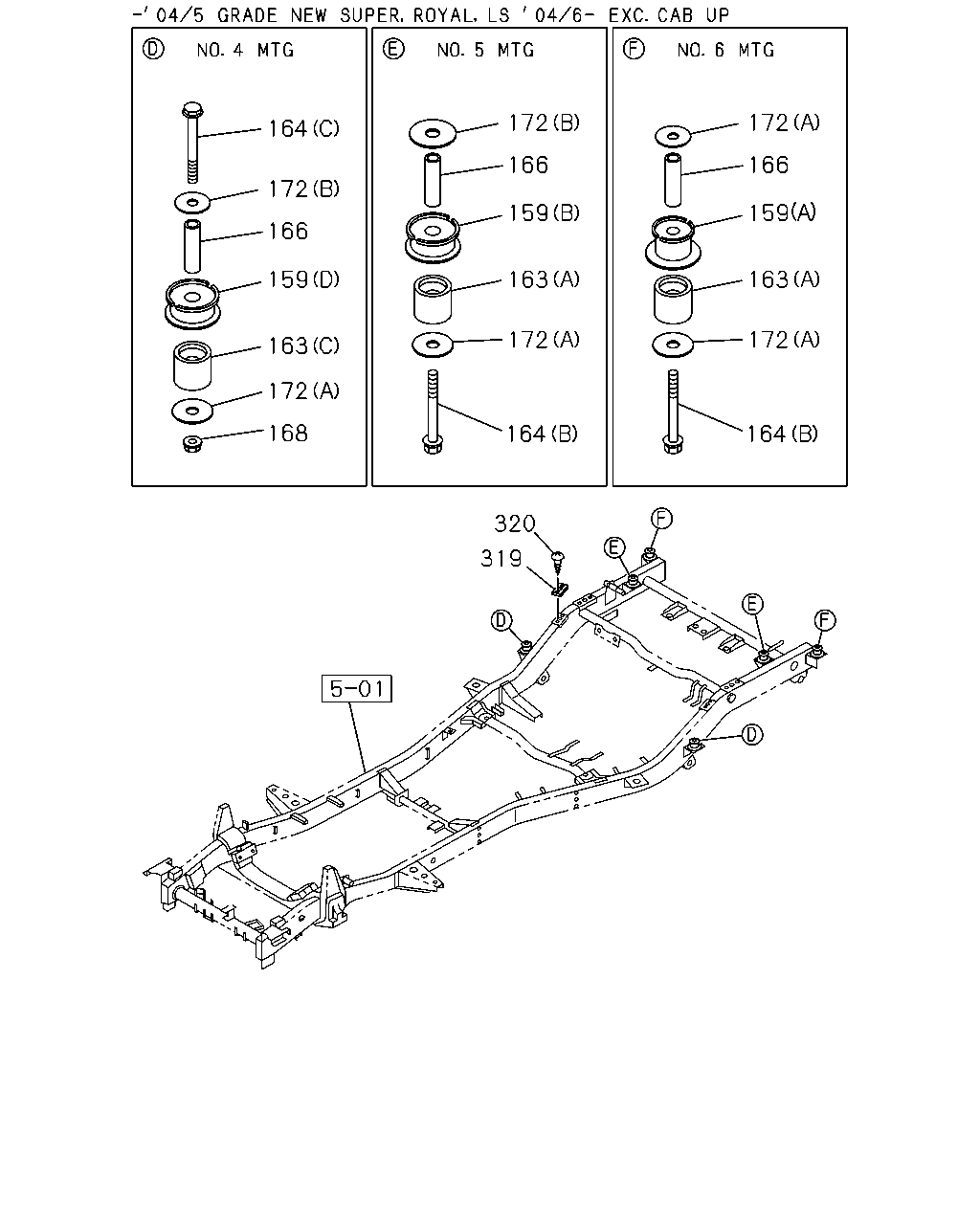

çizim 289350
164 172 166 159 163 172 168 172 166 159 163 172 164 172 166 159 163 172 164 320 319
BalonParca AdiParca NoAdetTipApplied Date A B C
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0008-0106 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0008-0106 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0008-0106 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0008-0106 ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(C) NO.2 MTG IDN 		8-97957-471-0 02 1 0008-0106 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(C) NO.2 MTG IDN 		8-97957-471-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG IDN 		8-97957-473-0 02 1 0008- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0008-0106 ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0008-0106 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0107- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0107- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG IDN 		8-97957-472-0 02 1 0008-0106 ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG IDN 		8-97957-472-0 02 1 0107- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.4 MTG IDN 		8-97957-474-0 02 1 0008- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0008-0106 ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0107-0209 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0210-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0406-0609 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (C) NO.4 MTG M10X120 		8-98051-536-0 02 1 0610- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0008-0106 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0107-0209 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0210-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0406- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0008-0106 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0107-0209 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0210-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0406-0609 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (A) NO.1,NO.2,NO.3 MTG M10X120 		8-98051-536-0 06 1 0610- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE TOURING(RBG) (D) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE 		8-97287-269-1 08 1 0107-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB UP<W60> (D) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE 		8-97287-269-1 08 1 0406- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE TOURING(RBG) (E) NO.5 NO.6 MTG M10X158 W/LK WASHER 		8-97287-270-0 04 1 0107-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB UP<W60> (E) NO.5 NO.6 MTG M10X158 W/LK WASHER 		8-97287-270-0 04 1 0406- ● ●
166 PIECE; DIST,BODY MTG RUBBER
L=70 IDN 		8-94223-171-0 06 1 0008-0106 ● ● ●
166 PIECE; DIST,BODY MTG RUBBER
L=70 IDN 		8-94223-171-0 06 1 0008-0106 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) L=70 IDN 		8-94223-171-0 06 1 0107-0112 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) L=70 IDN 		8-94223-171-0 06 1 0107-0112 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) L=70 		8-97148-478-0 06 1 0201-0209 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) L=70 		8-97148-478-0 06 1 0201-0209 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) L=70 		8-97148-478-0 06 1 0210-0306 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) L=70 		8-97148-478-0 06 1 0210-0306 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) L=70 IDN 		8-97562-253-0 06 1 0307-0405 ● ●
166 PIECE; DIST,BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) L=70 IDN 		8-97562-253-0 06 1 0307-0405 ● ●
166 PIECE; DIST,BODY MTG RUBBER
EXC. CAB UP<W60> L=70 IDN 		8-97562-253-0 06 1 0406- ● ●
166 PIECE; DIST,BODY MTG RUBBER
EXC. CAB UP<W60> L=70 IDN 		8-97562-253-0 06 1 0406- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 06 1 0008-0106 ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 06 1 0107-0406 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 02 1 0407-0602 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 02 1 0008-0406 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 06 1 0407-0602 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91180-210-0 06 1 0603- ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 08 1 0008-0009 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 08 1 0008-0009 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0010-0010 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0010-0010 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0010-0106 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0107- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0008-0106 ● ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0107-0209 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0210-0405 ● ●
172 WASHER; BODY MTG RUBBER
EXC. CAB UP<W60> (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0406- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0008-0009 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0010-0010 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0010-0010 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0010-0106 ● ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0107-0209 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0210-0405 ● ●
172 WASHER; BODY MTG RUBBER
EXC. CAB UP<W60> (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0406- ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0010-0209 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0010-0209 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0210- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0010-0106 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0107-0209 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0210-0405 ● ●
172 WASHER; BODY MTG RUBBER
EXC. CAB UP<W60> (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0406- ● ●
319 GASKET; BODY MTG BOLT
IDN 		8-94180-225-0 04 1 0008- ● ●
320 SCREW; BODY MTG GASKET
M6X10 		9-09829-194-0 08 1 0008- ● ●

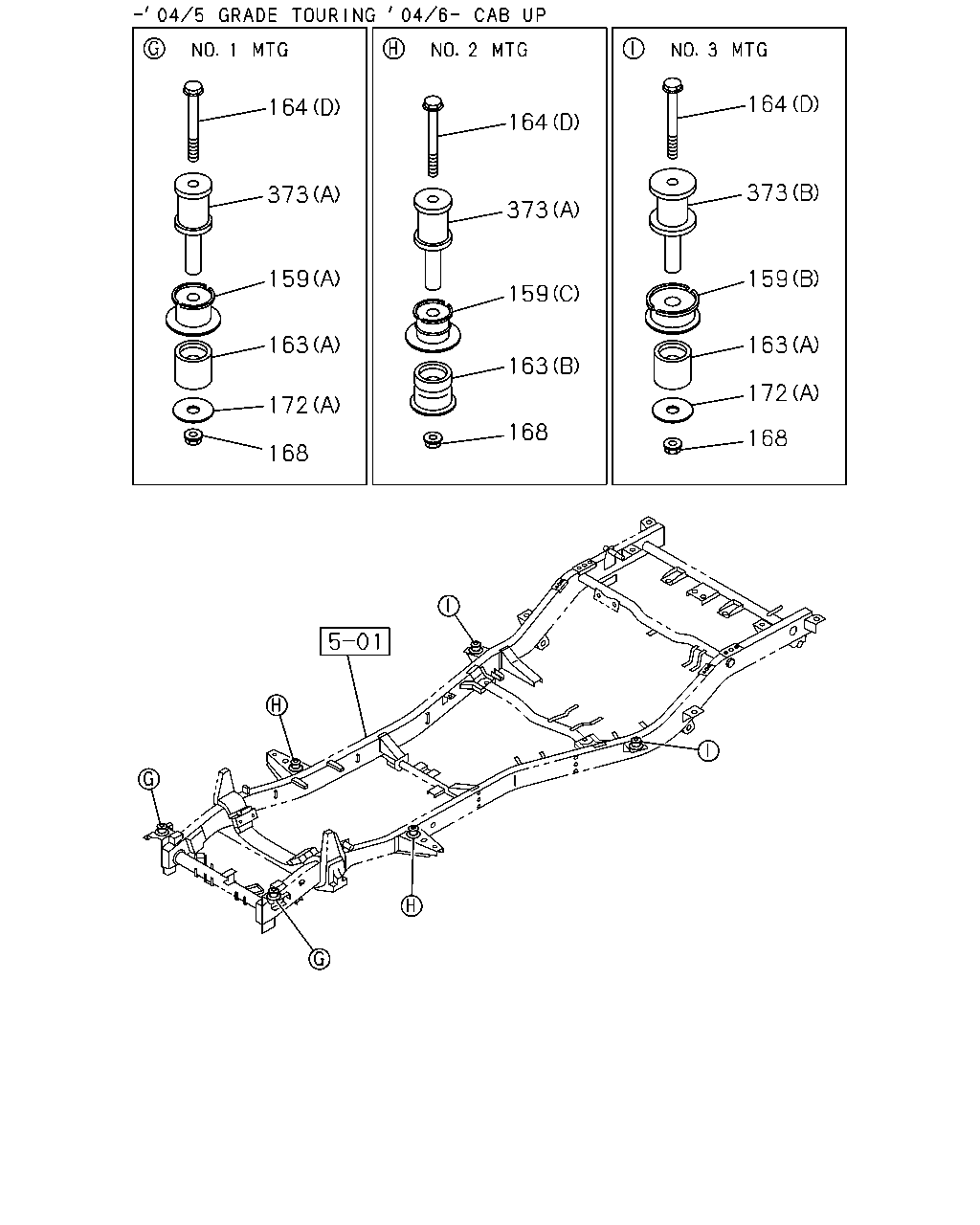

çizim 289383
164 373 159 163 172 168 164 373 159 163 168 164 373 159 163 172 168
BalonParca AdiParca NoAdetTipApplied Date A B C
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0008-0106 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0008-0106 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0008-0106 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0008-0106 ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(C) NO.2 MTG IDN 		8-97957-471-0 02 1 0008-0106 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(C) NO.2 MTG IDN 		8-97957-471-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG IDN 		8-97957-473-0 02 1 0008- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0008-0106 ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0008-0106 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0107- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0107- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG IDN 		8-97957-472-0 02 1 0008-0106 ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG IDN 		8-97957-472-0 02 1 0107- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.4 MTG IDN 		8-97957-474-0 02 1 0008- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0008-0106 ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0107-0209 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0210-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0406-0609 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (C) NO.4 MTG M10X120 		8-98051-536-0 02 1 0610- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0008-0106 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0107-0209 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0210-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0406- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0008-0106 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0107-0209 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0210-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0406-0609 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (A) NO.1,NO.2,NO.3 MTG M10X120 		8-98051-536-0 06 1 0610- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE TOURING(RBG) (D) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE 		8-97287-269-1 08 1 0107-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB UP<W60> (D) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE 		8-97287-269-1 08 1 0406- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE TOURING(RBG) (E) NO.5 NO.6 MTG M10X158 W/LK WASHER 		8-97287-270-0 04 1 0107-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB UP<W60> (E) NO.5 NO.6 MTG M10X158 W/LK WASHER 		8-97287-270-0 04 1 0406- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 06 1 0008-0106 ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 06 1 0107-0406 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 02 1 0407-0602 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 02 1 0008-0406 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 06 1 0407-0602 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91180-210-0 06 1 0603- ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 08 1 0008-0009 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 08 1 0008-0009 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0010-0010 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0010-0010 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0010-0106 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0107- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0008-0106 ● ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0107-0209 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0210-0405 ● ●
172 WASHER; BODY MTG RUBBER
EXC. CAB UP<W60> (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0406- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0008-0009 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0010-0010 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0010-0010 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0010-0106 ● ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0107-0209 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0210-0405 ● ●
172 WASHER; BODY MTG RUBBER
EXC. CAB UP<W60> (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0406- ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0010-0209 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0010-0209 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0210- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0010-0106 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0107-0209 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0210-0405 ● ●
172 WASHER; BODY MTG RUBBER
EXC. CAB UP<W60> (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0406- ● ●
373 SPACER; CAB STAY
GRADE TOURING(RBG) (A) NO.1,NO.2,NO.6 MTG 		8-97264-514-3 06 1 0107-0405 ● ●
373 SPACER; CAB STAY
CAB UP<W60> (A) NO.1,NO.2,NO.6 MTG 		8-97264-514-3 06 1 0406- ● ●
373 SPACER; CAB STAY
GRADE TOURING(RBG) (B) NO.3,NO.4,NO.5 MTG 		8-97264-515-3 06 1 0107-0405 ● ●
373 SPACER; CAB STAY
CAB UP<W60> (B) NO.3,NO.4,NO.5 MTG 		8-97264-515-3 06 1 0406- ● ●

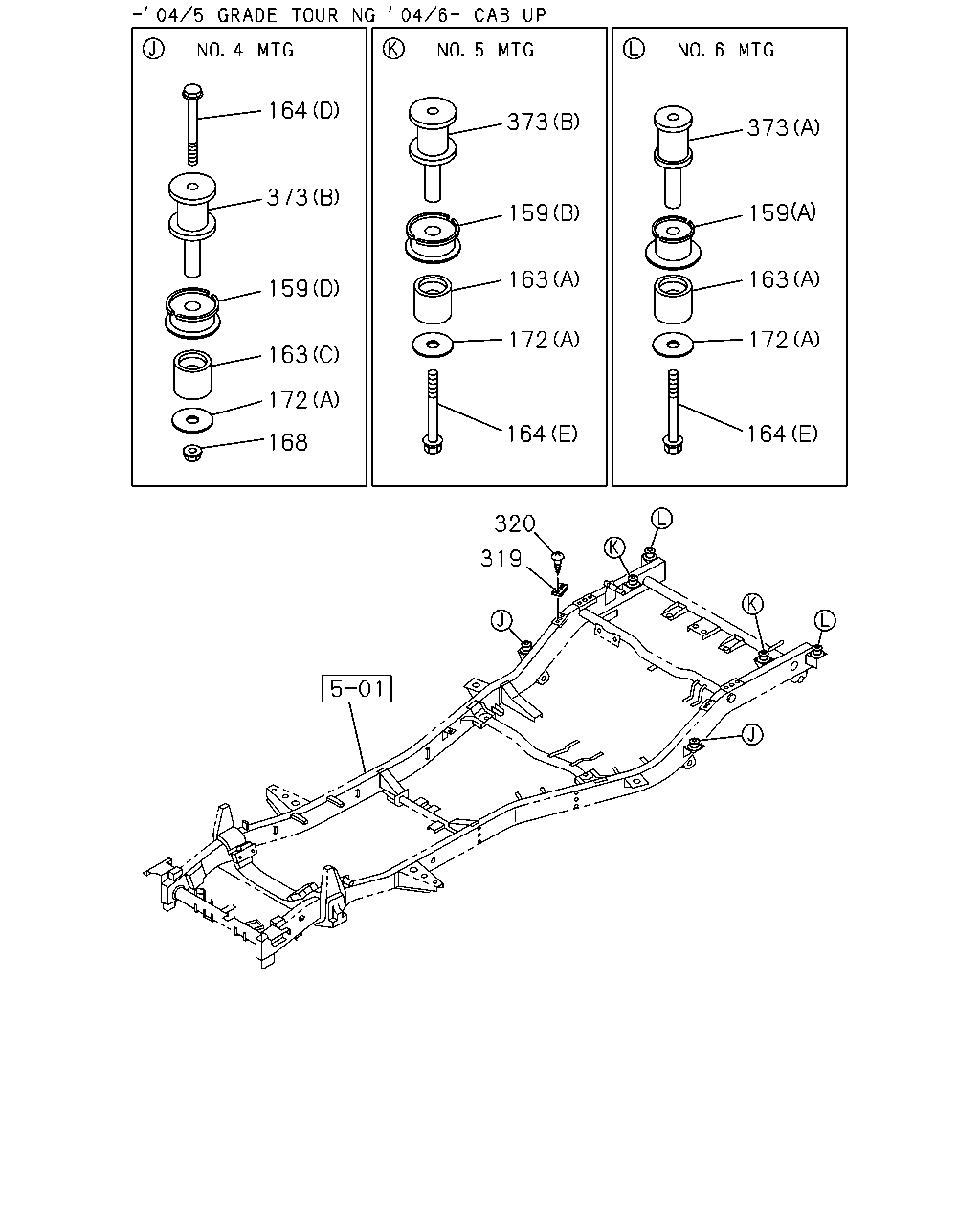

çizim 289384
164 373 159 163 172 168 373 159 163 172 164 373 159 163 172 164 320 319
BalonParca AdiParca NoAdetTipApplied Date A B C
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0008-0106 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0008-0106 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(A) NO.1,NO.6 MTG IDN 		8-94368-398-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0008-0106 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0008-0106 ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3,NO.5 MTG IDN 		8-94368-400-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(C) NO.2 MTG IDN 		8-97957-471-0 02 1 0008-0106 ● ● ●
159 RUBBER; CUSHION,CAB MTG
(C) NO.2 MTG IDN 		8-97957-471-0 02 1 0107- ● ●
159 RUBBER; CUSHION,CAB MTG
(D) NO.4 MTG IDN 		8-97957-473-0 02 1 0008- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0008-0106 ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0008-0106 ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0107- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1,NO.3,NO.5,NO.6 MTG IDN 		8-94368-399-0 04 1 0107- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG IDN 		8-97957-472-0 02 1 0008-0106 ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2 MTG IDN 		8-97957-472-0 02 1 0107- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.4 MTG IDN 		8-97957-474-0 02 1 0008- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0008-0106 ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0107-0209 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0210-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0406-0609 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (C) NO.4 MTG M10X120 		8-98051-536-0 02 1 0610- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0008-0106 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0107-0209 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0210-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (B) NO.5,NO.6 MTG M10X102 		8-97091-599-0 04 1 0406- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(C) NO.4 MTG M10X120 		8-97134-968-0 02 1 0008-0106 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0107-0209 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0210-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (A) NO.1,NO.2,NO.3 MTG M10X120 		8-97134-968-0 06 1 0406-0609 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
EXC. CAB UP<W60> (A) NO.1,NO.2,NO.3 MTG M10X120 		8-98051-536-0 06 1 0610- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE TOURING(RBG) (D) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE 		8-97287-269-1 08 1 0107-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB UP<W60> (D) NO.1,NO.2,NO.3,NO.4 MTG M10X180 FLANGE 		8-97287-269-1 08 1 0406- ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
GRADE TOURING(RBG) (E) NO.5 NO.6 MTG M10X158 W/LK WASHER 		8-97287-270-0 04 1 0107-0405 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
CAB UP<W60> (E) NO.5 NO.6 MTG M10X158 W/LK WASHER 		8-97287-270-0 04 1 0406- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 06 1 0008-0106 ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 06 1 0107-0406 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 02 1 0407-0602 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 02 1 0008-0406 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91150-210-0 06 1 0407-0602 ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M10 FLANGE 		0-91180-210-0 06 1 0603- ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 08 1 0008-0009 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 08 1 0008-0009 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0010-0010 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0010-0010 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0010-0106 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 02 1 0107- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0008-0106 ● ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0107-0209 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0210-0405 ● ●
172 WASHER; BODY MTG RUBBER
EXC. CAB UP<W60> (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 02 1 0406- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0008-0009 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0010-0010 ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0010-0010 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0010-0106 ● ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0107-0209 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0210-0405 ● ●
172 WASHER; BODY MTG RUBBER
EXC. CAB UP<W60> (A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 06 1 0406- ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0010-0209 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0010-0209 ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 IDN 		8-94223-170-0 04 1 0210- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0010-0106 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0107-0209 ● ●
172 WASHER; BODY MTG RUBBER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0210-0405 ● ●
172 WASHER; BODY MTG RUBBER
EXC. CAB UP<W60> (B) ID=11 OD=62 T=2.9 IDN 		8-97037-993-0 04 1 0406- ● ●
319 GASKET; BODY MTG BOLT
IDN 		8-94180-225-0 04 1 0008- ● ●
320 SCREW; BODY MTG GASKET
M6X10 		9-09829-194-0 08 1 0008- ● ●
373 SPACER; CAB STAY
GRADE TOURING(RBG) (A) NO.1,NO.2,NO.6 MTG 		8-97264-514-3 06 1 0107-0405 ● ●
373 SPACER; CAB STAY
CAB UP<W60> (A) NO.1,NO.2,NO.6 MTG 		8-97264-514-3 06 1 0406- ● ●
373 SPACER; CAB STAY
GRADE TOURING(RBG) (B) NO.3,NO.4,NO.5 MTG 		8-97264-515-3 06 1 0107-0405 ● ●
373 SPACER; CAB STAY
CAB UP<W60> (B) NO.3,NO.4,NO.5 MTG 		8-97264-515-3 06 1 0406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
