◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#95350) — 71 parça

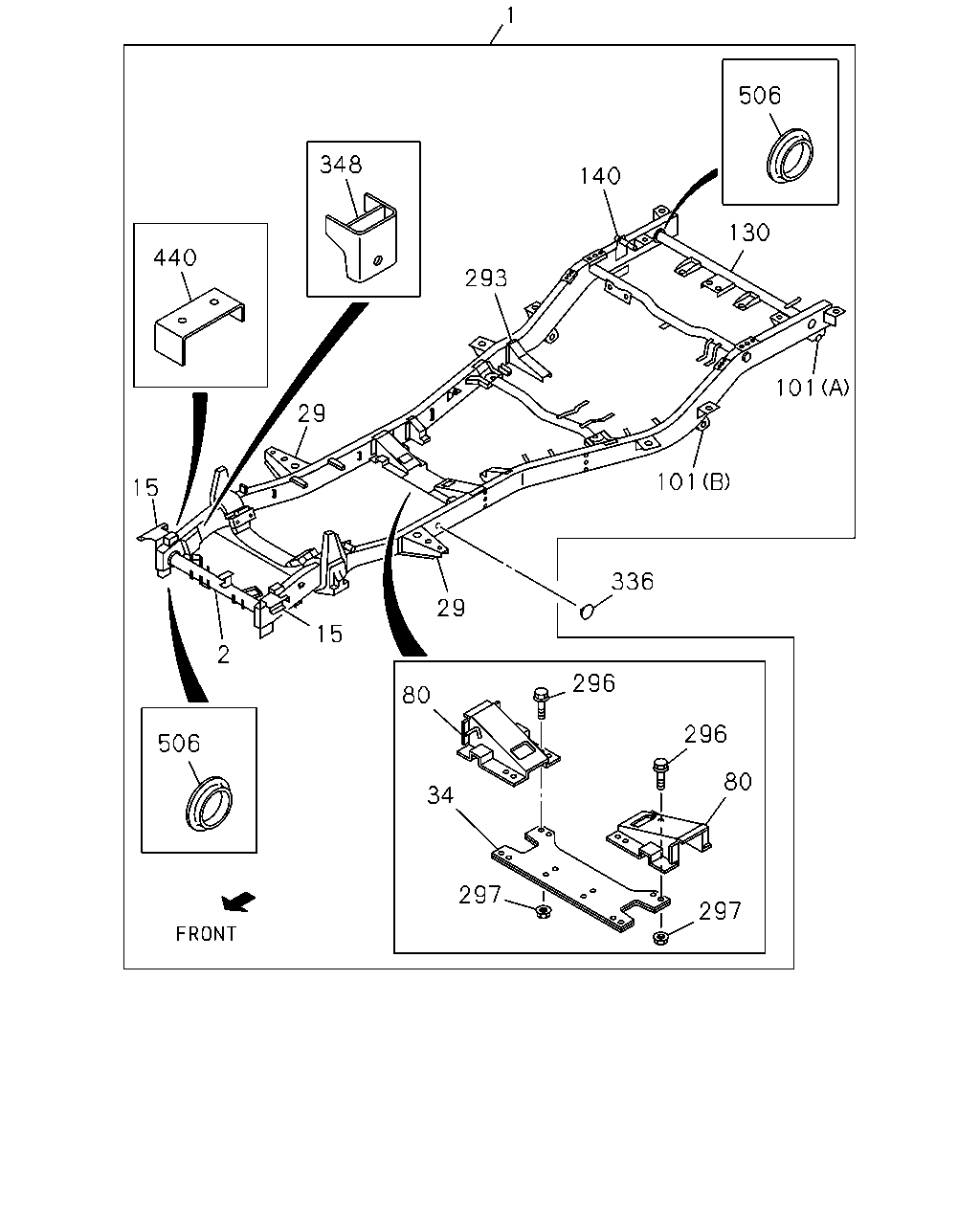

çizim 289207
1 140 506 130 101 101 336 29 293 348 440 29 15 2 15 80 34 297 296 80 297 296 506
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FRAME ASM
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> CAB UP<W60> IDN 		8-97562-433-0 01 1 0407- ●
1 FRAME ASM
M/T MSG 5 SPEED(M75) GRADE NEW SUPER(RBA),GRADE LS(RBD),GRADE TOURING(RBG) FACE LIFT MODEL<TX7> IDN 		8-97562-379-0 01 1 0407- ●
1 FRAME ASM
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> EXC. CAB UP<W60> IDN 		8-97562-379-0 01 1 0407- ●
1 FRAME ASM
A/T AISIN(RMD) FACE LIFT MODEL<TX7> IDN 		8-97562-380-0 01 1 0407- ●
1 FRAME ASM
IDN 		8-97955-157-8 01 1 0008-0011 ●
1 FRAME ASM
IDN 		8-97959-470-1 01 1 0012-0106 ●
1 FRAME ASM
A/T AISIN(RMD) IDN 		8-97955-159-8 01 1 0008-0106 ●
1 FRAME ASM
A/T AISIN(RMD) IDN 		8-97959-855-4 01 1 0107- ●
1 FRAME ASM
M/T MSG 5 SPEED(M75) IDN 		8-97955-158-8 01 1 0008-0106 ●
1 FRAME ASM
M/T MSG 5 SPEED(M75) IDN 		8-97959-854-4 01 1 0107- ●
1 FRAME ASM
A/T AISIN(RMD) IDN 		8-97955-162-8 01 1 0008-0106 ●
1 FRAME ASM
A/T AISIN(RMD) IDN 		8-97959-858-4 01 1 0107-0406 ●
1 FRAME ASM
A/T AISIN(RMD) EXC. FACE LIFT MODEL<TX7> IDN 		8-97959-858-4 01 1 0407- ●
1 FRAME ASM
M/T MSG 5 SPEED(M75) IDN 		8-97955-161-8 01 1 0008-0106 ●
1 FRAME ASM
M/T MSG 5 SPEED(M75) IDN 		8-97959-857-4 01 1 0107-0406 ●
1 FRAME ASM
M/T MSG 5 SPEED(M75) EXC. FACE LIFT MODEL<TX7> IDN 		8-97959-857-4 01 1 0407- ●
2 MEMBER; CROSS,1ST
IDN 		8-97956-145-1 01 1 0008-0106 ● ● ●
2 MEMBER; CROSS,1ST
IDN 		8-97956-145-1 01 1 0107- ● ●
15 BRACKET; BODY MTG,FRT
IDN 		8-97956-585-0 01 1 0008-0106 ● ● ●
15 BRACKET; BODY MTG,FRT
IDN 		8-97956-585-0 01 1 0107- ● ●
15 BRACKET; BODY MTG,FRT
IDN 		8-97956-584-0 01 1 0008-0106 ● ● ●
15 BRACKET; BODY MTG,FRT
IDN 		8-97956-584-0 01 1 0107- ● ●
29 BRACKET; CAB MTG
IDN 		8-97956-586-0 02 1 0008-0106 ● ● ●
29 BRACKET; CAB MTG
IDN 		8-97956-586-0 02 1 0107- ● ●
34 MEMBER; CROSS,3RD
IDN 		8-97956-156-3 01 1 0008-0106 ● ● ●
34 MEMBER; CROSS,3RD
IDN 		8-97956-156-3 01 1 0107- ● ●
80 BRACKET; C/MBR
IDN 		8-97956-171-0 01 1 0008-0106 ● ● ●
80 BRACKET; C/MBR
IDN 		8-97956-171-1 01 1 0107- ● ●
80 BRACKET; C/MBR
IDN 		8-97956-170-0 01 1 0008-0106 ● ● ●
80 BRACKET; C/MBR
IDN 		8-97956-170-1 01 1 0107- ● ●
101 BRACKET; RR SPR,FRT
(B) IDN 		8-94370-496-0 02 1 0008-0009 ● ● ●
101 BRACKET; RR SPR,FRT
(B) IDN 		8-97958-925-0 01 1 0010-0106 ● ● ●
101 BRACKET; RR SPR,FRT
(B) IDN 		8-97959-861-0 01 1 0107- ● ●
101 BRACKET; RR SPR,FRT
(A) IDN 		8-97956-591-0 02 1 0008-0106 ● ● ●
101 BRACKET; RR SPR,FRT
(A) IDN 		8-97956-591-0 02 1 0107- ● ●
101 BRACKET; RR SPR,FRT
(B) IDN 		8-97958-926-0 01 1 0010-0106 ● ● ●
101 BRACKET; RR SPR,FRT
(B) IDN 		8-97959-862-0 01 1 0107- ● ●
130 MEMBER; CROSS,END
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> CAB UP<W60> IDN 		8-97562-434-0 01 1 0407- ●
130 MEMBER; CROSS,END
IDN 		8-97956-391-0 01 1 0008-0106 ●
130 MEMBER; CROSS,END
IDN 		8-97956-168-2 01 1 0008-0406 ● ●
130 MEMBER; CROSS,END
IDN 		8-97956-168-2 01 1 0407- ●
130 MEMBER; CROSS,END
M/T MSG 5 SPEED(M75) EXC. FACE LIFT MODEL<TX7> IDN 		8-97956-168-2 01 1 0407- ●
130 MEMBER; CROSS,END
M/T MSG 5 SPEED(M75) GRADE NEW SUPER(RBA),GRADE LS(RBD),GRADE TOURING(RBG) FACE LIFT MODEL<TX7> IDN 		8-97956-168-2 01 1 0407- ●
130 MEMBER; CROSS,END
M/T MSG 5 SPEED(M75) GRADE ROYAL(RBB) FACE LIFT MODEL<TX7> EXC. CAB UP<W60> IDN 		8-97956-168-2 01 1 0407- ●
130 MEMBER; CROSS,END
A/T AISIN(RMD) IDN 		8-97956-168-2 01 1 0407- ●
140 BRACKET; S/ABS,RR
IDN 		8-97956-129-0 01 1 0008-0106 ● ● ●
140 BRACKET; S/ABS,RR
IDN 		8-97956-129-0 01 1 0107- ● ●
140 BRACKET; S/ABS,RR
IDN 		8-97956-128-0 01 1 0008-0106 ● ● ●
140 BRACKET; S/ABS,RR
IDN 		8-97956-128-0 01 1 0107- ● ●
293 BRACKET; FUEL TANK,FRT
IDN 		8-97956-130-0 01 1 0008-0106 ● ●
293 BRACKET; FUEL TANK,FRT
IDN 		8-97956-130-0 01 1 0107- ●
293 BRACKET; FUEL TANK,FRT
IDN 		8-97956-498-0 01 1 0008- ●
296 BOLT; 3RD C/MBR
M10X25 FLANGE 		0-28681-025-0 08 1 0008-0106 ● ● ●
296 BOLT; 3RD C/MBR
M10X25 FLANGE 		0-28681-025-0 08 1 0107-0512 ● ●
296 BOLT; 3RD C/MBR
M10X25 FLANGE IDN 		0-28651-025-0 08 1 0601- ● ●
297 NUT; 3RD C/MBR
M10 FLANGE 		0-91150-210-0 08 1 0008-0106 ● ● ●
297 NUT; 3RD C/MBR
M10 FLANGE 		0-91150-210-0 08 1 0107-0602 ● ●
297 NUT; 3RD C/MBR
M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
336 PLUG; HOLE
OD=40 BLACK 		8-97806-918-0 02 1 0008-0106 ● ● ●
336 PLUG; HOLE
OD=40 BLACK 		8-97806-918-0 02 1 0107- ● ●
336 PLUG; HOLE
OD=33 BLUE 		8-97806-919-0 04 1 0008-0306 ● ●
348 BRACKET; STRG STOPPER
IDN 		8-97956-111-2 02 1 0008-0106 ● ● ●
348 BRACKET; STRG STOPPER
IDN 		8-97956-111-2 02 1 0107- ● ●
440 BRACKET; HOSE
IDN 		8-94370-697-0 02 1 0008-0009 ● ●
440 BRACKET; HOSE
IDN 		8-97958-972-0 02 1 0010-0106 ● ●
440 BRACKET; HOSE
IDN 		8-97958-972-0 02 1 0107- ●
440 BRACKET; HOSE
IDN 		8-94370-697-0 07 1 0008-0009 ●
440 BRACKET; HOSE
IDN 		8-97958-972-0 07 1 0010- ●
506 REINFORCEMENT; C/MBR
IDN 		8-94372-034-0 04 1 0008-0009 ● ● ●
506 REINFORCEMENT; C/MBR
IDN 		8-97958-974-0 04 1 0010-0106 ● ● ●
506 REINFORCEMENT; C/MBR
IDN 		8-97958-974-0 04 1 0107- ● ●
