4-60 — REAR SUSPENSION (#95346) — 50 parça

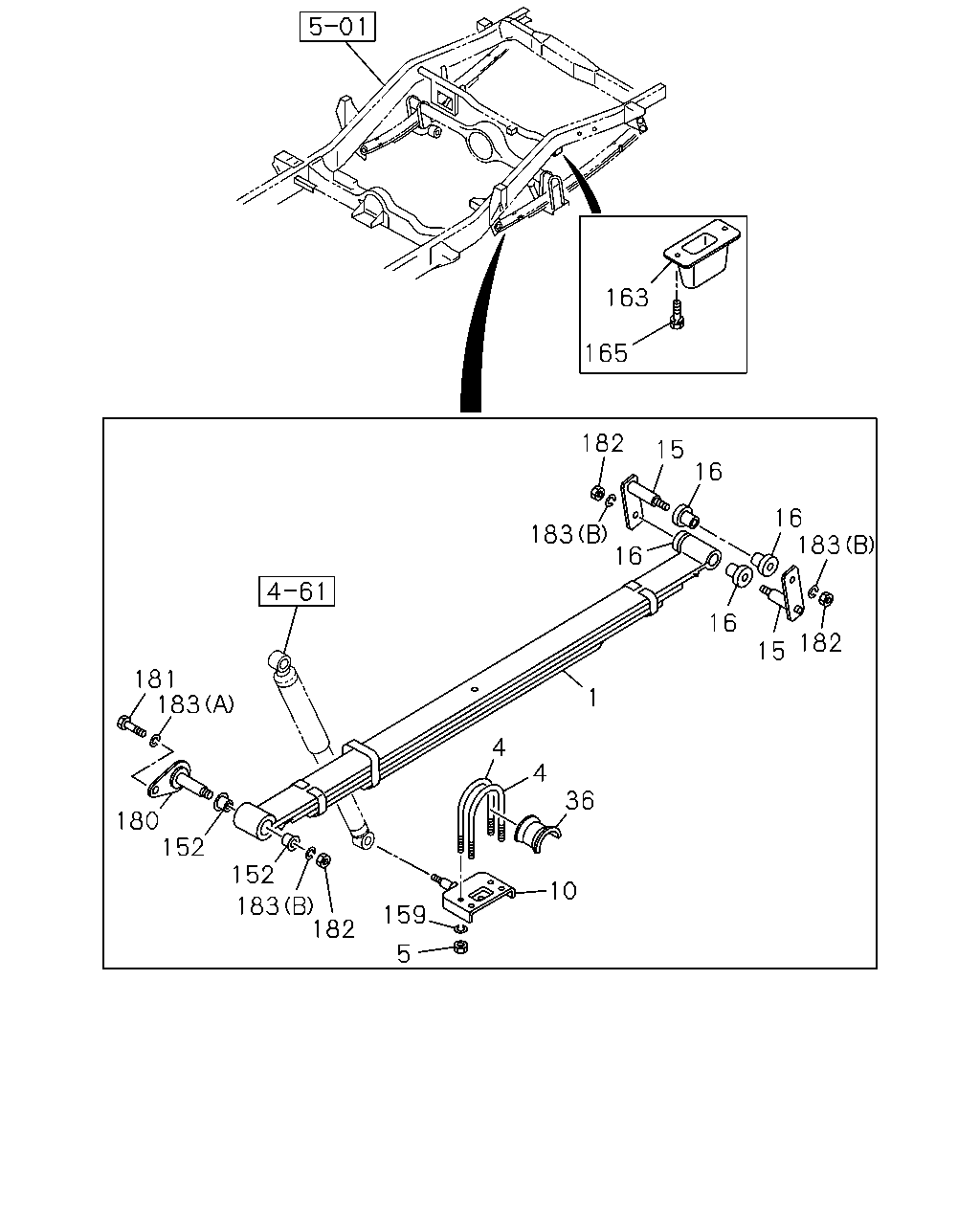

çizim 289062
163 165 182 15 16 16 183 182 15 16 16 183 1 4 4 36 10 159 181 183 180 152 152 183 182 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> IDN 		8-97562-414-0 02 1 0403- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. IDN 		8-97956-976-0 02 1 0008-0106 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. IDN 		8-97958-115-0 02 1 0008-0008 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. IDN 		8-97959-017-1 02 1 0009-0106 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. IDN 		8-97959-200-1 02 1 0107-0309 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. IDN 		8-97562-227-0 02 1 0310-0402 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-97562-227-0 02 1 0403- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> IDN 		8-97562-227-0 02 1 0403- ●
4 U-BOLT; RR SPR
L=160 IDN 		8-94318-381-1 04 1 0008-0106 ● ● ●
4 U-BOLT; RR SPR
L=160 		8-94318-381-2 04 1 0107- ● ●
5 NUT; U-BOLT,RR SPR
M14 IDN 		9-99110-514-0 08 1 0008-0106 ● ● ●
5 NUT; U-BOLT,RR SPR
M14 IDN 		9-99110-514-0 08 1 0107-0512 ● ●
5 NUT; U-BOLT,RR SPR
M14 		0-91110-514-0 08 1 0601- ● ●
10 CLAMP; LWR,RR SPR 8-94454-646-0 02 1 0008-0106 ● ● ●
10 CLAMP; LWR,RR SPR 8-94454-646-0 02 1 0107- ● ●
15 SHACKLE; RR SPR 8-94223-167-2 04 1 0008-0106 ● ● ●
15 SHACKLE; RR SPR 8-94223-167-2 04 1 0107-0505 ● ●
15 SHACKLE; RR SPR
IDN 		8-97562-633-0 04 1 0506- ● ●
16 BUSHING; SHACKLE,RR SPR 8-94234-319-0 08 1 0008-0106 ● ● ●
16 BUSHING; SHACKLE,RR SPR 8-94234-319-0 08 1 0107- ● ●
36 SEAT; HELPER RUBBER,RR SPR 8-94454-478-0 02 1 0008-0106 ● ● ●
36 SEAT; HELPER RUBBER,RR SPR 8-94454-478-0 02 1 0107- ● ●
152 BUSHING; FRT EYE,RR SPRING 8-94223-168-0 04 1 0008-0106 ● ● ●
152 BUSHING; FRT EYE,RR SPRING 8-94223-168-0 04 1 0107- ● ●
159 WASHER; LK,RR SPR
ID=14.2 		9-09150-614-0 08 1 0008-0106 ● ● ●
159 WASHER; LK,RR SPR
ID=14.2 		9-09150-614-0 08 1 0107-0603 ● ●
159 WASHER; LK,RR SPR
ID=14.2 		0-91510-614-0 08 1 0604- ● ●
163 RUBBER; HELPER,RR SPR
SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-97377-907-0 02 1 0403- ●
163 RUBBER; HELPER,RR SPR 8-94223-166-2 02 1 0008-0106 ●
163 RUBBER; HELPER,RR SPR 8-97263-383-0 02 1 0008-0312 ● ●
163 RUBBER; HELPER,RR SPR
IDN 		8-97373-846-0 02 1 0401-0402 ● ●
163 RUBBER; HELPER,RR SPR
IDN 		8-97373-846-0 02 1 0403- ●
163 RUBBER; HELPER,RR SPR
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> IDN 		8-97373-846-0 02 1 0403- ●
165 BOLT; HELPER RUBBER
M10X20 W/LK WASHER IDN 		0-50041-020-0 04 1 0008-0106 ● ● ●
165 BOLT; HELPER RUBBER
M10X20 W/LK WASHER IDN 		0-50041-020-0 04 1 0107-0512 ● ●
165 BOLT; HELPER RUBBER
M10X20 W/LK WASHER IDN 		0-50541-020-0 04 1 0601- ● ●
180 PIN; RR SPR 8-94223-350-2 02 1 0008-0106 ● ● ●
180 PIN; RR SPR 8-94223-350-2 02 1 0107- ● ●
181 BOLT; SPR & SHACKLE
M8X20 		0-20800-820-0 02 1 0008-0106 ● ● ●
181 BOLT; SPR & SHACKLE
M8X20 		0-20800-820-0 02 1 0107-0512 ● ●
181 BOLT; SPR & SHACKLE
M8X20 		0-20850-820-0 02 1 0601- ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 06 1 0008-0106 ● ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 06 1 0107-0512 ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 06 1 0601- ● ●
183 WASHER; LK,PIN,RR SPR
(A) ID=8.2 		9-09150-508-0 02 1 0008-0106 ● ● ●
183 WASHER; LK,PIN,RR SPR
(A) ID=8.2 		9-09150-508-0 02 1 0107-0603 ● ●
183 WASHER; LK,PIN,RR SPR
(A) ID=8.2 		0-91510-508-0 02 1 0604- ● ●
183 WASHER; LK,PIN,RR SPR
(B) ID=14.2 		9-09150-614-0 06 1 0008-0106 ● ● ●
183 WASHER; LK,PIN,RR SPR
(B) ID=14.2 		9-09150-614-0 06 1 0107-0603 ● ●
183 WASHER; LK,PIN,RR SPR
(B) ID=14.2 		0-91510-614-0 06 1 0604- ● ●
