4-50 — FRONT SUSPENSION (#95345) — 135 parça

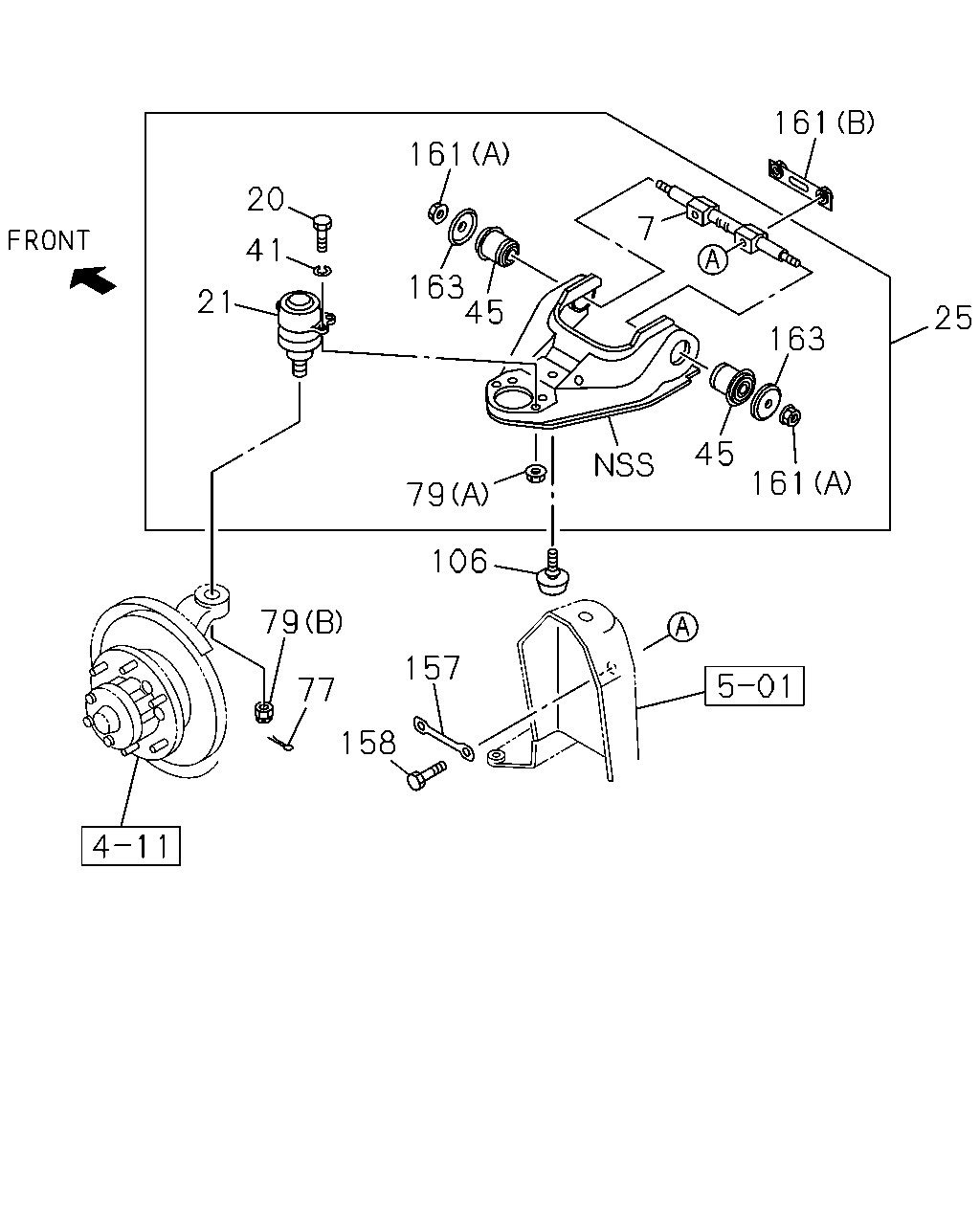

çizim 288996
20 41 21 161 163 45 7 161 163 25 161 45 79 106 79 158 157 77
BalonParca AdiParca NoAdetTipApplied Date A B C
7 PIN; FULCRUM,UPR LINK 8-94173-352-3 02 1 0008-0106 ● ● ●
7 PIN; FULCRUM,UPR LINK 8-94173-352-3 02 1 0107- ● ●
20 BOLT; UPR LINK END TO UPR LINK 8-94478-727-0 08 1 0008-0106 ● ● ●
20 BOLT; UPR LINK END TO UPR LINK 8-94478-727-0 08 1 0107- ● ●
21 JOINT ASM; BALL,UPR CONT ARM 8-94459-453-4 02 1 0008-0106 ● ● ●
21 JOINT ASM; BALL,UPR CONT ARM 8-94459-453-4 02 1 0107- ● ●
25 ARM; UPR CONT 8-94445-551-3 01 1 0008-0106 ● ● ●
25 ARM; UPR CONT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) 		8-94445-551-3 01 1 0107-0209 ● ●
25 ARM; UPR CONT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) 		8-94445-551-3 01 1 0210-0405 ● ●
25 ARM; UPR CONT
EXC. CAB UP<W60> 		8-94445-551-3 01 1 0406- ● ●
25 ARM; UPR CONT
GRADE TOURING(RBG) 		8-97306-865-0 01 1 0107-0405 ● ●
25 ARM; UPR CONT
CAB UP<W60> 		8-97306-865-0 01 1 0406- ● ●
25 ARM; UPR CONT 8-94445-550-3 01 1 0008-0106 ● ● ●
25 ARM; UPR CONT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) 		8-94445-550-3 01 1 0107-0209 ● ●
25 ARM; UPR CONT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) 		8-94445-550-3 01 1 0210-0405 ● ●
25 ARM; UPR CONT
EXC. CAB UP<W60> 		8-94445-550-3 01 1 0406- ● ●
25 ARM; UPR CONT
GRADE TOURING(RBG) 		8-97306-864-0 01 1 0107-0405 ● ●
25 ARM; UPR CONT
CAB UP<W60> 		8-97306-864-0 01 1 0406- ● ●
41 WASHER; LK,UPR LINK END TO UPR LINK
ID=8.2 		9-09150-808-0 08 1 0008-0106 ● ● ●
41 WASHER; LK,UPR LINK END TO UPR LINK
ID=8.2 		9-09150-808-0 08 1 0107-0603 ● ●
41 WASHER; LK,UPR LINK END TO UPR LINK
ID=8.2 		0-91510-808-0 08 1 0604- ● ●
45 BUSHING; UPR LINK,FRT 8-94408-840-3 04 1 0008-0106 ● ● ●
45 BUSHING; UPR LINK,FRT 8-94408-840-3 04 1 0107- ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		9-08113-028-0 02 1 0008-0106 ● ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		9-08113-028-0 02 1 0107-0204 ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=25 		9-08113-025-0 02 1 0205-0606 ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=25 		0-81123-025-0 02 1 0607- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M8 FLANGE 		5-09440-010-0 08 1 0008-0106 ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M8 FLANGE 		5-09440-010-0 08 1 0107- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M14 SLOTTED 		8-94124-556-0 02 1 0008-0106 ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M14 SLOTTED 		8-94124-556-0 02 1 0107-0805 ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M14 SLOTTED 		8-97245-624-0 02 1 0806- ● ●
106 RUBBER; REBOUND,STRUT
IDN 		8-94259-086-0 02 1 0008-0009 ● ● ●
106 RUBBER; REBOUND,STRUT
IDN 		8-97959-156-0 02 1 0010-0106 ● ● ●
106 RUBBER; REBOUND,STRUT
IDN 		8-97959-156-0 02 1 0107- ● ●
157 PLATE; UPR LINK TO FRAME 8-94407-719-1 02 1 0008-0106 ● ● ●
157 PLATE; UPR LINK TO FRAME 8-94407-719-1 02 1 0107- ● ●
158 BOLT; UPR LINK TO FRAME
M14X65 		8-94478-730-0 04 1 0008-0106 ● ● ●
158 BOLT; UPR LINK TO FRAME
M14X65 		8-94478-730-0 04 1 0107- ● ●
161 NUT ASM; UPR LINK TO FRAME
(A) M14 FLANGE 		8-94137-483-0 04 1 0008-0106 ● ● ●
161 NUT ASM; UPR LINK TO FRAME
(A) M14 FLANGE 		8-94137-483-0 04 1 0107- ● ●
161 NUT ASM; UPR LINK TO FRAME
(B) M14 		8-94478-731-0 02 1 0008-0106 ● ● ●
161 NUT ASM; UPR LINK TO FRAME
(B) M14 		8-94478-731-0 02 1 0107-0208 ● ●
161 NUT ASM; UPR LINK TO FRAME
(B) 		8-97327-724-0 02 1 0209- ● ●
163 PLATE; FULCRUM PIN,UPR LINK 8-94407-707-0 04 1 0008-0106 ● ● ●
163 PLATE; FULCRUM PIN,UPR LINK 8-94407-707-0 04 1 0107- ● ●

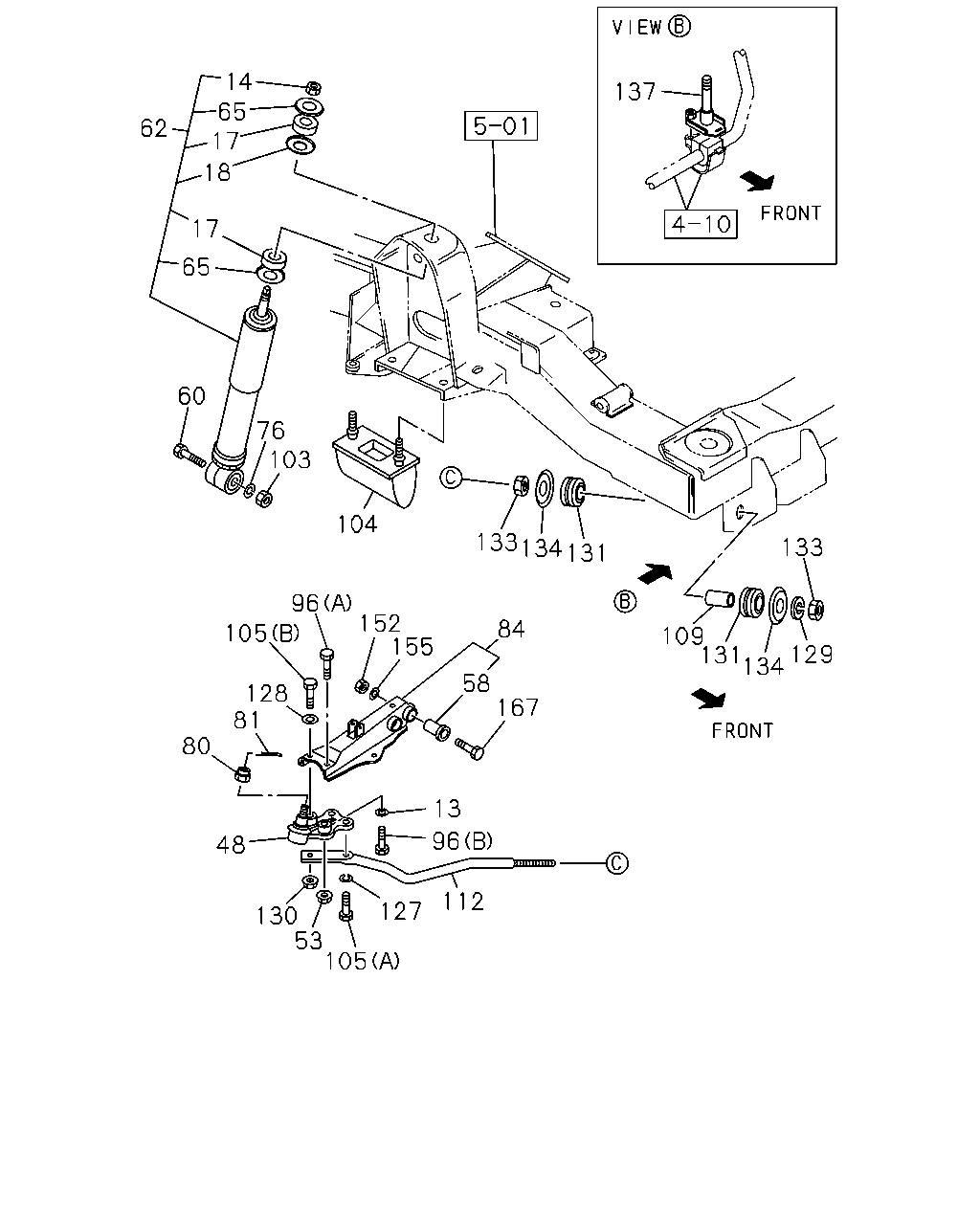

çizim 289867
14 65 17 18 62 17 65 60 76 103 104 133 134 131 109 131 134 129 133 96 152 155 58 84 167 13 96 112 127 105 53 130 48 80 81 105 128 137
BalonParca AdiParca NoAdetTipApplied Date A B C
13 WASHER; LK,LWR LINK
ID=10.2 		9-09150-610-0 02 1 0008-0106 ● ● ●
13 WASHER; LK,LWR LINK
ID=10.2 		9-09150-610-0 02 1 0107-0603 ● ●
13 WASHER; LK,LWR LINK
ID=10.2 IDN 		0-91510-610-0 02 1 0604- ● ●
14 NUT; S/ABS,UPR
M10 		9-09110-410-0 02 1 0008-0106 ● ● ●
14 NUT; S/ABS,UPR
M10 		9-09110-410-0 02 1 0107- ● ●
17 BUSHING; RUBBER,S/ABS
IDN 		8-97957-655-0 04 1 0008-0106 ● ● ●
17 BUSHING; RUBBER,S/ABS
IDN 		8-97957-655-0 04 1 0107- ● ●
18 WASHER; CENTERING,S/ABS
IDN 		8-97957-656-0 02 1 0008-0106 ● ● ●
18 WASHER; CENTERING,S/ABS
IDN 		8-97957-656-0 02 1 0107- ● ●
48 JOINT ASM; BALL,LWR CONT ARM 8-94459-464-3 02 1 0008-0106 ● ● ●
48 JOINT ASM; BALL,LWR CONT ARM 8-94459-464-3 02 1 0107- ● ●
53 NUT; LWR LINK
M10 FLANGE 		8-94242-425-0 02 1 0008-0106 ● ● ●
53 NUT; LWR LINK
M10 FLANGE 		8-94242-425-0 02 1 0107- ● ●
58 BUSHING; LWR LINK
ID=16 		8-94316-903-0 02 1 0008-0106 ● ● ●
58 BUSHING; LWR LINK
ID=16 		8-94316-903-0 02 1 0107- ● ●
60 BOLT; S/ABS TO LWR LINK
M12X50 		0-10811-250-0 02 1 0008-0009 ● ● ●
60 BOLT; S/ABS TO LWR LINK
M12X50 		9-91061-250-0 02 1 0010-0106 ● ● ●
60 BOLT; S/ABS TO LWR LINK
M12X50 		9-91061-250-0 02 1 0107- ● ●
62 ABSORBER ASM; SHOCK,FRT
IDN 		8-97956-975-0 02 1 0008-0106 ●
62 ABSORBER ASM; SHOCK,FRT
IDN 		8-97956-186-0 02 1 0008-0106 ● ●
62 ABSORBER ASM; SHOCK,FRT
IDN 		8-97959-201-0 02 1 0107- ● ●
65 WASHER; S/ABS
IDN 		8-97957-654-0 04 1 0008-0106 ● ● ●
65 WASHER; S/ABS
IDN 		8-97957-654-0 04 1 0107- ● ●
76 WASHER; LK,S/ABS TO LWR LINK
ID=12.2 		9-09150-512-0 02 1 0008-0009 ● ● ●
80 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		9-99116-418-0 02 1 0008-0106 ● ● ●
80 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		9-99116-418-0 02 1 0107-0605 ● ●
80 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		0-91116-518-0 02 1 0606- ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=3.7 L=30 		9-08114-030-0 02 1 0008-0106 ● ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=3.7 L=30 		9-08114-030-0 02 1 0107-0606 ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=3.7 L=30 		0-81124-030-0 02 1 0607- ● ●
84 ARM; LWR CONT 8-94459-461-2 01 1 0008-0106 ● ● ●
84 ARM; LWR CONT 8-94459-461-2 01 1 0107- ● ●
84 ARM; LWR CONT 8-94459-460-2 01 1 0008-0106 ● ● ●
84 ARM; LWR CONT 8-94459-460-2 01 1 0107- ● ●
96 BOLT; LWR LINK
(A) M10X50 		9-01066-050-0 02 1 0008-0106 ● ● ●
96 BOLT; LWR LINK
(A) M10X50 		9-01066-050-0 02 1 0107-0512 ● ●
96 BOLT; LWR LINK
(A) M10X50 		0-10956-050-0 02 1 0601- ● ●
96 BOLT; LWR LINK
(B) M10X20 		9-02061-020-0 02 1 0008-0106 ● ● ●
96 BOLT; LWR LINK
(B) M10X20 		9-02061-020-0 02 1 0107-0512 ● ●
96 BOLT; LWR LINK
(B) M10X20 		0-20951-020-0 02 1 0601- ● ●
103 NUT; S/ABS TO LWR LINK
M12 		9-99111-512-0 02 1 0008-0009 ● ● ●
103 NUT; S/ABS TO LWR LINK
M12 FLANGE 		0-91150-212-0 02 1 0010-0106 ● ● ●
103 NUT; S/ABS TO LWR LINK
M12 FLANGE 		0-91150-212-0 02 1 0107-0602 ● ●
103 NUT; S/ABS TO LWR LINK
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
104 RUBBER; BUMPER,STRUT
IDN 		8-94433-673-0 02 1 0008-0106 ● ● ●
104 RUBBER; BUMPER,STRUT
IDN 		8-94433-673-0 02 1 0107- ● ●
105 BOLT; STRUT BAR TO LWR LINK
(A) M10X35 		8-94237-412-0 02 1 0008-0106 ● ● ●
105 BOLT; STRUT BAR TO LWR LINK
(A) M10X35 		8-94237-412-0 02 1 0107- ● ●
105 BOLT; STRUT BAR TO LWR LINK
(B) M10X65 		9-01066-065-0 02 1 0008-0106 ● ● ●
105 BOLT; STRUT BAR TO LWR LINK
(B) M10X65 		9-01066-065-0 02 1 0107- ● ●
109 TUBE; DIST,STRUT BAR 8-94439-157-0 02 1 0008-0106 ● ● ●
109 TUBE; DIST,STRUT BAR 8-94439-157-0 02 1 0107-0712 ● ●
109 TUBE; DIST,STRUT BAR
IDN 		8-98098-018-0 02 1 0801- ● ●
112 BAR; STRUT 8-94473-192-4 01 1 0008-0106 ● ● ●
112 BAR; STRUT 8-94473-192-4 01 1 0107-0712 ● ●
112 BAR; STRUT
IDN 		8-98098-033-0 01 1 0801- ● ●
112 BAR; STRUT 8-94473-191-4 01 1 0008-0106 ● ● ●
112 BAR; STRUT 8-94473-191-4 01 1 0107-0712 ● ●
112 BAR; STRUT
IDN 		8-98098-032-0 01 1 0801- ● ●
127 WASHER; LK,STRUT BAR TO LWR LINK
ID=10.2 		9-09150-610-0 02 1 0008-0106 ● ● ●
127 WASHER; LK,STRUT BAR TO LWR LINK
ID=10.2 		9-09150-610-0 02 1 0107-0603 ● ●
127 WASHER; LK,STRUT BAR TO LWR LINK
ID=10.2 IDN 		0-91510-610-0 02 1 0604- ● ●
128 WASHER; PL,STRUT
ID=10.5 OD=26 		9-09164-710-0 02 1 0008-0106 ● ● ●
128 WASHER; PL,STRUT
ID=10.5 OD=26 		9-09164-710-0 02 1 0107-0605 ● ●
128 WASHER; PL,STRUT
ID=10.5 OD=26 		0-91614-710-0 02 1 0606- ● ●
129 WASHER; LK,STRUT BAR
ID=16.2 		9-09150-616-0 02 1 0008-0106 ● ● ●
129 WASHER; LK,STRUT BAR
ID=16.2 		9-09150-616-0 02 1 0107-0603 ● ●
129 WASHER; LK,STRUT BAR
ID=16.2 		0-91510-616-0 02 1 0604- ● ●
130 NUT; STRUT BAR TO LWR LINK
M10 FLANGE 		8-94242-425-0 02 1 0008-0106 ● ● ●
130 NUT; STRUT BAR TO LWR LINK
M10 FLANGE 		8-94242-425-0 02 1 0107- ● ●
131 RUBBER; CUSHION,STRUT BAR 8-94433-672-0 04 1 0008-0106 ● ● ●
131 RUBBER; CUSHION,STRUT BAR 8-94433-672-0 04 1 0107- ● ●
133 NUT; STRUT BAR
M16 IDN 		9-99110-516-0 04 1 0008-0106 ● ● ●
133 NUT; STRUT BAR
M16 IDN 		9-99110-516-0 04 1 0107-0512 ● ●
133 NUT; STRUT BAR
M16 		0-91110-516-0 04 1 0601- ● ●
134 WASHER; STRUT BAR 8-94439-158-1 04 1 0008-0106 ● ● ●
134 WASHER; STRUT BAR 8-94439-158-1 04 1 0107-0712 ● ●
134 WASHER; STRUT BAR
IDN 		8-98098-034-0 04 1 0801- ● ●
137 BRACKET; STAB BAR TO FRAME 8-94143-209-0 02 1 0008-0106 ● ● ●
137 BRACKET; STAB BAR TO FRAME 8-94143-209-0 02 1 0107- ● ●
152 NUT; LWR LINK TO FRT C/MBR
M14 IDN 		9-99110-514-0 02 1 0008-0106 ● ● ●
152 NUT; LWR LINK TO FRT C/MBR
M14 IDN 		9-99110-514-0 02 1 0107-0512 ● ●
152 NUT; LWR LINK TO FRT C/MBR
M14 		0-91110-514-0 02 1 0601- ● ●
155 WASHER; LK,UPR LINK TO FRT C/MBR
ID=14.2 		9-09150-514-0 02 1 0008-0106 ● ● ●
155 WASHER; LK,UPR LINK TO FRT C/MBR
ID=14.2 		9-09150-514-0 02 1 0107-0603 ● ●
155 WASHER; LK,UPR LINK TO FRT C/MBR
ID=14.2 		0-91510-514-0 02 1 0604- ● ●
167 BOLT; LWR LINK TO FRT C/MBR
M14X90 		0-10806-490-0 02 1 0008-0106 ● ● ●
167 BOLT; LWR LINK TO FRT C/MBR
M14X90 		0-10806-490-0 02 1 0107-0512 ● ●
167 BOLT; LWR LINK TO FRT C/MBR
M14X90 		0-10856-490-0 02 1 0601- ● ●
