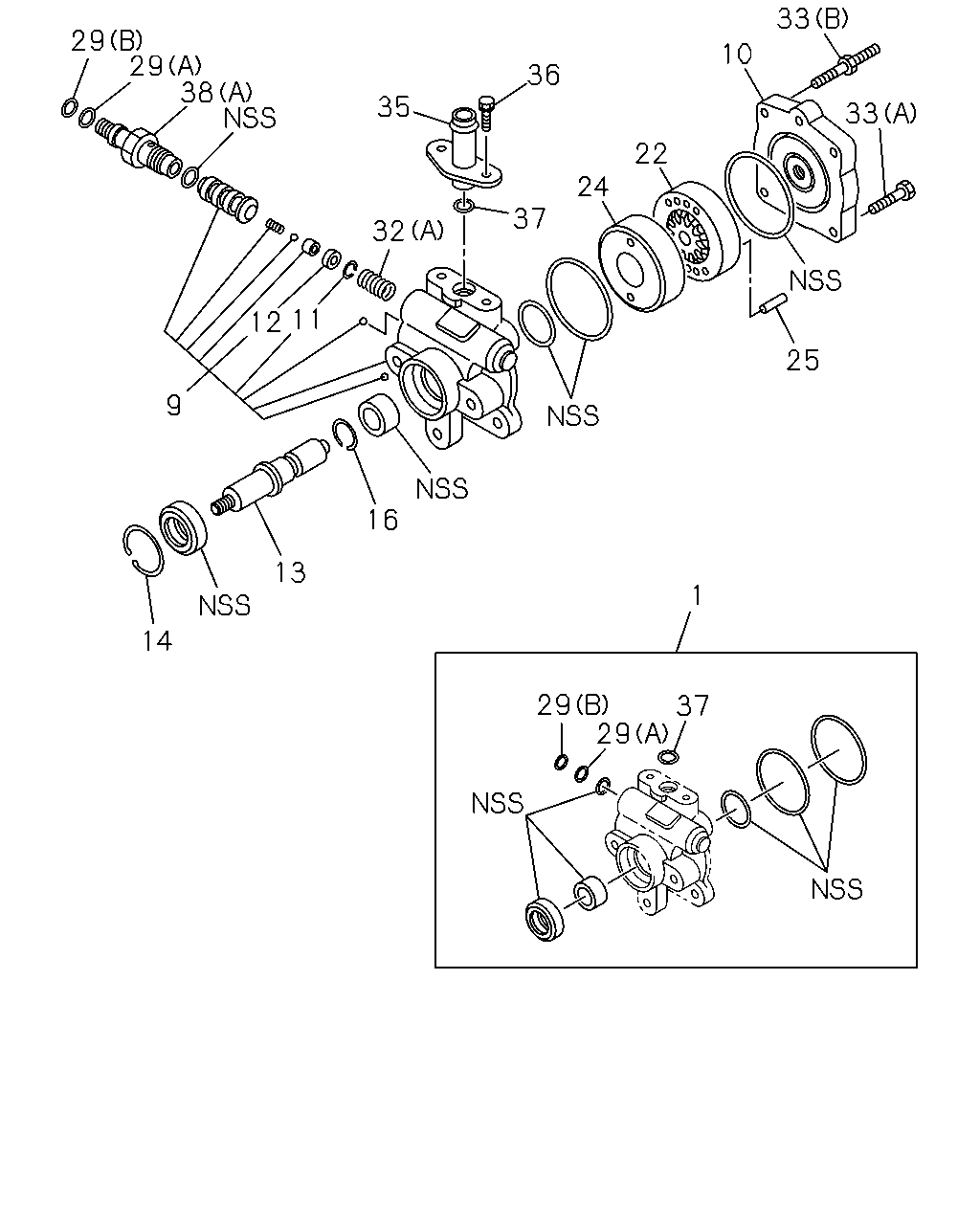

4-42 — POWER STEERING OIL PUMP (#95344) — 146 parça

1 33 33 10 16 22 23 32 35 36 38 27 9 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-735-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-97129-593-5	8-97302-232-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-97331-940-0	8-97356-583-0	01	1	-
9	BODY ASM; FRT,OIL PUMP THA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0	8-97184-721-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97129-593-5	8-97217-285-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97331-940-0	8-97357-483-0	01	1	-
9	BODY ASM; FRT,OIL PUMP IMA ASM PART: E = 8-97946-697-0	8-97946-693-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-97331-940-0	8-97102-294-0	01	1	-
10	BODY ASM; RR,OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0	8-97184-730-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97129-593-5	8-97217-286-0	01	1	-0106
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97129-593-5	8-97331-596-0	01	1	0107-
10	BODY ASM; RR,OIL PUMP IMA ASM PART: E = 8-97946-697-0	8-97946-689-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97129-593-5	8-97061-633-0	01	1	-
13	SHAFT KIT; RET IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97306-614-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-97331-940-0	8-97357-485-0	01	1	-
16	RING; RET,OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-94411-358-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-97129-593-5	8-97061-637-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0	8-97184-729-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97129-593-5	8-97217-283-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97331-940-0	8-97357-499-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP IMA ASM PART: E = 8-97946-697-0	8-97946-615-0	01	1	-
23	PLATE; SIDE,OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-728-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: B = 8-97331-940-0	8-97354-679-0	01	1	-
27	VALVE ASM; OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-731-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-97331-940-0	8-97357-486-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: A = 8-97129-593-5	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: B = 8-97331-940-0	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: B = 8-97331-940-0	8-97064-987-0	01	1	-
32	SPRING; OIL PUMP (D), IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-766-0	01	1	-
33	BOLT; COVER (A) ASM PART: A = 8-97129-593-5	8-94475-381-1	03	1	-
33	BOLT; COVER (C) ASM PART: B = 8-97331-940-0	8-97064-979-0	03	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97129-593-5	8-97131-502-0	01	1	-0106
33	BOLT; COVER (E) ASM PART: C = 8-97942-188-0	8-97184-761-0	03	1	-
33	BOLT; COVER (F) ASM PART: C = 8-97942-188-0	8-97184-762-0	01	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97129-593-5	8-97331-591-0	01	1	0107-
33	BOLT; COVER (D) ASM PART: B = 8-97331-940-0	8-97357-481-0	01	1	-
33	BOLT; COVER (E), IMA ASM PART: D = 8-97944-828-0, E = 8-97946-697-0	8-98028-773-0	03	1	-
33	BOLT; COVER (F), IMA ASM PART: D = 8-97944-828-0, E = 8-97946-697-0	8-98034-093-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97129-593-5	8-94461-138-2	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-97942-188-0	8-97184-733-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP IMA ASM PART: D = 8-97944-828-0, E = 8-97946-697-0	8-98033-923-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-97129-593-5	8-94461-139-1	02	1	-
36	BOLT; CONN,PIPE ASM PART: C = 8-97942-188-0	8-97184-763-0	01	1	-
36	BOLT; CONN,PIPE IMA ASM PART: D = 8-97944-828-0, E = 8-97946-697-0	8-98028-783-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97129-593-5	8-94311-981-0	01	1	-
38	CONNECTOR; OIL PUMP (D) ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-732-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: B = 8-97331-940-0	8-97356-582-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: B = 8-97331-940-0	8-97357-288-0	01	1	-

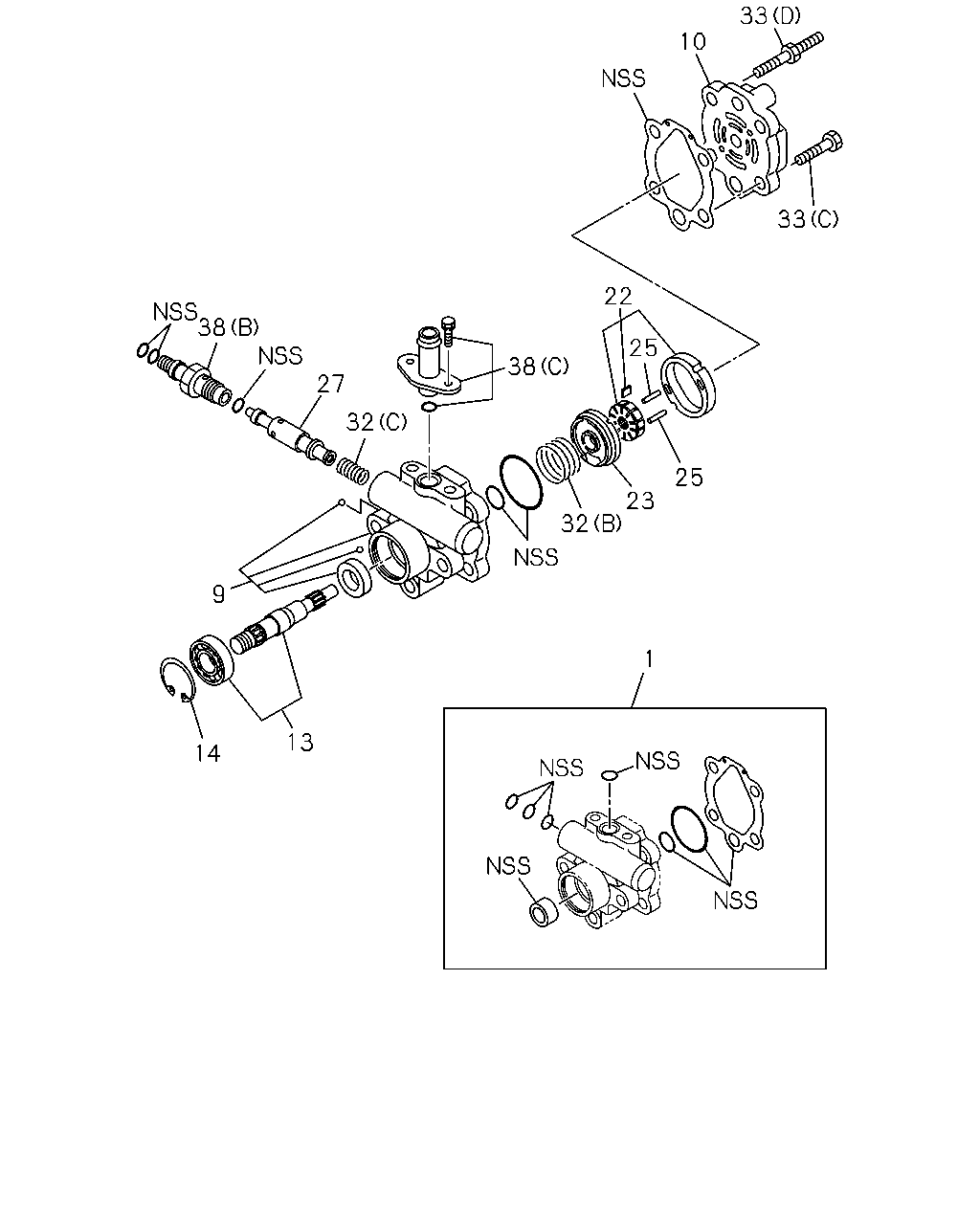

36 35 33 10 33 22 24 37 32 38 29 29 11 12 25 1 37 29 29 13 16 9 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-735-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-97129-593-5	8-97302-232-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-97331-940-0	8-97356-583-0	01	1	-
9	BODY ASM; FRT,OIL PUMP THA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0	8-97184-721-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97129-593-5	8-97217-285-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97331-940-0	8-97357-483-0	01	1	-
9	BODY ASM; FRT,OIL PUMP IMA ASM PART: E = 8-97946-697-0	8-97946-693-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-97331-940-0	8-97102-294-0	01	1	-
10	BODY ASM; RR,OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0	8-97184-730-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97129-593-5	8-97217-286-0	01	1	-0106
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97129-593-5	8-97331-596-0	01	1	0107-
10	BODY ASM; RR,OIL PUMP IMA ASM PART: E = 8-97946-697-0	8-97946-689-0	01	1	-
11	RING; RET,OIL TANK ASM PART: A = 8-97129-593-5	8-94175-185-0	01	1	-
12	FILTER; OIL PUMP ASM PART: A = 8-97129-593-5	8-94175-184-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97129-593-5	8-97061-633-0	01	1	-
13	SHAFT KIT; RET IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97306-614-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-97331-940-0	8-97357-485-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 8-97129-593-5	8-97061-636-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 8-97331-940-0	8-97081-855-0	01	1	-
16	RING; RET,OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-94411-358-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-97129-593-5	8-97061-637-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0	8-97184-729-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97129-593-5	8-97217-283-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97331-940-0	8-97357-499-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP IMA ASM PART: E = 8-97946-697-0	8-97946-615-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 8-97129-593-5	8-97217-284-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97129-593-5	8-94475-371-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 8-97331-940-0	8-97081-859-0	02	1	-
29	GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: A = 8-97129-593-5	9-09561-111-0	01	1	-
29	GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: A = 8-97129-593-5	9-09561-113-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: A = 8-97129-593-5	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: B = 8-97331-940-0	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: B = 8-97331-940-0	8-97064-987-0	01	1	-
32	SPRING; OIL PUMP (D), IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-766-0	01	1	-
33	BOLT; COVER (A) ASM PART: A = 8-97129-593-5	8-94475-381-1	03	1	-
33	BOLT; COVER (C) ASM PART: B = 8-97331-940-0	8-97064-979-0	03	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97129-593-5	8-97131-502-0	01	1	-0106
33	BOLT; COVER (E) ASM PART: C = 8-97942-188-0	8-97184-761-0	03	1	-
33	BOLT; COVER (F) ASM PART: C = 8-97942-188-0	8-97184-762-0	01	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97129-593-5	8-97331-591-0	01	1	0107-
33	BOLT; COVER (D) ASM PART: B = 8-97331-940-0	8-97357-481-0	01	1	-
33	BOLT; COVER (E), IMA ASM PART: D = 8-97944-828-0, E = 8-97946-697-0	8-98028-773-0	03	1	-
33	BOLT; COVER (F), IMA ASM PART: D = 8-97944-828-0, E = 8-97946-697-0	8-98034-093-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97129-593-5	8-94461-138-2	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-97942-188-0	8-97184-733-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP IMA ASM PART: D = 8-97944-828-0, E = 8-97946-697-0	8-98033-923-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-97129-593-5	8-94461-139-1	02	1	-
36	BOLT; CONN,PIPE ASM PART: C = 8-97942-188-0	8-97184-763-0	01	1	-
36	BOLT; CONN,PIPE IMA ASM PART: D = 8-97944-828-0, E = 8-97946-697-0	8-98028-783-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ID=11.0 ASM PART: A = 8-97129-593-5	9-09561-111-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97129-593-5	8-94311-981-0	01	1	-
38	CONNECTOR; OIL PUMP (D) ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-732-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: B = 8-97331-940-0	8-97356-582-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: B = 8-97331-940-0	8-97357-288-0	01	1	-

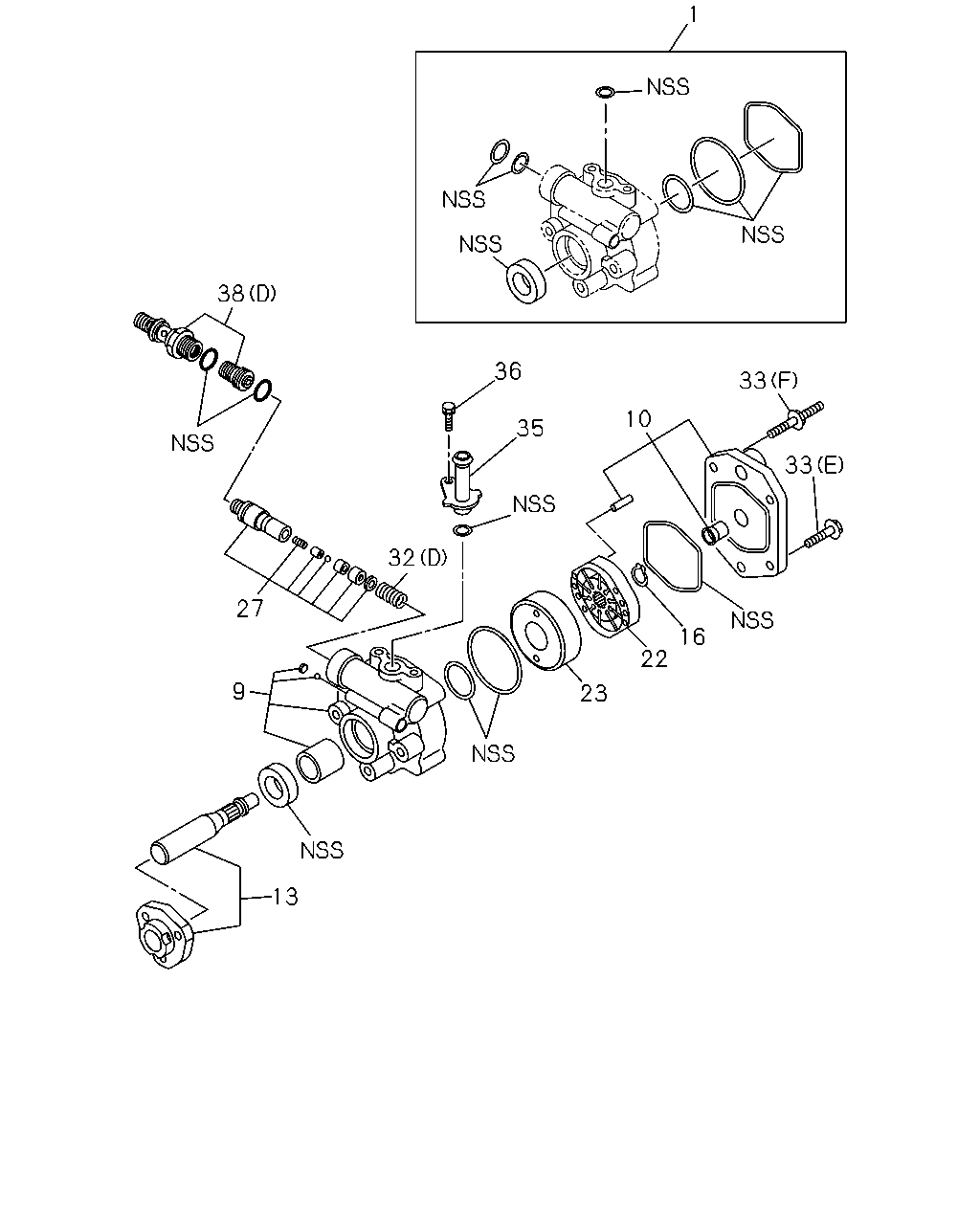

33 10 33 22 25 25 23 32 38 32 27 38 1 13 14 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-735-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-97129-593-5	8-97302-232-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-97331-940-0	8-97356-583-0	01	1	-
9	BODY ASM; FRT,OIL PUMP THA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0	8-97184-721-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97129-593-5	8-97217-285-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97331-940-0	8-97357-483-0	01	1	-
9	BODY ASM; FRT,OIL PUMP IMA ASM PART: E = 8-97946-697-0	8-97946-693-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-97331-940-0	8-97102-294-0	01	1	-
10	BODY ASM; RR,OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0	8-97184-730-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97129-593-5	8-97217-286-0	01	1	-0106
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97129-593-5	8-97331-596-0	01	1	0107-
10	BODY ASM; RR,OIL PUMP IMA ASM PART: E = 8-97946-697-0	8-97946-689-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97129-593-5	8-97061-633-0	01	1	-
13	SHAFT KIT; RET IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97306-614-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-97331-940-0	8-97357-485-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 8-97129-593-5	8-97061-636-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 8-97331-940-0	8-97081-855-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0	8-97184-729-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97129-593-5	8-97217-283-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97331-940-0	8-97357-499-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP IMA ASM PART: E = 8-97946-697-0	8-97946-615-0	01	1	-
23	PLATE; SIDE,OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-728-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: B = 8-97331-940-0	8-97354-679-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97129-593-5	8-94475-371-0	02	1	-
25	PIN; HSG,P/S ASM PART: B = 8-97331-940-0	8-97081-859-0	02	1	-
27	VALVE ASM; OIL PUMP IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-731-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-97331-940-0	8-97357-486-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: A = 8-97129-593-5	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: B = 8-97331-940-0	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: B = 8-97331-940-0	8-97064-987-0	01	1	-
32	SPRING; OIL PUMP (D), IMA ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-766-0	01	1	-
33	BOLT; COVER (A) ASM PART: A = 8-97129-593-5	8-94475-381-1	03	1	-
33	BOLT; COVER (C) ASM PART: B = 8-97331-940-0	8-97064-979-0	03	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97129-593-5	8-97131-502-0	01	1	-0106
33	BOLT; COVER (E) ASM PART: C = 8-97942-188-0	8-97184-761-0	03	1	-
33	BOLT; COVER (F) ASM PART: C = 8-97942-188-0	8-97184-762-0	01	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97129-593-5	8-97331-591-0	01	1	0107-
33	BOLT; COVER (D) ASM PART: B = 8-97331-940-0	8-97357-481-0	01	1	-
33	BOLT; COVER (E), IMA ASM PART: D = 8-97944-828-0, E = 8-97946-697-0	8-98028-773-0	03	1	-
33	BOLT; COVER (F), IMA ASM PART: D = 8-97944-828-0, E = 8-97946-697-0	8-98034-093-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97129-593-5	8-94311-981-0	01	1	-
38	CONNECTOR; OIL PUMP (D) ASM PART: C = 8-97942-188-0, D = 8-97944-828-0, E = 8-97946-697-0	8-97184-732-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: B = 8-97331-940-0	8-97356-582-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: B = 8-97331-940-0	8-97357-288-0	01	1	-
