◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#95343) — 107 parça

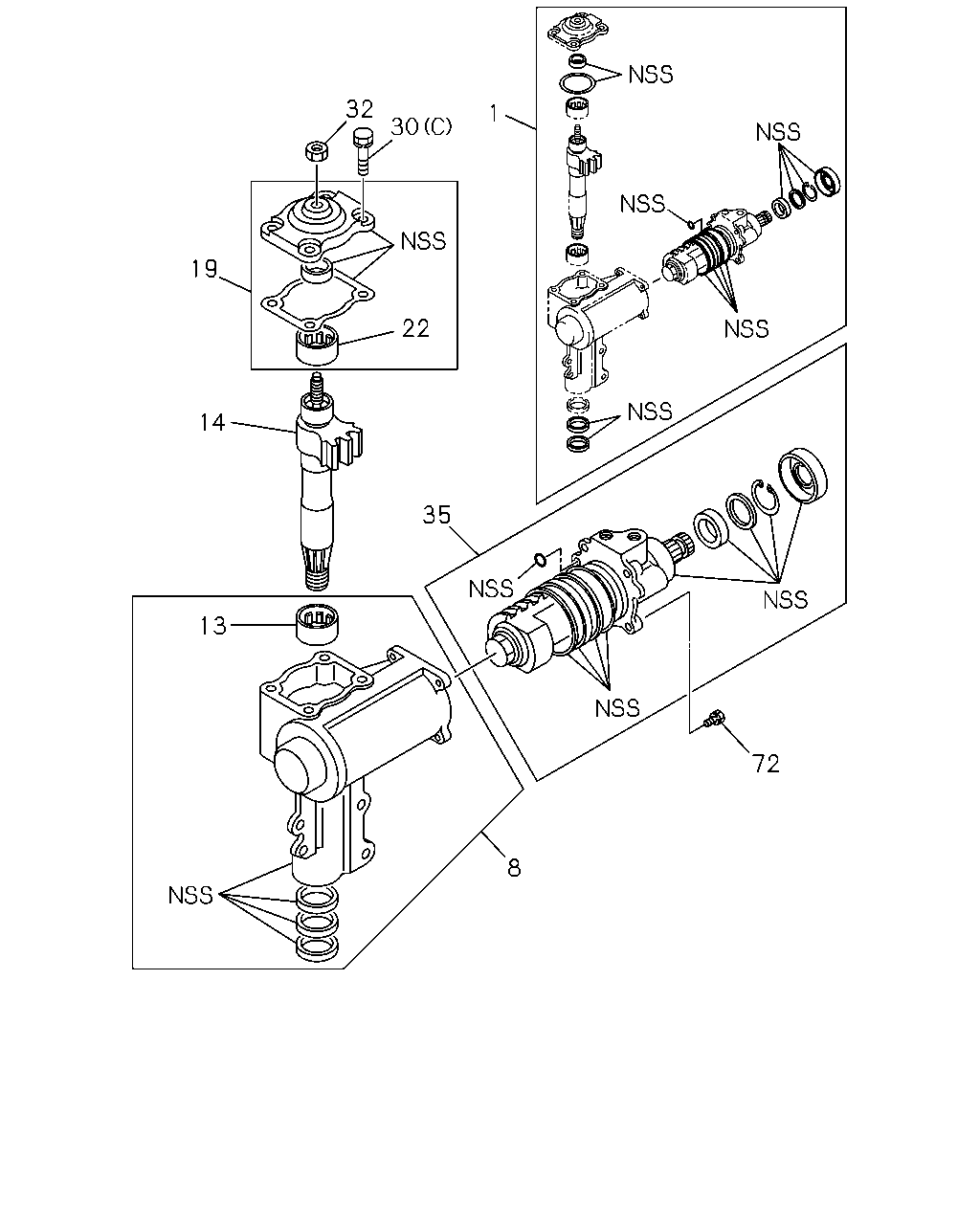

çizim 289277
1 32 30 22 19 14 35 13 8 72
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97175-632-5 		8-97029-945-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97175-660-0 		8-97045-346-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97103-780-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97941-955-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 8-97175-632-5 		8-94240-933-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97175-660-0 		8-97202-708-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97202-715-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97175-660-0 		8-94312-045-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97029-942-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-043-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-97175-632-5 		8-94240-939-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 8-97175-660-0 		8-94312-047-0 01 1 -
30 BOLT; COVER STRG UNIT
(D) ASM PART: B = 8-97175-660-0 		8-94312-046-0 04 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: C = 8-97305-510-0 		8-97940-122-0 02 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: C = 8-97305-510-0 		8-97940-123-0 01 1 -
30 BOLT; COVER STRG UNIT
(C), M10X22 ASM PART: A = 8-97175-632-5 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97029-944-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-125-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: B = 8-97175-660-0 		9-09111-410-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97102-697-3 01 1 -
72 BOLT; HSG FIX STRG UNIT
M10X22 ASM PART: A = 8-97175-632-5 		9-01911-022-0 04 1 -

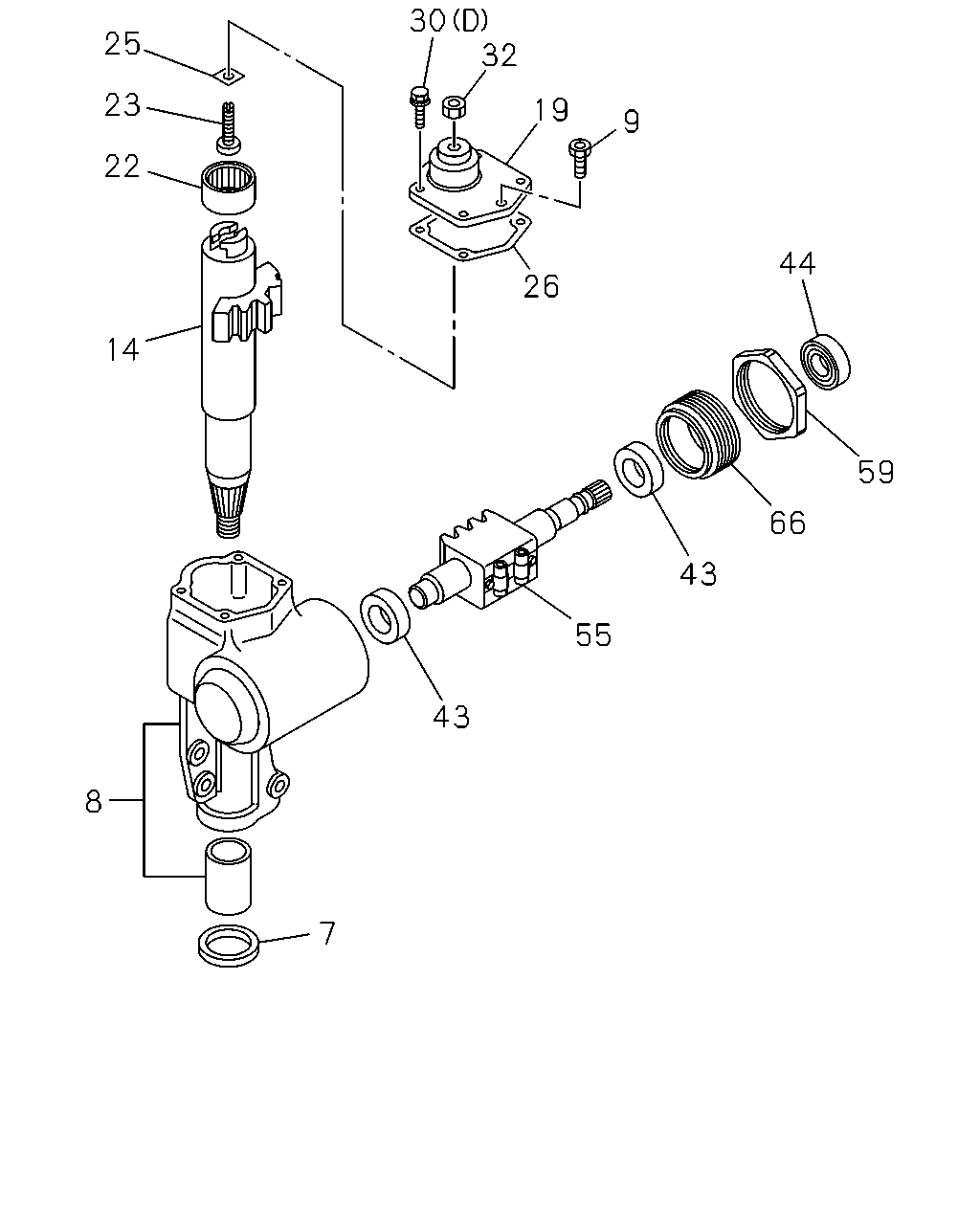

çizim 289348
7 43 55 43 66 59 44 26 9 19 32 30 25 23 22 14 8
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-046-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97175-660-0 		9-09924-261-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97175-660-0 		8-97045-346-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97103-780-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97941-955-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97175-660-0 		5-09065-010-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-127-1 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97175-660-0 		8-97202-708-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97202-715-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97175-660-0 		8-94312-045-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97029-942-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-043-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-97175-632-5 		8-94240-939-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 8-97175-660-0 		8-94312-047-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-049-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97175-660-0 		9-44277-014-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.00 ASM PART: C = 8-97305-510-0 		8-97940-117-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.95 ASM PART: C = 8-97305-510-0 		8-97940-118-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.05 ASM PART: C = 8-97305-510-0 		8-97940-119-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.10 ASM PART: C = 8-97305-510-0 		8-97940-120-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.15 ASM PART: C = 8-97305-510-0 		8-97940-121-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.515-1.535 ASM PART: B = 8-97175-660-0 		9-44279-008-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.545-1.565 ASM PART: B = 8-97175-660-0 		9-44279-009-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.575-1.595 ASM PART: B = 8-97175-660-0 		9-44279-010-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.605-1.625 ASM PART: B = 8-97175-660-0 		9-44279-011-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.635-1.655 ASM PART: B = 8-97175-660-0 		9-44279-012-0 01 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: B = 8-97175-660-0 		8-94452-779-1 01 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-047-0 01 1 -
30 BOLT; COVER STRG UNIT
(D) ASM PART: B = 8-97175-660-0 		8-94312-046-0 04 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: C = 8-97305-510-0 		8-97940-122-0 02 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: C = 8-97305-510-0 		8-97940-123-0 01 1 -
30 BOLT; COVER STRG UNIT
(C), M10X22 ASM PART: A = 8-97175-632-5 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97029-944-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-125-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: B = 8-97175-660-0 		9-09111-410-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: B = 8-97175-660-0 		8-97045-356-0 02 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-124-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 8-97175-660-0 		8-94413-975-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-045-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: B = 8-97175-660-0 		8-97045-348-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-040-0 01 1 -
59 NUT; COVER STRG UNIT
M7.2 ASM PART: B = 8-97175-660-0 		8-94128-207-0 01 1 -
59 NUT; COVER STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-126-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: B = 8-97175-660-0 		8-97045-353-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-044-0 01 1 -

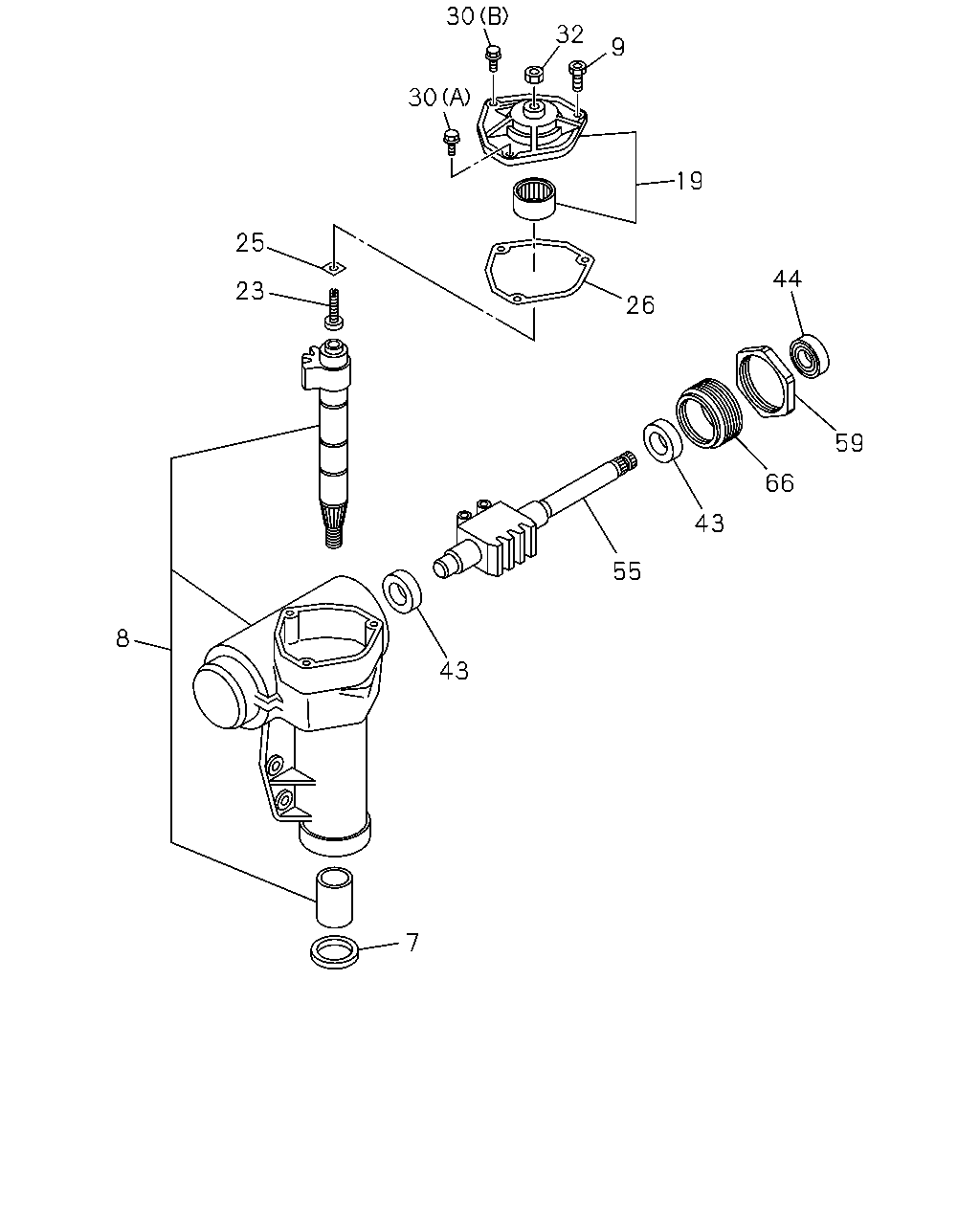

çizim 289349
25 23 8 43 7 55 43 66 59 26 44 19 30 30 32 9
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-046-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97175-660-0 		9-09924-261-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97175-660-0 		8-97045-346-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97103-780-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97941-955-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97175-660-0 		5-09065-010-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-127-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97175-660-0 		8-94312-045-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97029-942-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-043-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-049-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97175-660-0 		9-44277-014-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.00 ASM PART: C = 8-97305-510-0 		8-97940-117-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.95 ASM PART: C = 8-97305-510-0 		8-97940-118-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.05 ASM PART: C = 8-97305-510-0 		8-97940-119-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.10 ASM PART: C = 8-97305-510-0 		8-97940-120-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.15 ASM PART: C = 8-97305-510-0 		8-97940-121-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.515-1.535 ASM PART: B = 8-97175-660-0 		9-44279-008-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.545-1.565 ASM PART: B = 8-97175-660-0 		9-44279-009-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.575-1.595 ASM PART: B = 8-97175-660-0 		9-44279-010-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.605-1.625 ASM PART: B = 8-97175-660-0 		9-44279-011-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.635-1.655 ASM PART: B = 8-97175-660-0 		9-44279-012-0 01 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: B = 8-97175-660-0 		8-94452-779-1 01 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-047-0 01 1 -
30 BOLT; COVER STRG UNIT
(D) ASM PART: B = 8-97175-660-0 		8-94312-046-0 04 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: C = 8-97305-510-0 		8-97940-122-0 02 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: C = 8-97305-510-0 		8-97940-123-0 01 1 -
30 BOLT; COVER STRG UNIT
(C), M10X22 ASM PART: A = 8-97175-632-5 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97175-632-5 		8-97029-944-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-125-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: B = 8-97175-660-0 		9-09111-410-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: B = 8-97175-660-0 		8-97045-356-0 02 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-124-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: B = 8-97175-660-0 		8-94413-975-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-045-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: B = 8-97175-660-0 		8-97045-348-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-040-0 01 1 -
59 NUT; COVER STRG UNIT
M7.2 ASM PART: B = 8-97175-660-0 		8-94128-207-0 01 1 -
59 NUT; COVER STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-126-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: B = 8-97175-660-0 		8-97045-353-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: C = 8-97305-510-0 		8-97940-044-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
