4-36 — POWER STEERING CONTROL; ENGINE SIDE (#95342) — 124 parça

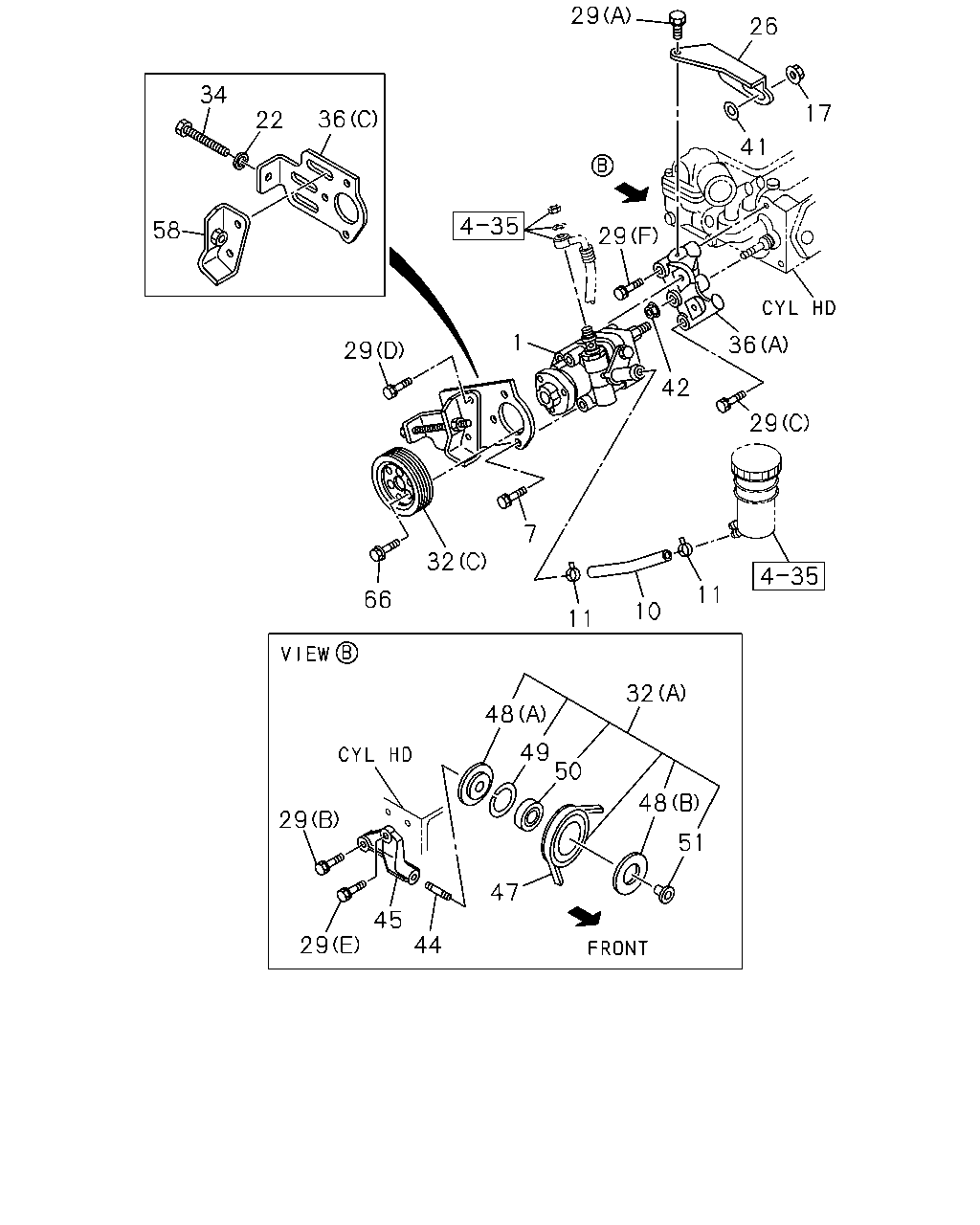

çizim 289276
36 22 34 58 29 26 17 41 29 1 42 36 29 11 10 11 7 32 66 29 32 48 49 50 48 51 47 44 45 29 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97129-593-5 01 1 0008-0206 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97331-940-0 01 1 0207-0302 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97942-188-0 01 1 0303-0610 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. IMA 		8-97944-828-0 01 1 0611-0709 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. IMA 		8-97946-697-0 01 1 0710- ● ●
7 BOLT; OIL PUMP,P/S
M10X20 W/LK WASHER 		8-97033-053-1 03 1 0008- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 8-97247-447-2 01 1 0008- ● ●
11 CLIP; FLEX HOSE
ID=21 		8-94242-034-0 02 1 0008- ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-210-0 01 1 0008-0302 ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE IDN 		0-91150-208-0 01 1 0303-0602 ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE IDN 		0-91180-208-0 01 1 0603- ● ●
22 WASHER; LK,OIL PUMP,P/S
ID=10.2 		9-09150-510-0 01 1 0008-0603 ● ●
22 WASHER; LK,OIL PUMP,P/S
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
26 BRACKET; P/S PUMP,RR 8-97134-259-0 01 1 0008-0302 ● ●
26 BRACKET; P/S PUMP,RR
IDN 		8-97562-168-0 01 1 0303- ● ●
29 BOLT; BRKT,POWER STRG
(A) M8X18 W/LK WASHER 		0-50040-818-0 01 1 0008-0909 ● ●
29 BOLT; BRKT,POWER STRG
(A) M8X18 W/LK WASHER 		0-50540-818-0 01 1 0910- ● ●
29 BOLT; BRKT,POWER STRG
(B) M8X30 W/LK WASHER 		0-50040-830-0 01 1 0008-0009 ● ●
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (B) M8X30 W/LK WASHER 		0-50040-830-0 01 1 0010-0512 ● ●
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (B) M8X30 W/LK WASHER 		0-50540-830-0 01 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
(C) M8X60 W/LK WASHER 		0-50040-860-0 01 1 0008-0512 ● ●
29 BOLT; BRKT,POWER STRG
(C) M8X60 W/LK WASHER 		0-50540-860-0 01 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
(D) M10X28 W/LK WASHER 		0-50041-028-0 02 1 0008-0909 ● ●
29 BOLT; BRKT,POWER STRG
(D) M10X28 W/LK WASHER 		0-50541-028-0 02 1 0910- ● ●
29 BOLT; BRKT,POWER STRG
(E) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0008-0009 ● ●
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (E) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0010-0512 ● ●
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (E) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
(F) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0008-0909 ● ●
29 BOLT; BRKT,POWER STRG
(F) M10X60 W/LK WASHER 		0-50541-060-0 01 1 0910- ● ●
32 PULLEY; IDLER,P/S
(A) 		8-97112-740-0 01 1 0008-0009 ● ●
32 PULLEY; IDLER,P/S
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (A) 		8-97112-740-1 01 1 0010- ● ●
32 PULLEY; IDLER,P/S
(B) IDN 		8-97957-511-0 01 1 0008-0302 ● ●
32 PULLEY; IDLER,P/S
(C) 		8-97942-187-0 01 1 0303- ● ●
34 BOLT; ADJ PLATE
M10X70 		0-20801-070-0 01 1 0008- ● ●
36 BRACKET; PLATE,P/S PUMP
(A) 		8-94478-880-1 01 1 0008- ● ●
36 BRACKET; PLATE,P/S PUMP
(B) 		8-97066-758-1 01 1 0008-0209 ● ●
36 BRACKET; PLATE,P/S PUMP
(B) 		8-97066-759-1 01 1 0210-0302 ● ●
36 BRACKET; PLATE,P/S PUMP
(C) IDN 		8-97562-169-0 01 1 0303- ● ●
41 WASHER; PL,BRKT
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0008-0302 ● ●
41 WASHER; PL,BRKT
ID=8.5 OD=22 T=4 		9-09851-649-0 01 1 0303- ● ●
42 NUT; ADJ PLATE
M8 FLANGE IDN 		0-91150-208-0 01 1 0008-0602 ● ●
42 NUT; ADJ PLATE
M8 FLANGE IDN 		0-91180-208-0 01 1 0603- ● ●
44 STUD; IDLER PULLEY
M10X25 L=40 		9-04411-025-0 01 1 0008-0009 ● ●
44 STUD; IDLER PULLEY
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) M10X25 L=40 		9-04411-025-0 01 1 0010- ● ●
45 BRACKET; IDLE PULLEY,P/S 8-94449-652-0 01 1 0008-0009 ● ●
45 BRACKET; IDLE PULLEY,P/S
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) 		8-94449-652-0 01 1 0010- ● ●
47 BELT; P/S PUMP
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) L=1399 IDN 		5-13671-111-0 01 1 0008- ● ●
48 COVER; IDLER
(A) 		8-97092-819-0 01 1 0008-0009 ● ●
48 COVER; IDLER
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (A) 		8-97092-819-0 01 1 0010- ● ●
48 COVER; IDLER
(B) 		9-13669-603-0 01 1 0008-0009 ● ●
48 COVER; IDLER
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (B) 		9-13669-603-0 01 1 0010- ● ●
49 RING; SNAP,IDLER 8-94175-036-0 01 1 0008-0009 ● ●
49 RING; SNAP,IDLER
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) 		8-94175-036-0 01 1 0010- ● ●
50 BEARING; IDLER 8-94251-052-0 01 1 0008-0009 ● ●
50 BEARING; IDLER
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) 		8-94251-052-0 01 1 0010- ● ●
51 NUT; IDLER 8-97092-813-0 01 1 0008-0009 ● ●
51 NUT; IDLER
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) 		8-97092-813-0 01 1 0010- ● ●
58 SLIDER; BELT ADJ,P/S OIL PUMP 8-94479-122-0 01 1 0008- ● ●
66 BOLT; PULLEY
M8X12 FLANGE 		0-28080-812-0 03 1 0303-0512 ● ●
66 BOLT; PULLEY
M8X12 FLANGE 		0-28050-812-0 03 1 0601- ● ●

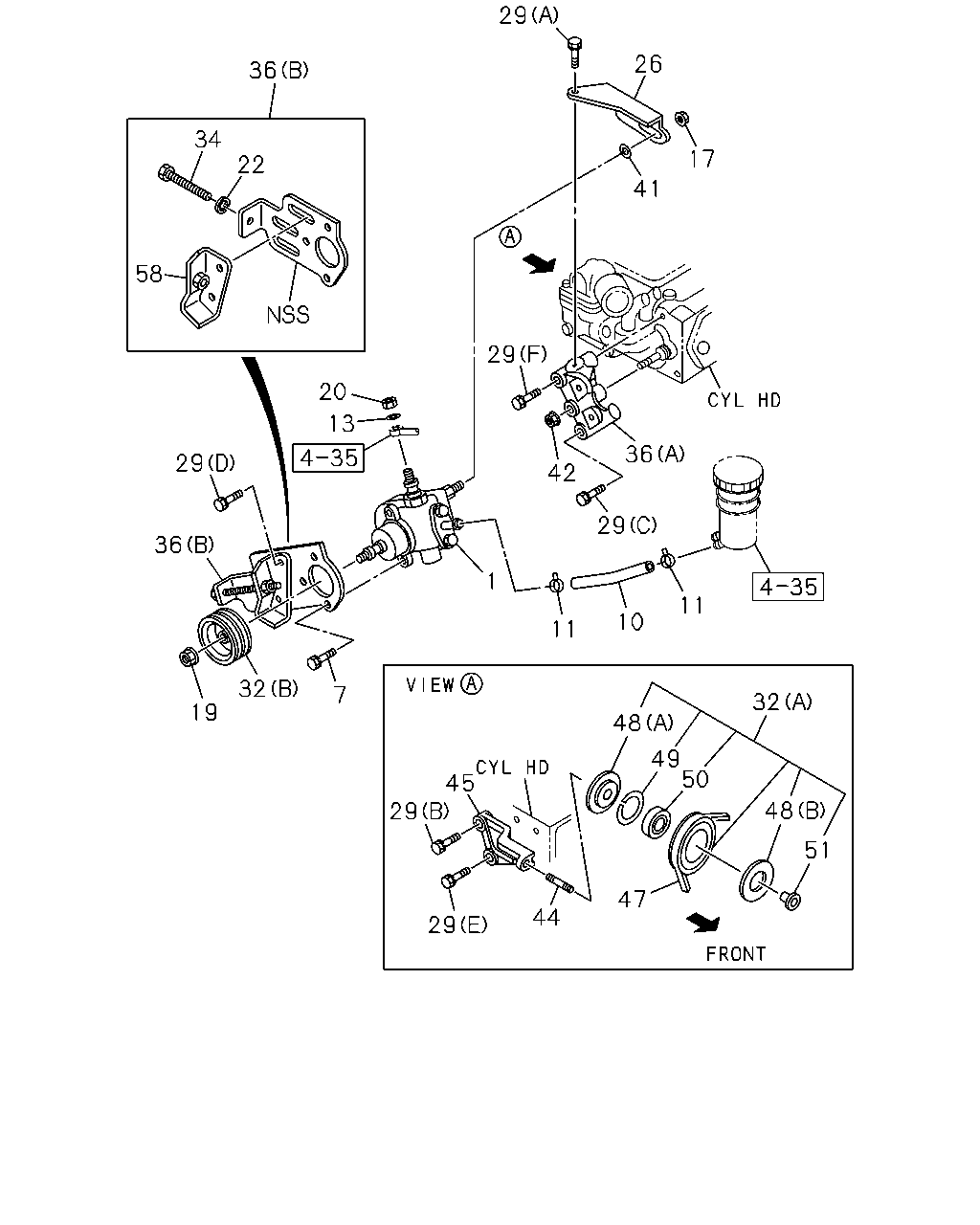

çizim 289866
41 17 26 29 36 34 22 58 20 13 29 36 29 42 29 36 11 10 11 1 7 32 19 29 45 48 49 50 32 48 51 47 44 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97129-593-5 01 1 0008-0206 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97331-940-0 01 1 0207-0302 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97942-188-0 01 1 0303-0610 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. IMA 		8-97944-828-0 01 1 0611-0709 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. IMA 		8-97946-697-0 01 1 0710- ● ●
7 BOLT; OIL PUMP,P/S
M10X20 W/LK WASHER 		8-97033-053-1 03 1 0008- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 8-97247-447-2 01 1 0008- ● ●
11 CLIP; FLEX HOSE
ID=21 		8-94242-034-0 02 1 0008- ● ●
13 WASHER; LK,FLEX HOSE,P/S
ID=12.2 		9-09150-512-0 01 1 0008-0603 ● ●
13 WASHER; LK,FLEX HOSE,P/S
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-210-0 01 1 0008-0302 ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE IDN 		0-91150-208-0 01 1 0303-0602 ● ●
17 NUT; POWER STRG PUMP
M8 FLANGE IDN 		0-91180-208-0 01 1 0603- ● ●
19 NUT; PULLEY,OIL PUMP
M12 		8-94139-015-0 01 1 0008-0302 ● ●
20 NUT; HOSE TO PUMP
M12 		9-99111-412-0 01 1 0008-0209 ● ●
20 NUT; HOSE TO PUMP
M12 		9-99111-512-0 01 1 0210-0512 ● ●
20 NUT; HOSE TO PUMP
M12 		0-91111-512-0 01 1 0601- ● ●
22 WASHER; LK,OIL PUMP,P/S
ID=10.2 		9-09150-510-0 01 1 0008-0603 ● ●
22 WASHER; LK,OIL PUMP,P/S
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
26 BRACKET; P/S PUMP,RR 8-97134-259-0 01 1 0008-0302 ● ●
26 BRACKET; P/S PUMP,RR
IDN 		8-97562-168-0 01 1 0303- ● ●
29 BOLT; BRKT,POWER STRG
(A) M8X18 W/LK WASHER 		0-50040-818-0 01 1 0008-0909 ● ●
29 BOLT; BRKT,POWER STRG
(A) M8X18 W/LK WASHER 		0-50540-818-0 01 1 0910- ● ●
29 BOLT; BRKT,POWER STRG
(B) M8X30 W/LK WASHER 		0-50040-830-0 01 1 0008-0009 ● ●
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (B) M8X30 W/LK WASHER 		0-50040-830-0 01 1 0010-0512 ● ●
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (B) M8X30 W/LK WASHER 		0-50540-830-0 01 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
(C) M8X60 W/LK WASHER 		0-50040-860-0 01 1 0008-0512 ● ●
29 BOLT; BRKT,POWER STRG
(C) M8X60 W/LK WASHER 		0-50540-860-0 01 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
(D) M10X28 W/LK WASHER 		0-50041-028-0 02 1 0008-0909 ● ●
29 BOLT; BRKT,POWER STRG
(D) M10X28 W/LK WASHER 		0-50541-028-0 02 1 0910- ● ●
29 BOLT; BRKT,POWER STRG
(E) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0008-0009 ● ●
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (E) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0010-0512 ● ●
29 BOLT; BRKT,POWER STRG
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (E) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
(F) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0008-0909 ● ●
29 BOLT; BRKT,POWER STRG
(F) M10X60 W/LK WASHER 		0-50541-060-0 01 1 0910- ● ●
32 PULLEY; IDLER,P/S
(A) 		8-97112-740-0 01 1 0008-0009 ● ●
32 PULLEY; IDLER,P/S
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (A) 		8-97112-740-1 01 1 0010- ● ●
32 PULLEY; IDLER,P/S
(B) IDN 		8-97957-511-0 01 1 0008-0302 ● ●
32 PULLEY; IDLER,P/S
(C) 		8-97942-187-0 01 1 0303- ● ●
34 BOLT; ADJ PLATE
M10X70 		0-20801-070-0 01 1 0008- ● ●
36 BRACKET; PLATE,P/S PUMP
(A) 		8-94478-880-1 01 1 0008- ● ●
36 BRACKET; PLATE,P/S PUMP
(B) 		8-97066-758-1 01 1 0008-0209 ● ●
36 BRACKET; PLATE,P/S PUMP
(B) 		8-97066-759-1 01 1 0210-0302 ● ●
36 BRACKET; PLATE,P/S PUMP
(C) IDN 		8-97562-169-0 01 1 0303- ● ●
41 WASHER; PL,BRKT
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0008-0302 ● ●
41 WASHER; PL,BRKT
ID=8.5 OD=22 T=4 		9-09851-649-0 01 1 0303- ● ●
42 NUT; ADJ PLATE
M8 FLANGE IDN 		0-91150-208-0 01 1 0008-0602 ● ●
42 NUT; ADJ PLATE
M8 FLANGE IDN 		0-91180-208-0 01 1 0603- ● ●
44 STUD; IDLER PULLEY
M10X25 L=40 		9-04411-025-0 01 1 0008-0009 ● ●
44 STUD; IDLER PULLEY
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) M10X25 L=40 		9-04411-025-0 01 1 0010- ● ●
45 BRACKET; IDLE PULLEY,P/S 8-94449-652-0 01 1 0008-0009 ● ●
45 BRACKET; IDLE PULLEY,P/S
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) 		8-94449-652-0 01 1 0010- ● ●
47 BELT; P/S PUMP
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) L=1399 IDN 		5-13671-111-0 01 1 0008- ● ●
48 COVER; IDLER
(A) 		8-97092-819-0 01 1 0008-0009 ● ●
48 COVER; IDLER
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (A) 		8-97092-819-0 01 1 0010- ● ●
48 COVER; IDLER
(B) 		9-13669-603-0 01 1 0008-0009 ● ●
48 COVER; IDLER
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) (B) 		9-13669-603-0 01 1 0010- ● ●
49 RING; SNAP,IDLER 8-94175-036-0 01 1 0008-0009 ● ●
49 RING; SNAP,IDLER
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) 		8-94175-036-0 01 1 0010- ● ●
50 BEARING; IDLER 8-94251-052-0 01 1 0008-0009 ● ●
50 BEARING; IDLER
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) 		8-94251-052-0 01 1 0010- ● ●
51 NUT; IDLER 8-97092-813-0 01 1 0008-0009 ● ●
51 NUT; IDLER
M/T MSG 5 SPEED(M75) EXC. AIR CONDITIONER ROOF MOUNTED<C69>, TURBOCHARGER<K51>,TACHOMETER<U16>,COOLER WO/HEATER(YL1) 		8-97092-813-0 01 1 0010- ● ●
58 SLIDER; BELT ADJ,P/S OIL PUMP 8-94479-122-0 01 1 0008- ● ●
