◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#95341) — 53 parça

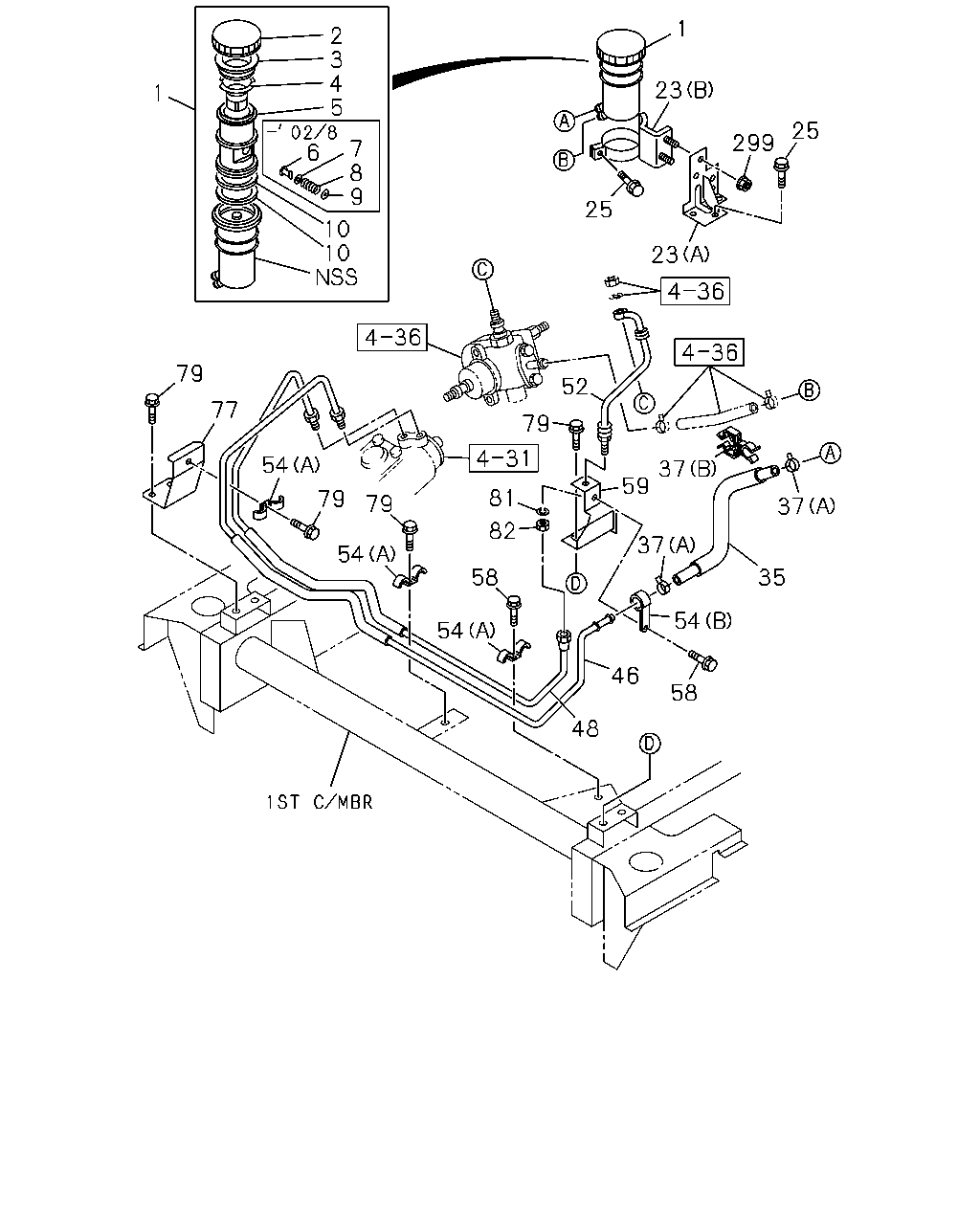

çizim 289865
1 2 3 4 5 7 8 9 10 10 25 23 1 299 25 23 37 37 52 79 81 82 59 37 35 54 58 46 48 54 58 54 79 79 54 77 79 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK ASM; OIL,P/S 8-94105-282-8 01 1 0008- ● ●
2 CAP; OIL TANK,P/S 5-21241-001-2 01 1 0008- ● ●
3 GASKET; OIL TANK,P/S 8-94246-510-0 01 1 0008- ● ●
4 FILTER; OIL TANK,P/S 8-94204-441-1 01 1 0008- ● ●
5 STRAINER; OIL TANK,P/S 8-94405-458-1 01 1 0008-0208 ● ●
5 STRAINER; OIL TANK,P/S 8-97351-631-0 01 1 0209- ● ●
6 HOLDER; GASKET,OIL TANK,P/S 5-21219-005-0 01 1 0008-0208 ● ●
7 RING; GASKET,OIL TANK,P/S 5-21219-007-0 01 1 0008-0208 ● ●
8 SPRING; OIL TANK,P/S 5-09580-088-1 01 1 0008-0208 ● ●
9 COVER; SPR,OIL TANK,P/S 5-21219-006-0 01 1 0008-0208 ● ●
10 SEAL; OIL TANK,P/S 8-94405-457-0 02 1 0008- ● ●
23 BRACKET; OIL TANK,P/S
COOLER WO/HEATER(YL1) (A) IDN 		8-97957-742-2 01 1 0008-0106 ● ● ●
23 BRACKET; OIL TANK,P/S
(A) IDN 		8-97957-742-2 01 1 0008-0106 ● ●
23 BRACKET; OIL TANK,P/S
COOLER WO/HEATER(YL1) (A) IDN 		8-97957-742-2 01 1 0107-0404 ● ●
23 BRACKET; OIL TANK,P/S
(A) IDN 		8-97957-742-2 01 1 0107-0404 ● ●
23 BRACKET; OIL TANK,P/S
(A) IDN 		8-97957-742-2 01 1 0405- ● ●
23 BRACKET; OIL TANK,P/S
(B) IDN 		8-97957-744-0 01 1 0008- ● ●
25 BOLT; OIL TANK BRKT
COOLER WO/HEATER(YL1) M6X16 FLANGE 		0-28480-616-0 03 1 0008-0106 ● ● ●
25 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28480-616-0 03 1 0008-0106 ● ●
25 BOLT; OIL TANK BRKT
COOLER WO/HEATER(YL1) M6X16 FLANGE 		0-28480-616-0 03 1 0107-0512 ● ●
25 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28480-616-0 03 1 0107-0512 ● ●
25 BOLT; OIL TANK BRKT
COOLER WO/HEATER(YL1) M6X16 FLANGE 		0-28450-616-0 03 1 0601- ● ●
25 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28450-616-0 03 1 0601- ● ●
25 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28480-616-0 01 1 0008-0512 ● ●
25 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28450-616-0 01 1 0601- ● ●
35 HOSE; RETURN,P/S TANK 8-97191-253-1 01 1 0008-0106 ● ●
35 HOSE; RETURN,P/S TANK
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) 		8-97191-253-1 01 1 0107-0203 ● ●
35 HOSE; RETURN,P/S TANK
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) L=450 		0-09809-450-0 01 1 0204-0209 ● ●
35 HOSE; RETURN,P/S TANK
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) L=450 		0-09809-450-0 01 1 0210-0405 ● ●
35 HOSE; RETURN,P/S TANK
EXC. CAB UP<W60> L=450 		0-09809-450-0 01 1 0406- ● ●
35 HOSE; RETURN,P/S TANK
GRADE TOURING(RBG) 		8-97204-869-1 01 1 0107-0405 ● ●
35 HOSE; RETURN,P/S TANK
CAB UP<W60> 		8-97204-869-1 01 1 0406- ● ●
37 CLIP; HOSE,P/S
(A) ID=16 IDN 		8-94238-568-0 02 1 0008- ● ●
37 CLIP; HOSE,P/S
(B) D=14.5 /22 		8-94317-707-0 01 1 0008- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
IDN 		8-97957-578-1 01 1 0008- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
IDN 		8-97957-579-1 01 1 0008- ● ●
52 HOSE; FLEX,P/S CONT VLV 8-97255-065-2 01 1 0008- ● ●
54 CLIP; OIL PIPE
(A) IDN 		8-94222-795-1 03 1 0008-0011 ● ●
54 CLIP; OIL PIPE
(A) IDN 		8-94222-795-1 02 1 0012- ● ●
54 CLIP; OIL PIPE
(B) ID=11 L=45 IDN 		8-94296-897-1 01 1 0008- ● ●
58 BOLT; CLIP
M6X16 FLANGE 		0-28480-616-0 02 1 0008-0011 ● ●
58 BOLT; CLIP
M6X16 FLANGE 		0-28480-616-0 01 1 0012-0512 ● ●
58 BOLT; CLIP
M6X16 FLANGE 		0-28450-616-0 01 1 0601- ● ●
59 BRACKET; CLIP,OIL PIPE
IDN 		8-97148-544-0 01 1 0008- ● ●
77 BRACKET; POWER STEERING HOSE
IDN 		8-97120-709-0 01 1 0008- ● ●
79 BOLT; BRKT
M6X16 FLANGE 		0-28480-616-0 05 1 0008-0512 ● ●
79 BOLT; BRKT
M6X16 FLANGE 		0-28450-616-0 05 1 0601- ● ●
81 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		9-09151-216-0 01 1 0008-0603 ● ●
81 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 0604- ● ●
82 NUT; FLEX HOSE,P/S
M16 		9-99111-416-0 01 1 0008-0209 ● ●
82 NUT; FLEX HOSE,P/S
M16 		9-99111-516-0 01 1 0210-0512 ● ●
82 NUT; FLEX HOSE,P/S
M16 IDN 		0-91111-516-0 01 1 0601- ● ●
299 NUT; OIL TANK BRKT
M6 FLANGE IDN 		5-09440-004-0 02 1 0008- ● ●
