◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#95340) — 62 parça

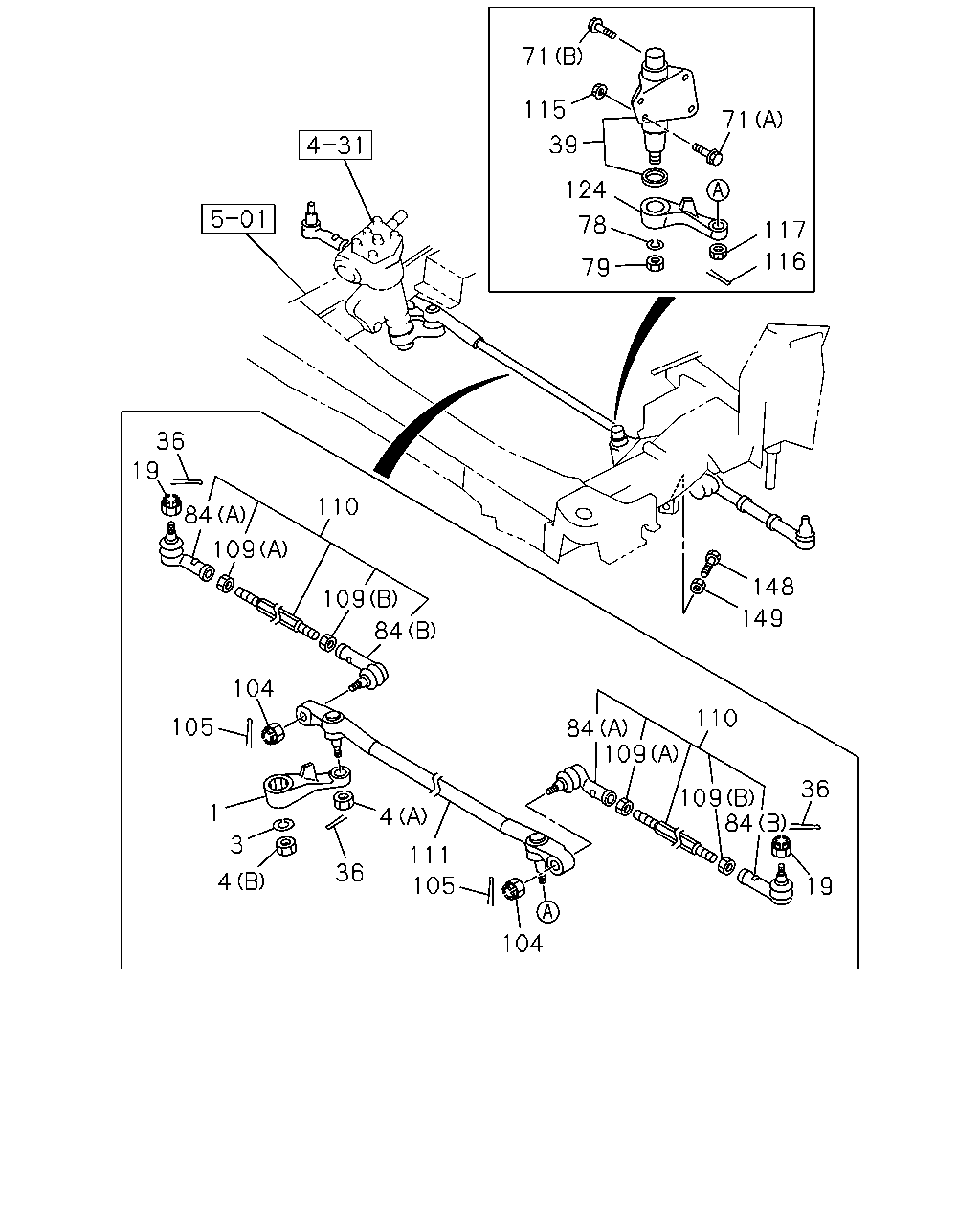

çizim 289862
71 115 39 124 78 79 71 117 116 148 149 110 36 19 84 109 109 84 84 109 109 84 19 36 110 104 105 1 3 4 36 4 111 105 104
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; PITMAN,STRG
IDN 		8-94440-892-3 01 1 0008-0105 ● ● ●
1 ARM; PITMAN,STRG 8-97315-931-0 01 1 0106-0106 ● ● ●
1 ARM; PITMAN,STRG 8-97315-931-0 01 1 0107- ● ●
3 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 0008-0106 ● ● ●
3 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 0107-0603 ● ●
3 WASHER; LK,PITMAN ARM
ID=22.5 		0-91510-522-0 01 1 0604- ● ●
4 NUT; PITMAN ARM
(A) M14 		8-94465-411-0 01 1 0008-0106 ● ● ●
4 NUT; PITMAN ARM
(A) M14 		8-94465-411-0 01 1 0107- ● ●
4 NUT; PITMAN ARM
(B) M22 		9-09111-522-0 01 1 0008-0106 ● ● ●
4 NUT; PITMAN ARM
(B) M22 		9-09111-522-0 01 1 0107-0512 ● ●
4 NUT; PITMAN ARM
(B) M22 		0-91111-522-0 01 1 0601- ● ●
19 NUT; PITMAN ARM,STOPPER
M14 		8-94465-411-0 02 1 0008-0106 ● ● ●
19 NUT; PITMAN ARM,STOPPER
M14 		8-94465-411-0 02 1 0107- ● ●
36 PIN; SPLIT,DRAG LINK
OD=2.8 L=25 		9-08113-025-0 03 1 0008-0106 ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=2.8 L=25 		9-08113-025-0 03 1 0107-0606 ● ●
36 PIN; SPLIT,DRAG LINK
OD=2.8 L=25 		0-81123-025-0 03 1 0607- ● ●
39 LEVER ASM; RELAY,STRG LINKAGE 8-97175-395-0 01 1 0008-0106 ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE 8-97175-395-0 01 1 0107- ● ●
71 BOLT; RELAY LEVER BRKT
(A) M10X92 FLANGE 		8-94313-798-1 03 1 0008-0106 ● ● ●
71 BOLT; RELAY LEVER BRKT
(A) M10X92 FLANGE 		8-94313-798-1 03 1 0107- ● ●
71 BOLT; RELAY LEVER BRKT
(B) M10X20 		8-94366-554-0 01 1 0008-0106 ● ● ●
71 BOLT; RELAY LEVER BRKT
(B) M10X20 		8-94366-554-1 01 1 0107- ● ●
78 WASHER; LINK,RELAY LEVER
ID=16.2 		9-09150-816-0 01 1 0008-0106 ● ● ●
78 WASHER; LINK,RELAY LEVER
ID=16.2 		9-09150-816-0 01 1 0107-0603 ● ●
78 WASHER; LINK,RELAY LEVER
ID=16.2 		0-91510-816-0 01 1 0604- ● ●
79 NUT; RELAY LEVER
M16 		9-99111-516-0 01 1 0008-0106 ● ● ●
79 NUT; RELAY LEVER
M16 		9-99111-516-0 01 1 0107-0512 ● ●
79 NUT; RELAY LEVER
M16 IDN 		0-91111-516-0 01 1 0601- ● ●
84 ROD END; TRACK ROD
(B) RH THREAD IDN 		8-97956-902-1 02 1 0008-0106 ● ● ●
84 ROD END; TRACK ROD
(B) RH THREAD IDN 		8-97956-902-1 02 1 0107- ● ●
84 ROD END; TRACK ROD
(A) LH THREAD IDN 		8-97956-903-1 02 1 0008-0106 ● ● ●
84 ROD END; TRACK ROD
(A) LH THREAD IDN 		8-97956-903-1 02 1 0107- ● ●
104 NUT; ROD END
M14 		8-94465-411-0 02 1 0008-0106 ● ● ●
104 NUT; ROD END
M14 		8-94465-411-0 02 1 0107- ● ●
105 PIN; SPLIT,ROD END
OD=2.8 L=25 		9-08113-025-0 02 1 0008-0106 ● ● ●
105 PIN; SPLIT,ROD END
OD=2.8 L=25 		9-08113-025-0 02 1 0107-0606 ● ●
105 PIN; SPLIT,ROD END
OD=2.8 L=25 		0-81123-025-0 02 1 0607- ● ●
109 NUT; ROD
(A) M14 LH THREAD 		5-09400-010-0 02 1 0008-0106 ● ● ●
109 NUT; ROD
(A) M14 LH THREAD 		5-09400-010-0 02 1 0107- ● ●
109 NUT; ROD
(B) M14 		9-99110-414-0 02 1 0008-0106 ● ● ●
109 NUT; ROD
(B) M14 		9-99110-414-0 02 1 0107-0512 ● ●
109 NUT; ROD
(B) M14 		0-91110-514-0 02 1 0601- ● ●
110 ROD; TRACK,OUTER
IDN 		8-97956-896-0 02 1 0008-0106 ● ● ●
110 ROD; TRACK,OUTER
IDN 		8-97956-896-0 02 1 0107- ● ●
111 ROD; TRACK,CENTER 8-94389-209-2 01 1 0008-0106 ● ● ●
111 ROD; TRACK,CENTER 8-94389-209-2 01 1 0107-0203 ● ●
111 ROD; TRACK,CENTER 8-97316-966-1 01 1 0204- ● ●
115 NUT; RELAY LEVER BRKT
M10 FLANGE 		8-94313-797-0 03 1 0008-0106 ● ● ●
115 NUT; RELAY LEVER BRKT
M10 FLANGE 		8-94313-797-0 03 1 0107- ● ●
116 PIN; SPLIT,TRACK ROD,CENTER
OD=2.8 L=20 		9-08113-020-0 01 1 0008-0106 ● ● ●
116 PIN; SPLIT,TRACK ROD,CENTER
OD=2.8 L=20 		9-08113-020-0 01 1 0107-0606 ● ●
116 PIN; SPLIT,TRACK ROD,CENTER
OD=2.8 L=20 		0-81123-020-0 01 1 0607- ● ●
117 NUT; DRAG LINK
M12 SLOTTED 		9-99117-512-0 01 1 0008-0106 ● ● ●
117 NUT; DRAG LINK
M12 SLOTTED 		9-99117-512-0 01 1 0107-0605 ● ●
117 NUT; DRAG LINK
M12 SLOTTED 		0-91117-512-0 01 1 0606- ● ●
124 LEVER; RELAY,STRG LINKAGE
IDN 		8-94440-893-3 01 1 0008-0106 ● ● ●
124 LEVER; RELAY,STRG LINKAGE
IDN 		8-94440-893-3 01 1 0107- ● ●
148 BOLT; STOPPER
L=35 		9-09802-280-0 02 1 0008-0106 ● ● ●
148 BOLT; STOPPER
L=35 		9-09802-280-0 02 1 0107- ● ●
149 NUT; LK,STOPPER BOLT
M10 		9-09111-410-0 02 1 0008-0106 ● ● ●
149 NUT; LK,STOPPER BOLT
M10 		9-09111-410-0 02 1 0107-0512 ● ●
149 NUT; LK,STOPPER BOLT
M10 		0-91111-510-0 02 1 0601- ● ●
