4-30 — STEERING WHEEL AND COWL (#95338) — 64 parça

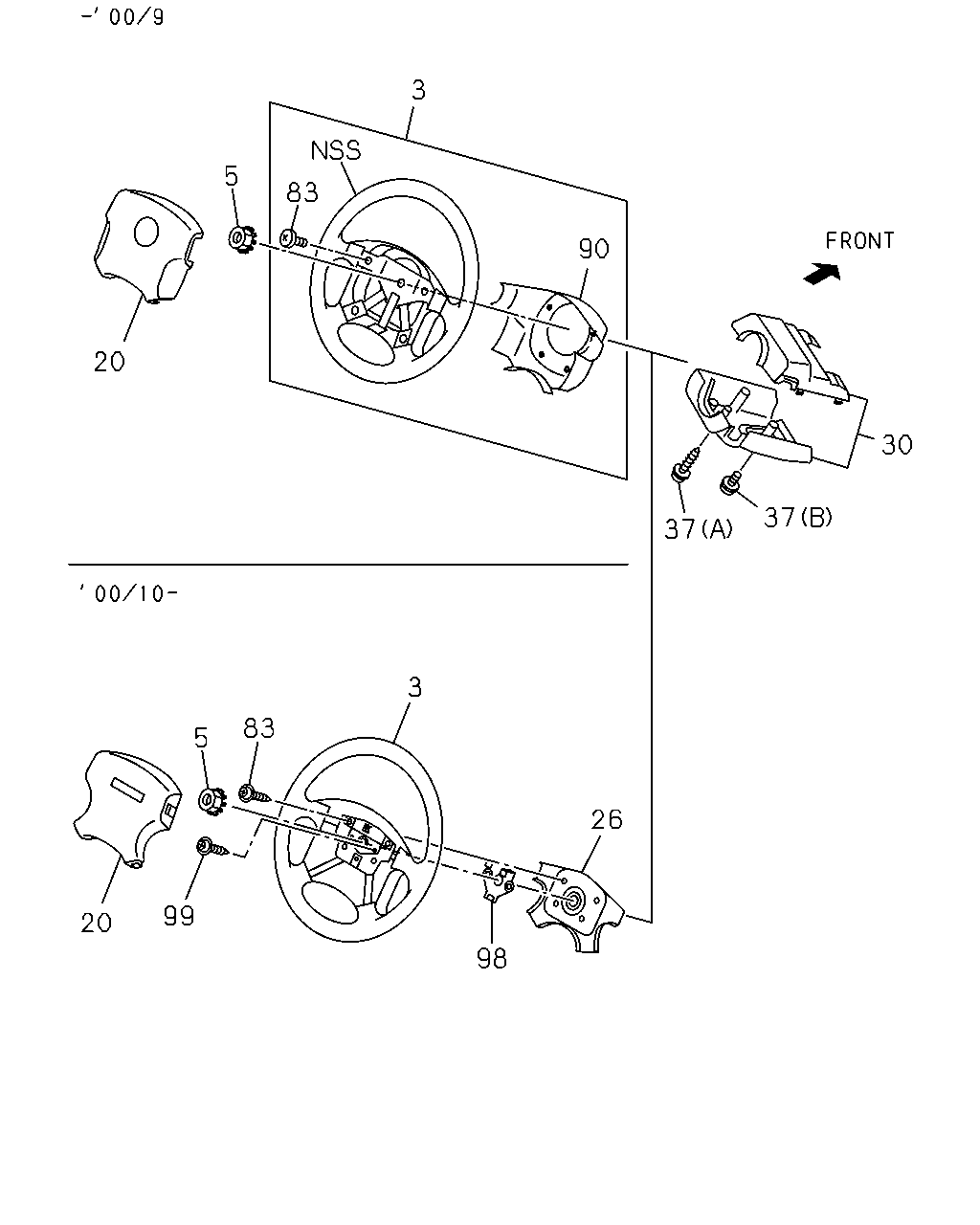

çizim 289100
20 5 83 3 90 5 83 20 99 3 98 26 37 37 30
BalonParca AdiParca NoAdetTipApplied Date A B C
3 WHEEL; STRG
BLACK 		8-97296-209-0 01 1 0008-0106 ● ●
3 WHEEL; STRG
EXC. STRG WHEEL URETHANE<NK4> BLACK 		8-97296-209-0 01 1 0008-0106 ●
3 WHEEL; STRG
EXC. STRG WHEEL URETHANE<NK4> BLACK 		8-97296-209-1 01 1 0107- ● ●
3 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97155-240-0 01 1 0008-0009 ●
3 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97958-824-0 01 1 0010-0106 ●
3 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97958-824-0 01 1 0107- ● ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 0008-0106 ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 0107- ● ●
20 SHROUD; PAD,STRG WHEEL
BLACK 		8-97154-757-1 01 1 0008-0106 ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. STRG WHEEL URETHANE<NK4> BLACK 		8-97154-757-1 01 1 0008-0106 ●
20 SHROUD; PAD,STRG WHEEL
EXC. STRG WHEEL URETHANE<NK4> BLACK 		8-97154-757-1 01 1 0107- ● ●
20 SHROUD; PAD,STRG WHEEL
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97155-241-2 01 1 0008-0009 ●
20 SHROUD; PAD,STRG WHEEL
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97958-825-0 01 1 0010-0106 ●
20 SHROUD; PAD,STRG WHEEL
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97958-825-0 01 1 0107- ● ●
26 COVER; STRG WHEEL,LWR
STRG WHEEL URETHANE<NK4> IDN 		8-97957-068-0 01 1 0010-0106 ●
26 COVER; STRG WHEEL,LWR
STRG WHEEL URETHANE<NK4> IDN 		8-97957-068-0 01 1 0107- ● ●
30 COWL; STEERING
BLACK IDN 		8-97196-927-1 01 1 0008-0104 ● ● ●
30 COWL; STEERING
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) BLACK IDN 		8-97196-927-1 01 1 0105-0106 ● ● ●
30 COWL; STEERING
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) BLACK IDN 		8-97196-927-1 01 1 0107-0209 ● ●
30 COWL; STEERING
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) BLACK IDN 		8-97196-927-1 01 1 0210-0210 ● ●
30 COWL; STEERING
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) BLACK IDN 		8-97196-927-1 01 1 0211- ● ●
30 COWL; STEERING
GRADE LS(RBD) BLACK IDN 		8-97560-318-0 01 1 0105-0106 ●
30 COWL; STEERING
GRADE TOURING(RBG) BLACK IDN 		8-97560-318-0 01 1 0107-0210 ● ●
30 COWL; STEERING
GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN 		8-97560-318-0 01 1 0211- ● ●
37 SCREW; STRG COWL UPR
(A) M5X16 		5-09981-053-0 02 1 0008-0106 ● ● ●
37 SCREW; STRG COWL UPR
(A) M5X16 		5-09981-053-0 02 1 0107- ● ●
37 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER 		9-03900-412-0 03 1 0008-0106 ● ● ●
37 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER 		9-03900-412-0 03 1 0107-0604 ● ●
37 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER 		0-36210-412-0 03 1 0605- ● ●
83 SCREW; LWR COVER TO WHEEL
STRG WHEEL URETHANE<NK4> IDN 		8-97164-606-0 04 1 0008-0009 ●
83 SCREW; LWR COVER TO WHEEL
STRG WHEEL URETHANE<NK4> M4X16 TAPPING IDN 		8-94361-921-0 04 1 0010- ● ●
90 COVER ASM; STRG WHEEL,LWR
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97158-297-0 01 1 0008-0009 ●
98 DAMPER; STRG WHEEL
STRG WHEEL URETHANE<NK4> IDN 		8-97241-212-0 01 1 0010-0010 ●
98 DAMPER; STRG WHEEL
STRG WHEEL URETHANE<NK4> IDN 		8-97241-211-1 01 1 0011-0106 ●
98 DAMPER; STRG WHEEL
STRG WHEEL URETHANE<NK4> IDN 		8-97241-211-1 01 1 0107-0505 ● ●
98 DAMPER; STRG WHEEL
STRG WHEEL URETHANE<NK4> IDN 		8-97562-630-0 01 1 0506- ● ●
99 SCREW; STRG,DPR
STRG WHEEL URETHANE<NK4> M6X10 		1-09981-511-0 02 1 0011- ● ●
çizim 289860
20 5 3 37 37 30
BalonParca AdiParca NoAdetTipApplied Date A B C
3 WHEEL; STRG
BLACK 		8-97296-209-0 01 1 0008-0106 ● ●
3 WHEEL; STRG
EXC. STRG WHEEL URETHANE<NK4> BLACK 		8-97296-209-0 01 1 0008-0106 ●
3 WHEEL; STRG
EXC. STRG WHEEL URETHANE<NK4> BLACK 		8-97296-209-1 01 1 0107- ● ●
3 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97155-240-0 01 1 0008-0009 ●
3 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97958-824-0 01 1 0010-0106 ●
3 WHEEL; STRG
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97958-824-0 01 1 0107- ● ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 0008-0106 ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 0107- ● ●
20 SHROUD; PAD,STRG WHEEL
BLACK 		8-97154-757-1 01 1 0008-0106 ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. STRG WHEEL URETHANE<NK4> BLACK 		8-97154-757-1 01 1 0008-0106 ●
20 SHROUD; PAD,STRG WHEEL
EXC. STRG WHEEL URETHANE<NK4> BLACK 		8-97154-757-1 01 1 0107- ● ●
20 SHROUD; PAD,STRG WHEEL
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97155-241-2 01 1 0008-0009 ●
20 SHROUD; PAD,STRG WHEEL
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97958-825-0 01 1 0010-0106 ●
20 SHROUD; PAD,STRG WHEEL
STRG WHEEL URETHANE<NK4> BLACK IDN 		8-97958-825-0 01 1 0107- ● ●
30 COWL; STEERING
BLACK IDN 		8-97196-927-1 01 1 0008-0104 ● ● ●
30 COWL; STEERING
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) BLACK IDN 		8-97196-927-1 01 1 0105-0106 ● ● ●
30 COWL; STEERING
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) BLACK IDN 		8-97196-927-1 01 1 0107-0209 ● ●
30 COWL; STEERING
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) BLACK IDN 		8-97196-927-1 01 1 0210-0210 ● ●
30 COWL; STEERING
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) BLACK IDN 		8-97196-927-1 01 1 0211- ● ●
30 COWL; STEERING
GRADE LS(RBD) BLACK IDN 		8-97560-318-0 01 1 0105-0106 ●
30 COWL; STEERING
GRADE TOURING(RBG) BLACK IDN 		8-97560-318-0 01 1 0107-0210 ● ●
30 COWL; STEERING
GRADE LS(RBD),GRADE TOURING(RBG) BLACK IDN 		8-97560-318-0 01 1 0211- ● ●
37 SCREW; STRG COWL UPR
(A) M5X16 		5-09981-053-0 02 1 0008-0106 ● ● ●
37 SCREW; STRG COWL UPR
(A) M5X16 		5-09981-053-0 02 1 0107- ● ●
37 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER 		9-03900-412-0 03 1 0008-0106 ● ● ●
37 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER 		9-03900-412-0 03 1 0107-0604 ● ●
37 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER 		0-36210-412-0 03 1 0605- ● ●
