◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#95336) — 82 parça

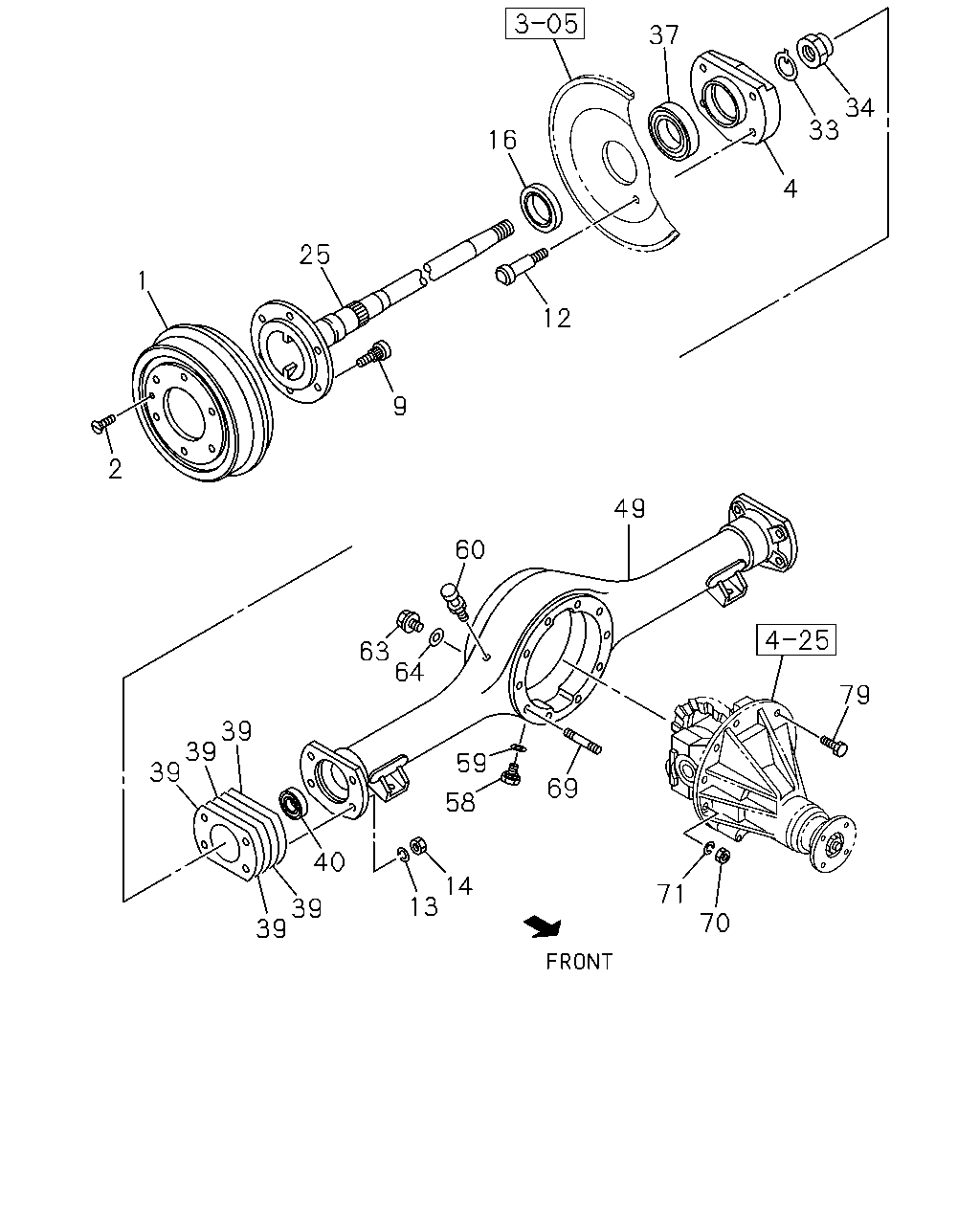

çizim 288921
2 1 25 9 12 16 37 4 33 34 49 79 70 71 69 59 58 14 13 40 39 39 39 39 39 63 64 60
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRUM; BRK,RR
IDN 		8-97956-672-0 02 1 0008-0106 ● ● ●
1 DRUM; BRK,RR
IDN 		8-97956-672-0 02 1 0107- ● ●
2 BOLT; BRK DRUM
M6X16 CK-HEAD 		9-03090-616-0 02 1 0008-0106 ● ● ●
2 BOLT; BRK DRUM
M6X16 CK-HEAD 		9-03090-616-0 02 1 0107- ● ●
4 HOLDER; BRG,AXLE SHAFT 8-94223-079-3 02 1 0008-0106 ● ● ●
4 HOLDER; BRG,AXLE SHAFT 8-94223-079-4 02 1 0107- ● ●
9 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		8-97213-870-0 12 1 0008-0106 ● ● ●
9 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		8-97213-870-0 12 1 0107- ● ●
12 BOLT; BRG HOLDER TO CASE
M12X72 		8-94477-674-1 04 1 0008-0106 ● ● ●
12 BOLT; BRG HOLDER TO CASE
M12X72 		8-94477-674-2 04 1 0107- ● ●
12 BOLT; BRG HOLDER TO CASE
M12X69 REAMER 		9-42119-603-2 04 1 0008-0106 ● ● ●
12 BOLT; BRG HOLDER TO CASE
M12X69 REAMER 		9-42119-603-2 04 1 0107- ● ●
13 WASHER; LK,BRG HOLDER TO CASE
ID=12.2 		9-09150-512-0 08 1 0008-0106 ● ● ●
13 WASHER; LK,BRG HOLDER TO CASE
ID=12.2 		9-09150-512-0 08 1 0107-0603 ● ●
13 WASHER; LK,BRG HOLDER TO CASE
ID=12.2 		0-91510-512-0 08 1 0604- ● ●
14 NUT; BRG HOLDER TO CASE
M12 		9-99110-412-0 08 1 0008-0106 ● ● ●
14 NUT; BRG HOLDER TO CASE
M12 		9-99110-412-0 08 1 0107-0512 ● ●
14 NUT; BRG HOLDER TO CASE
M12 		0-91110-512-0 08 1 0601- ● ●
16 SEAL; OIL,RR HUB,OUTER
ID=47 OD=70 		8-94318-909-0 02 1 0008-0106 ● ● ●
16 SEAL; OIL,RR HUB,OUTER
ID=47 OD=70 		8-94318-909-0 02 1 0107- ● ●
25 SHAFT; AXLE,RR
THA 		8-94178-143-4 02 1 0008-0011 ● ● ●
25 SHAFT; AXLE,RR
THA 		8-97942-194-0 02 1 0012-0106 ● ● ●
25 SHAFT; AXLE,RR
THA 		8-97942-194-0 02 1 0107- ● ●
33 WASHER; AXLE SHAFT 8-97086-473-0 02 1 0008-0106 ● ● ●
33 WASHER; AXLE SHAFT 8-97086-473-0 02 1 0107- ● ●
34 NUT; AXLE SHAFT 8-94177-815-0 02 1 0008-0106 ● ● ●
34 NUT; AXLE SHAFT 8-94177-815-0 02 1 0107- ● ●
37 BEARING; HUB INNER,RR AXLE 9-00093-627-2 02 1 0008-0106 ● ● ●
37 BEARING; HUB INNER,RR AXLE 9-00093-627-2 02 1 0107- ● ●
39 SHIM; BRG HOLDER
T=1.000 		8-94469-775-0 AR 1 0008-0106 ● ● ●
39 SHIM; BRG HOLDER
T=1.000 		8-94469-775-0 AR 1 0107- ● ●
39 SHIM; BRG HOLDER
T=0.500 		8-94469-776-0 AR 1 0008-0106 ● ● ●
39 SHIM; BRG HOLDER
T=0.500 		8-94469-776-0 AR 1 0107- ● ●
39 SHIM; BRG HOLDER
T=0.130 		8-94469-777-0 AR 1 0008-0106 ● ● ●
39 SHIM; BRG HOLDER
T=0.130 		8-94469-777-0 AR 1 0107- ● ●
39 SHIM; BRG HOLDER
T=0.076 		8-94469-778-0 AR 1 0008-0106 ● ● ●
39 SHIM; BRG HOLDER
T=0.076 		8-94469-778-0 AR 1 0107- ● ●
39 SHIM; BRG HOLDER
T=0.050 		8-94469-779-0 AR 1 0008-0106 ● ● ●
39 SHIM; BRG HOLDER
T=0.050 		8-94469-779-0 AR 1 0107- ● ●
40 SEAL; OIL,REAR AXLE 8-94318-910-0 02 1 0008-0106 ● ● ●
40 SEAL; OIL,REAR AXLE 8-94318-910-0 02 1 0107- ● ●
49 CASE; RR AXLE
IDN 		8-97958-930-0 01 1 0008-0106 ● ● ●
49 CASE; RR AXLE
IDN 		8-97958-930-2 01 1 0107- ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 IDN 		8-97109-869-0 01 1 0008-0106 ● ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 IDN 		8-97109-869-0 01 1 0107-0805 ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0806- ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 0008-0106 ● ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 0107- ● ●
60 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 0008-0106 ● ● ●
60 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 0107-0409 ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0410-0606 ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0607- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 0008-0106 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 0107-0805 ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0806- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0008-0106 ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0107- ● ●
69 STUD; AXLE CASE
M8X25 L=36 		5-09300-037-0 02 1 0008-0106 ● ● ●
69 STUD; AXLE CASE
M8X25 L=36 		5-09300-037-0 02 1 0107- ● ●
70 NUT; CARRIER
M8 		5-09400-020-0 02 1 0008-0106 ● ● ●
70 NUT; CARRIER
M8 		5-09400-020-0 02 1 0107- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=8.2 		9-09150-808-0 02 1 0008-0106 ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=8.2 		9-09150-808-0 02 1 0107-0603 ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=8.2 		0-91510-808-0 02 1 0604- ● ●
79 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75) FINAL GEAR RATIO 41/10(GT5) FRT&RR 165R14-8 5JX14(ATC),FRT&RR 185R14-6 5.5JJX14(ATD),FRT&RR 205/65R15 6JJX15 ALUMI(ATE) M8X25 W/LK WASHER 		8-98022-410-0 04 1 0606- ● ●
79 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75) FINAL GEAR RATIO 43/10(S7C) FRT&RR 235/70R15 6JJ ALUMI(AXA) M8X25 W/LK WASHER 		8-98022-410-0 04 1 0606- ● ●
79 BOLT; COVER TO CASE
A/T AISIN(RMD) FINAL GEAR RATIO 41/8(RU1) FRT&RR 235/70R15 6JJ ALUMI(AXA) M8X25 W/LK WASHER 		8-98022-410-0 04 1 0606- ● ●
79 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75) FINAL GEAR RATIO 41/10(GT5) FRT&RR 165R14-8 5JX14(ATC),FRT&RR 185R14-6 5.5JJX14(ATD),FRT&RR 205/65R15 6JJX15 ALUMI(ATE) M8X30 W/LK WASHER 		8-98022-411-0 02 1 0606- ● ●
79 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75) FINAL GEAR RATIO 43/10(S7C) FRT&RR 235/70R15 6JJ ALUMI(AXA) M8X30 W/LK WASHER 		8-98022-411-0 02 1 0606- ● ●
79 BOLT; COVER TO CASE
A/T AISIN(RMD) FINAL GEAR RATIO 41/8(RU1) FRT&RR 235/70R15 6JJ ALUMI(AXA) M8X30 W/LK WASHER 		8-98022-411-0 02 1 0606- ● ●
79 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75) FINAL GEAR RATIO 41/10(GT5) FRT&RR 165R14-8 5JX14(ATC),FRT&RR 185R14-6 5.5JJX14(ATD),FRT&RR 205/65R15 6JJX15 ALUMI(ATE) M8X90 W/LK WASHER 		8-98022-412-0 02 1 0606- ● ●
79 BOLT; COVER TO CASE
M/T MSG 5 SPEED(M75) FINAL GEAR RATIO 43/10(S7C) FRT&RR 235/70R15 6JJ ALUMI(AXA) M8X90 W/LK WASHER 		8-98022-412-0 02 1 0606- ● ●
79 BOLT; COVER TO CASE
A/T AISIN(RMD) FINAL GEAR RATIO 41/8(RU1) FRT&RR 235/70R15 6JJ ALUMI(AXA) M8X90 W/LK WASHER 		8-98022-412-0 02 1 0606- ● ●
79 BOLT; COVER TO CASE
M8X25 W/LK WASHER 		8-97093-664-0 04 1 0008-0106 ● ● ●
79 BOLT; COVER TO CASE
M8X25 W/LK WASHER 		8-97093-664-1 04 1 0107-0605 ● ●
79 BOLT; COVER TO CASE
A/T AISIN(RMD) FINAL GEAR RATIO 43/9(S2J) FRT&RR 165R14-8 5JX14(ATC),FRT&RR 185R14-6 5.5JJX14(ATD),FRT&RR 205/65R15 6JJX15 ALUMI(ATE) M8X25 W/LK WASHER 		8-97093-664-1 04 1 0606- ● ●
79 BOLT; COVER TO CASE
M8X30 W/LK WASHER 		8-97093-665-0 02 1 0008-0106 ● ● ●
79 BOLT; COVER TO CASE
M8X30 W/LK WASHER 		8-97093-665-1 02 1 0107-0605 ● ●
79 BOLT; COVER TO CASE
A/T AISIN(RMD) FINAL GEAR RATIO 43/9(S2J) FRT&RR 165R14-8 5JX14(ATC),FRT&RR 185R14-6 5.5JJX14(ATD),FRT&RR 205/65R15 6JJX15 ALUMI(ATE) M8X30 W/LK WASHER 		8-97093-665-1 02 1 0606- ● ●
79 BOLT; COVER TO CASE
M8X90 W/LK WASHER 		8-97093-666-0 02 1 0008-0106 ● ● ●
79 BOLT; COVER TO CASE
M8X90 W/LK WASHER 		8-97093-666-1 02 1 0107-0605 ● ●
79 BOLT; COVER TO CASE
A/T AISIN(RMD) FINAL GEAR RATIO 43/9(S2J) FRT&RR 165R14-8 5JX14(ATC),FRT&RR 185R14-6 5.5JJX14(ATD),FRT&RR 205/65R15 6JJX15 ALUMI(ATE) M8X90 W/LK WASHER 		8-97093-666-1 02 1 0606- ● ●
