4-10 — FRONT AXLE (#95334) — 48 parça

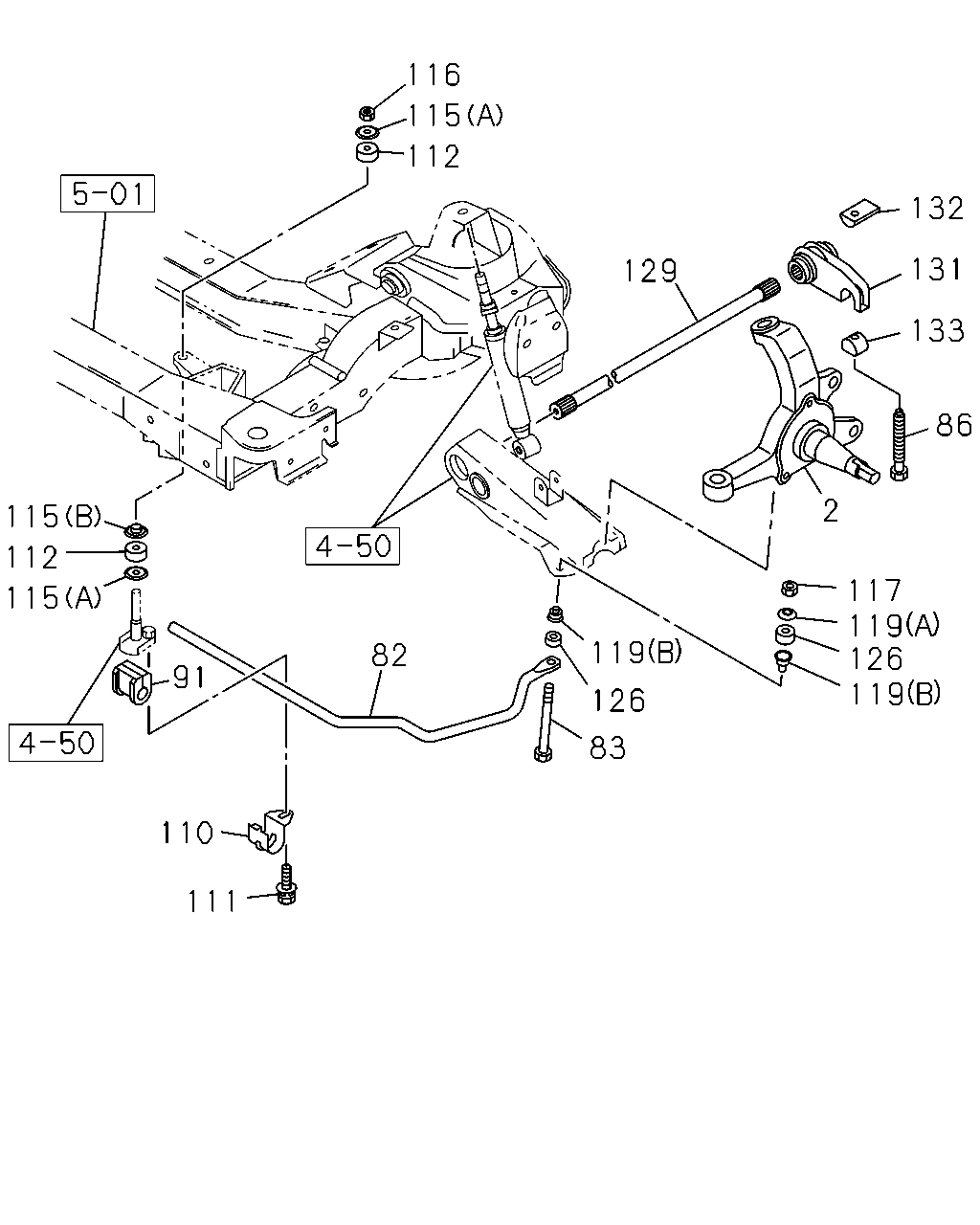

çizim 289310
116 115 112 115 112 115 91 110 111 82 83 126 119 119 126 119 117 2 86 133 131 132 129
BalonParca AdiParca NoAdetTipApplied Date A B C
2 KNUCKLE; FRT AXLE 8-94432-077-2 01 1 0008-0106 ● ● ●
2 KNUCKLE; FRT AXLE 8-94432-077-2 01 1 0107-0112 ● ●
2 KNUCKLE; FRT AXLE
THA 		8-97941-085-0 01 1 0201- ● ●
2 KNUCKLE; FRT AXLE 8-94432-076-2 01 1 0008-0106 ● ● ●
2 KNUCKLE; FRT AXLE 8-94432-076-2 01 1 0107-0112 ● ●
2 KNUCKLE; FRT AXLE
THA 		8-97941-084-0 01 1 0201- ● ●
82 BAR; STAB,FRT SUSP 8-97200-764-0 01 1 0008-0106 ● ● ●
82 BAR; STAB,FRT SUSP 8-97200-764-0 01 1 0107- ● ●
83 BOLT; STAB BAR TO CONT ARM 8-94478-868-0 02 1 0008-0106 ● ● ●
83 BOLT; STAB BAR TO CONT ARM 8-94478-868-0 02 1 0107- ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M14X130 		8-94101-707-0 02 1 0008-0106 ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M14X130 		8-94101-707-0 02 1 0107- ● ●
91 BUSHING; RUBBER,STAB BAR 8-94459-459-2 02 1 0008-0106 ● ● ●
91 BUSHING; RUBBER,STAB BAR 8-94459-459-2 02 1 0107- ● ●
110 CLAMP; STAB TO ROD 8-94322-472-0 02 1 0008-0106 ● ● ●
110 CLAMP; STAB TO ROD 8-94322-472-0 02 1 0107- ● ●
111 BOLT; CLAMP TO ROD
M8X25 W/LK&PL WASHER IDN 		0-50140-825-0 02 1 0008-0106 ● ● ●
111 BOLT; CLAMP TO ROD
M8X25 W/LK&PL WASHER IDN 		0-50140-825-0 02 1 0107-0512 ● ●
111 BOLT; CLAMP TO ROD
M8X25 W/LK&PL WASHER IDN 		0-50640-825-0 02 1 0601- ● ●
112 BUSHING; ROD 8-94143-210-0 04 1 0008-0106 ● ● ●
112 BUSHING; ROD 8-94143-210-0 04 1 0107- ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=10.5 OD=32 		9-51631-048-0 04 1 0008-0106 ● ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=10.5 OD=32 		9-51631-048-0 04 1 0107- ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=15.0 OD=32 		9-51631-049-0 02 1 0008-0106 ● ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=15.0 OD=32 		9-51631-049-0 02 1 0107- ● ●
116 NUT; LK,STAB TO FRAME
M10 		9-09110-410-0 02 1 0008-0106 ● ● ●
116 NUT; LK,STAB TO FRAME
M10 		9-09110-410-0 02 1 0107-0512 ● ●
116 NUT; LK,STAB TO FRAME
M10 		0-91110-510-0 02 1 0601- ● ●
117 NUT; STAB BAR BUSHING
M10 		9-09110-410-0 02 1 0008-0106 ● ● ●
117 NUT; STAB BAR BUSHING
M10 		9-09110-410-0 02 1 0107-0512 ● ●
117 NUT; STAB BAR BUSHING
M10 		0-91110-510-0 02 1 0601- ● ●
119 WASHER; CTR,STAB BAR
(A) ID=10.5 OD=32 		9-51631-048-0 02 1 0008-0106 ● ● ●
119 WASHER; CTR,STAB BAR
(A) ID=10.5 OD=32 		9-51631-048-0 02 1 0107- ● ●
119 WASHER; CTR,STAB BAR
(B) ID=15.0 OD=32 		9-51631-049-0 04 1 0008-0106 ● ● ●
119 WASHER; CTR,STAB BAR
(B) ID=15.0 OD=32 		9-51631-049-0 04 1 0107- ● ●
126 RUBBER; MTG,STAB BAR
IDN 		5-51631-017-0 04 1 0008-0106 ● ● ●
126 RUBBER; MTG,STAB BAR
IDN 		5-51631-017-0 04 1 0107- ● ●
129 BAR; TORSION,FRT SUSP 8-97044-391-0 01 1 0008-0106 ●
129 BAR; TORSION,FRT SUSP 8-97044-390-0 01 1 0008-0106 ●
129 BAR; TORSION,FRT SUSP 8-94459-441-0 01 1 0008- ● ●
129 BAR; TORSION,FRT SUSP 8-94459-440-0 01 1 0008- ● ●
131 ARM; HEIGHT CONT
THA 		8-97915-817-0 02 1 0008-0106 ● ● ●
131 ARM; HEIGHT CONT
THA 		8-97915-817-0 02 1 0107- ● ●
132 COLLAR; TORSION BAR 8-94468-556-2 02 1 0008-0106 ● ● ●
132 COLLAR; TORSION BAR 8-94468-556-2 02 1 0107- ● ●
133 SEAT; TORSION BAR,HEIGHT CONT 8-94367-950-0 02 1 0008-0106 ● ● ●
133 SEAT; TORSION BAR,HEIGHT CONT 8-94367-950-0 02 1 0107-0410 ● ●
133 SEAT; TORSION BAR,HEIGHT CONT
IDN 		8-97562-437-0 02 1 0411- ● ●
