Isuzu WW
▶
AUV
▶
TBR
▶
50823 - TBR(INDONESIA)
▶
3 - Brakes, Brake System
▶

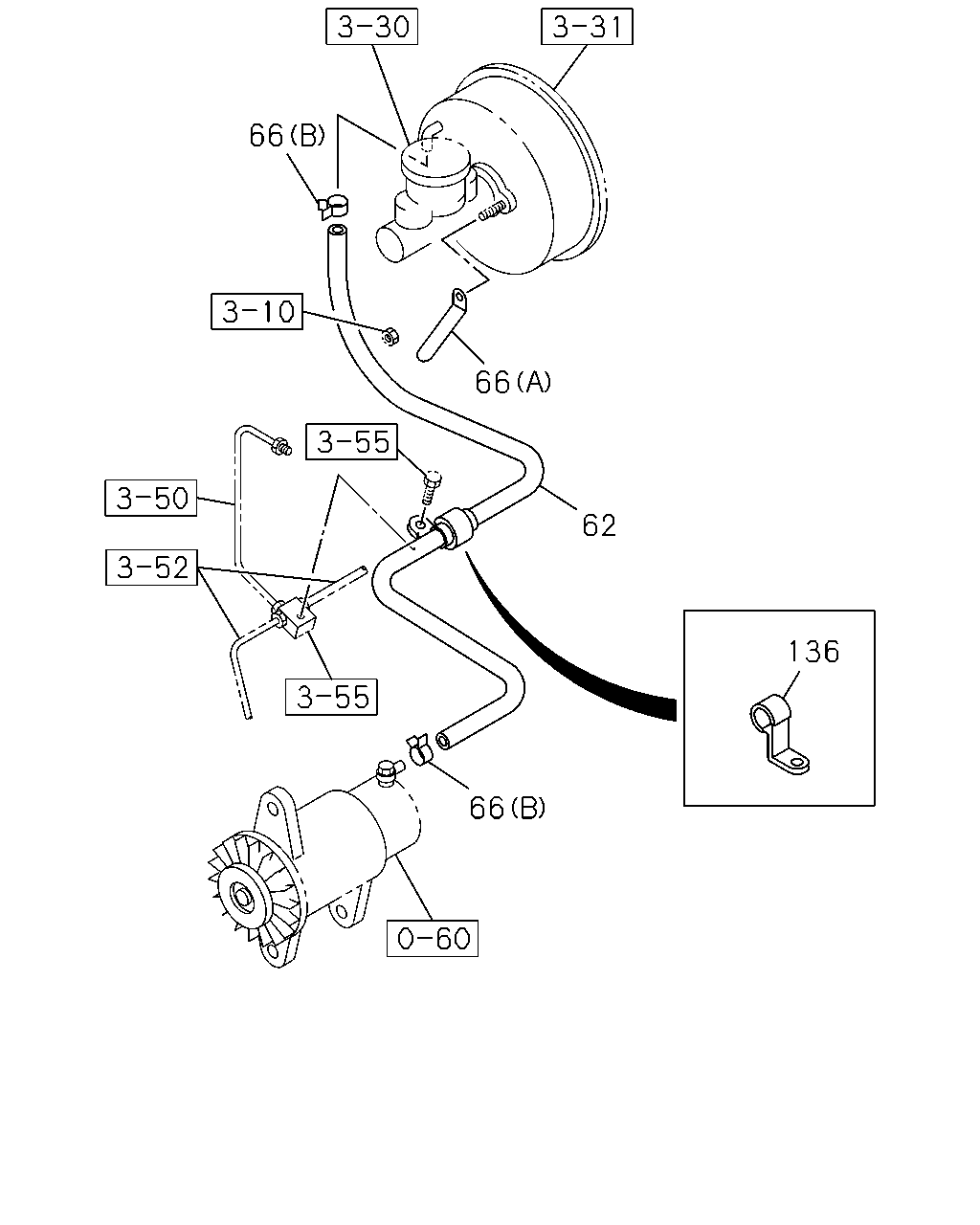

3-60 - BRAKE PIPING; VACUUM
▶
3-60 — BRAKE PIPING; VACUUM
(#95332) — 13 parça
Tümü
A - TBB5SF
B - TBB5VC
C - TBB5VF
66
62
136
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
62
HOSE; VAC,M/VAC TO VAC PUMP
8-97289-368-0
01
1
0008-0008
●
●
●
62
HOSE; VAC,M/VAC TO VAC PUMP
8-97301-143-0
01
1
0009-0106
●
●
●
62
HOSE; VAC,M/VAC TO VAC PUMP
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB)
8-97313-702-1
01
1
0107-0209
●
●
62
HOSE; VAC,M/VAC TO VAC PUMP
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD)
8-97313-702-1
01
1
0210-0405
●
●
62
HOSE; VAC,M/VAC TO VAC PUMP
EXC. CAB UP<W60>
8-97313-702-1
01
1
0406-
●
●
62
HOSE; VAC,M/VAC TO VAC PUMP
GRADE TOURING(RBG)
8-97301-154-2
01
1
0107-0405
●
●
62
HOSE; VAC,M/VAC TO VAC PUMP
CAB UP<W60>
8-97301-154-2
01
1
0406-
●
●
66
CLIP; VAC HOSE,M/VAC
(B) ID=16 IDN
8-94238-568-0
02
1
0008-0106
●
●
●
66
CLIP; VAC HOSE,M/VAC
(B) ID=16 IDN
8-94238-568-0
02
1
0107-
●
●
66
CLIP; VAC HOSE,M/VAC
(A) L=91 ID=8.5
8-94329-956-0
01
1
0008-0106
●
●
●
66
CLIP; VAC HOSE,M/VAC
(A) L=91 ID=8.5
8-94329-956-0
01
1
0107-
●
●
136
CLIP; VAC HOSE
ID=19 H=40 L=25
1-09700-909-0
01
1
0008-0106
●
●
●
136
CLIP; VAC HOSE
ID=19 H=40 L=25
1-09700-909-0
01
1
0107-
●
●
